8-80 — WINDSHIELD WIPER AND WASHER (#73393) — 91 parça

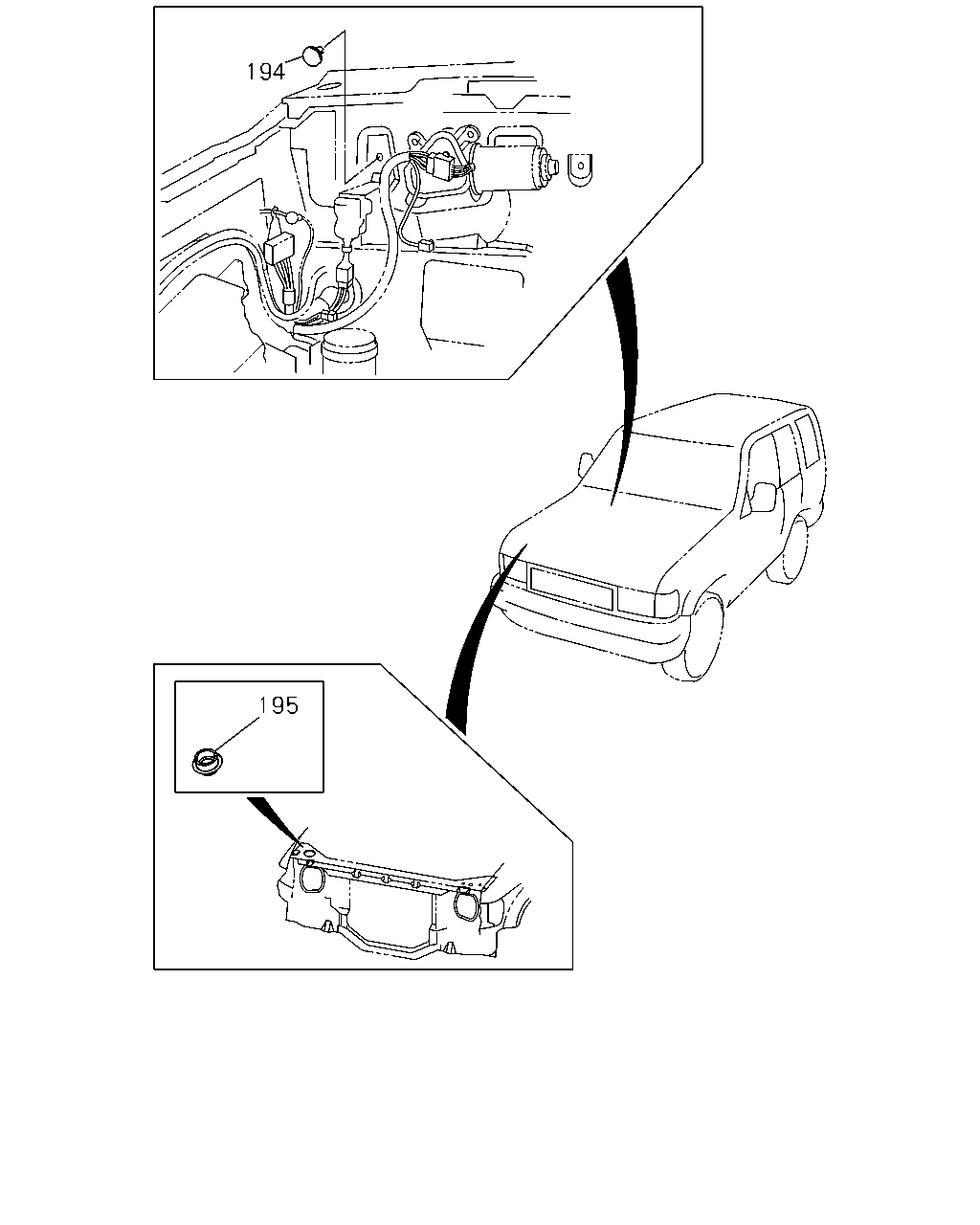

194 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
194	16.065 PLUG; HOLE,CLIP 6VE1 ENG(RJQ) A/T THM(RMQ) EXC. ANTI THEFT<UA6>	8-97807-966-0	01	1	9712-	●	●
194	16.065 PLUG; HOLE,CLIP 6VD1 ENG(RLV) EXC. ANTI THEFT<UA6>	8-97807-966-0	01	1	9712-	●	●
194	16.065 PLUG; HOLE,CLIP ANTI THEFT<UA6>	8-97807-966-0	01	1	9712-	●	●
195	16.065 PROTECTOR; FILLER NECK	8-97114-362-0	01	1	9712-	●	●

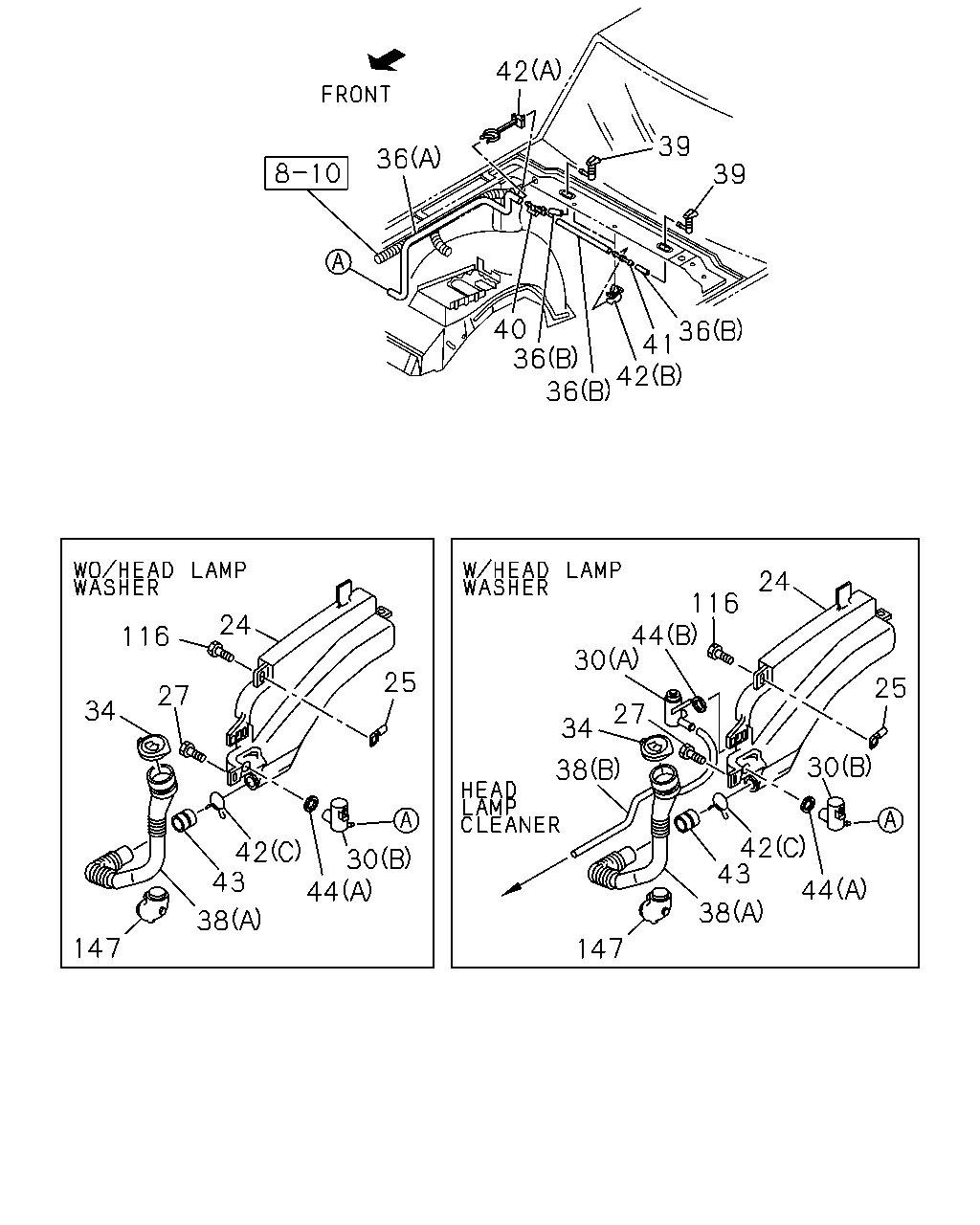

42 39 36 39 40 36 41 36 42 36 24 116 44 24 116 30 25 25 27 34 27 34 30 38 42 43 42 43 30 44 44 38 38 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	16.065 TANK ASM; WASHER HEADLAMP WIPER & WASHER<CE3>	8-97807-517-4	01	1	9712-	●	●
24	16.065 TANK ASM; WASHER EXC. HEADLAMP WIPER & WASHER<CE3>	8-97807-510-4	01	1	9712-	●	●
25	16.065 BRACKET; WASHER TANK	8-97807-513-0	01	1	9712-	●	●
27	16.065 BOLT; WASHER TANK 07.833 M6X14 W/LK&PL WASHER	8-94382-066-1	02	1	9712-	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK (B)	8-97807-511-0	01	1	9712-	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK HEADLAMP WIPER & WASHER<CE3> (A)	8-97807-538-0	01	1	9712-	●	●
34	16.065 CAP; WASHER TANK	8-97807-514-0	01	1	9712-	●	●
36	16.065 HOSE; WASHER 10.155 (B) SERVICED BY L=10000	8-94389-303-0	AR	1	9712-	●	●
36	16.065 HOSE; WASHER (A) L=1260	8-97130-714-0	01	1	9712-	●	●
38	16.065 HOSE; JOINT,TANK (A)	8-94358-854-0	01	1	9712-	●	●
38	16.065 HOSE; JOINT,TANK HEADLAMP WIPER & WASHER<CE3> (B)	8-97807-636-0	01	1	9712-	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97802-674-0	01	1	9712-	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-94358-853-0	01	1	9712-	●	●
40	16.065 JOINT; WASHER HOSE	8-97807-498-0	01	1	9712-	●	●
41	16.065 VALVE; CHECK,WASHER TANK	8-97807-499-0	01	1	9712-	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (A) L=46	8-94154-654-1	01	1	9712-	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (B) ID=5.8 L=8	8-94155-681-0	02	1	9712-	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97807-516-3	01	1	9712-	●	●
43	16.065 RUBBER; GASKET,TANK	8-97807-515-0	01	1	9712-	●	●
44	16.065 GASKET; MOTOR TO TANK (A)	8-97807-512-0	01	1	9712-	●	●
44	16.065 GASKET; MOTOR TO TANK HEADLAMP WIPER & WASHER<CE3> 10.154 (B)	8-94352-050-0	01	1	9712-	●	●
116	16.065 SCREW; TANK TO BRKT	8-97807-451-0	01	1	9712-0010	●	●
116	16.065 SCREW; TANK TO BRKT 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0011-	●	●
147	16.065 PROTECTOR; WASHER TANK	8-97807-637-0	01	1	9712-0010	●	●

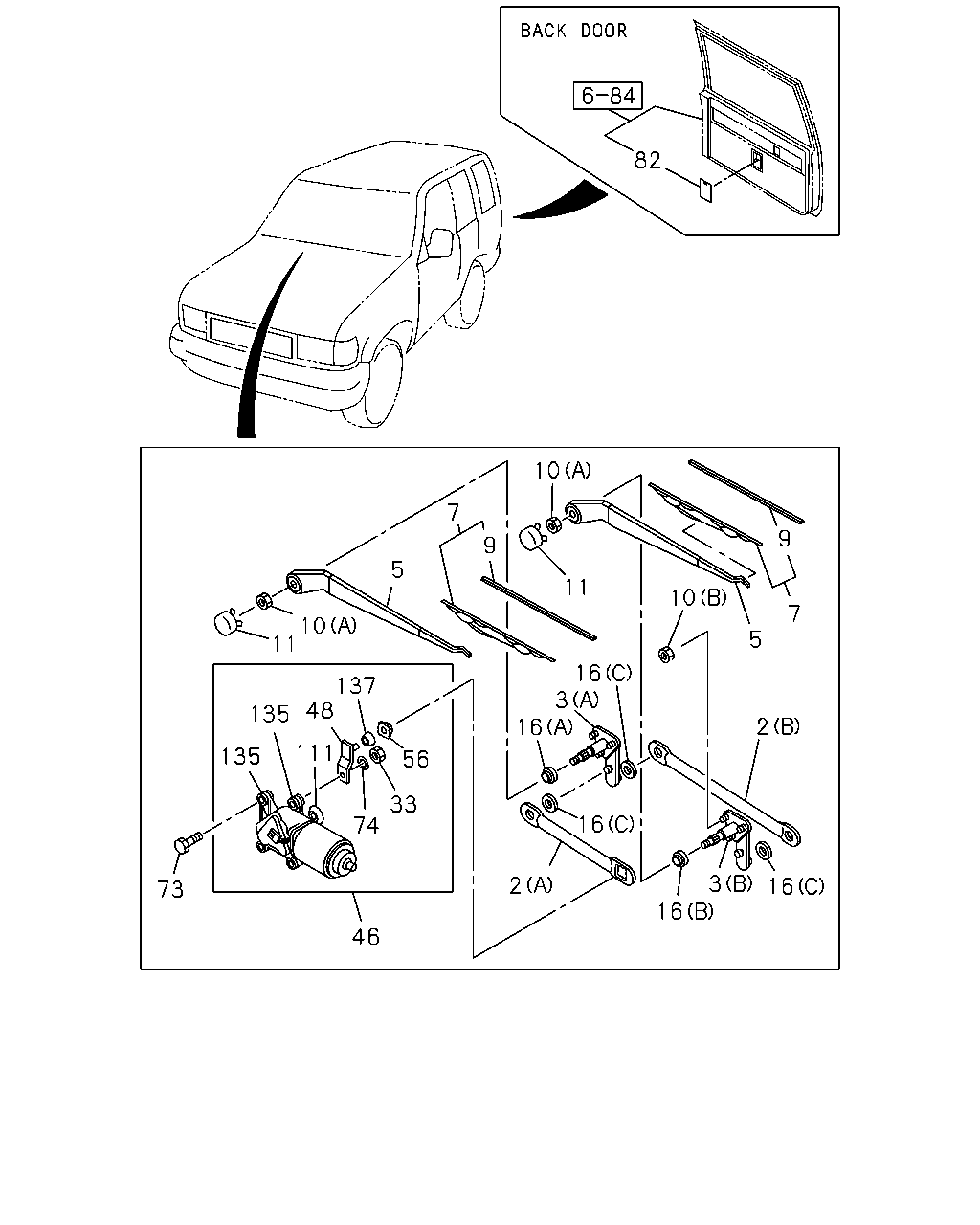

82 10 7 9 9 5 11 7 10 10 11 5 16 3 16 137 48 135 2 111 135 56 33 16 74 3 16 2 16 73 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.063 LINK; FRT WIPER (A)	8-97807-520-0	01	1	9712-0212	●	●
2	16.063 LINK; FRT WIPER (A)	8-97360-610-0	01	1	0301-	●	●
2	16.063 LINK; FRT WIPER (B)	8-97807-523-0	01	1	9712-0212	●	●
2	16.063 LINK; FRT WIPER (B)	8-97360-611-0	01	1	0301-	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97178-292-0	01	1	9712-0212	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97360-605-0	01	1	0301-	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97807-522-0	01	1	9712-0212	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97360-606-0	01	1	0301-	●	●
5	16.063 ARM; WIPER EUROPE EQUIPMENT(EK4)	8-97808-695-1	01	1	9712-0002	●	●
5	16.063 ARM; WIPER	8-97808-695-1	01	1	0003-0003	●	●
5	16.063 ARM; WIPER	8-97254-658-0	01	1	0004-	●	●
5	16.063 ARM; WIPER EUROPE EQUIPMENT(EK4)	8-97808-693-1	01	1	9712-0002	●	●
5	16.063 ARM; WIPER	8-97808-693-1	01	1	0003-0003	●	●
5	16.063 ARM; WIPER	8-97254-655-0	01	1	0004-	●	●
5	16.063 ARM; WIPER EXC. EUROPE EQUIPMENT(EK4)	8-97139-595-1	01	1	9712-0002	●	●
5	16.063 ARM; WIPER EXC. EUROPE EQUIPMENT(EK4)	8-97139-593-1	01	1	9712-0002	●	●
7	16.062 BLADE; WIPER EUROPE EQUIPMENT(EK4) L=500	8-97134-563-0	01	1	9712-0002	●	●
7	16.062 BLADE; WIPER L=500	8-97134-563-0	01	1	0003-0003	●	●
7	16.062 BLADE; WIPER L=500	8-97254-763-0	01	1	0004-	●	●
7	16.062 BLADE; WIPER EUROPE EQUIPMENT(EK4) L=500	8-97134-562-0	01	1	9712-0002	●	●
7	16.062 BLADE; WIPER L=500	8-97134-562-0	01	1	0003-0003	●	●
7	16.062 BLADE; WIPER L=500	8-97254-762-0	01	1	0004-	●	●
7	16.062 BLADE; WIPER EXC. EUROPE EQUIPMENT(EK4) L=500	8-97139-626-0	02	1	9712-0002	●	●
9	16.062 RUBBER; FRT WIPER BLADE EUROPE EQUIPMENT(EK4) L=500	8-97807-965-0	01	1	9712-0002	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=500	8-97807-965-0	01	1	0003-0003	●	●
9	16.062 RUBBER; FRT WIPER BLADE	8-97257-976-0	01	1	0004-	●	●
9	16.062 RUBBER; FRT WIPER BLADE EUROPE EQUIPMENT(EK4) L=500	8-97807-964-0	01	1	9712-0002	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=500	8-97807-964-0	01	1	0003-0003	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=500	8-97257-975-0	01	1	0004-	●	●
9	16.062 RUBBER; FRT WIPER BLADE EXC. EUROPE EQUIPMENT(EK4) L=500	8-97178-835-0	02	1	9712-0002	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 07.347 (A) M10 FLANGE	8-94144-220-0	02	1	9712-	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	06	1	9712-	●	●
11	16.063 COVER; WIPER ARM	8-97148-349-0	02	1	9712-	●	●
16	16.063 SEAL; BALL JOINT 10.159 (C)	8-97025-889-0	03	1	9712-0105	●	●
16	16.063 SEAL; BALL JOINT 10.159 (C)	8-97025-889-0	03	1	0106-	●	●
16	16.063 SEAL; BALL JOINT 10.159 (A)	8-94377-722-0	01	1	9712-	●	●
16	16.063 SEAL; BALL JOINT (B)	8-97178-228-0	01	1	9712-	●	●
33	16.064 NUT; MOTOR TO ARM 00.787 M8	9-09111-408-0	01	1	9712-	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-94358-838-2	01	1	9712-0212	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-97360-028-0	01	1	0301-	●	●
48	16.063 ARM; WIPER MOTOR 02.780	8-97807-638-0	01	1	9712-0212	●	●
48	16.063 ARM; WIPER MOTOR	8-97360-614-0	01	1	0301-	●	●
56	16.063 JOINT; OUTER,WIPER MOTOR 10.151	8-94323-719-0	01	1	9712-	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-97164-266-0	04	1	9712-	●	●
74	16.063 WASHER; ARM TO MOTOR 00.002 ID=8.2	9-09150-508-0	01	1	9712-	●	●
82	16.067 LID; WASHER TANK DARK GRAY	8-97098-644-2	01	1	9712-9908	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97098-644-3	01	1	9909-0004	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97098-644-3	01	1	0005-0005	●
82	16.067 LID; WASHER TANK INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97098-644-3	01	1	0005-0005		●
82	16.067 LID; WASHER TANK INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97098-644-4	01	1	0006-0105	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97098-644-4	01	1	0106-	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97290-900-3	01	1	9909-0004	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) LIGHT BEIGE	8-97290-900-3	01	1	0005-0005	●
82	16.067 LID; WASHER TANK INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. 3RD SEAT 7 PASSENGERS(AS3) LIGHT BEIGE	8-97290-900-3	01	1	0005-0005		●
82	16.067 LID; WASHER TANK INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97290-900-4	01	1	0006-0105	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97290-900-4	01	1	0106-		●
82	16.067 LID; WASHER TANK INTERIOR COLOR BEIGE(181) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) LIGHT BEIGE	8-97296-256-0	01	1	0005-0005	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR BEIGE(181) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) LIGHT BEIGE	8-97296-256-0	01	1	0005-0005		●
82	16.067 LID; WASHER TANK INTERIOR COLOR MEDIUM GRAY(113) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97296-255-0	01	1	0005-0005	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR MEDIUM GRAY(113) 3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97296-255-0	01	1	0005-0005		●
111	16.064 SEAL; FRT WIPER MOTOR TO BRKT 10.152	8-94387-086-0	01	1	9712-	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR 10.152	8-94387-088-0	04	1	9712-	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.151	8-94167-624-0	01	1	9712-	●	●
