Sayfa 8-78 - Isuzu EPC

8-78 — COOLER KIT (#73392) — 592 parça

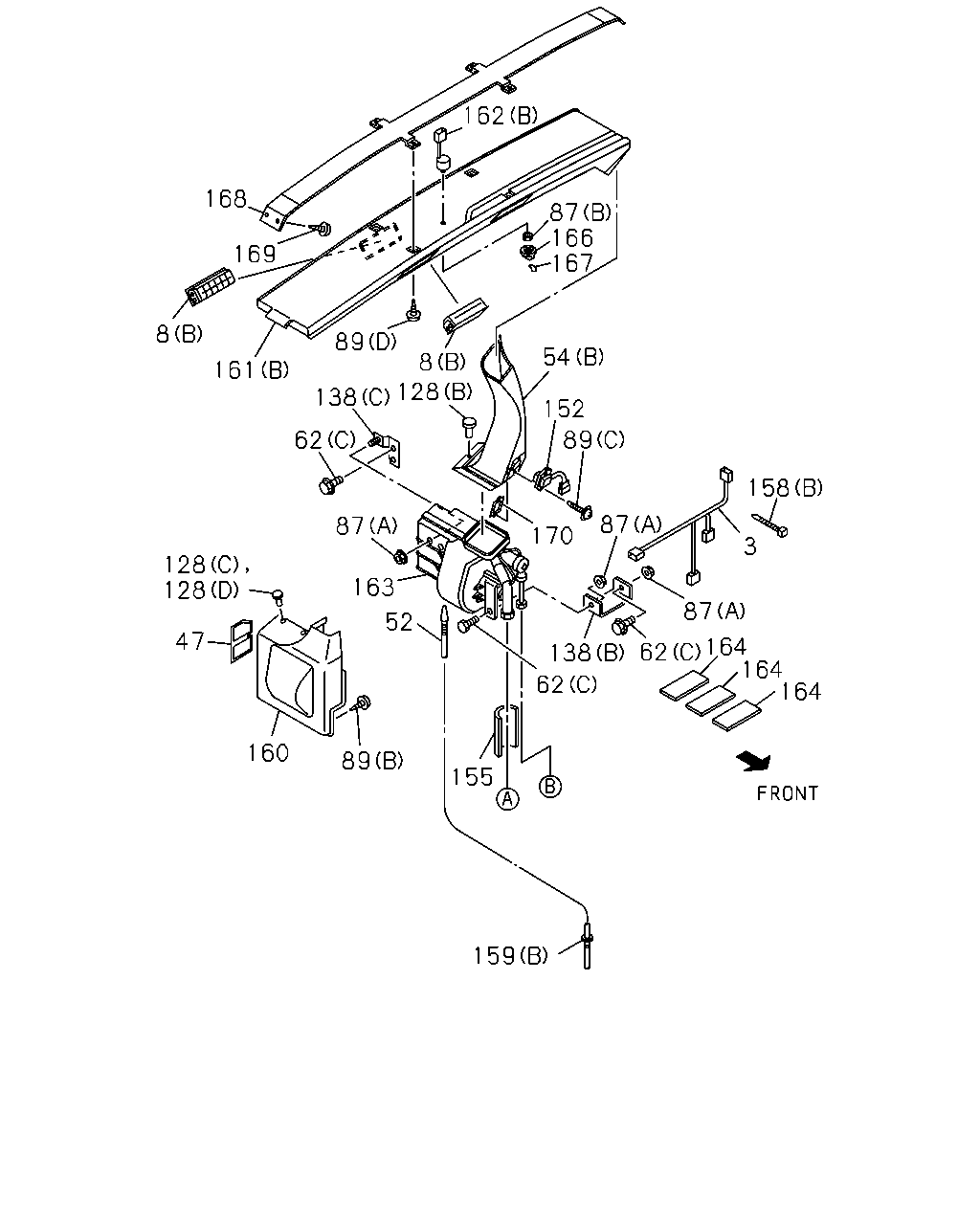

162 168 87 166 167 169 8 89 54 8 128 138 161 152 89 62 158 87 87 170 3 128 128 163 87 52 47 164 62 164 164 138 62 160 89 155 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.852 HARNESS; WIRE,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0209-
3	08.852 HARNESS; WIRE,A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0003-0208
3	08.852 HARNESS; WIRE,A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0209-
3	08.852 HARNESS; WIRE,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0209-
8	09.273 GRILLE ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B)	8-94340-920-0	04	1	0209-
8	09.273 GRILLE ASM; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-827-0	03	1	0003-
47	09.170 FILTER; AIR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0209-
47	09.170 FILTER; AIR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97248-916-0	01	1	0209-
47	09.170 FILTER; AIR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0003-0208
47	09.170 FILTER; AIR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0209-
52	09.290 HOSE; DRAIN,A/C PIPING 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0209-
52	09.290 HOSE; DRAIN,A/C PIPING 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0003-0208
52	09.290 HOSE; DRAIN,A/C PIPING 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0209-
52	09.290 HOSE; DRAIN,A/C PIPING 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0209-
54	09.262 DUCT; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-028-0	01	1	0209-
54	09.262 DUCT; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-029-0	01	1	0209-
54	09.262 DUCT; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-825-1	01	1	0003-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0003-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0003-0010
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0011-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0003-0208
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0209-
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0003-0208
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0209-
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0003-0208
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (D)	8-97235-035-0	02	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0003-0010
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0011-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	02	1	0011-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0209-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-835-0	03	1	0209-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (D)	8-97248-917-0	03	1	0209-
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-833-0	03	1	0003-
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0003-0208
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0209-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0209-
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-835-0	03	1	0003-0208
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-835-0	03	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-309-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0003-
152	09.276 RESISTOR; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0209-
152	09.276 RESISTOR; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0003-0208
152	09.276 RESISTOR; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0209-
152	09.276 RESISTOR; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0209-
155	09.262 INSULATOR; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0209-
155	09.262 INSULATOR; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0003-0208
155	09.262 INSULATOR; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0209-
155	09.262 INSULATOR; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0003-0208
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
160	09.262 COVER ASM; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0209-
160	09.262 COVER ASM; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97235-031-0	01	1	0209-
160	09.262 COVER ASM; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0003-0208
160	09.262 COVER ASM; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0209-
161	09.262 DUCT ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-025-0	01	1	0209-
161	09.262 DUCT ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-027-0	01	1	0209-
161	09.262 DUCT ASM; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-824-0	01	1	0003-
162	09.273 SWITCH; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B)	8-97235-033-0	01	1	0209-
162	09.273 SWITCH; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-828-0	01	1	0003-
163	09.226 COOLING UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
163	09.226 COOLING UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0003-0208
163	09.226 COOLING UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
163	09.226 COOLING UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
164	09.262 LINING; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0209-
164	09.262 LINING; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0003-0208
164	09.262 LINING; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0209-
164	09.262 LINING; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0209-
166	09.262 KNOB; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0209-
166	09.262 KNOB; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0003-0208
166	09.262 KNOB; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0209-
166	09.262 KNOB; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0209-
167	09.273 PANEL; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0209-
167	09.273 PANEL; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0003-0208
167	09.273 PANEL; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0209-
167	09.273 PANEL; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0209-
168	09.262 STAY; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL>	8-97235-034-0	01	1	0209-
169	09.262 SCREW; TAPPING,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL>	8-94148-753-0	04	1	0209-
170	09.692 PLATE; RESISTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 09.262	8-97231-808-0	01	1	0209-

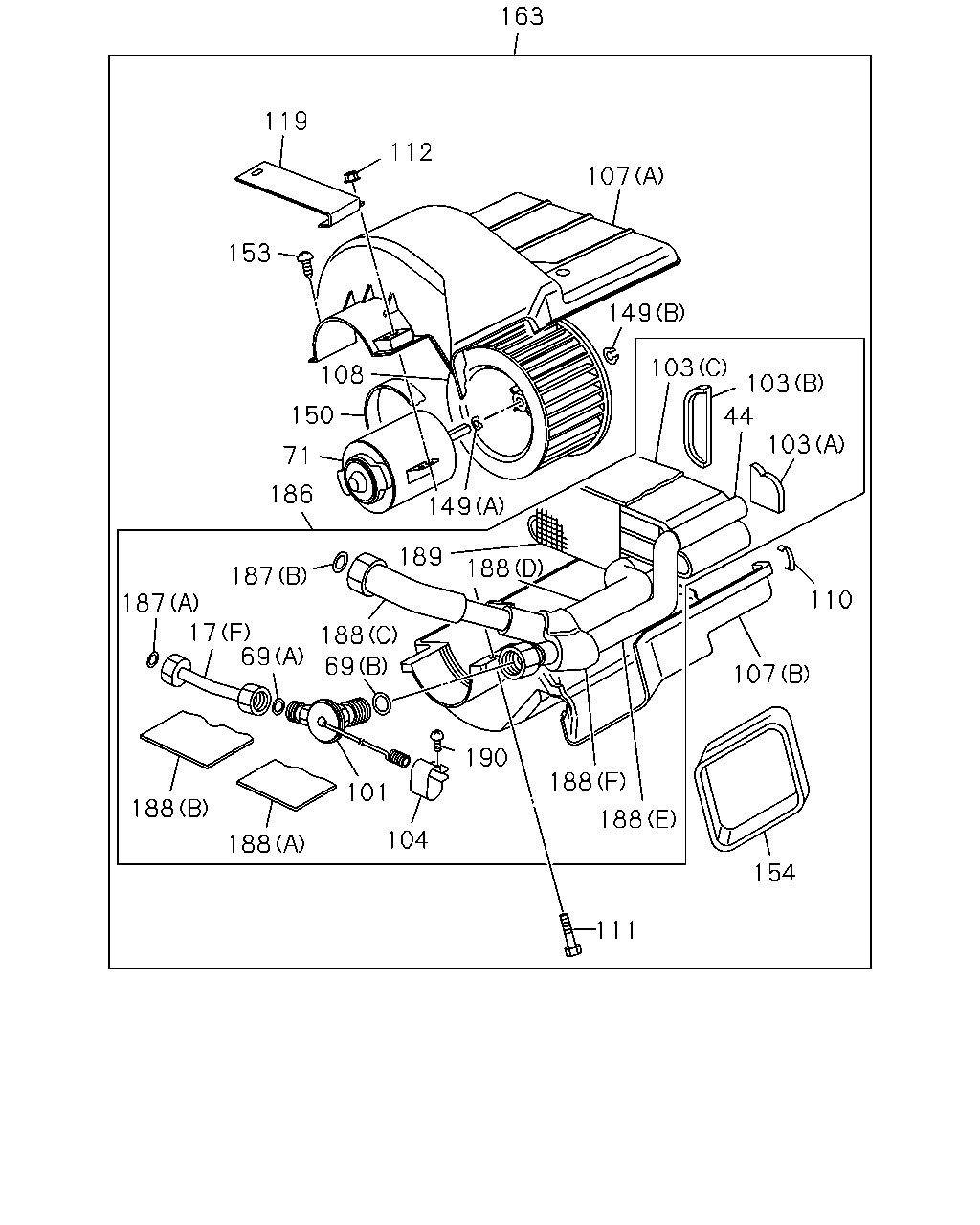

163 119 112 107 153 149 103 108 103 150 44 103 71 186 149 189 188 187 110 187 17 69 188 69 107 190 188 101 188 188 104 188 154 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-554-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97210-556-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (C)	8-97210-557-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0106-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97212-294-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97212-296-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-297-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0003-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0003-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-554-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97210-556-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97210-557-0	01	1	0003-
44	09.211 EVAPORATOR; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-898-0	01	1	0209-
44	09.211 EVAPORATOR; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-898-0	01	1	0106-0208
44	09.211 EVAPORATOR; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-898-0	01	1	0209-
44	09.211 EVAPORATOR; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-898-0	01	1	0209-
69	09.260 GASKET; VLV 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.195 (A) ID=6.07	8-94461-902-0	01	1	0209-
69	09.260 GASKET; VLV 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214 (B)	8-94481-717-0	01	1	0209-
69	09.260 GASKET; VLV 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.195 (A) ID=6.07	8-94461-902-0	01	1	0106-0208
69	09.260 GASKET; VLV 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.195 (A) ID=6.07	8-94461-902-0	01	1	0209-
69	09.260 GASKET; VLV 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.195 (A) ID=6.07	8-94461-902-0	01	1	0209-
69	09.260 GASKET; VLV 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214 (B)	8-94481-717-0	01	1	0106-0208
69	09.260 GASKET; VLV 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214 (B)	8-94481-717-0	01	1	0209-
69	09.260 GASKET; VLV 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.214 (B)	8-94481-717-0	01	1	0209-
71	09.215 MOTOR ASM; FAN 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-912-0	01	1	0209-
71	09.215 MOTOR ASM; FAN 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-912-0	01	1	0106-0208
71	09.215 MOTOR ASM; FAN 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-912-0	01	1	0209-
71	09.215 MOTOR ASM; FAN 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-912-0	01	1	0209-
101	09.262 VALVE; EXPANSION 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-899-0	01	1	0209-
101	09.262 VALVE; EXPANSION 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-899-0	01	1	0106-0208
101	09.262 VALVE; EXPANSION 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-899-0	01	1	0209-
101	09.262 VALVE; EXPANSION 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-899-0	01	1	0209-
103	09.211 LINING; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97252-904-0	02	1	0209-
103	09.211 LINING; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97252-905-0	01	1	0209-
103	09.211 LINING; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97252-906-0	01	1	0209-
103	09.211 LINING; EVAPORATOR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97252-904-0	02	1	0106-0208
103	09.211 LINING; EVAPORATOR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97252-904-0	02	1	0209-
103	09.211 LINING; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97252-904-0	02	1	0209-
103	09.211 LINING; EVAPORATOR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97252-905-0	01	1	0106-0208
103	09.211 LINING; EVAPORATOR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97252-905-0	01	1	0209-
103	09.211 LINING; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97252-905-0	01	1	0209-
103	09.211 LINING; EVAPORATOR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97252-906-0	01	1	0106-0208
103	09.211 LINING; EVAPORATOR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97252-906-0	01	1	0209-
103	09.211 LINING; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (C)	8-97252-906-0	01	1	0209-
104	09.262 CLIP; EXPANSION VLV 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	1-83574-214-0	01	1	0209-
104	09.262 CLIP; EXPANSION VLV 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	1-83574-214-0	01	1	0106-0208
104	09.262 CLIP; EXPANSION VLV 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	1-83574-214-0	01	1	0209-
104	09.262 CLIP; EXPANSION VLV 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.214	1-83574-214-0	01	1	0209-
107	09.215 CASE; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97252-894-0	01	1	0209-
107	09.215 CASE; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97252-895-0	01	1	0209-
107	09.215 CASE; BLOWER UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97252-894-0	01	1	0106-0208
107	09.215 CASE; BLOWER UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97252-894-0	01	1	0209-
107	09.215 CASE; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97252-894-0	01	1	0209-
107	09.215 CASE; BLOWER UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97252-895-0	01	1	0106-0208
107	09.215 CASE; BLOWER UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97252-895-0	01	1	0209-
107	09.215 CASE; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97252-895-0	01	1	0209-
108	09.290 IMPELLER; FAN MOTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-896-0	01	1	0209-
108	09.290 IMPELLER; FAN MOTOR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-896-0	01	1	0106-0208
108	09.290 IMPELLER; FAN MOTOR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-896-0	01	1	0209-
108	09.290 IMPELLER; FAN MOTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-896-0	01	1	0209-
110	09.216 CLIP; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	5-09709-026-0	04	1	0209-
110	09.216 CLIP; BLOWER UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	5-09709-026-0	04	1	0106-0208
110	09.216 CLIP; BLOWER UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	5-09709-026-0	04	1	0209-
110	09.216 CLIP; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846	5-09709-026-0	04	1	0209-
111	09.216 BOLT; CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	1-15729-920-0	01	1	0209-
111	09.216 BOLT; CASE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	1-15729-920-0	01	1	0106-0208
111	09.216 BOLT; CASE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	1-15729-920-0	01	1	0209-
111	09.216 BOLT; CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	1-15729-920-0	01	1	0209-
112	09.216 NUT; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0209-
112	09.216 NUT; BLOWER UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0106-0208
112	09.216 NUT; BLOWER UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0209-
112	09.216 NUT; BLOWER UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0209-
119	09.216 BRACKET; BLOWER 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-909-0	01	1	0209-
119	09.216 BRACKET; BLOWER 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-909-0	01	1	0106-0208
119	09.216 BRACKET; BLOWER 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-909-0	01	1	0209-
119	09.216 BRACKET; BLOWER 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-909-0	01	1	0209-
149	09.216 RING; SNAP,FAN MOTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.857 (A)	5-83569-088-0	01	1	0209-
149	09.216 RING; SNAP,FAN MOTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.857 (B)	8-94243-962-0	01	1	0209-
149	09.216 RING; SNAP,FAN MOTOR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.857 (A)	5-83569-088-0	01	1	0106-0208
149	09.216 RING; SNAP,FAN MOTOR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.857 (A)	5-83569-088-0	01	1	0209-
149	09.216 RING; SNAP,FAN MOTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.857 (A)	5-83569-088-0	01	1	0209-
149	09.216 RING; SNAP,FAN MOTOR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.857 (B)	8-94243-962-0	01	1	0106-0208
149	09.216 RING; SNAP,FAN MOTOR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.857 (B)	8-94243-962-0	01	1	0209-
149	09.216 RING; SNAP,FAN MOTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.857 (B)	8-94243-962-0	01	1	0209-
150	09.216 ISOLATOR; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-911-0	01	1	0209-
150	09.216 ISOLATOR; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-911-0	01	1	0106-0208
150	09.216 ISOLATOR; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-911-0	01	1	0209-
150	09.216 ISOLATOR; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-911-0	01	1	0209-
153	09.216 SCREW; TAPPING,BLOWER 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 M4X16	8-94324-850-0	02	1	0209-
153	09.216 SCREW; TAPPING,BLOWER 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 M4X16	8-94324-850-0	02	1	0106-0208
153	09.216 SCREW; TAPPING,BLOWER 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 M4X16	8-94324-850-0	02	1	0209-
153	09.216 SCREW; TAPPING,BLOWER 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.852 M4X16	8-94324-850-0	02	1	0209-
154	09.216 LINING; BLOWER 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-910-0	01	1	0209-
154	09.216 LINING; BLOWER 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-910-0	01	1	0106-0208
154	09.216 LINING; BLOWER 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-910-0	01	1	0209-
154	09.216 LINING; BLOWER 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-910-0	01	1	0209-
163	09.226 COOLING UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
163	09.226 COOLING UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0003-0208
163	09.226 COOLING UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
163	09.226 COOLING UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
186	09.215 EVAPORATOR ASM; COOLER KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-897-0	01	1	0209-
186	09.215 EVAPORATOR ASM; COOLER KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-897-0	01	1	0106-0208
186	09.215 EVAPORATOR ASM; COOLER KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-897-0	01	1	0209-
186	09.215 EVAPORATOR ASM; COOLER KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-897-0	01	1	0209-
187	09.260 GASKET; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.195 (A)	8-97161-776-0	01	1	0209-
187	09.260 GASKET; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.225 (B) ID=18.3	8-97161-778-0	01	1	0209-
187	09.260 GASKET; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.195 (A)	8-97161-776-0	01	1	0106-0208
187	09.260 GASKET; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.195 (A)	8-97161-776-0	01	1	0209-
187	09.260 GASKET; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.195 (A)	8-97161-776-0	01	1	0209-
187	09.260 GASKET; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.225 (B) ID=18.3	8-97161-778-0	01	1	0106-0208
187	09.260 GASKET; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.225 (B) ID=18.3	8-97161-778-0	01	1	0209-
187	09.260 GASKET; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.225 (B) ID=18.3	8-97161-778-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214 (A)	1-83579-784-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.211 (B) T=3.0	5-83569-104-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97252-901-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (D)	8-97252-902-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (E)	8-97252-903-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-907-0	01	1	0209-
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214 (A)	1-83579-784-0	01	1	0106-0208
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214 (A)	1-83579-784-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.214 (A)	1-83579-784-0	01	1	0209-
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.211 (B) T=3.0	5-83569-104-0	01	1	0106-0208
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.211 (B) T=3.0	5-83569-104-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.211 (B) T=3.0	5-83569-104-0	01	1	0209-
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97252-901-0	01	1	0106-0208
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97252-901-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (C)	8-97252-901-0	01	1	0209-
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (D)	8-97252-902-0	01	1	0106-0208
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (D)	8-97252-902-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (D)	8-97252-902-0	01	1	0209-
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (E)	8-97252-903-0	01	1	0106-0208
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (E)	8-97252-903-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (E)	8-97252-903-0	01	1	0209-
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-907-0	01	1	0106-0208
188	09.216 INSULATOR; PIPE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-907-0	01	1	0209-
188	09.216 INSULATOR; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (F)	8-97252-907-0	01	1	0209-
189	09.215 ELIMINATOR; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-908-0	02	1	0209-
189	09.215 ELIMINATOR; EVAPORATOR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-908-0	01	1	0106-0208
189	09.215 ELIMINATOR; EVAPORATOR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL>	8-97252-908-0	01	1	0209-
189	09.215 ELIMINATOR; EVAPORATOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL>	8-97252-908-0	01	1	0209-
190	09.216 SCREW; TAPPING,CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	8-97130-601-0	01	1	0209-
190	09.216 SCREW; TAPPING,CLIP 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	8-97130-601-0	01	1	0106-0208
190	09.216 SCREW; TAPPING,CLIP 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	8-97130-601-0	01	1	0209-
190	09.216 SCREW; TAPPING,CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.214	8-97130-601-0	01	1	0209-

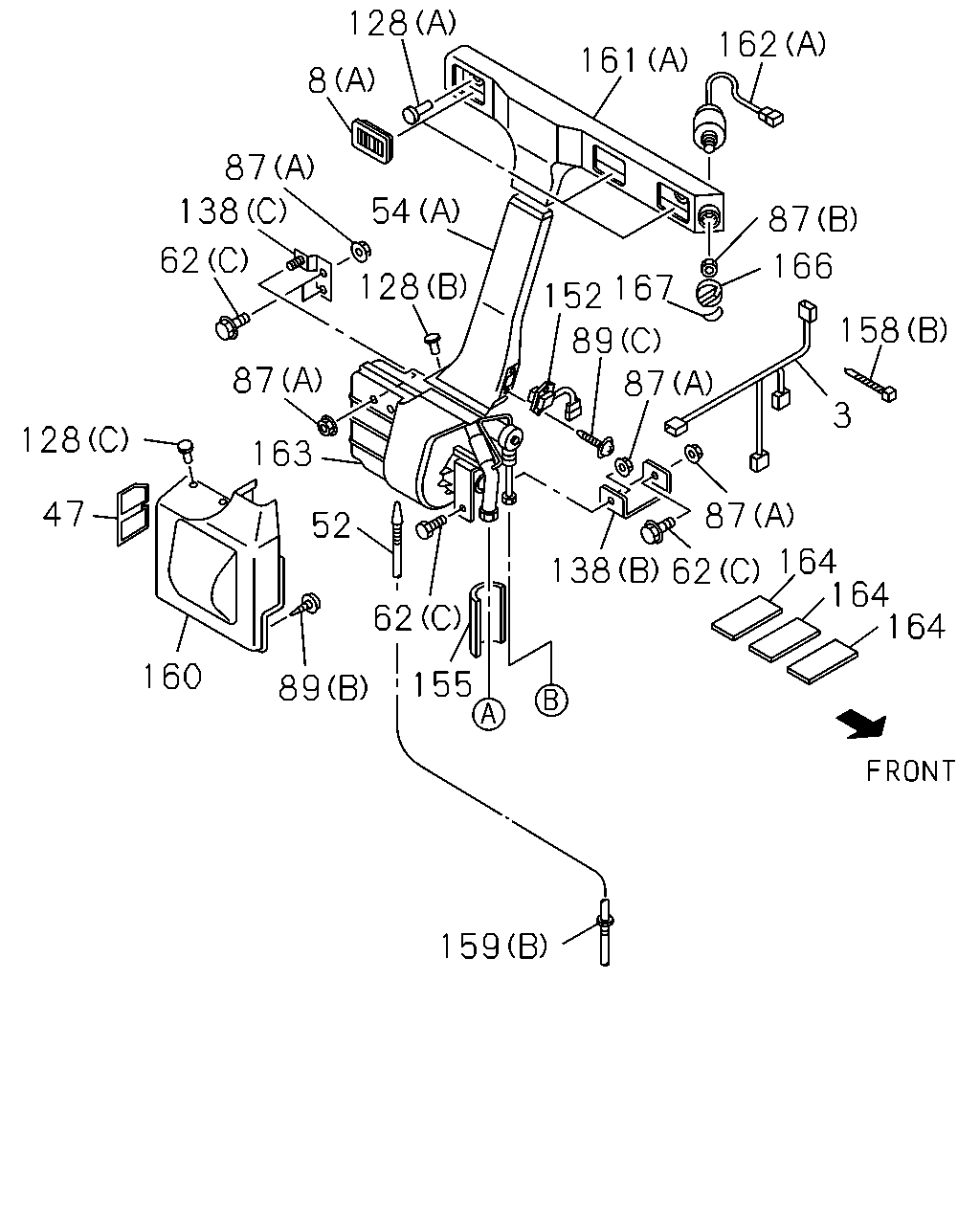

128 162 161 8 87 138 54 87 62 128 166 167 152 158 89 87 87 3 163 128 47 87 52 164 164 164 62 160 155 89 159 138 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.852 HARNESS; WIRE,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0209-
3	08.852 HARNESS; WIRE,A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0003-0208
3	08.852 HARNESS; WIRE,A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0209-
3	08.852 HARNESS; WIRE,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846	8-97205-832-1	01	1	0209-
8	09.273 GRILLE ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B)	8-94340-920-0	04	1	0209-
8	09.273 GRILLE ASM; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-827-0	03	1	0003-
47	09.170 FILTER; AIR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0209-
47	09.170 FILTER; AIR 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97248-916-0	01	1	0209-
47	09.170 FILTER; AIR 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0003-0208
47	09.170 FILTER; AIR 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-830-0	01	1	0209-
52	09.290 HOSE; DRAIN,A/C PIPING 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0209-
52	09.290 HOSE; DRAIN,A/C PIPING 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0003-0208
52	09.290 HOSE; DRAIN,A/C PIPING 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0209-
52	09.290 HOSE; DRAIN,A/C PIPING 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846	8-97205-841-1	01	1	0209-
54	09.262 DUCT; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-028-0	01	1	0209-
54	09.262 DUCT; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-029-0	01	1	0209-
54	09.262 DUCT; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-825-1	01	1	0003-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0003-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0003-0010
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0011-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0003-0208
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0209-
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0003-0208
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 07.829 (A) M6 FLANGE	5-09440-004-0	05	1	0209-
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0003-0208
87	09.169 NUT; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0209-
87	09.169 NUT; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-836-0	01	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (D)	8-97235-035-0	02	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0003-0010
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0011-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	02	1	0011-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0209-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-835-0	03	1	0209-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (D)	8-97248-917-0	03	1	0209-
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-833-0	03	1	0003-
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0003-0208
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0209-
128	09.262 RIVET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-834-0	01	1	0209-
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-835-0	03	1	0003-0208
128	09.262 RIVET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-835-0	03	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-309-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0003-
152	09.276 RESISTOR; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0209-
152	09.276 RESISTOR; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0003-0208
152	09.276 RESISTOR; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0209-
152	09.276 RESISTOR; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97205-831-0	01	1	0209-
155	09.262 INSULATOR; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0209-
155	09.262 INSULATOR; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0003-0208
155	09.262 INSULATOR; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0209-
155	09.262 INSULATOR; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.214	5-83579-024-0	01	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0003-0208
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
160	09.262 COVER ASM; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0209-
160	09.262 COVER ASM; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97235-031-0	01	1	0209-
160	09.262 COVER ASM; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0003-0208
160	09.262 COVER ASM; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-826-1	01	1	0209-
161	09.262 DUCT ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97235-025-0	01	1	0209-
161	09.262 DUCT ASM; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97235-027-0	01	1	0209-
161	09.262 DUCT ASM; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.847 (A)	8-97205-824-0	01	1	0003-
162	09.273 SWITCH; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B)	8-97235-033-0	01	1	0209-
162	09.273 SWITCH; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (A)	8-97205-828-0	01	1	0003-
163	09.226 COOLING UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
163	09.226 COOLING UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0003-0208
163	09.226 COOLING UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
163	09.226 COOLING UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97205-823-0	01	1	0209-
164	09.262 LINING; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0209-
164	09.262 LINING; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0003-0208
164	09.262 LINING; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0209-
164	09.262 LINING; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97209-109-0	03	1	0209-
166	09.262 KNOB; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0209-
166	09.262 KNOB; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0003-0208
166	09.262 KNOB; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0209-
166	09.262 KNOB; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 09.787	8-97061-917-0	01	1	0209-
167	09.273 PANEL; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0209-
167	09.273 PANEL; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0003-0208
167	09.273 PANEL; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0209-
167	09.273 PANEL; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845	8-97205-829-0	01	1	0209-

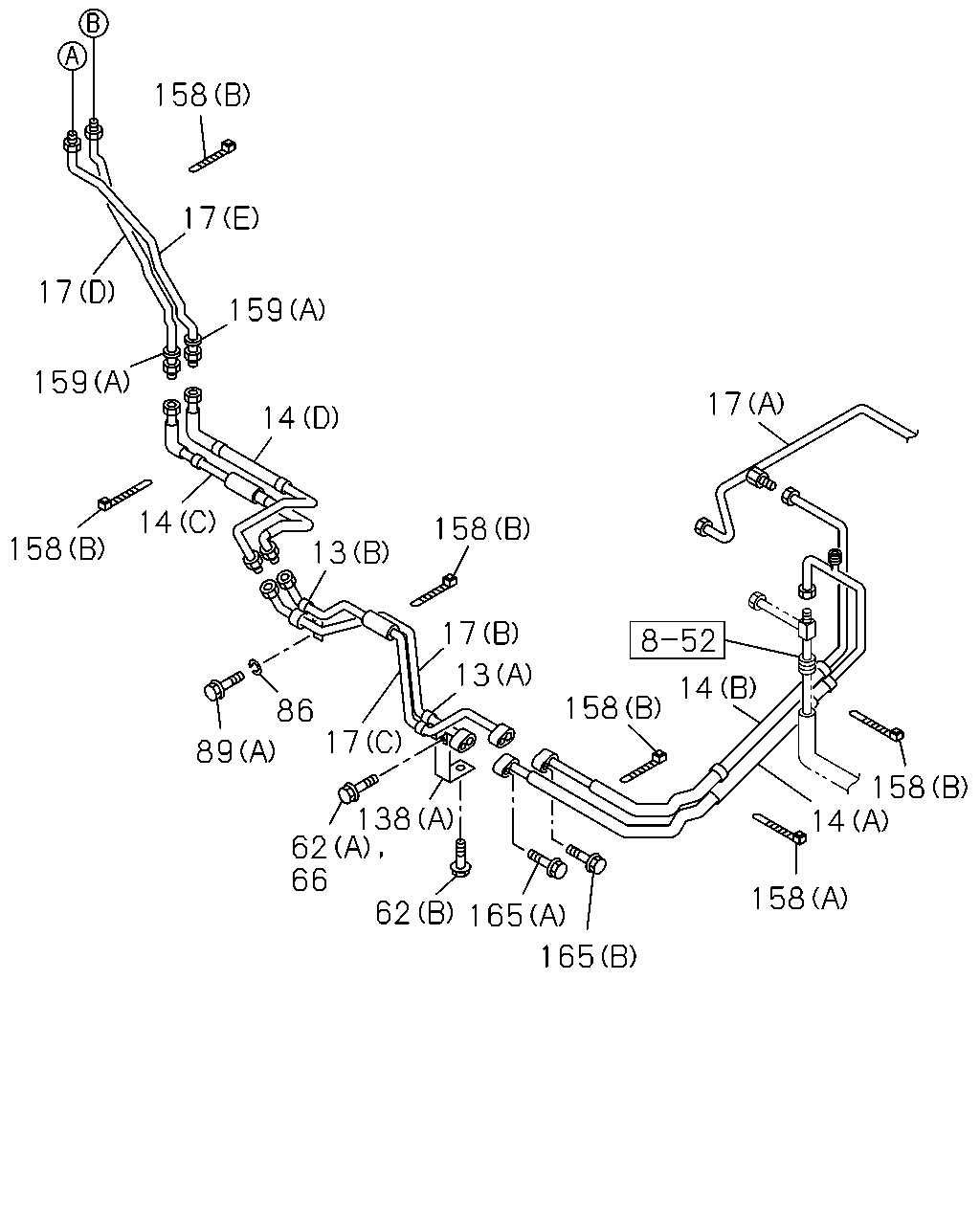

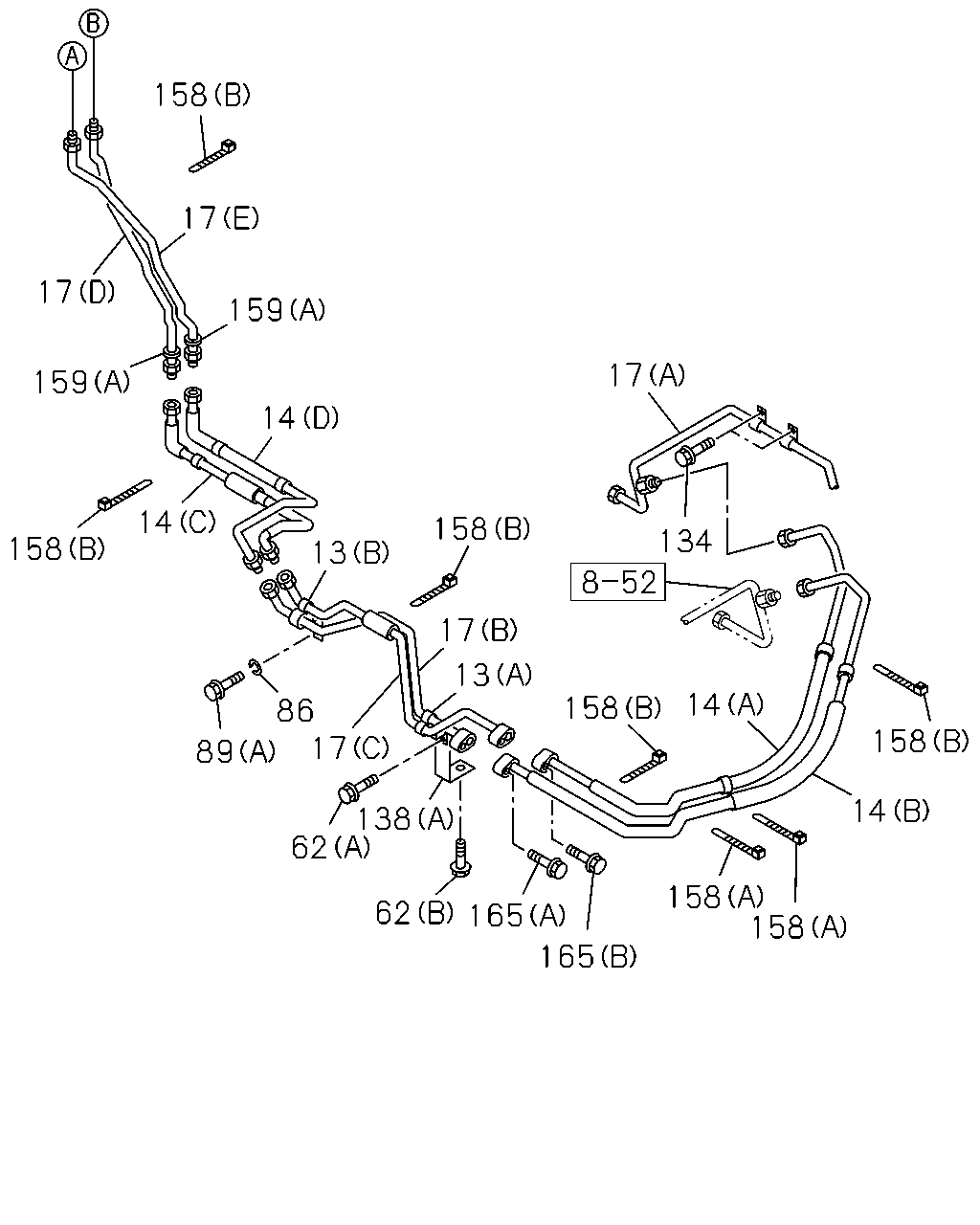

158 17 17 159 159 17 14 14 158 158 13 17 13 14 158 86 17 89 158 14 138 62 66 158 62 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-562-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-310-0	01	1	0003-
13	09.260 CLIP; PIPE,A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0003-0208
13	09.260 CLIP; PIPE,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-562-0	01	1	0003-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97286-911-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97286-912-0	01	1	0209-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-558-0	01	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97212-300-0	01	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0003-0208
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0003-0208
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-559-0	01	1	0003-0006
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97286-911-1	01	1	0007-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97210-560-0	01	1	0003-0006
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97286-912-0	01	1	0007-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-554-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97210-556-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (C)	8-97210-557-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0106-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97212-294-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97212-296-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-297-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0003-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0003-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-554-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97210-556-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97210-557-0	01	1	0003-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0003-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0003-0010
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0011-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0003-0208
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
66	09.260 BOLT; CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 00.206 M8X10 FLANGE	0-28080-810-0	01	1	0209-
86	09.169 WASHER; LK,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	0209-
86	09.169 WASHER; LK,A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	01	1	0003-0010
86	09.169 WASHER; LK,A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	01	1	0011-
86	09.169 WASHER; LK,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	0011-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (D)	8-97235-035-0	02	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0003-0010
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0011-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	02	1	0011-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-309-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0003-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0003-0208
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0209-
165	09.264 BOLT; HOSE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0003-0208
165	09.264 BOLT; HOSE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0209-
165	09.264 BOLT; HOSE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0003-0208
165	09.264 BOLT; HOSE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0209-

158 17 17 159 17 159 14 14 158 134 158 13 17 13 14 158 86 17 158 89 14 138 62 158 158 62 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-562-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-310-0	01	1	0003-
13	09.260 CLIP; PIPE,A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0003-0208
13	09.260 CLIP; PIPE,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (B)	8-97205-820-0	01	1	0209-
13	09.260 CLIP; PIPE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-562-0	01	1	0003-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97286-911-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97286-912-0	01	1	0209-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-558-0	01	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97212-300-0	01	1	0003-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0003-0208
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (C)	8-97205-839-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0003-0208
14	09.260 HOSE; PIPING,A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (D)	8-97205-840-1	01	1	0209-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-559-0	01	1	0003-0006
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97286-911-1	01	1	0007-
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97210-560-0	01	1	0003-0006
14	09.260 HOSE; PIPING,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97286-912-0	01	1	0007-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-554-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	8-97210-556-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (C)	8-97210-557-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0106-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (F)	8-97252-900-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97212-294-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97212-296-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-297-0	01	1	0003-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0003-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (D)	8-97205-812-0	01	1	0209-
17	09.260 PIPE; A/C 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0003-0208
17	09.260 PIPE; A/C 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (E)	8-97205-813-0	01	1	0209-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-554-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	8-97210-556-0	01	1	0003-
17	09.260 PIPE; A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (C)	8-97210-557-0	01	1	0003-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0003-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0003-0010
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 11.377 (B) M10X20 W/LK WASHER	0-50041-020-0	01	1	0011-
62	09.216 BOLT; BRKT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0003-0208
62	09.216 BOLT; BRKT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
62	09.216 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 01.073 (C) M6X14 W/LK WASHER	9-01900-614-0	04	1	0209-
86	09.169 WASHER; LK,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	0209-
86	09.169 WASHER; LK,A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	01	1	0003-0010
86	09.169 WASHER; LK,A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	01	1	0011-
86	09.169 WASHER; LK,A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.183 ID=6.4 OD=14	9-09160-606-0	02	1	0011-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (D)	8-97235-035-0	02	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0003-0010
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0011-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (B)	1-83569-021-0	05	1	0209-
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0003-0208
89	09.169 SCREW; A/C KIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.852 (C) M4X16	8-94324-850-0	02	1	0209-
89	09.169 SCREW; A/C KIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 16.165 (A) M6X16 TAPPING W/PL WASHER	0-74300-616-0	02	1	0011-
134	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 12.801 D6.8X12	8-94198-687-0	02	1	0003-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97212-309-0	01	1	0003-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (B)	8-97205-817-0	01	1	0209-
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0003-0208
138	09.264 BRACKET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.845 (C)	8-97205-818-1	01	1	0209-
138	09.264 BRACKET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> (A)	8-97210-561-0	01	1	0003-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0209-
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0003-0208
158	09.262 CLIP; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	02	1	0209-
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) L=600	1-09707-107-0	01	1	0003-0208
158	09.262 CLIP; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) L=250	5-09707-030-0	06	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (A)	8-97205-821-0	02	1	0209-
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0003-0208
159	09.262 GROMMET; A/C UNIT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
159	09.262 GROMMET; A/C UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 08.846 (B)	8-97205-822-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0209-
165	09.264 BOLT; HOSE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0003-0208
165	09.264 BOLT; HOSE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (A) M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	0209-
165	09.264 BOLT; HOSE 4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0003-0208
165	09.264 BOLT; HOSE 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0209-
165	09.264 BOLT; HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) RR COOLER<7UL> 02.559 (B) M6X25	8-97095-660-0	01	1	0209-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
