Sayfa 8-74 - Isuzu EPC

8-74 — EVAPORATOR (#73390) — 345 parça

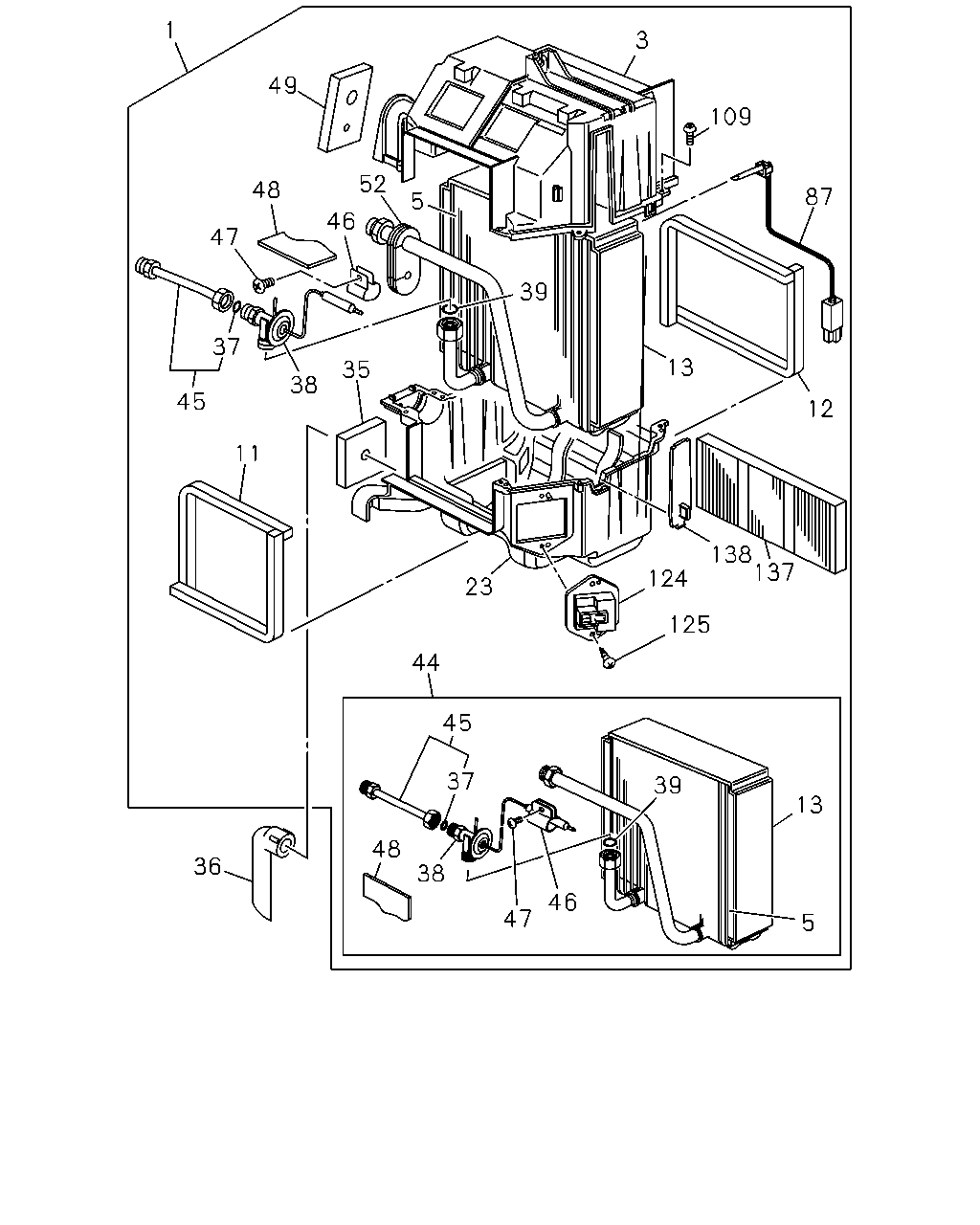

1 3 49 109 52 48 87 5 46 47 39 37 13 35 38 45 12 11 138 137 124 23 125 44 45 37 39 13 48 36 38 46 47 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.210 EVAPORATOR ASM AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97225-189-0	01	1	9909-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97310-732-0	01	1	0106-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97164-584-0	01	1	9712-9901	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97223-663-0	01	1	9902-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97264-506-0	01	1	0106-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97164-581-0	01	1	9712-9901	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97223-661-0	01	1	9902-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97264-504-0	01	1	0106-	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	9712-9908	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	9909-0105	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	0106-	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	0106-		●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.845	8-97170-796-0	01	1	0106-		●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97170-797-0	01	1	9712-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	9712-9908	●	●
5	09.210 EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-791-0	01	1	9909-0105	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	9909-0105	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	0106-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-791-0	01	1	0106-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9712-9908	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97103-724-0	01	1	9909-0105	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9909-0105	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	0106-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97103-724-0	01	1	0106-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9712-9908	●	●
12	09.211 LINING; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97103-723-0	01	1	9909-0105	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9909-0105	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	0106-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97103-723-0	01	1	0106-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9712-9908	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) T=4.0	8-97165-293-0	01	1	9909-0105	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9909-0105	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	0106-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) T=4.0	8-97165-293-0	01	1	0106-	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	9712-9908	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	9909-0105	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	0106-	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	0106-		●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-800-0	01	1	0106-		●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97170-801-0	01	1	9712-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9712-9908	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97069-405-3	01	1	9909-0105	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9909-0105	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	0106-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97069-405-3	01	1	0106-	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9712-9908	●	●
36	09.211 HOSE; DRAIN EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97140-076-0	01	1	9909-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	9712-9908	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 09.195 ID=6.07	8-94461-902-0	01	1	9909-0105	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	9909-0105	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9712-9908	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-788-0	01	1	9909-0105	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9909-0105	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	0106-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-788-0	01	1	0106-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9712-9908	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-94481-717-0	01	1	9909-0105	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9909-0105	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0106-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-94481-717-0	01	1	0106-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	9712-9908	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-792-0	01	1	9909-0105	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	9909-0105	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	0106-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-792-0	01	1	0106-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9712-9908	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97165-292-0	01	1	9909-0105	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9909-0105	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	0106-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97165-292-0	01	1	0106-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	9712-9908	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 02.559 ID=8X2	8-94344-881-1	01	1	9909-0105	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	9909-0105	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	0106-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.559 ID=8X2	8-94344-881-1	01	1	0106-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9712-9908	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97130-601-0	01	1	9909-0105	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9909-0105	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0106-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97130-601-0	01	1	0106-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9712-9901	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9902-9908	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	1-83579-784-0	01	1	9909-0105	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9909-0105	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0106-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	1-83579-784-0	01	1	0106-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9712-9908	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97069-404-1	01	1	9909-0105	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9909-0105	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0106-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97069-404-1	01	1	0106-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9712-9908	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-94324-801-0	01	1	9909-0105	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9909-0105	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	0106-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-94324-801-0	01	1	0106-	●	●
87	09.211 SENSOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-787-0	01	1	9909-0105	●	●
87	09.211 SENSOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-787-0	01	1	0106-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9712-9908	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	06	1	9909-0105	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9909-0105	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	0106-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.852 M4X16	8-94324-850-0	06	1	0106-	●	●
124	09.211 TRANSISTOR; POWER,EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97111-797-0	01	1	9909-0105	●	●
124	09.211 TRANSISTOR; POWER,EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97314-138-0	01	1	0106-	●	●
125	09.211 SCREW; TRANSISTOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	02	1	9909-0105	●	●
125	09.211 SCREW; TRANSISTOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.852 M4X16	8-94324-850-0	02	1	0106-	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	9712-9908	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	9909-0105	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	0106-	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	0106-		●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 09.264	8-97170-804-0	02	1	0106-		●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	9712-9908	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	9909-0105	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	0106-	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	0106-		●
138	09.211 COVER; CASE AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.845	8-97111-790-0	01	1	0106-		●

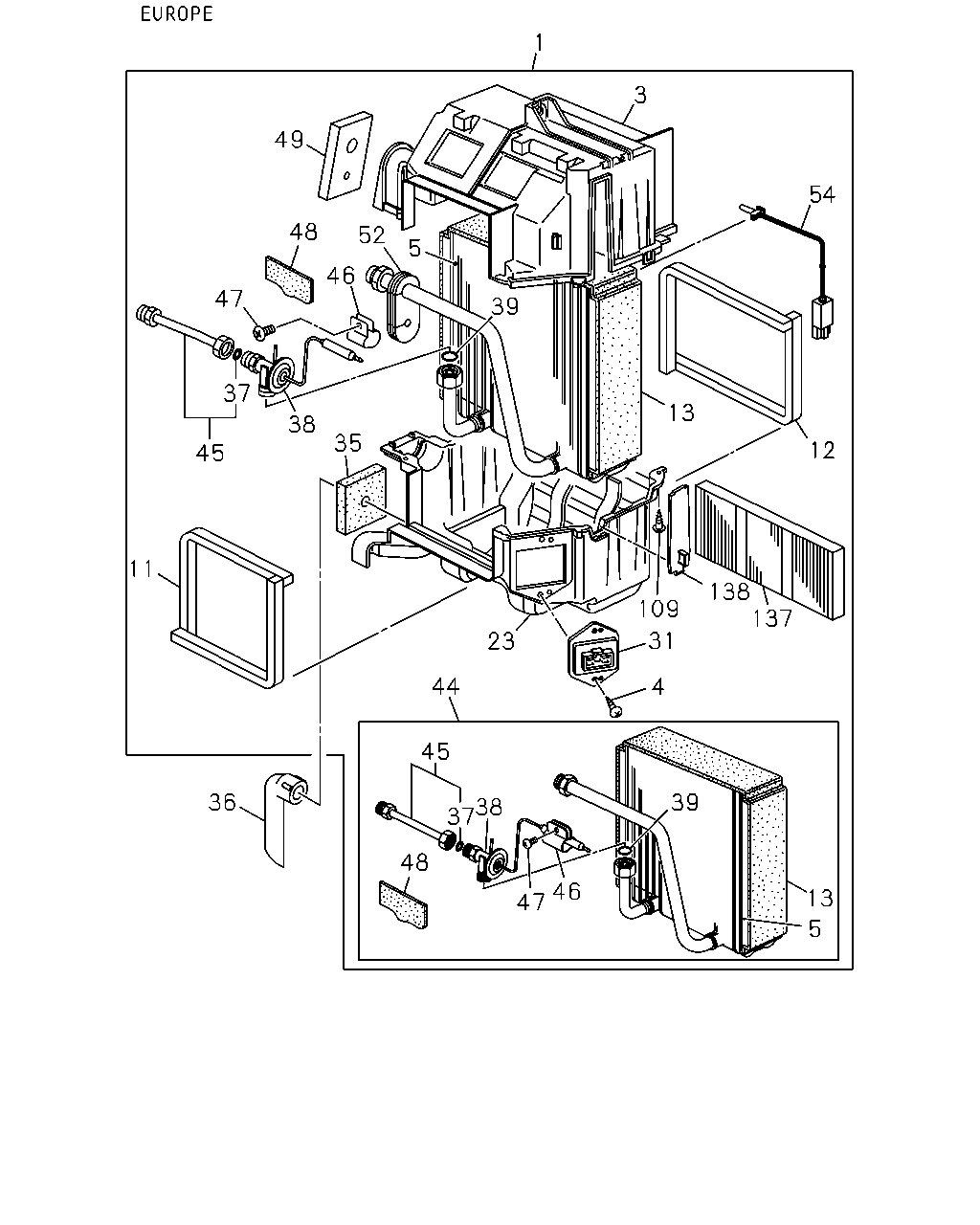

1 3 49 54 48 52 5 46 47 39 37 13 38 35 12 45 11 138 137 109 31 23 44 4 45 36 39 38 37 48 46 47 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.210 EVAPORATOR ASM AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97225-189-0	01	1	9909-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97310-732-0	01	1	0106-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97164-584-0	01	1	9712-9901	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97223-663-0	01	1	9902-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97264-506-0	01	1	0106-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97164-581-0	01	1	9712-9901	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97223-661-0	01	1	9902-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97264-504-0	01	1	0106-	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	9712-9908	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	9909-0105	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	0106-	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	0106-		●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.845	8-97170-796-0	01	1	0106-		●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97170-797-0	01	1	9712-	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	02	1	9712-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	9712-9908	●	●
5	09.210 EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-791-0	01	1	9909-0105	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	9909-0105	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	0106-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-791-0	01	1	0106-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9712-9908	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97103-724-0	01	1	9909-0105	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9909-0105	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	0106-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97103-724-0	01	1	0106-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9712-9908	●	●
12	09.211 LINING; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97103-723-0	01	1	9909-0105	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9909-0105	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	0106-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97103-723-0	01	1	0106-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9712-9908	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) T=4.0	8-97165-293-0	01	1	9909-0105	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9909-0105	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	0106-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) T=4.0	8-97165-293-0	01	1	0106-	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	9712-9908	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	9909-0105	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	0106-	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	0106-		●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-800-0	01	1	0106-		●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97170-801-0	01	1	9712-	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97083-136-1	01	1	9712-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9712-9908	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97069-405-3	01	1	9909-0105	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9909-0105	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	0106-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97069-405-3	01	1	0106-	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9712-9908	●	●
36	09.211 HOSE; DRAIN EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97140-076-0	01	1	9909-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	9712-9908	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 09.195 ID=6.07	8-94461-902-0	01	1	9909-0105	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	9909-0105	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9712-9908	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-788-0	01	1	9909-0105	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9909-0105	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	0106-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-788-0	01	1	0106-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9712-9908	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-94481-717-0	01	1	9909-0105	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9909-0105	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0106-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-94481-717-0	01	1	0106-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	9712-9908	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-792-0	01	1	9909-0105	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	9909-0105	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	0106-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-792-0	01	1	0106-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9712-9908	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97165-292-0	01	1	9909-0105	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9909-0105	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	0106-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97165-292-0	01	1	0106-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	9712-9908	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 02.559 ID=8X2	8-94344-881-1	01	1	9909-0105	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	9909-0105	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	0106-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.559 ID=8X2	8-94344-881-1	01	1	0106-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9712-9908	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97130-601-0	01	1	9909-0105	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9909-0105	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0106-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97130-601-0	01	1	0106-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9712-9901	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9902-9908	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	1-83579-784-0	01	1	9909-0105	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9909-0105	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0106-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	1-83579-784-0	01	1	0106-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9712-9908	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97069-404-1	01	1	9909-0105	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9909-0105	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0106-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97069-404-1	01	1	0106-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9712-9908	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-94324-801-0	01	1	9909-0105	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9909-0105	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	0106-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-94324-801-0	01	1	0106-	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-805-0	01	1	9712-9901	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97223-415-0	01	1	9902-0105	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97287-650-0	01	1	0106-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9712-9908	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	06	1	9909-0105	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9909-0105	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	0106-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.852 M4X16	8-94324-850-0	06	1	0106-	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	9712-9908	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	9909-0105	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	0106-	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 09.264	8-97170-804-0	02	1	0106-		●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 09.264	8-97170-804-0	02	1	0106-		●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	9712-9908	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	9909-0105	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	0106-	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	0106-		●
138	09.211 COVER; CASE AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.845	8-97111-790-0	01	1	0106-		●

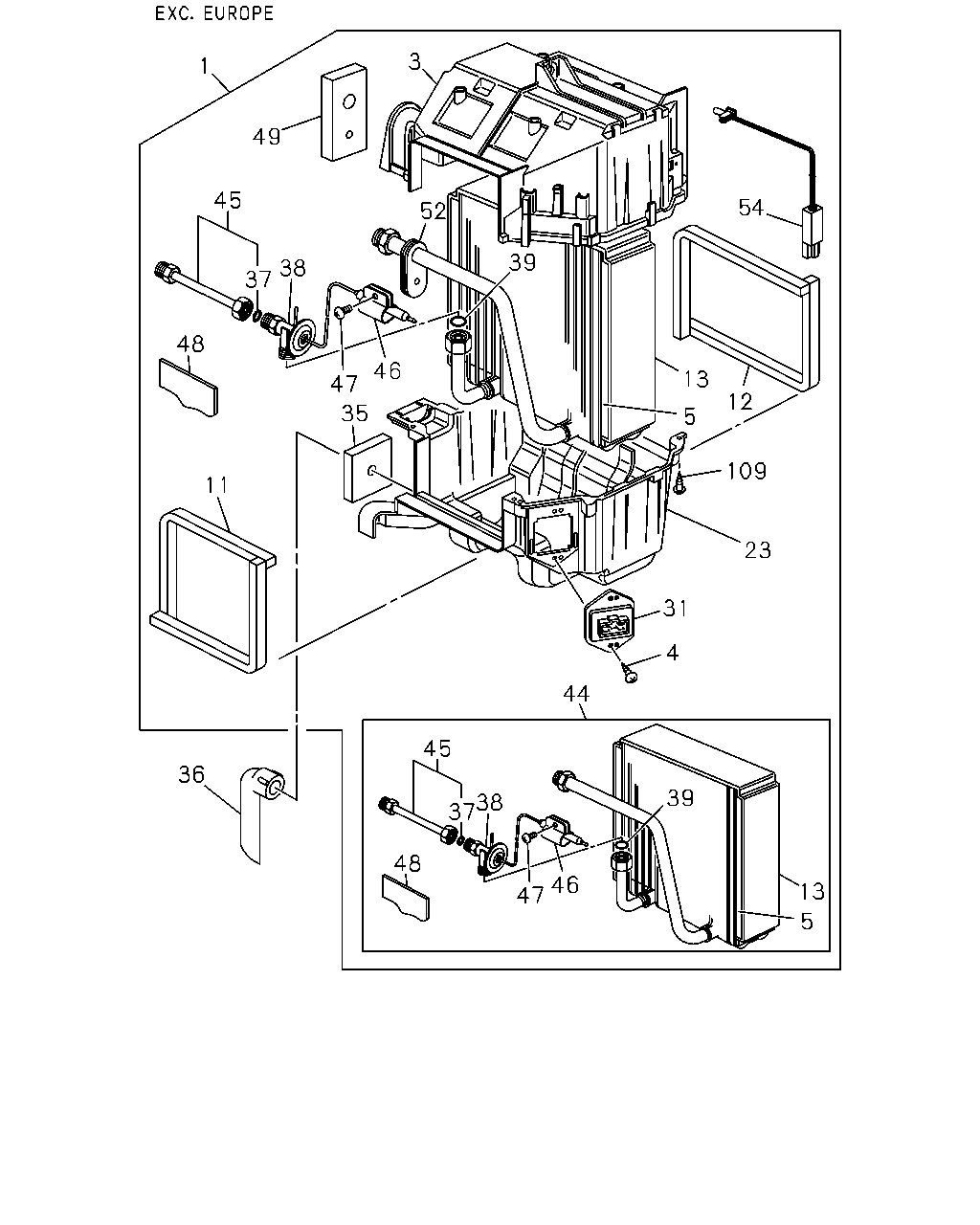

3 1 49 45 54 52 39 38 37 48 46 13 47 12 35 5 109 11 23 31 4 44 45 36 39 38 37 48 46 47 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.210 EVAPORATOR ASM AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97225-189-0	01	1	9909-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97310-732-0	01	1	0106-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97164-584-0	01	1	9712-9901	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97223-663-0	01	1	9902-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97264-506-0	01	1	0106-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97164-581-0	01	1	9712-9901	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97223-661-0	01	1	9902-0105	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97264-504-0	01	1	0106-	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	9712-9908	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	9909-0105	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	0106-	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97170-796-0	01	1	0106-		●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.845	8-97170-796-0	01	1	0106-		●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97170-797-0	01	1	9712-	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	02	1	9712-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	9712-9908	●	●
5	09.210 EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-791-0	01	1	9909-0105	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	9909-0105	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97170-791-0	01	1	0106-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-791-0	01	1	0106-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9712-9908	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97103-724-0	01	1	9909-0105	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9909-0105	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	0106-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97103-724-0	01	1	0106-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9712-9908	●	●
12	09.211 LINING; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97103-723-0	01	1	9909-0105	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9909-0105	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	0106-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97103-723-0	01	1	0106-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9712-9908	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) T=4.0	8-97165-293-0	01	1	9909-0105	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	9909-0105	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) T=4.0	8-97165-293-0	01	1	0106-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) T=4.0	8-97165-293-0	01	1	0106-	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	9712-9908	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	9909-0105	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	0106-	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97170-800-0	01	1	0106-		●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-800-0	01	1	0106-		●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97170-801-0	01	1	9712-	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97083-136-1	01	1	9712-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9712-9908	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97069-405-3	01	1	9909-0105	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	9909-0105	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97069-405-3	01	1	0106-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97069-405-3	01	1	0106-	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9712-9908	●	●
36	09.211 HOSE; DRAIN EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97140-076-0	01	1	9909-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	9712-9908	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 09.195 ID=6.07	8-94461-902-0	01	1	9909-0105	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	9909-0105	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9712-9908	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-788-0	01	1	9909-0105	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	9909-0105	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97170-788-0	01	1	0106-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-788-0	01	1	0106-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9712-9908	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-94481-717-0	01	1	9909-0105	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9909-0105	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0106-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-94481-717-0	01	1	0106-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	9712-9908	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97170-792-0	01	1	9909-0105	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	9909-0105	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-792-0	01	1	0106-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97170-792-0	01	1	0106-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9712-9908	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97165-292-0	01	1	9909-0105	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	9909-0105	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97165-292-0	01	1	0106-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97165-292-0	01	1	0106-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	9712-9908	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 02.559 ID=8X2	8-94344-881-1	01	1	9909-0105	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	9909-0105	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) 02.559 ID=8X2	8-94344-881-1	01	1	0106-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.559 ID=8X2	8-94344-881-1	01	1	0106-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9712-9908	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97130-601-0	01	1	9909-0105	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9909-0105	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0106-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97130-601-0	01	1	0106-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9712-9901	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9902-9908	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	1-83579-784-0	01	1	9909-0105	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	9909-0105	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0106-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	1-83579-784-0	01	1	0106-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9712-9908	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-97069-404-1	01	1	9909-0105	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9909-0105	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0106-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97069-404-1	01	1	0106-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9712-9908	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4)	8-94324-801-0	01	1	9909-0105	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9909-0105	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	0106-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-94324-801-0	01	1	0106-	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97170-805-0	01	1	9712-9901	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97223-415-0	01	1	9902-0105	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97287-650-0	01	1	0106-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9712-9908	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	06	1	9909-0105	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	9909-0105	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	06	1	0106-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.852 M4X16	8-94324-850-0	06	1	0106-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
