8-73 — BLOWER UNIT (#73389) — 70 parça

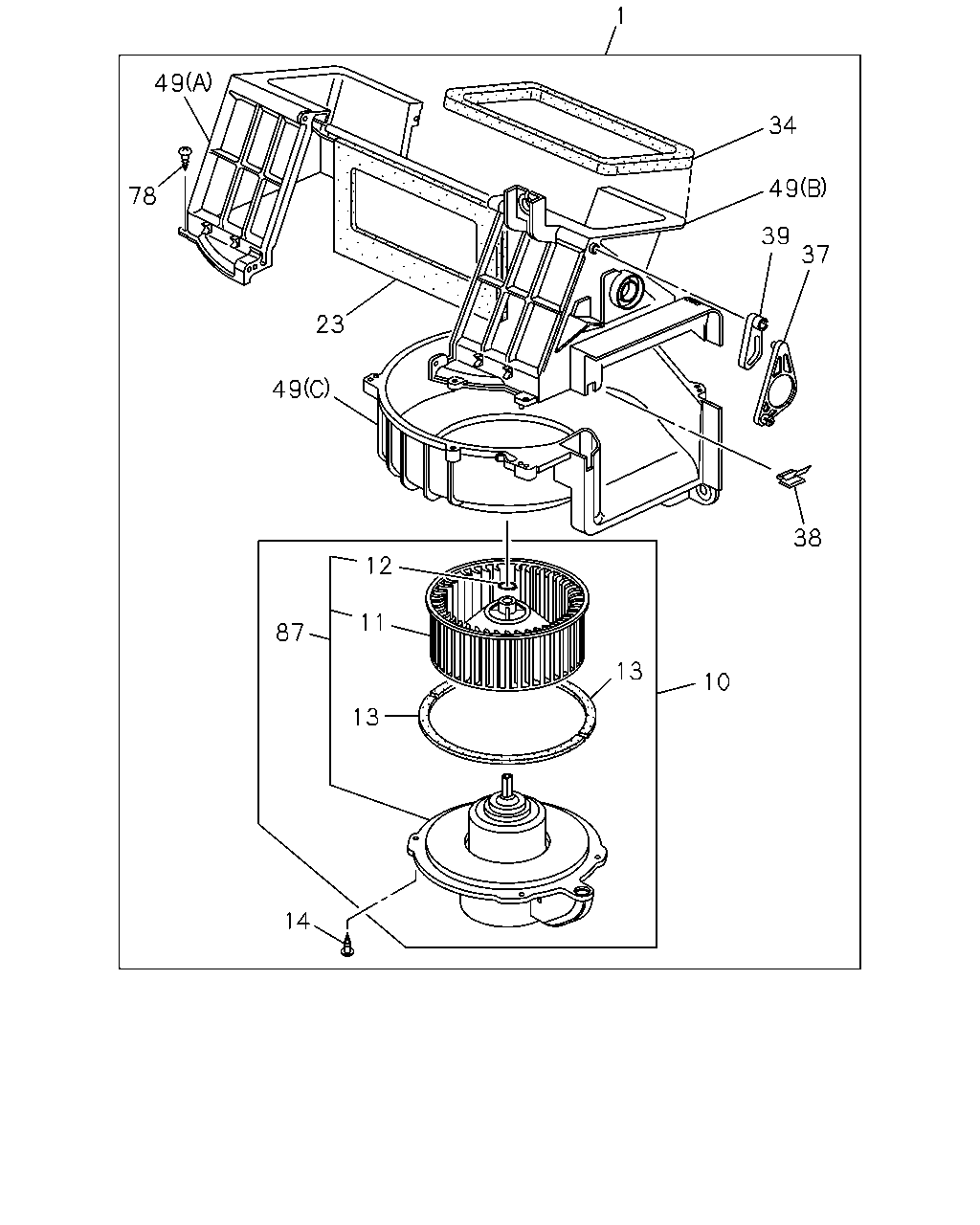

çizim 69681
1 49 34 49 78 39 37 23 49 38 12 11 87 13 10 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM 8-97109-566-1 01 1 9712-9907 ● ●
1 08.855 BLOWER ASM 8-97231-611-0 01 1 9908-9908 ● ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-611-0 01 1 9909- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-610-1 01 1 9909-0105 ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97310-736-0 01 1 0106- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97103-726-0 01 1 9712-9907 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97231-636-0 01 1 9908-0105 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-636-0 01 1 0106- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97212-330-0 01 1 0106- ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9712- ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9712- ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 9712- ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9712-9908 ● ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 04 1 9909-0105 ● ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 05 1 9909-0105 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0106- ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 9712-9908 ● ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97072-039-0 01 1 9909- ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-818-2 01 1 9909- ● ●
34 08.856 LINING; BLOWER UNIT 8-94327-437-0 01 1 9712- ● ●
37 09.786 LEVER; MODE LEVER 8-94327-435-2 01 1 9712- ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9712-9908 ● ●
38 09.787 CLIP; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-94337-654-0 01 1 9909- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97178-223-0 01 1 9712-9908 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97178-223-0 01 1 9909- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97096-069-0 01 1 9909- ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9712- ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9712- ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9712- ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9712- ● ●
87 08.855 MOTOR ASM; FAN 8-97106-493-3 01 1 9908-0105 ● ●
87 08.855 MOTOR ASM; FAN
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97106-493-3 01 1 0106- ● ●

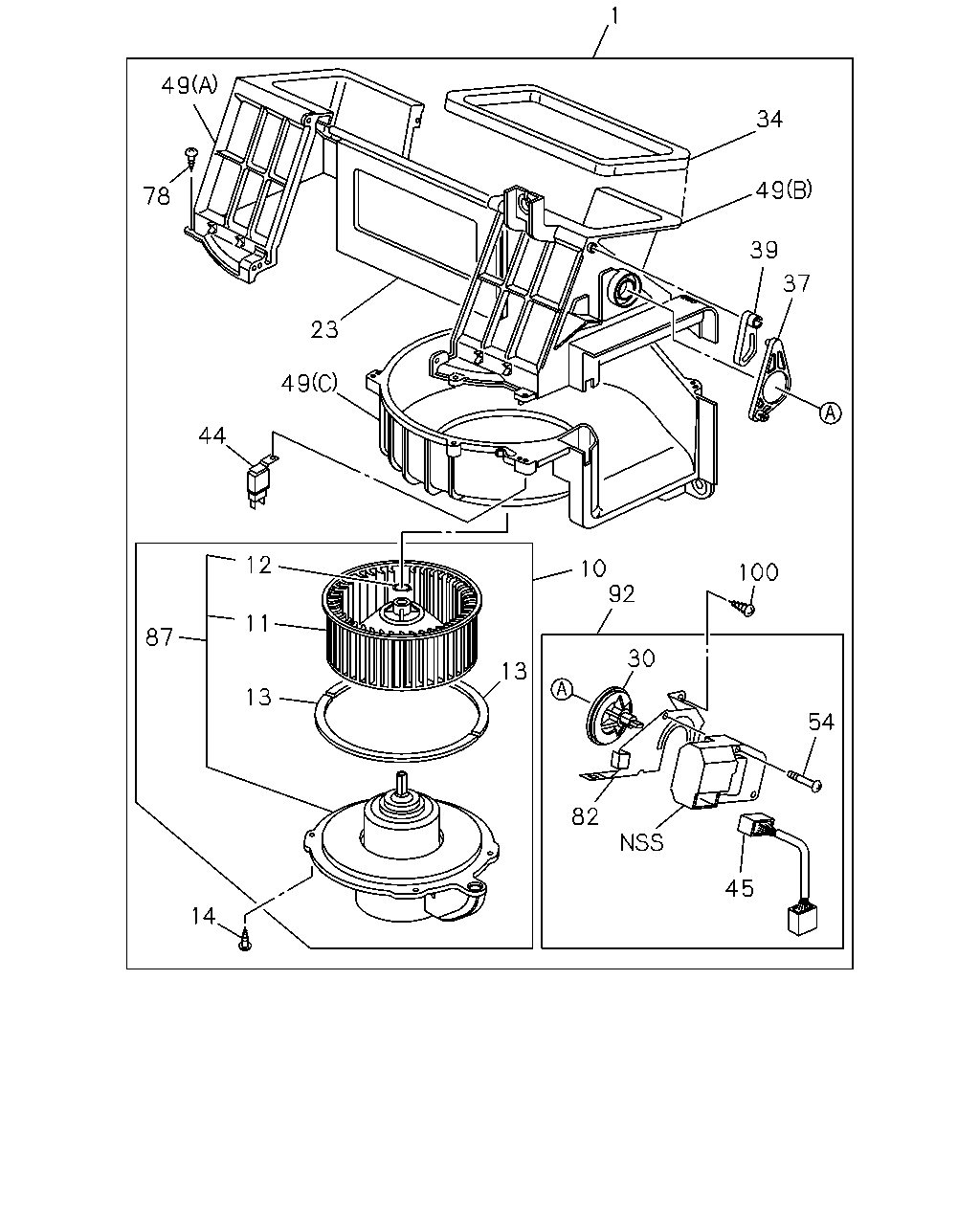

çizim 72067
1 49 34 49 78 39 37 23 49 44 12 10 92 100 11 87 30 13 13 54 82 45 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM 8-97109-566-1 01 1 9712-9907 ● ●
1 08.855 BLOWER ASM 8-97231-611-0 01 1 9908-9908 ● ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-611-0 01 1 9909- ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-610-1 01 1 9909-0105 ● ●
1 08.855 BLOWER ASM
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97310-736-0 01 1 0106- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97103-726-0 01 1 9712-9907 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-97231-636-0 01 1 9908-0105 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97231-636-0 01 1 0106- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97212-330-0 01 1 0106- ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97089-700-0 01 1 9712- ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9712- ● ●
13 08.856 LINING; BLOWER UNIT 8-94324-816-0 02 1 9712- ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9712-9908 ● ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 04 1 9909-0105 ● ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 05 1 9909-0105 ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 0106- ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97072-039-0 01 1 9712-9908 ● ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97072-039-0 01 1 9909- ● ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-818-2 01 1 9909- ● ●
30 09.786 LEVER; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97314-213-0 01 1 9909- ● ●
34 08.856 LINING; BLOWER UNIT 8-94327-437-0 01 1 9712- ● ●
37 09.786 LEVER; MODE LEVER 8-94327-435-2 01 1 9712- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97178-223-0 01 1 9712-9908 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97178-223-0 01 1 9909- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97096-069-0 01 1 9909- ● ●
44 08.855 RELAY; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97011-283-0 01 1 9909-0105 ● ●
45 08.852 HARNESS; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97226-479-3 01 1 9909- ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-94327-430-1 01 1 9712- ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-94327-431-1 01 1 9712- ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-94327-432-1 01 1 9712- ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 M4X16 		8-94324-850-0 03 1 9909-0105 ● ●
54 08.856 SCREW; ACTUATOR TO CASE
AIR CONDITIONER FULL AUTO CONT(C68) 		1-83579-163-0 02 1 0106- ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9712- ● ●
82 08.857 BRACKET; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97314-212-0 01 1 0106- ● ●
87 08.855 MOTOR ASM; FAN 8-97106-493-3 01 1 9908-0105 ● ●
87 08.855 MOTOR ASM; FAN
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97106-493-3 01 1 0106- ● ●
92 08.857 ACTUATOR; BLOWER UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97076-079-2 01 1 9909- ● ●
100 08.857 SCREW; BRKT
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 M4X16 		8-94324-850-0 03 1 0106- ● ●
