8-71 — COMPRESSOR; AIR CONDITIONING (#73388) — 305 parça

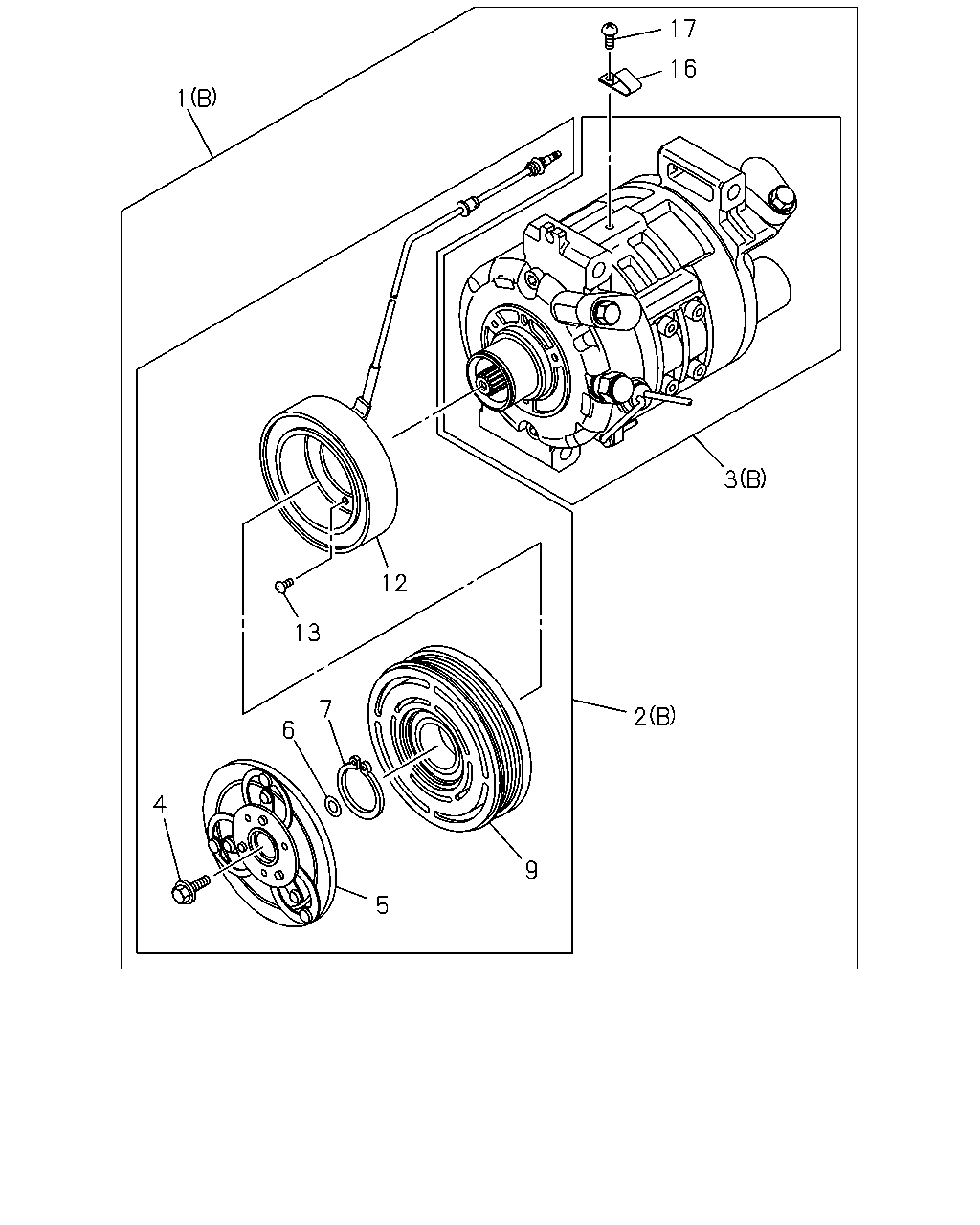

çizim 69021
17 16 1 3 12 13 7 2 6 4 9 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97168-990-0 01 1 9712-9810 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97217-449-0 01 1 9811-0005 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97252-452-1 01 1 0006- ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97144-648-0 01 1 9712-9811 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97214-294-0 01 1 9812-9908 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97214-294-0 01 1 9909-0005 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97252-451-0 01 1 0006-0011 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97252-451-1 01 1 0012- ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97170-820-0 01 1 9712-9908 ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97170-820-0 01 1 9909-0011 ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97170-820-0 01 1 0012-0105 ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97264-508-3 01 1 0106- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97170-923-0 01 1 9712-9810 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97170-924-0 01 1 9712-9810 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97170-924-0 01 1 9811-9811 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97170-924-1 01 1 9812- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97217-274-0 01 1 9811-9908 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97217-274-0 01 1 9909-0011 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97217-274-1 01 1 0012- ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97161-511-0 01 1 9712-9908 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97161-511-0 01 1 9909-0011 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97161-511-0 01 1 0012-0105 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97311-495-0 01 1 0106-0208 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97357-113-0 01 1 0209- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97183-199-2 01 1 9712-0005 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97262-882-0 01 1 0006- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97183-192-2 01 1 9712-9908 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97183-192-2 01 1 9909-0005 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97261-814-0 01 1 0006-0011 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97261-814-0 01 1 0012- ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97178-004-0 01 1 9712-9908 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97178-004-0 01 1 9909-0011 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97178-004-0 01 1 0012-0105 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97320-622-0 01 1 0106- ● ●
4 09.181 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.186 		8-94164-439-0 01 1 9712-9810 ● ●
4 09.181 BOLT; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.186 		8-94164-439-0 01 1 9811-9908 ● ●
4 09.181 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 09.186 		8-94164-439-0 01 1 9909- ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97170-922-0 01 1 9712-9810 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-193-0 01 1 9909-0210 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97357-156-0 01 1 0211- ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-193-0 01 1 9712-9811 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-921-0 01 1 9812-9908 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-921-0 01 1 9909-0011 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-921-0 01 1 0012-0210 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-513-0 01 1 9712-9908 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-513-0 01 1 9909-0011 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-513-0 01 1 0012-0105 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97313-253-0 01 1 0106-0208 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97357-112-0 01 1 0209- ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.1 		8-94120-721-0 AR 1 9712-9810 ● ●
6 09.181 SHIM; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.1 		8-94120-721-0 AR 1 9811-9908 ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.1 		8-94120-721-0 AR 1 9909- ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.3 		8-94120-722-0 AR 1 9712-9810 ● ●
6 09.181 SHIM; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.3 		8-94120-722-0 AR 1 9811-9908 ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.3 		8-94120-722-0 AR 1 9909- ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.5 		8-94120-723-0 AR 1 9712-9810 ● ●
6 09.181 SHIM; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.5 		8-94120-723-0 AR 1 9811-9908 ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.5 		8-94120-723-0 AR 1 9909- ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) T=0.15 		1-83578-029-0 AR 1 0106-0208 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) T=0.25 		1-83578-030-0 AR 1 0106-0208 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 T=0.8 		8-94380-751-0 AR 1 9712-9908 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 09.188 T=0.8 		8-94380-751-0 AR 1 9909-0011 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 09.188 T=0.8 		8-94380-751-0 AR 1 0012- ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 9712-9810 ● ●
7 09.181 RING; SNAP,PULLEY
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 9811-9908 ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 9909-9912 ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 0001-0001 ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 0002- ● ●
7 09.181 RING; SNAP,PULLEY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94380-752-0 01 1 9712-9908 ● ●
7 09.181 RING; SNAP,PULLEY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94380-752-0 01 1 9909-0011 ● ●
7 09.181 RING; SNAP,PULLEY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94380-752-0 01 1 0012- ● ●
9 09.181 PULLEY; MAGNET CLU
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97170-920-0 01 1 9712-9810 ● ●
9 09.181 PULLEY; MAGNET CLU
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-195-0 01 1 9909-0210 ● ●
9 09.181 PULLEY; MAGNET CLU
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97365-826-0 01 1 0211- ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-195-0 01 1 9712-9811 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97217-275-0 01 1 9812-9908 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97217-275-0 01 1 9909-0011 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97217-275-0 01 1 0012-0210 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97365-827-0 01 1 0211- ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-514-0 01 1 9712-9908 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-514-0 01 1 9909-0011 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-514-0 01 1 0012-0105 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97313-254-0 01 1 0106-0208 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97357-111-0 01 1 0209- ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 		8-97170-917-0 01 1 9712-9801 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 		8-97170-917-0 01 1 9802-9810 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 9712-9908 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 9909-9912 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 0001-0001 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 0002-0210 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-918-0 01 1 0211- ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-512-0 01 1 9712-9908 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-512-0 01 1 9909-0011 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-512-0 01 1 0012-0105 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97313-255-0 01 1 0106-0208 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97320-620-0 01 1 0209- ● ●
13 09.186 SCREW; COIL FIELD
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9712-9801 ● ●
13 09.186 SCREW; COIL FIELD
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9712-9801 ● ●
13 09.186 SCREW; COIL FIELD
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 09.188 		8-94120-727-0 03 1 9712-9801 ● ●
13 09.186 SCREW; COIL FIELD
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9802-9810 ● ●
13 09.186 SCREW; COIL FIELD
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 09.188 		8-94120-727-0 03 1 9802-9810 ● ●
13 09.186 SCREW; COIL FIELD
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9811-9908 ● ●
13 09.186 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9909-0105 ● ●
13 09.186 SCREW; COIL FIELD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 0106- ● ●
13 09.186 SCREW; COIL FIELD
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94164-438-0 03 1 0106- ● ●
16 09.181 CLIP; WIRE,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97024-418-0 01 1 9712-9908 ● ●
16 09.181 CLIP; WIRE,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97024-418-0 01 1 9909-0011 ● ●
16 09.181 CLIP; WIRE,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97024-418-0 01 1 0012-0105 ● ●
16 09.181 CLIP; WIRE,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97311-505-0 01 1 0106-0208 ● ●
16 09.181 CLIP; WIRE,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97320-623-0 01 1 0209- ● ●
17 09.181 SCREW; WIRE CLIP MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97024-419-0 01 1 9712-9908 ● ●
17 09.181 SCREW; WIRE CLIP MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97024-419-0 01 1 9909-0011 ● ●
17 09.181 SCREW; WIRE CLIP MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97024-419-0 01 1 0012- ● ●

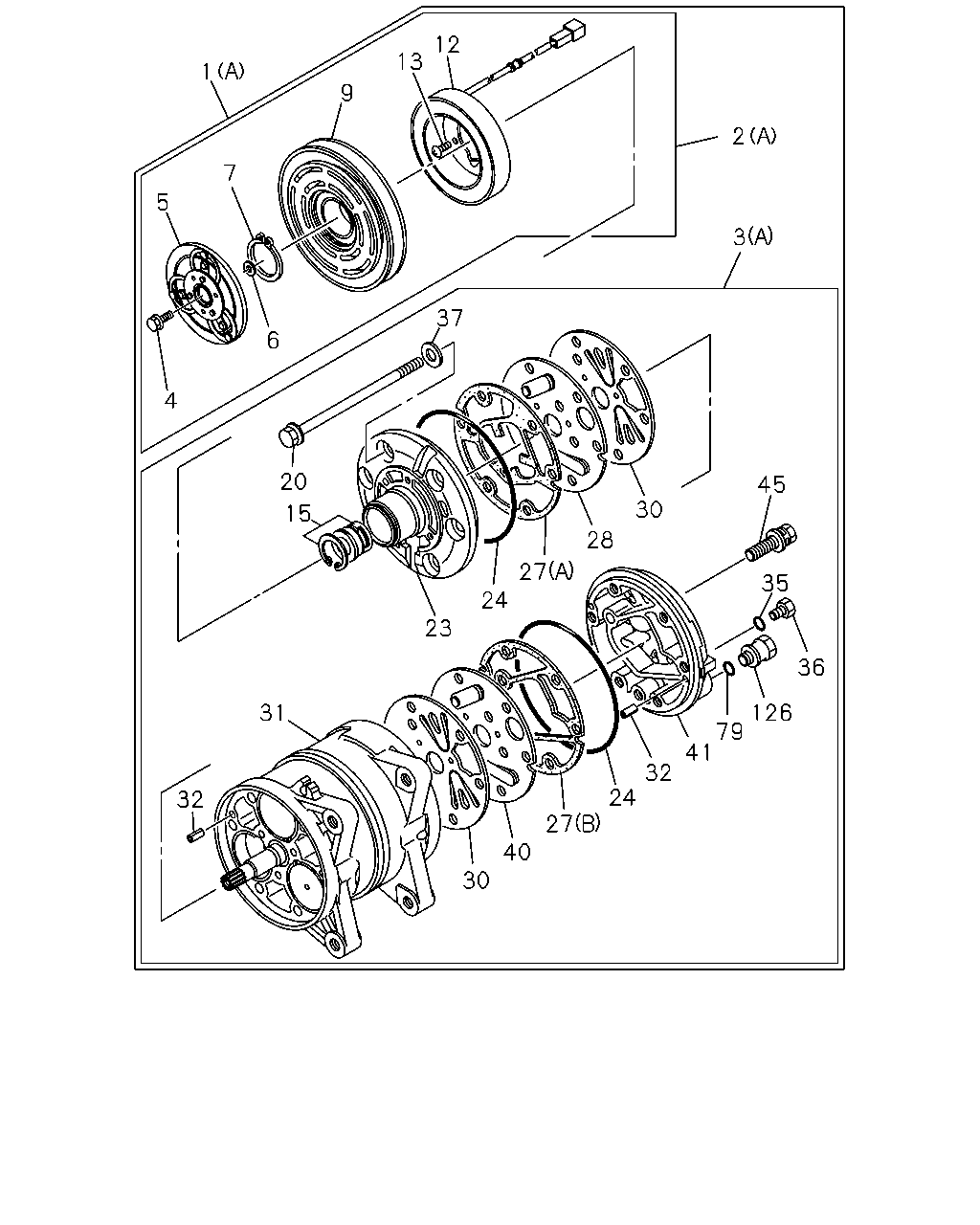

çizim 72062
12 13 1 9 2 7 5 3 37 6 4 20 45 30 15 28 27 35 24 23 36 31 126 79 41 32 24 32 27 40 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97168-990-0 01 1 9712-9810 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97217-449-0 01 1 9811-0005 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97252-452-1 01 1 0006- ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97144-648-0 01 1 9712-9811 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97214-294-0 01 1 9812-9908 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97214-294-0 01 1 9909-0005 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97252-451-0 01 1 0006-0011 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97252-451-1 01 1 0012- ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97170-820-0 01 1 9712-9908 ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97170-820-0 01 1 9909-0011 ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97170-820-0 01 1 0012-0105 ● ●
1 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97264-508-3 01 1 0106- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97170-923-0 01 1 9712-9810 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97170-924-0 01 1 9712-9810 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97170-924-0 01 1 9811-9811 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97170-924-1 01 1 9812- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97217-274-0 01 1 9811-9908 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97217-274-0 01 1 9909-0011 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97217-274-1 01 1 0012- ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97161-511-0 01 1 9712-9908 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97161-511-0 01 1 9909-0011 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97161-511-0 01 1 0012-0105 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97311-495-0 01 1 0106-0208 ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97357-113-0 01 1 0209- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97183-199-2 01 1 9712-0005 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97262-882-0 01 1 0006- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97183-192-2 01 1 9712-9908 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97183-192-2 01 1 9909-0005 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97261-814-0 01 1 0006-0011 ● ●
3 09.170 COMPRESSOR ASM; A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97261-814-0 01 1 0012- ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97178-004-0 01 1 9712-9908 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97178-004-0 01 1 9909-0011 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97178-004-0 01 1 0012-0105 ● ●
3 09.170 COMPRESSOR ASM; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97320-622-0 01 1 0106- ● ●
4 09.181 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.186 		8-94164-439-0 01 1 9712-9810 ● ●
4 09.181 BOLT; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.186 		8-94164-439-0 01 1 9811-9908 ● ●
4 09.181 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 09.186 		8-94164-439-0 01 1 9909- ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97170-922-0 01 1 9712-9810 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-193-0 01 1 9909-0210 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97357-156-0 01 1 0211- ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-193-0 01 1 9712-9811 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-921-0 01 1 9812-9908 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-921-0 01 1 9909-0011 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-921-0 01 1 0012-0210 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-513-0 01 1 9712-9908 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-513-0 01 1 9909-0011 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-513-0 01 1 0012-0105 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97313-253-0 01 1 0106-0208 ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97357-112-0 01 1 0209- ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.1 		8-94120-721-0 AR 1 9712-9810 ● ●
6 09.181 SHIM; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.1 		8-94120-721-0 AR 1 9811-9908 ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.1 		8-94120-721-0 AR 1 9909- ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.3 		8-94120-722-0 AR 1 9712-9810 ● ●
6 09.181 SHIM; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.3 		8-94120-722-0 AR 1 9811-9908 ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.3 		8-94120-722-0 AR 1 9909- ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.5 		8-94120-723-0 AR 1 9712-9810 ● ●
6 09.181 SHIM; MAGNET CLU
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.5 		8-94120-723-0 AR 1 9811-9908 ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) T=0.5 		8-94120-723-0 AR 1 9909- ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) T=0.15 		1-83578-029-0 AR 1 0106-0208 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) T=0.25 		1-83578-030-0 AR 1 0106-0208 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 T=0.8 		8-94380-751-0 AR 1 9712-9908 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 09.188 T=0.8 		8-94380-751-0 AR 1 9909-0011 ● ●
6 09.181 SHIM; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 09.188 T=0.8 		8-94380-751-0 AR 1 0012- ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 9712-9810 ● ●
7 09.181 RING; SNAP,PULLEY
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 9811-9908 ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 9909-9912 ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 0001-0001 ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94120-724-0 01 1 0002- ● ●
7 09.181 RING; SNAP,PULLEY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94380-752-0 01 1 9712-9908 ● ●
7 09.181 RING; SNAP,PULLEY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94380-752-0 01 1 9909-0011 ● ●
7 09.181 RING; SNAP,PULLEY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94380-752-0 01 1 0012- ● ●
9 09.181 PULLEY; MAGNET CLU
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97170-920-0 01 1 9712-9810 ● ●
9 09.181 PULLEY; MAGNET CLU
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-195-0 01 1 9909-0210 ● ●
9 09.181 PULLEY; MAGNET CLU
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97365-826-0 01 1 0211- ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-195-0 01 1 9712-9811 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97217-275-0 01 1 9812-9908 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97217-275-0 01 1 9909-0011 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97217-275-0 01 1 0012-0210 ● ●
9 09.181 PULLEY; MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97365-827-0 01 1 0211- ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-514-0 01 1 9712-9908 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-514-0 01 1 9909-0011 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-514-0 01 1 0012-0105 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97313-254-0 01 1 0106-0208 ● ●
9 09.181 PULLEY; MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97357-111-0 01 1 0209- ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 		8-97170-917-0 01 1 9712-9801 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 		8-97170-917-0 01 1 9802-9810 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 9712-9908 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 9909-9912 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 0001-0001 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97183-198-1 01 1 0002-0210 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-918-0 01 1 0211- ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-512-0 01 1 9712-9908 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-512-0 01 1 9909-0011 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97161-512-0 01 1 0012-0105 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97313-255-0 01 1 0106-0208 ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97320-620-0 01 1 0209- ● ●
13 09.186 SCREW; COIL FIELD
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9712-9801 ● ●
13 09.186 SCREW; COIL FIELD
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9712-9801 ● ●
13 09.186 SCREW; COIL FIELD
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 09.188 		8-94120-727-0 03 1 9712-9801 ● ●
13 09.186 SCREW; COIL FIELD
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9802-9810 ● ●
13 09.186 SCREW; COIL FIELD
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 09.188 		8-94120-727-0 03 1 9802-9810 ● ●
13 09.186 SCREW; COIL FIELD
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9811-9908 ● ●
13 09.186 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 9909-0105 ● ●
13 09.186 SCREW; COIL FIELD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 09.188 		8-94120-727-0 03 1 0106- ● ●
13 09.186 SCREW; COIL FIELD
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94164-438-0 03 1 0106- ● ●
15 09.175 SEAL; SHAFT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97178-403-0 01 1 9712-9810 ● ●
15 09.175 SEAL; SHAFT
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97178-403-0 01 1 9811-9908 ● ●
15 09.175 SEAL; SHAFT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97178-403-0 01 1 9909-9912 ● ●
15 09.175 SEAL; SHAFT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97178-403-0 01 1 0001-0001 ● ●
15 09.175 SEAL; SHAFT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97178-403-0 01 1 0002- ● ●
20 09.174 BOLT; CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-394-0 06 1 9909- ● ●
20 09.174 BOLT; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97081-394-0 06 1 9712-9810 ● ●
20 09.174 BOLT; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97081-394-0 06 1 9811-9811 ● ●
20 09.174 BOLT; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97233-738-0 06 1 9812-9908 ● ●
20 09.174 BOLT; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97233-738-0 06 1 9909-0011 ● ●
20 09.174 BOLT; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97233-738-0 06 1 0012- ● ●
23 09.174 HEAD; CYL,FRT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97178-401-0 01 1 9712-9810 ● ●
23 09.174 HEAD; CYL,FRT
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97178-401-0 01 1 9811-9908 ● ●
23 09.174 HEAD; CYL,FRT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97178-401-0 01 1 9909-9912 ● ●
23 09.174 HEAD; CYL,FRT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97178-401-0 01 1 0001-0001 ● ●
23 09.174 HEAD; CYL,FRT
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97178-401-0 01 1 0002- ● ●
24 09.172 GASKET; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) "R-134A" 		8-97081-396-0 02 1 9712-9810 ● ●
24 09.172 GASKET; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) "R-134A" 		8-97081-396-0 02 1 9811-9908 ● ●
24 09.172 GASKET; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) "R-134A" 		8-97081-396-0 02 1 9909-9912 ● ●
24 09.172 GASKET; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) "R-134A" 		8-97081-396-0 02 1 0001-0001 ● ●
24 09.172 GASKET; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) "R-134A" 		8-97081-396-0 02 1 0002- ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97170-930-0 01 1 9712-9810 ● ●
27 09.174 GASKET; CYL HD
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97170-930-0 01 1 9811-9908 ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97170-930-0 01 1 9909-9912 ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97170-930-0 01 1 0001-0001 ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (B) 		8-97170-930-0 01 1 0002- ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97170-933-0 01 1 9712-9908 ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97170-933-0 01 1 9909-9912 ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-97170-933-0 01 1 0001-0001 ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) 		8-97170-933-0 01 1 0002- ● ●
28 09.172 PLATE; VLV,CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-932-0 01 1 9712-9810 ● ●
28 09.172 PLATE; VLV,CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-932-0 01 1 9811-9908 ● ●
28 09.172 PLATE; VLV,CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-932-0 01 1 9909-9912 ● ●
28 09.172 PLATE; VLV,CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-932-0 01 1 0001-0001 ● ●
28 09.172 PLATE; VLV,CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-932-0 01 1 0002- ● ●
30 09.172 VALVE; SUCTION
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97134-755-0 02 1 9712-9810 ● ●
30 09.172 VALVE; SUCTION
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97134-755-0 02 1 9811-9908 ● ●
30 09.172 VALVE; SUCTION
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97134-755-0 02 1 9909-9912 ● ●
30 09.172 VALVE; SUCTION
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97134-755-0 02 1 0001-0001 ● ●
30 09.172 VALVE; SUCTION
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97134-755-0 02 1 0002- ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97138-175-0 01 1 9712-9810 ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97138-175-0 01 1 9909- ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97178-407-1 01 1 9712-9908 ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97178-407-1 01 1 9909-0011 ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97178-407-1 01 1 0012- ● ●
32 09.174 PIN; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94154-711-0 04 1 9712-9810 ● ●
32 09.174 PIN; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94154-711-0 04 1 9811-9908 ● ●
32 09.174 PIN; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94154-711-0 04 1 9909-9912 ● ●
32 09.174 PIN; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94154-711-0 04 1 0001-0001 ● ●
32 09.174 PIN; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94154-711-0 04 1 0002- ● ●
35 09.175 GASKET; PLUG,CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) "R-134A" 		8-97081-395-0 01 1 9712-9810 ● ●
35 09.175 GASKET; PLUG,CYL
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) "R-134A" 		8-97081-395-0 01 1 9811-9908 ● ●
35 09.175 GASKET; PLUG,CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) "R-134A" 		8-97081-395-0 01 1 9909-9912 ● ●
35 09.175 GASKET; PLUG,CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) "R-134A" 		8-97081-395-0 01 1 0001-0001 ● ●
35 09.175 GASKET; PLUG,CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) "R-134A" 		8-97081-395-0 01 1 0002- ● ●
36 09.173 PLUG; CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94164-473-0 01 1 9712-9810 ● ●
36 09.173 PLUG; CYL
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94164-473-0 01 1 9811-9908 ● ●
36 09.173 PLUG; CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94164-473-0 01 1 9909-9912 ● ●
36 09.173 PLUG; CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94164-473-0 01 1 0001-0001 ● ●
36 09.173 PLUG; CYL
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-94164-473-0 01 1 0002- ● ●
37 09.172 GASKET; CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.174 		8-94466-678-0 06 1 9909- ● ●
37 09.172 GASKET; CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.174 		8-94466-678-0 06 1 9712-9810 ● ●
37 09.172 GASKET; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.174 		8-94466-678-0 06 1 9811-9811 ● ●
37 09.172 GASKET; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97233-739-0 06 1 9812-9908 ● ●
37 09.172 GASKET; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97233-739-0 06 1 9909-0011 ● ●
37 09.172 GASKET; CMPR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97233-739-0 06 1 0012- ● ●
40 09.172 PLATE; VLV,RR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-931-0 01 1 9712-9810 ● ●
40 09.172 PLATE; VLV,RR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-931-0 01 1 9811-9908 ● ●
40 09.172 PLATE; VLV,RR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-931-0 01 1 9909-9912 ● ●
40 09.172 PLATE; VLV,RR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-931-0 01 1 0001-0001 ● ●
40 09.172 PLATE; VLV,RR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97170-931-0 01 1 0002- ● ●
41 09.174 HEAD; CYL,RR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-200-0 01 1 9712-9810 ● ●
41 09.174 HEAD; CYL,RR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97223-548-1 01 1 9909- ● ●
41 09.174 HEAD; CYL,RR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97170-929-1 01 1 9712-9811 ● ●
41 09.174 HEAD; CYL,RR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97233-736-0 01 1 9812-9908 ● ●
41 09.174 HEAD; CYL,RR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97233-736-1 01 1 9909-0011 ● ●
41 09.174 HEAD; CYL,RR
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97233-736-1 01 1 0012- ● ●
45 09.173 BOLT; PLATE TO CYL HD
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9909- ● ●
45 09.173 BOLT; PLATE TO CYL HD
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9712-9810 ● ●
45 09.173 BOLT; PLATE TO CYL HD
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9811-9811 ● ●
45 09.173 BOLT; PLATE TO CYL HD
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97205-574-0 01 1 9812-9908 ● ●
45 09.173 BOLT; PLATE TO CYL HD
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97205-574-0 01 1 9909-0011 ● ●
45 09.173 BOLT; PLATE TO CYL HD
4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 		8-97205-574-0 01 1 0012- ● ●
79 09.172 GASKET; VLV,CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-202-0 01 1 9712-9810 ● ●
79 09.172 GASKET; VLV,CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-202-0 01 1 9909- ● ●
126 09.172 VALVE; RELIEF,CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-201-0 01 1 9712-9809 ● ●
126 09.172 VALVE; RELIEF,CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97183-201-0 01 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
