◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#73385) — 209 parça

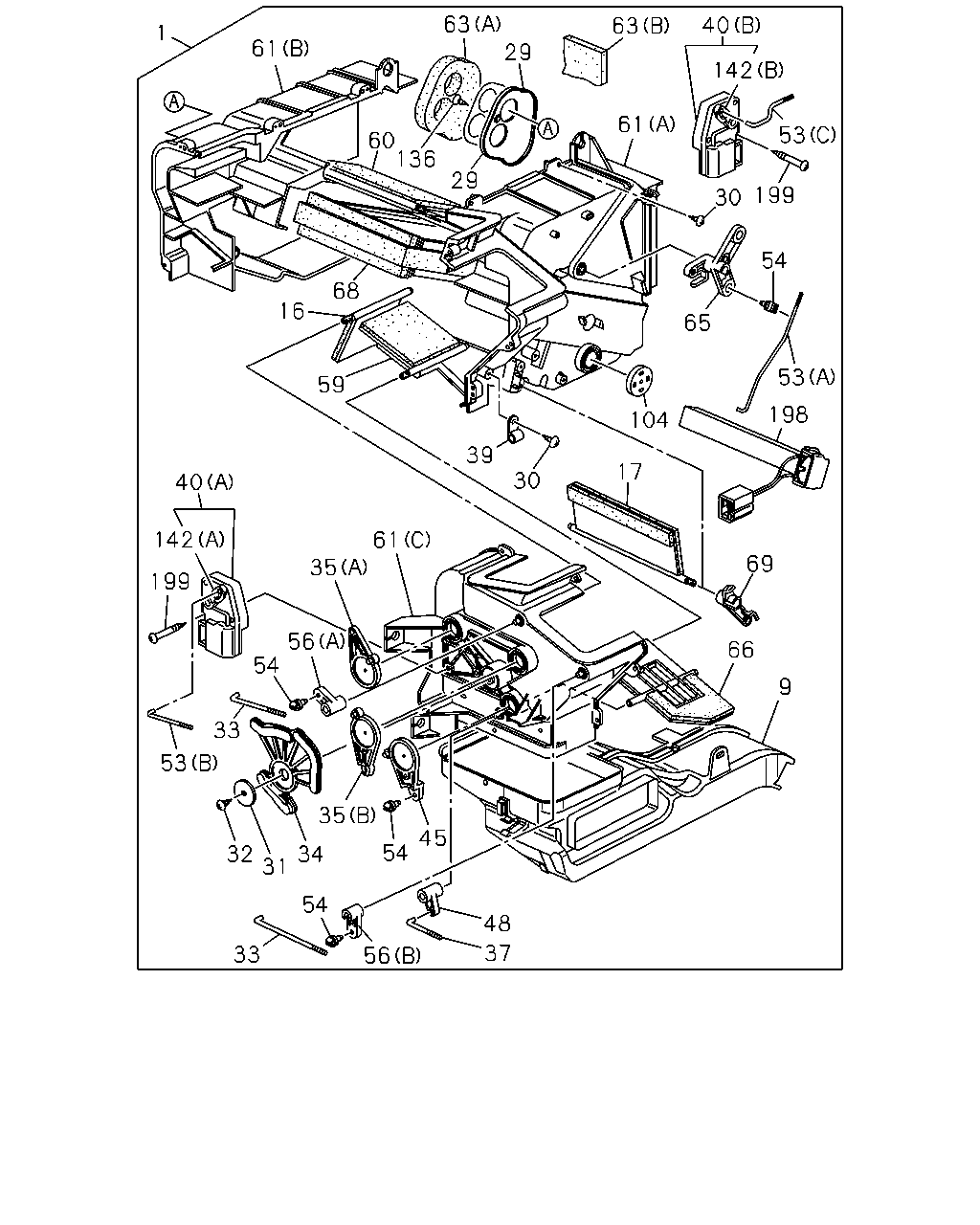

çizim 17529
63 29 40 63 1 61 142 61 53 60 136 29 199 30 54 68 16 65 53 59 198 104 39 17 30 40 142 61 69 35 199 56 54 66 9 33 53 35 45 54 32 31 34 54 48 56 37 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-429-0 01 1 9712- ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 9712-0011 ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 0012- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97225-186-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> 		8-97225-187-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-183-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-855-0 01 1 9712-0011 ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-855-0 01 1 0012- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97111-573-1 01 1 9712-9908 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97111-573-1 01 1 9909- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-526-0 01 1 9712-9908 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97161-526-0 01 1 9909- ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94328-641-0 01 1 9712-9908 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94328-641-0 01 1 9909- ● ●
29 08.857 COVER; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.845 		8-97045-865-0 01 1 9712-9908 ● ●
29 08.857 COVER; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.845 		8-97045-865-0 01 1 9909- ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.854 		8-97045-862-0 01 1 9712-9908 ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.854 		8-97045-862-0 01 1 9909-0011 ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-97045-862-0 01 1 9909-0011 ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.854 		8-97045-862-0 01 1 0012- ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-97045-862-0 01 1 0012- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9712-9908 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9909- ● ●
30 08.845 SCREW; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 16 1 9712- ● ●
30 08.845 SCREW; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 15 1 9909- ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94129-950-0 01 1 9712-9908 ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94129-950-0 01 1 9909- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 10.240 M5X20 		9-09829-324-1 01 1 9712-9908 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 10.240 M5X20 		9-09829-324-1 01 1 9909- ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.852 		8-94328-635-0 02 1 9712-9908 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.852 		8-94328-635-0 02 1 9909- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97111-577-1 01 1 9909- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97045-861-0 01 1 9712- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-94328-645-1 01 1 9712-9908 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-94328-645-1 01 1 9909- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97045-860-0 01 1 9712-9908 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (B) 		8-97045-860-0 01 1 9909- ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94324-848-0 01 1 9712-9908 ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94324-848-0 01 1 9909- ● ●
39 08.854 CLIP; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9712-9908 ● ●
39 08.854 CLIP; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9909- ● ●
39 08.854 CLIP; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9909- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97111-576-0 01 1 9909- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97120-826-0 01 1 9909- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94328-646-1 01 1 9712-9908 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94328-646-1 01 1 9909- ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.852 		8-94328-627-0 01 1 9712-9908 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.852 		8-94328-627-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 (B) 		8-94328-635-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97076-075-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-94324-846-0 01 1 9712-9908 ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-94324-846-0 01 1 9909- ● ●
54 08.854 CLIP; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 09.786 		8-94248-794-0 06 1 9909- ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.786 		8-94248-794-0 04 1 9712- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.852 (A) 		8-94328-649-0 01 1 9712-9908 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.852 (A) 		8-94328-649-0 01 1 9909- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97045-859-0 01 1 9712-9908 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (B) 		8-97045-859-0 01 1 9909- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97130-339-0 01 1 9712-9908 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97130-339-0 01 1 9909- ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94324-833-0 01 1 9712-9908 ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94324-833-0 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-94328-637-3 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-94328-637-3 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (C) 		8-94328-638-2 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (C) 		8-94328-638-2 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9909- ● ●
63 08.856 LINING; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-412-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-97069-412-1 01 1 9909- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-415-1 01 1 9712-0009 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-415-1 01 1 0010-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-415-1 01 1 0010-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-415-1 01 1 0012- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-415-1 01 1 0012- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (B) 		8-97081-291-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (B) 		8-97081-291-1 01 1 9909-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97081-291-1 01 1 9909-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (B) 		8-97081-291-1 01 1 0012- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97081-291-1 01 1 0012- ● ●
65 09.786 LEVER; MIX,DOOR
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97076-074-0 01 1 9909- ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94328-642-0 01 1 9712- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.854 		8-94328-630-0 01 1 9712-9908 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.854 		8-94328-630-0 01 1 9909- ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-94328-640-2 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94328-640-2 01 1 9909- ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-854-0 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-854-0 01 1 9909-0011 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97170-854-0 01 1 9909-0011 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-854-0 01 1 0012- ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97170-854-0 01 1 0012- ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97045-858-0 01 1 9712-9908 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97045-858-0 01 1 9909- ● ●
104 08.854 CAP; CASE,HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-94328-658-0 01 1 9909- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97045-863-0 01 1 9712-9908 ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97045-863-0 01 1 9909- ● ●
142 08.854 LEVER; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97142-812-0 01 1 9909- ● ●
142 08.854 LEVER; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97188-871-0 01 1 9909- ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9712-9908 ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●
198 08.845 HEATER; ELEC
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 		8-94348-809-0 04 1 9909- ● ●

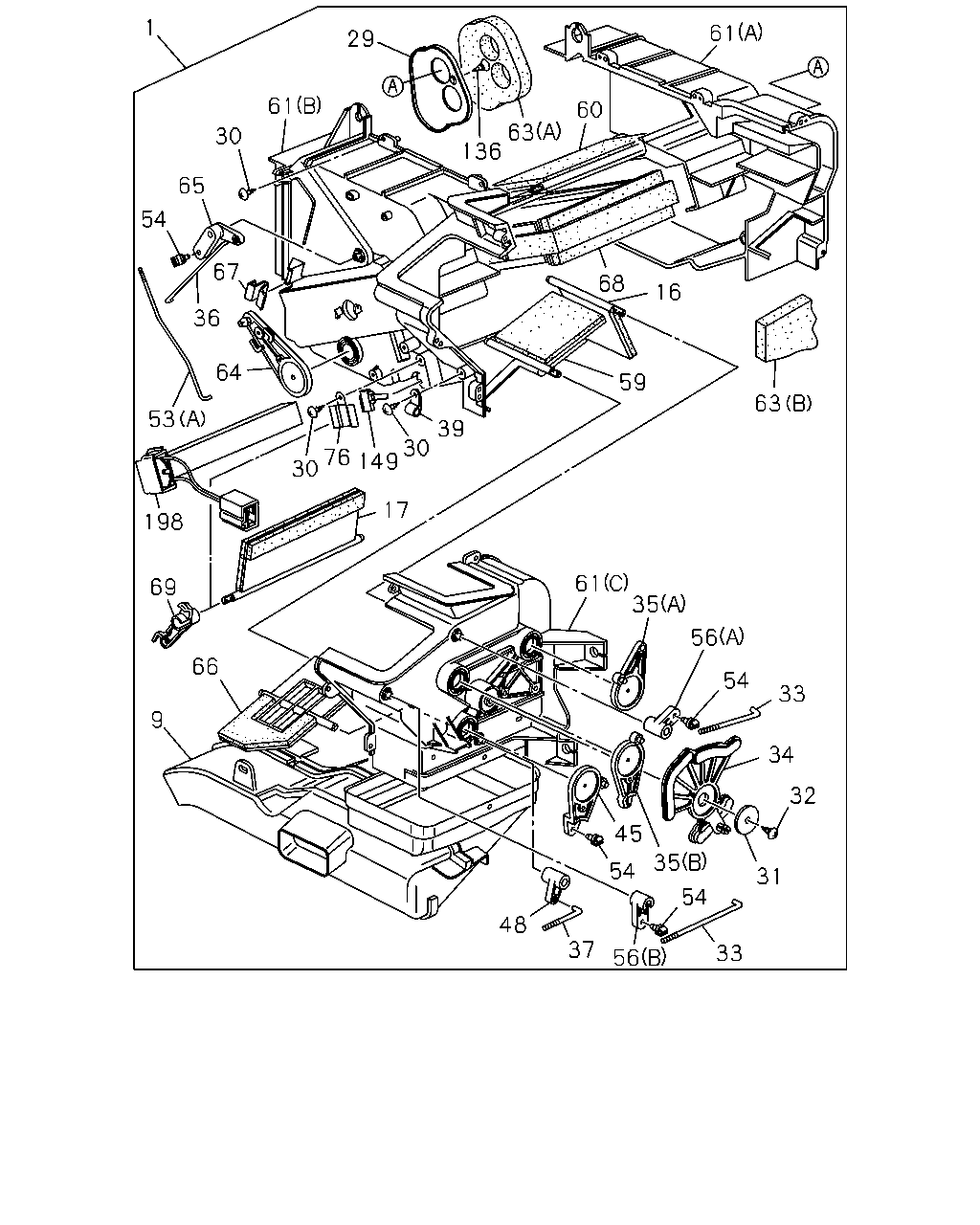

çizim 19782
1 61 29 61 60 63 136 30 65 54 67 68 16 36 64 59 63 53 39 30 149 76 30 17 198 61 35 69 56 66 54 33 9 34 32 45 35 54 31 54 48 37 33 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-429-0 01 1 9712- ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 9712-0011 ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) EXC. CERAMIC HEATER<6YX> 		8-97176-428-0 01 1 0012- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97225-186-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> 		8-97225-187-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-183-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-855-0 01 1 9712-0011 ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-855-0 01 1 0012- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97111-573-1 01 1 9712-9908 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97111-573-1 01 1 9909- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97161-526-0 01 1 9712-9908 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97161-526-0 01 1 9909- ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94328-641-0 01 1 9712-9908 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94328-641-0 01 1 9909- ● ●
29 08.857 COVER; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.845 		8-97045-865-0 01 1 9712-9908 ● ●
29 08.857 COVER; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.845 		8-97045-865-0 01 1 9909- ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.854 		8-97045-862-0 01 1 9712-9908 ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.854 		8-97045-862-0 01 1 9909-0011 ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-97045-862-0 01 1 9909-0011 ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 08.854 		8-97045-862-0 01 1 0012- ● ●
29 08.857 COVER; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-97045-862-0 01 1 0012- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9712-9908 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9909- ● ●
30 08.845 SCREW; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 16 1 9712- ● ●
30 08.845 SCREW; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 15 1 9909- ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94129-950-0 01 1 9712-9908 ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94129-950-0 01 1 9909- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 10.240 M5X20 		9-09829-324-1 01 1 9712-9908 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 10.240 M5X20 		9-09829-324-1 01 1 9909- ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.852 		8-94328-635-0 02 1 9712-9908 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.852 		8-94328-635-0 02 1 9909- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97111-577-1 01 1 9909- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97045-861-0 01 1 9712- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-94328-645-1 01 1 9712-9908 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-94328-645-1 01 1 9909- ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97045-860-0 01 1 9712-9908 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (B) 		8-97045-860-0 01 1 9909- ● ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.786 		8-94324-847-0 01 1 9712- ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94324-848-0 01 1 9712-9908 ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94324-848-0 01 1 9909- ● ●
39 08.854 CLIP; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9712-9908 ● ●
39 08.854 CLIP; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9909- ● ●
39 08.854 CLIP; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9909- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94328-646-1 01 1 9712-9908 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94328-646-1 01 1 9909- ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.852 		8-94328-627-0 01 1 9712-9908 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.852 		8-94328-627-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 (B) 		8-94328-635-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97076-075-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-94324-846-0 01 1 9712-9908 ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-94324-846-0 01 1 9909- ● ●
54 08.854 CLIP; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 09.786 		8-94248-794-0 06 1 9909- ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.786 		8-94248-794-0 04 1 9712- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.852 (A) 		8-94328-649-0 01 1 9712-9908 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.852 (A) 		8-94328-649-0 01 1 9909- ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (B) 		8-97045-859-0 01 1 9712-9908 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (B) 		8-97045-859-0 01 1 9909- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97130-339-0 01 1 9712-9908 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97130-339-0 01 1 9909- ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94324-833-0 01 1 9712-9908 ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94324-833-0 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) EXC. CERAMIC HEATER<6YX> (B) 		8-94328-636-3 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) 		8-94328-637-3 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-94328-637-3 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (C) 		8-94328-638-2 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (C) 		8-94328-638-2 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9909- ● ●
61 08.854 CASE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> (B) 		8-97045-867-2 01 1 9909- ● ●
63 08.856 LINING; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-412-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) 		8-97069-412-1 01 1 9909- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-415-1 01 1 9712-0009 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-415-1 01 1 0010-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-415-1 01 1 0010-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) 		8-97069-415-1 01 1 0012- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-415-1 01 1 0012- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (B) 		8-97081-291-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (B) 		8-97081-291-1 01 1 9909-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97081-291-1 01 1 9909-0011 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (B) 		8-97081-291-1 01 1 0012- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97081-291-1 01 1 0012- ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94324-840-1 01 1 9712- ● ●
65 09.786 LEVER; MIX,DOOR
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97076-074-0 01 1 9909- ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-94328-642-0 01 1 9712- ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.854 		8-94328-630-0 01 1 9712-9908 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 08.854 		8-94328-630-0 01 1 9909- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 09.787 		8-94337-654-0 02 1 9712- ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-94328-640-2 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94328-640-2 01 1 9909- ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-854-0 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-854-0 01 1 9909-0011 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97170-854-0 01 1 9909-0011 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97170-854-0 01 1 0012- ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97170-854-0 01 1 0012- ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97045-858-0 01 1 9712-9908 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97045-858-0 01 1 9909- ● ●
76 08.854 BRACKET; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 9712- ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97045-863-0 01 1 9712-9908 ● ●
136 08.850 SCREW; PLATE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97045-863-0 01 1 9909- ● ●
149 08.852 SWITCH ASM; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-870-2 01 1 9712- ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9712-9908 ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●
198 08.845 HEATER; ELEC
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
