Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#73384) — 136 parça

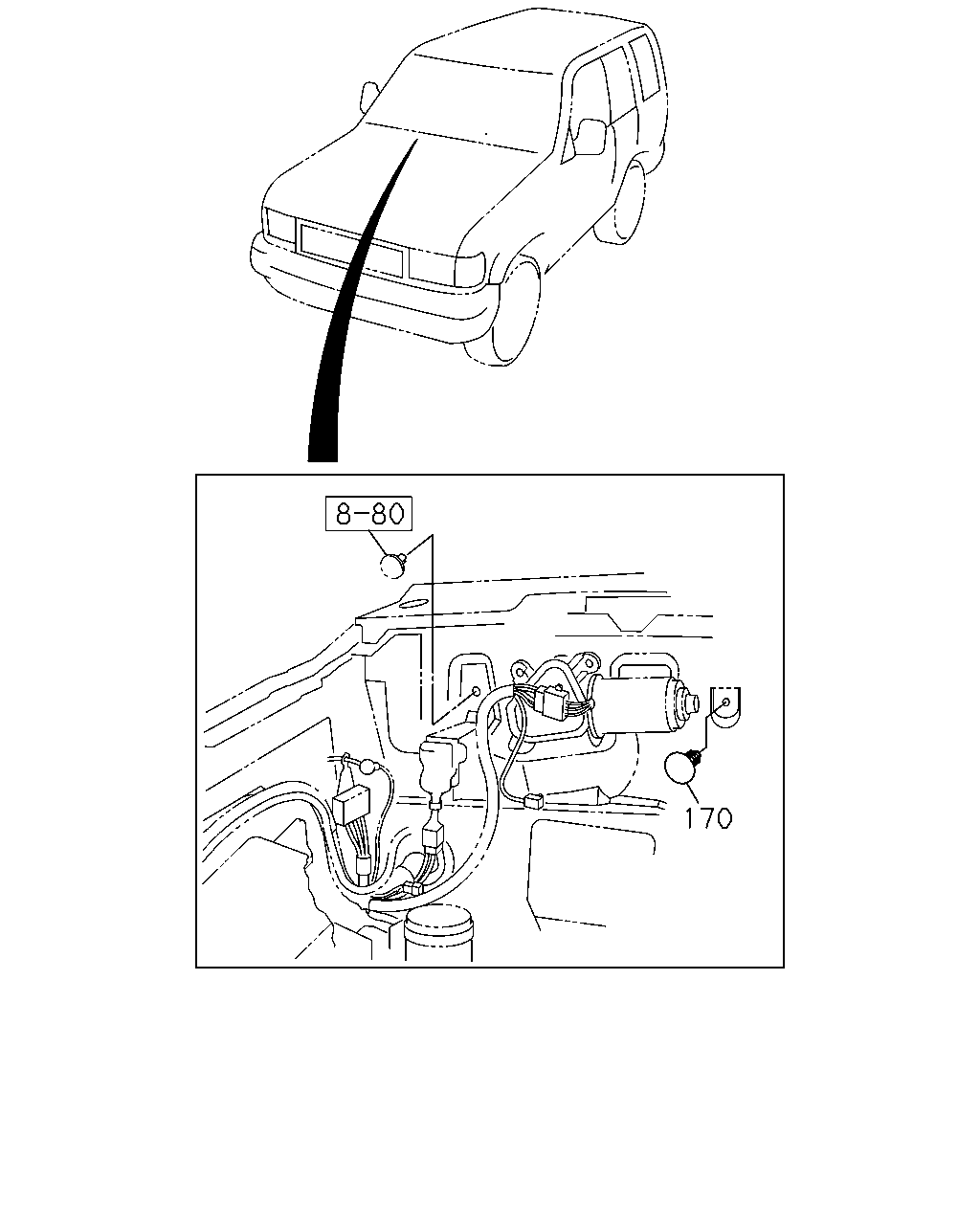

170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	09.220 PLUG; HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9712-9908	●	●
170	09.220 PLUG; HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9712-9908	●	●
170	09.220 PLUG; HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9909-0105	●	●
170	09.220 PLUG; HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9909-0105	●	●
170	09.220 PLUG; HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0106-	●	●
170	09.220 PLUG; HOLE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0106-	●	●

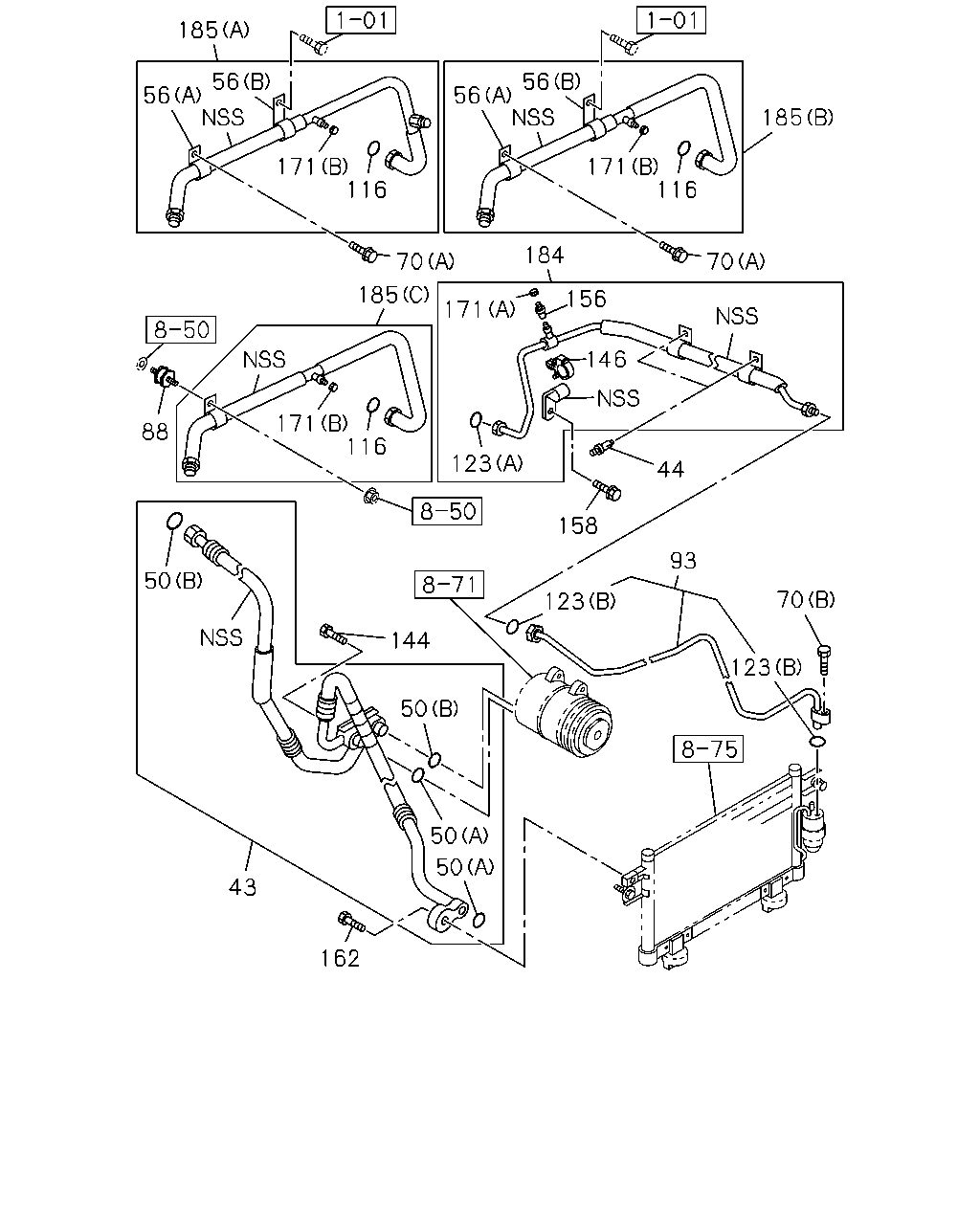

185 56 56 56 56 185 171 116 171 116 184 70 70 185 156 171 146 171 116 88 123 44 158 93 50 70 123 144 123 50 50 50 43 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60)	8-97167-979-0	01	1	9712-9908	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-979-0	01	1	9909-0105	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97307-653-0	01	1	0106-	●	●
44	09.242 CLIP; FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 12.801 D6.8X12	8-94198-687-0	02	1	9712-9908	●	●
44	09.242 CLIP; FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 12.801 D6.8X12	8-94198-687-0	02	1	9909-	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=15.5	8-97161-777-0	02	1	9712-9908	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 09.260 (A) ID=15.5	8-97161-777-0	02	1	9909-	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9712-9908	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9909-	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (A)	1-83574-222-0	01	1	9712-9908	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (A)	1-83574-222-0	01	1	9909-	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B)	8-97139-184-0	01	1	9712-9809	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97139-184-0	01	1	9810-9908	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B)	8-97139-184-0	01	1	9909-	●	●
56	09.242 CLIP; PIPE,A/C 4JG2 ENG(RJC) RR COOLER<7UL> (A)	8-97137-775-0	01	1	9810-		●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	9712-9908	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	9909-	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9712-0111	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0112-0112	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0112-	●	●
70	00.206 BOLT; PIPE TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0112-	●	●
88	09.222 INSULATOR; PIPE 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97181-539-0	01	1	9712-9908	●	●
88	09.222 INSULATOR; PIPE 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97181-539-0	01	1	9909-	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97167-945-0	01	1	9712-9908	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-945-0	01	1	9909-0105	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97264-497-0	01	1	0106-	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> ID=18.3	8-97161-778-0	01	1	9712-9908	●	●
116	09.225 GASKET; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> ID=18.3	8-97161-778-0	01	1	9909-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-776-0	02	1	9712-9908	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B)	8-97161-776-0	02	1	9909-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9712-9908	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9909-	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9712-9908	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9909-	●	●
144	09.242 BOLT; CONN TO CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9908	●	●
144	09.242 BOLT; CONN TO CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9909-	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9712-9908	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9909-0104	●	●
146	09.196 CLIP; RECEIVER PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-94457-163-0	02	1	9712-9908	●	●
146	09.196 CLIP; RECEIVER PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-94457-163-0	02	1	9909-	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9810-9908	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9810-9908	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9909-0104	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9909-0104	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	0105-	●	●
156	09.198 VALVE; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97083-892-0	01	1	9909-0104	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97083-892-0	01	1	0105-	●	●
158	09.220 BOLT; PIPE FIX 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0105-0105	●	●
158	09.220 BOLT; PIPE FIX 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0106-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9810-9810	●	●
162	09.173 BOLT; FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9810-9908	●	●
162	09.173 BOLT; FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9909-	●	●
162	09.173 BOLT; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9810-9908	●	●
162	09.173 BOLT; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9909-	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) CAP MARK H	8-97083-101-0	01	1	9712-9908	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) CAP MARK H	8-97083-101-0	01	1	9909-	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9712-9908	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9909-	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97167-949-0	01	1	9712-9908	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97167-949-0	01	1	9909-0104	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97264-857-0	01	1	0105-	●	●
184	09.220 PIPE; PIPE TO EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97167-947-0	01	1	9712-9908	●	●
184	09.220 PIPE; PIPE TO EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97167-947-0	01	1	9909-0105	●	●
184	09.220 PIPE; PIPE TO EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97264-856-1	01	1	0106-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B)	8-97167-951-0	01	1	9712-9908	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B)	8-97167-951-0	01	1	9909-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (C)	8-97200-988-0	01	1	9712-9908	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (C)	8-97200-988-0	01	1	9909-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC) RR COOLER<7UL> (A)	8-97212-316-0	01	1	9810-		●

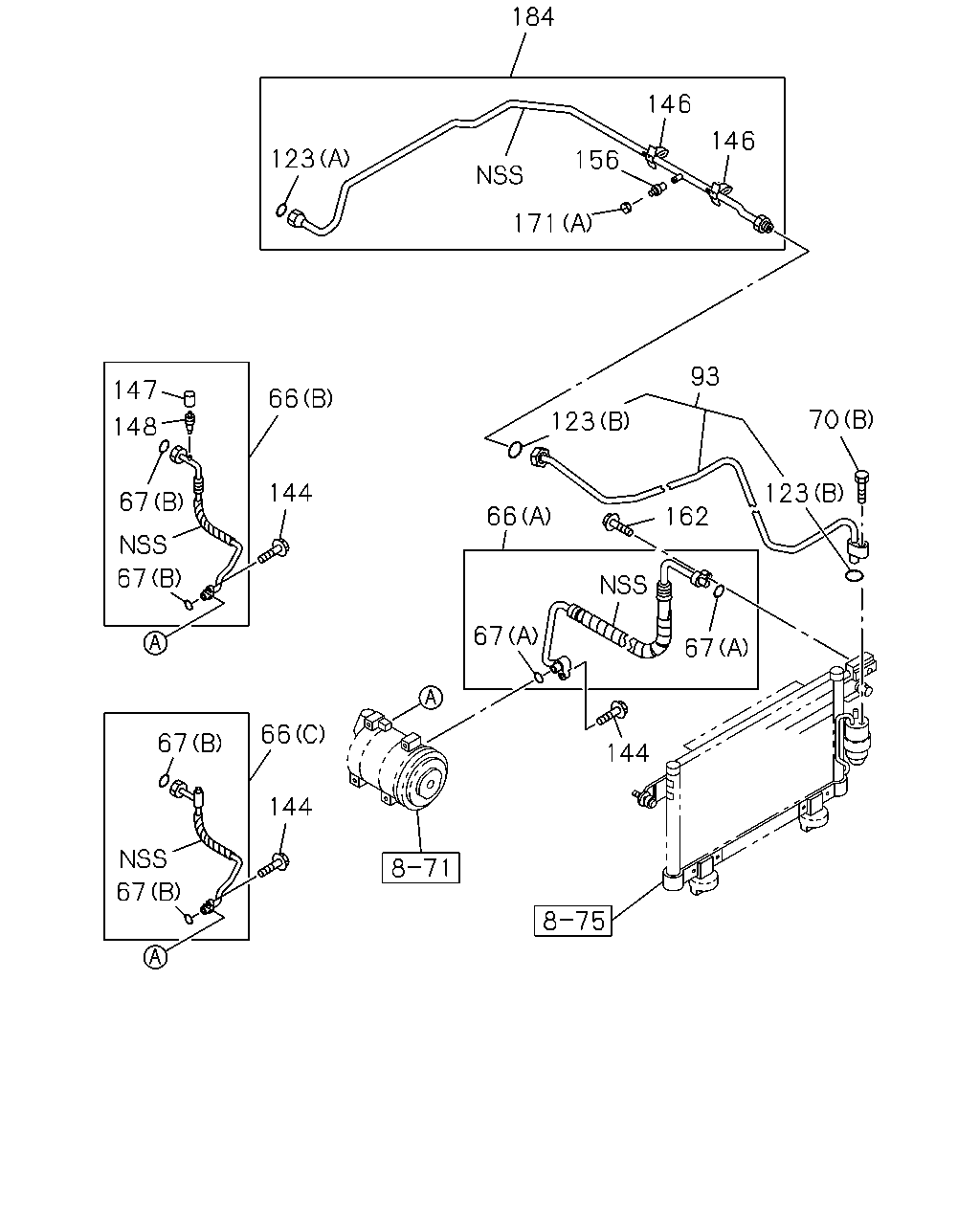

184 146 146 123 156 171 93 147 66 70 123 148 144 123 67 66 162 67 67 67 66 67 144 144 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97186-628-0	01	1	9712-9908	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A)	8-97186-628-0	01	1	9909-0105	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A)	8-97264-664-0	01	1	0106-	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B)	8-97167-977-1	01	1	9712-9908	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B)	8-97167-977-1	01	1	9909-0105	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B)	8-97264-667-0	01	1	0106-	●	●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (C)	8-97212-319-0	01	1	9810-0105		●
66	09.225 HOSE; FLEX,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (C)	8-97264-668-0	01	1	0106-		●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (A) ID=15.5	8-97161-777-0	02	1	9712-9908	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=15.5	8-97161-777-0	02	1	9909-	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.225 (B) ID=18.3	8-97161-778-0	02	1	9712-9809	●	●
67	09.260 GASKET; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9810-	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	9712-9908	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	9909-	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9712-0111	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0112-0112	●	●
70	00.206 BOLT; PIPE TO BODY 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0112-	●	●
70	00.206 BOLT; PIPE TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0112-	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97167-945-0	01	1	9712-9908	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-945-0	01	1	9909-0105	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97264-497-0	01	1	0106-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97161-776-0	02	1	9712-9908	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B)	8-97161-776-0	02	1	9909-	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9712-9908	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A)	8-97161-776-0	01	1	9909-	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9712-9908	●	●
144	09.242 BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9909-	●	●
144	09.242 BOLT; CONN TO CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9908	●	●
144	09.242 BOLT; CONN TO CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9909-	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9712-9908	●	●
146	09.196 CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9909-0104	●	●
146	09.196 CLIP; RECEIVER PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-94457-163-0	02	1	9712-9908	●	●
146	09.196 CLIP; RECEIVER PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-94457-163-0	02	1	9909-	●	●
147	09.242 CAP; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.226 CAP MARK L	8-97083-102-0	01	1	9712-9908	●	●
147	09.242 CAP; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.226 CAP MARK L	8-97083-102-0	01	1	9909-0105	●	●
147	09.242 CAP; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 09.226 CAP MARK L	8-97083-102-0	01	1	0106-	●	●
148	09.262 VALVE; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97083-100-0	01	1	9712-9908	●	●
148	09.262 VALVE; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97083-100-0	01	1	9909-0105	●	●
148	09.262 VALVE; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	0106-	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9810-9908	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9810-9908	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9909-0104	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	9909-0104	●	●
156	09.198 VALVE; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262	8-97083-100-0	01	1	0105-	●	●
156	09.198 VALVE; PIPE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97083-892-0	01	1	9909-0104	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97083-892-0	01	1	0105-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9810-9810	●	●
162	09.173 BOLT; FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9810-9908	●	●
162	09.173 BOLT; FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9909-	●	●
162	09.173 BOLT; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9810-9908	●	●
162	09.173 BOLT; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9909-	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) CAP MARK H	8-97083-101-0	01	1	9712-9908	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) CAP MARK H	8-97083-101-0	01	1	9909-	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9712-9908	●	●
171	09.242 CAP; PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9909-	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97167-949-0	01	1	9712-9908	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97167-949-0	01	1	9909-0104	●	●
184	09.220 PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97264-857-0	01	1	0105-	●	●
184	09.220 PIPE; PIPE TO EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL>	8-97167-947-0	01	1	9712-9908	●	●
184	09.220 PIPE; PIPE TO EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97167-947-0	01	1	9909-0105	●	●
184	09.220 PIPE; PIPE TO EVAP 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL>	8-97264-856-1	01	1	0106-	●	●
