Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#73383) — 182 parça

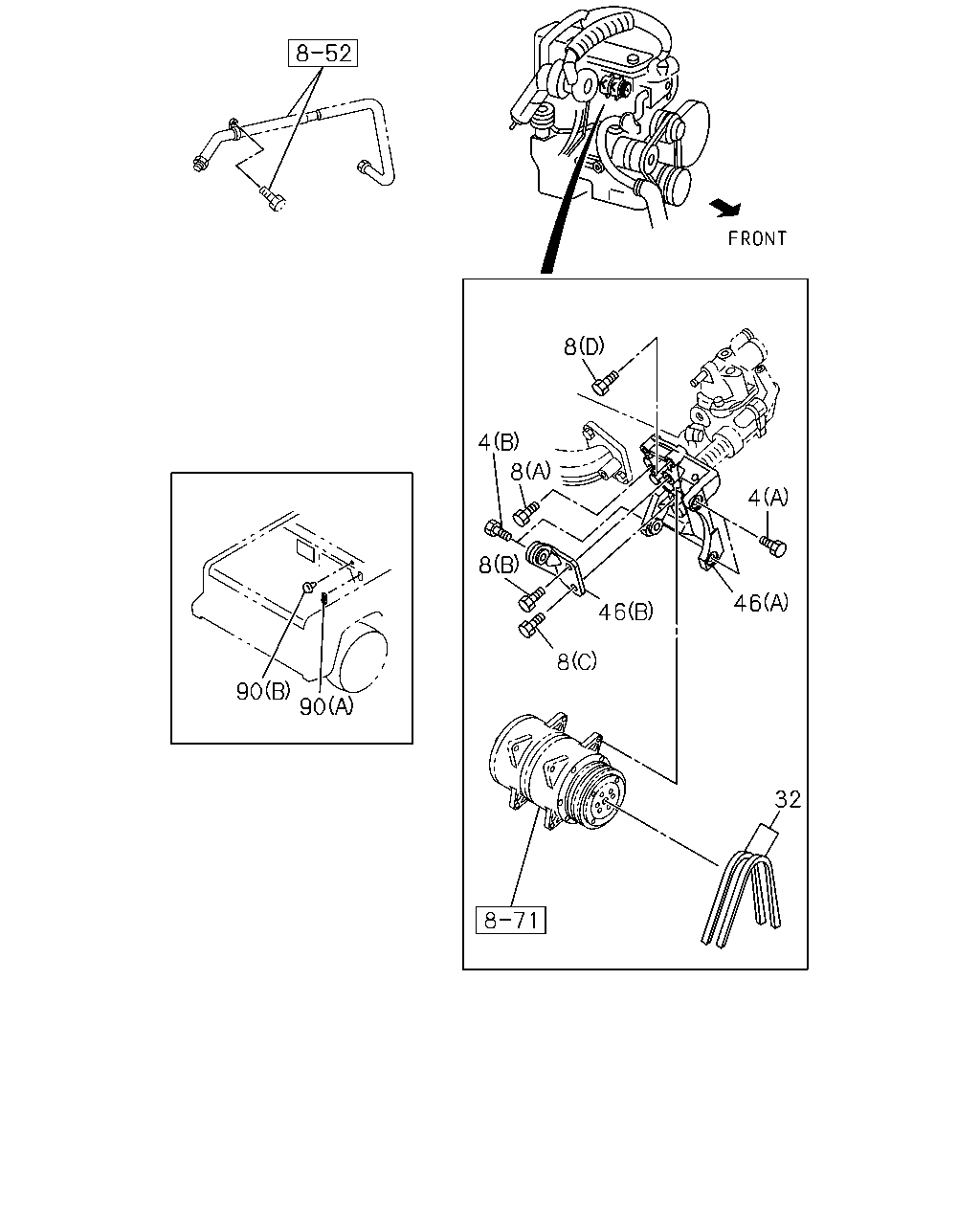

8 4 8 4 8 46 46 8 90 90 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	09.171 BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9712-9804	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	9805-	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 00.724 (C) M10X55	5-09030-038-1	01	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 00.004 (D) M10X40 W/LK WASHER	0-50041-040-0	01	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9712-9801	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9802-9804	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	9805-	●	●
8	09.171 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER PREPARATORY PACK(S6D) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9712-9908	●	●
8	09.171 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9909-0011	●	●
8	09.171 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SEAT HEATER PASSENGER<C38>,AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER P REPARATORY PACK(S6D) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	0012-	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94434-926-0	01	1	9712-	●	●
32	01.066 BELT; A/C CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) L=1252	8-94334-987-0	01	1	9712-9908	●	●
32	01.066 BELT; A/C CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) L=1252	8-94334-987-0	01	1	9909-0011	●	●
32	01.066 BELT; A/C CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) L=1252	8-94334-987-0	01	1	0012-	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9712-	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B)	8-97114-782-0	01	1	9712-	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM)	8-97113-616-3	01	1	9712-0105	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4)	8-97113-616-3	01	1	0106-0208	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3)	8-97113-616-3	01	1	0209-	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4)	8-97248-809-1	01	1	0106-0208	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3)	8-97248-809-1	01	1	0209-	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	9712-9908	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	9909-0011	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	0012-	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (A)	8-94222-310-1	01	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (A)	8-94222-310-1	01	1	9909-	●	●
90	08.850 PLUG; PIPE HOLE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	01	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	9909-0105	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	0106-	●	●
90	08.850 PLUG; PIPE HOLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	0106-	●	●
90	08.850 PLUG; PIPE HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	02	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	02	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	02	1	9909-0105	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	02	1	9909-0105	●	●

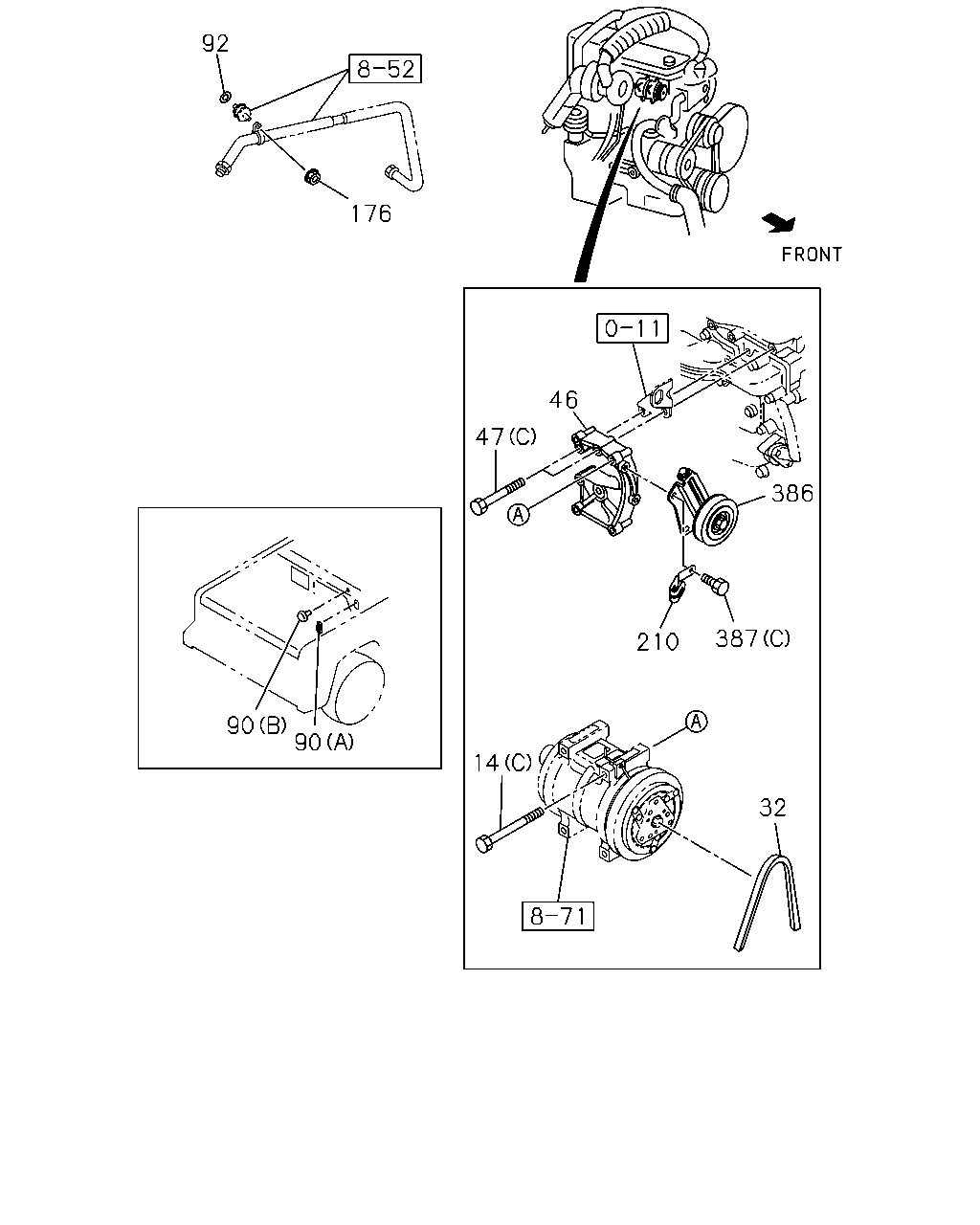

92 176 46 47 386 387 210 90 90 14 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	09.171 BOLT; CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 01.062 (C) M8X95 FLANGE	1-09044-075-1	04	1	9712-9908	●	●
14	09.171 BOLT; CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X95 FLANGE	1-09044-075-1	04	1	9909-0011	●	●
14	09.171 BOLT; CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X95 FLANGE	1-09044-075-1	04	1	0012-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) M8X80 FLANGE	0-28080-880-0	02	1	9712-9908	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) M8X80 FLANGE	0-28080-880-0	02	1	9909-0011	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) M8X80 FLANGE	0-28080-880-0	02	1	0012-0105	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.840 (A) M8X70 FLANGE	0-28080-870-0	04	1	0106-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9712-9908	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9909-0011	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0012-0105	●	●
32	01.066 BELT; A/C CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94434-926-0	01	1	9712-	●	●
32	01.066 BELT; A/C CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) L=1252	8-94334-987-0	01	1	9712-9908	●	●
32	01.066 BELT; A/C CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) L=1252	8-94334-987-0	01	1	9909-0011	●	●
32	01.066 BELT; A/C CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) L=1252	8-94334-987-0	01	1	0012-	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9712-	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B)	8-97114-782-0	01	1	9712-	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM)	8-97113-616-3	01	1	9712-0105	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4)	8-97113-616-3	01	1	0106-0208	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3)	8-97113-616-3	01	1	0209-	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4)	8-97248-809-1	01	1	0106-0208	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3)	8-97248-809-1	01	1	0209-	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	9712-9908	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	9909-0011	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	0012-	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) 08.900 (C) M10X50 FLANGE	0-28181-050-0	04	1	9712-0105	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 08.900 (C) M10X50 FLANGE	0-28181-050-0	04	1	0106-0208	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) 08.900 (C) M10X50 FLANGE	0-28181-050-0	04	1	0209-	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 08.900 (C) M10X50 FLANGE	0-28181-050-0	02	1	0106-0208	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) 08.900 (C) M10X50 FLANGE	0-28181-050-0	02	1	0209-	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.330 (C) M10X60 FLANGE	0-28181-060-0	02	1	0106-0208	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) 03.330 (C) M10X60 FLANGE	0-28181-060-0	02	1	0209-	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9712-9908	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9909-0011	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	0012-	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9712-9908	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9909-0011	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	0012-	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (A)	8-94222-310-1	01	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (A)	8-94222-310-1	01	1	9909-	●	●
90	08.850 PLUG; PIPE HOLE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	01	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	9909-0105	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	0106-	●	●
90	08.850 PLUG; PIPE HOLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	0106-	●	●
90	08.850 PLUG; PIPE HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	02	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	02	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	02	1	9909-0105	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	02	1	9909-0105	●	●
92	09.242 WASHER; PL 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9712-9908	●	●
92	09.242 WASHER; PL 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9909-	●	●
176	09.242 NUT; PIPE 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 07.833 M6 FLANGE	8-97063-399-0	01	1	9712-9908	●	●
176	09.242 NUT; PIPE 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 07.833 M6 FLANGE	8-97063-399-0	01	1	9909-	●	●
210	09.242 CLIP; HARNESS 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9908	●	●
210	09.242 CLIP; HARNESS 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9909-0011	●	●
210	09.242 CLIP; HARNESS 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0012-	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97113-617-1	01	1	9712-9905	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97222-560-0	01	1	9906-9908	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97222-560-0	01	1	9909-0011	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97222-560-0	01	1	0012-	●	●
386	09.180 TENSIONER ASM 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97125-860-1	01	1	9712-	●	●
387	09.190 BOLT; TENSIONER FIX 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 01.062 (C) M8X16 FLANGE	0-28080-816-0	02	1	9712-9908	●	●
387	09.190 BOLT; TENSIONER FIX 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X16 FLANGE	0-28080-816-0	02	1	9909-0011	●	●
387	09.190 BOLT; TENSIONER FIX 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X16 FLANGE	0-28080-816-0	02	1	0012-	●	●
387	09.190 BOLT; TENSIONER FIX 6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	9712-	●	●
387	09.190 BOLT; TENSIONER FIX 6VE1 ENG(RJQ),6VD1 ENG(RLV) (B) M10X65	9-05821-065-0	01	1	9712-	●	●

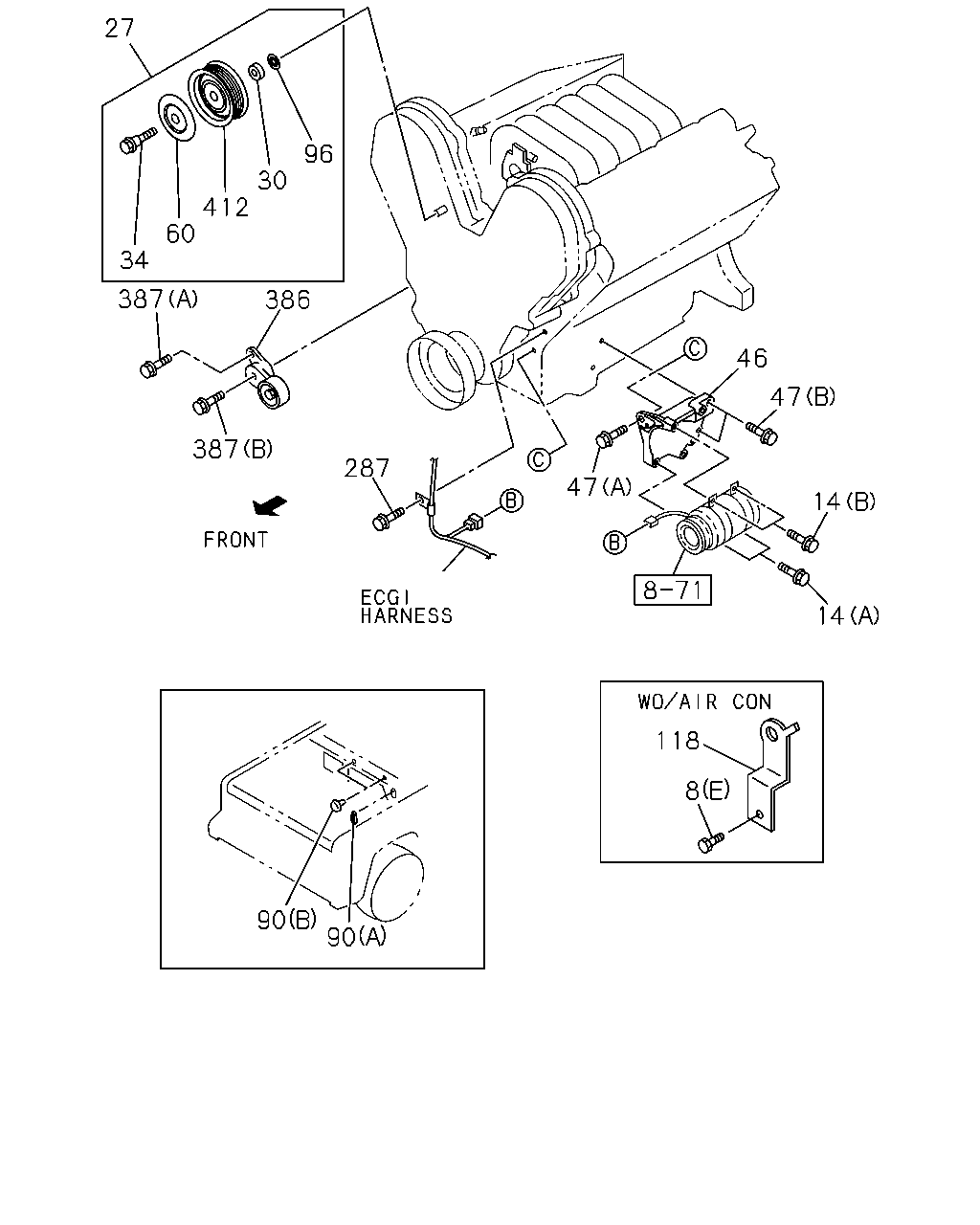

27 96 30 412 60 34 387 386 46 47 387 287 47 14 14 118 8 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 00.724 (C) M10X55	5-09030-038-1	01	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 00.004 (D) M10X40 W/LK WASHER	0-50041-040-0	01	1	9712-	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9712-9801	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9802-9804	●	●
8	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 03.405 (B) M10X30 FLANGE	0-28681-030-0	01	1	9805-	●	●
8	09.171 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER PREPARATORY PACK(S6D) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9712-9908	●	●
8	09.171 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	9909-0011	●	●
8	09.171 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SEAT HEATER PASSENGER<C38>,AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER P REPARATORY PACK(S6D) 03.604 (E) M10X16 FLANGE	0-28181-016-0	01	1	0012-	●	●
14	09.171 BOLT; CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 01.062 (C) M8X95 FLANGE	1-09044-075-1	04	1	9712-9908	●	●
14	09.171 BOLT; CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X95 FLANGE	1-09044-075-1	04	1	9909-0011	●	●
14	09.171 BOLT; CMPR 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X95 FLANGE	1-09044-075-1	04	1	0012-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) (A) M8X80 FLANGE	0-28080-880-0	02	1	9712-9908	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) M8X80 FLANGE	0-28080-880-0	02	1	9909-0011	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) (A) M8X80 FLANGE	0-28080-880-0	02	1	0012-0105	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.840 (A) M8X70 FLANGE	0-28080-870-0	04	1	0106-	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9712-9908	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9909-0011	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0012-0105	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97178-354-0	01	1	9712-0108	●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97178-354-0	01	1	0109-	●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-854-0	01	1	9712-0108	●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-854-0	01	1	0109-	●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-858-0	01	1	9712-0108	●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-858-0	01	1	0109-	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9712-	●	●
46	09.171 BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B)	8-97114-782-0	01	1	9712-	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM)	8-97113-616-3	01	1	9712-0105	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4)	8-97113-616-3	01	1	0106-0208	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3)	8-97113-616-3	01	1	0209-	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4)	8-97248-809-1	01	1	0106-0208	●	●
46	09.171 BRACKET; CMPR 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3)	8-97248-809-1	01	1	0209-	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	9712-9908	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	9909-0011	●	●
46	09.171 BRACKET; CMPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97130-360-1	01	1	0012-	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) 08.900 (C) M10X50 FLANGE	0-28181-050-0	04	1	9712-0105	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 08.900 (C) M10X50 FLANGE	0-28181-050-0	04	1	0106-0208	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) 08.900 (C) M10X50 FLANGE	0-28181-050-0	04	1	0209-	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 08.900 (C) M10X50 FLANGE	0-28181-050-0	02	1	0106-0208	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) 08.900 (C) M10X50 FLANGE	0-28181-050-0	02	1	0209-	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.330 (C) M10X60 FLANGE	0-28181-060-0	02	1	0106-0208	●	●
47	09.173 BOLT; BRKT TO BODY 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) 03.330 (C) M10X60 FLANGE	0-28181-060-0	02	1	0209-	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9712-9908	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9909-0011	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	0012-	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9712-9908	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9909-0011	●	●
47	09.173 BOLT; BRKT TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	0012-	●	●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-857-0	01	1	9712-0108	●	●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-857-0	01	1	0109-	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (A)	8-94222-310-1	01	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (A)	8-94222-310-1	01	1	9909-	●	●
90	08.850 PLUG; PIPE HOLE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	01	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE 4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	9909-0105	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	0106-	●	●
90	08.850 PLUG; PIPE HOLE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	01	1	0106-	●	●
90	08.850 PLUG; PIPE HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	02	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 (B) OD=12	9-09956-122-0	02	1	9712-9908	●	●
90	08.850 PLUG; PIPE HOLE 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	02	1	9909-0105	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.550 (B) OD=12	9-09956-122-0	02	1	9909-0105	●	●
96	08.929 WASHER; LK 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-853-0	01	1	9712-0108	●	●
96	08.929 WASHER; LK 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-853-0	01	1	0109-	●	●
118	09.173 BRACKET; HARNESS CLIP,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER PREPARATORY PACK(S6D)	8-97039-000-0	01	1	9712-9908	●	●
118	09.173 BRACKET; HARNESS CLIP,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D)	8-97039-000-0	01	1	9909-0011	●	●
118	09.173 BRACKET; HARNESS CLIP,A/C 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SEAT HEATER PASSENGER<C38>,AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER P REPARATORY PACK(S6D)	8-97039-000-0	01	1	0012-	●	●
287	09.171 BOLT; BRKT,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9908	●	●
287	09.171 BOLT; BRKT,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9909-0011	●	●
287	09.171 BOLT; BRKT,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0012-	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97113-617-1	01	1	9712-9905	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97222-560-0	01	1	9906-9908	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97222-560-0	01	1	9909-0011	●	●
386	09.180 TENSIONER ASM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D)	8-97222-560-0	01	1	0012-	●	●
386	09.180 TENSIONER ASM 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97125-860-1	01	1	9712-	●	●
387	09.190 BOLT; TENSIONER FIX 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 01.062 (C) M8X16 FLANGE	0-28080-816-0	02	1	9712-9908	●	●
387	09.190 BOLT; TENSIONER FIX 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X16 FLANGE	0-28080-816-0	02	1	9909-0011	●	●
387	09.190 BOLT; TENSIONER FIX 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 01.062 (C) M8X16 FLANGE	0-28080-816-0	02	1	0012-	●	●
387	09.190 BOLT; TENSIONER FIX 6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	9712-	●	●
387	09.190 BOLT; TENSIONER FIX 6VE1 ENG(RJQ),6VD1 ENG(RLV) (B) M10X65	9-05821-065-0	01	1	9712-	●	●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-859-0	01	1	9712-0108	●	●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-859-0	01	1	0109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
