8-45 — HEATER PIPING (#73382) — 41 parça

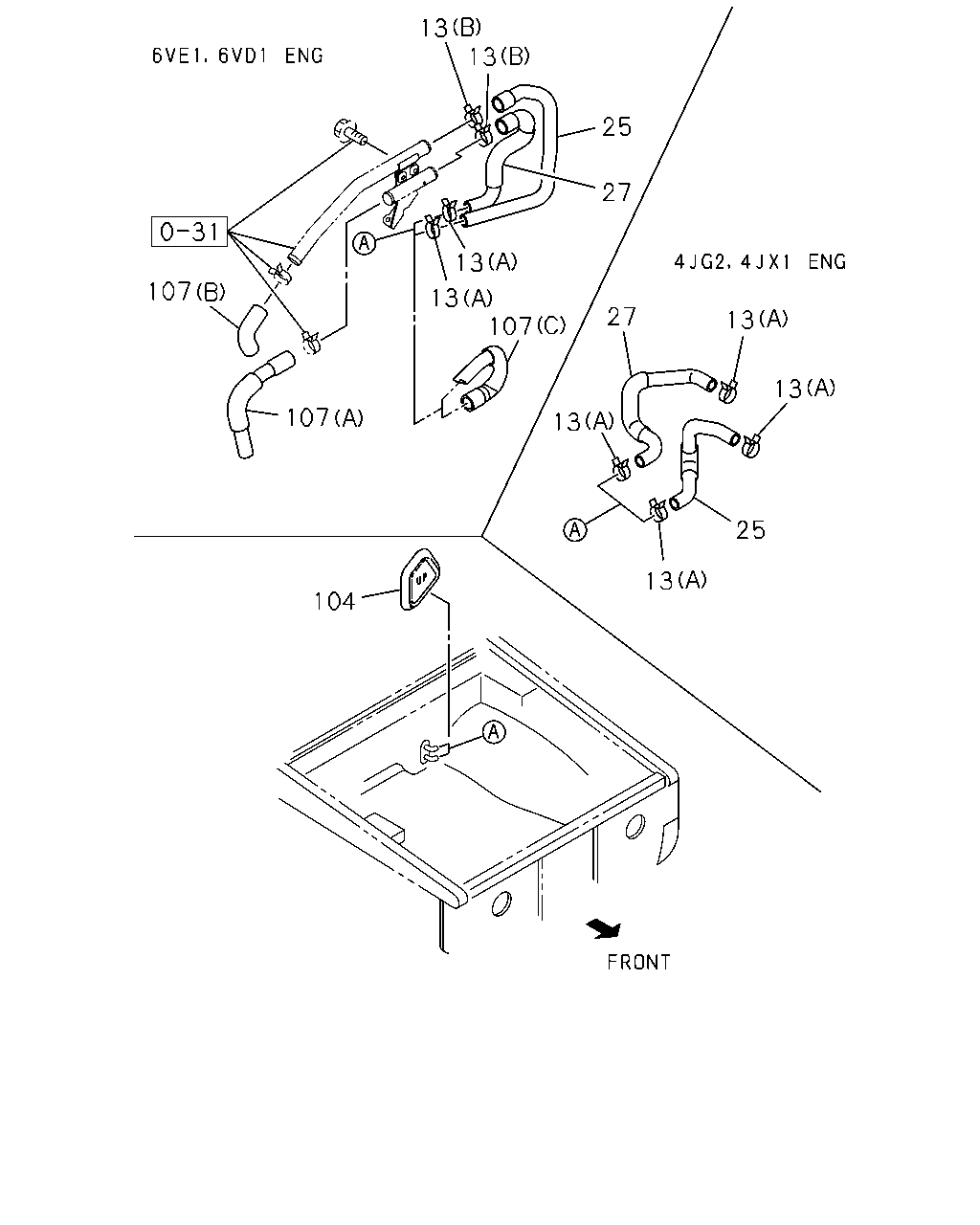

çizim 72503
25 27 27 25 104 107 107 13 13 13 13 107 13 13 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 08.846 CLIP; HTR HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) ID=22 		8-94382-401-0 04 1 9712-9908 ● ●
13 08.846 CLIP; HTR HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) ID=22 		8-94382-401-0 04 1 9909-0011 ● ●
13 08.846 CLIP; HTR HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) ID=22 		8-94382-401-0 04 1 0012- ● ●
13 08.846 CLIP; HTR HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (A) ID=22 		8-94382-401-0 02 1 9712-9908 ● ●
13 08.846 CLIP; HTR HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) ID=22 		8-94382-401-0 02 1 9909-0011 ● ●
13 08.846 CLIP; HTR HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (A) ID=22 		8-94382-401-0 02 1 0012- ● ●
13 08.846 CLIP; HTR HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) (B) ID=23 		8-94382-402-0 02 1 9712-9908 ● ●
13 08.846 CLIP; HTR HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (B) ID=23 		8-94382-402-0 02 1 9909-0011 ● ●
13 08.846 CLIP; HTR HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) (B) ID=23 		8-94382-402-0 02 1 0012- ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97023-975-1 01 1 9712-9908 ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97023-975-1 01 1 9909-0011 ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97023-975-1 01 1 0012- ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97167-971-1 01 1 9712-9908 ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97167-971-1 01 1 9909-0011 ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97167-971-1 01 1 0012- ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-94376-338-0 01 1 9712-9908 ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94376-338-0 01 1 9909-0011 ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94376-338-0 01 1 0012- ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97023-974-1 01 1 9712-9908 ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97023-974-1 01 1 9909-0011 ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97023-974-1 01 1 0012- ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97167-968-0 01 1 9712-9908 ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97167-968-0 01 1 9909-0011 ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-97167-968-0 01 1 0012- ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-94376-340-0 01 1 9712-9908 ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94376-340-0 01 1 9909-0011 ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 		8-94376-340-0 01 1 0012- ● ●
104 16.550 PLUG; RUBBER,HTR HOSE HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97038-490-0 01 1 9712-9908 ● ●
104 16.550 PLUG; RUBBER,HTR HOSE HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULLAUTO CONT(C68),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97038-490-0 01 1 9909-0011 ● ●
104 16.550 PLUG; RUBBER,HTR HOSE HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULLAUTO CONT(C68),AIR CONDITIONER PREPARATO RY PACK(S6D) 		8-97038-490-0 01 1 0012-0105 ● ●
107 08.864 HOSE; WATER,HTR
6VD1 ENG(RLV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2) (C) 		8-97170-129-0 01 1 9712-0102 ● ●
107 08.864 HOSE; WATER,HTR
6VD1 ENG(RLV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EAST MALAYSIA EQUIPM ENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97170-129-0 01 1 0103-0105 ● ●
107 08.864 HOSE; WATER,HTR
6VD1 ENG(RLV) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97170-129-0 01 1 0103-0105 ● ●
107 08.864 HOSE; WATER,HTR
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97160-625-1 01 1 9712-9802 ● ●
107 08.864 HOSE; WATER,HTR
6VE1 ENG(RJQ) (B) 		8-97160-625-1 01 1 9803-0105 ● ●
107 08.864 HOSE; WATER,HTR
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97160-625-1 01 1 9803-0105 ● ●
107 08.864 HOSE; WATER,HTR
6VE1 ENG(RJQ),6VD1 ENG(RLV) (B) 		8-97160-625-2 01 1 0106- ● ●
107 08.864 HOSE; WATER,HTR
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97160-626-2 01 1 9712-9802 ● ●
107 08.864 HOSE; WATER,HTR
6VE1 ENG(RJQ) (A) 		8-97160-626-2 01 1 9803-0105 ● ●
107 08.864 HOSE; WATER,HTR
6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97160-626-2 01 1 9803-0105 ● ●
107 08.864 HOSE; WATER,HTR
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) 		8-97160-626-3 01 1 0106- ● ●
