8-40 — HEATER SYSTEM (#73380) — 68 parça
çizim 17581
32 241 207
BalonParca AdiParca NoAdetTipApplied Date A B
32 02.440 RELAY; A/C
RR COOLER<7UL> 02.515 12V 20A 		8-97093-910-1 01 1 9712-9802 ● ●
32 02.440 RELAY; A/C
RR COOLER<7UL> 02.515 12V 20A 		8-97093-910-1 01 1 9803- ●
207 08.845 SENSOR; AMBIENT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97177-549-0 01 1 9909- ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 00.206 		8-94222-309-1 01 1 9712-9908 ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) 00.206 		8-94222-309-1 01 1 9909- ● ●

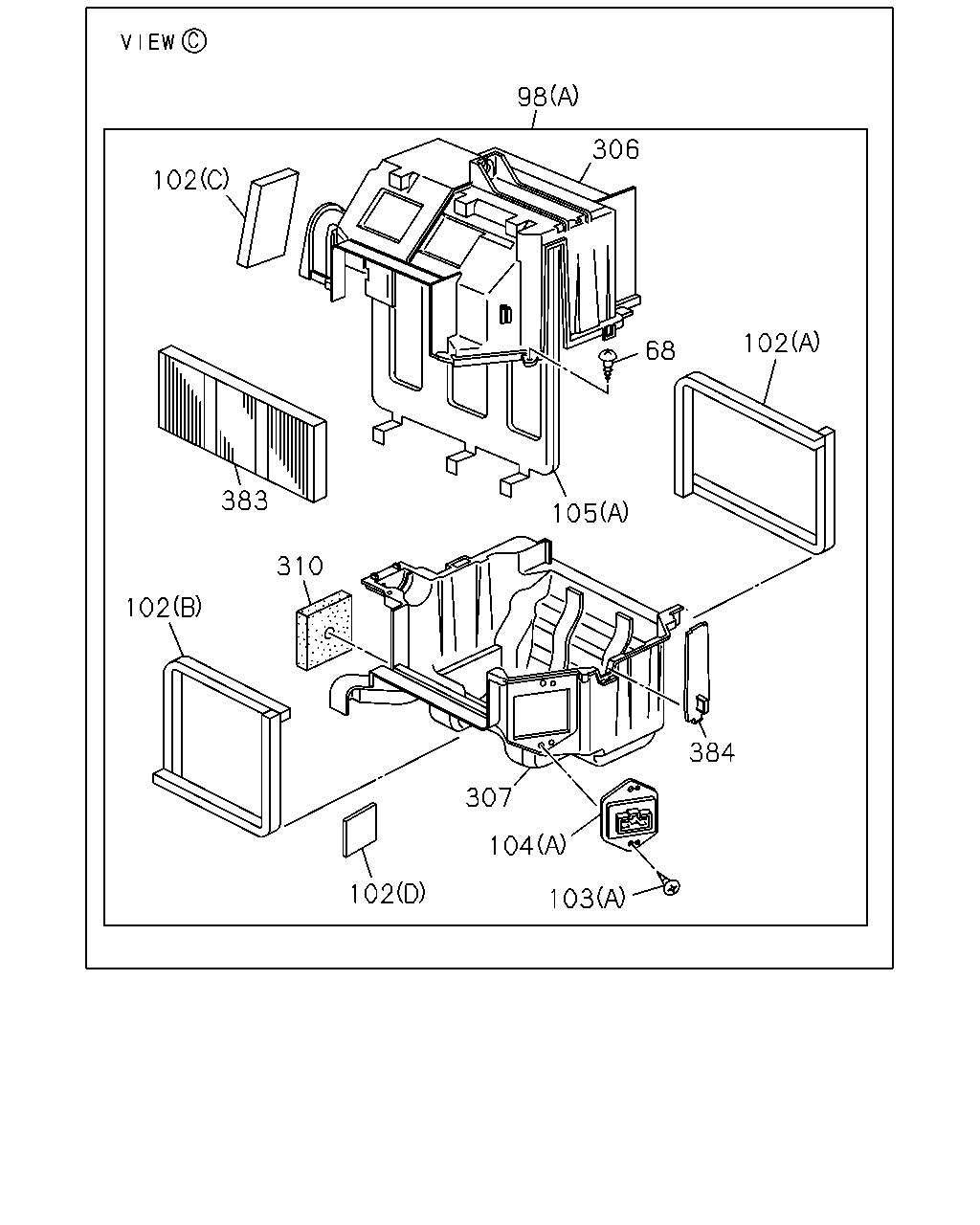

çizim 69548
98 306 102 102 68 383 105 310 102 384 307 104 102 103
BalonParca AdiParca NoAdetTipApplied Date A B
68 09.786 SCREW; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 08.852 M4X16 		8-94324-850-0 06 1 9712- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B) 		8-94376-107-0 01 1 9712-9908 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (B) 		8-94376-107-0 01 1 9909- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A) 		8-97167-956-0 01 1 9712- ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.211 (A) 		8-97103-723-0 01 1 9712- ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.211 (B) 		8-97103-724-0 01 1 9712- ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (C) 		8-97112-515-0 01 1 9712- ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (D) 		8-97182-656-0 02 1 9712- ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 09.789 (B) M4X16 TAPPING 		1-83579-114-0 02 1 9712-9908 ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) 09.789 (B) M4X16 TAPPING 		1-83579-114-0 02 1 9909- ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 08.852 (A) M4X16 		8-94324-850-0 02 1 9712- ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B) 		8-97045-850-0 01 1 9712-9908 ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (B) 		8-97045-850-0 01 1 9909- ● ●
104 08.855 RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.277 (A) 		8-97083-136-1 01 1 9712- ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B) 		8-97045-851-0 01 1 9712-9908 ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (B) 		8-97045-851-0 01 1 9909- ● ●
105 08.856 PLATE; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A) 		8-97170-858-0 01 1 9712- ● ●
306 08.845 CASE; UPR,HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 		8-97170-796-0 01 1 9712- ● ●
307 08.845 CASE; LWR,HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 		8-97148-681-0 01 1 9712- ● ●
310 08.845 GROMMET; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.211 		8-97069-405-2 01 1 9712- ● ●
383 09.264 FILTER; DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 		8-97170-804-0 02 1 9712- ● ●
384 08.845 COVER; DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 		8-97111-790-0 01 1 9712- ● ●

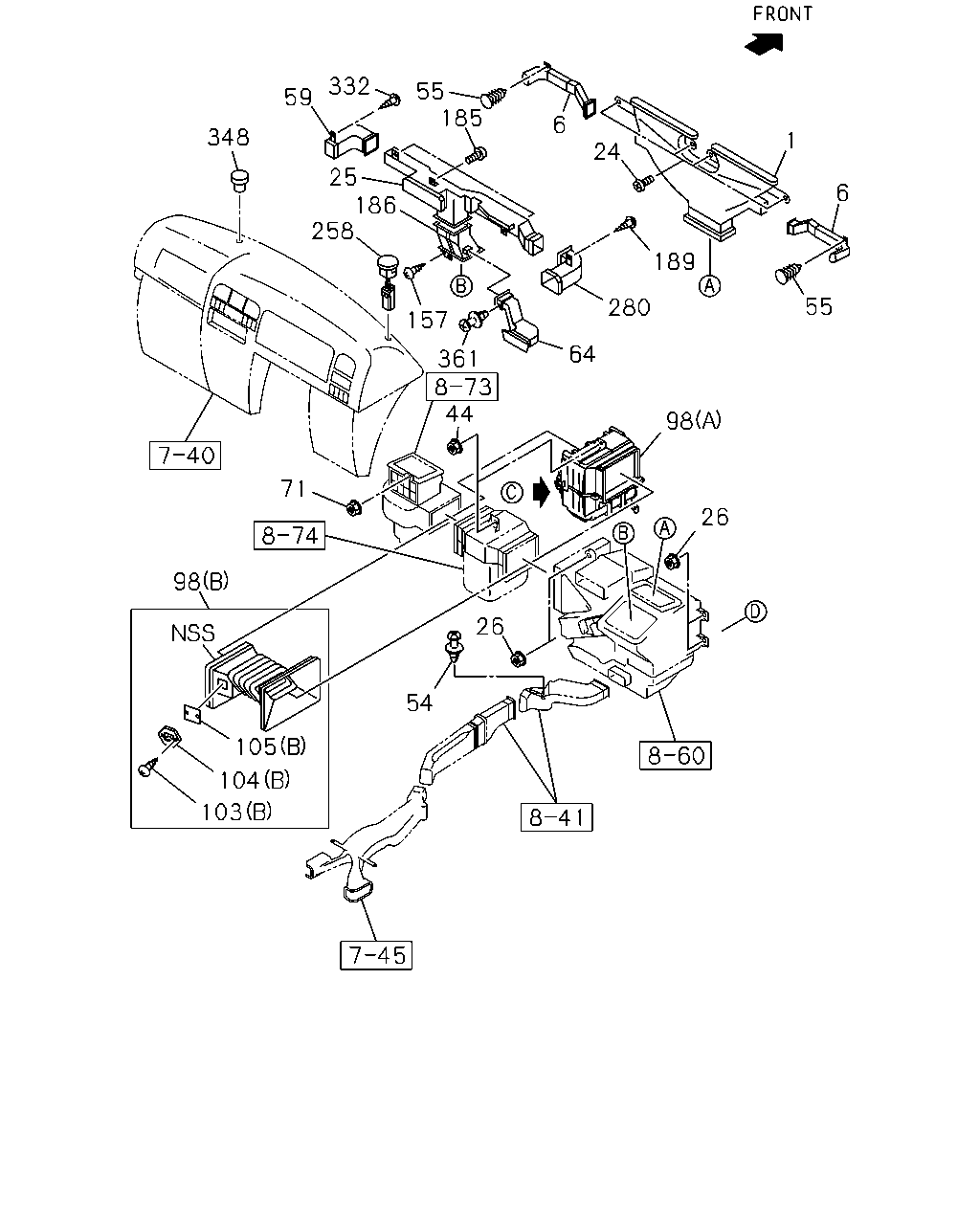

çizim 72132
332 55 185 59 6 348 1 24 25 186 258 6 189 55 280 157 64 361 44 98 71 26 98 26 54 105 104 103
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.779 NOZZLE; DEFROSTER,INST PNL 8-97109-574-1 01 1 9712- ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97102-688-1 01 1 9712- ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97102-689-1 01 1 9712- ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
02.820 M5X16 W/LK&PL WASHER 		9-03920-516-0 04 1 9712- ● ●
25 09.786 DUCT; CENTER 8-97109-575-1 01 1 9712- ● ●
26 08.845 NUT; HTR
07.833 M6 FLANGE 		8-97063-399-0 04 1 9712- ● ●
44 09.222 NUT; EVAP
AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9712-9908 ● ●
44 09.222 NUT; EVAP
EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9712-9908 ● ●
44 09.222 NUT; EVAP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9909- ● ●
44 09.222 NUT; EVAP
EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 07.833 M6 FLANGE 		8-97063-399-0 02 1 9909- ● ●
54 09.262 CLIP; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 12.801 D6.8X12 		8-94198-687-0 01 1 9712-9908 ● ●
54 09.262 CLIP; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 12.801 D6.8X12 		8-94198-687-0 01 1 9909-0011 ● ●
54 09.262 CLIP; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTOCONT(C68),AIR CONDITIONER PREPARATORY PA CK(S6D) 12.801 D6.8X12 		8-94198-687-0 01 1 0012- ● ●
55 09.262 CLIP; HOSE,SIDE DEFROSTER
03.023 ID=6 OD=16 L=18 		8-94178-705-0 02 1 9712- ● ●
59 09.786 DUCT; VENT,ASSIST SIDE 8-97109-577-1 01 1 9712- ● ●
64 09.264 DUCT; VENT,DRIVER SIDE 8-97109-580-2 01 1 9712- ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
07.833 M6 FLANGE 		8-97063-399-0 03 1 9712- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B) 		8-94376-107-0 01 1 9712-9908 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (B) 		8-94376-107-0 01 1 9909- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A) 		8-97167-956-0 01 1 9712- ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 09.789 (B) M4X16 TAPPING 		1-83579-114-0 02 1 9712-9908 ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) 09.789 (B) M4X16 TAPPING 		1-83579-114-0 02 1 9909- ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 08.852 (A) M4X16 		8-94324-850-0 02 1 9712- ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B) 		8-97045-850-0 01 1 9712-9908 ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (B) 		8-97045-850-0 01 1 9909- ● ●
104 08.855 RESISTOR; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) 09.277 (A) 		8-97083-136-1 01 1 9712- ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) (B) 		8-97045-851-0 01 1 9712-9908 ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EUROPE E QUIPMENT(EK4) (B) 		8-97045-851-0 01 1 9909- ● ●
105 08.856 PLATE; HTR DUCT
HEATER & DEFROSTER(C41) EUROPE EQUIPMENT(EK4) (A) 		8-97170-858-0 01 1 9712- ● ●
157 09.264 SCREW
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 9712- ● ●
185 09.262 SCREW; VENT DUCT
16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9712- ● ●
186 09.786 DUCT; VENTILATOR 8-97109-578-1 01 1 9712- ● ●
189 09.264 SCREW; AIR DUCT
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 9712- ● ●
258 08.845 SENSOR; SUN
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97045-692-0 01 1 9909- ● ●
280 09.264 DUCT; VENT,DRIVER SIDE 8-97109-576-1 01 1 9712- ● ●
332 08.845 SCREW; TAP,COVER
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 9712- ● ●
348 08.850 COVER; SUN SENSOR 8-97121-843-1 01 1 9712-9901 ● ●
348 08.850 COVER; SUN SENSOR 8-97121-843-1 02 1 9902-9908 ● ●
348 08.850 COVER; SUN SENSOR
EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97121-843-1 02 1 9909- ● ●
348 08.850 COVER; SUN SENSOR
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97121-843-1 01 1 9909- ● ●
361 09.780 CLIP; DUCT
12.801 D6.8X12 		8-94198-687-0 01 1 9712- ● ●
