◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#73379) — 113 parça
çizim 19001
24 145 25 569
BalonParca AdiParca NoAdetTipApplied Date A B
24 02.100 RELAY; LIGHTING
03.910 12V 20A 		8-94218-497-0 01 1 9712- ● ●
25 02.100 RELAY; TAIL LAMP
02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
145 02.510 RELAY; ANTI THEFT HORN
ANTI THEFT<UA6> BROWN 		8-94232-223-0 01 1 9712- ● ●
569 02.485 RELAY; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●

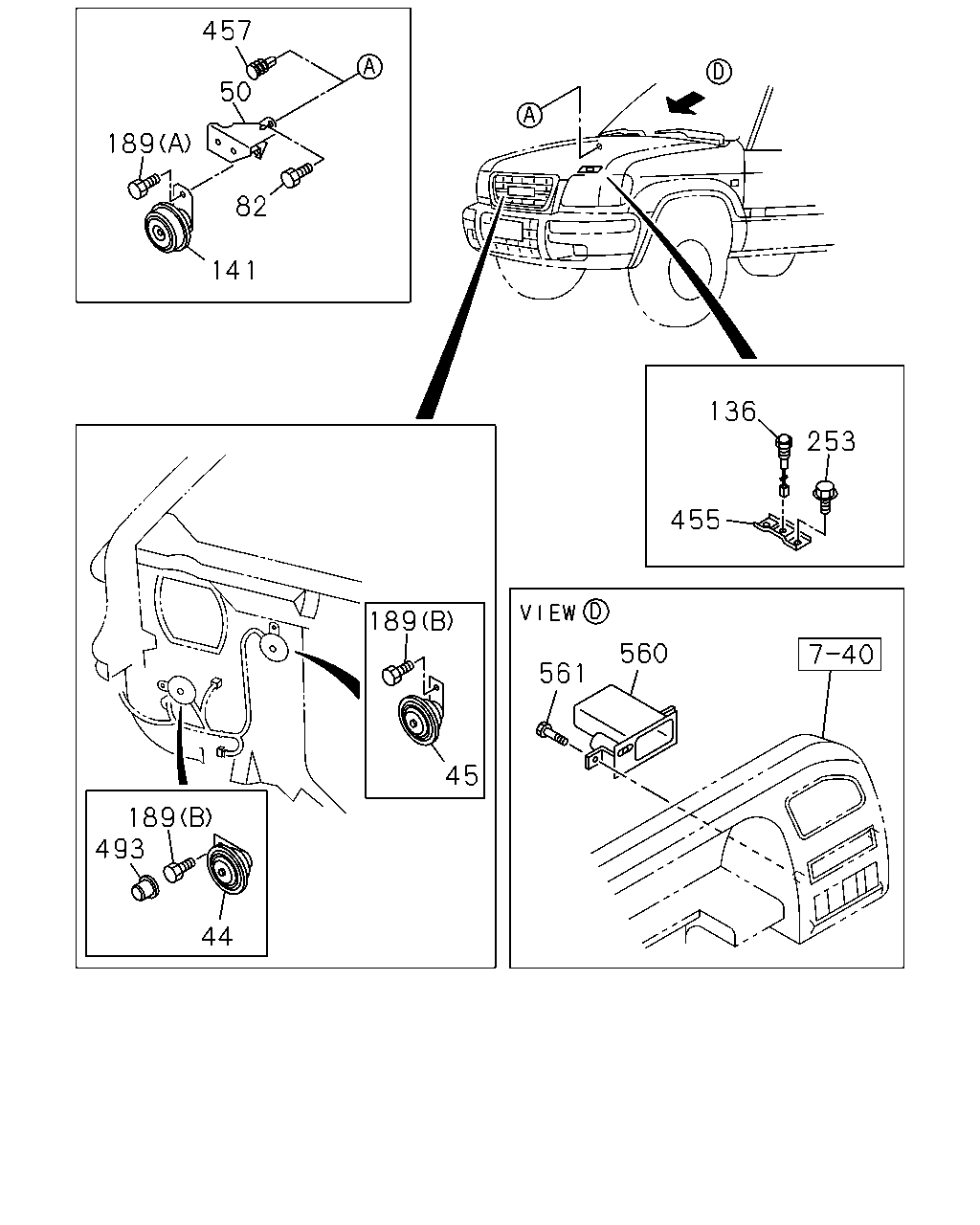

çizim 68199
457 50 189 82 141 136 253 455 189 560 561 45 189 493 44
BalonParca AdiParca NoAdetTipApplied Date A B
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97138-271-1 01 1 9712-9908 ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97218-380-2 01 1 9909- ● ●
45 02.810 HORN; LOW NOTE 8-97138-272-1 01 1 9712-9908 ● ●
45 02.810 HORN; LOW NOTE 8-97218-382-2 01 1 9909- ● ●
50 02.812 BRACKET; HORN
ANTI THEFT<UA6> 		8-97072-528-0 01 1 9712-9908 ● ●
50 02.812 BRACKET; HORN
ANTI THEFT<UA6> 02.810 		8-97219-838-0 01 1 9909- ● ●
82 02.812 BOLT; BRKT,HORN
ANTI THEFT<UA6> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
136 08.083 SWITCH; ENG HOOD
ANTI THEFT<UA6> 		8-94371-878-2 01 1 9712- ● ●
141 02.810 HORN; ANTI THEFT
ANTI THEFT<UA6> 		8-94434-496-0 01 1 9712- ● ●
189 02.812 BOLT; HORN
ANTI THEFT<UA6> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9712- ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ● ●
189 02.812 BOLT; HORN
02.559 (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ● ●
253 03.415 BOLT; BRKT
ANTI THEFT<UA6> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9712- ● ●
455 08.083 BRACKET; ENG HOOD SW
ANTI THEFT<UA6> 		8-97090-018-0 01 1 9712- ● ●
457 02.815 CLIP; HOLE COVER
ANTI THEFT<UA6> 16.067 		8-94279-922-0 02 1 9712-0212 ● ●
457 02.815 CLIP; HOLE COVER
ANTI THEFT<UA6> 16.069 OD=12 L=14.8 		8-94279-921-0 02 1 0301- ● ●
493 02.810 CAP; RUBBER
DUAL TONE HORN<U05> 		8-97095-863-0 01 1 9712- ● ●
560 10.485 WARNING ASM; ANTI THEFT
ANTI THEFT<UA6> 		8-97163-893-1 01 1 9712- ● ●
561 10.485 SCREW; WARNING
07.829 M4X14 TAPPING W/PL WASHER 		0-74300-414-0 02 1 9712- ● ●

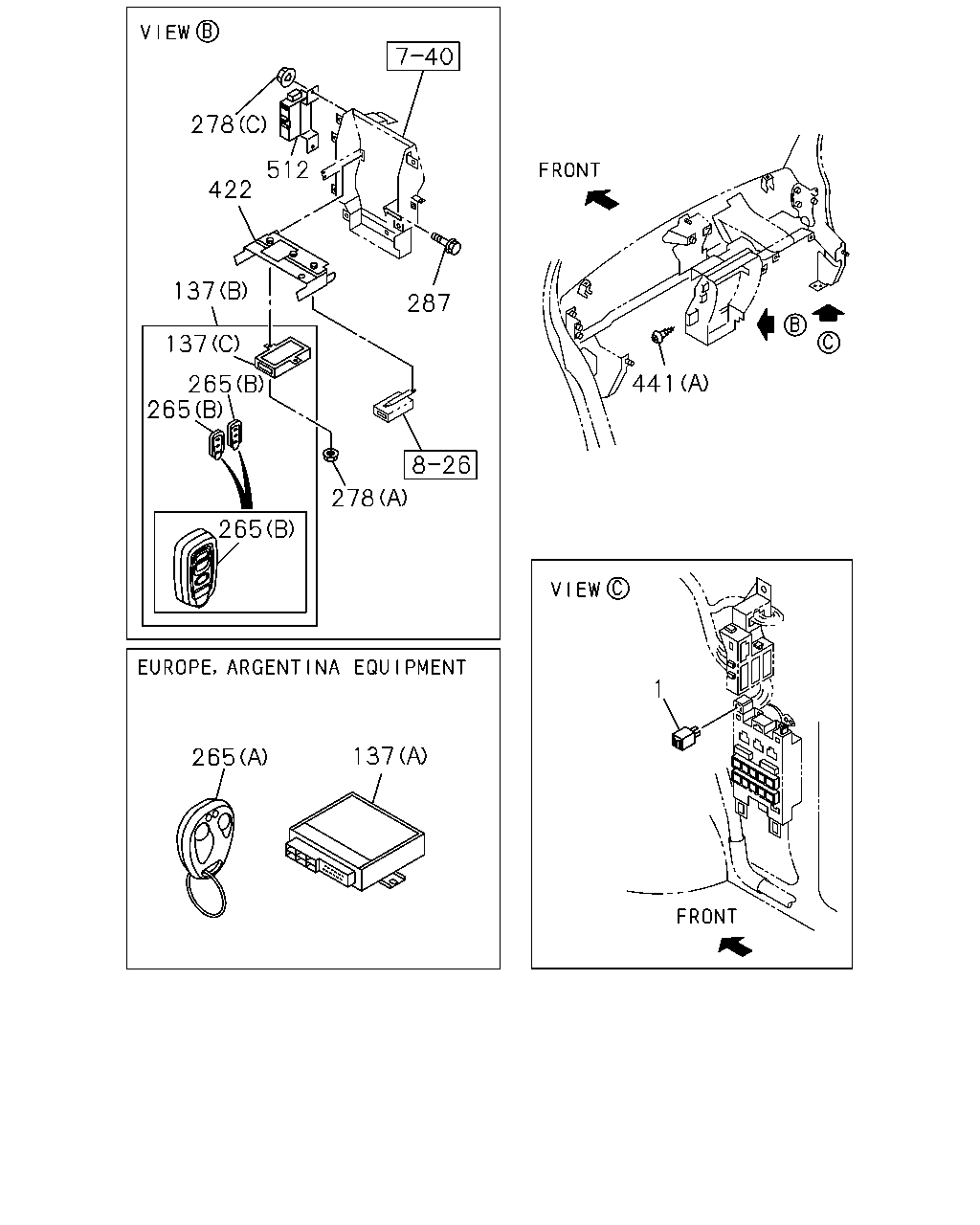

çizim 68200
278 512 422 137 287 137 441 265 265 278 265 1 137 265
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER
AUSTRALIA EQUIPMENT(RR3) NILES 		8-97126-059-0 01 1 9712-9905 ● ●
1 02.575 UNIT; FLASHER
EXC. AUSTRALIA EQUIPMENT(RR3) DENSO 		8-97038-317-0 01 1 9712-9902 ● ●
1 02.575 UNIT; FLASHER
EXC. AUSTRALIA EQUIPMENT(RR3) DENSO 		8-97202-225-0 01 1 9903-9905 ● ●
1 02.575 UNIT; FLASHER
DENSO 		8-97202-225-1 01 1 9906- ● ●
1 02.575 UNIT; FLASHER
EXC. AUSTRALIA EQUIPMENT(RR3) NILES 		8-97105-453-0 01 1 9712-9908 ● ●
1 02.575 UNIT; FLASHER
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) NILES 		8-97105-453-0 01 1 9909-0011 ● ●
1 02.575 UNIT; FLASHER
EXC. EUROPE EQUIPMENT(EK4) NILES 		8-97105-453-0 01 1 0012-0105 ●
1 02.575 UNIT; FLASHER
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) NILES 		8-97105-453-0 01 1 0012-0105 ●
1 02.575 UNIT; FLASHER
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) NILES 		8-97105-453-0 01 1 0106-0110 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),KEYLESS ENTRY SYSTEM<6NF> (C) 		8-97163-889-2 01 1 9712-9908 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),KEYLESS ENTRY SYSTEM<6NF> (C) 		8-97225-517-0 01 1 9909-0102 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),KEYLESS ENTRY SYSTEM<6NF> (C) 		8-97225-517-0 01 1 0103- ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97163-886-3 01 1 9712-9810 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97163-886-3 01 1 9811-9908 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97228-079-1 01 1 9909-0102 ● ●
137 16.263 CONTROLLER; ANTI THEFT
ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97228-079-1 01 1 0103- ● ●
137 16.263 CONTROLLER; ANTI THEFT
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> (B) 		8-97214-268-0 01 1 9811-9908 ● ●
137 16.263 CONTROLLER; ANTI THEFT
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> (B) 		8-97225-504-1 01 1 9909-0006 ● ●
137 16.263 CONTROLLER; ANTI THEFT
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97225-504-1 01 1 0007-0011 ● ●
137 16.263 CONTROLLER; ANTI THEFT
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97225-504-1 01 1 0012- ●
137 16.263 CONTROLLER; ANTI THEFT
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97250-348-0 01 1 0007- ● ●
137 16.263 CONTROLLER; ANTI THEFT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI THEFT<UA6> (A) 		8-97168-381-1 01 1 9712-0102 ● ●
137 16.263 CONTROLLER; ANTI THEFT
EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> (A) 		8-97168-381-2 01 1 0103-0301 ● ●
137 16.263 CONTROLLER; ANTI THEFT
EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 07.450 (A) 		8-97361-705-0 01 1 0302- ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97225-523-1 01 1 9909-0102 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97225-523-1 01 1 0103- ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97163-891-0 01 1 9712-9908 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> (B) 		8-97225-523-1 02 1 9909-0006 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97225-523-1 02 1 0007-0011 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> EXC. NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97225-523-1 02 1 0012- ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> KEYLESS ENTRY SYSTEM<6NF> NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97250-350-0 02 1 0007- ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) KEYLESS ENTRY SYSTEM<6NF> (A) 		8-90508-961-0 02 1 9712-0102 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
EUROPE EQUIPMENT(EK4) KEYLESS ENTRY SYSTEM<6NF> (A) 		8-90508-961-2 02 1 0103-0404 ● ●
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK
EUROPE EQUIPMENT(EK4) KEYLESS ENTRY SYSTEM<6NF> (A) 		8-97378-442-0 02 1 0405- ● ●
278 03.415 NUT; CONT UNIT
ANTI THEFT<UA6> EXC. KEYLESS ENTRY SYSTEM<6NF> 09.744 (A) M5 FLANGE 		5-09440-003-0 02 1 9712- ● ●
278 03.415 NUT; CONT UNIT
KEYLESS ENTRY SYSTEM<6NF> 09.744 (A) M5 FLANGE 		5-09440-003-0 02 1 9712- ● ●
278 03.415 NUT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 07.833 (C) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9712- ● ●
278 03.415 NUT; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) 09.190 (B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 9712-0105 ● ●
278 03.415 NUT; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 09.190 (B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 0106- ● ●
287 02.343 BOLT; BRKT FIX
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ● ●
422 03.415 BRACKET; CONT UNIT 8-97165-670-1 01 1 9712- ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) 06.514 (B) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9712-0105 ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 06.514 (B) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 0106- ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.585 (A) M6X14 W/PL WASHER 		9-03900-614-0 03 1 9712-0105 ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 16.585 (A) M6X14 W/PL WASHER 		9-03900-614-0 03 1 0106- ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> 		8-97168-412-2 01 1 9712-9912 ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) IMMOBILIZER SYSTEM<7KC> 		8-97168-412-2 01 1 0001- ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> 		8-97240-479-1 01 1 0001- ● ●

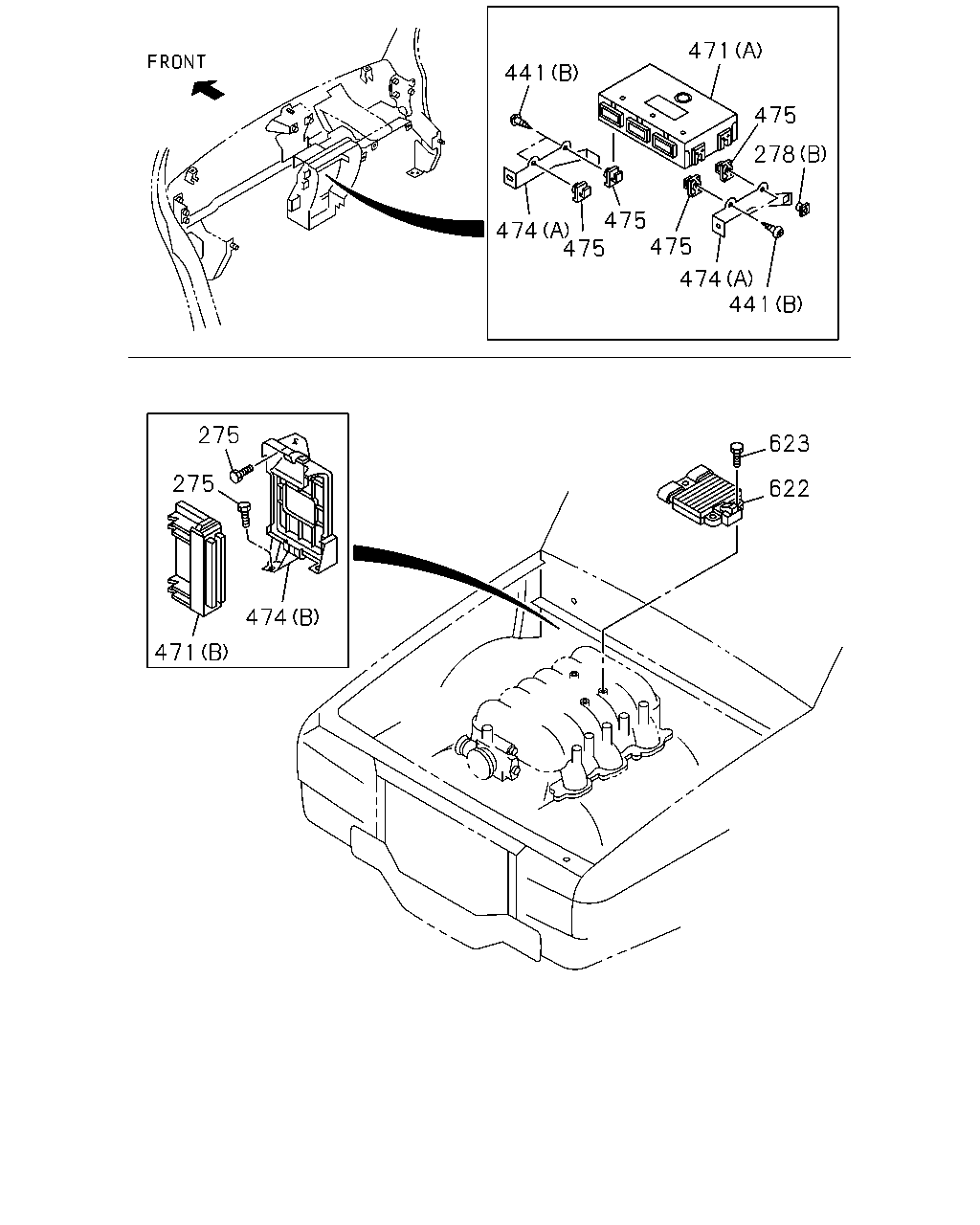

çizim 71250
471 441 475 278 475 475 475 474 474 441 275 623 275 622 474 471
BalonParca AdiParca NoAdetTipApplied Date A B
275 02.343 BOLT; BRKT
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0106- ● ●
278 03.415 NUT; CONT UNIT
ANTI THEFT<UA6> EXC. KEYLESS ENTRY SYSTEM<6NF> 09.744 (A) M5 FLANGE 		5-09440-003-0 02 1 9712- ● ●
278 03.415 NUT; CONT UNIT
KEYLESS ENTRY SYSTEM<6NF> 09.744 (A) M5 FLANGE 		5-09440-003-0 02 1 9712- ● ●
278 03.415 NUT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> 07.833 (C) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9712- ● ●
278 03.415 NUT; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) 09.190 (B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 9712-0105 ● ●
278 03.415 NUT; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 09.190 (B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 0106- ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) 06.514 (B) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9712-0105 ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 06.514 (B) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 0106- ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.585 (A) M6X14 W/PL WASHER 		9-03900-614-0 03 1 9712-0105 ● ●
441 02.575 SCREW; CONT UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 16.585 (A) M6X14 W/PL WASHER 		9-03900-614-0 03 1 0106- ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUI PMENT(S3D) (A) 		8-16253-989-0 01 1 9712- ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUI PMENT(S3D) (A) 		8-16253-979-0 01 1 9712-9801 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-16253-979-0 01 1 9802-0102 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUI PMENT(S3D) (A) 		8-16253-979-0 01 1 0103- ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-16254-039-0 01 1 9712-0011 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (A) 		8-16254-039-0 01 1 0012- ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> (A) 		8-16254-019-1 01 1 9712-0105 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> (B) 		8-97264-700-2 01 1 0106- ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> (A) 		8-16254-959-1 01 1 9712-0105 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> (B) 		8-97264-698-2 01 1 0106- ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (A) 		8-16254-989-0 01 1 9712-0011 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (A) 		8-16254-989-0 01 1 0012- ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> (A) 		8-16254-029-1 01 1 9712-0105 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE CONT<K30> (B) 		8-97264-702-2 01 1 0106- ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> (A) 		8-16254-999-1 01 1 9712-0105 ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) AUTO CRUISE CONT<K30> IMMOBILIZER SYSTEM<7KC> (B) 		8-97264-699-2 01 1 0106- ● ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VD1 ENG(RLV) A/T THM(RMQ) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-16254-949-0 01 1 9712- ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-16254-969-0 01 1 9712- ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) IMMOBILIZER SYSTEM<7KC> (A) 		8-16254-979-0 01 1 9712-0102 ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-09390-679-0 01 1 0001-0004 ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) A/T THM(RMQ) SOUTH AFRICA EQUIPMENT(SW2) IMMOBILIZER SYSTEM<7KC> (A) 		8-09390-679-1 01 1 0005-0102 ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-09391-809-0 01 1 0001-0004 ●
471 09.766 CONTROL MODULE; POWER TRAIN
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SOUTH AFRICA EQUIPMENT(SW2) IMMOBILIZER SYSTEM<7KC> (A) 		8-09391-809-1 01 1 0005-0102 ●
474 09.766 BRACKET; PCM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B) 		8-97240-980-0 01 1 0106- ● ●
474 09.766 BRACKET; PCM
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) 		8-97110-054-0 01 1 9712-0105 ● ●
474 09.766 BRACKET; PCM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97110-054-0 01 1 0106- ● ●
474 09.766 BRACKET; PCM
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) 		8-97110-053-0 01 1 9712-0105 ● ●
474 09.766 BRACKET; PCM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97110-053-0 01 1 0106- ● ●
475 09.765 GROMMET; PCM
6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.342 		8-97110-216-1 04 1 9712-0105 ● ●
475 09.765 GROMMET; PCM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 04.342 		8-97110-216-1 04 1 0106- ● ●
622 01.150 MODULE ASM; SENSOR,ION
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-09383-679-0 01 1 0106- ● ●
623 01.150 BOLT; MODULE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 14.865 M5X12 		8-94386-089-0 03 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
