◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#73377) — 71 parça

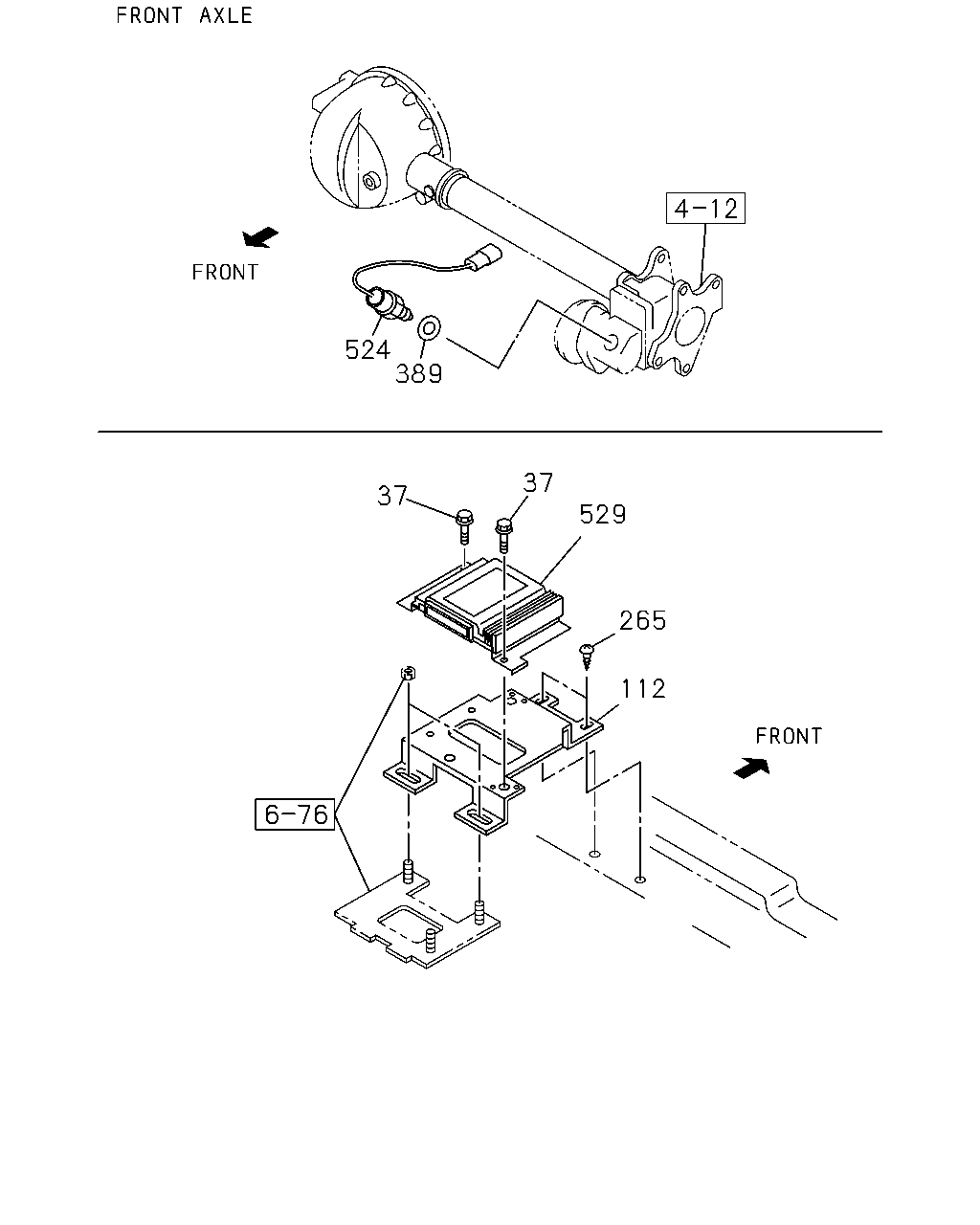

çizim 18932
524 389 37 37 529 265 112
BalonParca AdiParca NoAdetTipApplied Date A B
37 02.500 BOLT; BRKT FIX
TORQUE ON DEMAND<7HA> 08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9712-9712 ●
37 02.500 BOLT; BRKT FIX
TORQUE ON DEMAND<7HA> 16.585 M6X14 FLANGE 		8-94327-380-0 02 1 9801- ●
112 02.500 BRACKET; CONT UNIT
TORQUE ON DEMAND<7HA> 		8-97136-446-1 01 1 9712-9908 ●
112 02.500 BRACKET; CONT UNIT
TORQUE ON DEMAND<7HA> 		8-97215-806-0 01 1 9909-9910 ●
112 02.500 BRACKET; CONT UNIT
TORQUE ON DEMAND<7HA> 		8-97244-774-0 01 1 9911- ●
265 02.500 SCREW; BRKT,CONT UNIT
TORQUE ON DEMAND<7HA> 09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9712- ●
389 09.709 GASKET; SWITCH
SHIFT ON THE FLY(7EX) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9712- ● ●
524 09.755 SWITCH; DIFF
SHIFT ON THE FLY(7EX) 		8-97101-956-2 01 1 9712- ● ●
529 04.115 CONTROL UNIT; TOD
TORQUE ON DEMAND<7HA> 		8-97182-682-0 01 1 9712-9807 ●
529 04.115 CONTROL UNIT; TOD
TORQUE ON DEMAND<7HA> 		8-97204-791-0 01 1 9808-0105 ●
529 04.115 CONTROL UNIT; TOD
4JX1 ENG(RJM) TORQUE ON DEMAND<7HA> 		8-97204-791-0 01 1 0106- ●
529 04.115 CONTROL UNIT; TOD
6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97204-791-0 01 1 0106- ●
529 04.115 CONTROL UNIT; TOD
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97244-928-0 01 1 0106- ●

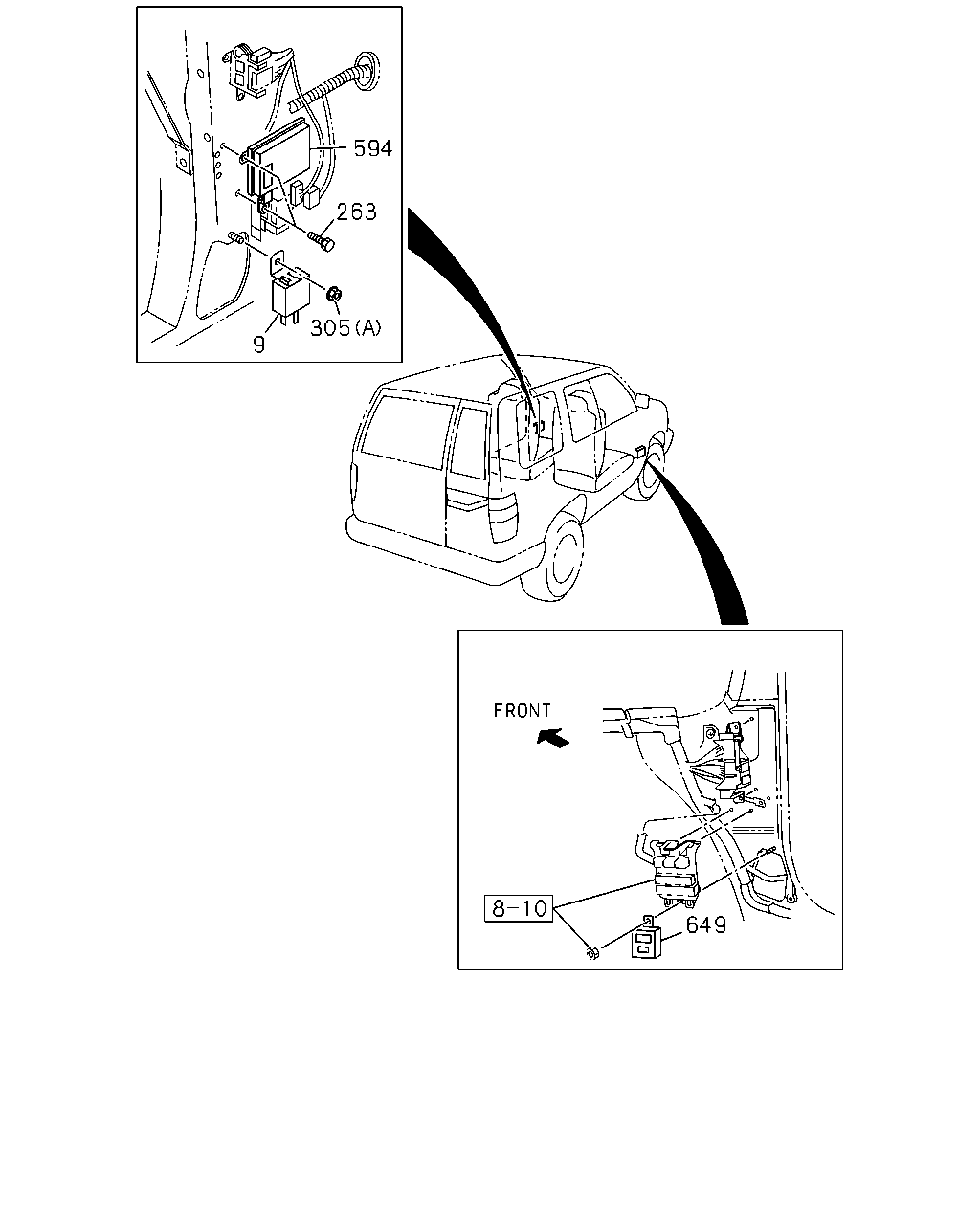

çizim 18933
594 263 305 9 649
BalonParca AdiParca NoAdetTipApplied Date A B
9 03.887 CONTROLLER; CRUISE
6VD1 ENG(RLV) AUTO CRUISE CONT<K30> 		8-97160-449-2 01 1 9712-0105 ● ●
9 03.887 CONTROLLER; CRUISE
6VD1 ENG(RLV) AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		8-97160-449-2 01 1 0106- ● ●
9 03.887 CONTROLLER; CRUISE
6VE1 ENG(RJQ) AUTO CRUISE CONT<K30> 		8-97160-446-1 01 1 9712-0105 ● ●
9 03.887 CONTROLLER; CRUISE
6VE1 ENG(RJQ) AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		8-97160-446-1 01 1 0106- ● ●
263 04.115 BOLT; CONT UNIT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ● ●
305 08.915 NUT; CONT UNIT
AUTO CRUISE CONT<K30> 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9712-0105 ● ●
305 08.915 NUT; CONT UNIT
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0106- ● ●
305 08.915 NUT; CONT UNIT
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 09.744 (B) M5 FLANGE 		5-09440-003-0 01 1 9712- ● ●
594 02.510 CONTROL UNIT; ALARM & RELAY 8-97167-992-1 01 1 9712- ● ●
649 02.679 CONTROL UNIT; RR FOG LAMP
FOG LAMP RR<T79> 		8-97222-834-1 01 1 9909- ● ●

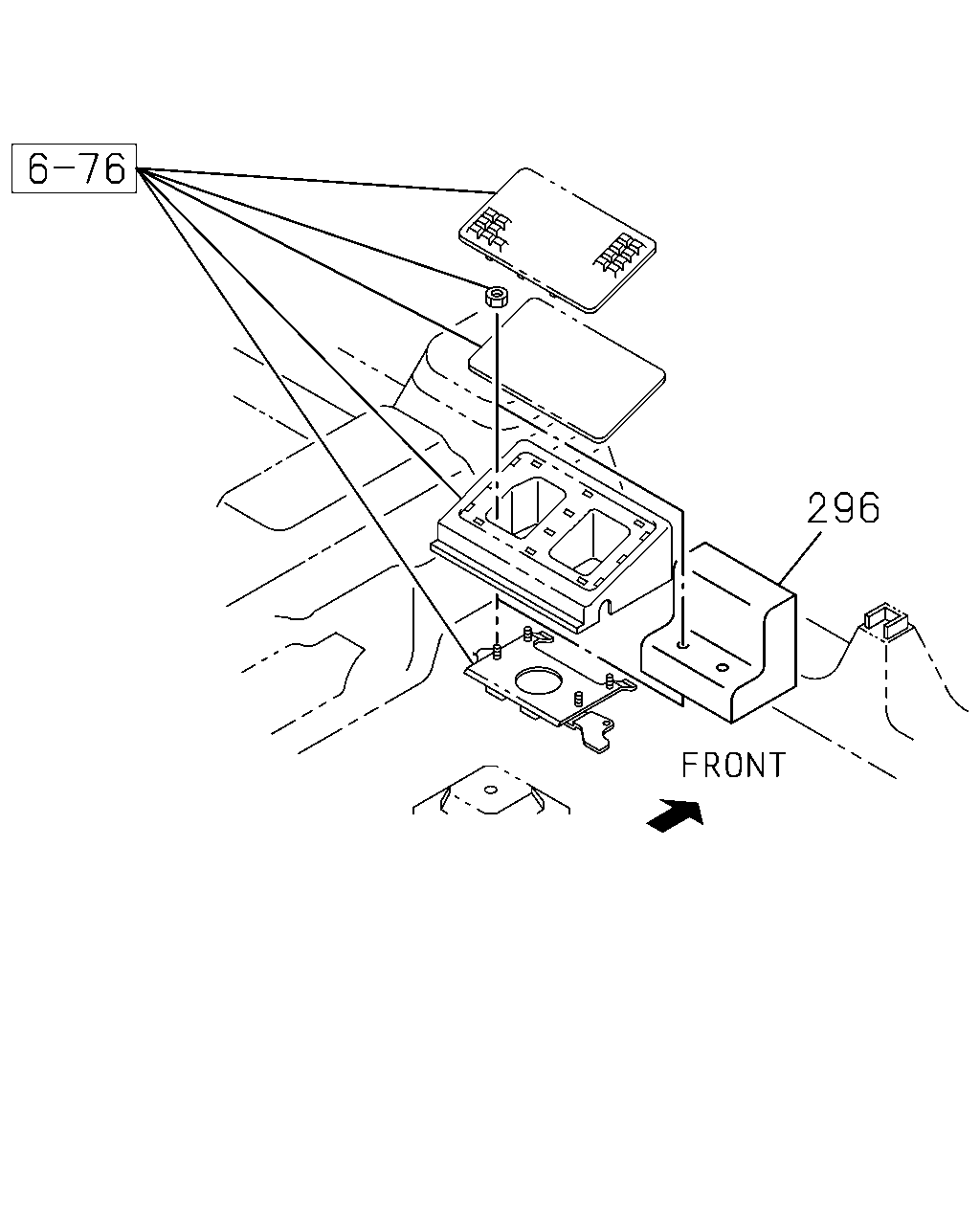

çizim 18934
296
BalonParca AdiParca NoAdetTipApplied Date A B
296 09.709 COVER; CONT UNIT
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> 		8-97147-733-1 01 1 9712-0105 ●
296 09.709 COVER; CONT UNIT
TORQUE ON DEMAND<7HA> 		8-97147-733-1 01 1 0106- ●

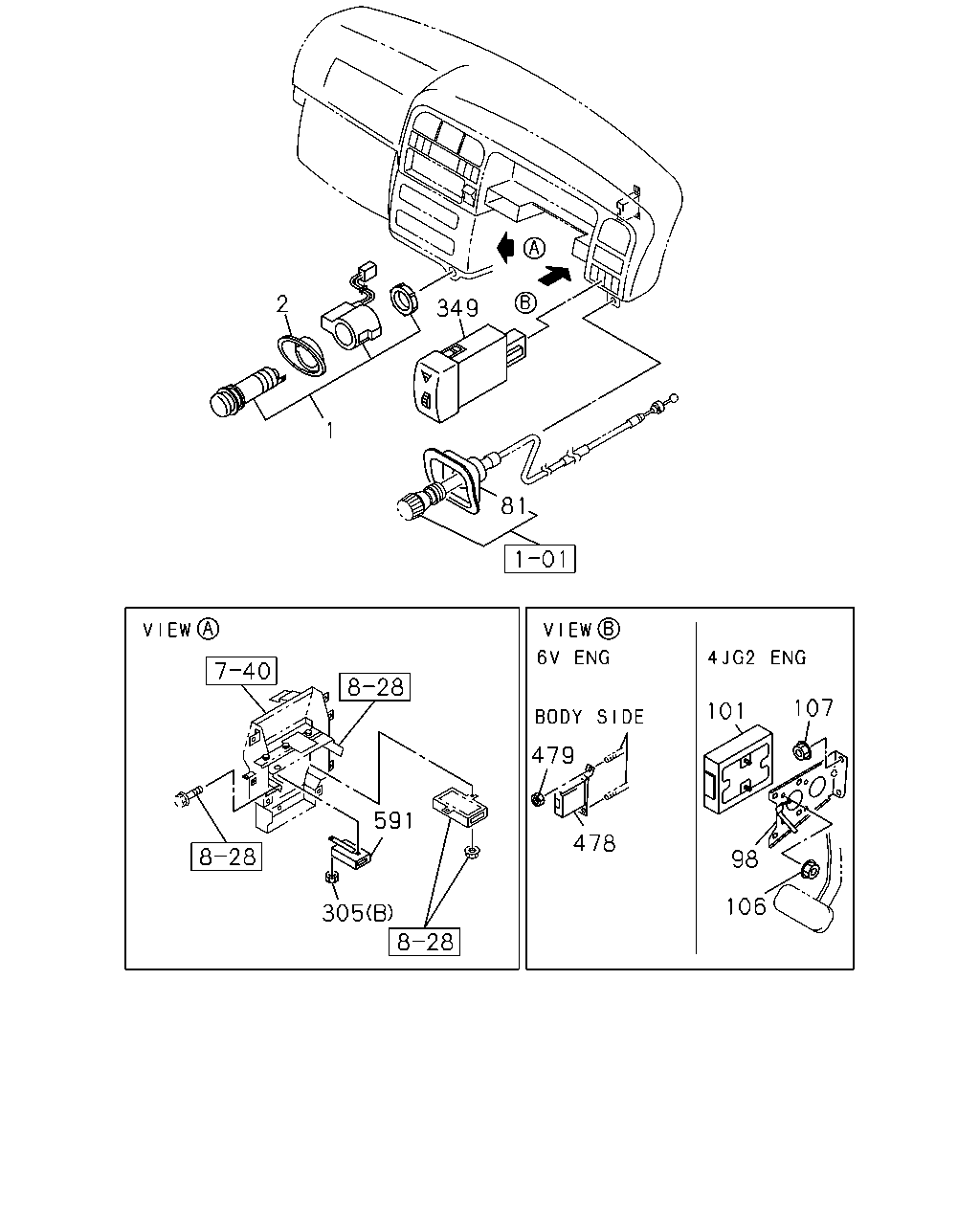

çizim 68956
2 349 1 81 107 101 479 591 478 98 106 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-97094-468-2 01 1 9712-0105 ● ●
1 09.709 LIGHTER; CIGAR 8-97314-003-0 01 1 0106- ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97098-337-0 01 1 9712- ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) DARK GRAY 		8-97153-189-1 01 1 9712-9908 ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-189-1 01 1 9909-0105 ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-189-1 01 1 0106- ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-998-1 01 1 9909-0105 ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-998-1 01 1 0106- ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) 		8-97229-906-0 01 1 9909- ● ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) 		8-97116-918-1 01 1 9712-9908 ●
98 04.115 BRACKET; ELEC CONT UNIT,A/T
A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) 		8-97116-918-1 01 1 9909- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JX1 ENG(RJM) A/T AISIN(RMD) 		8-97230-821-0 01 1 9909- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97190-936-0 01 1 9712-9908 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97190-936-0 01 1 9909-0105 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97302-387-0 01 1 0106- ● ●
106 04.115 NUT; ELEC CONT UNIT
4JX1 ENG(RJM) A/T AISIN(RMD) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9909- ● ●
106 04.115 NUT; ELEC CONT UNIT
A/T AISIN(RMD) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712-9908 ●
106 04.115 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9909- ● ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712-9908 ●
107 04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9909- ● ●
305 08.915 NUT; CONT UNIT
AUTO CRUISE CONT<K30> 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9712-0105 ● ●
305 08.915 NUT; CONT UNIT
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0106- ● ●
305 08.915 NUT; CONT UNIT
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 09.744 (B) M5 FLANGE 		5-09440-003-0 01 1 9712- ● ●
349 02.490 CONTROL; ILLUMINATION
GRADE S/SE(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97135-515-0 01 1 9712-0011 ● ●
349 02.490 CONTROL; ILLUMINATION
GRADE RS(RBF) 		8-97135-515-0 01 1 9712-0011 ●
349 02.490 CONTROL; ILLUMINATION
GRADE LS/LTD(RBD) 		8-97135-515-0 01 1 9712-0011 ●
349 02.490 CONTROL; ILLUMINATION
GRADE RS(RBF) 		8-97135-515-1 01 1 0012- ●
349 02.490 CONTROL; ILLUMINATION
GRADE S/SE(RBA) AUSTRALIA EQUIPMENT(RR3) 		8-97135-515-1 01 1 0012- ●
349 02.490 CONTROL; ILLUMINATION
GRADE LS/LTD(RBD) 		8-97135-515-1 01 1 0012- ●
478 04.224 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97086-258-0 01 1 9712- ● ●
479 08.915 NUT; CONTR0LLER
A/T THM(RMQ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ●
591 04.115 CONTROL UNIT; TRANSFER
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 		8-97165-959-0 01 1 9712- ● ●

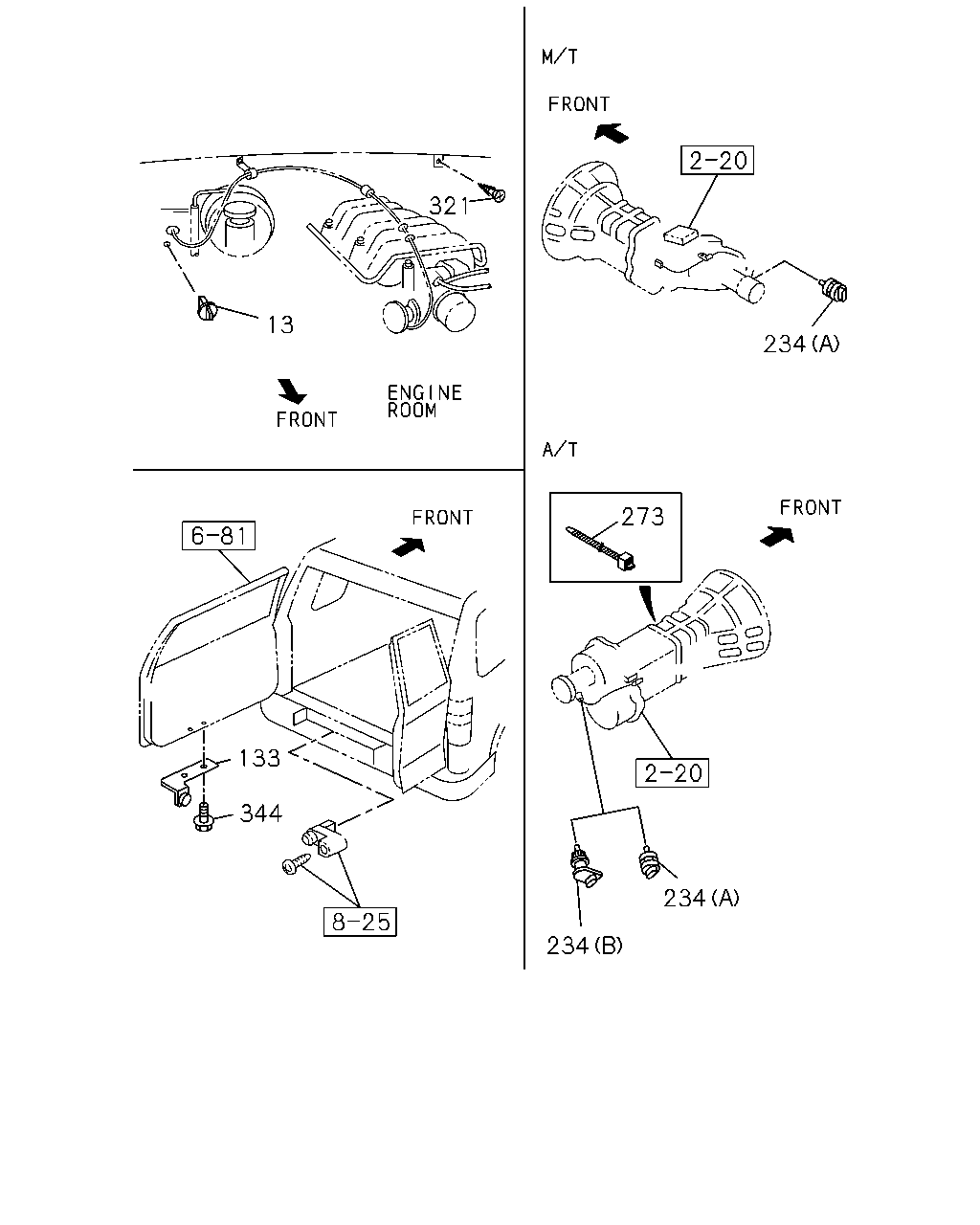

çizim 72420
321 13 234 273 133 344 234 234
BalonParca AdiParca NoAdetTipApplied Date A B
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 9712- ● ●
133 16.263 BRACKET; SWITCH 8-97090-017-0 01 1 9712- ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9712-0405 ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9712-0405 ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0406- ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (A) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 0406- ● ●
234 03.682 SENSOR; VEHICLE SPD
TORQUE ON DEMAND<7HA> (B) 		8-97129-727-0 01 1 9712-0302 ●
234 03.682 SENSOR; VEHICLE SPD
TORQUE ON DEMAND<7HA> (B) 		8-97365-743-0 01 1 0303- ●
273 02.559 CLIP; HARNESS
4JX1 ENG(RJM) A/T AISIN(RMD) 03.162 L=140 		5-09707-031-1 02 1 9909-9911 ● ●
273 02.559 CLIP; HARNESS
4JX1 ENG(RJM) A/T AISIN(RMD) 03.162 L=140 		5-09707-031-1 03 1 9912- ● ●
273 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 03.162 L=140 		5-09707-031-1 01 1 9801-9908 ●
273 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 L=140 		5-09707-031-1 01 1 9909-0105 ● ●
321 09.735 CLIP; SW PANEL
16.069 OD=12 L=14.8 		8-94279-921-0 01 1 9712- ● ●
344 02.487 BOLT; SW BRKT
16.325 M6X16 FLANGE 		8-97808-792-1 02 1 9712- ● ●
