◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#73376) — 214 parça
çizim 18852
98 442 99 155 164 45 154 276 277 152
BalonParca AdiParca NoAdetTipApplied Date A B
45 02.252 RELAY; HORN 8-97018-462-0 01 1 9712- ● ●
98 02.485 RELAY; RR FOG LAMP
FOG LAMP RR<T79> 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP FRT(T37) 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
152 02.510 RELAY; CERAMIC HTR
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
154 09.277 RELAY; CONDENSER FAN
RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9712-9802 ● ●
154 09.277 RELAY; CONDENSER FAN
4JG2 ENG(RJC) A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9712-9802 ●
154 09.277 RELAY; CONDENSER FAN
6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9712-9802 ●
154 09.277 RELAY; CONDENSER FAN
4JG2 ENG(RJC) A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9803-9908 ●
154 09.277 RELAY; CONDENSER FAN
6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9803-9908 ●
154 09.277 RELAY; CONDENSER FAN
RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9803-9908 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDENSER W/COOLING FAN(7XX) 03.910 12V 20A 		8-94218-497-0 01 1 9909-0105 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDENSER W/COOLING FAN(7XX) 03.910 12V 20A 		8-94218-497-0 01 1 0106- ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 02.515 12V 20A 		8-97093-910-1 01 1 9712-9908 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 02.515 12V 20A 		8-97093-910-1 01 1 9909-0011 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 02.515 12V 20A 		8-97093-910-1 01 1 0012- ● ●
164 02.510 RELAY; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 02.515 12V 20A 		8-97093-910-1 01 1 9712-9908 ● ●
164 02.510 RELAY; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 02.515 12V 20A 		8-97093-910-1 01 1 9909-0011 ● ●
164 02.510 RELAY; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITION ER PREPARATORY PACK(S6D) 02.515 12V 20A 		8-97093-910-1 01 1 0012- ● ●
276 02.510 RELAY; CHARGE & AUTO CHOKE
4JG2 ENG(RJC),4JX1 ENG(RJM) 12V 20A BLUE 		8-94235-627-0 01 1 9712- ● ●
277 03.900 RELAY; FUEL PUMP
6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
442 02.510 RELAY
GRADE S/SE(RBA) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 03.910 12V 20A 		8-94218-497-0 01 1 9712-9908 ● ●
442 02.510 RELAY
AUSTRALIA EQUIPMENT(RR3) 03.910 12V 20A 		8-94218-497-0 01 1 9909-0011 ● ●
442 02.510 RELAY
GRADE S/SE(RBA) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 03.910 12V 20A 		8-94218-497-0 01 1 9909-0011 ● ●
442 02.510 RELAY
GRADE S/SE(RBA) SHIFT ON THE FLY(7EX) EXC. ONE TOUCH 4X4 SYSTEM(7QY) 03.910 12V 20A 		8-94218-497-0 01 1 0012-0105 ●
442 02.510 RELAY
AUSTRALIA EQUIPMENT(RR3) 03.910 12V 20A 		8-94218-497-0 01 1 0012-0105 ●
442 02.510 RELAY
GRADE S/SE(RBA) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 03.910 12V 20A 		8-94218-497-0 01 1 0012-0105 ●
442 02.510 RELAY
03.910 12V 20A 		8-94218-497-0 01 1 0106- ● ●
442 02.510 RELAY
GRADE S/SE(RBA) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 03.910 12V 20A 		8-94218-497-0 01 1 0106- ● ●

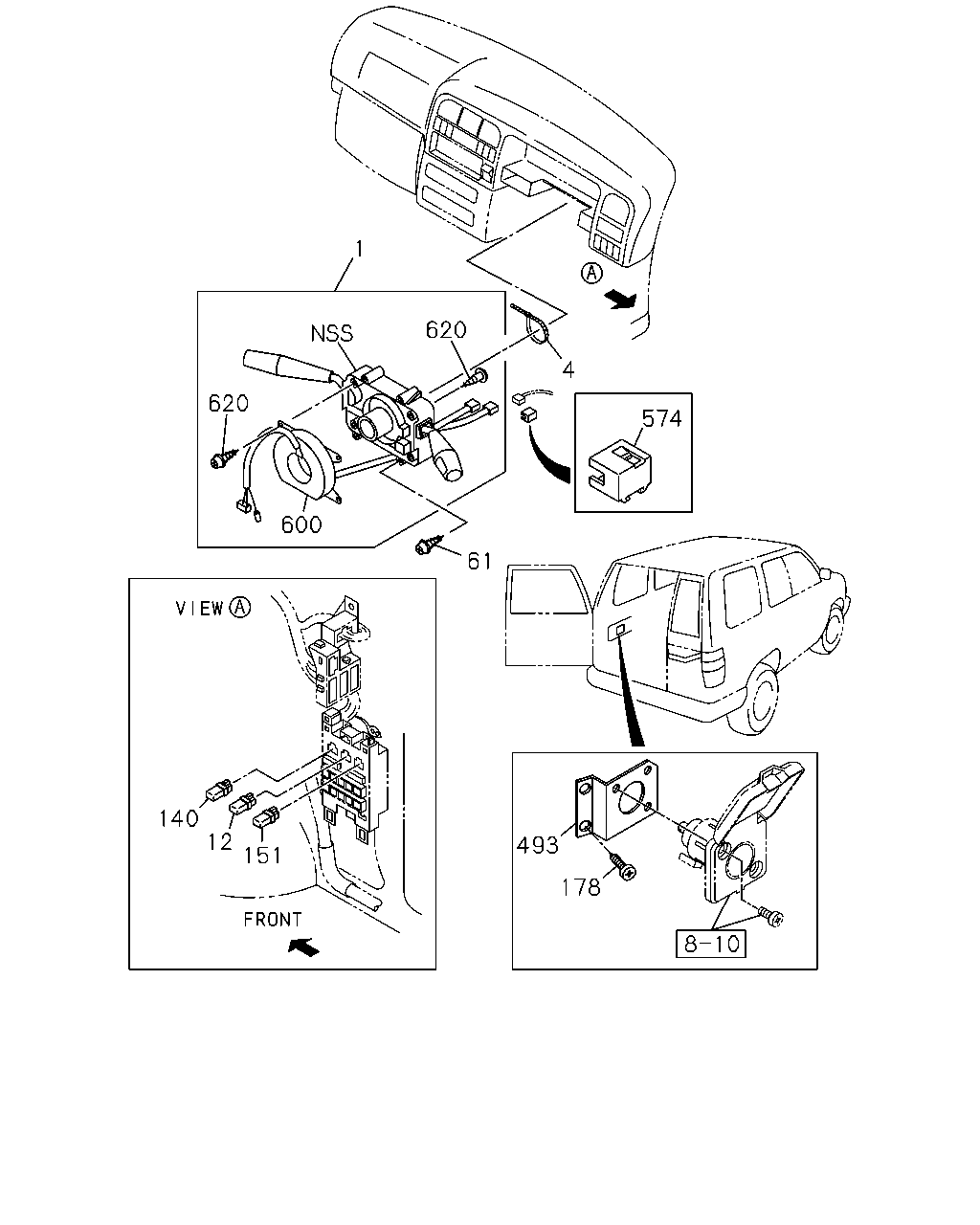

çizim 67283
1 620 4 620 574 600 61 140 12 493 151 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FOG LAMP RR<T79> FRT WIPER VARIABLE INTERMITTENT<6WH> 		8-97163-939-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. FOG LAMP RR<T79> 		8-97163-943-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER VARIABLE INTERMITTENT<6WH> 		8-97163-943-4 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FOG LAMP RR<T79> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97163-937-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>,FOG LAMP RR<T79> 		8-97163-941-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97163-941-4 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> FOG LAMP RR<T79> 		8-97163-938-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> EXC. FOG LAMP RR<T79> 		8-97163-942-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> 		8-97163-942-4 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP RR<T79> 		8-97163-940-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> EXC. AUTO CRUISE CONT<K30> 		8-97163-940-4 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> FOG LAMP RR<T79> EXC. AUTO CRUISE CONT<K30> 		8-97163-936-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FOG LAMP RR<T79> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3> 		8-97163-947-1 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,FOG LAMP RR<T79> 		8-97160-935-1 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3> 		8-97160-935-3 01 1 9909- ● ●
1 02.895 SWITCH; COMB
FOG LAMP RR<T79> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97163-945-1 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>,FOG LAMP RR<T79> 		8-97160-933-1 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-933-3 01 1 9909- ● ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>,FOG LAMP RR<T79> 		8-97160-932-1 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-932-3 01 1 9909- ● ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3>,FOG LAMP RR<T79> 		8-97160-934-1 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3> 		8-97160-934-3 01 1 9909- ● ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> FOG LAMP RR<T79> EXC. AIR BAG DRIVER<AJ3> 		8-97163-946-1 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> FOG LAMP RR<T79> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97163-944-1 01 1 9712-9908 ● ●
4 02.892 CLIP; COMB SW
02.559 L=250 		5-09707-030-1 01 1 9712- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> EXC. SUNROOF<CF5> 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
12 08.852 RELAY; POWER WINDOW
SUNROOF<CF5> 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
61 04.057 SCREW; SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9712- ● ●
140 09.778 RELAY; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
151 09.277 RELAY; HTR & A/C
02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
178 09.277 SCREW; BRKT
AUSTRALIA EQUIPMENT(RR3) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9909-0011 ● ●
178 09.277 SCREW; BRKT
AUSTRALIA EQUIPMENT(RR3) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0012-0105 ●
178 09.277 SCREW; BRKT
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0106- ● ●
493 09.277 BRACKET
AUSTRALIA EQUIPMENT(RR3) 		8-97111-258-3 01 1 9909-0011 ● ●
493 09.277 BRACKET
AUSTRALIA EQUIPMENT(RR3) 		8-97111-258-3 01 1 0012-0105 ●
493 09.277 BRACKET 8-97111-258-3 01 1 0106- ● ●
574 03.636 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> 		8-97147-637-0 01 1 9712- ● ●
600 02.895 COIL ASM; SIR
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13>, FRTWIPER VARIABLE INTERMITTENT<6WH> 		8-97215-210-0 01 1 9810- ● ●
620 02.895 SCREW; COIL,COMB SW
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13>, FRTWIPER VARIABLE INTERMITTENT<6WH> 		8-97166-506-0 06 1 9810- ● ●

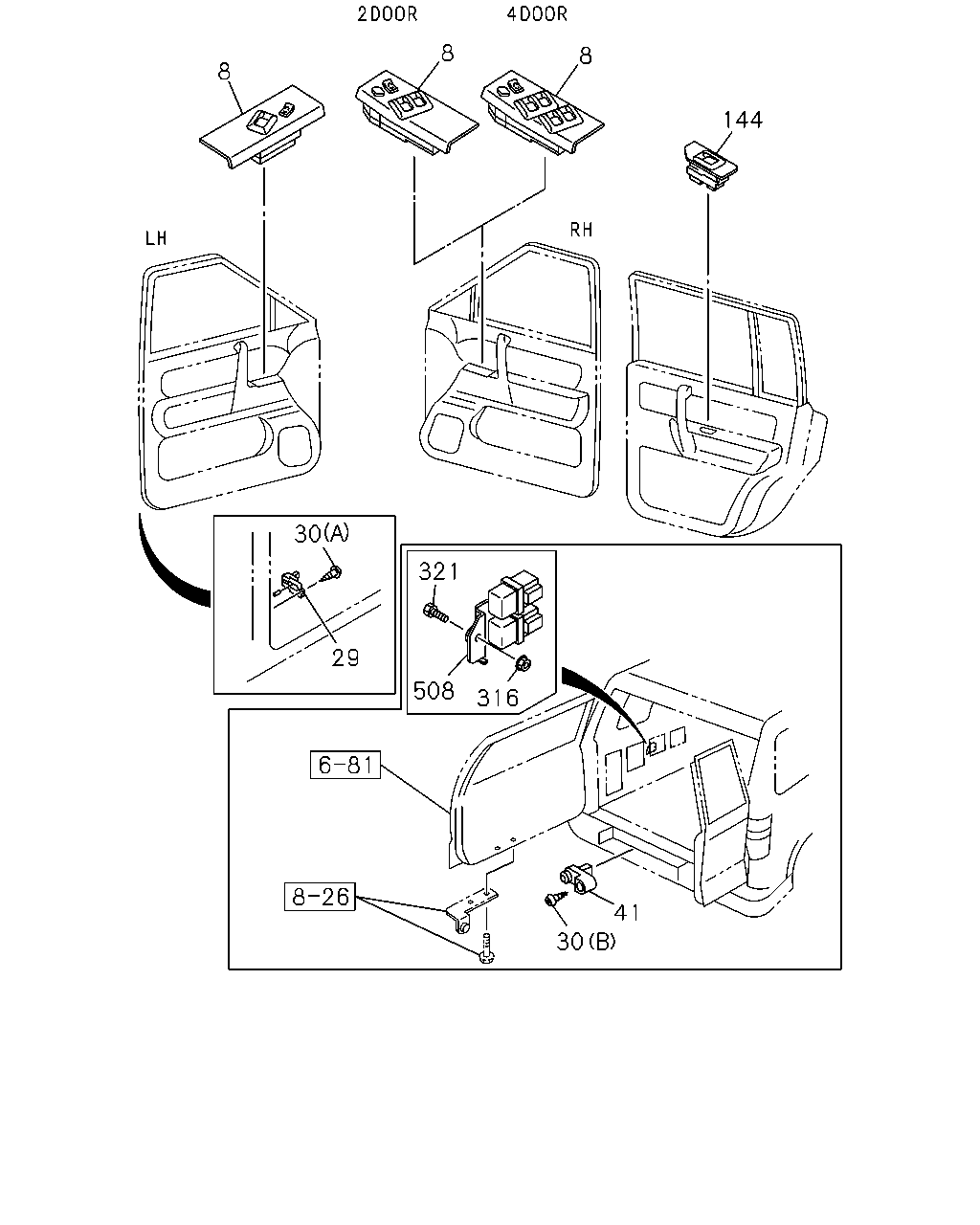

çizim 67284
8 8 8 144 30 321 29 508 316 41 30
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-009-1 01 1 9712-9908 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97153-009-1 01 1 9712-9908 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-009-1 01 1 9909-0105 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97153-009-1 01 1 9909-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-009-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97153-009-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97395-392-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97395-392-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-616-1 01 1 9712-9908 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-616-1 01 1 9909-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-616-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97395-395-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSENGER SIDE BLACK 		8-97154-915-1 01 1 9712-0105 ● ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> PASSENGER SIDE BLACK 		8-97154-915-3 01 1 0106- ● ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-007-1 01 1 9712-0102 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-007-1 01 1 0103-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97153-007-1 01 1 0103-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97153-007-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4),WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97153-007-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97395-391-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4),WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97395-391-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) WOOD PRINT TRIM<7QR> EXC. ANTI THEFT<UA6> DRIVER SIDE 		8-97288-233-1 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> WOOD PRINT TRIM<7QR> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE 		8-97288-233-1 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) WOOD PRINT TRIM<7QR> EXC. ANTI THEFT<UA6> DRIVER SIDE 		8-97353-402-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> WOOD PRINT TRIM<7QR> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE 		8-97353-402-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> WOOD PRINT TRIM<7QR> DRIVER SIDE 		8-97288-234-1 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> WOOD PRINT TRIM<7QR> DRIVER SIDE 		8-97353-403-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-617-1 01 1 9712-0102 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-617-1 01 1 0103-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97159-617-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97395-396-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> WOOD PRINT TRIM<7QR> PASSENGER SIDE 		8-97288-236-2 01 1 0106- ●
29 16.263 SWITCH; DOOR 8-97146-195-1 02 1 9712- ●
29 16.263 SWITCH; DOOR 8-97146-195-1 04 1 9712- ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 02 1 9712- ●
30 16.263 SCREW; DOOR SW
02.664 (B) M5X14 		8-94313-116-1 01 1 9712- ● ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 04 1 9712- ●
41 16.263 SWITCH; BACK DOOR LOCK 8-97081-773-0 01 1 9712- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-342-2 01 1 9712-0105 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97098-342-3 01 1 0106- ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-341-2 01 1 9712-0105 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97098-341-3 01 1 0106- ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> WOOD PRINT TRIM<7QR> 		8-97288-239-1 01 1 0106- ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> WOOD PRINT TRIM<7QR> 		8-97288-240-1 01 1 0106- ●
316 02.500 NUT; RELAY
AUSTRALIA EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9712-0011 ● ●
316 02.500 NUT; RELAY
AUSTRALIA EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0012- ●
321 16.341 BOLT; RELAY
AUSTRALIA EQUIPMENT(RR3) M6X16 FLANGE 		0-28090-616-0 01 1 9712-0011 ● ●
321 16.341 BOLT; RELAY
AUSTRALIA EQUIPMENT(RR3) M6X16 FLANGE 		0-28090-616-0 01 1 0012- ●
508 02.485 RELAY; RR SUB LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97087-438-1 01 1 9712-0011 ● ●
508 02.485 RELAY; RR SUB LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-97087-438-1 01 1 0012- ●

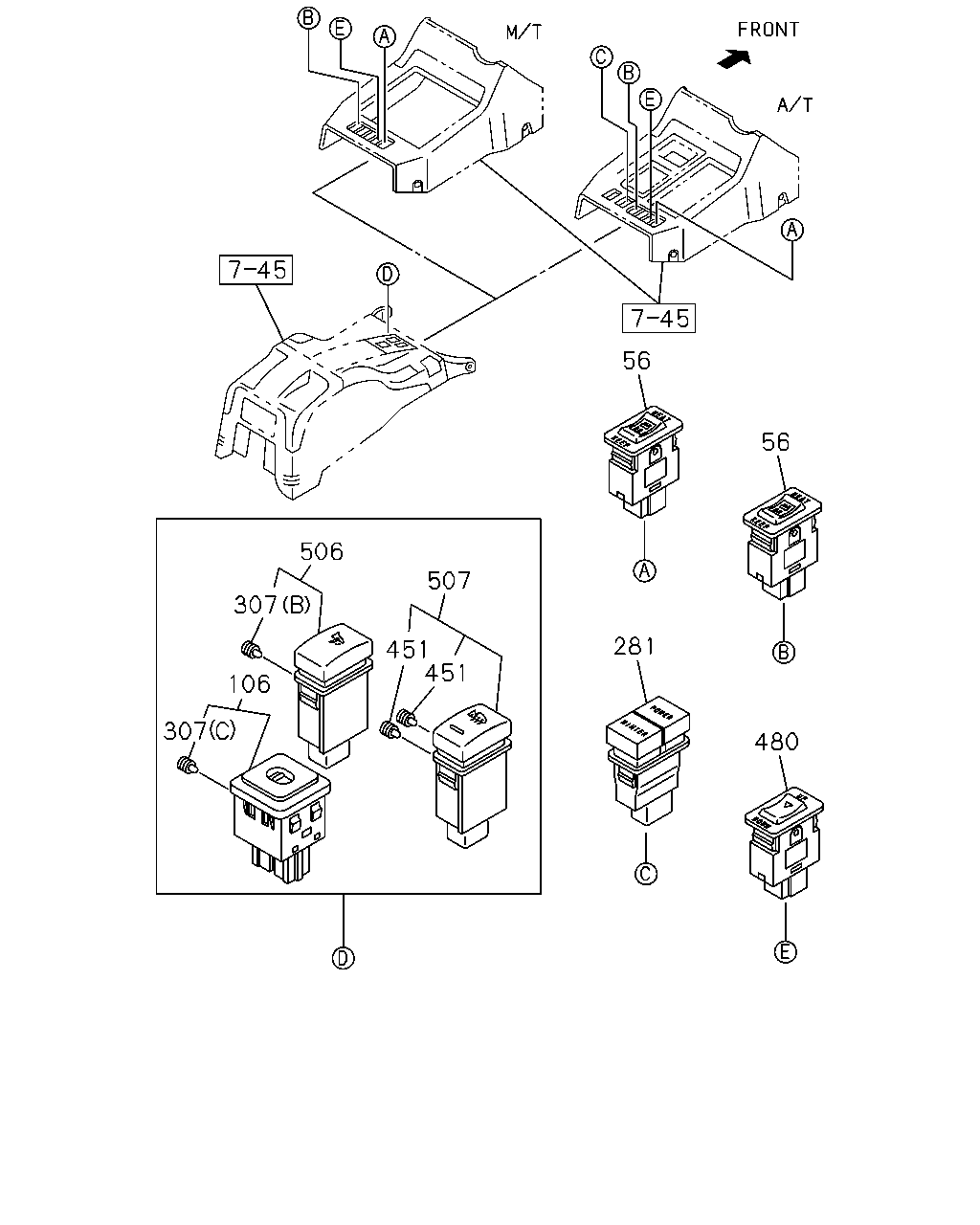

çizim 68733
56 56 506 507 307 281 451 451 106 307 480
BalonParca AdiParca NoAdetTipApplied Date A B
56 08.840 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97104-988-2 01 1 9712- ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97140-023-1 01 1 9712- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 		8-97060-167-2 01 1 9712- ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T AISIN(RMD),A/T THM(RMQ) 08.552 		8-97170-708-2 01 1 9712- ● ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 9712- ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 9712- ● ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810- ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810- ● ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 14V 0.7W 		8-97102-439-0 01 1 9712- ● ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 14V 0.84W 		8-97102-440-0 01 1 9712- ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97104-992-0 01 1 9712-0102 ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4) 		8-97104-992-0 01 1 0103- ● ●
506 04.902 SWITCH; MIRROR FOLD
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 		8-97081-766-3 01 1 9712- ● ●
507 10.186 SWITCH; MIRROR HEATER
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 		8-97081-763-4 01 1 9712- ● ●

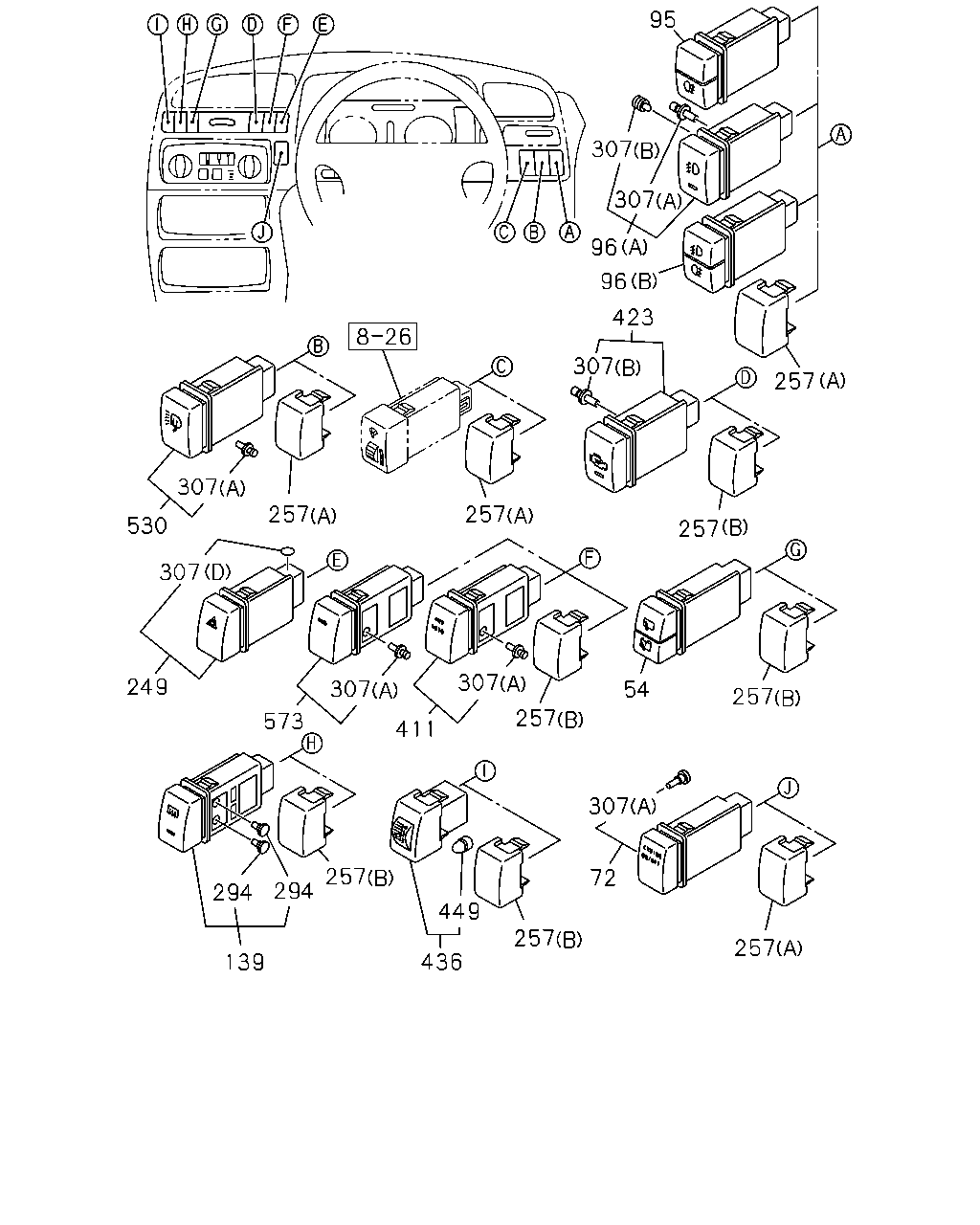

çizim 72203
95 307 307 96 96 423 307 257 307 257 257 530 307 307 249 307 54 257 257 573 411 257 72 294 294 449 257 436 139 307 257 257
BalonParca AdiParca NoAdetTipApplied Date A B
54 16.067 SWITCH; RR WIPER
RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97135-516-0 01 1 9712- ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97135-520-0 01 1 9712- ● ●
95 02.575 SWITCH; RR FOG LAMP
FOG LAMP RR<T79> EXC. FOG LAMP FRT(T37) 		8-97219-658-1 01 1 9909- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRT(T37) (A) 		8-97135-512-0 01 1 9712-9908 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 		8-97135-512-0 01 1 9909- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRT(T37) FOG LAMP RR<T79> (B) 		8-97221-408-1 01 1 9909- ● ●
139 09.778 SWITCH; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97163-882-0 01 1 9712- ● ●
249 02.485 SWITCH; HAZARD 8-97085-381-3 01 1 9712- ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37) (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97081-617-1 01 1 9909-0011 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37),FOG LAMP RR<T79> (A) 		8-97081-617-1 01 1 9909-0011 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9909-0011 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 9909-0011 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37),FOG LAMP RR<T79> (A) 		8-97081-617-1 01 1 0012- ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 0012- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 0012- ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) (A) 		8-97081-617-1 01 1 0012- ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97081-617-1 01 1 0012- ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER & WASHER INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9712- ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9712- ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9712- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97088-762-0 01 1 9712- ● ●
257 16.081 COVER; HOLE,SW
EXC. ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9712- ●
257 16.081 COVER; HOLE,SW
EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9712- ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> 10.186 14V 0.84W 		8-97102-440-0 01 1 9712- ● ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> 14V 0.84W 		8-97117-108-0 01 1 9712- ● ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 9712- ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909- ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 9712- ● ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810- ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810- ● ●
411 09.755 SWITCH; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97142-656-1 01 1 9712- ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97135-519-1 01 1 9712- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97110-381-0 01 1 9712- ● ●
449 08.991 BULB ASM; HEADLAMP LEVELING SW
HEADLAMP BEAM ADJUST CONT<6RC> 14V 0.84W 		8-97117-108-0 01 1 9712- ● ●
530 02.485 SWITCH; HEAD/L WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97135-513-1 01 1 9712- ● ●
573 09.755 SWITCH; 4WD
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 		8-97142-655-1 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
