Sayfa 8-16 - Isuzu EPC

8-16 — WIRING HARNESS CONNECTOR (#73374) — 110 parça

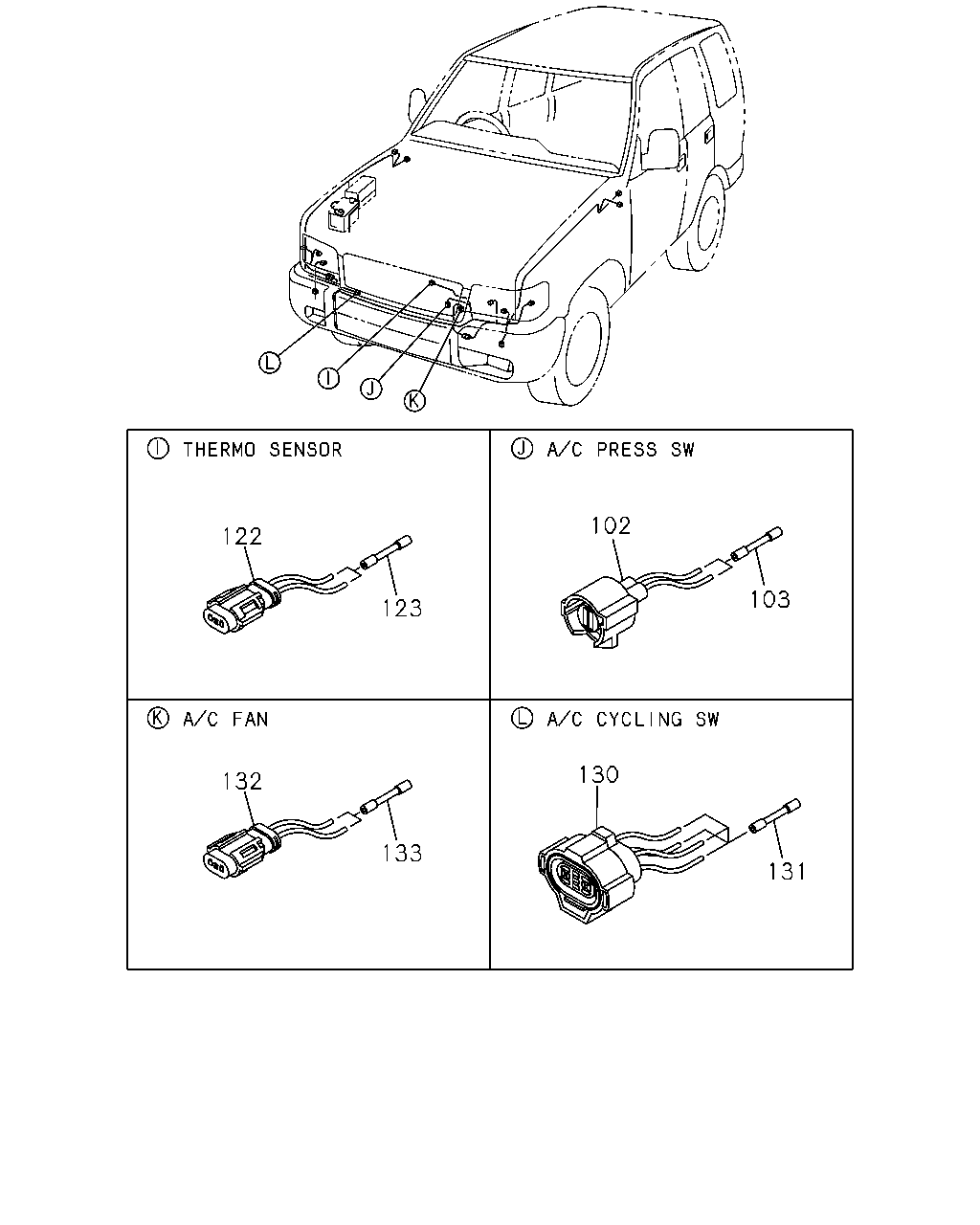

102 122 103 123 130 132 133 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	02.483 CONNECTOR; A/C PRESS SW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97174-883-0	01	1	9712-9908	●	●
102	02.483 CONNECTOR; A/C PRESS SW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97174-883-0	01	1	9909-0011	●	●
102	02.483 CONNECTOR; A/C PRESS SW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D)	8-97174-883-0	01	1	0012-	●	●
103	02.483 TERMINAL; JOINT,A/C PRESS SW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-9908	●	●
103	02.483 TERMINAL; JOINT,A/C PRESS SW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9909-0011	●	●
103	02.483 TERMINAL; JOINT,A/C PRESS SW AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	0012-	●	●
122	02.483 CONNECTOR; THERMO SENSOR ACCESSORY METER<7HT>	8-97174-884-0	01	1	9712-	●	●
123	02.483 TERMINAL; JOINT,THERMO SENSOR ACCESSORY METER<7HT> WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-	●	●
130	02.483 CONNECTOR; A/C CYCLING SW 6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97175-446-0	01	1	9712-		●
131	02.483 TERMINAL; JOINT,A/C CYCLING SW 6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	04	1	9712-		●
132	02.483 CONNECTOR; A/C FAN 6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97175-447-0	01	1	9712-		●
133	02.483 TERMINAL; JOINT,A/C FAN 6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	02	1	9712-		●

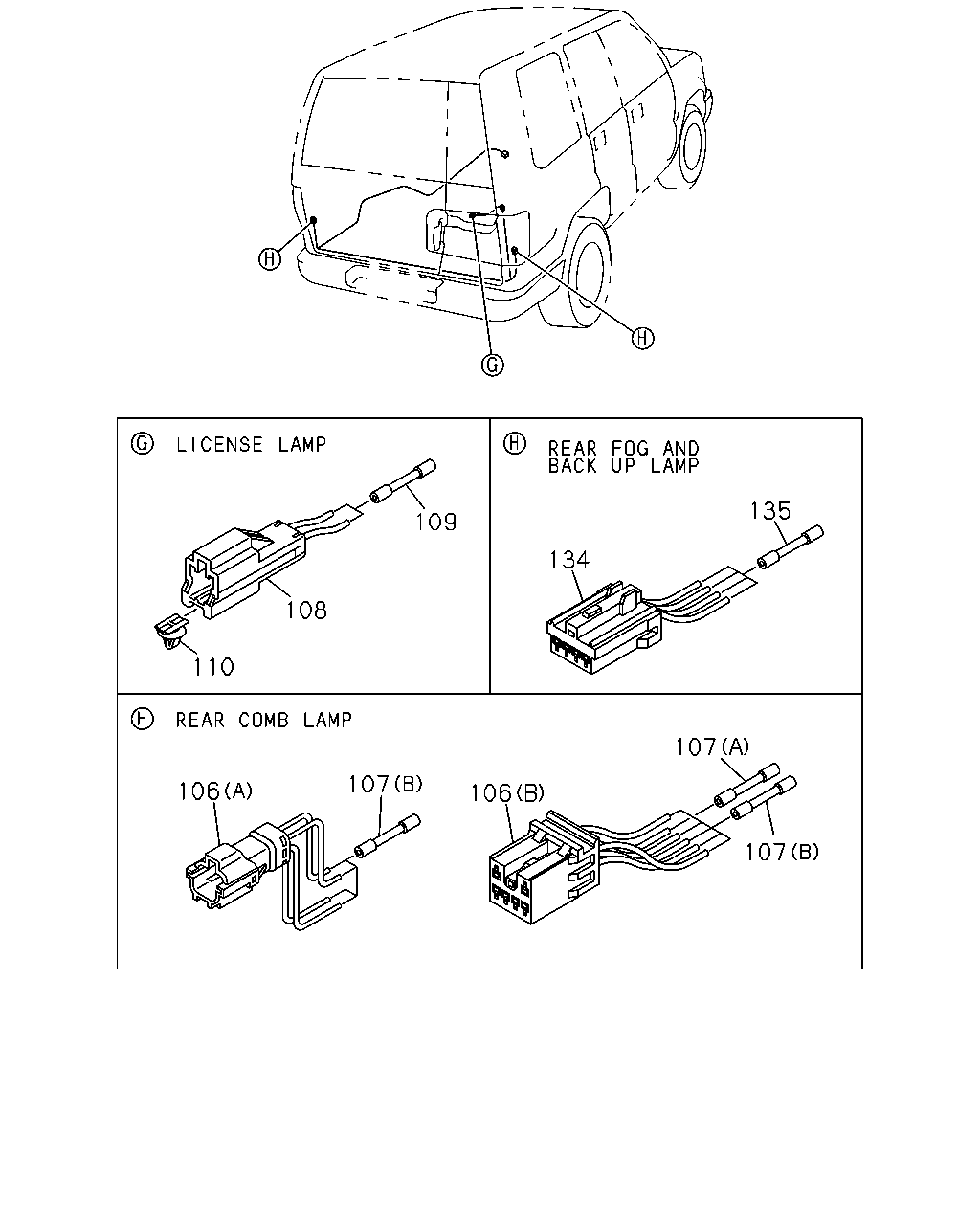

135 109 134 108 110 107 107 106 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
106	02.483 CONNECTOR; RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4) (B)	8-97174-887-0	02	1	9712-0102	●
106	02.483 CONNECTOR; RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97174-887-0	02	1	9712-0102		●
106	02.483 CONNECTOR; RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4) (B)	8-97174-887-0	02	1	0103-	●
106	02.483 CONNECTOR; RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) (B)	8-97174-887-0	02	1	0103-		●
106	02.483 CONNECTOR; RR COMB LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A)	8-97175-449-0	02	1	9712-0011	●
106	02.483 CONNECTOR; RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97175-449-0	02	1	9712-0011		●
106	02.483 CONNECTOR; RR COMB LAMP EUROPE EQUIPMENT(EK4) (A)	8-97175-449-0	02	1	0012-0102	●
106	02.483 CONNECTOR; RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97175-449-0	02	1	0012-0102		●
106	02.483 CONNECTOR; RR COMB LAMP EUROPE EQUIPMENT(EK4) (A)	8-97175-449-0	02	1	0103-	●
106	02.483 CONNECTOR; RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A)	8-97175-449-0	02	1	0103-		●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-0102	●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-0102		●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	0103-	●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	0103-		●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	9712-0011	●	●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	9712-0011	●	●
107	02.483 TERMINAL; JOINT,RR COMB LAMP (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	0012-0102	●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	0012-0102		●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	0012-0102		●
107	02.483 TERMINAL; JOINT,RR COMB LAMP (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	0103-	●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	0103-		●
107	02.483 TERMINAL; JOINT,RR COMB LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	08	1	0103-		●
108	02.483 CONNECTOR; LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4) 2P MALE NATURAL	8-97170-988-0	01	1	9712-0102	●
108	02.483 CONNECTOR; LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 2P MALE NATURAL	8-97170-988-0	01	1	9712-0102		●
108	02.483 CONNECTOR; LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4) 2P MALE NATURAL	8-97170-988-0	01	1	0103-	●
108	02.483 CONNECTOR; LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) 2P MALE NATURAL	8-97170-988-0	01	1	0103-		●
109	02.483 TERMINAL; JOINT,LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-0102	●
109	02.483 TERMINAL; JOINT,LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-0102		●
109	02.483 TERMINAL; JOINT,LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	0103-	●
109	02.483 TERMINAL; JOINT,LICENSE LAMP EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	0103-		●
110	02.483 CLIP; CONNECTOR EXC. EUROPE EQUIPMENT(EK4) 01.152 OD=7 H=1.2	8-94364-750-0	01	1	9712-0102	●
110	02.483 CLIP; CONNECTOR EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 01.152 OD=7 H=1.2	8-94364-750-0	01	1	9712-0102		●
110	02.483 CLIP; CONNECTOR EXC. EUROPE EQUIPMENT(EK4) 01.152 OD=7 H=1.2	8-94364-750-0	01	1	0103-	●
110	02.483 CLIP; CONNECTOR EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) 01.152 OD=7 H=1.2	8-94364-750-0	01	1	0103-		●
134	02.483 CONNECTOR; RR FOG & BACK UP LAMP EUROPE EQUIPMENT(EK4)	8-97175-448-0	02	1	9712-0102	●
134	02.483 CONNECTOR; RR FOG & BACK UP LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2)	8-97175-448-0	02	1	9712-0102		●
134	02.483 CONNECTOR; RR FOG & BACK UP LAMP EUROPE EQUIPMENT(EK4)	8-97175-448-0	02	1	0103-	●
134	02.483 CONNECTOR; RR FOG & BACK UP LAMP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1)	8-97175-448-0	02	1	0103-		●
135	02.483 TERMINAL; JOINT,RR FOG & BACK UP EUROPE EQUIPMENT(EK4) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	9712-0102	●
135	02.483 TERMINAL; JOINT,RR FOG & BACK UP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	9712-0102		●
135	02.483 TERMINAL; JOINT,RR FOG & BACK UP EUROPE EQUIPMENT(EK4) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	0103-	●
135	02.483 TERMINAL; JOINT,RR FOG & BACK UP EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	0103-		●

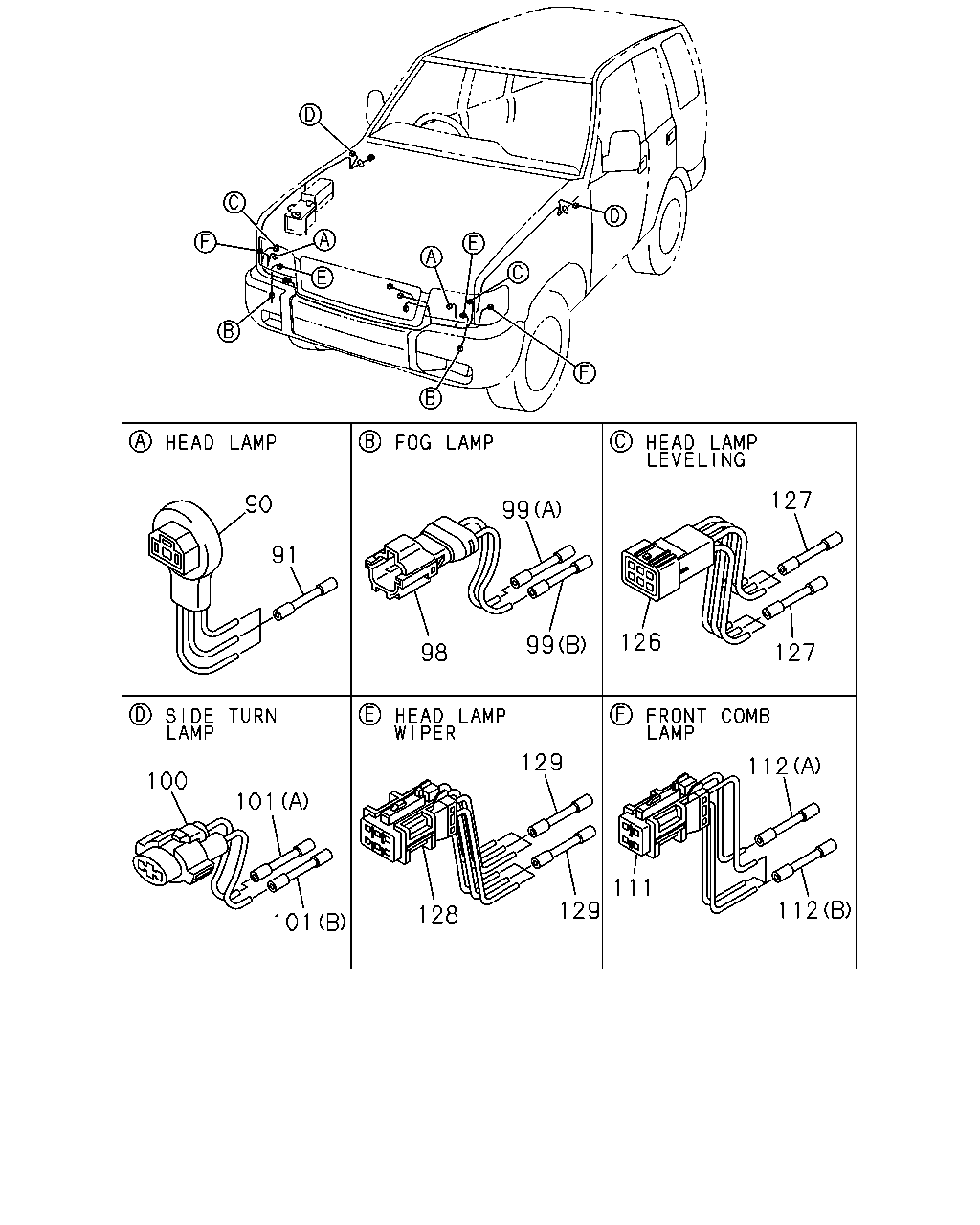

127 90 99 91 126 99 127 98 129 112 100 101 111 112 129 128 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	02.483 CONNECTOR; HEAD LAMP 3P FEMALE BLACK	8-97170-978-0	02	1	9712-	●	●
91	02.483 TERMINAL; JOINT,HEAD LAMP WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	9712-	●	●
98	02.483 CONNECTOR; FRT FOG LAMP FOG LAMP FRT(T37) 2P MALE GRAY	8-97170-984-0	02	1	9712-	●	●
99	02.483 TERMINAL; JOINT,FRT FOG LAMP FOG LAMP FRT(T37) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-	●	●
99	02.483 TERMINAL; JOINT,FRT FOG LAMP FOG LAMP FRT(T37) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	02	1	9712-	●	●
100	02.483 CONNECTOR; SIDE TURN LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97174-886-0	02	1	9712-0011	●	●
100	02.483 CONNECTOR; SIDE TURN LAMP EUROPE EQUIPMENT(EK4)	8-97174-886-0	02	1	0012-0102	●
100	02.483 CONNECTOR; SIDE TURN LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97174-886-0	02	1	0012-0102		●
100	02.483 CONNECTOR; SIDE TURN LAMP EUROPE EQUIPMENT(EK4)	8-97174-886-0	02	1	0103-	●
100	02.483 CONNECTOR; SIDE TURN LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97174-886-0	02	1	0103-		●
101	02.483 TERMINAL; JOINT,SIDE TURN LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-0102	●	●
101	02.483 TERMINAL; JOINT,SIDE TURN LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	0103-	●	●
101	02.483 TERMINAL; JOINT,SIDE TURN LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	02	1	9712-0102	●	●
101	02.483 TERMINAL; JOINT,SIDE TURN LAMP EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	02	1	0103-	●	●
111	02.483 CONNECTOR; FRT COMB LAMP 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97175-445-0	02	1	9712-0011	●	●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97175-445-0	02	1	9712-0011	●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97175-445-0	02	1	9712-0011		●
111	02.483 CONNECTOR; FRT COMB LAMP A/T THM(RMQ) THAILAND EQUIPMENT(PM9)	8-97175-445-0	02	1	9712-0011		●
111	02.483 CONNECTOR; FRT COMB LAMP 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97175-445-0	02	1	0012-0102	●	●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97175-445-0	02	1	0012-0102	●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97175-445-0	02	1	0012-0102		●
111	02.483 CONNECTOR; FRT COMB LAMP A/T THM(RMQ) THAILAND EQUIPMENT(PM9)	8-97175-445-0	02	1	0012-0102		●
111	02.483 CONNECTOR; FRT COMB LAMP 4JG2 ENG(RJC),4JX1 ENG(RJM)	8-97175-445-0	02	1	0103-	●	●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97175-445-0	02	1	0103-	●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97175-445-0	02	1	0103-		●
111	02.483 CONNECTOR; FRT COMB LAMP A/T THM(RMQ) THAILAND EQUIPMENT(PM9)	8-97175-445-0	02	1	0103-		●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97174-882-0	02	1	9712-0102	●	●
111	02.483 CONNECTOR; FRT COMB LAMP M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9)	8-97174-882-0	02	1	9712-0102		●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4)	8-97174-882-0	02	1	0103-	●
111	02.483 CONNECTOR; FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97174-882-0	02	1	0103-		●
111	02.483 CONNECTOR; FRT COMB LAMP M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9)	8-97174-882-0	02	1	0103-		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. THAILAND EQUIPMENT(PM9) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP M/T MUA 5 SPEED(RMN),A/T THM(RMQ) THAILAND EQUIPMENT(PM9) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	02	1	9712-		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	9712-0011	●	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	9712-0011	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	9712-0011		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP A/T THM(RMQ) THAILAND EQUIPMENT(PM9) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	9712-0011		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0012-0102	●	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0012-0102	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0012-0102		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP A/T THM(RMQ) THAILAND EQUIPMENT(PM9) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0012-0102		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0103-	●	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0103-	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0103-		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP A/T THM(RMQ) THAILAND EQUIPMENT(PM9) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	04	1	0103-		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	9712-0102	●	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	9712-0102		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	0103-	●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	0103-		●
112	02.483 TERMINAL; JOINT,FRT COMB LAMP M/T MUA 5 SPEED(RMN) THAILAND EQUIPMENT(PM9) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	06	1	0103-		●
126	02.483 CONNECTOR; HEAD LAMP LEVELING HEADLAMP BEAM ADJUST CONT<6RC>	8-97175-444-0	02	1	9712-	●	●
127	02.483 TERMINAL; JOINT,HEAD LAMP LEVELI HEADLAMP BEAM ADJUST CONT<6RC> WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	12	1	9712-	●	●
128	02.483 CONNECTOR; HEAD LAMP WIPER HEADLAMP WIPER & WASHER<CE3>	8-97174-885-0	02	1	9712-	●	●
129	02.483 TERMINAL; JOINT,HEAD LAMP WIPER HEADLAMP WIPER & WASHER<CE3> WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	10	1	9712-	●	●
