Sayfa 8-15 - Isuzu EPC

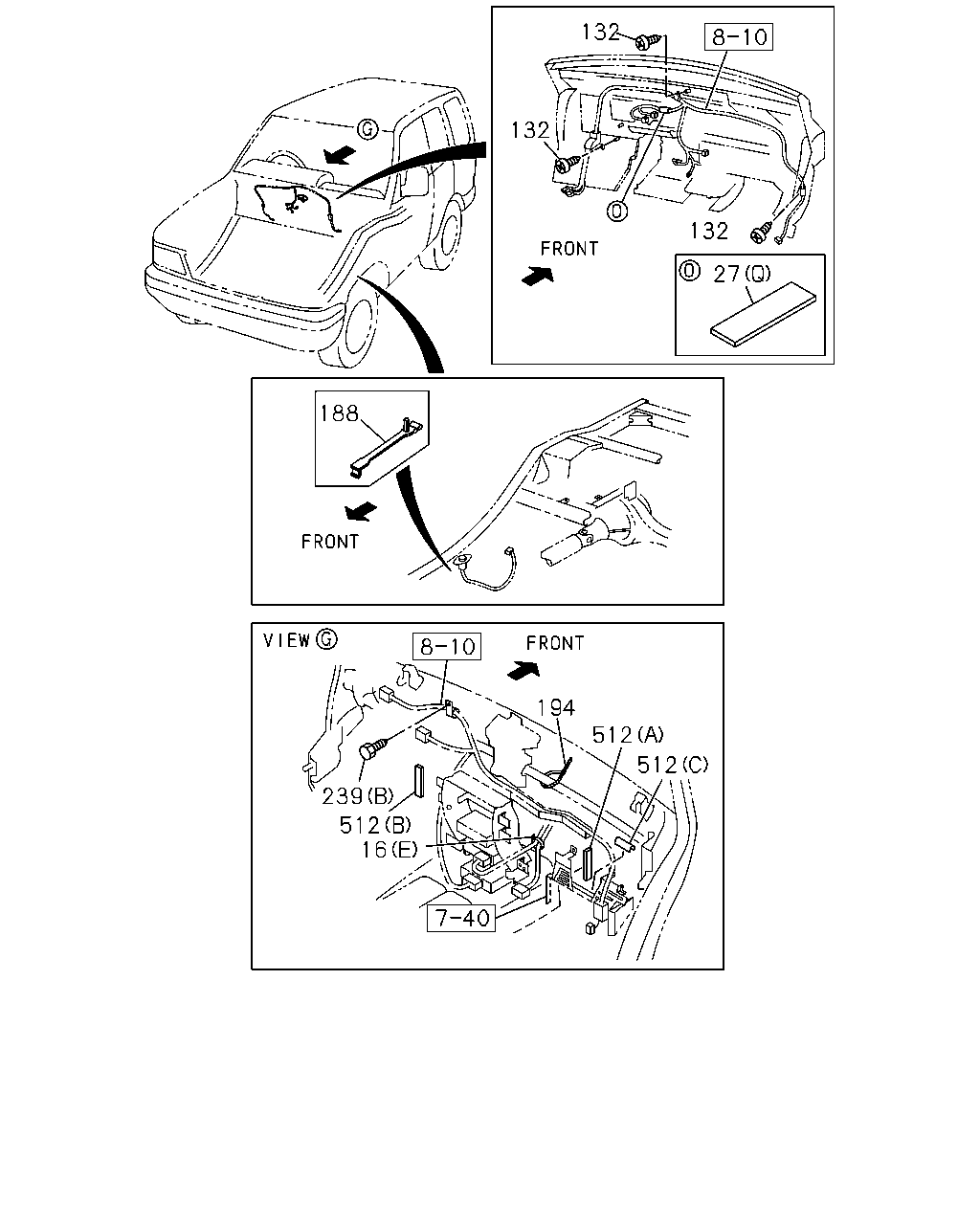

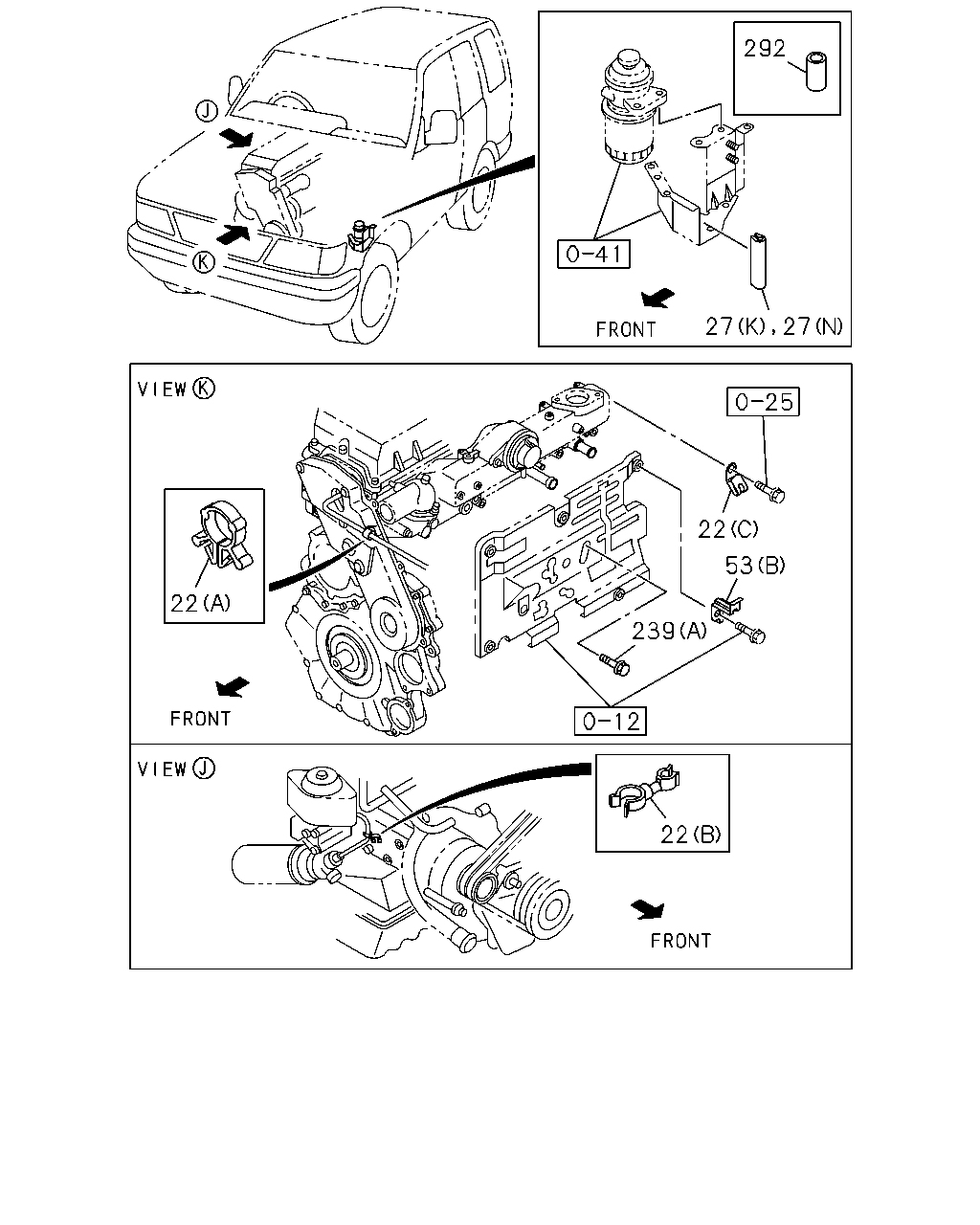

8-15 — FIXING PARTS; WIRING HARNESS (#73373) — 635 parça

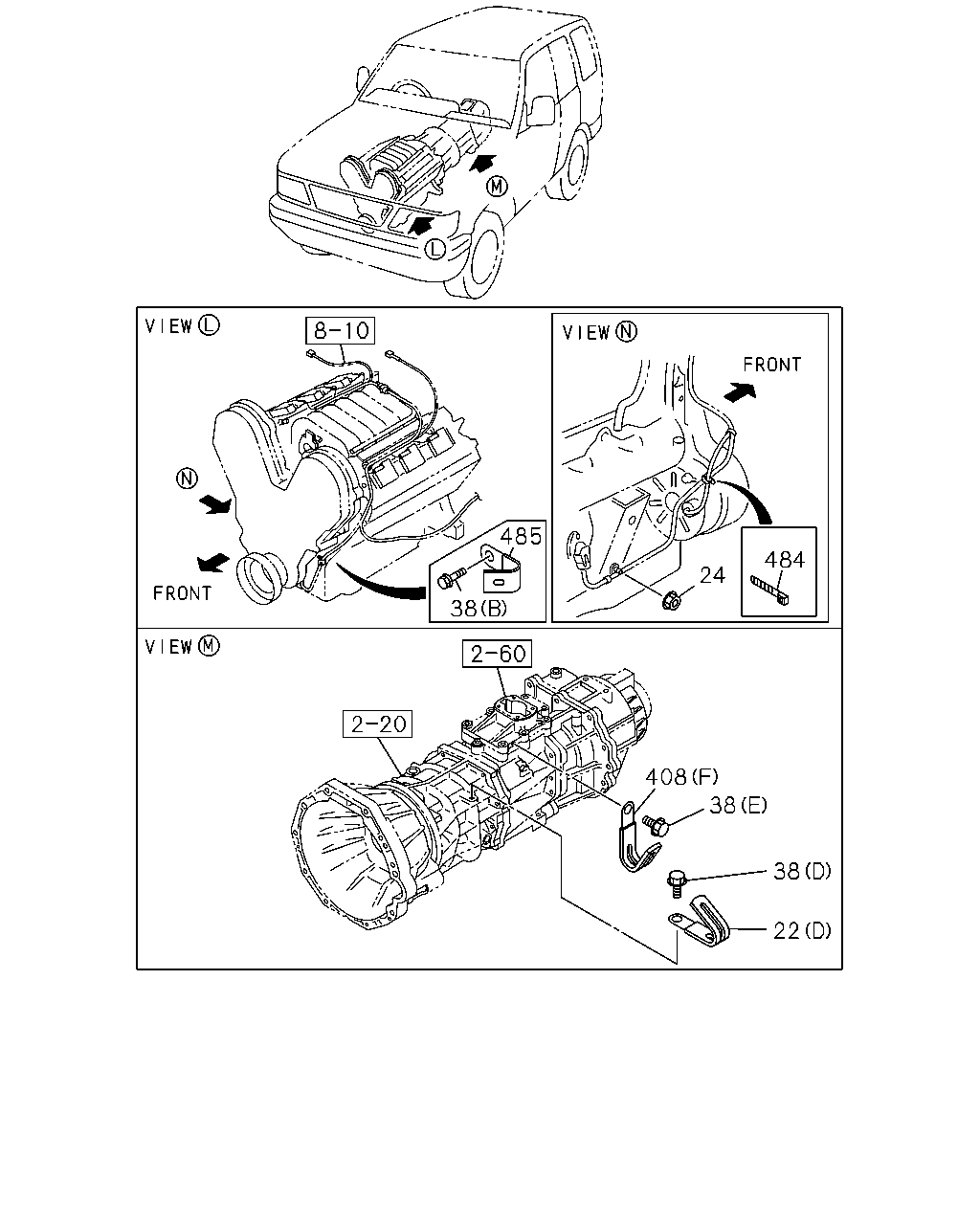

16 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (G) ID=19 L=28	9-09525-852-0	01	1	0005-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (K) ID=16	8-97040-812-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	9712-0011	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	0012-		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9801-9804		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9805-9908		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (I) L=140	5-09707-031-1	01	1	0106-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. TORQUE ON DEMAND<7HA> 03.430 (G) L=200	8-94464-835-0	03	1	0106-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (F) L=80	5-09700-307-1	01	1	9902-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (C)	8-97180-221-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (A) ID=16	9-09525-522-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS TORQUE ON DEMAND<7HA> 03.162 (B) L=140	5-09707-031-1	01	1	9712-9908		●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140	5-09707-031-1	02	1	9801-9908		●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140	5-09707-031-1	02	1	9909-0105	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> 03.162 (E) L=140	5-09707-031-1	07	1	0106-		●

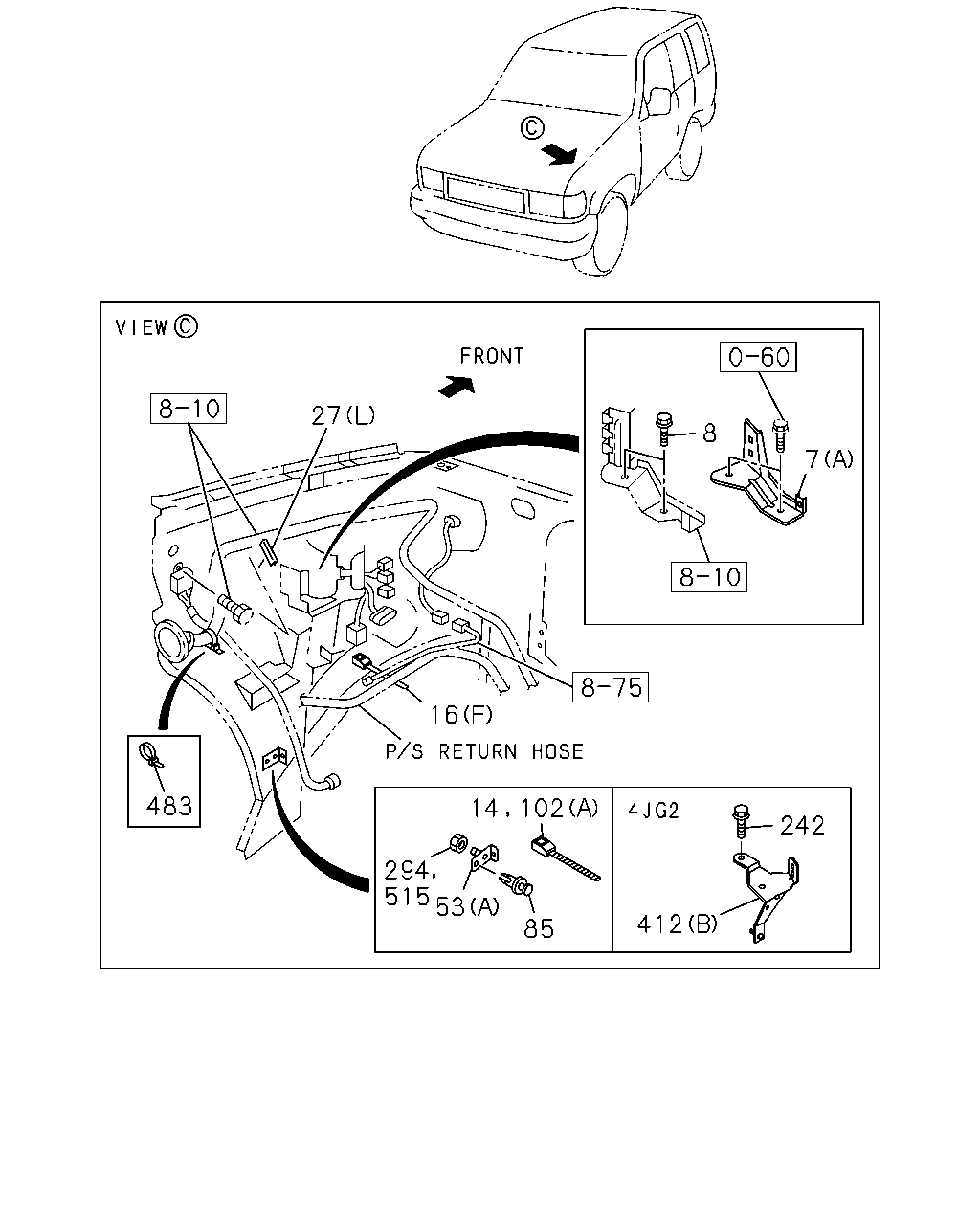

27 8 7 16 483 102 14 242 294 515 53 412 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97802-171-0	01	1	9712-0105	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97302-452-0	01	1	0106-	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97805-895-0	01	1	9712-	●	●
8	02.559 BOLT; BRKT,CONNECTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●
14	02.559 CLIP; BAND,HARNESS 4JX1 ENG(RJM) 00.785 L=300	8-94151-373-0	03	1	9801-	●	●
14	02.559 CLIP; BAND,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) L=250	5-09707-030-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (G) ID=19 L=28	9-09525-852-0	01	1	0005-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (K) ID=16	8-97040-812-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	9712-0011	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	0012-		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9801-9804		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9805-9908		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (I) L=140	5-09707-031-1	01	1	0106-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.483 (A)	8-94142-264-0	04	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (O)	8-97803-554-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0003	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0004-0011	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0102	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0103-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011		●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F)	8-94142-264-0	02	1	9712-		●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9712-9901	●	●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9902-9908	●	●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.698 (A)	8-97805-901-3	01	1	9902-9908		●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.698 (A)	8-97805-901-3	01	1	9909-0105	●	●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9909-0105	●	●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	0106-	●	●
53	02.483 BRACKET; HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B)	8-97203-573-0	01	1	9801-9903	●	●
53	02.483 BRACKET; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T AISIN(RMD),A/T THM(RMQ) 02.698 (A)	8-97807-647-2	01	1	9712-9901	●	●
85	02.483 CLIP; BRKT ASM,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T AISIN(RMD),A/T THM(RMQ) 12.801 D6.8X12	8-94198-687-0	01	1	9712-9901	●	●
85	02.483 CLIP; BRKT ASM,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 12.801 D6.8X12	8-94198-687-0	01	1	9902-9908		●
85	02.483 CLIP; BRKT ASM,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 12.801 D6.8X12	8-94198-687-0	01	1	9909-0105	●	●
102	02.559 CLIP; BAND 6VE1 ENG(RJQ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140	5-09707-031-1	01	1	9801-0011	●	●
102	02.559 CLIP; BAND 6VE1 ENG(RJQ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140	5-09707-031-1	01	1	0012-0105		●
102	02.559 CLIP; BAND 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●	●
102	02.559 CLIP; BAND 4JG2 ENG(RJC) A/T AISIN(RMD) 02.587 (A) L=172	8-94232-620-0	01	1	9712-9908		●
102	02.559 CLIP; BAND 4JG2 ENG(RJC) A/T AISIN(RMD) 02.587 (A) L=172	8-94232-620-0	01	1	9909-	●	●
242	02.483 BOLT; BRKT,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9908		●
242	02.483 BOLT; BRKT,HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9909-0105	●	●
294	02.559 NUT A/T THM(RMQ) 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-9901	●
294	02.559 NUT A/T AISIN(RMD),A/T THM(RMQ) 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-9901		●
412	02.559 BRACKET; HARNESS,TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A)	8-94359-008-1	01	1	9712-	●	●
412	02.559 BRACKET; HARNESS,TRANS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) (A)	8-97174-711-0	01	1	9712-	●	●
412	02.559 BRACKET; HARNESS,TRANS 4JG2 ENG(RJC) A/T AISIN(RMD) (B)	8-97805-903-1	01	1	9712-9908		●
412	02.559 BRACKET; HARNESS,TRANS 4JG2 ENG(RJC) A/T AISIN(RMD) (B)	8-97805-903-1	01	1	9909-	●	●
483	02.559 CLIP; ENG HARNESS L=212	8-94107-652-0	01	1	9712-0108	●	●
483	02.559 CLIP; ENG HARNESS 02.587 L=172	8-94232-620-0	01	1	0109-	●	●
515	02.559 NUT; BRKT 4JG2 ENG(RJC) A/T AISIN(RMD) 04.594 M6 FLANGE	0-91150-106-0	01	1	9902-9908		●
515	02.559 NUT; BRKT 4JG2 ENG(RJC) A/T AISIN(RMD) 04.594 M6 FLANGE	0-91150-106-0	01	1	9909-0105	●	●

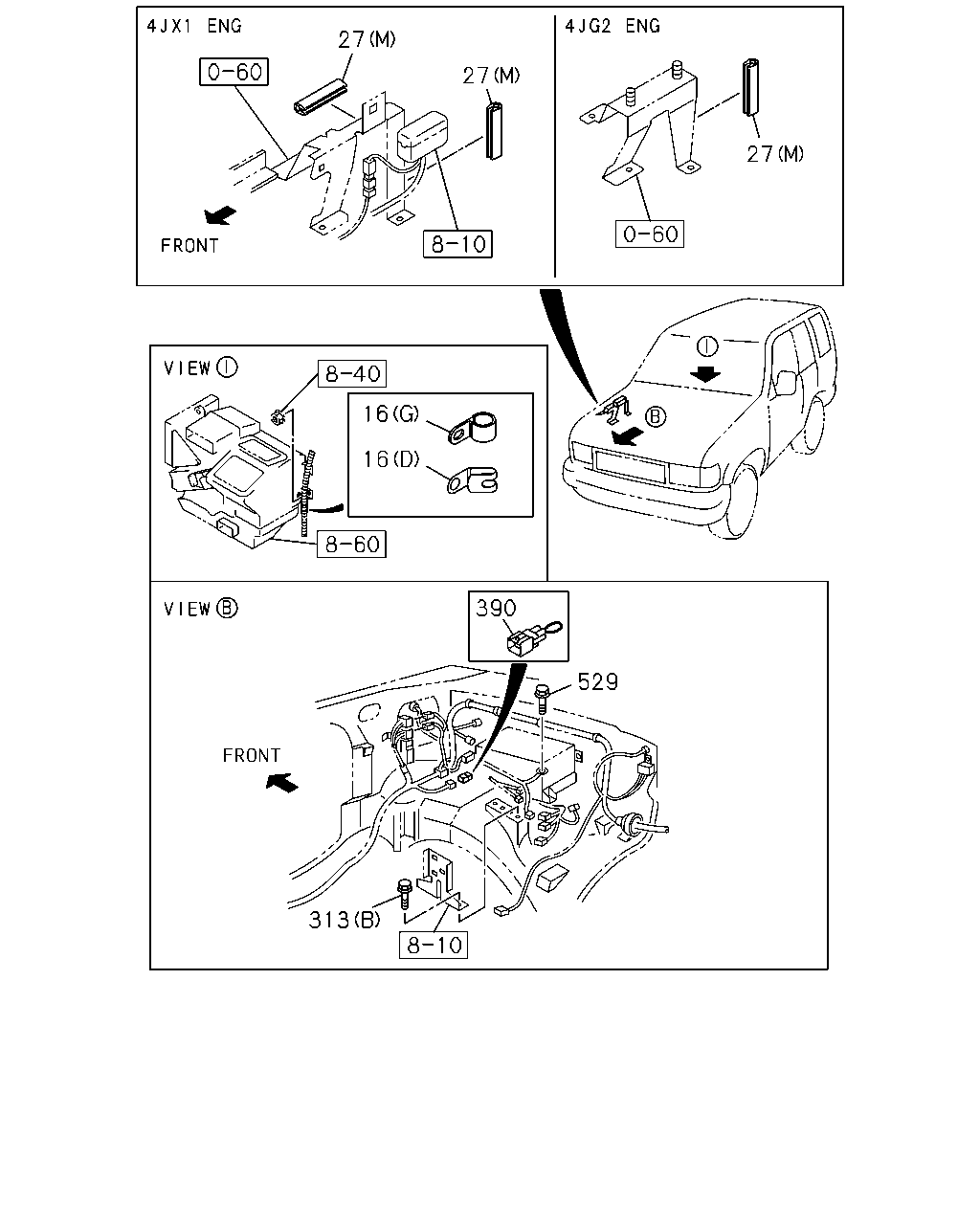

27 27 27 16 16 390 529 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (G) ID=19 L=28	9-09525-852-0	01	1	0005-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (K) ID=16	8-97040-812-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	9712-0011	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	0012-		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9801-9804		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9805-9908		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (I) L=140	5-09707-031-1	01	1	0106-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.483 (A)	8-94142-264-0	04	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (O)	8-97803-554-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0003	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0004-0011	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0102	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0103-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011		●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F)	8-94142-264-0	02	1	9712-		●
313	02.559 BOLT; BRKT 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 06.635 (B) M6X16 FLANGE	0-28480-616-0	02	1	9712-	●	●
390	02.480 CONNECTOR; SHORT CIRCUIT 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX)	8-97110-718-0	01	1	9712-	●	●
529	02.559 BOLT; RELAY BOX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●

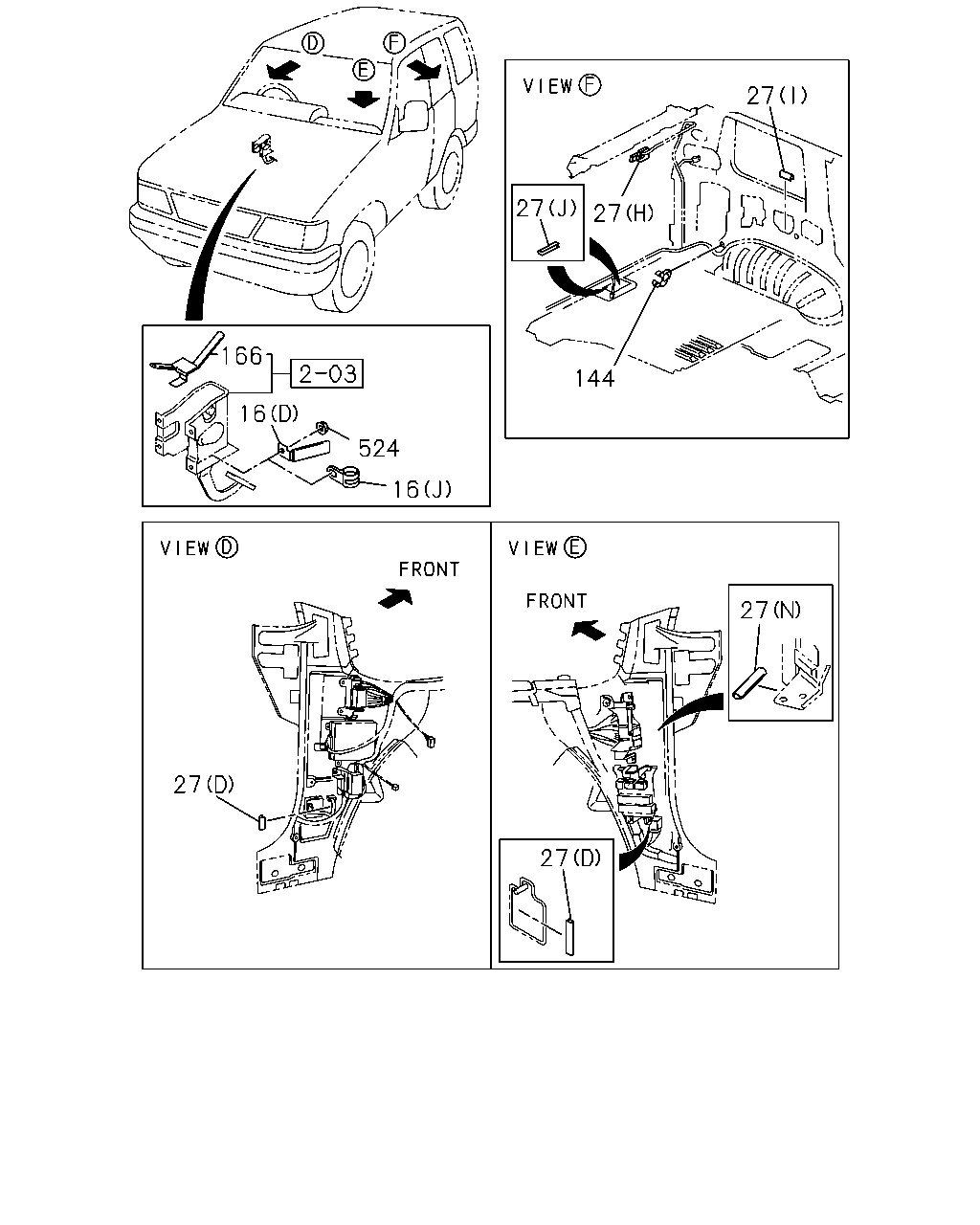

27 27 27 166 144 16 524 16 27 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (G) ID=19 L=28	9-09525-852-0	01	1	0005-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (K) ID=16	8-97040-812-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	9712-0011	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	0012-		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9801-9804		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9805-9908		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (I) L=140	5-09707-031-1	01	1	0106-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.483 (A)	8-94142-264-0	04	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (O)	8-97803-554-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0003	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0004-0011	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0102	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0103-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011		●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F)	8-94142-264-0	02	1	9712-		●
144	02.694 CLIP; TAIL LAMP HARNESS ID=6 & 10-13	8-97069-515-0	01	1	9712-	●	●
166	02.559 CLIP; HARNESS CLU SW M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-94238-565-1	01	1	9712-	●	●
524	02.559 NUT; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●

292 22 53 22 239 22 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	9712-0105	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0209-	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) (A) ID=9	8-97063-874-0	01	1	9712-0105	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (A) ID=9	8-97063-874-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0209-	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 00.446 (C) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9805	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	9806-0302	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 02.313 (C) ID=18 L=44	8-97367-985-0	01	1	0303-	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.152 (D) L=36	8-94224-891-1	01	1	9902-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.483 (A)	8-94142-264-0	04	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (O)	8-97803-554-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0003	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0004-0011	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0102	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0103-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011		●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F)	8-94142-264-0	02	1	9712-		●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9712-9901	●	●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9902-9908	●	●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.698 (A)	8-97805-901-3	01	1	9902-9908		●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.698 (A)	8-97805-901-3	01	1	9909-0105	●	●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9909-0105	●	●
53	02.483 BRACKET; HARNESS M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	0106-	●	●
53	02.483 BRACKET; HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B)	8-97203-573-0	01	1	9801-9903	●	●
53	02.483 BRACKET; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T AISIN(RMD),A/T THM(RMQ) 02.698 (A)	8-97807-647-2	01	1	9712-9901	●	●
239	02.559 BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9712-	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9712-0109	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 00.662 (A) M8X14 FLANGE	0-28080-814-0	01	1	0110-	●	●
292	02.559 CAP; RUBBER 4JX1 ENG(RJM) 03.672 ID=5.4	8-94156-209-0	01	1	9712-	●	●

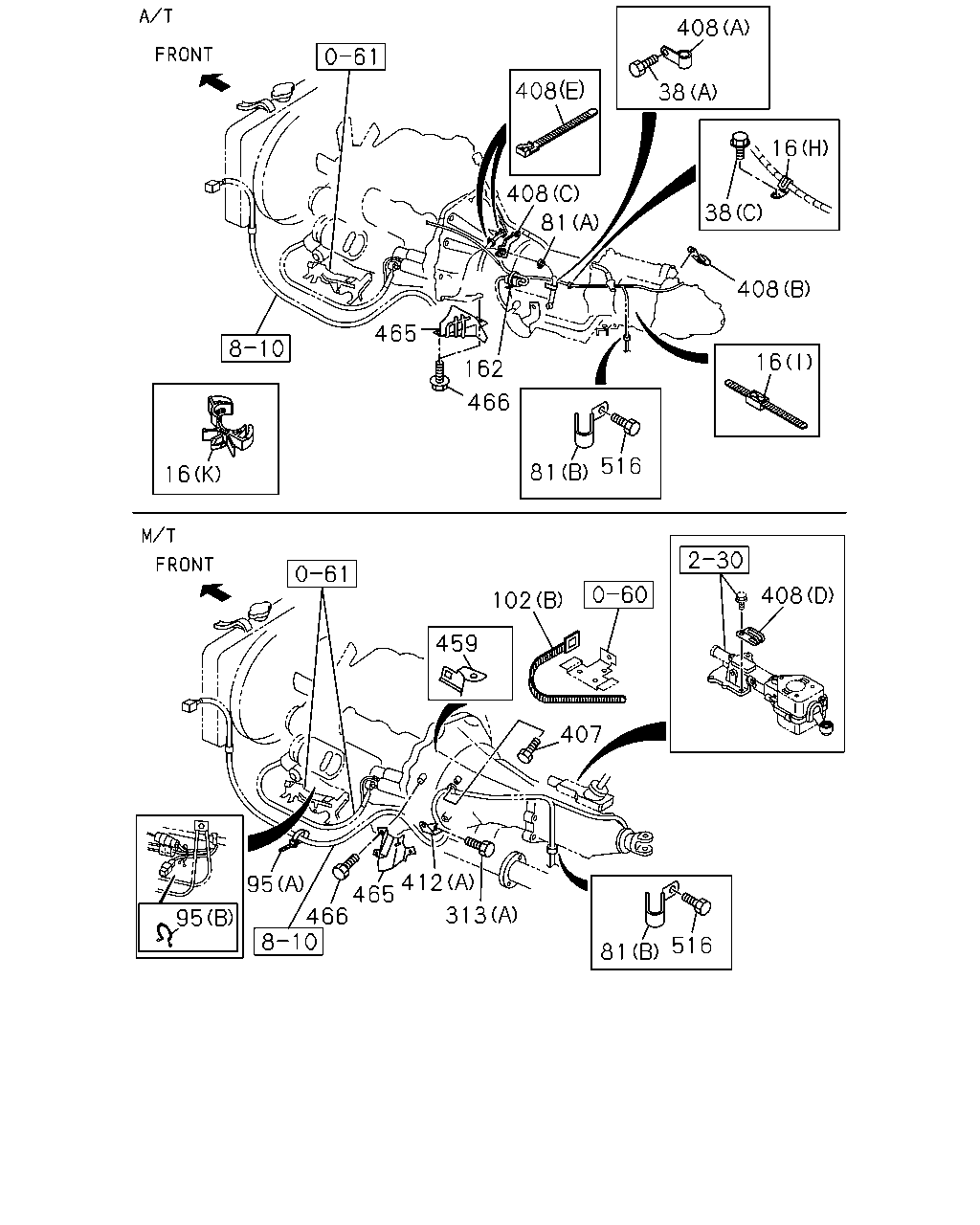

408 408 38 16 408 38 81 408 465 162 16 466 516 81 16 408 102 459 407 412 465 466 95 313 95 516 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (G) ID=19 L=28	9-09525-852-0	01	1	0005-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●

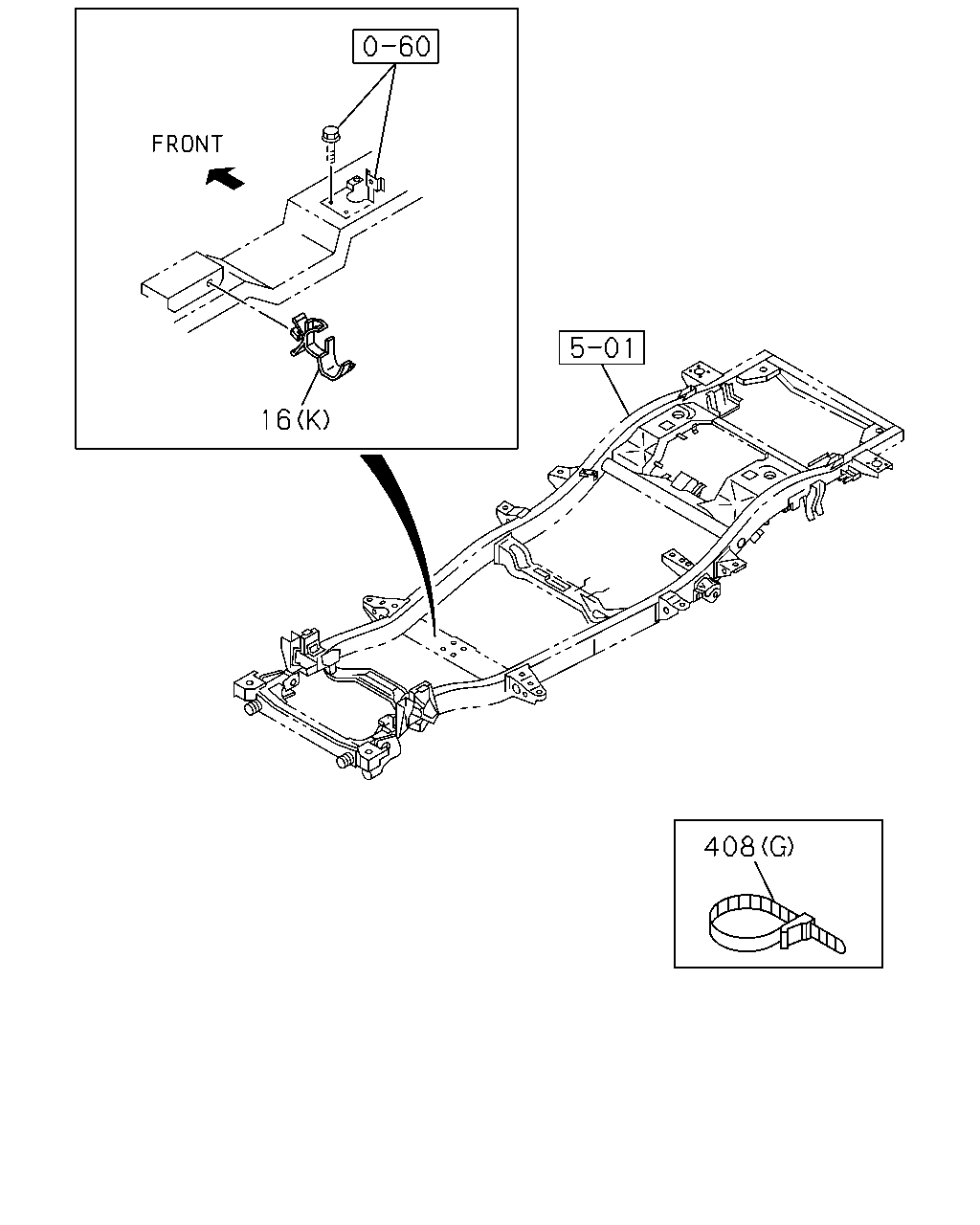

16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (K) ID=16	8-97040-812-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	9712-0011	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	0012-		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9801-9804		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9805-9908		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (I) L=140	5-09707-031-1	01	1	0106-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	9909-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.428 (E) M6X12 FLANGE	0-28080-612-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 03.611 (D) M10X20 FLANGE	0-28681-020-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (A) M4X12 W/LK WASHER	8-97066-403-1	01	1	9712-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER PREPARATORY PACK(S6D) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9712-9908	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9909-0011	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SEAT HEATER PASSENGER<C38>,AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER P REPARATORY PACK(S6D) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0012-	●	●
81	02.483 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 02.559 (B) ID=22	8-97022-767-0	01	1	0106-	●	●
81	02.483 CLIP; HARNESS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 02.559 (B) ID=22	8-97022-767-0	01	1	0106-		●
81	02.483 CLIP; HARNESS TORQUE ON DEMAND<7HA> 03.162 (A) L=140	5-09707-031-1	01	1	9712-		●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) 03.162 (A) L=140	5-09707-031-1	01	1	9712-	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 02.480 (B) ID=25	8-94120-831-0	01	1	9712-0105		●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 02.480 (B) ID=25	8-94120-831-0	01	1	0106-		●
102	02.559 CLIP; BAND 6VE1 ENG(RJQ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140	5-09707-031-1	01	1	9801-0011	●	●
102	02.559 CLIP; BAND 6VE1 ENG(RJQ) AUSTRALIA EQUIPMENT(RR3) 03.162 (B) L=140	5-09707-031-1	01	1	0012-0105		●
102	02.559 CLIP; BAND 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●	●
102	02.559 CLIP; BAND 4JG2 ENG(RJC) A/T AISIN(RMD) 02.587 (A) L=172	8-94232-620-0	01	1	9712-9908		●
102	02.559 CLIP; BAND 4JG2 ENG(RJC) A/T AISIN(RMD) 02.587 (A) L=172	8-94232-620-0	01	1	9909-	●	●
162	02.559 CLIP; SW HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 03.430 L=200	8-94464-835-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 06.635 (B) M6X16 FLANGE	0-28480-616-0	02	1	9712-	●	●
407	02.483 BOLT; HARNESS TO TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0106-0107	●	●
407	02.483 BOLT; HARNESS TO TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. TORQUE ON DEMAND<7HA> 03.430 (G) L=200	8-94464-835-0	03	1	0106-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (F) L=80	5-09700-307-1	01	1	9902-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (C)	8-97180-221-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (A) ID=16	9-09525-522-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS TORQUE ON DEMAND<7HA> 03.162 (B) L=140	5-09707-031-1	01	1	9712-9908		●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140	5-09707-031-1	02	1	9801-9908		●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140	5-09707-031-1	02	1	9909-0105	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> 03.162 (E) L=140	5-09707-031-1	07	1	0106-		●
412	02.559 BRACKET; HARNESS,TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) (A)	8-94359-008-1	01	1	9712-	●	●
412	02.559 BRACKET; HARNESS,TRANS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) (A)	8-97174-711-0	01	1	9712-	●	●
412	02.559 BRACKET; HARNESS,TRANS 4JG2 ENG(RJC) A/T AISIN(RMD) (B)	8-97805-903-1	01	1	9712-9908		●
412	02.559 BRACKET; HARNESS,TRANS 4JG2 ENG(RJC) A/T AISIN(RMD) (B)	8-97805-903-1	01	1	9909-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-94315-284-0	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97809-116-1	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK)	8-97163-785-0	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ)	8-97169-910-1	01	1	9712-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 04.439 M6X16 FLANGE	0-28680-616-0	03	1	9712-9807	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	9808-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9712-	●	●
516	02.559 BOLT; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0106-	●	●
516	02.559 BOLT; HARNESS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0106-		●

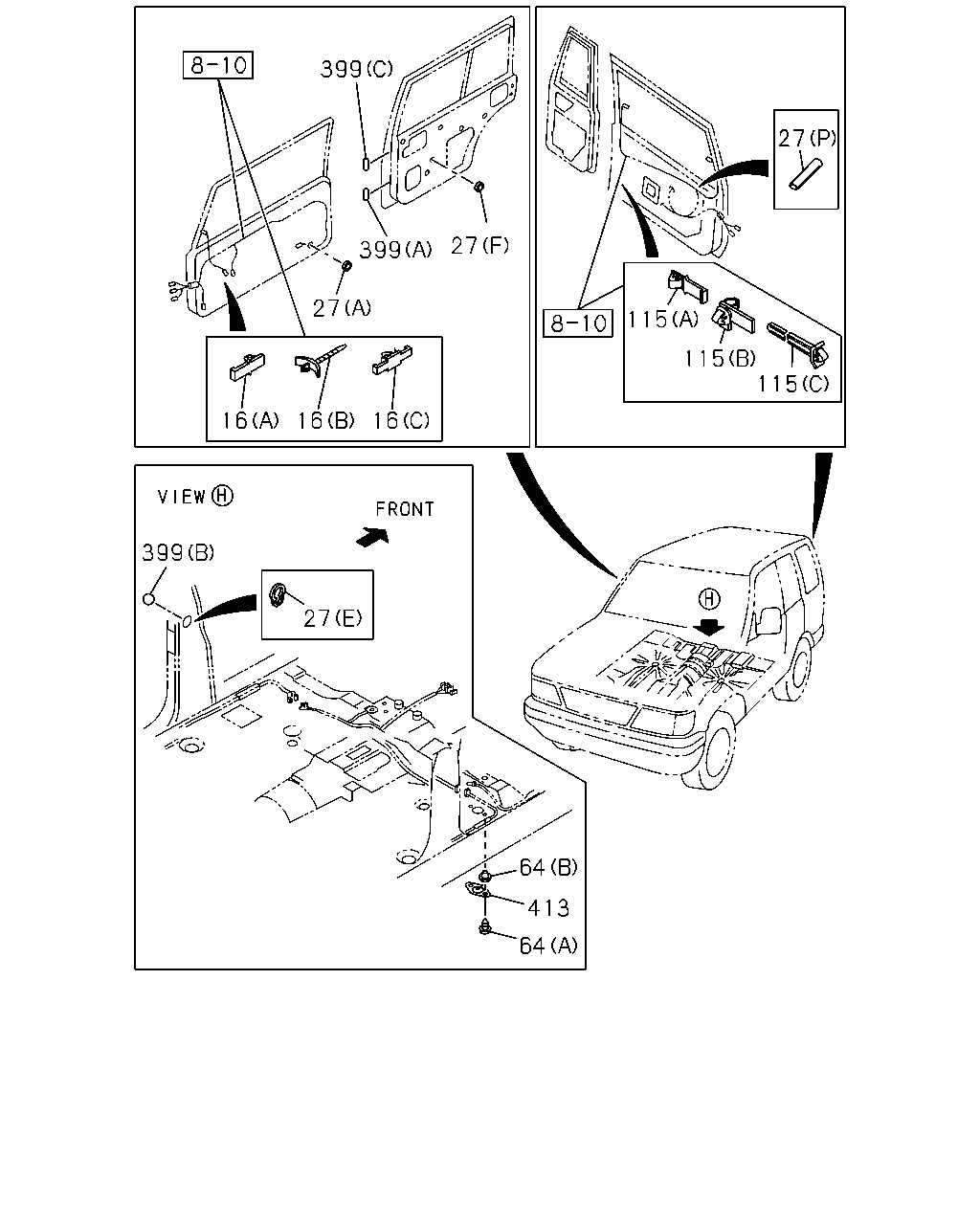

399 27 27 399 27 115 115 115 16 16 16 399 27 64 413 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (G) ID=19 L=28	9-09525-852-0	01	1	0005-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (K) ID=16	8-97040-812-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	9712-0011	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	0012-		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9801-9804		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9805-9908		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (I) L=140	5-09707-031-1	01	1	0106-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.483 (A)	8-94142-264-0	04	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (O)	8-97803-554-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0003	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0004-0011	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0102	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0103-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011		●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F)	8-94142-264-0	02	1	9712-		●
64	02.559 SCREW; CLIP 10.240 (A) M5X14	8-94120-095-0	02	1	9712-	●	●
64	02.559 SCREW; CLIP 02.679 (B) D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	9712-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),RR DEFOGGER W/AUTO CANCEL<S4Y> ,RR WIPER & WASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	03	1	9712-9809	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	9712-9809	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D), RRDEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & W ASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	03	1	9712-9809		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	9712-9809		●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (C)	8-94338-044-0	03	1	9712-9809		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D), RRDEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & W ASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	03	1	9810-9812	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (C)	8-94338-044-0	03	1	9810-9812	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	9901-0102	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (C)	8-94338-044-0	03	1	9901-0102		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	9901-0102		●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	0103-0108	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	0109-	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (C)	8-94338-044-0	03	1	0109-		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	0109-		●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	05	1	9712-9812	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (B)	8-97804-785-0	05	1	9712-9812		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	05	1	9712-9812		●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	04	1	9901-0102	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (B)	8-97804-785-0	04	1	9901-0102		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	04	1	9901-0102		●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	04	1	0103-0108	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	04	1	0109-	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (B)	8-97804-785-0	04	1	0109-		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	04	1	0109-		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	01	1	9712-9812	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERM ITTENT<6WJ> (C)	8-94338-044-0	01	1	9901-9908	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	01	1	9901-9908		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	01	1	9909-0102	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERM ITTENT<6WJ> (C)	8-94338-044-0	01	1	0103-	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),RR DEFOGGER W/AUTO CANCEL<S4Y>, RR WIPER & WASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	01	1	0103-		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D), RRDEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & W ASHER INTERMITTENT<6WJ> (B)	8-97804-785-0	02	1	9712-0102	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUI PMENT(S3D),RR DEFOGGER W/AUTO CANCEL<S4Y> ,RR WIPER & WASHER INTERMITTENT<6WJ> (B)	8-97804-785-0	02	1	0103-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (A) L=36.5	8-97019-892-0	04	1	9712-0102	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (A) L=36.5	8-97019-892-0	04	1	9712-0102	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (A) L=36.5	8-97019-892-0	04	1	0103-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),RR DEFOGGER W/AUTO CANCEL<S4Y>, RR WIPER & WASHER INTERMITTENT<6WJ> (A) L=36.5	8-97019-892-0	04	1	0103-	●	●
115	02.559 CLIP; DOOR HARNESS EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMIT TENT<6WJ> (A) L=36.5	8-97019-892-0	01	1	9712-0011	●	●
115	02.559 CLIP; DOOR HARNESS EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMIT TENT<6WJ> (A) L=36.5	8-97019-892-0	01	1	0012-		●
115	02.559 CLIP; DOOR HARNESS EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (B)	8-97804-785-0	03	1	9712-0011	●	●
115	02.559 CLIP; DOOR HARNESS EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (B)	8-97804-785-0	03	1	0012-		●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,THAILAND EQUIPMENT(PM9) (A) L=36.5	8-97019-892-0	02	1	9712-	●	●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.592 (A) OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9712-9810		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9811-		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-97115-143-0	02	1	9712-		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-97115-144-0	02	1	9712-		●
413	02.559 PLUG; CAVITY,HARNESS	8-97803-276-0	01	1	9712-	●
413	02.559 PLUG; CAVITY,HARNESS EXC. TORQUE ON DEMAND<7HA>	8-97803-276-0	01	1	9712-		●

7 27 27 27 27 27 27 27 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97802-171-0	01	1	9712-0105	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97302-452-0	01	1	0106-	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97805-895-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.483 (A)	8-94142-264-0	04	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (O)	8-97803-554-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0003	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0004-0011	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0102	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0103-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011		●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F)	8-94142-264-0	02	1	9712-		●
130	02.559 CLIP; WASHER HARNESS 4JG2 ENG(RJC) HEADLAMP WIPER & WASHER<CE3> 04.594 L=100	5-09707-036-1	01	1	9712-9908	●	●
130	02.559 CLIP; WASHER HARNESS 4JG2 ENG(RJC) HEADLAMP WIPER & WASHER<CE3> 04.594 L=100	5-09707-036-1	01	1	9909-	●	●

132 132 132 27 188 194 512 512 239 512 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (G) ID=19 L=28	9-09525-852-0	01	1	0005-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (H) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	9712-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0005-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (K) ID=16	8-97040-812-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	9712-0011	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER PREPARATORY PACK(S6D) (F) L=250	5-09707-030-1	01	1	0012-		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9801-9804		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9805-9908		●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 02.500 (G)	8-94430-365-0	01	1	9909-0105	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (I) L=140	5-09707-031-1	01	1	0106-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	9801-9802	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	9803-0011	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (N) L=80	5-22439-006-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EXC. AUSTRALIA EQUIPMENT(RR3) 03.008 (N) L=80	5-22439-006-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.483 (A)	8-94142-264-0	04	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (O)	8-97803-554-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.570 (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0003	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0004-0011	●	●
27	02.559 PROTECTOR; EDGE AUSTRALIA EQUIPMENT(RR3) 16.085 (I) L=100 SERVICED BY L=880	1-73948-003-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0102	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0103-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9810-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0011		●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0012-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F)	8-94142-264-0	02	1	9712-		●
132	02.559 SCREW; HARNESS 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9712-	●	●
188	02.559 CLIP; CHAS HARN TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> L=55	8-94473-398-0	01	1	9712-0105		●
188	02.559 CLIP; CHAS HARN TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) L=55	8-94473-398-0	01	1	0106-		●
194	02.559 CLIP; BAND SEAT BELT 3 POINT PRE TENSIONER<7MC> EXC. AIR BAG DRIVER<AJ3> L=250	5-09707-030-1	01	1	9803-	●	●
239	02.559 BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9712-	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9712-0109	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 00.662 (A) M8X14 FLANGE	0-28080-814-0	01	1	0110-	●	●
512	02.559 PROTECTOR; HARNESS 16.570 (B) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0005	●	●
512	02.559 PROTECTOR; HARNESS (B) L=80	5-71997-133-0	01	1	0006-	●	●
512	02.559 PROTECTOR; HARNESS 03.008 (A) L=80	5-22439-006-0	01	1	9712-9911	●	●
512	02.559 PROTECTOR; HARNESS AIR BAG DRIVER<AJ3> 03.008 (A) L=80	5-22439-006-0	01	1	9912-	●	●
512	02.559 PROTECTOR; HARNESS AIR BAG DRIVER<AJ3> 16.570 (C) L=120 SERVICED BY L=190	1-71998-300-0	01	1	9909-	●	●

485 484 24 38 408 38 38 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	9712-0105	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0209-	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) (A) ID=9	8-97063-874-0	01	1	9712-0105	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (A) ID=9	8-97063-874-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0209-	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 00.446 (C) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9805	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	9806-0302	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 02.313 (C) ID=18 L=44	8-97367-985-0	01	1	0303-	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.152 (D) L=36	8-94224-891-1	01	1	9902-	●	●
24	02.559 NUT; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9712-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	9909-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.428 (E) M6X12 FLANGE	0-28080-612-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 03.611 (D) M10X20 FLANGE	0-28681-020-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (A) M4X12 W/LK WASHER	8-97066-403-1	01	1	9712-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER PREPARATORY PACK(S6D) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9712-9908	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9909-0011	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SEAT HEATER PASSENGER<C38>,AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER P REPARATORY PACK(S6D) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	0012-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. TORQUE ON DEMAND<7HA> 03.430 (G) L=200	8-94464-835-0	03	1	0106-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (F) L=80	5-09700-307-1	01	1	9902-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (C)	8-97180-221-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (A) ID=16	9-09525-522-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS TORQUE ON DEMAND<7HA> 03.162 (B) L=140	5-09707-031-1	01	1	9712-9908		●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140	5-09707-031-1	02	1	9801-9908		●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (E) L=140	5-09707-031-1	02	1	9909-0105	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> 03.162 (E) L=140	5-09707-031-1	07	1	0106-		●
484	02.559 CLIP; ECGI HARNESS TO C/MBR 6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.594 L=100	5-09707-036-1	01	1	9712-	●	●
485	02.559 CLIP; HARNESS,ECGI 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER PREPARATORY PACK(S6D)	8-94327-574-0	01	1	9712-9908	●	●
485	02.559 CLIP; HARNESS,ECGI 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D)	8-94327-574-0	01	1	9909-0011	●	●
485	02.559 CLIP; HARNESS,ECGI 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SEAT HEATER PASSENGER<C38>,AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER P REPARATORY PACK(S6D)	8-94327-574-0	01	1	0012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
