◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#73372) — 746 parça

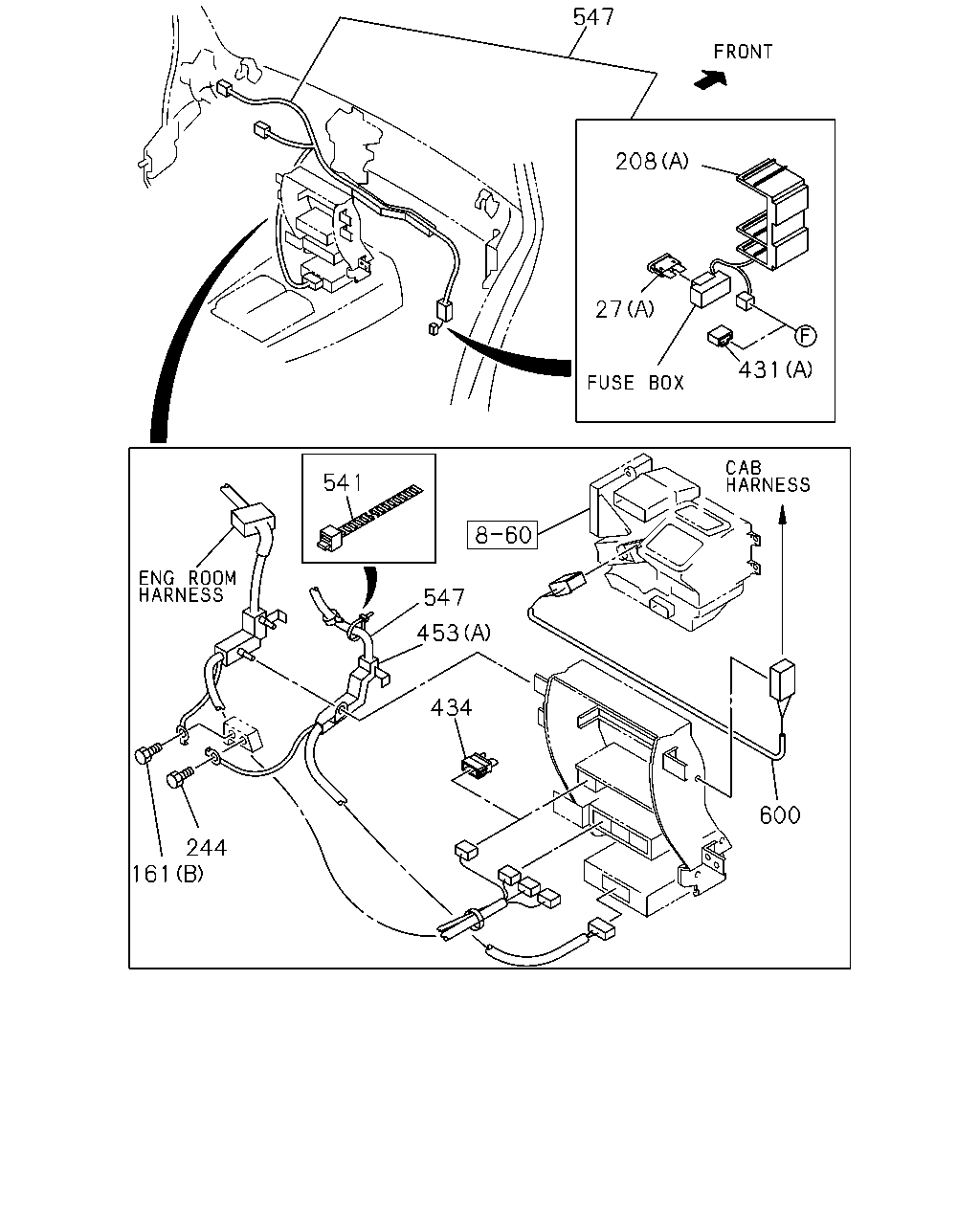

çizim 17949
547 208 27 431 541 547 453 434 600 244 161
BalonParca AdiParca NoAdetTipApplied Date A B
27 08.965 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9712- ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712- ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
(B) 		8-97094-964-1 01 1 9712-0105 ● ●
208 02.483 HOLDER; CONNECTOR
4JG2 ENG(RJC),6VD1 ENG(RLV) (B) 		8-97094-964-1 01 1 0106- ● ●
208 02.483 HOLDER; CONNECTOR
4JX1 ENG(RJM),6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97094-964-1 01 1 0106- ● ●
208 02.483 HOLDER; CONNECTOR
(C) 		8-97105-296-0 01 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
(D) 		8-97808-879-2 01 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
(E) 		8-97808-880-0 01 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> EXC. AIR BAG PASSENGER<7FA> (A) 		8-97147-320-0 01 1 9712-0209 ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (A) 		8-97147-320-0 01 1 9712-0209 ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> (A) 		8-97147-320-0 01 1 0210- ● ●
208 02.483 HOLDER; CONNECTOR
4JX1 ENG(RJM),6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B) 		8-97264-116-0 01 1 0106- ● ●
244 02.559 BOLT; GRAND BONDING CABLE
AIR BAG DRIVER<AJ3> M6X14 W/LK&PL WASHER 		8-97119-479-0 01 1 9712- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712- ● ●
431 02.530 CONNECTOR; JOINT
EXC. AIR BAG DRIVER<AJ3> (A) 		8-97133-712-0 01 1 9712- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
EXC. ONE TOUCH 4X4 SYSTEM(7QY) 		8-97168-575-0 01 1 9712- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
TORQUE ON DEMAND<7HA> 		8-97168-575-0 01 1 9712- ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> EXC. AIR BAG PASSENGER<7FA> (A) 		8-97808-889-1 01 1 0106-0209 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (A) 		8-97808-889-1 01 1 0106-0209 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> (A) 		8-97808-889-1 01 1 0210- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97105-293-1 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97808-887-0 01 1 0106- ● ●
541 02.483 CLIP
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.008 L=330 		5-09709-118-0 01 1 0011- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA>,SEAT BELT 3 POINT PRE TENSIONER<7MC> 		8-97359-716-0 01 1 0210- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> SEAT BELT 3 POINT PRE TENSIONER<7MC> 		8-97179-201-1 01 1 9712- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> EXC. SEAT BELT 3 POINT PRE TENSIONER<7MC> 		8-97179-199-1 01 1 9712- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> EXC. AIR BAG PASSENGER<7FA> 		8-97179-200-1 01 1 9712- ● ●
600 02.480 HARNESS; EXT,A/C
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97226-342-1 01 1 9909- ● ●
çizim 18020
408 409 409 391 408
BalonParca AdiParca NoAdetTipApplied Date A B
391 02.559 SCREW; BRKT
AUSTRALIA EQUIPMENT(RR3) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9909-0011 ● ●
391 02.559 SCREW; BRKT
AUSTRALIA EQUIPMENT(RR3) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0012-0105 ●
391 02.559 SCREW; BRKT
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0106- ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> (A) 		8-97263-410-0 01 1 0106- ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR BEIGE(181) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97226-199-0 01 1 9909-0011 ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR BEIGE(181) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97226-199-0 01 1 0012-0105 ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR BEIGE(181) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97226-199-0 01 1 0106- ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97111-066-1 01 1 9909-0011 ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97111-066-1 01 1 0012-0105 ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97111-066-1 01 1 0106- ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) (B) 		8-97263-494-0 01 1 0106- ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) (B) 		8-97263-495-0 01 1 0106- ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> (A) 		8-97310-925-0 01 1 0106- ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR BEIGE(181) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97230-118-0 01 1 9909-0011 ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR BEIGE(181) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97230-118-0 01 1 0012-0105 ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR BEIGE(181) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97230-118-0 01 1 0106- ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR MEDIUM GRAY(113) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97123-280-0 01 1 9909-0011 ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR MEDIUM GRAY(113) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97123-280-0 01 1 0012-0105 ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR MEDIUM GRAY(113) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97123-280-0 01 1 0106- ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) (B) 		8-97310-927-0 01 1 0106- ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) (B) 		8-97310-928-0 01 1 0106- ●

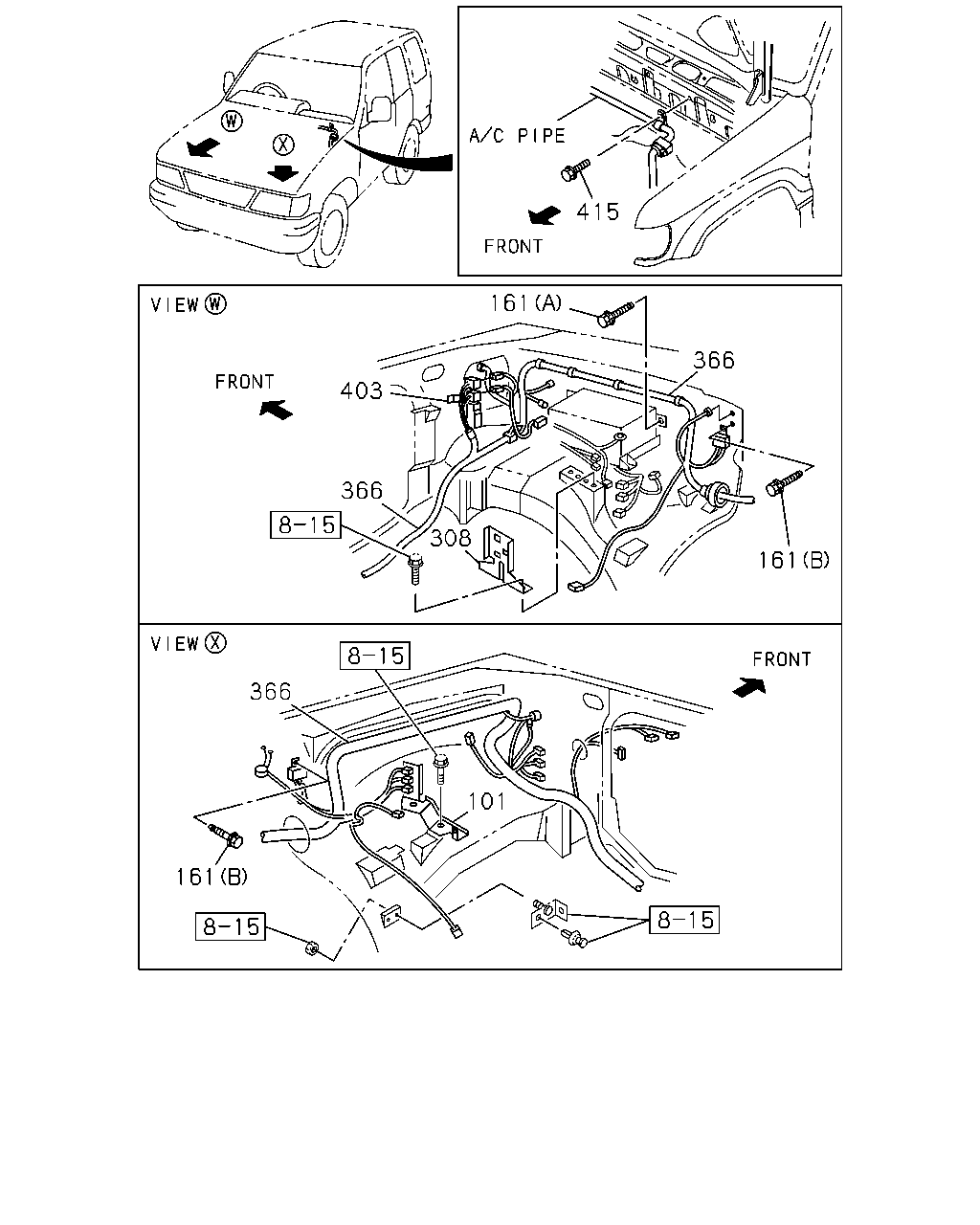

çizim 18442
415 161 366 403 366 308 161 366 101 161
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
6VE1 ENG(RJQ),6VD1 ENG(RLV) 		8-97168-576-0 01 1 9712-0105 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-97263-960-0 01 1 0106- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 		8-97263-959-1 01 1 0106- ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712- ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712- ● ●
308 02.559 BRACKET; CONNECTOR
6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 		8-97161-668-1 01 1 9712- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-450-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-279-2 01 1 9909-9912 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-279-4 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97228-279-4 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-279-4 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-277-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-451-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-280-1 01 1 9909-9912 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-280-3 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 		8-97228-280-3 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-280-3 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-278-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97191-471-0 01 1 9712-9801 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97205-058-1 01 1 9802-9912 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97205-058-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97205-058-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97205-058-2 01 1 0103-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97205-058-2 01 1 0103-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97264-292-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97264-292-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-704-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-843-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-284-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97225-705-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97248-844-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-283-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97225-700-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97248-840-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-288-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97185-701-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-449-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-739-3 01 1 9909-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-158-0 01 1 0010-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-158-0 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-419-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97353-383-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-699-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97185-699-0 01 1 9712-9712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97191-447-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-447-1 01 1 9801-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97225-737-3 01 1 9909-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-737-3 01 1 9909-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97287-156-0 01 1 0010-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-156-0 01 1 0010-0011 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-156-0 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97287-156-0 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-156-0 01 1 0012-0105 ●

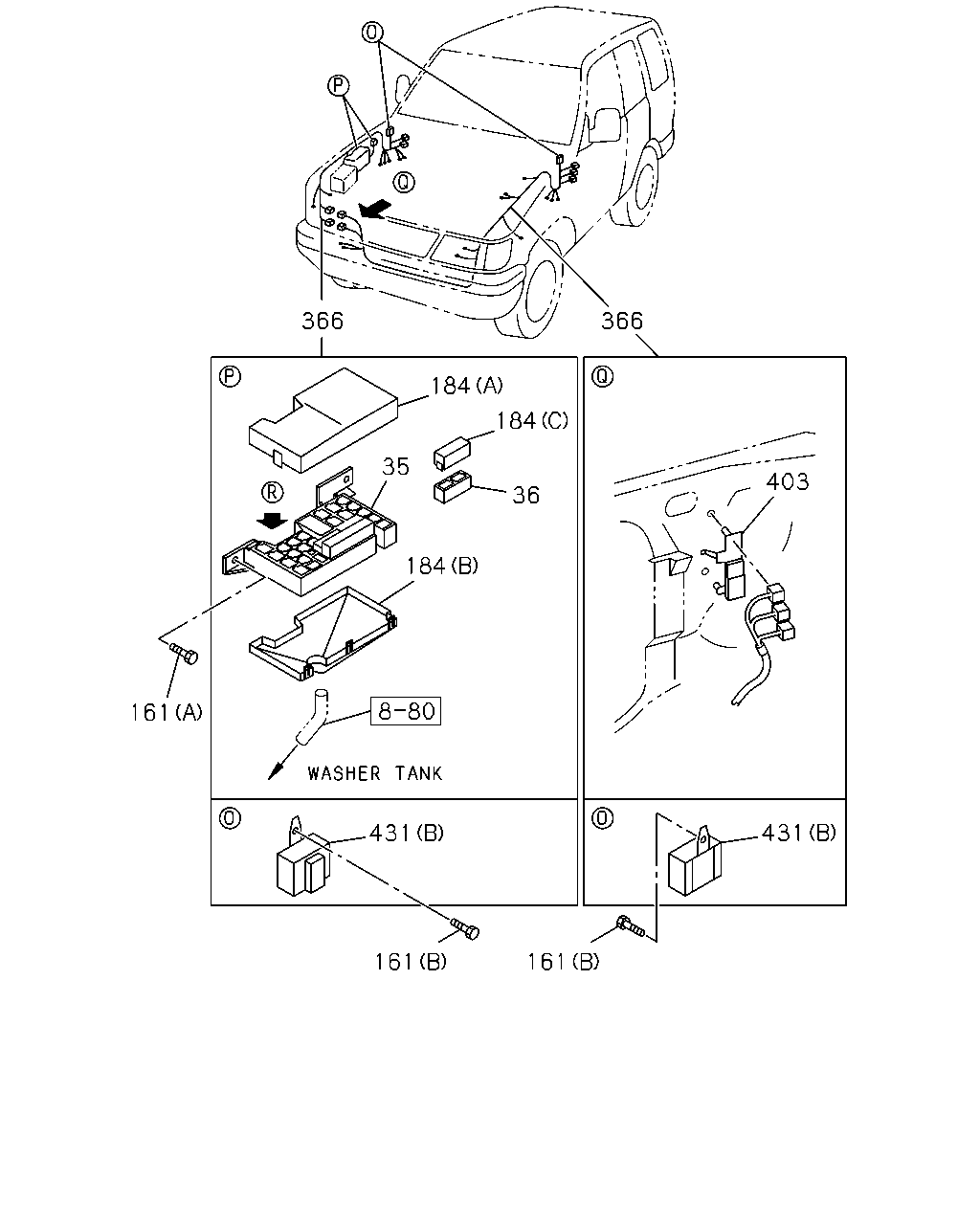

366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97303-417-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97303-417-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-417-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97353-381-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97353-381-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97353-381-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97185-700-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-448-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-738-2 01 1 9909-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-157-0 01 1 0010-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97303-418-0 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97353-382-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97185-720-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-468-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-702-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-841-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-286-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97185-721-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97191-469-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97225-703-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97248-842-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-285-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97185-718-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97191-466-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97228-325-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97248-836-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-287-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-462-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97216-771-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-710-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-264-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-460-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-708-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-265-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97191-459-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97216-770-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97225-707-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97264-269-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97191-463-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97216-772-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97225-711-2 01 1 9909-0102 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. ACCESSORY METER<7HT> 		8-97225-711-2 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-255-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-444-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-729-3 01 1 9909-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-729-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97303-413-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-413-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97191-442-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-442-1 01 1 9712-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97225-730-3 01 1 9909-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-730-3 01 1 9909-0011 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-730-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97225-730-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-730-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97264-290-1 01 1 0106-0108 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5), THAILANDEQUIPMENT(PM9) 		8-97191-443-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5), THAILANDEQUIPMENT(PM9) 		8-97225-731-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-266-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),THAILAND EQUIPMENT(PM9) 		8-97303-414-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97191-458-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97225-706-2 01 1 9909-0102 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97225-706-2 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97264-268-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97191-461-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97225-709-2 01 1 9909-0102 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. ACCESSORY METER<7HT> 		8-97225-709-2 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-254-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97264-289-1 01 1 0106-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97264-289-2 01 1 0109- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97187-540-0 01 1 9712-9901 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97216-778-1 01 1 9902-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-267-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) SOUTH AFRICA EQUIPMENT(SW2) 		8-97245-999-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) ACCESSORY METER<7HT> IMMOBILIZER SYSTEM<7KC> 		8-97310-911-0 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-272-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97191-470-2 01 1 9712-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97264-291-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) 		8-97246-001-1 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) ACCESSORY METER<7HT> IMMOBILIZER SYSTEM<7KC> 		8-97310-910-0 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-271-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97246-000-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97312-847-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97312-846-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97353-384-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) THAILAND EQUIPMENT(PM9) 		8-97191-464-0 01 1 9712-9901 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) THAILAND EQUIPMENT(PM9) 		8-97216-773-1 01 1 9902-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) THAILAND EQUIPMENT(PM9) 		8-97264-270-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97191-440-1 01 1 9712-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97228-382-3 01 1 9909-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97264-256-2 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-441-1 01 1 9712-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-383-2 01 1 9909-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-257-2 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-415-0 01 1 0106- ●
403 02.483 BRACKET; CONNECTOR,HARNESS 8-97124-408-0 01 1 9712- ● ●
415 02.559 BOLT; CABLE,BONDING
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9712-9908 ● ●
415 02.559 BOLT; CABLE,BONDING
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9909-0111 ● ●

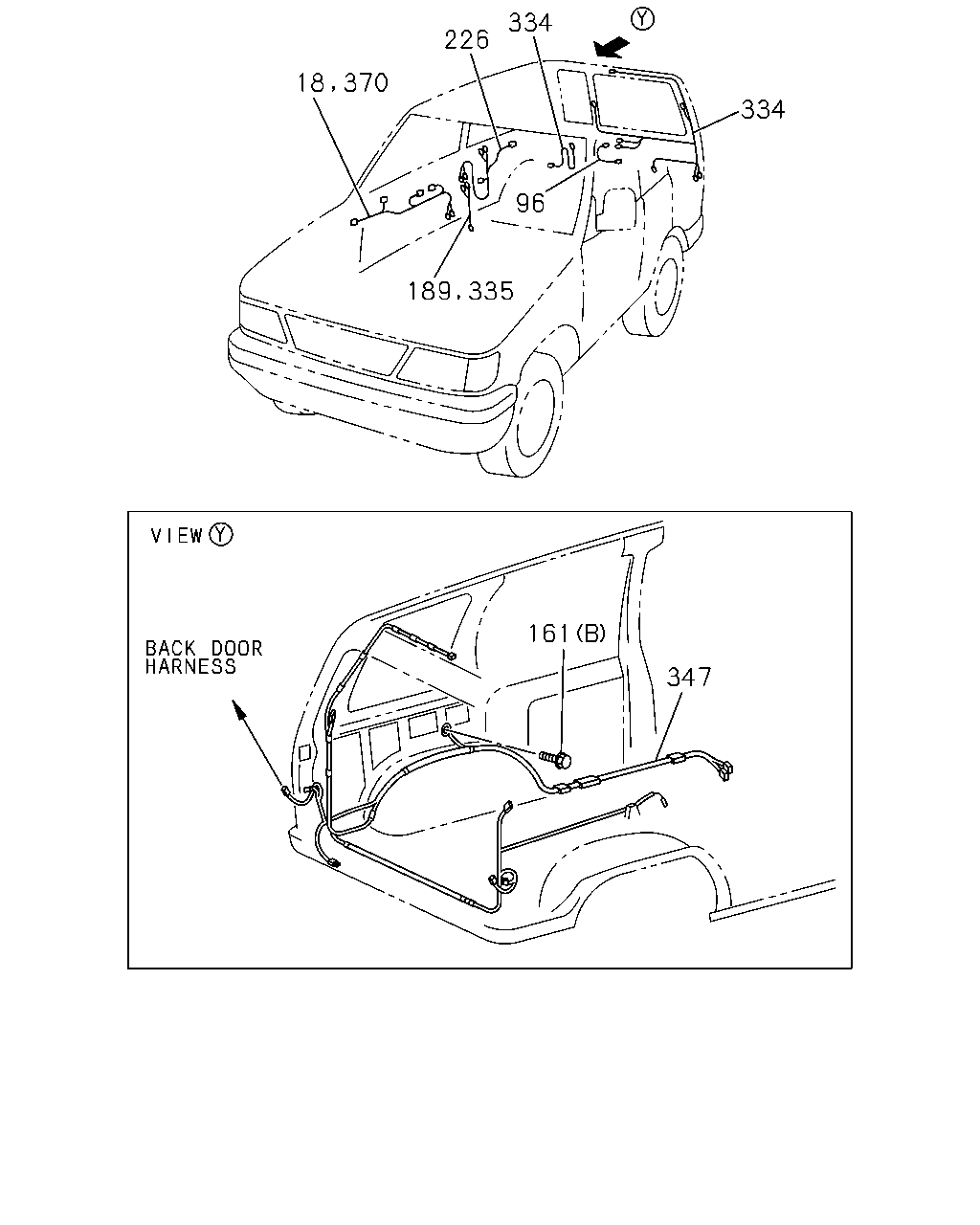

çizim 67252
334 226 334 96 161 347 189 335 18 370
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>,DOOR MIRROR ELEC CONT &FOLDING W/DEF(6MK) 		8-97106-951-3 02 1 9712- ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97106-952-3 02 1 9712- ● ●
96 02.480 HARNESS; CABLE,DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97201-439-1 01 1 9804-9908 ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712- ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712- ● ●
189 02.480 HARNESS; EXT
POWER WINDOW<A30> 		8-97123-832-1 01 1 9712-0112 ●
189 02.480 HARNESS; EXT
POWER WINDOW<A30> 		8-97327-277-0 01 1 0201- ●
189 02.480 HARNESS; EXT
EXC. POWER WINDOW<A30> 		8-97117-521-1 01 1 9712-0112 ●
189 02.480 HARNESS; EXT
EXC. POWER WINDOW<A30> 		8-97327-278-0 01 1 0201- ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 		8-97130-152-1 02 1 9712- ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97163-877-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97203-811-0 01 1 9901-0011 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97203-811-2 01 1 0012- ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D), RRDEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & W ASHER INTERMITTENT<6WJ> 		8-97168-760-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D), RRDEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & W ASHER INTERMITTENT<6WJ> 		8-97211-348-0 01 1 9901-0102 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUI PMENT(S3D),RR DEFOGGER W/AUTO CANCEL<S4Y> ,RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97211-348-2 01 1 0103- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUT H AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97163-876-0 01 1 9801-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUT H AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97203-810-2 01 1 9901-0011 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUT H AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97203-810-2 01 1 0012-0102 ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97203-810-3 01 1 0103- ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRAL IA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97200-730-0 01 1 9712-9712 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EUROPE EQUIPMENT(EK4) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97200-730-0 01 1 9801-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EUROPE EQUIPMENT(EK4) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97211-349-3 01 1 9901- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97168-756-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97211-346-1 01 1 9901-0105 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUI PMENT(S3D) 		8-97211-346-3 01 1 0106- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMIT TENT<6WJ> 		8-97163-879-0 01 1 9712-9908 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMIT TENT<6WJ> 		8-97203-813-0 01 1 9909-0011 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMIT TENT<6WJ> 		8-97203-813-0 01 1 0012- ●
334 02.480 HARNESS; CABLE,BACK DOOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> 		8-97163-878-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> 		8-97203-812-1 01 1 9901-0102 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> 		8-97203-812-1 01 1 0103- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-94359-020-4 01 1 9712-0011 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4) 		8-94359-020-4 01 1 0012-0102 ●
334 02.480 HARNESS; CABLE,BACK DOOR
GRADE S/SE(RBA) AUSTRALIA EQUIPMENT(RR3) EXC. APPEARANCE PACKAGE<6LU> 		8-94359-020-4 01 1 0012-0102 ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3), SOUTHAFRICA EQUIPMENT(SW2) 		8-94359-020-4 01 1 0012-0102 ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94359-020-4 01 1 0103-0105 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
GRADE S/SE(RBA) AUSTRALIA EQUIPMENT(RR3) EXC. APPEARANCE PACKAGE<6LU> 		8-94359-020-4 01 1 0103-0105 ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94359-020-4 01 1 0106- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97168-758-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97211-347-1 01 1 9901-0102 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97211-347-1 01 1 0103- ● ●
335 02.480 HARNESS; CABLE,DOOR SW 8-97808-920-1 01 1 9712- ●
347 02.480 HARNESS; CABLE,RR BODY
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97315-480-0 01 1 0106-0107 ●
347 02.480 HARNESS; CABLE,RR BODY
4JG2 ENG(RJC) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97315-480-0 01 1 0108- ●
347 02.480 HARNESS; CABLE,RR BODY
AUSTRALIA EQUIPMENT(RR3) 		8-97180-157-1 01 1 9712-9908 ●
347 02.480 HARNESS; CABLE,RR BODY
AUSTRALIA EQUIPMENT(RR3) 		8-97225-882-0 01 1 9909-0011 ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4) 		8-97202-426-1 01 1 9712-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4) 		8-97264-430-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97171-260-2 01 1 9712-0011 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4) 		8-97171-260-2 01 1 0012- ●
347 02.480 HARNESS; CABLE,RR BODY
AUSTRALIA EQUIPMENT(RR3) 		8-97180-158-1 01 1 9712-9908 ●
347 02.480 HARNESS; CABLE,RR BODY
AUSTRALIA EQUIPMENT(RR3) 		8-97225-881-0 01 1 9909- ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2) 		8-97185-680-1 01 1 9712-0102 ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) 		8-97185-680-1 01 1 0103-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1) 		8-97264-431-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3), SOUTHAFRICA EQUIPMENT(SW2) 		8-97185-681-1 01 1 9712-0102 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97185-681-1 01 1 0103-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97185-681-1 01 1 0106-0107 ●
347 02.480 HARNESS; CABLE,RR BODY
6VD1 ENG(RLV) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97185-681-1 01 1 0108- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97185-681-1 01 1 0108- ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> DRIVER SIDE 		8-97200-731-2 01 1 9712-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> DRIVER SIDE 		8-97304-983-0 01 1 0106- ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> PASSENGER SIDE 		8-97200-732-2 01 1 9712-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> PASSENGER SIDE 		8-97304-987-0 01 1 0106- ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> DRIVER SIDE 		8-97130-149-2 01 1 9712-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> DRIVER SIDE 		8-97304-982-1 01 1 0106- ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> PASSENGER SIDE 		8-97133-802-2 01 1 9712-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> PASSENGER SIDE 		8-97304-985-1 01 1 0106- ● ●

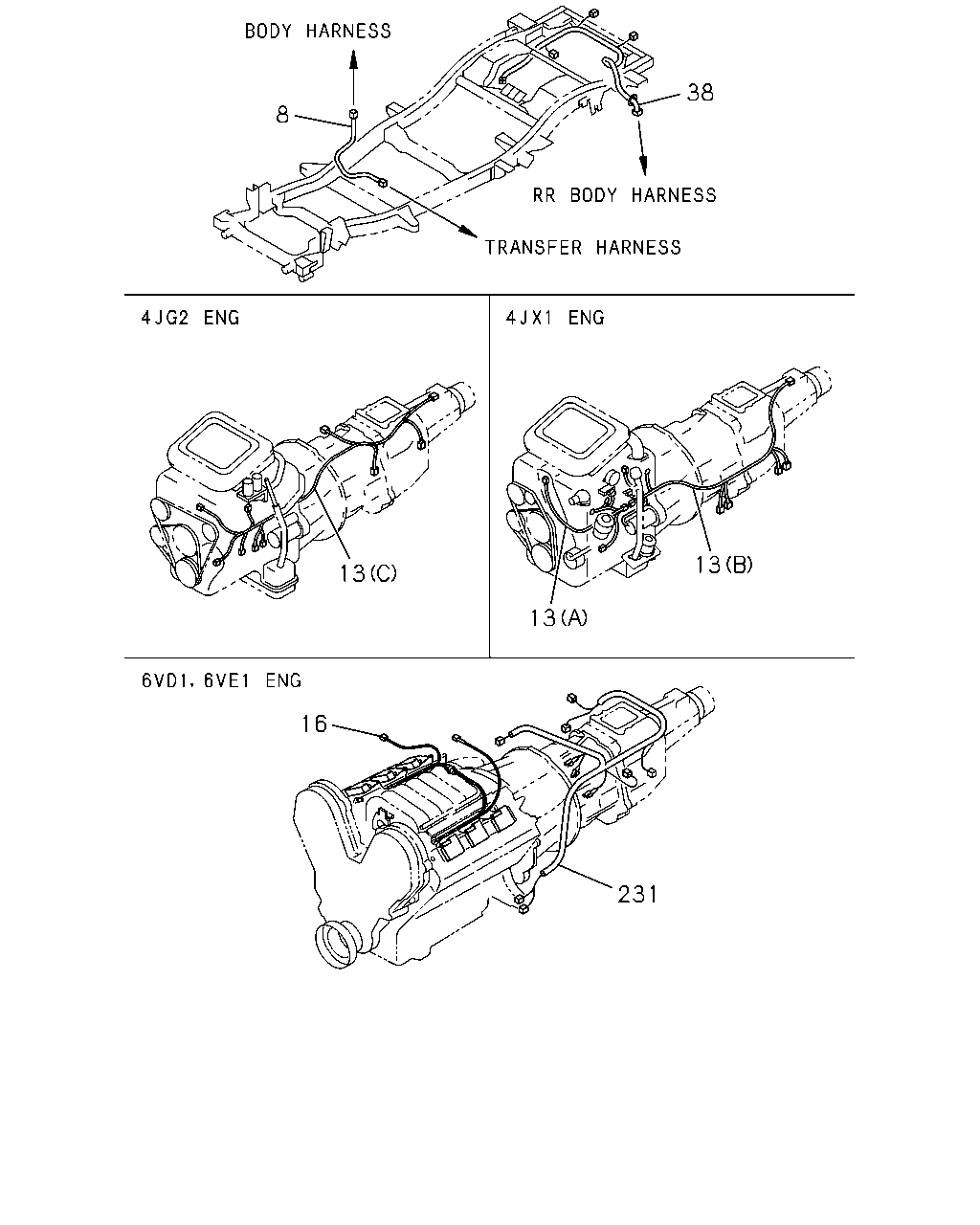

çizim 67253
38 8 13 13 13 16 231
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JX1 ENG(RJM) TORQUE ON DEMAND<7HA> 		8-97220-229-0 01 1 9909- ●
8 02.480 HARNESS; FRAME,FRT
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97264-425-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> 		8-97180-887-0 01 1 9712-0105 ●
8 02.480 HARNESS; FRAME,FRT
6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97180-887-0 01 1 0106- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1), WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97168-450-2 01 1 9712-9912 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97168-450-2 01 1 0001-0001 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1), WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97168-450-2 01 1 0002-0102 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) (C) 		8-97168-450-3 01 1 0103- ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. TURBOCHARGER<K51> (C) 		8-97168-450-3 01 1 0103- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) (B) 		8-97219-157-3 01 1 9909-0105 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97219-157-3 01 1 0106-0201 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97317-325-0 01 1 0202-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97317-325-3 01 1 0209- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (B) 		8-97255-960-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (B) 		8-97255-960-2 01 1 0209-0307 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (B) 		8-97325-160-3 01 1 0308- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97255-961-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97255-961-2 01 1 0209- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (A) 		8-97185-209-1 01 1 9712-9908 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) (A) 		8-97185-209-1 01 1 9909-0105 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97185-209-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97185-209-2 01 1 0209- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B) 		8-97185-212-2 01 1 9712-9812 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B) 		8-97212-482-2 01 1 9901-0105 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97212-482-2 01 1 0106-0112 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97317-324-0 01 1 0201-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97317-324-2 01 1 0209- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97255-959-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (B) 		8-97255-959-2 01 1 0209-0307 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (B) 		8-97325-159-2 01 1 0308- ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) A/T AISIN(RMD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) CHARGE AIR COOLER<6PL> (C) 		8-97189-196-0 01 1 9712-0010 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) A/T AISIN(RMD) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) CHARGE AIR COOLER<6PL> (C) 		8-97288-219-1 01 1 0011-0105 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) A/T AISIN(RMD) (C) 		8-97288-219-2 01 1 0106- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97168-449-4 01 1 9712- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. SOUTH AFRICA EQUIPMENT(SW2) (C) 		8-97241-172-0 01 1 0001-0102 ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) 		8-97148-639-5 01 1 9712-0105 ● ●
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) 		8-97148-639-5 01 1 9712-0105 ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) 		8-97148-639-8 01 1 0106- ●
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) AUSTRALIA EQUIPMENT(RR3) 		8-97148-639-8 01 1 0106- ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) 		8-97169-677-4 01 1 9712- ● ●
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-97263-050-4 01 1 0106- ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97180-476-0 01 1 9712-0102 ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97180-476-0 01 1 0103-0105 ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-97264-426-0 01 1 0106- ● ●
38 02.480 HARNESS; CHAS
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2) 		8-97180-477-0 01 1 9712-0102 ● ●
38 02.480 HARNESS; CHAS
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-97180-477-0 01 1 0103- ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-478-0 01 1 9712-9808 ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-478-0 01 1 9809-0011 ● ●
38 02.480 HARNESS; CHAS
6VD1 ENG(RLV) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) 		8-97180-478-0 01 1 0012-0102 ● ●
38 02.480 HARNESS; CHAS
6VE1 ENG(RJQ) 		8-97180-478-0 01 1 0012-0102 ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-478-1 01 1 0103- ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-479-1 01 1 9712-0102 ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-479-1 01 1 0103- ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) 		8-97191-283-0 01 1 9712- ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX) 		8-97191-284-0 01 1 9712- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) 		8-97191-285-0 01 1 9712-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97226-000-3 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 		8-97191-286-0 01 1 9712-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97219-101-1 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SHIFT ON THE FLY(7EX) 		8-97187-621-0 01 1 9712-9908 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SHIFT ON THE FLY(7EX) 		8-97229-025-0 01 1 9909-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) 		8-97229-025-0 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. SHIFT ON THE FLY(7EX) 		8-97187-622-0 01 1 9712-9908 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. SHIFT ON THE FLY(7EX) 		8-97229-026-0 01 1 9909-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THE FLY(7EX) 		8-97229-026-0 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THE FLY(7EX) 		8-97191-288-2 01 1 9712- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) 		8-97191-287-2 01 1 9712- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97225-999-3 01 1 0106- ●
çizim 68897
366 366 184 184 35 403 36 184 161 431 431 161 161
BalonParca AdiParca NoAdetTipApplied Date A B
35 02.530 BOX; RELAY & FUSE 8-97044-180-2 01 1 9712-0105 ● ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),THAILAND EQUIPMENT(PM9) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) 		8-97289-812-0 01 1 0106- ● ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-97289-812-0 01 1 0106- ● ●
35 02.530 BOX; RELAY & FUSE
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) 		8-97289-812-0 01 1 0106- ●
36 02.530 BOX; RELAY
4JX1 ENG(RJM) 		8-97104-122-1 01 1 9712- ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712- ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712- ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) LOWER 		8-97044-181-0 01 1 9712- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) UPPER 		8-97180-175-2 01 1 9712-9912 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) UPPER 		8-97180-175-2 01 1 0001-0102 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A) UPPER 		8-97180-175-2 01 1 0001-0102 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) UPPER 		8-97180-175-2 01 1 0103-0105 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) UPPER 		8-97287-547-0 01 1 0106- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (C) 		8-97104-131-0 01 1 9712- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) UPPER 		8-97180-174-1 01 1 9712-9908 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) UPPER 		8-97226-108-0 01 1 9909-0009 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) UPPER 		8-97287-151-0 01 1 0010-0105 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) UPPER 		8-97301-148-0 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A) UPPER 		8-97301-148-0 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9) (A) UPPER 		8-97301-148-0 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) UPPER 		8-97180-172-1 01 1 9712-9908 ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) UPPER 		8-97226-107-0 01 1 9909-0105 ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) UPPER 		8-97301-146-0 01 1 0106- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) SOUTH AFRICA EQUIPMENT(SW2) (A) UPPER 		8-97249-712-0 01 1 0001-0102 ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) (A) UPPER 		8-97312-848-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-450-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-279-2 01 1 9909-9912 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-279-4 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97228-279-4 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-279-4 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-277-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-451-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-280-1 01 1 9909-9912 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-280-3 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 		8-97228-280-3 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-280-3 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-278-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97191-471-0 01 1 9712-9801 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97205-058-1 01 1 9802-9912 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97205-058-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97205-058-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97205-058-2 01 1 0103-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97205-058-2 01 1 0103-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97264-292-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97264-292-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-704-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-843-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-284-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97225-705-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97248-844-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-283-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97225-700-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97248-840-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-288-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97185-701-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-449-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-739-3 01 1 9909-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-158-0 01 1 0010-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-158-0 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-419-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97353-383-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97185-699-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97185-699-0 01 1 9712-9712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97191-447-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-447-1 01 1 9801-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97225-737-3 01 1 9909-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-737-3 01 1 9909-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97287-156-0 01 1 0010-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-156-0 01 1 0010-0011 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-156-0 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97287-156-0 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97287-156-0 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97303-417-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97303-417-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-417-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97353-381-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97353-381-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97353-381-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97185-700-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-448-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-738-2 01 1 9909-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-157-0 01 1 0010-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97303-418-0 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97353-382-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97185-720-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-468-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-702-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-841-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-286-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97185-721-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97191-469-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97225-703-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97248-842-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-285-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97185-718-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97191-466-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97228-325-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97248-836-1 01 1 0003-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-287-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-462-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97216-771-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-710-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-264-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-460-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-708-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-265-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97191-459-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97216-770-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97225-707-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97264-269-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97191-463-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97216-772-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97225-711-2 01 1 9909-0102 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. ACCESSORY METER<7HT> 		8-97225-711-2 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-255-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-444-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-729-3 01 1 9909-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-729-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97303-413-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-413-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97191-442-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97191-442-1 01 1 9712-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97225-730-3 01 1 9909-0011 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-730-3 01 1 9909-0011 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-730-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97225-730-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97225-730-3 01 1 0012-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97264-290-1 01 1 0106-0108 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5), THAILANDEQUIPMENT(PM9) 		8-97191-443-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5), THAILANDEQUIPMENT(PM9) 		8-97225-731-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-266-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),THAILAND EQUIPMENT(PM9) 		8-97303-414-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97191-458-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97225-706-2 01 1 9909-0102 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97225-706-2 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97264-268-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97191-461-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97225-709-2 01 1 9909-0102 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. ACCESSORY METER<7HT> 		8-97225-709-2 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-254-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97264-289-1 01 1 0106-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97264-289-2 01 1 0109- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97187-540-0 01 1 9712-9901 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97216-778-1 01 1 9902-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-267-3 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) SOUTH AFRICA EQUIPMENT(SW2) 		8-97245-999-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) ACCESSORY METER<7HT> IMMOBILIZER SYSTEM<7KC> 		8-97310-911-0 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-272-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97191-470-2 01 1 9712-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97264-291-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) 		8-97246-001-1 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) ACCESSORY METER<7HT> IMMOBILIZER SYSTEM<7KC> 		8-97310-910-0 01 1 0103-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-271-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97246-000-2 01 1 0001-0102 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) 		8-97312-847-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97312-846-0 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97353-384-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) THAILAND EQUIPMENT(PM9) 		8-97191-464-0 01 1 9712-9901 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) THAILAND EQUIPMENT(PM9) 		8-97216-773-1 01 1 9902-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) A/T THM(RMQ) THAILAND EQUIPMENT(PM9) 		8-97264-270-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97191-440-1 01 1 9712-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97228-382-3 01 1 9909-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) THAILAND EQUIPMENT(PM9) 		8-97264-256-2 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-441-1 01 1 9712-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97228-383-2 01 1 9909-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-257-2 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97303-415-0 01 1 0106- ●
403 02.483 BRACKET; CONNECTOR,HARNESS 8-97124-408-0 01 1 9712- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712- ● ●
431 02.530 CONNECTOR; JOINT
EXC. AIR BAG DRIVER<AJ3> (A) 		8-97133-712-0 01 1 9712- ● ●
çizim 69078
280 292 11 4 50 123 2 2 41 314 208 208 208 208 292 292 292
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9712- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9712- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97808-883-1 01 1 9712- ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97315-949-0 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT (S3D) 		8-97329-528-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) 		8-97191-194-0 01 1 9712-9802 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97191-194-3 01 1 9803-9908 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97191-194-3 01 1 9803-9908 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97225-768-0 01 1 9909-9912 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. SOUTH AFRICA EQUIPMENT(SW2) 		8-97225-768-1 01 1 0001-0102 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97225-768-1 01 1 0103-0105 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97264-328-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97329-527-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> 		8-97191-192-3 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> 		8-97225-764-1 01 1 9909-0011 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97225-764-1 01 1 9909-0011 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97225-764-1 01 1 0012-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97264-322-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97329-523-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) EXC. ANTI THEFT<UA6> 		8-97191-193-3 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-765-1 01 1 9909-0011 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-765-1 01 1 0012-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-323-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-524-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 		8-97191-190-1 01 1 9712-9802 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 		8-97191-190-3 01 1 9803-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97225-756-1 01 1 9909-0105 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97264-310-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97329-515-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 		8-97191-191-1 01 1 9712-9802 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 		8-97191-191-3 01 1 9803-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-757-1 01 1 9909-0105 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-311-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-516-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. AIR BAG DRIVER<AJ3> 		8-97207-551-1 01 1 9803-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. AIR BAG DRIVER<AJ3>,TORQUE ON DEMAND<7HA> 		8-97225-758-1 01 1 9909-0105 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. AIR BAG DRIVER<AJ3>,TORQUE ON DEMAND<7HA> 		8-97264-312-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. AIR BAG DRIVER<AJ3>,TORQUE ON DEMAND<7HA> 		8-97329-517-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,ANTI THEFT<UA6> 		8-97207-582-1 01 1 9803-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,ANTI THEFT<UA6>, TORQUE ON DEMAND<7HA> 		8-97225-759-1 01 1 9909-0105 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,ANTI THEFT<UA6>, TORQUE ON DEMAND<7HA> 		8-97264-313-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,ANTI THEFT<UA6>, TORQUE ON DEMAND<7HA> 		8-97329-518-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 		8-97191-178-2 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97225-746-1 01 1 9909-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97264-304-2 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97329-509-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 		8-97191-179-2 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-747-1 01 1 9909-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-305-2 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-510-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),TORQUE ON DEMAND<7HA> 		8-97191-183-2 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),TORQUE ON DEMAND<7HA> 		8-97225-752-1 01 1 9909-0102 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> 		8-97225-752-1 01 1 0103-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> 		8-97264-319-2 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> 		8-97329-520-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),ANTI THEFT<UA6>,TORQUE ON D EMAND<7HA> 		8-97191-185-2 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),ANTI THEFT<UA6>,TORQUE ON D EMAND<7HA> 		8-97225-755-1 01 1 9909-0102 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-755-1 01 1 0103-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-321-2 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-522-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) ANTI THEFT<UA6> 		8-97246-002-1 01 1 0001-0102 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI THEFT<UA6> 		8-97246-003-1 01 1 0001-0102 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97225-760-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97264-306-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97329-511-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97225-761-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97264-307-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97329-512-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97225-766-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97264-324-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97329-525-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) AUSTRALIA EQUIPMENT(RR3) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97225-767-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97264-325-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97329-526-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3> 		8-97225-762-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3> 		8-97264-308-2 01 1 0106-0108 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3>,ANTI THEFT<UA6> 		8-97225-763-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3>,ANTI THEFT<UA6> 		8-97264-309-2 01 1 0106-0108 ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) ANTI THEFT<UA6> 		8-97191-180-2 01 1 9712-9908 ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) ANTI THEFT<UA6> 		8-97225-748-1 01 1 9909-0102 ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI THEFT<UA6> 		8-97191-181-2 01 1 9712-9908 ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI THEFT<UA6> 		8-97225-750-1 01 1 9909-0102 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97225-744-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97264-302-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97329-507-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97225-745-2 01 1 9909-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97264-303-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97329-508-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SOUTH AFRICA EQUIPMENT(SW2) ANTI THEFT<UA6> 		8-97250-078-1 01 1 0001-0102 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI THEFT<UA6> 		8-97250-079-1 01 1 0001-0102 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97191-182-2 01 1 9712-9908 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97225-751-2 01 1 9909-0102 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97225-751-2 01 1 0103-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-318-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97329-519-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),ANTI THEFT<UA6> 		8-97191-184-2 01 1 9712-9908 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),ANTI THEFT<UA6> 		8-97225-754-2 01 1 9909-0102 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97225-754-2 01 1 0103-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97264-320-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97329-521-0 01 1 0306- ●
41 08.821 PULLER; FUSE
02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9712-9903 ● ●
41 08.821 PULLER; FUSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),ANTI THEFT<UA6> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9901-9902 ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9903- ● ●
50 08.965 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 9712- ● ●
50 08.965 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 9712- ● ●
50 08.965 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9712- ● ●
50 08.965 FUSE; BODY HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9712- ● ●
123 02.485 BREAKER; CIRCUIT 8-97106-113-0 01 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
(B) 		8-97094-964-1 01 1 9712-0105 ● ●
208 02.483 HOLDER; CONNECTOR
4JG2 ENG(RJC),6VD1 ENG(RLV) (B) 		8-97094-964-1 01 1 0106- ● ●
208 02.483 HOLDER; CONNECTOR
4JX1 ENG(RJM),6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97094-964-1 01 1 0106- ● ●
208 02.483 HOLDER; CONNECTOR
(C) 		8-97105-296-0 01 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
(D) 		8-97808-879-2 01 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
(E) 		8-97808-880-0 01 1 9712- ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> EXC. AIR BAG PASSENGER<7FA> (A) 		8-97147-320-0 01 1 9712-0209 ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (A) 		8-97147-320-0 01 1 9712-0209 ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> (A) 		8-97147-320-0 01 1 0210- ● ●
208 02.483 HOLDER; CONNECTOR
4JX1 ENG(RJM),6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (B) 		8-97264-116-0 01 1 0106- ● ●
280 02.483 NUT; BOX ASM FIX
07.833 M6 FLANGE 		8-97063-399-0 01 1 9712- ● ●
292 02.483 BOLT; BOX
00.738 M6X16 FLANGE 		0-28080-616-0 07 1 9712- ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 		8-97808-503-0 01 1 9712-9912 ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 		8-97808-503-0 01 1 0001-0102 ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97808-503-0 01 1 0001-0102 ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),TORQUE ON DEMAND<7HA> 		8-97808-503-0 01 1 0001-0102 ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) 		8-97808-503-0 01 1 0001-0102 ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SOUTH AFRICA EQUIPMENT(SW2) 		8-97808-503-0 01 1 0001-0102 ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 		8-97808-503-0 01 1 0103- ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97808-503-0 01 1 0103- ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> 		8-97808-503-0 01 1 0103- ●
çizim 69595
27 27 27 2 2 35
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9712- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9712- ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9712- ● ●
35 02.530 BOX; RELAY & FUSE 8-97044-180-2 01 1 9712-0105 ● ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),THAILAND EQUIPMENT(PM9) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JX1 ENG(RJM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) 		8-97044-180-2 01 1 0106- ●
35 02.530 BOX; RELAY & FUSE
4JG2 ENG(RJC) 		8-97289-812-0 01 1 0106- ● ●
35 02.530 BOX; RELAY & FUSE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-97289-812-0 01 1 0106- ● ●
35 02.530 BOX; RELAY & FUSE
6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) 		8-97289-812-0 01 1 0106- ●
çizim 70122
85 143 85 453 453 550 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3> 		8-97215-127-1 01 1 9810-9908 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. AIR BAG DRIVER<AJ3> 		8-97215-127-1 01 1 9810-9908 ●
1 02.480 HARNESS; CAB
AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,TORQUE ON DEMAND<7HA> 		8-97225-810-3 01 1 9909-0105 ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,TORQUE ON DEMAND<7HA> 		8-97264-334-3 01 1 0106- ● ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-808-1 01 1 9909-9912 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68),TORQUE ON DEMAND<7HA> 		8-97225-808-1 01 1 9909-9912 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-808-2 01 1 0001-0102 ●
1 02.480 HARNESS; CAB
6VD1 ENG(RLV) SOUTH AFRICA EQUIPMENT(SW2) EXC. AIR BAG DRIVER<AJ3> 		8-97225-808-2 01 1 0001-0102 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68),TORQUE ON DEMAND<7HA> 		8-97225-808-2 01 1 0001-0102 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68),TORQUE ON DEMAND<7HA> 		8-97225-808-2 01 1 0103-0105 ● ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68),TORQUE ON DEMAND<7HA> 		8-97264-333-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) 		8-97185-688-1 01 1 9712-9908 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97225-809-3 01 1 9909-0105 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97264-338-3 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER FULL AUTO CONT(C68), TORQUE ON DEMAND<7HA> 		8-97225-807-2 01 1 9909-0105 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER FULL AUTO CONT(C68), TORQUE ON DEMAND<7HA> 		8-97264-337-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),TORQUE ON DEMAND<7HA> 		8-97185-686-1 01 1 9712-9908 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. AIR CONDITIONER FULL AUTO CONT(C68), EUROPE EQUIPMENT(EK4) 		8-97225-806-2 01 1 9909-0102 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. AIR CONDITIONER FULL AUTO CONT(C68), EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2),TORQUE ON DEMAND<7HA> 		8-97225-806-2 01 1 9909-0102 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. AIR CONDITIONER FULL AUTO CONT(C68), EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> 		8-97225-806-2 01 1 0103-0105 ● ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> EXC. AIR CONDITIONER FULL AUTO CONT(C68), EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),TORQUE ON DEMAND<7HA> 		8-97264-342-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97185-687-0 01 1 9712-9809 ● ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97215-126-1 01 1 9810-9908 ● ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97225-795-2 01 1 9909-0004 ● ●
1 02.480 HARNESS; CAB
6VD1 ENG(RLV) EXC. AIR BAG DRIVER<AJ3>,SOUTH AFRICA EQUIPMENT(SW2) 		8-97225-795-2 01 1 0005-0102 ● ●
1 02.480 HARNESS; CAB
6VD1 ENG(RLV) EXC. AIR BAG DRIVER<AJ3> 		8-97225-795-2 01 1 0103-0105 ● ●
1 02.480 HARNESS; CAB
6VD1 ENG(RLV) 		8-97264-343-3 01 1 0106- ●
1 02.480 HARNESS; CAB
6VD1 ENG(RLV) EXC. THAILAND EQUIPMENT(PM9) 		8-97264-343-3 01 1 0106- ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. AIR BAG DRIVER<AJ3>,SOUTH AFRICA EQUIPMENT(SW2) 		8-97256-989-0 01 1 0005-0102 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. AIR BAG DRIVER<AJ3> 		8-97256-989-0 01 1 0103-0105 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) 		8-97264-344-3 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97225-804-3 01 1 9909-0105 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97264-340-3 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-802-2 01 1 9909-0105 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97264-339-2 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> TORQUE ON DEMAND<7HA> 		8-97185-684-1 01 1 9712-9908 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68), EUROPE EQUIPMENT(EK4) 		8-97225-800-1 01 1 9909-0105 ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) AUSTRALIA EQUIPMENT(RR3) TORQUE ON DEMAND<7HA> 		8-97304-403-3 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3> 		8-97225-803-3 01 1 9909-0105 ●
1 02.480 HARNESS; CAB
AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3> 		8-97264-336-2 01 1 0106-0108 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-801-2 01 1 9909-0105 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONER FULL AUTO CONT(C68) 		8-97264-335-1 01 1 0106-0108 ●
1 02.480 HARNESS; CAB
SOUTH AFRICA EQUIPMENT(SW2) EXC. AIR BAG DRIVER<AJ3> 		8-97185-689-0 01 1 9712-9712 ●
1 02.480 HARNESS; CAB
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. AIR BAG DRIVER<AJ3> 		8-97185-689-0 01 1 9801-9809 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) AIR BAG DRIVER<AJ3> SOUTH AFRICA EQUIPMENT(SW2) 		8-97246-004-1 01 1 0001-0004 ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) AIR BAG DRIVER<AJ3> SOUTH AFRICA EQUIPMENT(SW2) 		8-97256-990-0 01 1 0005-0102 ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM),6VD1 ENG(RLV) AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9) TORQUE ON DEMAND<7HA> 		8-97312-844-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM),6VD1 ENG(RLV) AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9) EXC. TORQUE ON DEMAND<7HA> 		8-97312-845-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> 		8-97309-966-3 01 1 0106- ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68), EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 		8-97264-341-2 01 1 0106- ●
85 06.495 HARNESS; ROOM LAMP
ACCESSORY METER<7HT> EXC. SUNROOF<CF5> 		8-97163-874-3 01 1 9712-0105 ● ●
85 06.495 HARNESS; ROOM LAMP
ACCESSORY METER<7HT> EXC. SUNROOF<CF5> 		8-97264-111-1 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP
SPOT ROOM LAMP<UF3> EXC. SUNROOF<CF5>,ACCESSORY METER<7HT> 		8-97163-872-3 01 1 9712-0105 ● ●
85 06.495 HARNESS; ROOM LAMP
SPOT ROOM LAMP<UF3> EXC. SUNROOF<CF5>,ACCESSORY METER<7HT> 		8-97264-110-1 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> 		8-97168-745-0 01 1 9712-0105 ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> ACCESSORY METER<7HT> 		8-97264-983-1 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> EXC. ACCESSORY METER<7HT> 		8-97264-984-1 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SUNROOF<CF5>,SPOT ROOM LAMP<UF3>, ACCESSORY METER<7HT> 		8-97163-873-1 01 1 9712-0105 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SUNROOF<CF5>,SPOT ROOM LAMP<UF3>, ACCESSORY METER<7HT> 		8-97264-985-0 01 1 0106- ● ●
143 02.480 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-97805-525-1 01 1 9712-9801 ● ●
143 02.480 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-97805-525-1 01 1 9802-9808 ● ●
143 02.480 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-97202-596-0 01 1 9809- ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> EXC. AIR BAG PASSENGER<7FA> (A) 		8-97808-889-1 01 1 0106-0209 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (A) 		8-97808-889-1 01 1 0106-0209 ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> (A) 		8-97808-889-1 01 1 0210- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97105-293-1 01 1 0106- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97808-887-0 01 1 0106- ● ●
550 02.559 CONNECTOR; LIGHT CONT
GRADE S/SE(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97116-613-0 01 1 9712-0011 ● ●
550 02.559 CONNECTOR; LIGHT CONT
GRADE S/SE(RBA) 		8-97116-613-0 01 1 0012- ●
550 02.559 CONNECTOR; LIGHT CONT
GRADE S/SE(RBA) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97116-613-0 01 1 0012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
