◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-08 - HEAD LAMP WASHER ▶
8-08 — HEAD LAMP WASHER (#73371) — 20 parça

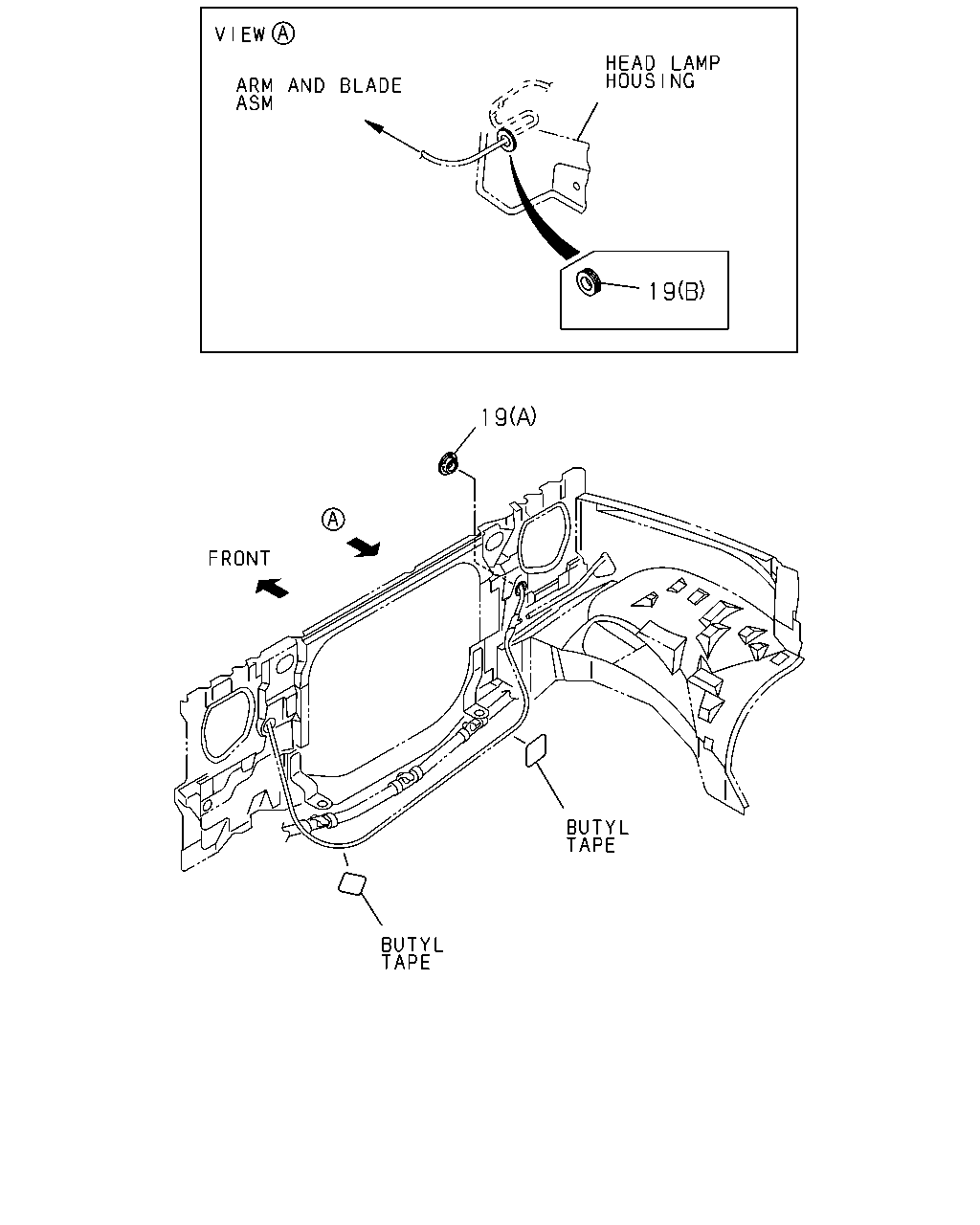

çizim 18441
19 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 02.780 GROMMET; HEADLAMP CLEANER HOSE
HEADLAMP WIPER & WASHER<CE3> 02.483 (A) 		8-94142-264-0 01 1 9712- ● ●
19 02.780 GROMMET; HEADLAMP CLEANER HOSE
HEADLAMP WIPER & WASHER<CE3> (B) ID=8 OD=18 T=5 		9-09575-208-0 02 1 9712- ● ●

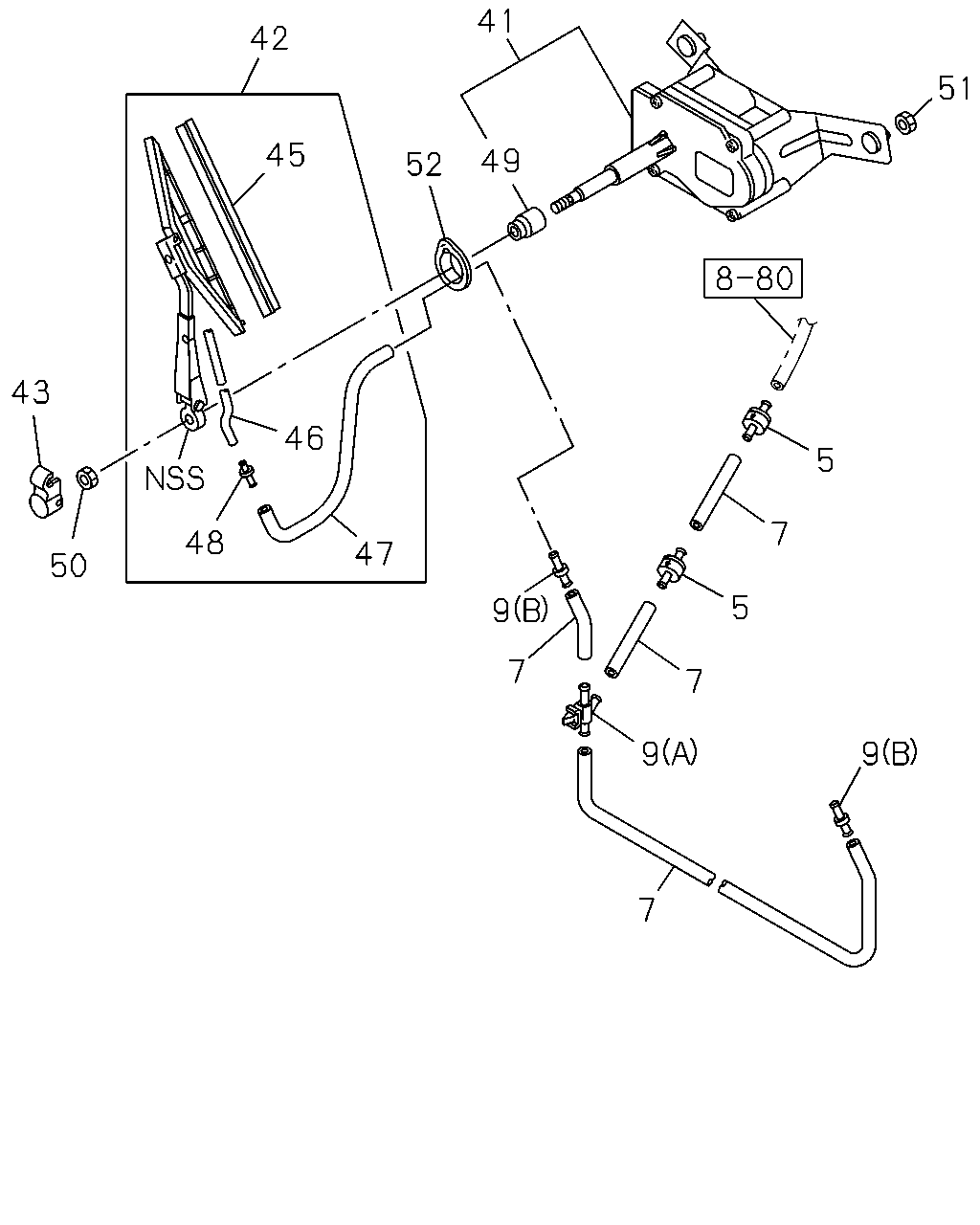

çizim 69100
41 42 51 45 49 52 43 46 5 7 48 47 50 5 9 7 7 9 9 7
BalonParca AdiParca NoAdetTipApplied Date A B
5 02.780 VALVE; CHECK,HLC HOSE
HEADLAMP WIPER & WASHER<CE3> EUROPE EQUIPMENT(EK4) 		8-97127-449-0 01 1 9712- ● ●
5 02.780 VALVE; CHECK,HLC HOSE
HEADLAMP WIPER & WASHER<CE3> EXC. EUROPE EQUIPMENT(EK4) 		8-97127-449-0 02 1 9712- ● ●
7 02.780 HOSE; HLC
HEADLAMP WIPER & WASHER<CE3> 16.065 SERVICED BY L=10000 		9-09914-906-0 01 1 9712- ● ●
9 02.780 JOINT; HLC HOSE
HEADLAMP WIPER & WASHER<CE3> 10.155 (B) 2WAY 		8-94239-402-0 02 1 9712- ● ●
9 02.780 JOINT; HLC HOSE
HEADLAMP WIPER & WASHER<CE3> (A) 		8-97807-642-0 01 1 9712- ● ●
41 02.780 MOTOR & BRACKET ASM; HEAD LAMP W
HEADLAMP WIPER & WASHER<CE3> 		8-97182-228-1 01 1 9712- ● ●
41 02.780 MOTOR & BRACKET ASM; HEAD LAMP W
HEADLAMP WIPER & WASHER<CE3> 		8-97182-227-1 01 1 9712- ● ●
42 02.780 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97182-230-1 01 1 9712- ● ●
42 02.780 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97182-229-1 01 1 9712- ● ●
43 02.780 COVER; WIPER ARM,HEAD LAMP
HEADLAMP WIPER & WASHER<CE3> 		8-94358-864-1 02 1 9712- ● ●
45 02.780 RUBBER; BLADE,HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97807-484-0 02 1 9712- ● ●
46 02.780 TUBE; NOZZLE,HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97182-869-0 02 1 9712- ● ●
47 02.780 TUBE; JOINT TO TANK,HEAD LAMP WI
HEADLAMP WIPER & WASHER<CE3> 10.155 SERVICED BY L=10000 		8-94389-303-0 02 1 9712- ● ●
48 02.780 JOINT; TUBE,HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97807-487-0 02 1 9712- ● ●
49 02.780 SEAL; PIVOT,HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97807-339-0 02 1 9712- ● ●
50 02.780 NUT; WIPER ARM,HEAD LAMP
HEADLAMP WIPER & WASHER<CE3> 		1-09400-075-0 02 1 9712- ● ●
51 02.780 NUT; MOTOR,HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 04.594 M6 FLANGE 		0-91150-106-0 04 1 9712- ● ●
52 02.780 PROTECTOR; WIPER,HEAD LAMP
HEADLAMP WIPER & WASHER<CE3> 		8-97802-918-0 02 1 9712- ● ●
