8-75 — CONDENSER (#7337) — 34 parça

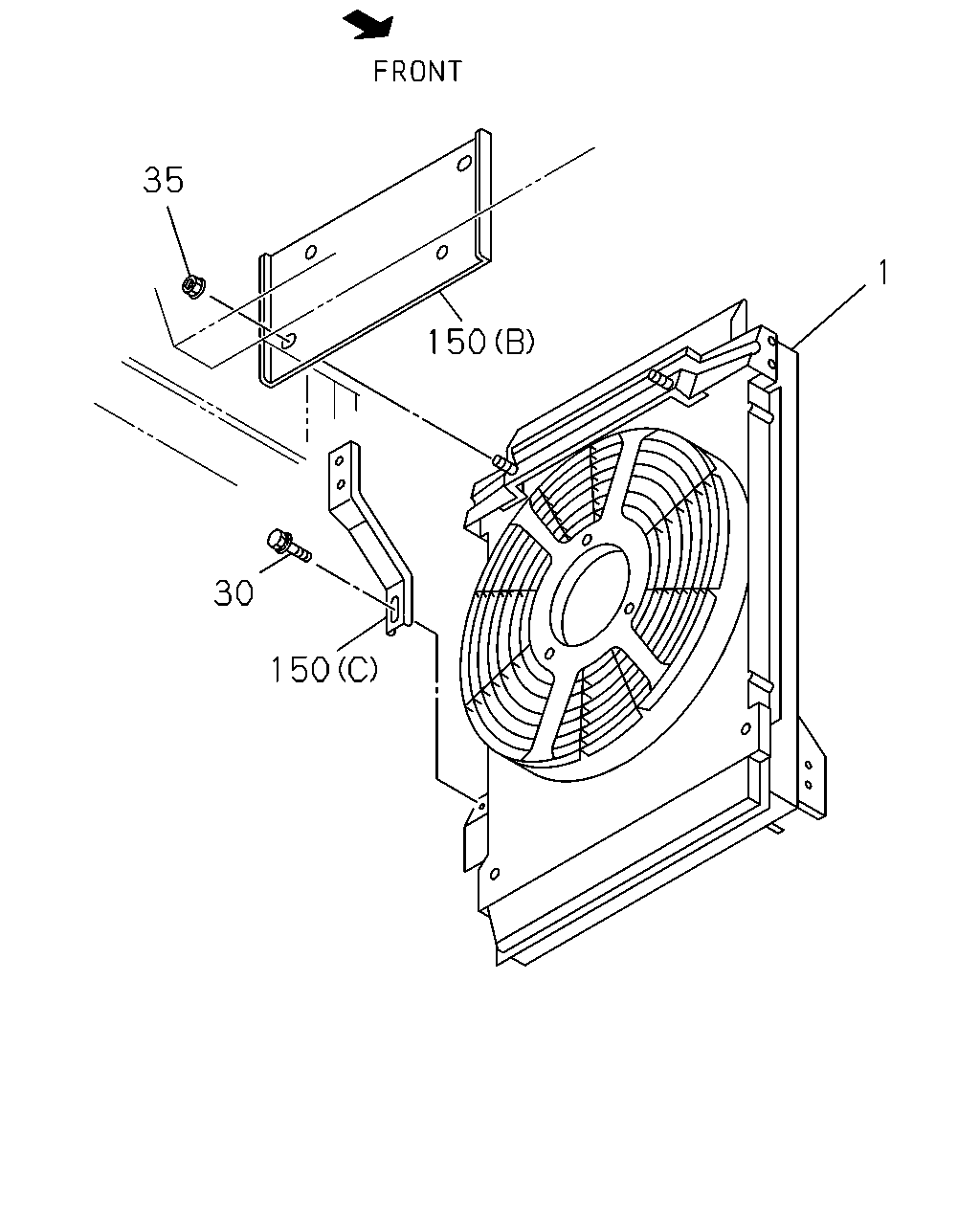

çizim 8361
35 1 150 30 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-213-2 01 1 9906-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9906-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 9906-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-826-0 01 1 9906-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-827-1 01 1 9906-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-909-0 01 1 9906-

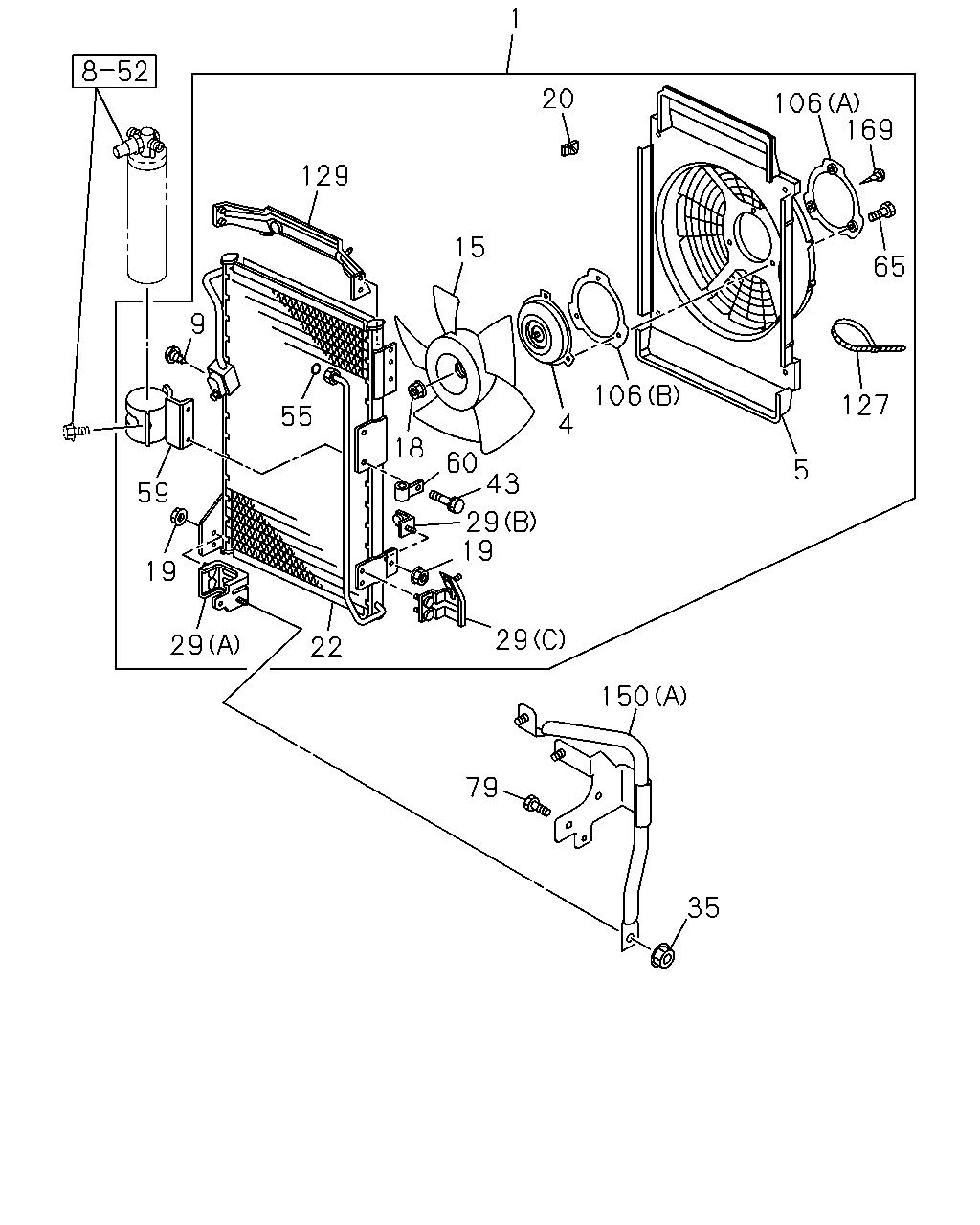

çizim 44374
1 20 106 169 129 15 65 9 106 127 55 4 18 60 43 5 59 29 19 19 29 29 22 150 79 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-213-2 01 1 9906-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-231-0 01 1 9906-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-230-2 01 1 9906-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-374-0 01 1 0104-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-232-0 01 1 9906-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97018-672-0 01 1 9906-
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-235-0 11 1 9906-
20 CLIP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94364-751-0 01 1 9906-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-222-1 01 1 9906-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-227-1 01 1 9906-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-236-0 04 1 9906-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83539-311-1 01 1 9906-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 9906-
43 BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE 		1-83539-260-0 06 1 9906-
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 02 1 9906-0001
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 01 1 0002-
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-228-2 01 1 9906-
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-234-0 01 1 9906-
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-242-0 03 1 9906-
79 BOLT; CONDENSER BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X35 		8-97103-452-0 01 1 0002-
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-243-0 01 1 9906-
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-244-0 01 1 9906-
127 CLIP; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9906-
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-237-1 01 1 9906-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-826-0 01 1 9906-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-827-1 01 1 9906-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-909-0 01 1 9906-
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-807-0 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
