8-01 — LAMP; FRONT AND FRONT SIDE (#73368) — 169 parça

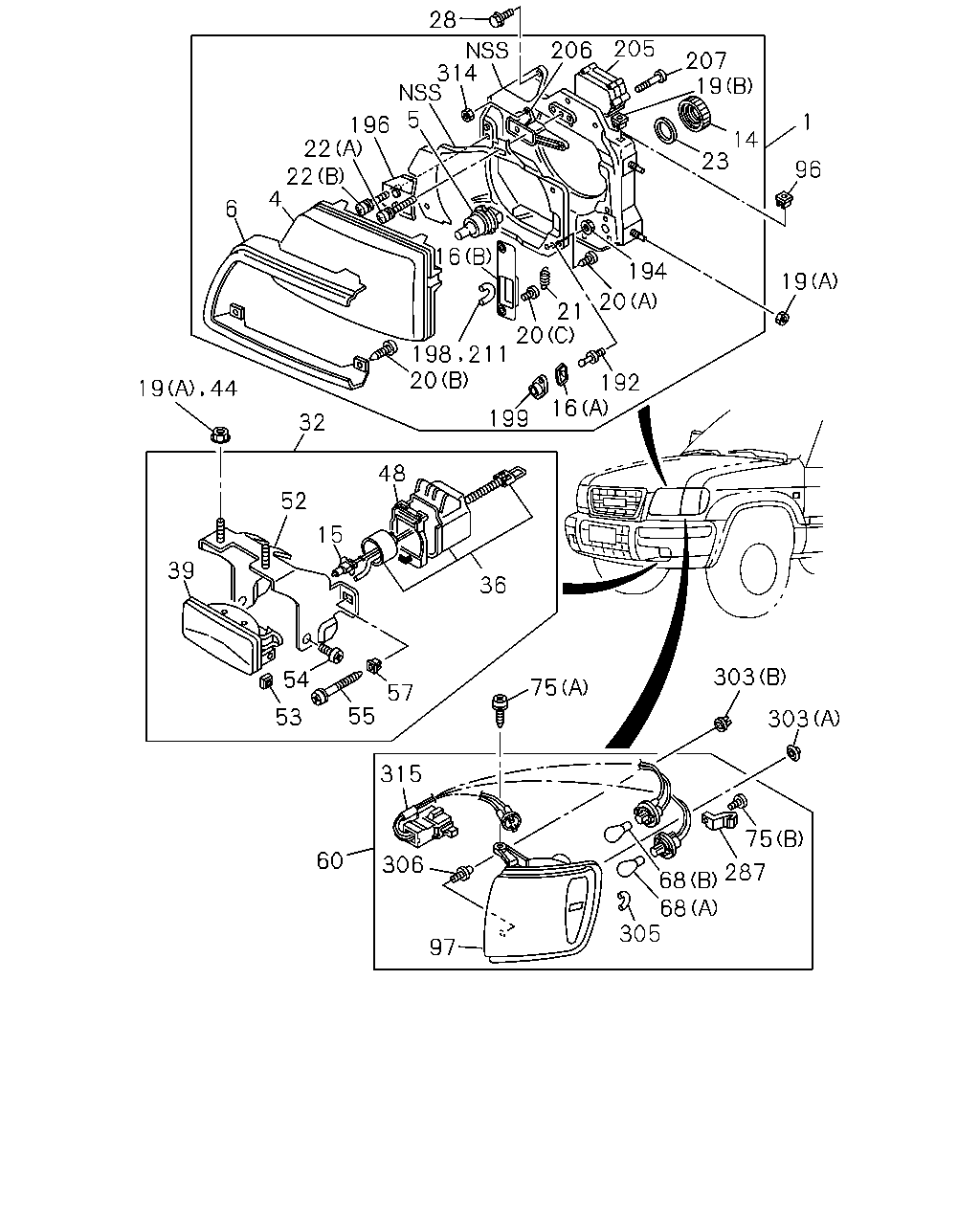

çizim 18440
28 205 206 314 5 207 19 1 196 22 22 4 14 23 96 6 16 194 19 20 21 20 20 192 19 44 16 199 32 48 52 15 39 36 303 54 53 75 57 55 303 315 75 60 306 287 68 68 305 97 198 211
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-340-2 01 1 9712- ●
1 02.725 LAMP ASM; HEAD
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-339-2 01 1 9712- ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97187-330-0 01 1 9712-0102 ● ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4) 		8-97187-330-0 01 1 0103-0105 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-330-2 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97187-329-0 01 1 9712-0102 ● ●
1 02.725 LAMP ASM; HEAD
EXC. EUROPE EQUIPMENT(EK4) 		8-97187-329-0 01 1 0103-0105 ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-329-2 01 1 0106- ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-342-2 01 1 9712- ●
1 02.725 LAMP ASM; HEAD
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-341-2 01 1 9712- ●
4 02.727 HEADLAMP UNIT
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97179-783-0 01 1 9712-0102 ● ●
4 02.727 HEADLAMP UNIT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97179-783-0 01 1 9712-0102 ● ●
4 02.727 HEADLAMP UNIT
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97179-783-0 01 1 0103-0105 ● ●
4 02.727 HEADLAMP UNIT
EXC. EUROPE EQUIPMENT(EK4) 		8-97179-783-0 01 1 0103-0105 ● ●
4 02.727 HEADLAMP UNIT 8-97179-783-0 01 1 0106- ● ●
4 02.727 HEADLAMP UNIT
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97179-782-0 01 1 9712-0102 ● ●
4 02.727 HEADLAMP UNIT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97179-782-0 01 1 9712-0102 ● ●
4 02.727 HEADLAMP UNIT
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97179-782-0 01 1 0103-0105 ● ●
4 02.727 HEADLAMP UNIT
EXC. EUROPE EQUIPMENT(EK4) 		8-97179-782-0 01 1 0103-0105 ● ●
4 02.727 HEADLAMP UNIT 8-97179-782-0 01 1 0106- ● ●
5 02.727 BULB; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 12V 60/55W 		8-94217-817-0 02 1 9712-0102 ● ●
5 02.727 BULB; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 12V 60/55W 		8-94217-817-0 02 1 9712-0102 ● ●
5 02.727 BULB; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 12V 60/55W 		8-94217-817-0 02 1 0103-0105 ● ●
5 02.727 BULB; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 12V 60/55W 		8-94217-817-0 02 1 0103-0105 ● ●
5 02.727 BULB; HEADLAMP
12V 60/55W 		8-94217-817-0 02 1 0106- ● ●
6 02.728 RIM; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-343-0 01 1 9712-0102 ● ●
6 02.728 RIM; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97187-343-0 01 1 9712-0102 ● ●
6 02.728 RIM; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-343-0 01 1 0103-0105 ● ●
6 02.728 RIM; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 		8-97187-343-0 01 1 0103-0105 ● ●
6 02.728 RIM; HEADLAMP 8-97187-343-0 01 1 0106- ● ●
6 02.728 RIM; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-344-0 01 1 9712-0102 ● ●
6 02.728 RIM; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97187-344-0 01 1 9712-0102 ● ●
6 02.728 RIM; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97187-344-0 01 1 0103-0105 ● ●
6 02.728 RIM; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 		8-97187-344-0 01 1 0103-0105 ● ●
6 02.728 RIM; HEADLAMP 8-97187-344-0 01 1 0106- ● ●
14 02.727 CAP; BULB,LAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97179-781-0 02 1 9712-0102 ● ●
14 02.727 CAP; BULB,LAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97179-781-0 02 1 9712-0102 ● ●
14 02.727 CAP; BULB,LAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97179-781-0 02 1 0103-0105 ● ●
14 02.727 CAP; BULB,LAMP
EXC. EUROPE EQUIPMENT(EK4) 		8-97179-781-0 02 1 0103-0105 ● ●
14 02.727 CAP; BULB,LAMP 8-97179-781-0 02 1 0106- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP FRT(T37) 12V 55W 		8-94458-282-0 02 1 9712- ● ●
16 02.726 BRACKET; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> (A) 		8-97807-097-0 04 1 9712- ● ●
16 02.726 BRACKET; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97807-101-0 01 1 9712- ● ●
16 02.726 BRACKET; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97807-100-0 01 1 9712- ● ●
19 02.726 NUT; HEADLAMP
04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 9712-0009 ● ●
19 02.726 NUT; HEADLAMP
FOG LAMP FRT(T37) 04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 0010-0111 ● ●
19 02.726 NUT; HEADLAMP
04.594 (A) M6 FLANGE 		0-91150-106-0 08 1 0112- ● ●
19 02.726 NUT; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 12.940 (B) 		8-94252-864-2 02 1 9712-0102 ● ●
19 02.726 NUT; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 12.940 (B) 		8-94252-864-2 02 1 9712-0102 ● ●
19 02.726 NUT; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 12.940 (B) 		8-94252-864-2 02 1 0103-0105 ● ●
19 02.726 NUT; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 12.940 (B) 		8-94252-864-2 02 1 0103-0105 ● ●
19 02.726 NUT; HEADLAMP
12.940 (B) 		8-94252-864-2 02 1 0106-0206 ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.737 (A) 		8-97807-127-0 02 1 9712-0102 ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.737 (A) 		8-97807-127-0 02 1 0103-0105 ● ●
20 02.736 SCREW; HEADLAMP
EXC. HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (A) 		8-97807-127-0 02 1 0106- ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.737 (B) 		8-97807-131-0 16 1 9712-0102 ● ●
20 02.736 SCREW; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.737 (B) 		8-97807-131-0 16 1 0103-0105 ● ●
20 02.736 SCREW; HEADLAMP
EXC. HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (B) 		8-97807-131-0 16 1 0106- ● ●
20 02.736 SCREW; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (C) 		8-97807-125-0 08 1 9712- ● ●
20 02.736 SCREW; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (A) 		8-97807-127-0 04 1 9712- ● ●
20 02.736 SCREW; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (B) 		8-97807-131-0 20 1 9712- ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97807-107-0 02 1 9712-0102 ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 		8-97807-107-0 02 1 0103-0105 ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-107-0 02 1 0106- ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.737 (B) 		8-97807-134-0 02 1 9712-0102 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.737 (B) 		8-97807-134-0 02 1 0103-0105 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (B) 		8-97807-134-0 02 1 0106- ● ●
22 02.726 SCREW; ADJ,HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (A) 		8-97807-132-0 02 1 9712-0102 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.737 (A) 		8-97807-132-0 02 1 9712-0102 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 02.737 (A) 		8-97807-132-0 02 1 0103-0105 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.737 (A) 		8-97807-132-0 02 1 0103-0105 ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 (A) 		8-97807-132-0 02 1 0106- ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-092-0 02 1 9712-0102 ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97807-092-0 02 1 9712-0102 ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-092-0 02 1 0103-0105 ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 		8-97807-092-0 02 1 0103-0105 ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97807-092-0 02 1 0106- ● ●
28 02.762 BOLT; HEADLAMP
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 9712- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRT(T37) 		8-97183-641-1 01 1 9712- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP FRT(T37) 		8-97183-640-1 01 1 9712- ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP FRT(T37) 		8-97805-964-0 02 1 9712-0112 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP FRT(T37) 		8-97329-162-0 02 1 0201- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP FRT(T37) 		8-97805-963-0 01 1 9712- ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP FRT(T37) 		8-97805-962-0 01 1 9712- ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP FRT(T37) 04.594 M6 FLANGE 		0-91150-106-0 04 1 9712-0111 ● ●
48 02.725 COVER; FOG LAMP
FOG LAMP FRT(T37) 02.722 		8-97807-726-0 02 1 9712-0112 ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP FRT(T37) 		8-97184-780-0 02 1 9712- ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP FRT(T37) 		8-94379-802-0 04 1 9712- ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP FRT(T37) M5X12 		8-94379-803-0 04 1 9712- ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP FRT(T37) 02.726 		8-97016-275-0 02 1 9712- ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP FRT(T37) 		8-94379-806-0 02 1 9712- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97174-795-1 01 1 9712- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97174-794-1 01 1 9712- ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 12V 5W 		8-94124-075-0 02 1 9712- ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 12V 21W 		8-97179-967-0 02 1 9712- ● ●
75 02.587 SCREW; FRT COMB LAMP
02.594 (B) 		8-97807-124-0 02 1 9712- ● ●
75 02.587 SCREW; FRT COMB LAMP
(A) M4X16 W/WASHER 		8-97809-122-0 02 1 9712- ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 02 1 0207- ● ●
97 02.895 LAMP UNIT; COMB 8-97179-979-0 01 1 9712- ● ●
97 02.895 LAMP UNIT; COMB 8-97179-978-0 01 1 9712- ● ●
192 02.765 PIVOT; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-094-0 04 1 9712- ● ●
194 02.726 NUT; PIVOT,HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-128-0 08 1 9712- ● ●
196 02.726 PLATE; ADJ SCREW
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-099-0 01 1 9712- ● ●
196 02.726 PLATE; ADJ SCREW
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-098-0 01 1 9712- ● ●
198 02.722 TUBE; COVER,HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-94325-772-0 04 1 9712- ● ●
199 02.737 BUSHING
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-095-0 08 1 9712- ● ●
205 02.727 ACTUATOR; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-090-0 02 1 9712- ●
205 02.727 ACTUATOR; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-089-0 02 1 9712- ●
206 02.727 HOLDER; HEADLAMP
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-096-0 02 1 9712- ● ●
207 02.726 SCREW; ACTUATOR TO HOLDER
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-130-0 06 1 9712- ● ●
211 02.728 TUBE; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.722 		8-94325-772-0 04 1 9712-0102 ● ●
211 02.728 TUBE; HEADLAMP
EXC. EUROPE EQUIPMENT(EK4) 02.722 		8-94325-772-0 04 1 0103-0105 ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMP BEAM ADJUST CONT<6RC> 02.722 		8-94325-772-0 04 1 0106- ● ●
287 02.587 CLIP; FRT TURN SIGNAL 8-97807-111-0 02 1 9712- ● ●
303 02.799 CLIP; COMB LAMP
02.729 (A) 		8-97800-741-0 02 1 9712- ● ●
303 02.799 CLIP; COMB LAMP
02.729 (B) 		8-97801-572-0 02 1 9712- ● ●
305 02.596 COVER; FRT COMB LAMP
02.722 		8-94325-772-0 02 1 9712- ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97807-110-0 02 1 9712- ● ●
314 02.727 NUT; ACTUATOR
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97807-129-0 06 1 9712- ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-97179-975-0 02 1 9712- ● ●

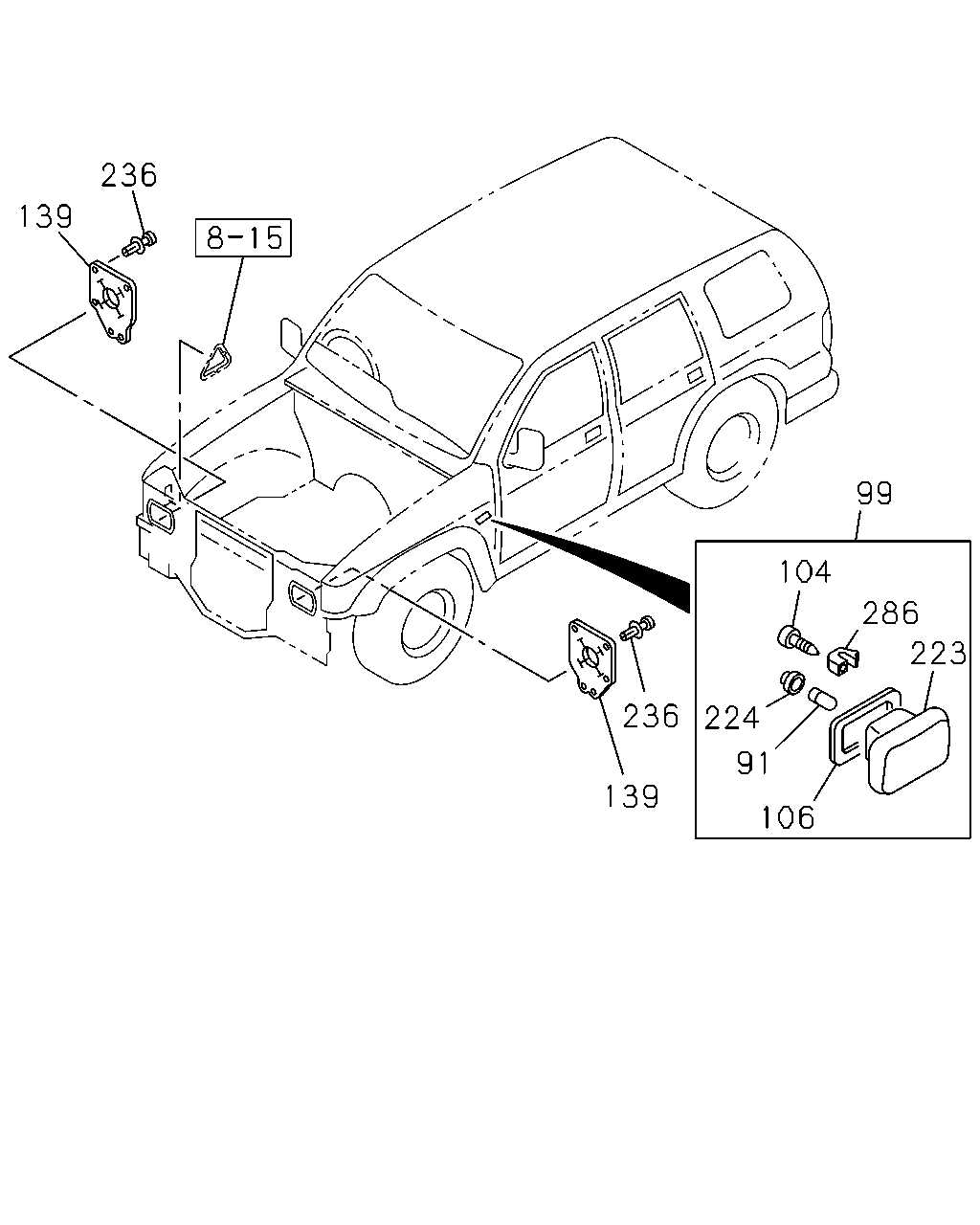

çizim 69594
236 139 99 104 286 223 236 224 91 139 106
BalonParca AdiParca NoAdetTipApplied Date A B
91 08.991 BULB; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 12V 5W 		8-94124-595-0 02 1 9712-0102 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 12V 5W 		8-94124-595-0 02 1 0103-0104 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<7XY> 12V 5W 		8-94124-595-0 02 1 0105- ● ●
99 02.585 LAMP; SIDE FLASHER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97131-931-0 02 1 9712-0102 ● ●
99 02.585 LAMP; SIDE FLASHER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97131-931-0 02 1 0103-0104 ● ●
99 02.585 LAMP; SIDE FLASHER
SIDE TURN SIGNAL LAMP<7XY> 		8-97131-931-0 02 1 0105- ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9712-0102 ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 06.514 M3X10 TAPPING 		9-07076-310-0 02 1 0103-0104 ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<7XY> 06.514 M3X10 TAPPING 		9-07076-310-0 02 1 0105- ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97032-884-0 02 1 9712-0102 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97032-884-0 02 1 0103-0104 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<7XY> 		8-97032-884-0 02 1 0105- ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97129-573-0 02 1 9712-9908 ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 9712-9908 ●
139 02.726 COVER; HEADLAMP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 9712-9908 ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 		8-97129-573-0 02 1 9909-0011 ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 9909-0011 ●
139 02.726 COVER; HEADLAMP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 9909-0011 ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97129-573-0 02 1 0012- ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 0012- ●
139 02.726 COVER; HEADLAMP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97129-573-0 02 1 0012- ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA E QUIPMENT(S3D),AIR CONDITIONER PREPARATORYPACK(S6D) 		8-97129-573-0 01 1 9712-9908 ● ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D) 		8-97129-573-0 01 1 9909-0011 ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EAST MAL AYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D),AIR CONDITIONER PREPARATORY PACK (S6D) 		8-97129-573-0 01 1 9909-0011 ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 		8-97129-573-0 01 1 0012- ●
139 02.726 COVER; HEADLAMP
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EAST MAL AYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D),AIR CONDITIONER PREPARATORY PACK (S6D) 		8-97129-573-0 01 1 0012- ●
223 02.575 UNIT; LAMP,SIDE FLASHER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97162-067-0 02 1 9712-0102 ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97162-067-0 02 1 0103-0104 ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER
SIDE TURN SIGNAL LAMP<7XY> 		8-97162-067-0 02 1 0105- ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97162-068-0 02 1 9712-0102 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97162-068-0 02 1 0103-0104 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
SIDE TURN SIGNAL LAMP<7XY> 		8-97162-068-0 02 1 0105- ● ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) 07.831 GRAY 		8-94429-372-0 07 1 9712-9908 ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 9712-9908 ●
236 02.726 CLIP; COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 9712-9908 ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) 07.831 GRAY 		8-94429-372-0 07 1 9909-0011 ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 9909-0011 ●
236 02.726 CLIP; COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 9909-0011 ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 07.831 GRAY 		8-94429-372-0 07 1 0012- ●
236 02.726 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 0012- ●
236 02.726 CLIP; COVER
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 07.831 GRAY 		8-94429-372-0 07 1 0012- ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA E QUIPMENT(S3D),AIR CONDITIONER PREPARATORYPACK(S6D) 07.831 GRAY 		8-94429-372-0 03 1 9712-9908 ● ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),AIR COND ITIONER PREPARATORY PACK(S6D) 07.831 GRAY 		8-94429-372-0 03 1 9909-0011 ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EAST MAL AYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D),AIR CONDITIONER PREPARATORY PACK (S6D) 07.831 GRAY 		8-94429-372-0 03 1 9909-0011 ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 07.831 GRAY 		8-94429-372-0 03 1 0012- ●
236 02.726 CLIP; COVER
4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68),EAST MAL AYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D),AIR CONDITIONER PREPARATORY PACK (S6D) 07.831 GRAY 		8-94429-372-0 03 1 0012- ●
286 02.587 CLIP; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 		8-97032-883-0 02 1 9712-0102 ● ●
286 02.587 CLIP; SIDE TURN SIGNAL
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97032-883-0 02 1 0103-0104 ● ●
286 02.587 CLIP; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<7XY> 		8-97032-883-0 02 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
