Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#73360) — 167 parça

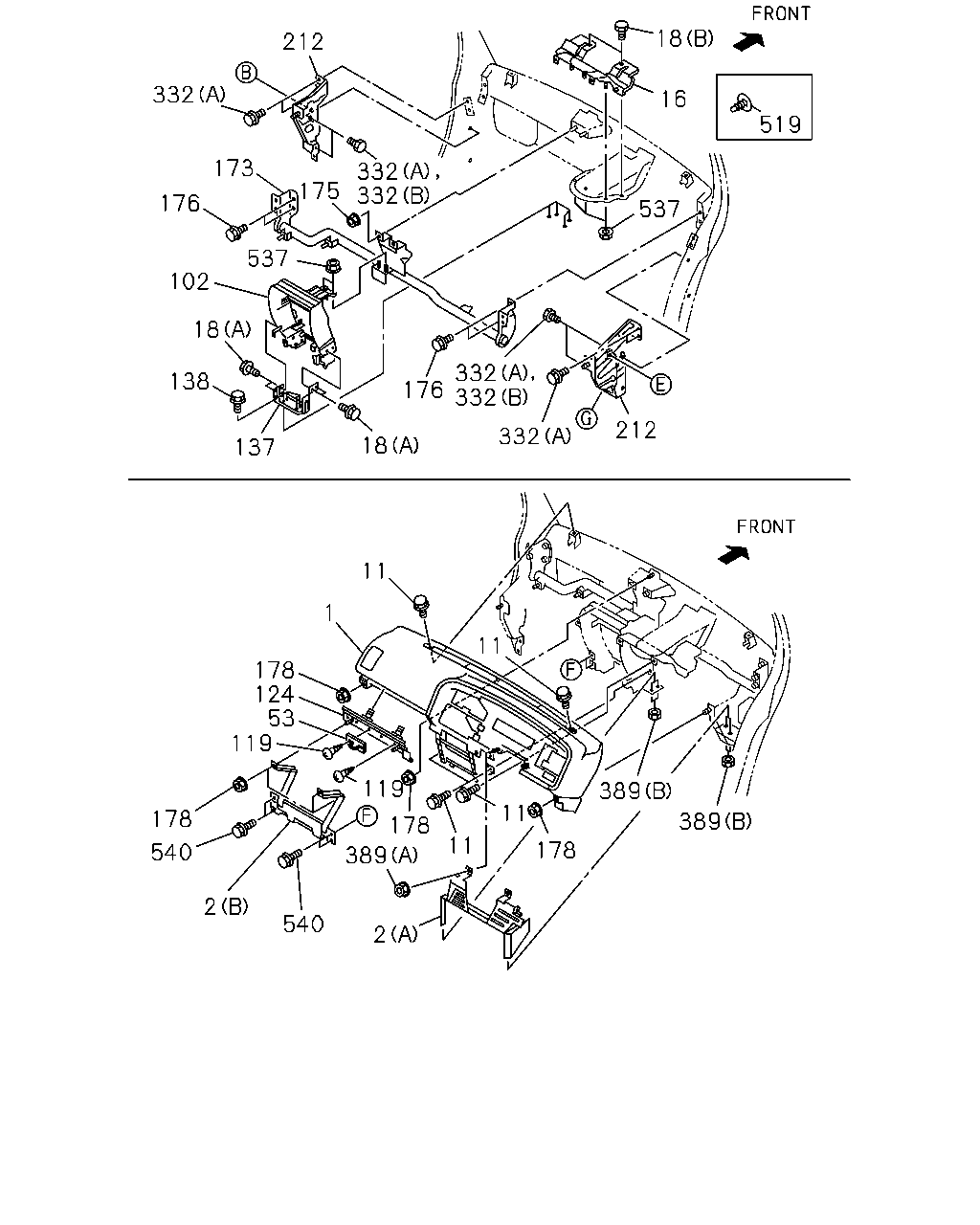

18 212 332 16 519 332 332 173 175 176 537 537 102 18 332 332 138 176 212 332 18 137 11 1 11 178 124 53 119 119 389 11 178 389 178 11 178 540 389 2 540 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.080 PANEL; INST AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97157-873-6	01	1	9712-9908	●	●
1	16.080 PANEL; INST INTERIOR COLOR MEDIUM GRAY(113) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97157-873-6	01	1	9909-0105	●	●
1	16.080 PANEL; INST AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97157-873-6	01	1	0106-	●
1	16.080 PANEL; INST INTERIOR COLOR MEDIUM GRAY(113) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY	8-97157-873-6	01	1	0106-		●
1	16.080 PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-6	01	1	9712-9908	●	●
1	16.080 PANEL; INST INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-6	01	1	9909-0105	●	●
1	16.080 PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-6	01	1	0106-	●
1	16.080 PANEL; INST INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-349-6	01	1	0106-		●
1	16.080 PANEL; INST EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-871-1	01	1	9712-9908	●	●
1	16.080 PANEL; INST INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-871-1	01	1	9909-0105	●	●
1	16.080 PANEL; INST EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-871-1	01	1	0106-	●
1	16.080 PANEL; INST INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-871-1	01	1	0106-		●
1	16.080 PANEL; INST INTERIOR COLOR BEIGE(181) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK BEIGE	8-97292-018-6	01	1	9909-0105	●	●
1	16.080 PANEL; INST INTERIOR COLOR BEIGE(181) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK BEIGE	8-97292-018-6	01	1	0106-		●
1	16.080 PANEL; INST INTERIOR COLOR BEIGE(181) EXC. AIR BAG PASSENGER<7FA> DARK BEIGE	8-97292-019-6	01	1	9909-0105	●	●
1	16.080 PANEL; INST INTERIOR COLOR BEIGE(181) EXC. AIR BAG PASSENGER<7FA> DARK BEIGE	8-97292-019-6	01	1	0106-		●
1	16.080 PANEL; INST INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK BEIGE	8-97292-055-1	01	1	9909-0105	●	●
1	16.080 PANEL; INST INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK BEIGE	8-97292-055-1	01	1	0106-		●
2	16.081 REINFORCEMENT; INST PNL,LWR (B)	8-97130-115-2	01	1	9712-	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) (A)	8-97182-158-0	01	1	9712-9908	●	●
2	16.081 REINFORCEMENT; INST PNL,LWR AIR BAG DRIVER<AJ3> (A)	8-97182-158-0	01	1	9909-	●	●
11	16.090 BOLT; INST PNL 16.328 M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9712-	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-384-0	01	1	9712-9908	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3>	8-97133-384-0	01	1	9909-	●	●
16	16.085 BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97133-385-0	01	1	9712-9908	●	●
16	16.085 BRACKET; INST PNL AIR BAG DRIVER<AJ3> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-385-0	01	1	9712-9908	●	●
16	16.085 BRACKET; INST PNL EXC. AIR BAG DRIVER<AJ3>	8-97133-385-0	01	1	9909-	●	●
18	16.085 BOLT; BRKT 00.685 (A) M6X12 W/LK WASHER	0-50040-612-0	04	1	9712-	●	●
18	16.085 BOLT; BRKT 16.716 (B) M8X25	8-94493-360-1	02	1	9712-	●	●
53	16.115 STRIKER; GLOVE BOX	8-97064-753-0	01	1	9712-	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97093-551-3	01	1	9712-9908	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3>	8-97093-551-3	01	1	9909-	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR EXC. AIR BAG DRIVER<AJ3>	8-97133-233-0	01	1	9712-9908	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR AIR BAG DRIVER<AJ3> EXC. THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-97133-233-0	01	1	9712-9908	●	●
102	16.085 BRACKET; INST PANEL TO FLOOR EXC. AIR BAG DRIVER<AJ3>	8-97133-233-0	01	1	9909-	●	●
119	14.655 SCREW; BRKT TO INST 16.085 M5X16 TAPPING	9-09829-323-1	08	1	9712-9902	●	●
119	14.655 SCREW; BRKT TO INST 16.085 M5X16 TAPPING	9-09829-323-1	02	1	9903-	●	●
119	14.655 SCREW; BRKT TO INST 16.115 M5X16 TAPPING	9-09829-188-0	04	1	9903-	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97091-905-1	01	1	9712-	●	●
124	16.081 REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-082-0	01	1	9712-	●	●
137	16.085 BRACKET; INST PNL MTG	8-97115-364-0	01	1	9712-	●	●
138	16.085 BOLT; BRKT TO BODY 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	06	1	9712-	●	●
173	16.081 BEAM ASM; CROSS,INST PANEL	8-97130-116-0	01	1	9712-	●	●
175	16.085 NUT; CROSS BEAM 07.833 M6 FLANGE	8-97063-399-0	02	1	9712-	●	●
176	16.085 BOLT; CROSS BEAM 08.143 M6X16 W/PL WASHER	8-94204-636-0	04	1	9712-	●	●
178	16.085 NUT; INST PANEL 07.833 M6 W/DISHED WASHER	8-94170-192-0	07	1	9712-	●	●
212	16.085 BRACKET; INST PNL SIDE	8-97093-552-4	01	1	9712-	●	●
212	16.085 BRACKET; INST PNL SIDE	8-97130-117-1	01	1	9712-	●	●
332	16.085 BOLT; SIDE CLUSTER 10.230 (B) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9712-9908	●	●
332	16.085 BOLT; SIDE CLUSTER 16.063 (B)	8-94250-305-0	04	1	9909-0110	●	●
332	16.085 BOLT; SIDE CLUSTER 08.143 (A) M6X16 W/PL WASHER	8-94204-636-0	04	1	9712-0110	●	●
332	16.085 BOLT; SIDE CLUSTER 08.143 (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	0111-	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9712-9908	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9909-	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 01.540 (B) M8 FLANGE	0-91150-208-0	04	1	9712-9908	●	●
389	16.085 NUT; REINF AIR BAG DRIVER<AJ3> 01.540 (B) M8 FLANGE	0-91150-208-0	04	1	9909-	●	●
519	16.085 PLUG; DASH UPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9712-9908	●	●
519	16.085 PLUG; DASH UPR 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER FULL AUTO CONT(C68) 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9909-	●	●
537	16.085 NUT; BRKT 07.833 M6 FLANGE	8-97063-399-0	05	1	9712-	●	●
540	16.085 BOLT; REINFORCEMENT 08.015 M6X20 W/WASHER	8-94112-987-1	04	1	9712-	●	●

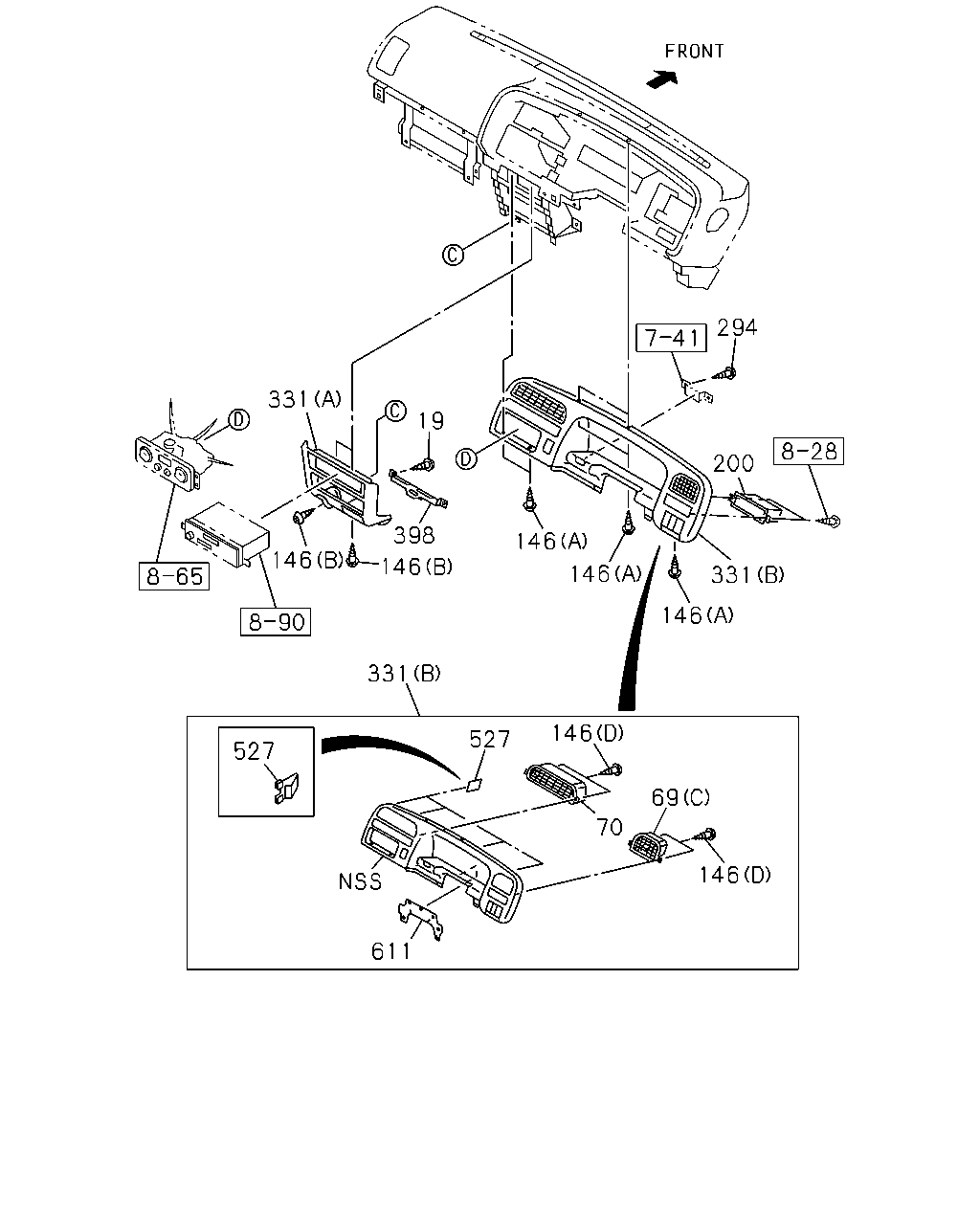

294 331 19 200 398 146 146 146 146 331 146 331 146 527 527 69 70 146 611

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	16.081 SCREW; BRKT CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 M5X16 TAPPING	9-09829-323-1	06	1	9712-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (C) BLACK	8-97091-908-1	01	1	9712-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (A) DARK GRAY	8-97080-486-2	01	1	9712-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) DARK GRAY	8-97151-143-1	01	1	9712-9908	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY	8-97151-143-1	01	1	9909-0105	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) BLACK	8-97313-410-0	01	1	0106-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) DARK GRAY	8-97151-142-1	01	1	9712-9908	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY	8-97151-142-1	01	1	9909-0105	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) BLACK	8-97313-409-0	01	1	0106-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BEIGE(181) (B) DARK BEIGE	8-97290-572-1	01	1	9909-0105	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BEIGE(181) (B) DARK BEIGE	8-97290-571-1	01	1	9909-0105	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET BLACK	8-97091-909-2	01	1	9712-	●	●
146	16.100 SCREW; TAP 09.663 (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9712-	●	●
146	16.100 SCREW; TAP 09.744 (B) M5X14 TAPPING	1-72548-072-0	12	1	9712-	●	●
146	16.100 SCREW; TAP 16.190 (A) M5X12 TAPPING	9-09829-321-1	05	1	9712-	●	●
146	16.100 SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9712-	●	●
200	09.743 BOX; CENTER CLUSTER M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6>	8-97103-473-1	01	1	9712-9712	●	●
200	09.743 BOX; CENTER CLUSTER EXC. ANTI THEFT<UA6>	8-97103-473-1	01	1	9801-0105	●	●
200	09.743 BOX; CENTER CLUSTER EXC. ANTI THEFT<UA6>	8-97313-413-0	01	1	0106-	●	●
294	09.744 SCREW; BEZEL 07.829 M4X14 TAPPING W/PL WASHER	0-74300-414-0	02	1	9712-	●	●
331	09.743 CLUSTER; INST SIDE (B)	8-97160-267-0	01	1	9712-0105	●	●
331	09.743 CLUSTER; INST SIDE EXC. WOOD GRAIN TRIM CLUSTER<BC1> (B)	8-97160-267-1	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-356-0	01	1	9712-0105	●	●
331	09.743 CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. WOOD GRAIN TRIM CLUSTER<BC1> (A)	8-97165-356-2	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-355-0	01	1	9712-0105	●	●
331	09.743 CLUSTER; INST SIDE EXC. WOOD GRAIN TRIM CLUSTER<BC1>, CLUSTERAUDIO DIN 'E' FORM<7LG> (A)	8-97165-355-2	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE WOOD GRAIN TRIM CLUSTER<BC1> (B)	8-97263-487-3	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE WOOD GRAIN TRIM CLUSTER<BC1> CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97263-489-3	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE WOOD GRAIN TRIM CLUSTER<BC1> EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97263-488-3	01	1	0106-	●	●
398	16.085 BRACKET; SUPPORT CLUSTER AUDIO DIN 'E' FORM<7LG> 16.080	8-97111-352-1	02	1	9712-	●	●
527	16.100 CLIP; INST CLUSTER T=0.5	8-97137-828-0	04	1	9712-	●	●
611	16.081 SHEET	8-97103-470-1	01	1	9712-	●	●

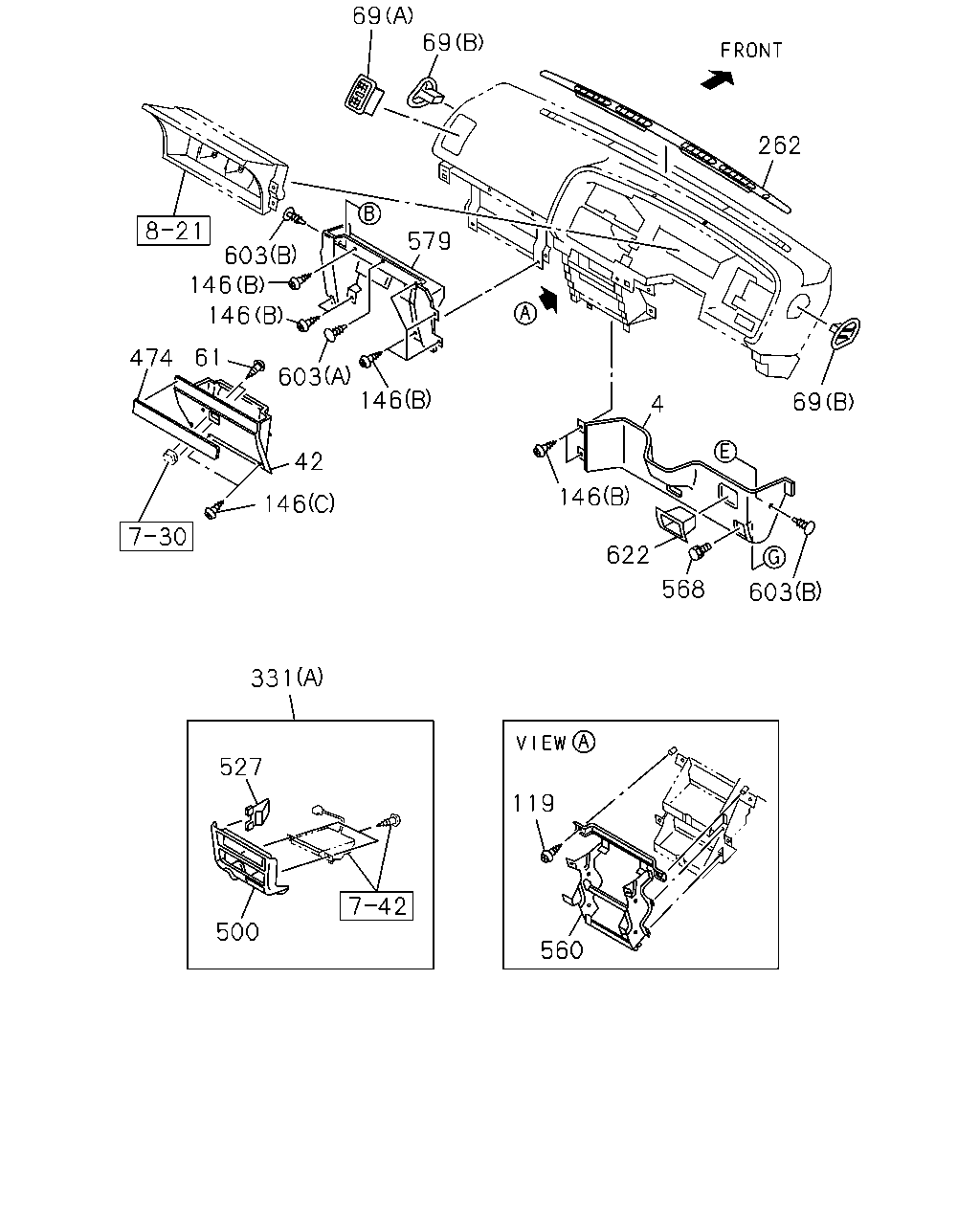

69 69 262 579 603 146 146 61 474 603 146 69 4 42 146 146 622 568 603 331 527 119 500 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	16.080 COVER; INST PNL DARK GRAY	8-97155-300-1	01	1	9712-9908	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97155-300-2	01	1	9909-0105	●	●
4	16.080 COVER; INST PNL DARK GRAY	8-97155-300-4	01	1	0106-	●
4	16.080 COVER; INST PNL INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97155-300-4	01	1	0106-		●
4	16.080 COVER; INST PNL INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-334-2	01	1	9909-0105	●	●
4	16.080 COVER; INST PNL INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-334-4	01	1	0106-		●
42	16.100 BOX; GLOVE,INST PNL DARK GRAY	8-97195-652-1	01	1	9712-9908	●	●
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97195-652-2	01	1	9909-0105	●	●
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97195-652-6	01	1	0106-	●	●
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-365-2	01	1	9909-0105	●	●
42	16.100 BOX; GLOVE,INST PNL INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-365-6	01	1	0106-		●
61	16.100 SCREW; GLOVE BOX M4X14 TAPPING	8-97111-555-0	02	1	9712-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (C) BLACK	8-97091-908-1	01	1	9712-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (A) DARK GRAY	8-97080-486-2	01	1	9712-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) DARK GRAY	8-97151-143-1	01	1	9712-9908	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY	8-97151-143-1	01	1	9909-0105	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) BLACK	8-97313-410-0	01	1	0106-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) DARK GRAY	8-97151-142-1	01	1	9712-9908	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY	8-97151-142-1	01	1	9909-0105	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B) BLACK	8-97313-409-0	01	1	0106-	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BEIGE(181) (B) DARK BEIGE	8-97290-572-1	01	1	9909-0105	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BEIGE(181) (B) DARK BEIGE	8-97290-571-1	01	1	9909-0105	●	●
119	14.655 SCREW; BRKT TO INST 16.085 M5X16 TAPPING	9-09829-323-1	08	1	9712-9902	●	●
119	14.655 SCREW; BRKT TO INST 16.085 M5X16 TAPPING	9-09829-323-1	02	1	9903-	●	●
119	14.655 SCREW; BRKT TO INST 16.115 M5X16 TAPPING	9-09829-188-0	04	1	9903-	●	●
146	16.100 SCREW; TAP 09.663 (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9712-	●	●
146	16.100 SCREW; TAP 09.744 (B) M5X14 TAPPING	1-72548-072-0	12	1	9712-	●	●
146	16.100 SCREW; TAP 16.190 (A) M5X12 TAPPING	9-09829-321-1	05	1	9712-	●	●
146	16.100 SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9712-	●	●
262	09.264 GRILLE; DEFROSTER DARK GRAY	8-97098-380-2	01	1	9712-9908	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97098-380-2	01	1	9909-0105	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97098-380-2	01	1	0106-	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BEIGE(181) DARK BEIGE	8-97290-568-2	01	1	9909-0105	●	●
262	09.264 GRILLE; DEFROSTER INTERIOR COLOR BEIGE(181) DARK BEIGE	8-97290-568-2	01	1	0106-		●
331	09.743 CLUSTER; INST SIDE (B)	8-97160-267-0	01	1	9712-0105	●	●
331	09.743 CLUSTER; INST SIDE EXC. WOOD GRAIN TRIM CLUSTER<BC1> (B)	8-97160-267-1	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-356-0	01	1	9712-0105	●	●
331	09.743 CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. WOOD GRAIN TRIM CLUSTER<BC1> (A)	8-97165-356-2	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-355-0	01	1	9712-0105	●	●
331	09.743 CLUSTER; INST SIDE EXC. WOOD GRAIN TRIM CLUSTER<BC1>, CLUSTERAUDIO DIN 'E' FORM<7LG> (A)	8-97165-355-2	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE WOOD GRAIN TRIM CLUSTER<BC1> (B)	8-97263-487-3	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE WOOD GRAIN TRIM CLUSTER<BC1> CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97263-489-3	01	1	0106-	●	●
331	09.743 CLUSTER; INST SIDE WOOD GRAIN TRIM CLUSTER<BC1> EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97263-488-3	01	1	0106-	●	●
474	16.069 PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB>	8-97169-721-0	01	1	9712-0105		●
474	16.069 PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB> EXC. WOOD PRINT TRIM<7QR>	8-97169-721-1	01	1	0106-		●
474	16.069 PANEL ASM; ORNAMENT WOOD PRINT TRIM<7QR>	8-97169-721-1	01	1	0106-		●
500	16.081 CLUSTER; INST CENTER EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743	8-97160-270-0	01	1	9712-0105	●	●
500	16.081 CLUSTER; INST CENTER EXC. WOOD GRAIN TRIM CLUSTER<BC1>, CLUSTERAUDIO DIN 'E' FORM<7LG> 09.743	8-97160-270-1	01	1	0106-	●	●
500	16.081 CLUSTER; INST CENTER WOOD GRAIN TRIM CLUSTER<BC1> CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97287-989-2	01	1	0106-	●	●
500	16.081 CLUSTER; INST CENTER WOOD GRAIN TRIM CLUSTER<BC1> EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97287-988-2	01	1	0106-	●	●
500	16.081 CLUSTER; INST CENTER CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743	8-97160-271-0	01	1	9712-0105	●	●
500	16.081 CLUSTER; INST CENTER CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. WOOD GRAIN TRIM CLUSTER<BC1> 09.743	8-97160-271-0	01	1	0106-	●	●
527	16.100 CLIP; INST CLUSTER T=0.5	8-97137-828-0	04	1	9712-	●	●
560	16.085 BRACKET	8-97080-119-1	01	1	9712-	●	●
568	09.744 BOLT; COVER 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9712-9908	●	●
568	09.744 BOLT; COVER 08.015 M6X20 W/WASHER	8-94112-987-1	02	1	9909-0006	●	●
568	09.744 BOLT; COVER 08.015 M6X20 W/WASHER	8-94112-987-1	01	1	0007-	●	●
579	16.080 COVER; INST PNL DARK GRAY	8-97151-279-5	01	1	9712-9908	●	●
579	16.080 COVER; INST PNL INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97151-279-6	01	1	9909-0105	●	●
579	16.080 COVER; INST PNL DARK GRAY	8-97151-279-8	01	1	0106-	●
579	16.080 COVER; INST PNL INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97151-279-8	01	1	0106-		●
579	16.080 COVER; INST PNL INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-336-6	01	1	9909-0105	●	●
579	16.080 COVER; INST PNL INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-336-8	01	1	0106-		●
603	16.090 CLIP; COVER 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9712-	●	●
603	16.090 CLIP; COVER (B) DARK GRAY	8-97151-280-1	02	1	9712-9908	●	●
603	16.090 CLIP; COVER INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY	8-97151-280-1	02	1	9909-0105	●	●
603	16.090 CLIP; COVER INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY	8-97151-280-1	02	1	0106-	●	●
603	16.090 CLIP; COVER INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE	8-97290-744-1	02	1	9909-0105	●	●
603	16.090 CLIP; COVER INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE	8-97290-744-1	02	1	0106-		●
622	16.100 BOX; IDLE CONT 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-335-0	01	1	9909-0105	●	●
622	16.100 BOX; IDLE CONT 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-335-0	01	1	0106-		●
622	16.100 BOX; IDLE CONT 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) DARK GRAY	8-97153-696-0	01	1	9712-9908	●	●
622	16.100 BOX; IDLE CONT 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97153-696-0	01	1	9909-0105	●	●
622	16.100 BOX; IDLE CONT 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) DARK GRAY	8-97153-696-0	01	1	0106-	●
622	16.100 BOX; IDLE CONT 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97153-696-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
