◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#73357) — 83 parça

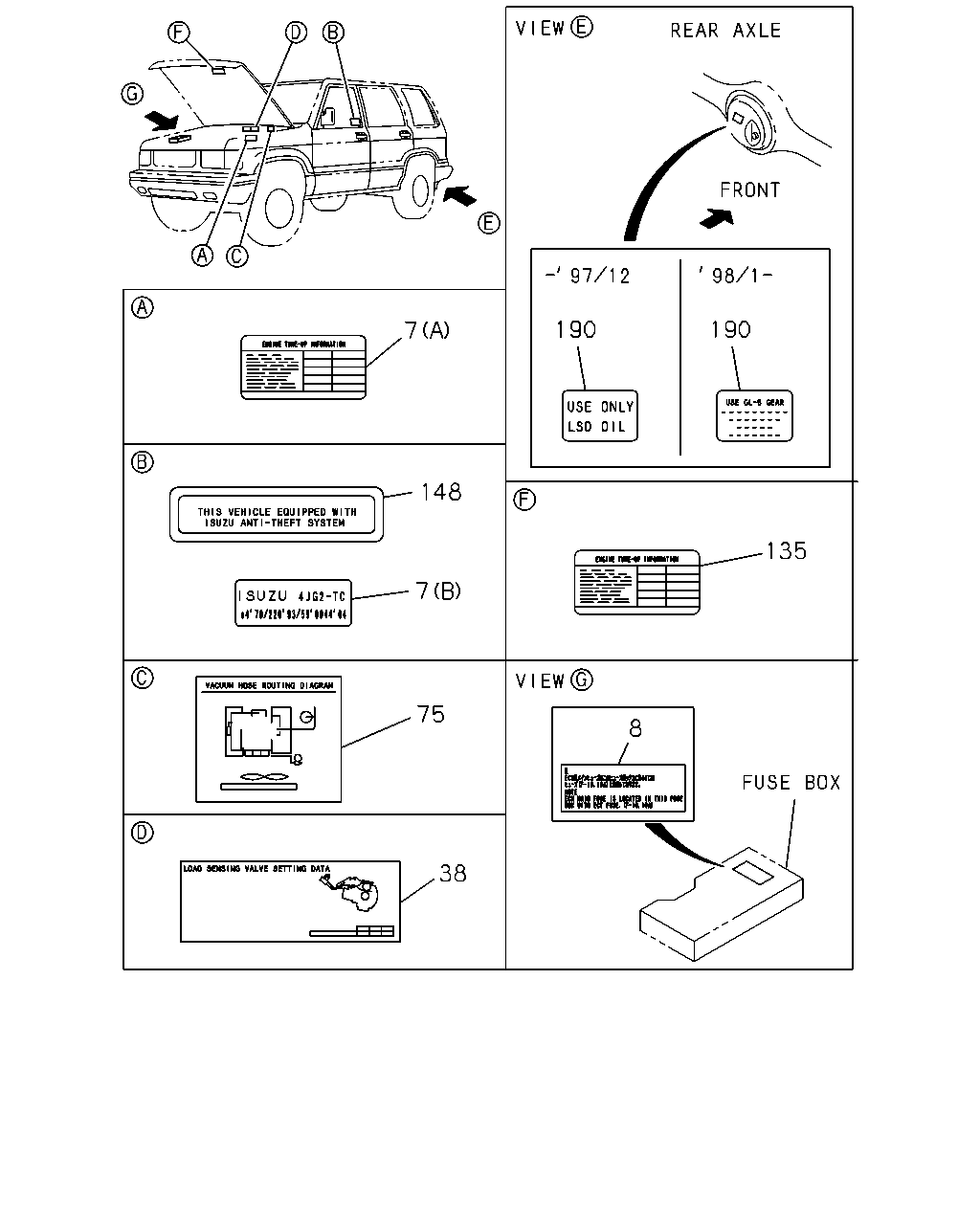

çizim 17441
190 190 7 148 135 7 75 8 38
BalonParca AdiParca NoAdetTipApplied Date A B
7 03.680 LABEL; EMISSION
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A) 		8-97190-133-0 01 1 9712-9809 ● ●
7 03.680 LABEL; EMISSION
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) CHARGE AIR COOLER<6PL> EXC. CERAMIC HEATER<6YX>,TORQUE ON DEMAND<7HA> (B) 		8-97142-566-0 01 1 9712-9809 ●
8 03.680 LABEL; FUSE
4JX1 ENG(RJM) 		8-97248-851-0 01 1 0003-0011 ● ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) 		8-97168-012-0 01 1 9712- ●
38 08.808 PLATE; CAUTION,LSV
EUROPE EQUIPMENT(EK4) 		8-97168-011-0 01 1 9712- ●
38 08.808 PLATE; CAUTION,LSV
SOUTH AFRICA EQUIPMENT(SW2) 		8-97168-010-0 01 1 9712-9912 ●
38 08.808 PLATE; CAUTION,LSV
SOUTH AFRICA EQUIPMENT(SW2) 		8-97245-849-0 01 1 0001-0102 ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-97263-030-0 01 1 0106- ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 		8-97168-164-0 01 1 9712-0105 ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
6VE1 ENG(RJQ),6VD1 ENG(RLV) THAILAND EQUIPMENT(PM9) 		8-97168-164-0 01 1 0106- ●
135 08.808 PLATE; CAUTION,ENGINE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRAL IA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 		8-97184-480-0 01 1 9712- ● ●
148 08.808 PLATE; CAUTION,ANTI THEFT
ANTI THEFT<UA6> 		8-97129-695-0 02 1 9712-0212 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF(G80) 		8-97106-816-0 01 1 9712-9712 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF(G80) 		8-97200-740-0 01 1 9801- ● ●

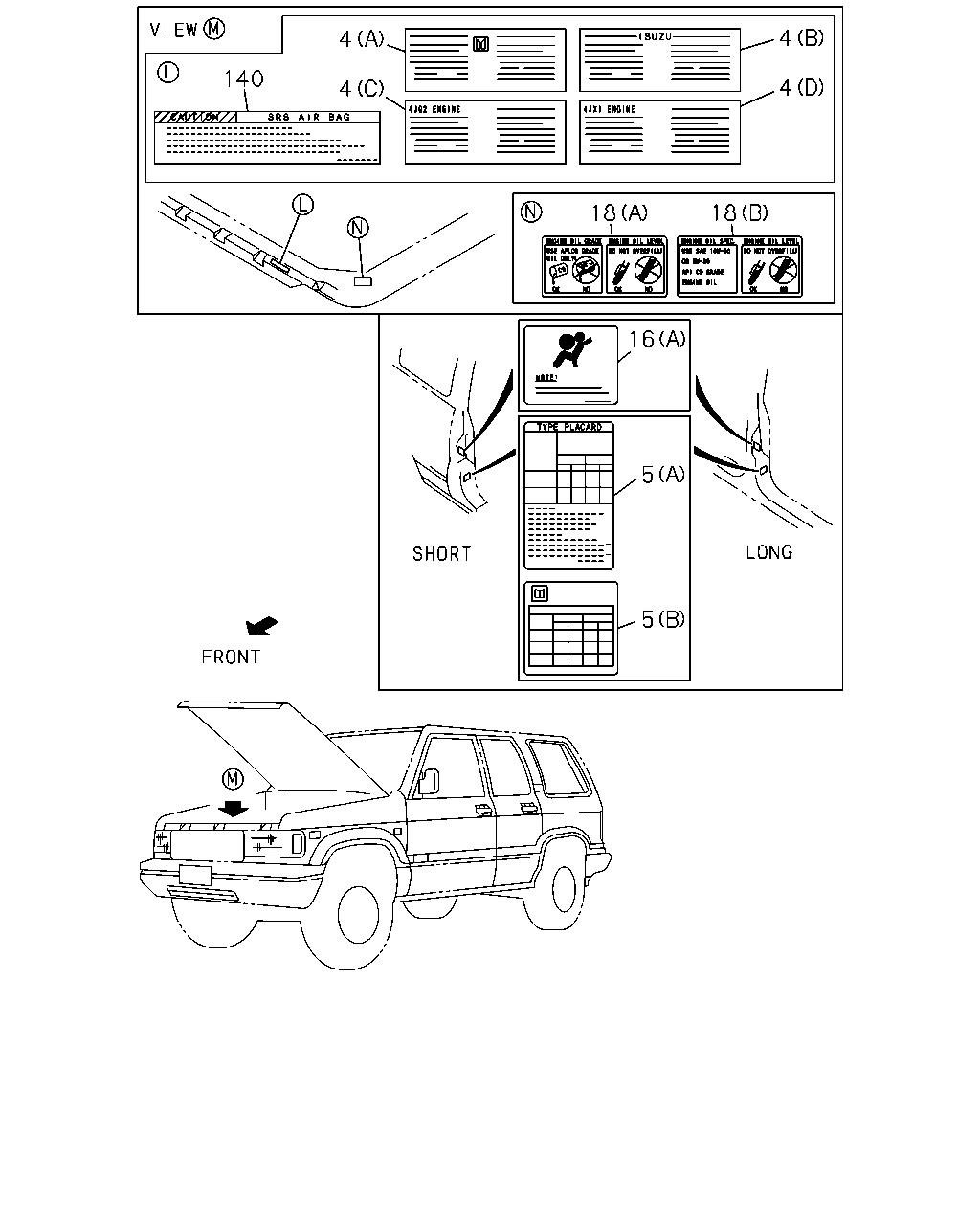

çizim 68159
4 4 140 4 4 18 18 16 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) TURBOCHARGER<K51> (A) 		8-97039-224-0 01 1 9712- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> (B) 		8-97110-513-0 01 1 9712- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) (D) 		8-97173-970-1 01 1 9712-0011 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) (D) 		8-97173-970-1 01 1 0012- ●
4 00.004 LABEL; ENG MAINTENANCE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (C) 		8-97173-969-1 01 1 9712- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
AUSTRALIA EQUIPMENT(RR3) 08.808 (A) 		8-97106-700-0 01 1 9712-0006 ●
5 05.880 LABEL; TIRE AIR PRESSURE
AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 08.808 (A) 		8-97106-700-0 01 1 9712-0006 ●
5 05.880 LABEL; TIRE AIR PRESSURE
AUSTRALIA EQUIPMENT(RR3) 08.808 (A) 		8-97106-700-0 01 1 0007-0011 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
AUSTRALIA EQUIPMENT(RR3) 08.808 (A) 		8-97106-700-0 01 1 0012- ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3),CAUTION SPANISH<YN1> (B) 		8-97039-229-1 01 1 9712-0006 ●
5 05.880 LABEL; TIRE AIR PRESSURE
NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97039-229-1 01 1 9712-0006 ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3),CAUTION SPANISH<YN1>,NEW ZEALAND EQUIPMENT(7AZ) (B) 		8-97039-229-1 01 1 9712-0006 ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3),CAUTION SPANISH<YN1> (B) 		8-97039-229-1 01 1 0007- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (B) 		8-97039-231-1 01 1 9712- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 02 1 9712-0105 ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 02 1 0106- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (B) 		8-97145-558-0 01 1 9712-0105 ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG PASSENGER<7FA> (B) 		8-97145-558-0 01 1 0106- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 01 1 9712-0105 ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 01 1 0106- ● ●
18 01.426 LABEL; ENG OIL
4JG2 ENG(RJC) TURBOCHARGER<K51> (A) 		8-94447-186-0 01 1 9712-9804 ● ●
18 01.426 LABEL; ENG OIL
4JX1 ENG(RJM) (A) 		8-94447-186-0 01 1 9712-9804 ● ●
18 01.426 LABEL; ENG OIL
4JG2 ENG(RJC) TURBOCHARGER<K51> (A) 		8-94447-186-1 01 1 9805- ● ●
18 01.426 LABEL; ENG OIL
4JX1 ENG(RJM) (B) 		8-97210-249-0 01 1 9805- ● ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97134-568-0 01 1 9712-0011 ● ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER<AJ3> THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 		8-97134-568-0 01 1 0012- ●

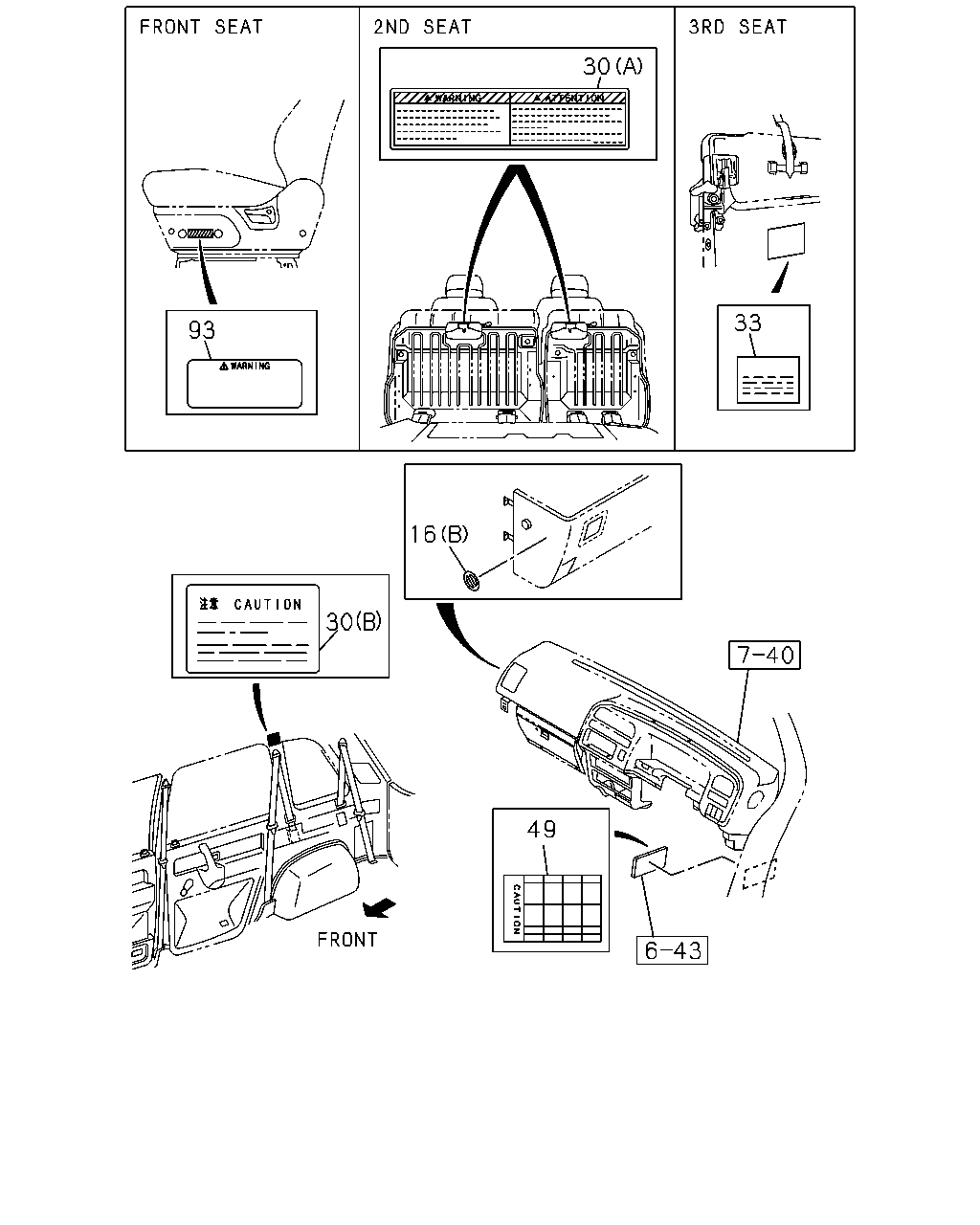

çizim 68201
30 33 93 16 30 49
BalonParca AdiParca NoAdetTipApplied Date A B
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 02 1 9712-0105 ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 02 1 0106- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (B) 		8-97145-558-0 01 1 9712-0105 ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG PASSENGER<7FA> (B) 		8-97145-558-0 01 1 0106- ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 01 1 9712-0105 ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 01 1 0106- ● ●
30 08.808 PLATE; CAUTION,RR SEAT
(A) 		8-97135-363-0 01 1 9712- ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT NON SPLIT BACK<S3B> (A) 		8-97135-363-0 01 1 9712- ●
30 08.808 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> (A) 		8-97135-363-0 02 1 9712- ●
30 08.808 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (B) 		8-97101-705-1 02 1 9712-0105 ●
30 08.808 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) (B) 		8-97101-705-1 02 1 0106- ●
33 08.808 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97124-953-0 02 1 9712- ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97110-336-1 01 1 9712-9908 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-97239-204-0 01 1 9909- ● ●
93 08.808 PLATE; CAUTION,WALK-IN SEAT
EXC. RR SEAT DELETION(AP6) 		8-97092-625-1 01 1 9712- ●

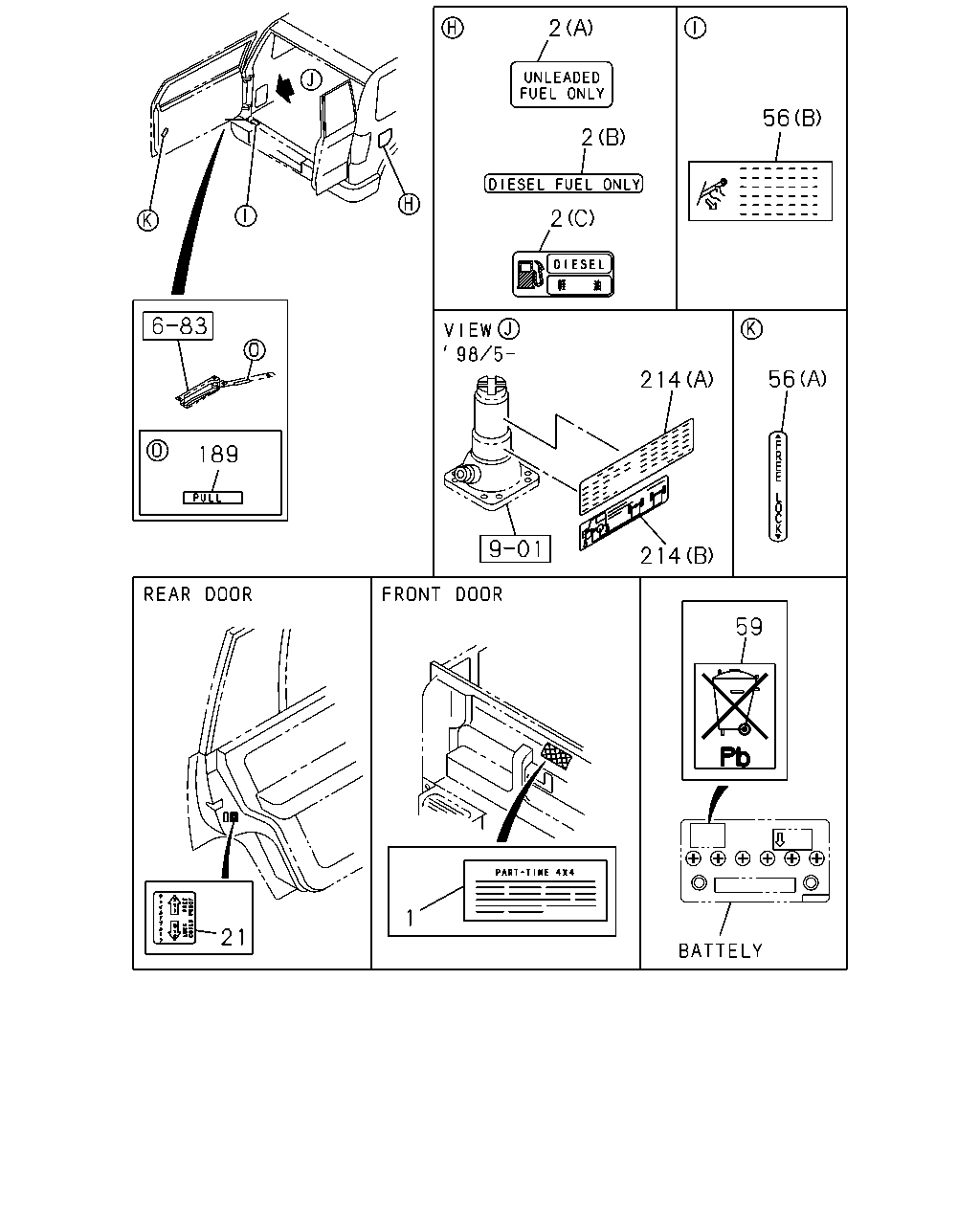

çizim 72202
2 56 2 2 56 214 189 214 59 1 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.017 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		8-97131-711-0 01 1 9712- ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
EXC. CAUTION SPANISH<YN1> 		8-97131-709-0 01 1 9712- ● ●
2 03.680 LABEL; FUEL CAUTION
4JG2 ENG(RJC),4JX1 ENG(RJM) (B) 		8-97135-605-0 01 1 9712-9808 ● ●
2 03.680 LABEL; FUEL CAUTION
4JG2 ENG(RJC),4JX1 ENG(RJM) (C) 		8-97203-837-0 01 1 9809- ● ●
2 03.680 LABEL; FUEL CAUTION
6VE1 ENG(RJQ),6VD1 ENG(RLV) CATALYSIS CONTROL(6MZ) 08.808 (A) 		8-94206-917-1 01 1 9712- ● ●
21 16.328 PLATE; CAUTION,CHILD LOCK 8-97022-812-0 02 1 9712- ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) BLACK/FLUORESCENT YELLOW 		8-97326-550-0 01 1 0201- ● ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) (B) INDIGO/DELUSTERING SILVER 		8-97135-652-0 01 1 9712-0102 ● ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) INDIGO/DELUSTERING SILVER 		8-97135-652-0 01 1 0103- ● ●
56 08.147 PLATE; NAME,CAUTION
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94186-486-0 01 1 9712-9908 ● ●
56 08.147 PLATE; NAME,CAUTION
3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94186-486-0 01 1 9712-9908 ●
56 08.147 PLATE; NAME,CAUTION
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) HANDLE BACK DOOR INNER<S2A> (A) 		8-94186-486-0 01 1 9909-0011 ● ●
56 08.147 PLATE; NAME,CAUTION
EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94186-486-0 01 1 9909-0011 ● ●
56 08.147 PLATE; NAME,CAUTION
HANDLE BACK DOOR INNER<S2A> (A) 		8-94186-486-0 01 1 0012-0105 ● ●
56 08.147 PLATE; NAME,CAUTION
(A) 		8-94186-486-0 01 1 0106-0106 ● ●
56 08.147 PLATE; NAME,CAUTION
HANDLE BACK DOOR INNER<S2A> (A) 		8-94186-486-0 01 1 0107- ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPE EQUIPMENT(EK4) FRIGID ZONE<YL3> 10 PER 1 SHEET 		8-97116-760-0 02 1 9712- ● ●
59 08.808 PLATE; CAUTION,BATTERY
EUROPE EQUIPMENT(EK4) EXC. FRIGID ZONE<YL3> 10 PER 1 SHEET 		8-97116-760-0 01 1 9712- ● ●
189 08.808 PLATE; CAUTION,BACK DOOR STOPPER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.147 		8-97326-551-0 01 1 0201- ● ●
214 08.808 LABEL; JACK
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97175-048-0 01 1 9805-0011 ● ●
214 08.808 LABEL; JACK
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97175-048-0 01 1 0012- ●
214 08.808 LABEL; JACK
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97175-615-0 01 1 9805-0011 ● ●
214 08.808 LABEL; JACK
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97175-615-0 01 1 0012- ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97175-050-0 01 1 9805-0011 ● ●
214 08.808 LABEL; JACK
(A) 		8-97175-050-0 01 1 0012-0205 ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97175-050-0 01 1 0012-0205 ●
214 08.808 LABEL; JACK
(A) 		8-97329-941-0 01 1 0206- ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97329-941-0 01 1 0206- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
