6-76 — FLOOR EQUIPMENT AND SEALING (#73347) — 41 parça

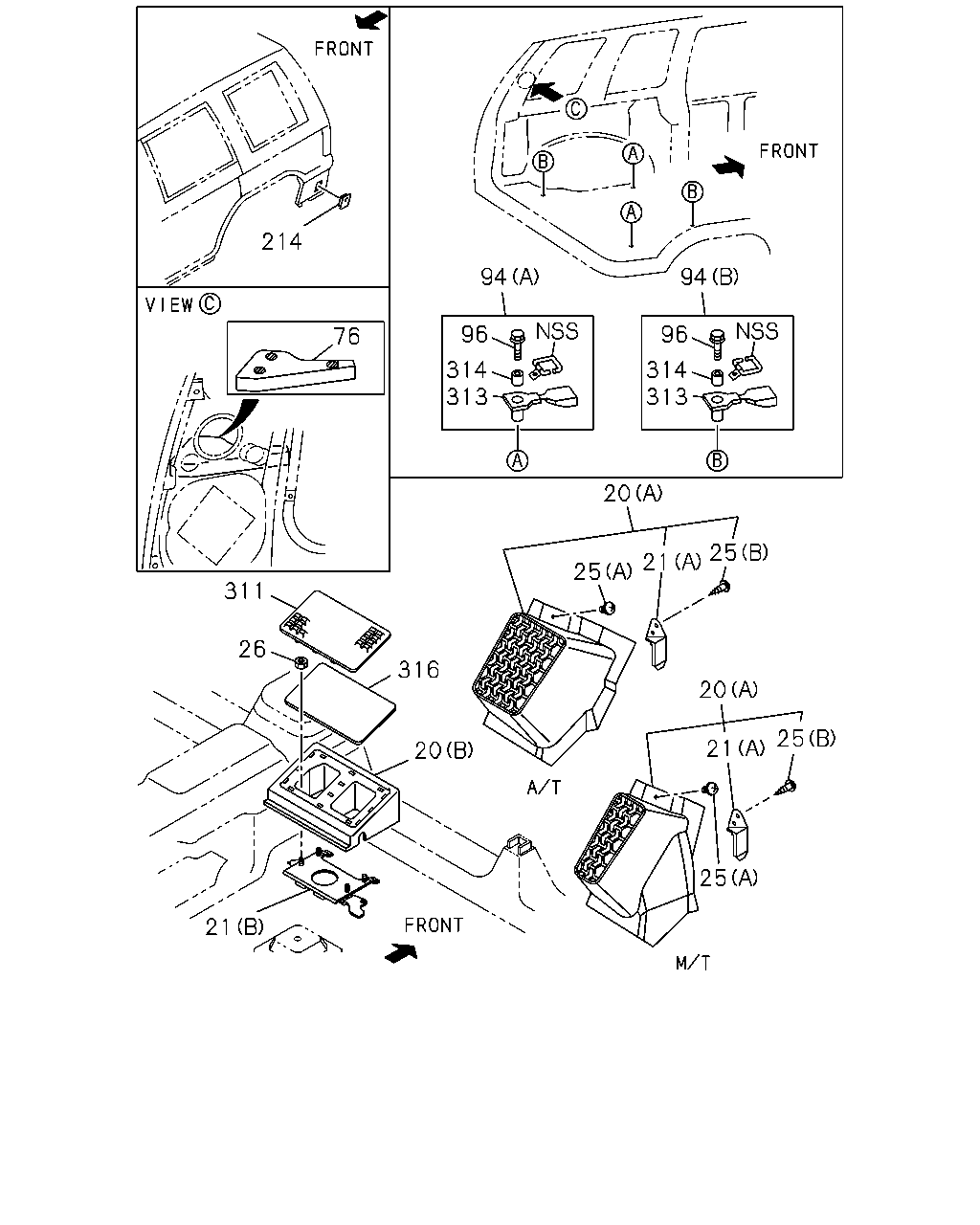

çizim 69022
214 94 94 96 96 76 314 313 314 313 20 25 21 25 311 26 316 20 25 21 20 25 21
BalonParca AdiParca NoAdetTipApplied Date A B
20 16.547 REST; FOOT
A/T AISIN(RMD),A/T THM(RMQ) (A) 		8-97804-649-2 01 1 9712- ● ●
20 16.547 REST; FOOT
M/T MUA 5 SPEED(RMN) (A) 		8-97803-057-2 01 1 9712-9712 ● ●
20 16.547 REST; FOOT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 		8-97803-057-2 01 1 9801- ● ●
20 16.547 REST; FOOT
RR FOOT REST<6WM> (B) BLACK 		8-97151-275-0 01 1 9712-0105 ●
20 16.547 REST; FOOT
RR FOOT REST<6WM> (B) BLACK 		8-97151-274-0 01 1 9712-0105 ●
21 16.549 BRACKET; FOOT REST
(A) 		8-97806-825-1 01 1 9712- ● ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> (B) 		8-97111-183-0 01 1 9712-0105 ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> TORQUE ON DEMAND<7HA> (B) 		8-97113-166-0 01 1 9712-0105 ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> EXC. TORQUE ON DEMAND<7HA> (B) 		8-97111-182-0 01 1 9712-0105 ●
21 16.549 BRACKET; FOOT REST
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> (B) 		8-97161-000-0 01 1 9712-0105 ●
21 16.549 BRACKET; FOOT REST
TORQUE ON DEMAND<7HA> (B) 		8-97161-000-1 01 1 0106- ●
25 16.549 SCREW; FOOT REST
08.155 (A) M6X16 		8-94479-534-0 01 1 9712-0105 ● ●
25 16.549 SCREW; FOOT REST
08.155 (A) M6X16 		8-94479-534-0 01 1 0106- ● ●
25 16.549 SCREW; FOOT REST
16.650 (B) M4.5X10 		8-94489-930-0 02 1 9712- ● ●
26 16.549 NUT; FLANGE
RR FOOT REST<6WM> TORQUE ON DEMAND<7HA> 04.594 M6 FLANGE 		0-91150-106-0 05 1 9712-0105 ●
26 16.549 NUT; FLANGE
TORQUE ON DEMAND<7HA> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ●
26 16.549 NUT; FLANGE
RR FOOT REST<6WM> EXC. TORQUE ON DEMAND<7HA> 04.594 M6 FLANGE 		0-91150-106-0 04 1 9712-0105 ●
26 16.549 NUT; FLANGE
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712-0105 ●
76 16.549 CUSHION; SUPPORT COVER
DUST PROTECTION PACKAGE<7HQ> 		8-97811-231-0 02 1 9712- ● ●
94 16.545 HOOK ASM; ROPE
EXC. TRUCK PACKAGE<7QG> (A) BLACK 		8-97151-775-0 02 1 9712- ●
94 16.545 HOOK ASM; ROPE
(A) BLACK 		8-97151-775-0 02 1 9712- ●
94 16.545 HOOK ASM; ROPE
EXC. TRUCK PACKAGE<7QG> (B) BLACK 		8-97151-776-0 02 1 9712- ●
94 16.545 HOOK ASM; ROPE
(B) BLACK 		8-97151-776-0 02 1 9712- ●
96 16.545 BOLT; ROPE HOOK FIX
TRUCK PACKAGE<7QG> 10.463 M8X23 FLANGE 		8-94174-559-2 04 1 9712-0110 ●
96 16.545 BOLT; ROPE HOOK FIX
TRUCK PACKAGE<7QG> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0111- ●
96 16.545 BOLT; ROPE HOOK FIX
EXC. TRUCK PACKAGE<7QG> M8X40 FLANGE 		0-28690-840-0 04 1 9712- ●
96 16.545 BOLT; ROPE HOOK FIX
M8X40 FLANGE 		0-28690-840-0 04 1 9712- ●
214 16.549 SEAL; HOLE COVER 8-97803-265-1 02 1 9712-0005 ● ●
214 16.549 SEAL; HOLE COVER 8-97803-265-1 02 1 0006- ● ●
311 16.547 PAD; FOOT REST
RR FOOT REST<6WM> BLACK 		8-97807-585-3 02 1 9712-0105 ●
313 16.545 COVER; ROPE HOOK
EXC. TRUCK PACKAGE<7QG> BLACK 		8-97151-777-0 04 1 9712- ●
313 16.545 COVER; ROPE HOOK
BLACK 		8-97151-777-0 04 1 9712- ●
314 16.545 COLLAR; ROPE HOOK
EXC. TRUCK PACKAGE<7QG> 		8-97803-657-0 04 1 9712- ●
314 16.545 COLLAR; ROPE HOOK 8-97803-657-0 04 1 9712- ●
316 16.549 INSULATOR; BRKT
RR FOOT REST<6WM> 		8-97808-527-0 02 1 9712-0105 ●
316 16.549 INSULATOR; BRKT
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> 		8-97808-527-0 01 1 9712-0105 ●
316 16.549 INSULATOR; BRKT
TORQUE ON DEMAND<7HA> 		8-97808-527-0 01 1 0106- ●

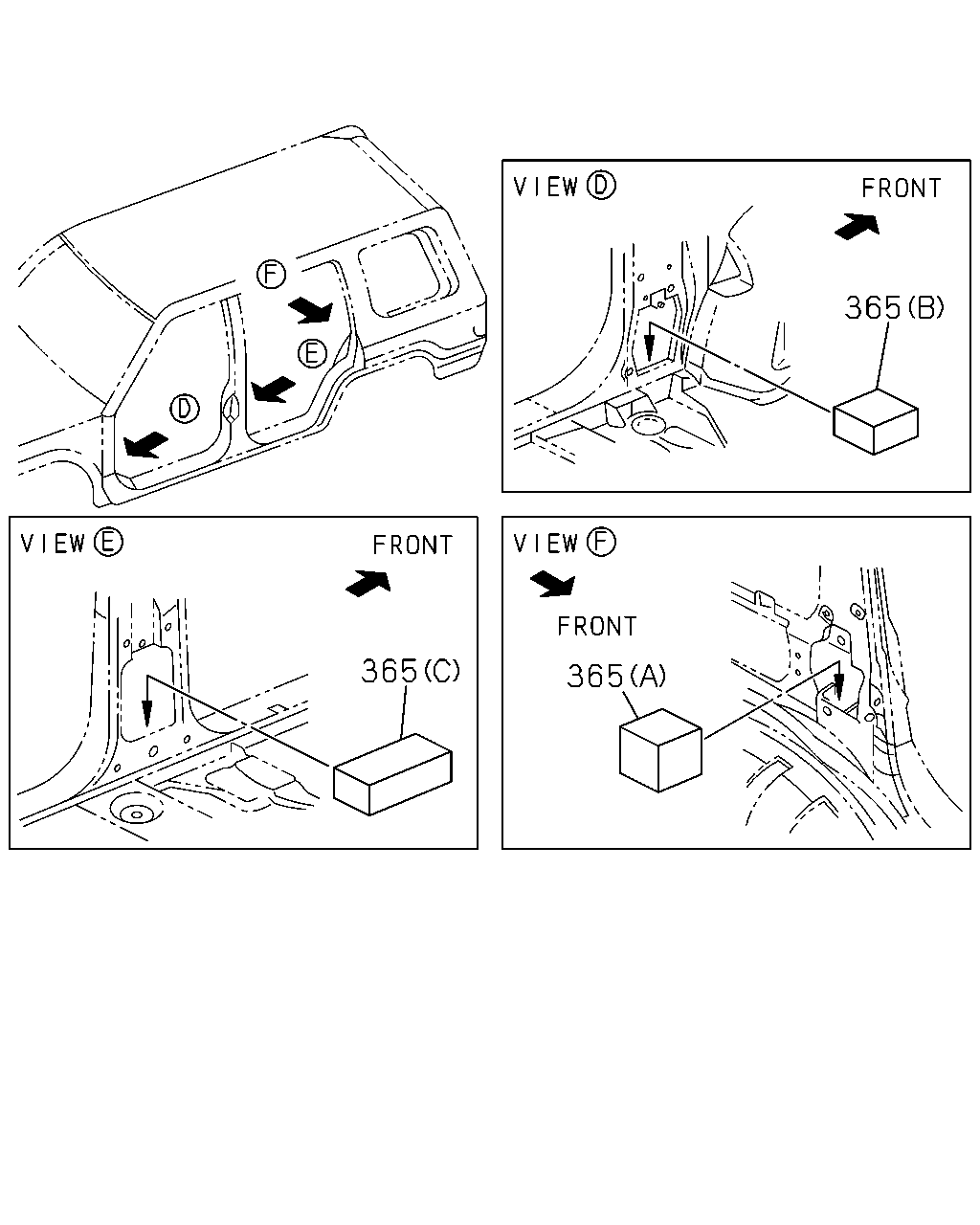

çizim 70191
365 365 365
BalonParca AdiParca NoAdetTipApplied Date A B
365 16.800 SEAL; DASH SIDE LWR
(B) 		8-97185-279-0 02 1 9712-0105 ● ●
365 16.800 SEAL; DASH SIDE LWR
(B) 		8-97185-279-0 02 1 0106- ● ●
365 16.800 SEAL; DASH SIDE LWR
(A) 		8-97184-089-0 02 1 9712- ●
365 16.800 SEAL; DASH SIDE LWR
(C) 		8-97185-548-0 02 1 9712- ●
