6-47 — MUD GUARD AND INSULATOR (#73336) — 87 parça

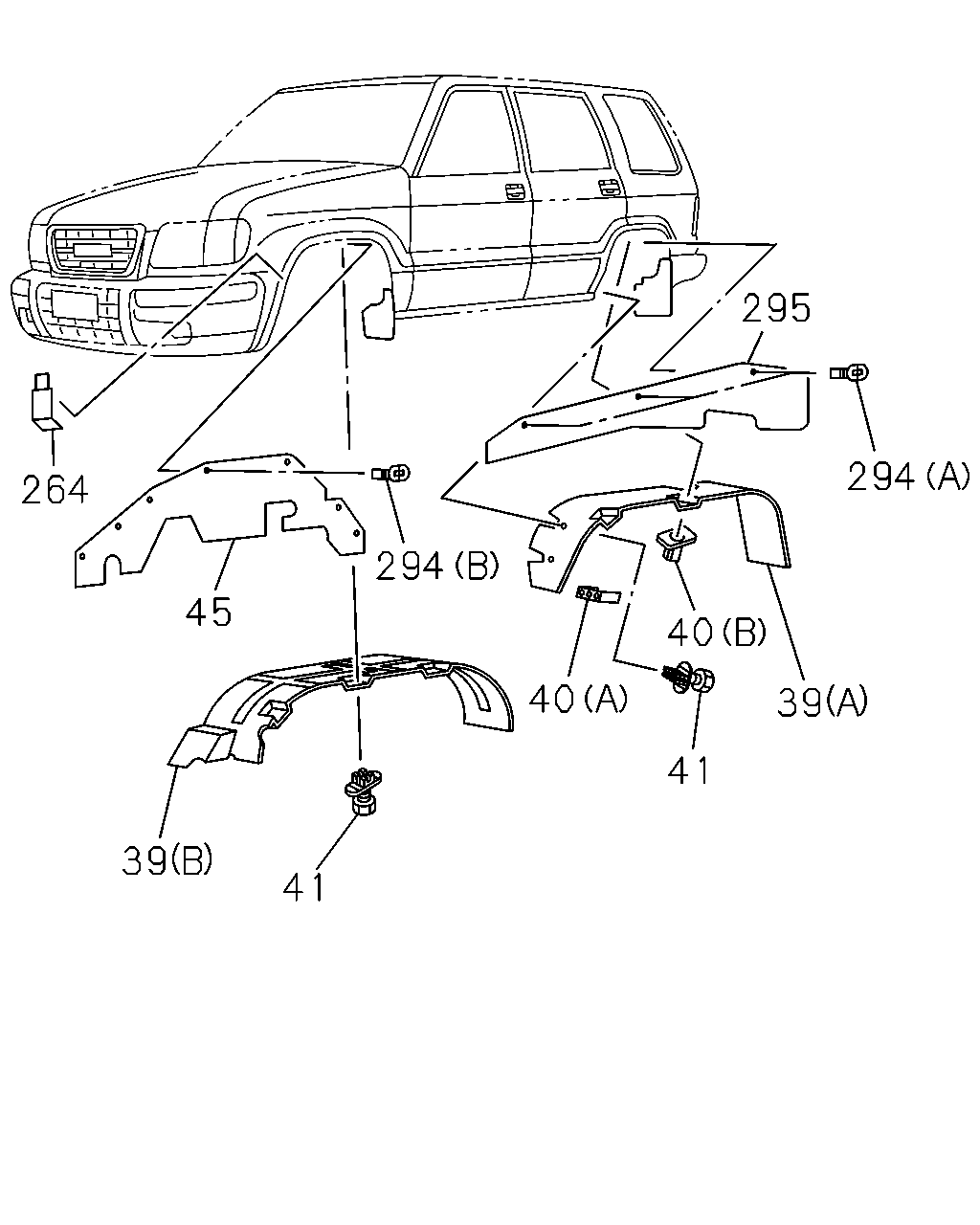

295 294 264 294 45 40 40 39 41 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	08.131 LINER; FENDER (B)	8-97103-849-3	01	1	9712-	●	●
39	08.131 LINER; FENDER (B)	8-97103-848-3	01	1	9712-	●	●
39	08.131 LINER; FENDER COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97106-342-4	01	1	9712-	●	●
39	08.131 LINER; FENDER COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97106-341-4	01	1	9712-	●	●
39	08.131 LINER; FENDER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97106-344-4	01	1	9712-	●	●
39	08.131 LINER; FENDER EXC. OVER FENDER<6GH>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97106-343-4	01	1	9712-	●	●
40	08.155 CLIP; INNER LINER 08.131 (A)	8-94215-212-0	02	1	9712-	●
40	08.155 CLIP; INNER LINER EXC. OVER FENDER<6GH> 08.131 (A)	8-94215-212-0	02	1	9712-		●
40	08.155 CLIP; INNER LINER (B)	8-97805-240-0	09	1	9712-	●	●
41	08.155 RIVET; INNER LINER 08.154	8-94221-150-0	08	1	9712-	●	●
41	08.155 RIVET; INNER LINER COLOR KEYED ROCKER SKIRT<6YA> 08.154	8-94221-150-0	18	1	9712-	●	●
41	08.155 RIVET; INNER LINER MUD FLAP<VH4> 08.154	8-94221-150-0	16	1	9712-	●	●
41	08.155 RIVET; INNER LINER EXC. MUD FLAP<VH4>,COLOR KEYED ROCKER SKIRT<6YA> 08.154	8-94221-150-0	22	1	9712-	●	●
45	08.153 COVER; MUD,FENDER SKIRT EUROPE EQUIPMENT(EK4)	8-97132-943-0	01	1	9712-9901	●	●
45	08.153 COVER; MUD,FENDER SKIRT EUROPE EQUIPMENT(EK4)	8-97223-319-0	01	1	9902-9908	●	●
45	08.153 COVER; MUD,FENDER SKIRT EUROPE EQUIPMENT(EK4)	8-97132-942-2	01	1	9712-9812	●	●
45	08.153 COVER; MUD,FENDER SKIRT EUROPE EQUIPMENT(EK4)	8-97223-318-0	01	1	9901-9908	●	●
45	08.153 COVER; MUD,FENDER SKIRT EUROPE EQUIPMENT(EK4)	8-97223-319-0	01	1	9909-0105	●	●
45	08.153 COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97223-319-0	01	1	0106-	●	●
45	08.153 COVER; MUD,FENDER SKIRT EUROPE EQUIPMENT(EK4)	8-97223-318-0	01	1	9909-0105	●	●
45	08.153 COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97223-318-0	01	1	0106-	●	●
45	08.153 COVER; MUD,FENDER SKIRT EXC. EUROPE EQUIPMENT(EK4)	8-97138-227-0	01	1	9712-9909	●	●
45	08.153 COVER; MUD,FENDER SKIRT EXC. EUROPE EQUIPMENT(EK4)	8-97233-815-0	01	1	9910-	●	●
45	08.153 COVER; MUD,FENDER SKIRT EXC. EUROPE EQUIPMENT(EK4)	8-97138-226-1	01	1	9712-9909	●	●
45	08.153 COVER; MUD,FENDER SKIRT EXC. EUROPE EQUIPMENT(EK4)	8-97233-814-0	01	1	9910-	●	●
45	08.153 COVER; MUD,FENDER SKIRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97289-521-2	01	1	0106-	●	●
45	08.153 COVER; MUD,FENDER SKIRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97289-520-2	01	1	0106-	●	●
264	08.154 FINISHER; FRT FENDER OVER FENDER<6GH>	8-97107-799-0	02	1	9712-	●	●
264	08.154 FINISHER; FRT FENDER EXC. OVER FENDER<6GH>	8-97808-857-0	02	1	9712-	●	●
294	08.154 CLIP; MUD COVER (A)	8-94215-211-0	08	1	9712-	●	●
294	08.154 CLIP; MUD COVER EUROPE EQUIPMENT(EK4) 03.163 (B)	8-97809-579-0	14	1	9712-0105	●	●
294	08.154 CLIP; MUD COVER 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 15.100 (B) BLACK	8-94204-281-0	14	1	0106-	●	●
294	08.154 CLIP; MUD COVER EXC. EUROPE EQUIPMENT(EK4) (B)	8-94215-211-0	14	1	9712-0006	●	●
294	08.154 CLIP; MUD COVER EXC. EUROPE EQUIPMENT(EK4) (B)	8-94215-211-0	14	1	0007-0105	●	●
294	08.154 CLIP; MUD COVER EXC. EUROPE EQUIPMENT(EK4) (B)	8-94215-211-0	14	1	0007-0105	●	●
294	08.154 CLIP; MUD COVER EXC. EUROPE EQUIPMENT(EK4) (B)	8-94215-211-0	14	1	0106-	●	●
294	08.154 CLIP; MUD COVER 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (B)	8-97309-388-1	14	1	0106-	●	●
295	08.153 COVER; WHEEL HOUSE	8-97143-180-0	01	1	9712-	●	●
295	08.153 COVER; WHEEL HOUSE	8-97143-179-0	01	1	9712-	●	●

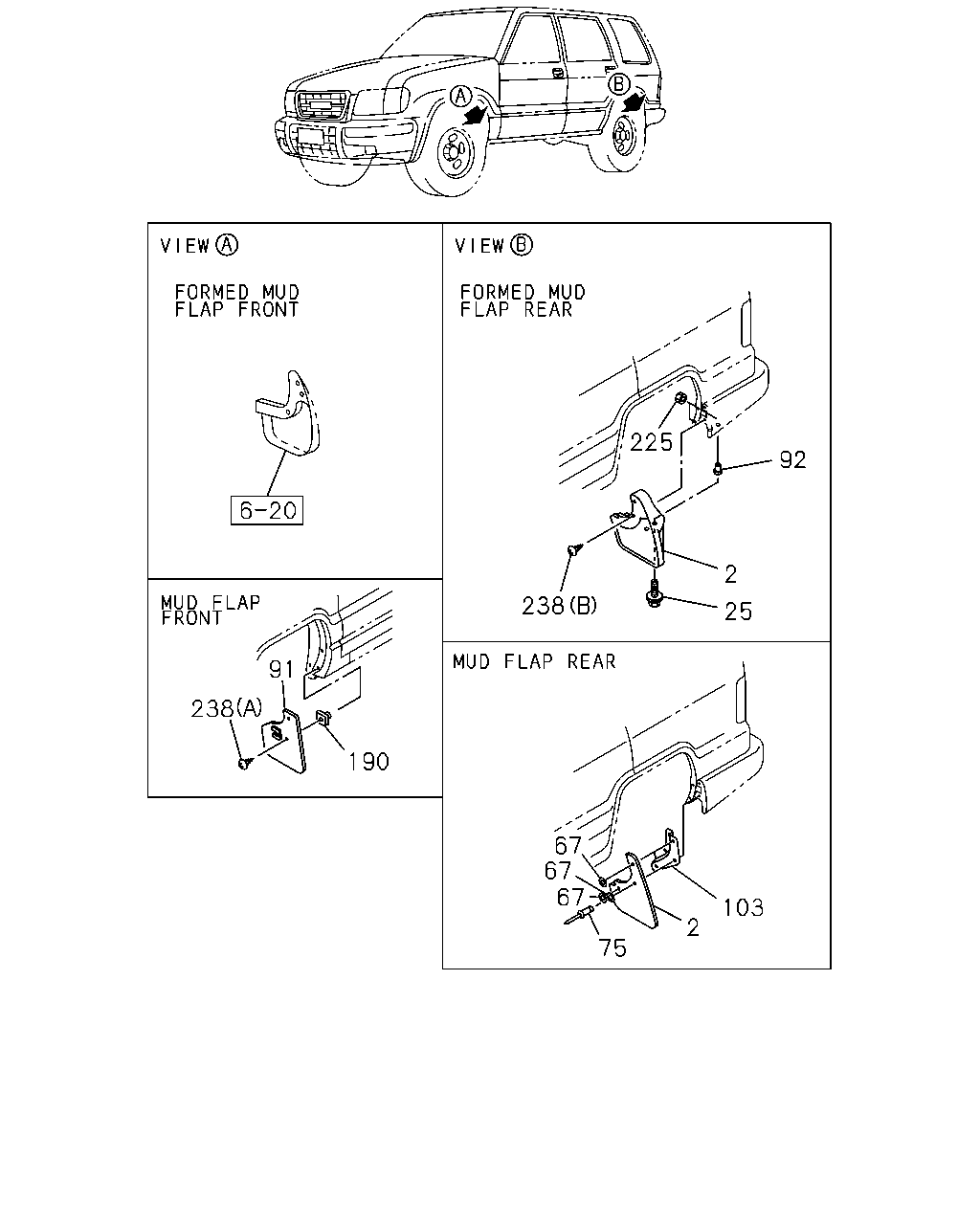

225 92 2 238 25 91 238 190 67 67 67 103 2 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	08.154 COVER; MUD,TIRE RR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> PRIMER	8-97807-871-1	01	1	9712-	●	●
2	08.154 COVER; MUD,TIRE RR COLOR KEYED ROCKER SKIRT<6YA> EXC. OVER FENDER<6GH> PRIMER	8-97807-870-1	01	1	9712-	●	●
2	08.154 COVER; MUD,TIRE RR MUD FLAP<VH4>	8-97805-350-2	01	1	9712-	●	●
2	08.154 COVER; MUD,TIRE RR MUD FLAP<VH4>	8-97805-220-2	01	1	9712-	●	●
2	08.154 COVER; MUD,TIRE RR OVER FENDER<6GH> PRIMER	8-97103-299-2	01	1	9712-	●	●
2	08.154 COVER; MUD,TIRE RR OVER FENDER<6GH> PRIMER	8-97103-298-2	01	1	9712-	●	●
25	08.155 BOLT; PLATE TO MUD COVER COLOR KEYED ROCKER SKIRT<6YA> 10.152 M6X28 W/PL WASHER	8-94148-420-0	02	1	9712-	●	●
67	08.155 WASHER; PL MUD FLAP<VH4> 08.225	1-09985-170-0	06	1	9712-0011	●	●
67	08.155 WASHER; PL SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4> 08.225	1-09985-170-0	06	1	9712-0011		●
67	08.155 WASHER; PL MUD FLAP<VH4> 08.225	1-09985-170-0	06	1	0012-	●	●
75	08.155 RIVET; MUD COVER MUD FLAP<VH4>	1-09987-128-0	06	1	9712-0011	●	●
75	08.155 RIVET; MUD COVER SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4>	1-09987-128-0	06	1	9712-0011		●
75	08.155 RIVET; MUD COVER MUD FLAP<VH4>	1-09987-128-0	06	1	0012-	●	●
91	08.154 COVER; MUD,FRT MUD FLAP<VH4>	8-97807-553-1	01	1	9712-	●	●
91	08.154 COVER; MUD,FRT MUD FLAP<VH4>	8-97805-165-1	01	1	9712-	●	●
92	08.155 NUT; MUD COVER COLOR KEYED ROCKER SKIRT<6YA> 16.065 M6 RUBBER NUT	8-97023-281-0	02	1	9712-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP MUD FLAP<VH4>	8-97807-328-0	01	1	9712-0011	●	●
103	08.214 BRACKET ASM; RR MUD FLAP SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4>	8-97807-328-0	01	1	9712-0011		●
103	08.214 BRACKET ASM; RR MUD FLAP MUD FLAP<VH4>	8-97807-328-0	01	1	0012-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP MUD FLAP<VH4>	8-97807-327-0	01	1	9712-0011	●	●
103	08.214 BRACKET ASM; RR MUD FLAP SOUTH AFRICA EQUIPMENT(SW2) MUD FLAP<VH4>	8-97807-327-0	01	1	9712-0011		●
103	08.214 BRACKET ASM; RR MUD FLAP MUD FLAP<VH4>	8-97807-327-0	01	1	0012-	●	●
190	08.155 NUT; FENDER COVER MUD FLAP<VH4> ID=5.2 H=10	8-97032-135-0	06	1	9712-	●	●
225	08.155 NUT; MUD GUARD OVER FENDER<6GH> 07.833 M6 FLANGE	8-97063-399-0	04	1	9712-	●	●
238	08.153 SCREW; MUD GUARD COLOR KEYED ROCKER SKIRT<6YA> 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	9712-	●	●
238	08.153 SCREW; MUD GUARD MUD FLAP<VH4> 08.155 (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	9712-	●	●

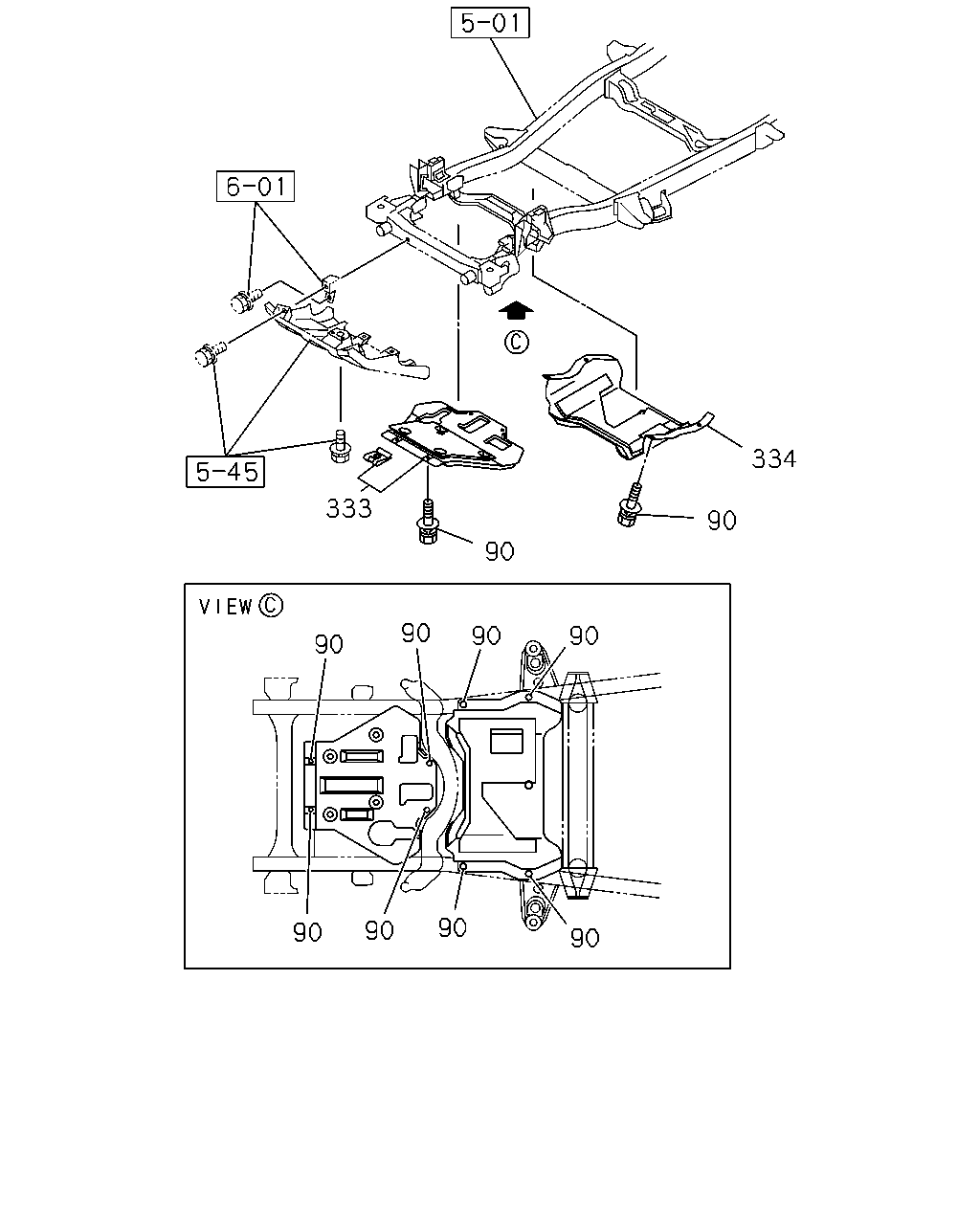

334 333 90 90 90 90 90 90 90 90 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	08.153 BOLT; COVER EUROPE EQUIPMENT(EK4) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-0	08	1	9712-0105	●	●
90	08.153 BOLT; COVER 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0106-0208	●	●
90	08.153 BOLT; COVER 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0106-0208	●	●
90	08.153 BOLT; COVER 4JX1 ENG(RJM),6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0106-0208	●	●
90	08.153 BOLT; COVER 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0209-	●	●
90	08.153 BOLT; COVER 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0209-	●	●
90	08.153 BOLT; COVER 4JX1 ENG(RJM),6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0209-	●	●
90	08.153 BOLT; COVER 4JX1 ENG(RJM) EURO3 SPECIFICATION(NT3) AUSTRALIA EQUIPMENT(RR3) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0209-		●
90	08.153 BOLT; COVER 4JX1 ENG(RJM) EURO3 SPECIFICATION(NT3) AUSTRALIA EQUIPMENT(RR3) 03.690 M10X28 W/LK&PL WASHER	8-97104-788-1	04	1	0209-		●
333	08.153 COVER; SOUND,FRT 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97192-541-1	01	1	9712-0105	●	●
333	08.153 COVER; SOUND,FRT 4JX1 ENG(RJM),6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-97192-541-1	01	1	0106-0208	●	●
333	08.153 COVER; SOUND,FRT 4JX1 ENG(RJM),6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-97192-541-1	01	1	0209-	●	●
333	08.153 COVER; SOUND,FRT 4JX1 ENG(RJM) EURO3 SPECIFICATION(NT3) AUSTRALIA EQUIPMENT(RR3)	8-97192-541-1	01	1	0209-		●
333	08.153 COVER; SOUND,FRT 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4)	8-97171-458-2	01	1	9712-0105	●	●
334	08.153 COVER; SOUND,RR 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97189-265-2	01	1	9712-9908	●	●
334	08.153 COVER; SOUND,RR 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97219-241-1	01	1	9909-0105	●	●
334	08.153 COVER; SOUND,RR 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97219-241-2	01	1	0106-0208	●	●
334	08.153 COVER; SOUND,RR 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4)	8-97219-241-2	01	1	0106-0208	●	●
334	08.153 COVER; SOUND,RR 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97219-241-2	01	1	0209-	●	●
334	08.153 COVER; SOUND,RR 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4)	8-97219-241-2	01	1	0209-	●	●
334	08.153 COVER; SOUND,RR 4JX1 ENG(RJM) EURO3 SPECIFICATION(NT3) AUSTRALIA EQUIPMENT(RR3)	8-97219-241-2	01	1	0209-		●
334	08.153 COVER; SOUND,RR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-97179-962-1	01	1	9712-9712	●	●
