◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#73322) — 82 parça
çizim 18272
84 301 276 277 603 603 602
BalonParca AdiParca NoAdetTipApplied Date A B
84 07.068 HOOK
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4) 07.330 		8-94183-262-0 01 1 9712- ● ●
84 07.068 HOOK
EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 9712-9801 ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 9712-9801 ● ●
84 07.068 HOOK
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 9802-0004 ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 9802-0004 ● ●
84 07.068 HOOK
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 0005-0102 ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0005-0102 ● ●
84 07.068 HOOK
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0005-0102 ●
84 07.068 HOOK
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR BAG DRIVER<AJ3> SOUTH AFRICA EQUIPMENT(SW2) 		8-97041-464-2 01 1 0005-0102 ●
84 07.068 HOOK
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 0103-0105 ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0103-0105 ● ●
84 07.068 HOOK
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0103-0105 ●
84 07.068 HOOK
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 0106-0208 ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0106-0208 ● ●
84 07.068 HOOK
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0106-0208 ●
84 07.068 HOOK
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0106-0208 ●
84 07.068 HOOK
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) 		8-97041-464-2 01 1 0209- ● ●
84 07.068 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 0209- ● ●
276 08.153 BRACKET; GUARD 8-97063-046-2 01 1 9712- ● ●
276 08.153 BRACKET; GUARD 8-97063-045-2 01 1 9712- ● ●
277 08.153 BOLT; GUARD TO BRKT
03.611 M10X20 FLANGE 		0-28681-020-0 02 1 9712- ● ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> 02.042 M10X45 FLANGE 		0-28091-045-0 02 1 9712-9801 ● ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4) 02.042 M10X45 FLANGE 		0-28091-045-0 02 1 9802- ● ●
301 07.068 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9712-9801 ● ●
301 07.068 BOLT; HOOK TO FRAME
4JG2 ENG(RJC) M10X50 FLANGE 		0-28091-050-0 02 1 9712-9801 ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) M10X50 FLANGE 		0-28091-050-0 02 1 9802-9908 ● ●
301 07.068 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9802-9908 ● ●
301 07.068 BOLT; HOOK TO FRAME
4JG2 ENG(RJC) M10X50 FLANGE 		0-28091-050-0 02 1 9802-9908 ● ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) M10X50 FLANGE 		0-28091-050-0 02 1 9909-0004 ● ●
301 07.068 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4) M10X50 FLANGE 		0-28091-050-0 02 1 9909-0004 ● ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) M10X50 FLANGE 		0-28091-050-0 02 1 0005-0208 ● ●
301 07.068 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 0005-0208 ● ●
301 07.068 BOLT; HOOK TO FRAME
4JG2 ENG(RJC) M10X50 FLANGE 		0-28091-050-0 02 1 0005-0208 ● ●
301 07.068 BOLT; HOOK TO FRAME
6VD1 ENG(RLV) AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 0005-0208 ●
301 07.068 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) M10X50 FLANGE 		0-28091-050-0 02 1 0209- ● ●
301 07.068 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 0209- ● ●
602 07.242 BRACKET; FRT STABILIZER 8-97801-156-4 01 1 9712- ● ●
602 07.242 BRACKET; FRT STABILIZER 8-97801-155-4 01 1 9712- ● ●
603 07.247 BOLT; BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 04 1 9712-0209 ● ●
603 07.247 BOLT; BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 04 1 0210- ● ●

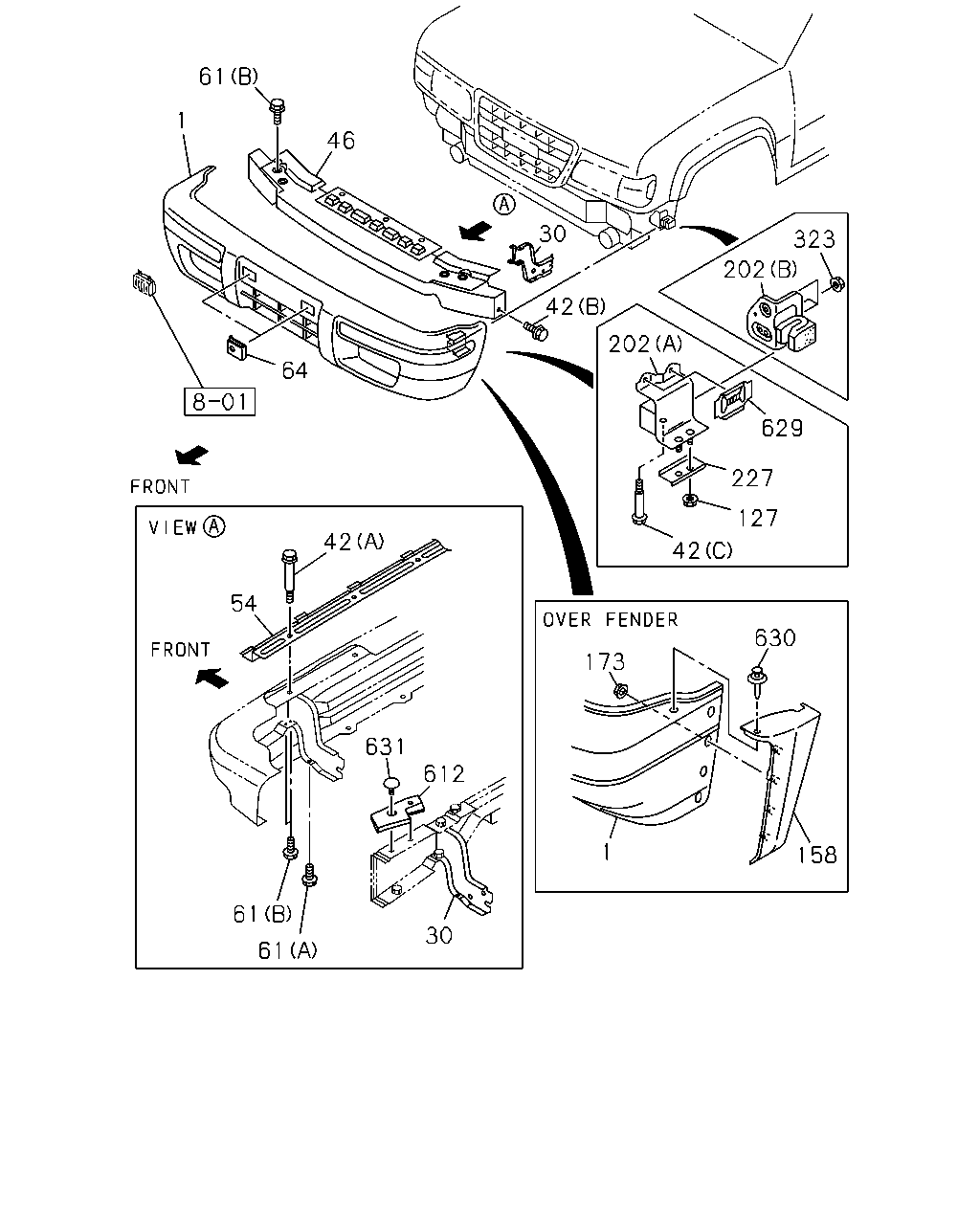

çizim 70154
61 1 46 30 323 202 42 202 64 629 227 127 42 42 54 630 173 631 612 1 158 61 30 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.831 BUMPER ASM; FRT
FOG LAMP FRT(T37) EXC. OVER FENDER<6GH> PRIMER 		8-97178-550-3 01 1 9712- ● ●
1 07.831 BUMPER ASM; FRT
EXC. FOG LAMP FRT(T37),OVER FENDER<6GH> PRIMER 		8-97178-548-3 01 1 9712- ● ●
1 07.831 BUMPER ASM; FRT
OVER FENDER<6GH> EXC. BODY SIDE MOLDING<B85>,FOG LAMP FRT(T37) PRIMER 		8-97178-537-3 02 1 9712-9910 ● ●
1 07.831 BUMPER ASM; FRT
OVER FENDER<6GH> EXC. BODY SIDE MOLDING<B85>,FOG LAMP FRT(T37) PRIMER 		8-97240-177-0 01 1 9911- ● ●
1 07.831 BUMPER ASM; FRT
FOG LAMP FRT(T37) OVER FENDER<6GH> EXC. BODY SIDE MOLDING<B85> PRIMER 		8-97178-535-3 01 1 9712-9910 ● ●
1 07.831 BUMPER ASM; FRT
FOG LAMP FRT(T37) OVER FENDER<6GH> EXC. BODY SIDE MOLDING<B85> PRIMER 		8-97240-178-1 01 1 9911- ● ●
1 07.831 BUMPER ASM; FRT
BODY SIDE MOLDING<B85> OVER FENDER<6GH> EXC. FOG LAMP FRT(T37) PRIMER 		8-97183-502-2 01 1 9712-9910 ● ●
1 07.831 BUMPER ASM; FRT
BODY SIDE MOLDING<B85> OVER FENDER<6GH> EXC. FOG LAMP FRT(T37) PRIMER 		8-97240-180-1 01 1 9911- ● ●
1 07.831 BUMPER ASM; FRT
BODY SIDE MOLDING<B85> FOG LAMP FRT(T37) OVER FENDER<6GH> PRIMER 		8-97183-500-2 01 1 9712-9910 ● ●
1 07.831 BUMPER ASM; FRT
BODY SIDE MOLDING<B85> FOG LAMP FRT(T37) OVER FENDER<6GH> PRIMER 		8-97240-179-1 01 1 9911- ● ●
30 07.869 BRACKET; FRT BUMPER 8-97811-368-0 01 1 9712- ● ●
30 07.869 BRACKET; FRT BUMPER 8-97811-367-0 01 1 9712- ● ●
42 07.874 BOLT; BUMPER
04.439 (A) M6X16 FLANGE 		0-28680-616-0 05 1 9712- ● ●
42 07.874 BOLT; BUMPER
(B) M12X30 FLANGE 		0-28691-230-0 04 1 9712- ● ●
42 07.874 BOLT; BUMPER
(C) 		8-97131-643-0 02 1 9712- ● ●
46 07.840 REINFORCEMENT; BUMPER 8-97175-346-2 01 1 9712- ● ●
54 07.832 RETAINER; FRT BUMPER 8-97175-043-0 01 1 9712- ● ●
61 07.832 BOLT; BACK BAR
02.664 (B) M8X20 FLANGE 		0-28680-820-0 08 1 9712- ● ●
61 07.832 BOLT; BACK BAR
07.875 (A) M6X16 FLANGE 		8-97804-671-1 02 1 9712- ● ●
64 07.829 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94342-576-1 02 1 9712-0006 ● ●
64 07.829 NUT; CLIP
AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-94342-576-1 02 1 9712-0006 ●
64 07.829 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94342-576-1 02 1 0007-0011 ● ●
64 07.829 NUT; CLIP 8-94342-576-1 02 1 0012- ●
64 07.829 NUT; CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94342-576-1 02 1 0012- ●
127 07.829 NUT; FRT BUMPER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9712- ● ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> 		8-97178-505-0 01 1 9712-9910 ● ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> 		8-97240-204-0 01 1 9911- ● ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> 		8-97178-504-0 01 1 9712-9910 ● ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> 		8-97240-203-0 01 1 9911- ● ●
173 07.874 NUT; EXT
OVER FENDER<6GH> 07.833 M6 FLANGE 		8-97063-399-0 08 1 9712- ● ●
202 07.869 BRACKET; BUMPER SIDE
(B) 		8-97161-070-0 01 1 9712- ● ●
202 07.869 BRACKET; BUMPER SIDE
(A) 		8-97175-520-2 01 1 9712- ● ●
202 07.869 BRACKET; BUMPER SIDE
(B) 		8-97161-072-0 01 1 9712- ● ●
202 07.869 BRACKET; BUMPER SIDE
(A) 		8-97175-518-2 01 1 9712- ● ●
227 07.874 WASHER; SPECIAL,BUMPER LWR 8-97800-981-1 02 1 9712- ● ●
323 07.829 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 06 1 9712- ● ●
612 08.131 SUPPORT 8-97185-554-0 01 1 9712- ● ●
612 08.131 SUPPORT 8-97185-553-0 01 1 9712- ● ●
629 07.832 SPIRE; BRKT 8-97188-517-0 04 1 9712-0109 ● ●
629 07.832 SPIRE; BRKT 8-94401-528-1 04 1 0110- ● ●
630 01.263 FASTENER; EXT
OVER FENDER<6GH> 		8-97178-556-0 02 1 9712- ● ●
631 07.832 PLUG; BUMPER SPACER
16.549 D4.7X15 GRAY 		8-94279-801-0 02 1 9712- ● ●
