◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#73320) — 19 parça

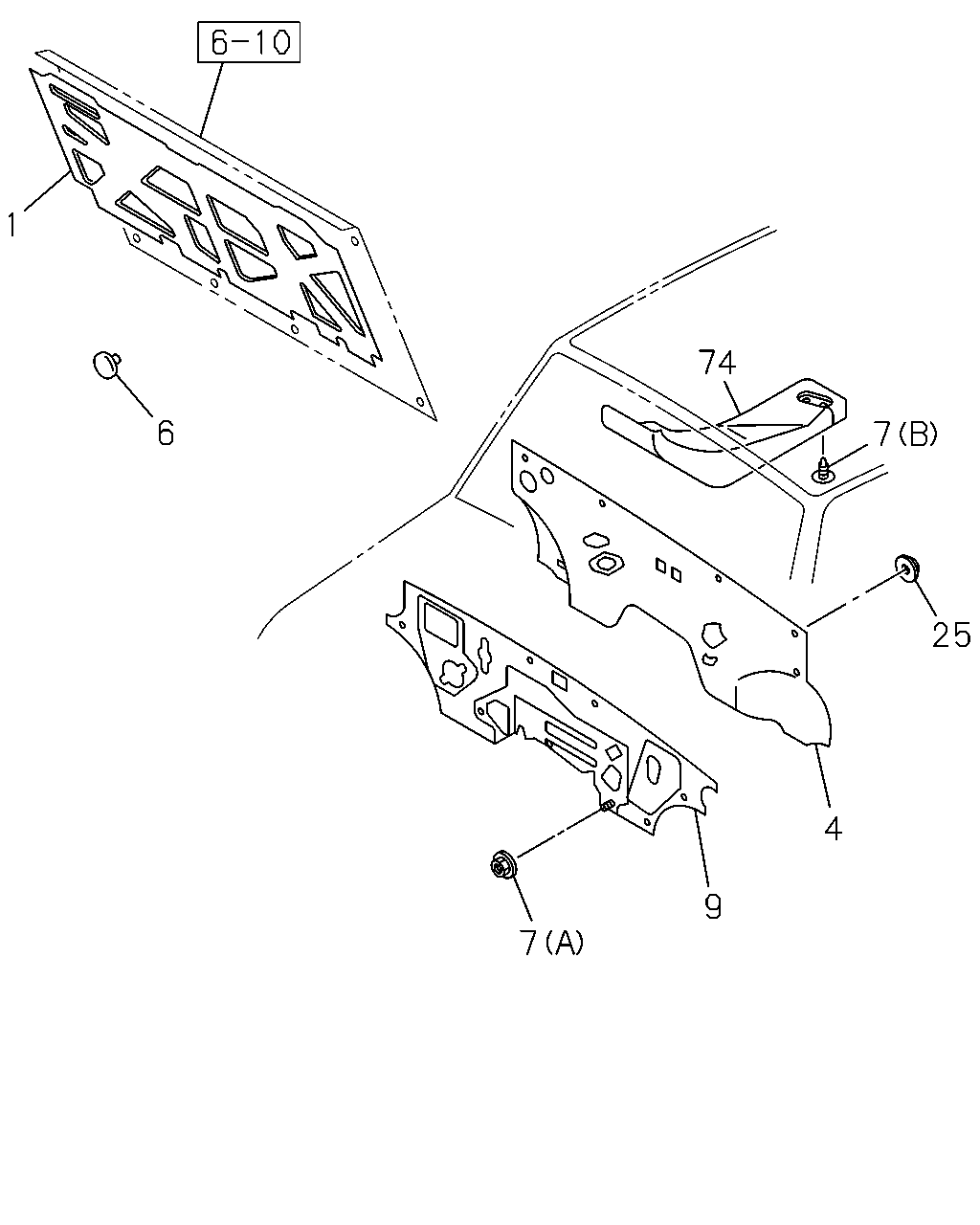

çizim 71966
1 74 6 7 25 4 9 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.021 INSULATION; ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97177-874-1 01 1 9712-9812 ● ●
1 08.021 INSULATION; ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97218-544-0 01 1 9901- ● ●
1 08.021 INSULATION; ENG HOOD
EXC. CHARGE AIR COOLER<6PL> 		8-97177-873-1 01 1 9712-9812 ● ●
1 08.021 INSULATION; ENG HOOD
EXC. CHARGE AIR COOLER<6PL> 		8-97218-543-0 01 1 9901- ● ●
4 08.021 INSULATION; DASH PNL,INNER 8-97138-531-3 01 1 9712- ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 16 1 9712- ● ●
7 08.021 CLIP; INSULATION
16.550 (A) H=10.5 		8-94441-810-0 08 1 9712-0105 ● ●
7 08.021 CLIP; INSULATION
4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.550 (A) H=10.5 		8-94441-810-0 07 1 0106- ● ●
7 08.021 CLIP; INSULATION
4JX1 ENG(RJM) 16.550 (A) H=10.5 		8-94441-810-0 08 1 0106- ● ●
7 08.021 CLIP; INSULATION
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 16.549 (B) OD=28 BLACK 		8-94279-997-0 02 1 0106-0208 ● ●
7 08.021 CLIP; INSULATION
4JX1 ENG(RJM) EURO3 SPECIFICATION(NT3) 16.549 (B) OD=28 BLACK 		8-94279-997-0 02 1 0209- ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97176-112-1 01 1 9712-0105 ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) 		8-97303-067-0 01 1 0106-0211 ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JG2 ENG(RJC),6VE1 ENG(RJQ),6VD1 ENG(RLV) 		8-97361-162-0 01 1 0212- ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JX1 ENG(RJM) 		8-97303-068-0 01 1 0106-0211 ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JX1 ENG(RJM) 		8-97361-163-0 01 1 0212- ● ●
25 16.802 CLIP; DASH INSULATION
16.550 H=10.5 		8-94441-810-0 05 1 9712- ● ●
74 08.021 INSULATOR; ENG ROOM
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 		8-97302-327-0 01 1 0106-0208 ● ●
74 08.021 INSULATOR; ENG ROOM
4JX1 ENG(RJM) EURO3 SPECIFICATION(NT3) 		8-97302-327-0 01 1 0209- ● ●
