8-52 — PIPING; AIR CONDITIONING (#7332) — 52 parça
çizim 8468
189 15
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 9906-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83572-412-0 01 1 9906-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 9906-

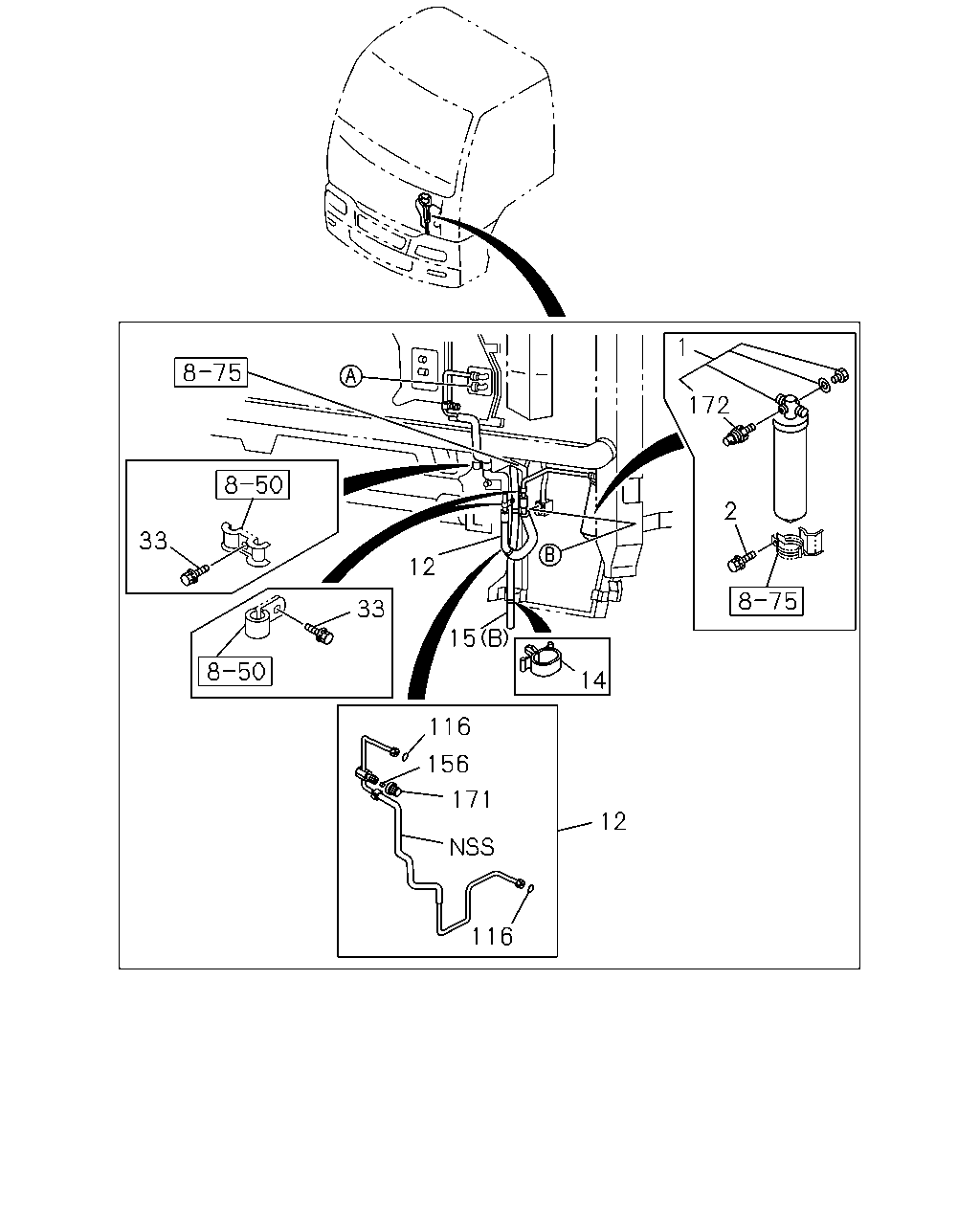

çizim 44499
1 172 2 33 12 33 15 14 116 156 171 12 116
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-085-0 01 1 9906-
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9906-
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-668-0 01 1 9906-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 9906-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 9906-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83572-412-0 01 1 9906-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9906-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 02 1 9906-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9906-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9906-
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-218-0 01 1 9906-

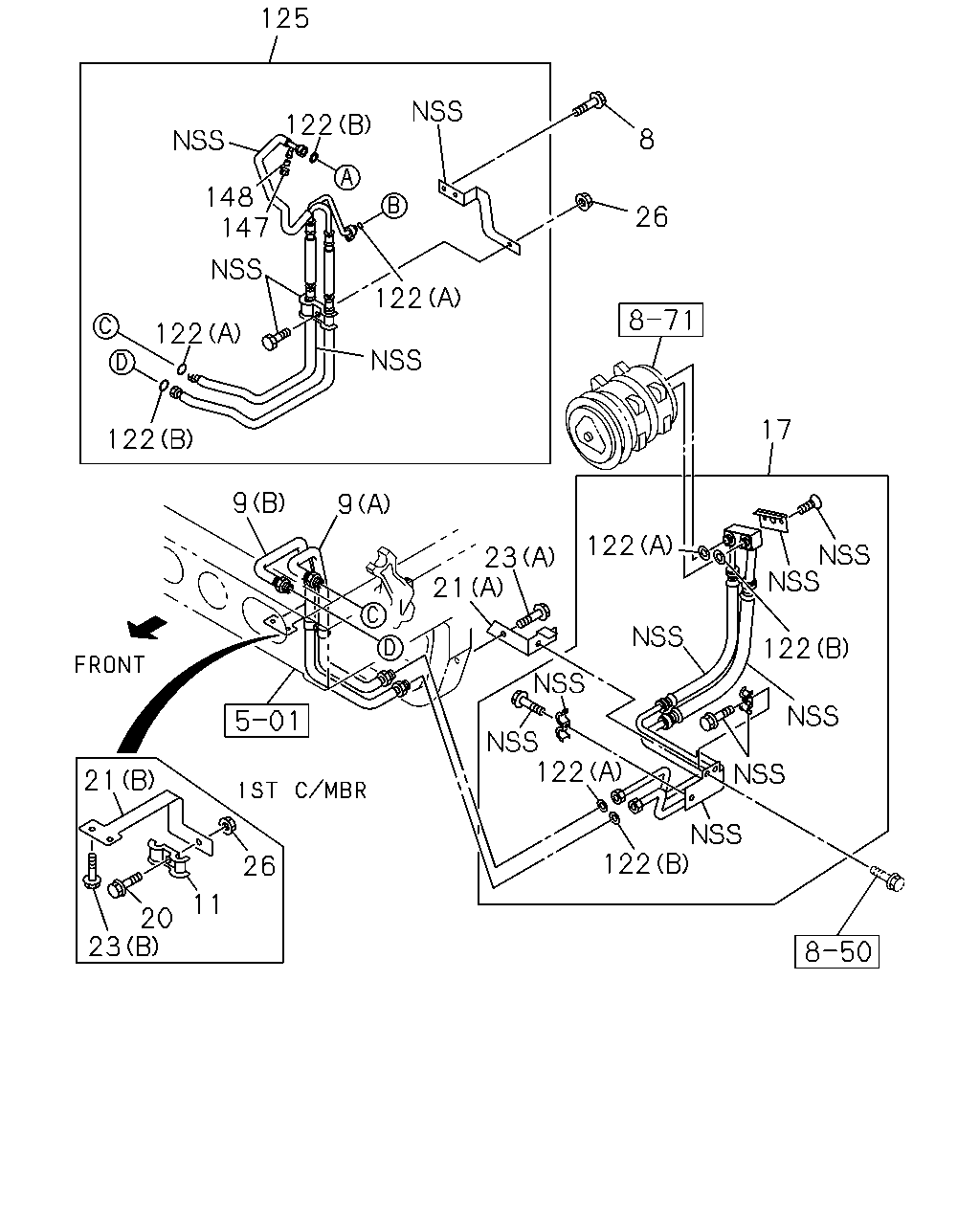

çizim 44500
125 122 8 148 147 26 122 122 17 122 9 9 23 21 122 122 122 21 122 26 11 20 23
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9906-9908
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9906-9908
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9906-9908
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9909-0103
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0104-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8X18 FLANGE 		0-28080-818-0 01 1 0104-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83567-669-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) 		1-83567-670-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83572-552-0 01 1 9906-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) 		1-83572-556-0 01 1 9906-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9906-9908
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9906-9908
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 9909-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=12.2 & 16.2 		1-83574-190-0 01 1 9906-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-581-1 01 1 9906-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-570-1 01 1 9906-
20 BOLT; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 9906-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 9906-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) 		1-83571-998-0 01 1 9906-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) 		1-83573-018-0 01 1 9906-9908
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9906-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) M8X30 FLANGE 		0-28680-830-0 02 1 9906-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9906-9908
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9906-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9906-9908
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9906-9908
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9909-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B) ID=15.5 		8-97161-777-0 02 1 9906-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5 		8-97161-777-0 02 1 9906-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A) ID=18.3 		8-97161-778-0 02 1 9906-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=18.3 		8-97161-778-0 02 1 9906-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (B) ID=15.5 		8-97161-777-0 01 1 9906-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) ID=18.3 		8-97161-778-0 01 1 9906-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> 		1-83572-465-1 01 1 9906-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> 		1-83572-543-1 01 1 9906-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9906-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9906-
