◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶

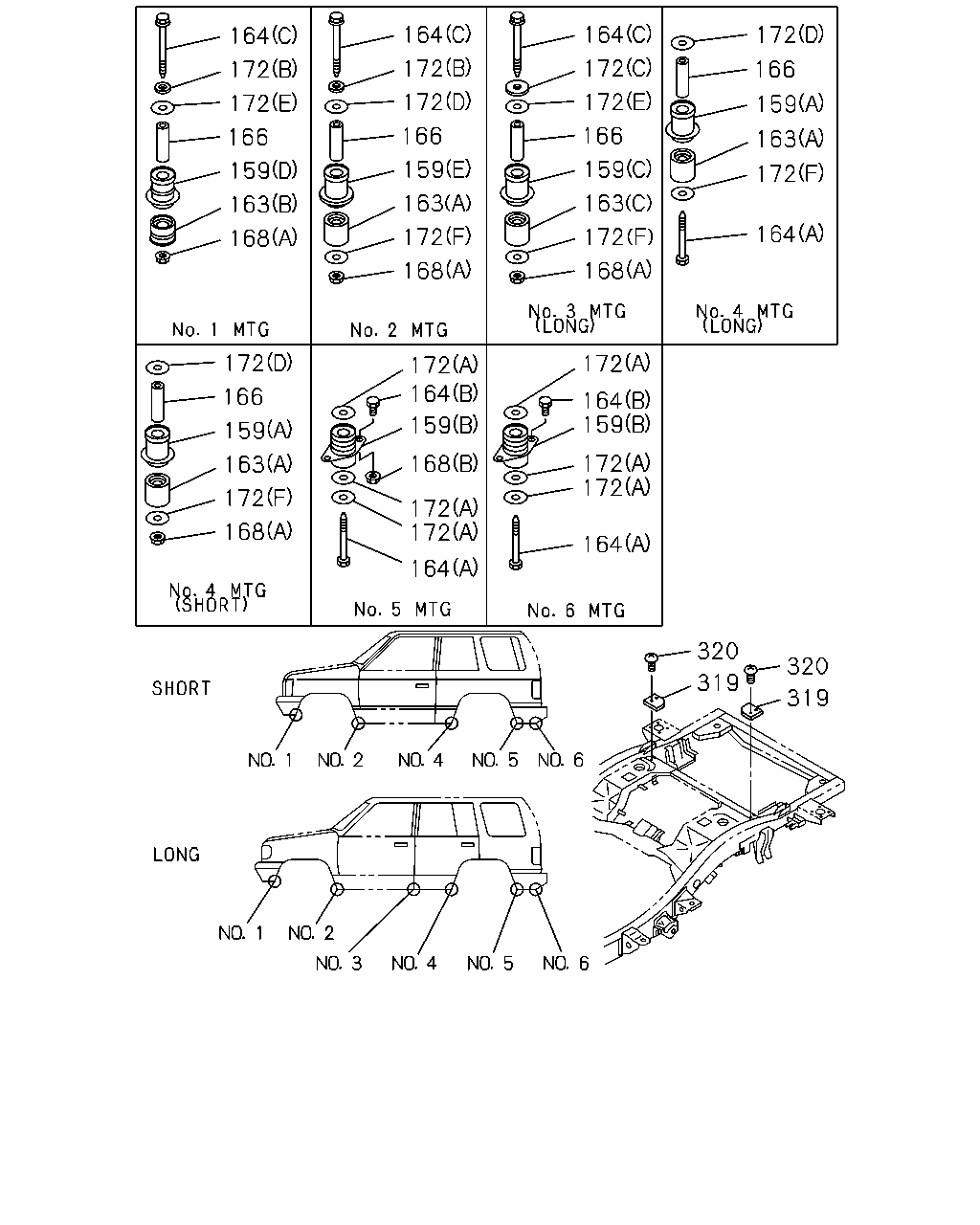

5-10 — CAB MOUNTING; FRAME SIDE (#73317) — 68 parça

164 172 164 164 172 172 166 172 172 172 172 159 166 166 166 163 159 159 159 172 163 163 163 164 172 172 168 168 168 172 172 172 164 166 164 159 159 159 172 172 168 163 172 172 172 168 164 164 320 320 319 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) NO.5,NO.6	8-97077-844-0	02	1	9712-	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JX1 ENG(RJM) (B) NO.5,NO.6	8-97077-843-0	02	1	9712-	●
159	09.023 RUBBER; CUSHION,CAB MTG 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (E) NO.2	8-97132-078-0	02	1	9712-	●
159	09.023 RUBBER; CUSHION,CAB MTG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (B) NO.5,NO.6	8-94370-631-1	04	1	9712-	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) NO.5,NO.6	8-94370-631-1	04	1	9712-		●
159	09.023 RUBBER; CUSHION,CAB MTG (D) NO.1	8-94325-155-2	02	1	9712-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A) NO.4	8-94370-629-2	02	1	9712-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (E) NO.2	8-94227-778-3	02	1	9712-9712	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (E) NO.2	8-94227-778-3	02	1	9712-9712	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (E) NO.2	8-94227-778-3	02	1	9801-9908	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (E) NO.2	8-94227-778-3	02	1	9801-9908		●
159	09.023 RUBBER; CUSHION,CAB MTG 4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (E) NO.2	8-94227-778-3	02	1	9909-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG EXC. EUROPE EQUIPMENT(EK4) (E) NO.2	8-94227-778-3	02	1	9909-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (C) NO.3	8-94325-158-2	02	1	9712-		●
159	09.023 RUBBER; CUSHION,CAB MTG 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (E) NO.2	8-97035-571-2	02	1	9712-9712		●
159	09.023 RUBBER; CUSHION,CAB MTG 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (E) NO.2	8-97035-571-2	02	1	9801-9802	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (E) NO.2	8-97035-571-2	02	1	9801-9802	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (E) NO.2	8-97035-571-2	02	1	9803-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (E) NO.2	8-97035-571-2	02	1	9803-		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A) NO.2	8-97132-079-0	02	1	9712-	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.1	8-94325-156-0	02	1	9712-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A) NO.2,NO.4	8-94227-777-1	02	1	9712-9712	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (A) NO.2,NO.4	8-94227-777-1	02	1	9712-9712	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.2,NO.4	8-94227-777-1	02	1	9712-9712	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (A) NO.2,NO.4	8-94227-777-1	02	1	9801-9908	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.2,NO.4	8-94227-777-1	02	1	9801-9908	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) NO.2,NO.4	8-94227-777-1	02	1	9801-9908		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.2,NO.4	8-94227-777-1	02	1	9909-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) NO.2,NO.4	8-94227-777-1	02	1	9909-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE EQUIPMENT(EK4) (A) NO.2,NO.4	8-94227-777-1	02	1	9909-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3	8-94157-885-0	02	1	9712-		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A) NO.2	8-97035-572-1	02	1	9712-9712		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) NO.2	8-97035-572-1	02	1	9801-9802	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A) NO.2	8-97035-572-1	02	1	9801-9802	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) NO.2	8-97035-572-1	02	1	9803-	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) (A) NO.2	8-97035-572-1	02	1	9803-		●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG 03.611 (B) NO.5,NO.6 M10X20 FLANGE	0-28681-020-0	08	1	9712-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.5,NO.6 M10X102	8-97091-599-0	04	1	9712-0008	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.5,NO.6 M10X110	8-97289-814-0	04	1	0009-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (C) NO.1 M10X120	8-97134-968-0	02	1	9712-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (C) NO.2,NO.3 M10X105	8-97142-724-0	04	1	9712-	●	●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.4 M10X102	8-97091-599-0	02	1	9712-0008		●
164	09.008 BOLT; CUSHION RUBBER,CAB MTG (A) NO.4 M10X110	8-97289-814-0	02	1	0009-		●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.1,NO.2,NO.4 L=70	8-97148-478-0	06	1	9712-	●	●
166	09.009 PIECE; DIST,BODY MTG RUBBER NO.3 L=70	8-97148-478-0	02	1	9712-		●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 04.785 (B) NO.5 M10 FLANGE	0-91150-110-0	04	1	9712-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 08.917 (A) NO.1,2,NO.3 LWB,NO.4 SWB M10 FLANGE	0-91150-210-0	06	1	9712-	●	●
172	09.011 WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JX1 ENG(RJM) (A) NO.5,NO.6 ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9712-	●
172	09.011 WASHER; BODY MTG RUBBER 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) NO.5,NO.6 ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9712-	●
172	09.011 WASHER; BODY MTG RUBBER (A) NO.5,NO.6 ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9712-		●
172	09.011 WASHER; BODY MTG RUBBER (F) NO.2,NO.4 ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9712-	●	●
172	09.011 WASHER; BODY MTG RUBBER (B) NO.1,NO.2 OD=32 T=6.0	8-94416-693-0	04	1	9712-	●	●
172	09.011 WASHER; BODY MTG RUBBER (C) NO.3 OD=48 T=6.0	8-94416-694-0	02	1	9712-	●	●
172	09.011 WASHER; BODY MTG RUBBER (D) NO.2,NO.4 OD=62 T=2.9	8-97077-385-1	04	1	9712-	●	●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.1,NO.3 OD=48 T=2.9	8-97077-386-1	02	1	9712-	●	●
172	09.011 WASHER; BODY MTG RUBBER (E) NO.1,NO.3 OD=48 T=2.9	8-97077-386-1	02	1	9712-		●
172	09.011 WASHER; BODY MTG RUBBER (F) NO.3 ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9712-		●
319	09.023 GASKET; BODY MTG BOLT	8-97021-539-3	02	1	9712-	●	●
320	09.011 SCREW; BODY MTG GASKET 16.575 M6X16 TAPPING CK-HEAD	0-70180-616-0	04	1	9712-	●	●

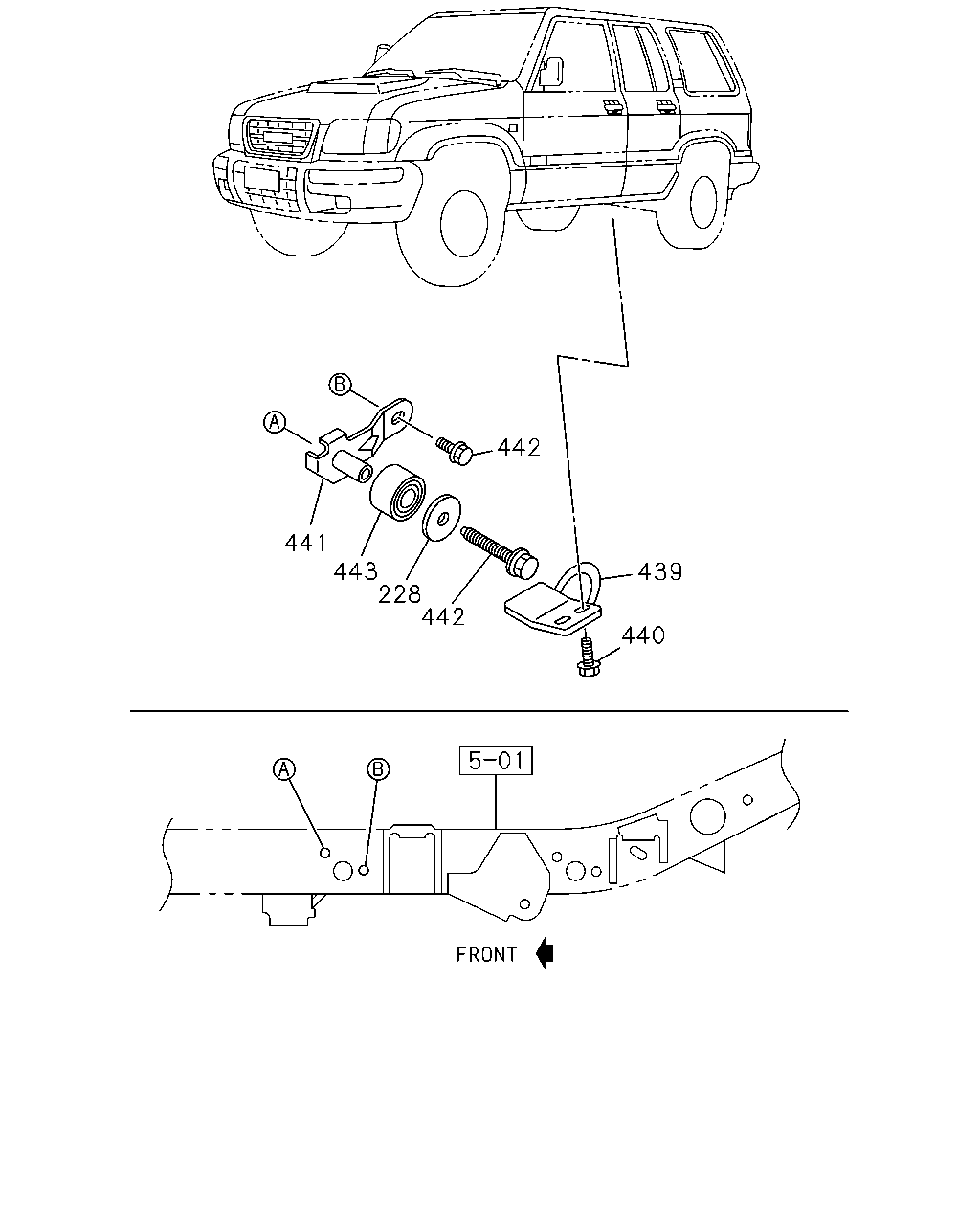

442 441 443 228 442 439 440

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
228	09.008 WASHER; PL AIR BAG DRIVER<AJ3> 08.929 ID=15 OD=36	9-09164-714-0	02	1	9712-	●	●
439	07.380 ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-499-2	01	1	9712-	●	●
439	07.380 ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-498-2	01	1	9712-	●	●
440	09.008 BOLT; ROD AIR BAG DRIVER<AJ3> M14X30 FLANGE	0-28691-430-0	04	1	9712-	●	●
441	09.003 BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-500-1	01	1	9712-	●	●
441	09.003 BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-501-1	01	1	9712-	●	●
442	09.003 BOLT; BRKT AIR BAG DRIVER<AJ3> M10X25 FLANGE	0-28691-025-0	02	1	9712-	●	●
442	09.003 BOLT; BRKT AIR BAG DRIVER<AJ3> 07.242 M14X85 FLANGE	8-97022-802-3	02	1	9712-	●	●
443	09.003 CUSHION; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-502-0	02	1	9712-	●	●
