Sayfa 4-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶

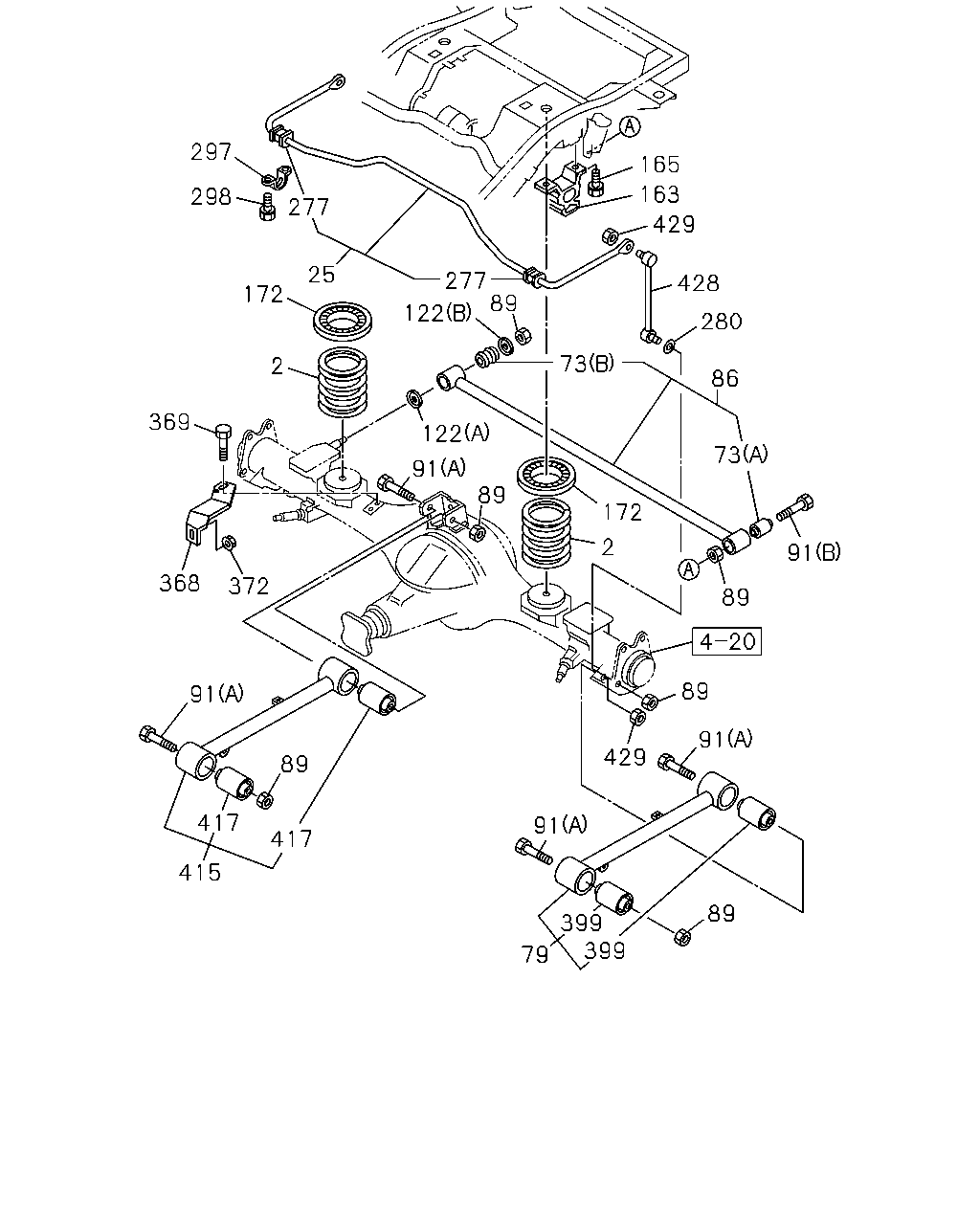

4-60 — REAR SUSPENSION (#73313) — 67 parça

297 165 163 298 277 429 25 277 89 428 172 122 280 73 2 86 369 122 73 91 89 172 2 91 368 372 89 89 91 91 429 89 417 91 417 415 89 399 399 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.503 SPRING; COIL,RR SUSP EUROPE EQUIPMENT(EK4)	8-97108-028-0	02	1	9712-	●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE & HANDLING<FE2>	8-97108-026-0	02	1	9712-0011	●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>	8-97108-026-0	02	1	9712-0011	●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4)	8-97108-026-0	02	1	0012-	●
2	07.503 SPRING; COIL,RR SUSP AUSTRALIA EQUIPMENT(RR3) WIDE TREAD SUSPENSION<7FC>	8-97304-947-0	02	1	0012-		●
2	07.503 SPRING; COIL,RR SUSP EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPM ENT(S3D)	8-97114-055-0	02	1	9712-0102		●
2	07.503 SPRING; COIL,RR SUSP EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97114-055-0	02	1	0103-		●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D)	8-97108-025-0	02	1	9712-0102		●
2	07.503 SPRING; COIL,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97108-025-0	02	1	0103-		●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA E QUIPMENT(S3D)	8-97108-030-0	02	1	9712-0011		●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIP MENT(SW2),WEST MALAYSIA EQUIPMENT(S3D)	8-97108-030-0	02	1	0012-0102		●
2	07.503 SPRING; COIL,RR SUSP AUSTRALIA EQUIPMENT(RR3) EXC. WIDE TREAD SUSPENSION<7FC>	8-97108-030-0	02	1	0012-0102		●
2	07.503 SPRING; COIL,RR SUSP SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUI PMENT(S3D)	8-97108-030-0	02	1	0103-		●
2	07.503 SPRING; COIL,RR SUSP AUSTRALIA EQUIPMENT(RR3) EXC. WIDE TREAD SUSPENSION<7FC>	8-97108-030-0	02	1	0103-		●
25	07.241 BAR ASM; STAB,RR SUSP EUROPE EQUIPMENT(EK4)	8-97163-444-0	01	1	9712-0102	●
25	07.241 BAR ASM; STAB,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D)	8-97163-444-0	01	1	9712-0102		●
25	07.241 BAR ASM; STAB,RR SUSP EUROPE EQUIPMENT(EK4)	8-97163-444-0	01	1	0103-	●
25	07.241 BAR ASM; STAB,RR SUSP EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97163-444-0	01	1	0103-		●
25	07.241 BAR ASM; STAB,RR SUSP EXC. EUROPE EQUIPMENT(EK4)	8-97163-445-0	01	1	9712-0102	●
25	07.241 BAR ASM; STAB,RR SUSP EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPM ENT(S3D)	8-97163-445-0	01	1	9712-0102		●
25	07.241 BAR ASM; STAB,RR SUSP SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA E QUIPMENT(S3D)	8-97163-445-0	01	1	9712-0102		●
25	07.241 BAR ASM; STAB,RR SUSP EXC. EUROPE EQUIPMENT(EK4)	8-97163-445-0	01	1	0103-	●
25	07.241 BAR ASM; STAB,RR SUSP EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97163-445-0	01	1	0103-		●
25	07.241 BAR ASM; STAB,RR SUSP SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), WEST MALAYSIA EQUIPMENT(S3D)	8-97163-445-0	01	1	0103-		●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (A)	8-94375-106-0	01	1	9712-	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (B)	8-97081-408-0	01	1	9712-0201	●	●
73	07.243 BUSHING; LATERAL ROD,RR SUSP (B)	8-97308-573-1	01	1	0202-	●	●
79	07.240 LINK; TRAILING,RR SUSP	8-97130-543-0	02	1	9712-	●
79	07.240 LINK; TRAILING,RR SUSP	8-97130-541-0	02	1	9712-		●
86	07.241 ROD; LATERAL,RR SUSP 4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV)	8-94374-445-2	01	1	9712-0201	●	●
86	07.241 ROD; LATERAL,RR SUSP 4JG2 ENG(RJC),4JX1 ENG(RJM),6VD1 ENG(RLV)	8-97326-535-0	01	1	0202-	●	●
86	07.241 ROD; LATERAL,RR SUSP 6VE1 ENG(RJQ)	8-97187-709-0	01	1	9712-0201	●	●
86	07.241 ROD; LATERAL,RR SUSP 6VE1 ENG(RJQ)	8-97326-536-0	01	1	0202-	●	●
89	07.242 NUT; LATERAL ROD TO RR AXLE 07.417 M14 FLANGE	8-94137-483-0	08	1	9712-	●	●
91	07.242 BOLT; LATERAL ROD TO BODY (A) M14X106 FLANGE	8-97022-753-3	06	1	9712-	●	●
91	07.242 BOLT; LATERAL ROD TO BODY (B) M14X85 FLANGE	8-97022-802-3	01	1	9712-	●	●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL (A)	8-94379-595-1	01	1	9712-0201	●	●
122	07.242 WASHER; LK,LATERAL ROD TO RR AXL (B)	8-94379-596-1	01	1	9712-	●	●
163	07.529 RUBBER; HELPER,RR SPR	8-94374-448-1	02	1	9712-	●	●
165	07.529 BOLT; HELPER RUBBER 06.606 M10X20 W/LK WASHER	8-97033-053-1	04	1	9712-	●	●
172	07.545 INSULATOR; RR SPR UPR	8-97113-325-0	02	1	9712-	●	●
277	07.243 BUSHING; STAB,RR UPR EUROPE EQUIPMENT(EK4)	8-97048-318-0	02	1	9712-0102	●
277	07.243 BUSHING; STAB,RR UPR EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D)	8-97048-318-0	02	1	9712-0102		●
277	07.243 BUSHING; STAB,RR UPR EUROPE EQUIPMENT(EK4)	8-97048-318-0	02	1	0103-	●
277	07.243 BUSHING; STAB,RR UPR EXC. EUROPE EQUIPMENT(EK4),SUSPENSION RIDE & HANDLING<FE2>,EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97048-318-0	02	1	0103-		●
277	07.243 BUSHING; STAB,RR UPR EXC. EUROPE EQUIPMENT(EK4)	8-97039-520-0	02	1	9712-0102	●
277	07.243 BUSHING; STAB,RR UPR EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPM ENT(S3D)	8-97039-520-0	02	1	9712-0102		●
277	07.243 BUSHING; STAB,RR UPR SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA E QUIPMENT(S3D)	8-97039-520-0	02	1	9712-0102		●
277	07.243 BUSHING; STAB,RR UPR EXC. EUROPE EQUIPMENT(EK4)	8-97039-520-0	02	1	0103-	●
277	07.243 BUSHING; STAB,RR UPR EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-520-0	02	1	0103-		●
277	07.243 BUSHING; STAB,RR UPR SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), WEST MALAYSIA EQUIPMENT(S3D)	8-97039-520-0	02	1	0103-		●
280	07.242 WASHER; PL,STAB BAR	8-97049-475-0	02	1	9712-	●	●
297	07.242 CAP; STAB BAR ID=36	8-97032-869-0	02	1	9712-	●	●
298	08.900 BOLT; STAB BAR TO BODY M8X20 W/LK WASHER	0-50040-820-0	04	1	9712-	●	●
368	07.526 BRACKET; SHACKLE TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97168-008-2	01	1	9712-9801	●	●
368	07.526 BRACKET; SHACKLE TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97204-284-0	01	1	9802-0005	●	●
368	07.526 BRACKET; SHACKLE TO RR AXLE BRK WHL LK CONT LSPV<6PH>	8-97204-284-0	01	1	0006-	●	●
369	07.526 BOLT; BRKT TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9712-0005	●	●
369	07.526 BOLT; BRKT TO RR AXLE BRK WHL LK CONT LSPV<6PH> 08.155 M8X16 FLANGE	0-28480-816-0	02	1	0006-	●	●
372	07.529 NUT; SHACKLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-0005	●	●
372	07.529 NUT; SHACKLE BRK WHL LK CONT LSPV<6PH> 01.540 M8 FLANGE	0-91150-208-0	01	1	0006-	●	●
399	07.243 BUSHING; TRAILING ROD	8-94375-105-0	04	1	9712-	●
399	07.243 BUSHING; TRAILING ROD 07.242	8-97021-055-0	04	1	9712-		●
415	07.240 LINK; CENTER,RR SUSP	8-94374-443-0	01	1	9712-	●	●
417	07.242 BUSHING; CENTER LINK	8-97021-055-0	02	1	9712-	●	●
428	07.240 LINK; RR STABILIZER	8-97018-125-2	02	1	9712-	●	●
429	07.242 NUT; LINK	8-97035-383-0	04	1	9712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
