◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#73310) — 10 parça

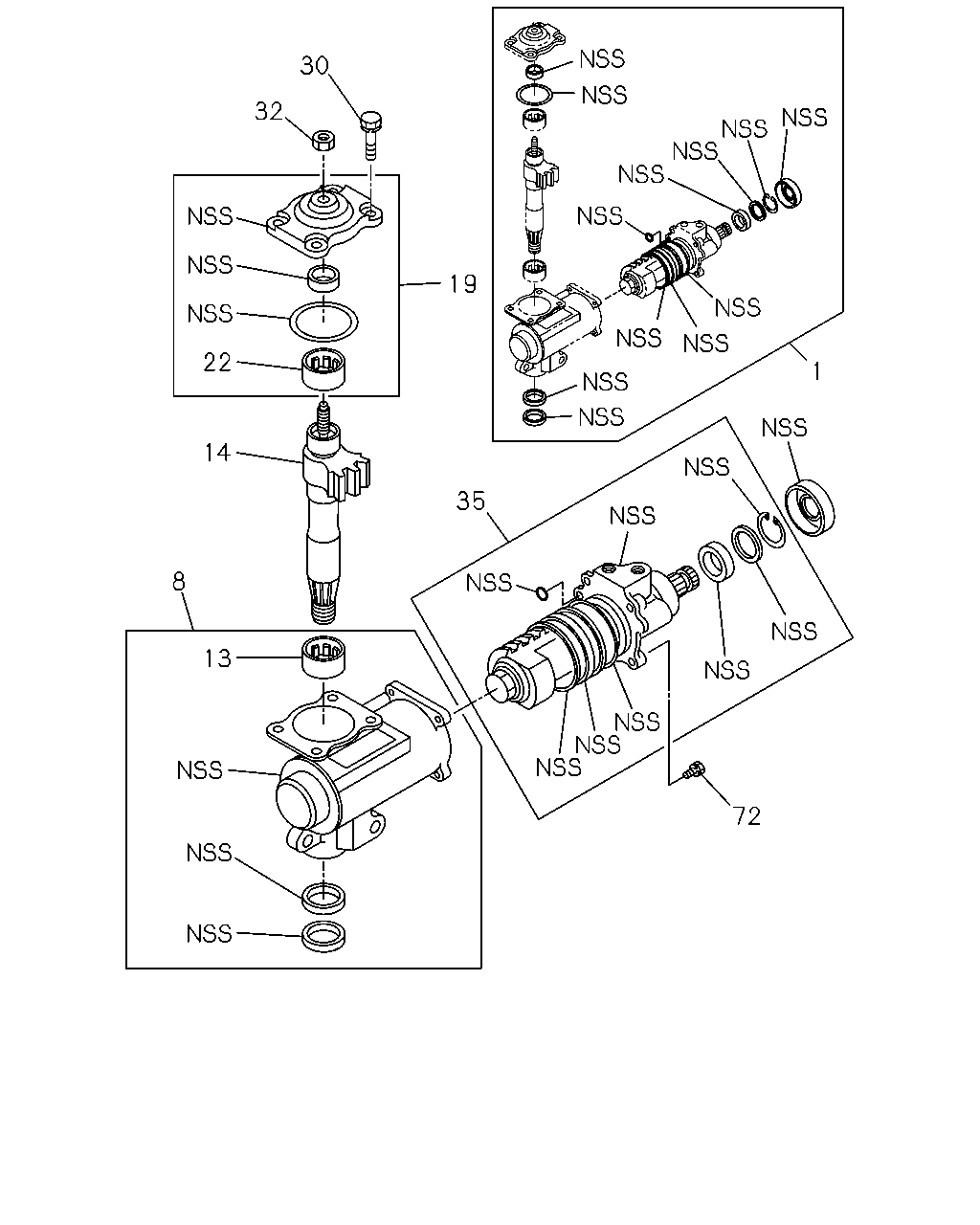

çizim 70047
30 32 19 22 1 14 35 8 13 72
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97109-987-6, 97109987 		8-97132-700-1 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97109-987-6, 97109987 		8-97132-696-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97109-987-6, 97109987 		8-94240-933-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97109-987-6, 97109987 		8-97132-698-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97109-987-6, 97109987 		8-97029-942-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97109-987-6, 97109987 		8-94240-939-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
M10X14 M10X22 ASM PART: A = 8-97109-987-6, 97109987 		8-94173-741-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97109-987-6, 97109987 		8-97029-944-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97109-987-6, 97109987 		8-97132-694-2 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
09.181, M10X22 ASM PART: A = 8-97109-987-6, 97109987 		9-01911-022-0 04 1 -
