8-50 — AIR CONDITIONING SYSTEM; FRONT
(#7331) — 22 parça
◀

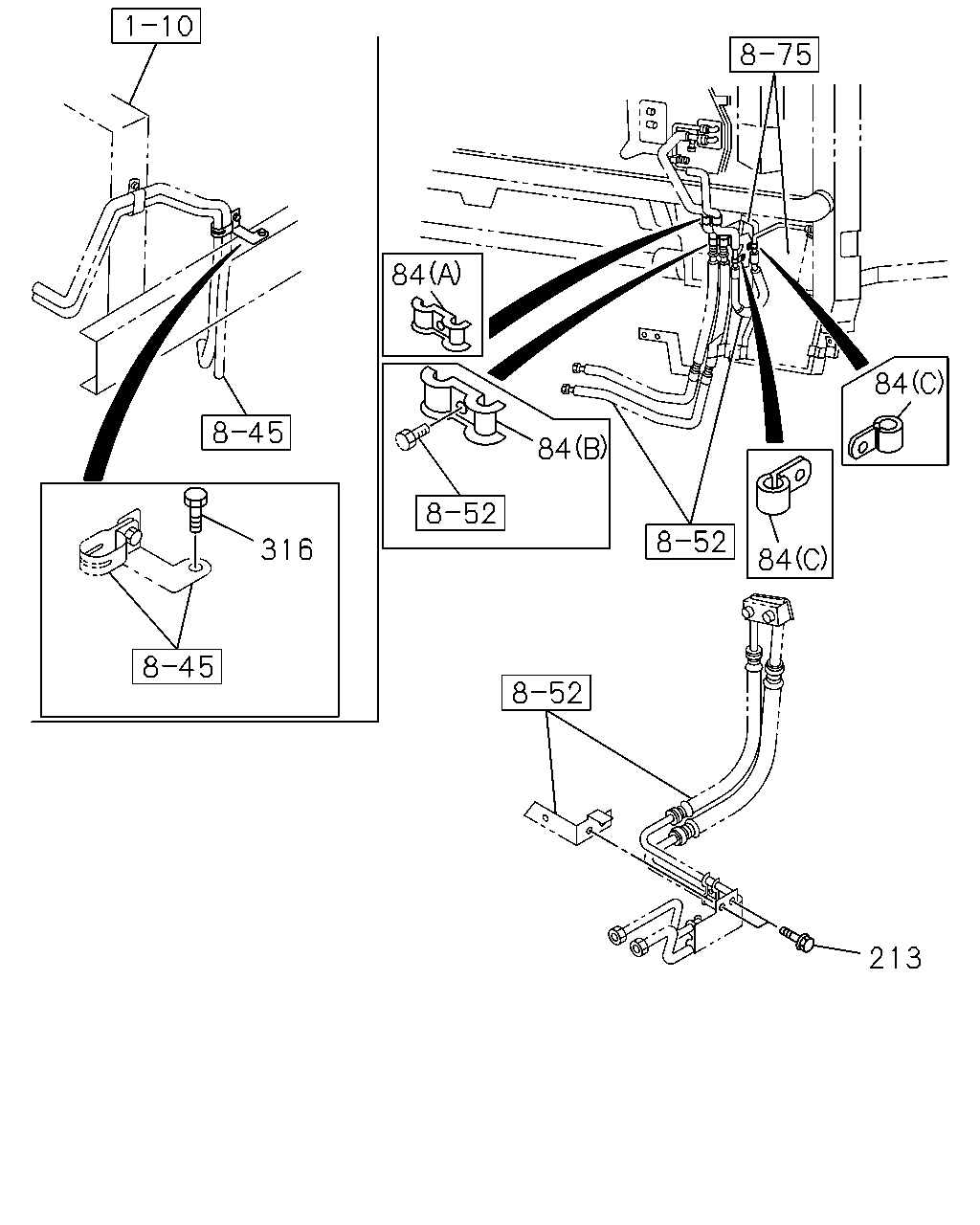

[850A] NO.1 (5 parça)

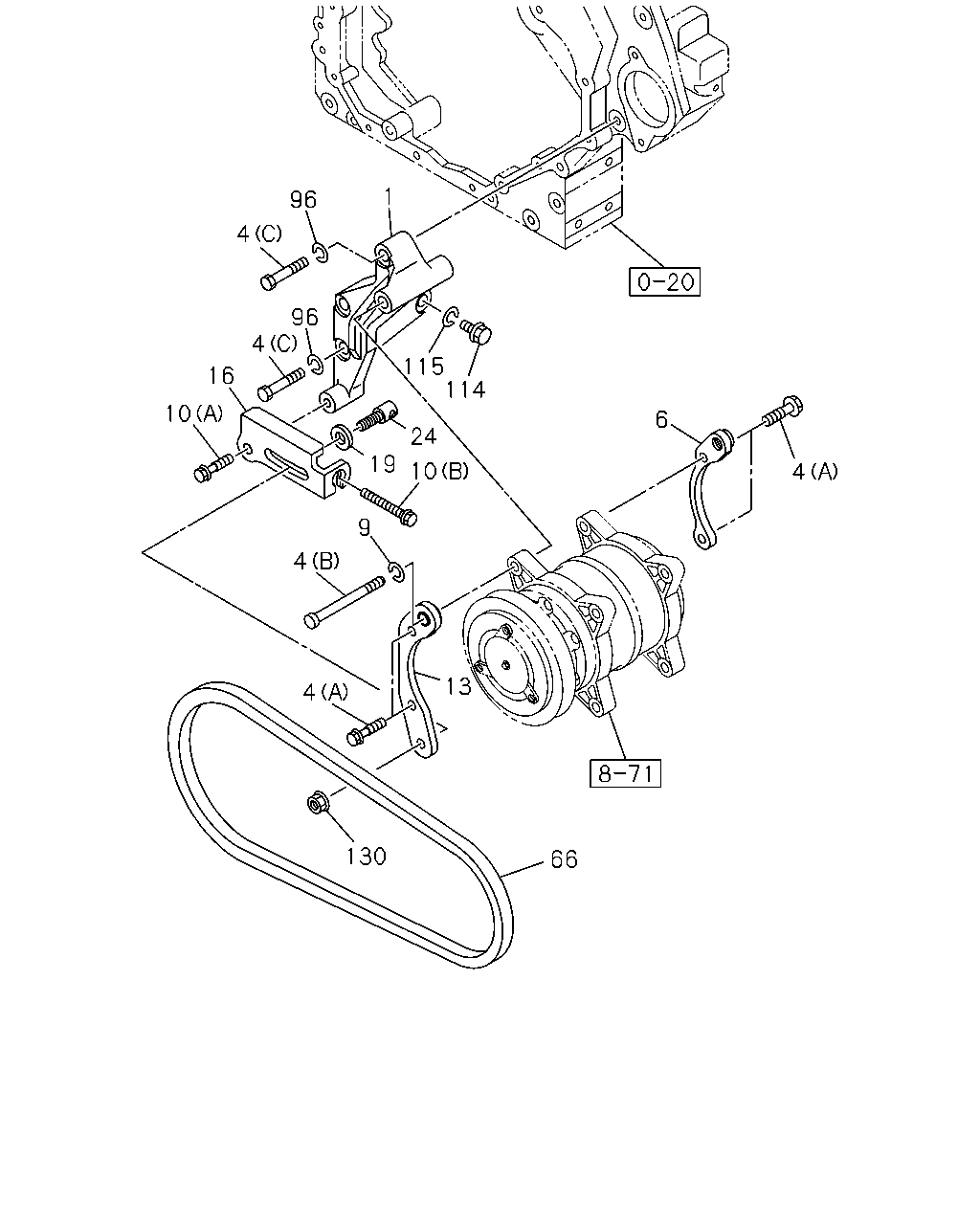

[850A] NO.2 (17 parça)
▶
84
84
84
316
84
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2
1-83574-190-0
01
1
9906-
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20
1-83574-195-1
01
1
9906-
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20
9-09524-835-0
02
1
9906-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE
0-28080-816-0
02
1
9906-
316
BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE
0-28680-830-0
01
1
9906-
1
96
4
96
4
115
114
16
10
6
24
19
10
4
9
4
13
4
130
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-842-0
01
1
9906-
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE
0-28081-025-0
04
1
9906-
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130
9-09804-177-2
01
1
9906-
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130
9-09804-194-1
02
1
9906-
6
BRACKET; CMPR,RR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-707-0
01
1
9906-
9
WASHER; LK,A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2
9-09150-512-0
01
1
9906-
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE
0-28181-225-0
01
1
9906-
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90
1-09009-151-0
01
1
9906-
13
BRACKET; CMPR,FRT
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-843-1
01
1
9906-
16
PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-13674-210-1
01
1
9906-
19
WASHER; PL,ADJ PLATE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32
9-09160-712-0
01
1
9906-
24
PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45
1-13674-160-0
01
1
9906-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131
1-13671-436-0
01
1
9906-
96
WASHER; LK
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2
9-09150-514-0
02
1
9906-
114
BOLT; BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) M14X35
0-23801-435-0
01
1
9906-
115
WASHER; LK,BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2
9-09150-514-0
01
1
9906-
130
NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE
0-91150-112-0
01
1
9906-
