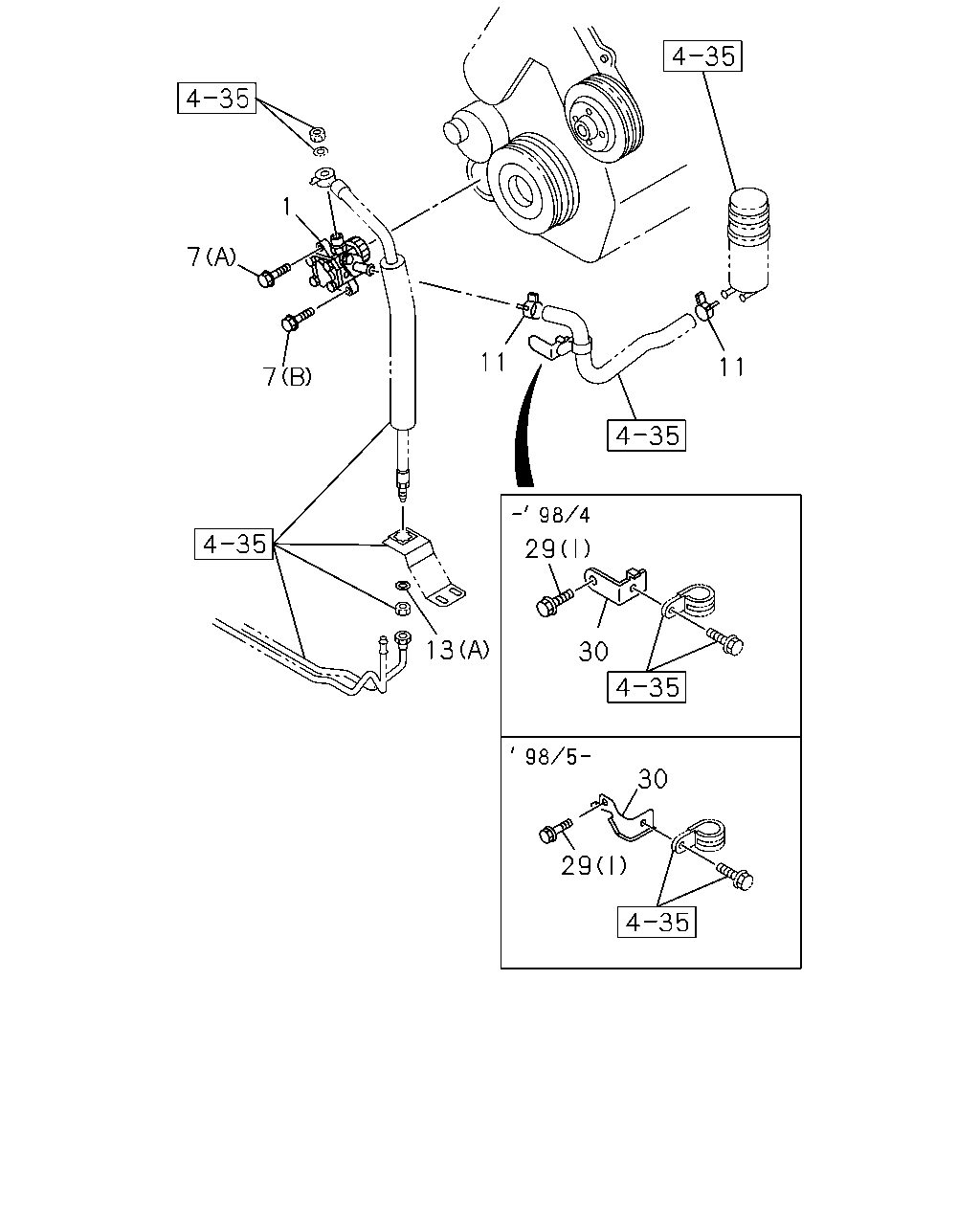

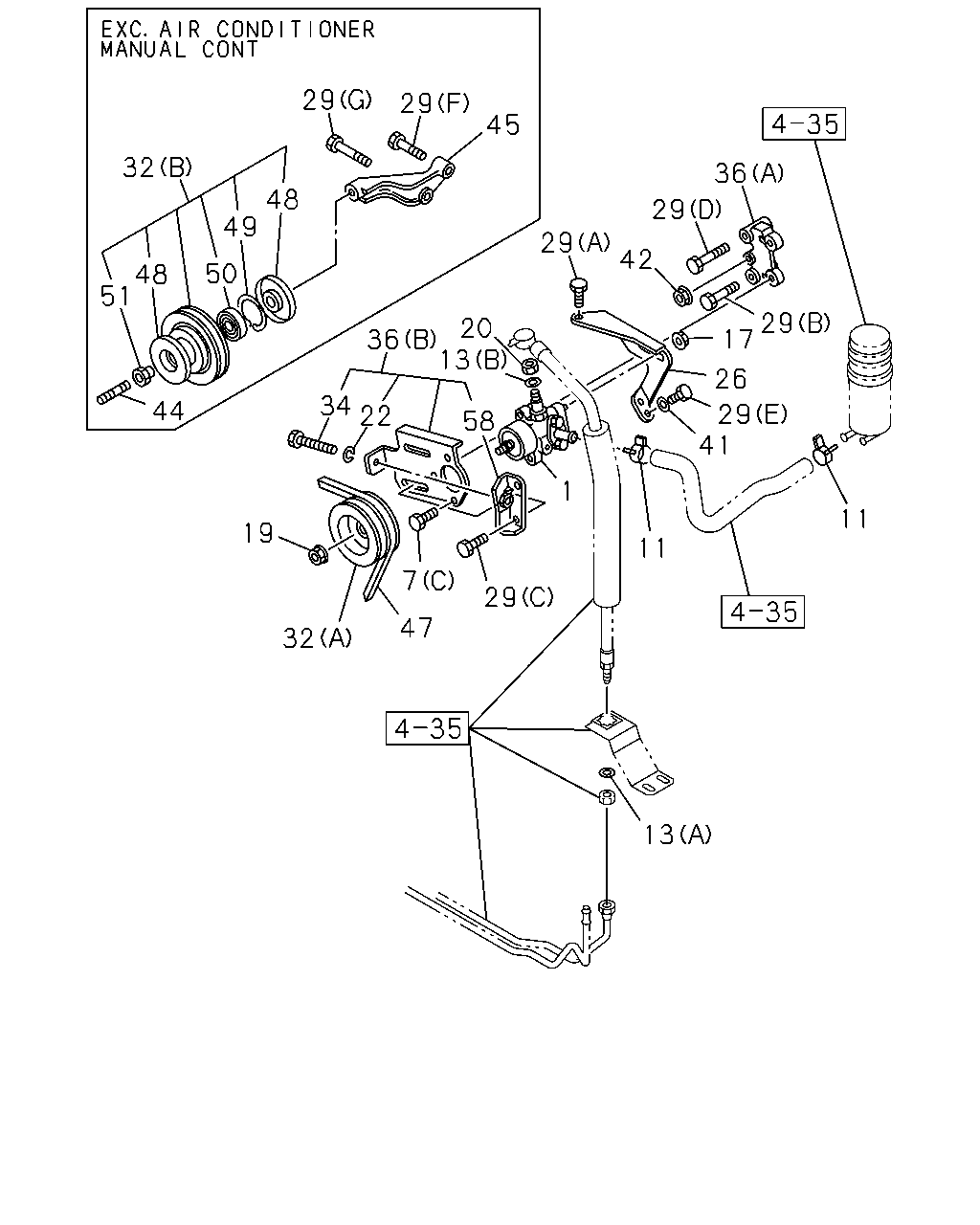

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#73309) — 133 parça

29 29 45 32 36 48 49 29 29 42 50 48 51 29 17 20 36 13 26 34 22 44 29 41 58 1 11 19 11 7 29 47 32 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-5	01	1	9712-0206	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97331-940-0	01	1	0207-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM)	8-97189-496-0	01	1	9712-0105	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4)	8-97189-496-0	01	1	0106-0111	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97254-108-1	01	1	0106-0111	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM)	8-97254-108-1	01	1	0112-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-604-0	01	1	9712-0105	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4)	8-97304-216-2	01	1	0106-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97262-128-2	01	1	0106-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) 06.606 (C) M10X20 W/LK WASHER	8-97033-053-1	03	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JX1 ENG(RJM) 09.171 (A) M8X80 FLANGE	0-28080-880-0	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JX1 ENG(RJM) 03.415 (B) M8X48 FLANGE	8-94458-473-1	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 09.198 (A) M10X100 FLANGE	0-28081-000-0	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●
11	06.672 CLIP; FLEX HOSE ID=21	8-94242-034-0	02	1	9712-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 06.672 (A) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9712-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC) 04.634 (B) ID=12.2	9-09150-512-0	01	1	9712-	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC) 08.917 M10 FLANGE	0-91150-210-0	01	1	9712-	●	●
17	06.606 NUT; POWER STRG PUMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) M12	8-94139-015-0	01	1	9712-	●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC) 06.606 M12	8-94139-015-0	01	1	9712-	●	●
20	06.673 NUT; HOSE TO PUMP 4JG2 ENG(RJC) 07.347 M12	9-99111-412-0	01	1	9712-	●	●
22	06.606 WASHER; LK,OIL PUMP,P/S 4JG2 ENG(RJC) 00.002 ID=10.2	9-09150-510-0	01	1	9712-	●	●
26	06.635 BRACKET; P/S PUMP,RR 4JG2 ENG(RJC)	8-97134-149-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	0107-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.330 (H) M10X60 FLANGE	0-28181-060-0	01	1	0107-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	0107-0108	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.545 (B) M8X40 FLANGE	0-28690-840-0	02	1	0109-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.415 (E) M8X35 FLANGE	0-28080-835-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 00.029 (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9712-9803	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.417 (C) M10X25 FLANGE	0-28081-025-0	02	1	9804-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.104 (B) M10X60 W/LK WASHER	0-50041-060-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JX1 ENG(RJM) 01.062 (I) M8X16 FLANGE	0-28080-816-0	01	1	9801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	9712-0106	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	9712-0106	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) 06.655 (A)	8-97042-266-1	01	1	9712-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-740-0	01	1	9712-	●	●
32	06.665 PULLEY; IDLER,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C)	8-97175-769-0	01	1	9712-	●	●
34	09.181 BOLT; ADJ PLATE 4JG2 ENG(RJC) M10X70	0-20801-070-0	01	1	9712-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) (B)	8-97066-759-1	01	1	0106-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) (A)	8-94478-880-1	01	1	9712-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) (B)	8-97066-758-1	01	1	9712-0105	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC) 00.029 ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9712-	●	●
41	06.168 WASHER; PL,BRKT 4JG2 ENG(RJC) 00.206 ID=8.4	9-09164-508-0	01	1	9712-	●	●
42	06.672 NUT; ADJ PLATE 4JG2 ENG(RJC) 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-	●	●
44	06.665 STUD; IDLER PULLEY 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.275 M10X25 L=40	9-04411-025-0	01	1	9712-	●	●
45	06.655 BRACKET; IDLE PULLEY,P/S 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94449-652-0	01	1	9712-	●	●
47	01.066 BELT; P/S PUMP 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9712-	●	●
48	06.665 COVER; IDLER 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) FRONT	8-97092-819-0	01	1	9712-	●	●
48	06.665 COVER; IDLER 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.181 REAR	9-13669-603-0	01	1	9712-	●	●
49	06.665 RING; SNAP,IDLER 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94175-036-0	01	1	9712-	●	●
50	06.665 BEARING; IDLER 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94251-052-0	01	1	9712-	●	●
51	06.665 NUT; IDLER 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97092-813-0	01	1	9712-	●	●
58	06.655 SLIDER; BELT ADJ,P/S OIL PUMP 4JG2 ENG(RJC)	8-94479-122-0	01	1	9712-	●	●

11 11 25 29 29 29 30 7 29 7 29 1 32 7 17 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-5	01	1	9712-0206	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97331-940-0	01	1	0207-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM)	8-97189-496-0	01	1	9712-0105	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4)	8-97189-496-0	01	1	0106-0111	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97254-108-1	01	1	0106-0111	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM)	8-97254-108-1	01	1	0112-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-604-0	01	1	9712-0105	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4)	8-97304-216-2	01	1	0106-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97262-128-2	01	1	0106-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) 06.606 (C) M10X20 W/LK WASHER	8-97033-053-1	03	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JX1 ENG(RJM) 09.171 (A) M8X80 FLANGE	0-28080-880-0	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JX1 ENG(RJM) 03.415 (B) M8X48 FLANGE	8-94458-473-1	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 09.198 (A) M10X100 FLANGE	0-28081-000-0	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●
11	06.672 CLIP; FLEX HOSE ID=21	8-94242-034-0	02	1	9712-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 06.672 (A) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9712-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC) 04.634 (B) ID=12.2	9-09150-512-0	01	1	9712-	●	●
17	06.606 NUT; POWER STRG PUMP 4JG2 ENG(RJC) 08.917 M10 FLANGE	0-91150-210-0	01	1	9712-	●	●
17	06.606 NUT; POWER STRG PUMP 6VE1 ENG(RJQ),6VD1 ENG(RLV) M12	8-94139-015-0	01	1	9712-	●	●
25	06.606 BRACKET; P/S PUMP 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97160-608-1	01	1	9712-0106	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	0107-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.330 (H) M10X60 FLANGE	0-28181-060-0	01	1	0107-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	0107-0108	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.545 (B) M8X40 FLANGE	0-28690-840-0	02	1	0109-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.415 (E) M8X35 FLANGE	0-28080-835-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 00.029 (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9712-9803	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.417 (C) M10X25 FLANGE	0-28081-025-0	02	1	9804-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.104 (B) M10X60 W/LK WASHER	0-50041-060-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JX1 ENG(RJM) 01.062 (I) M8X16 FLANGE	0-28080-816-0	01	1	9801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	9712-0106	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	9712-0106	●	●
30	06.672 BRACKET; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97941-396-1	01	1	0107-	●	●
30	06.672 BRACKET; FLEX HOSE 4JX1 ENG(RJM)	8-97184-412-0	01	1	9801-9804	●	●
30	06.672 BRACKET; FLEX HOSE 4JX1 ENG(RJM)	8-97187-500-0	01	1	9805-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) 06.655 (A)	8-97042-266-1	01	1	9712-	●	●
32	06.665 PULLEY; IDLER,P/S 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97112-740-0	01	1	9712-	●	●
32	06.665 PULLEY; IDLER,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C)	8-97175-769-0	01	1	9712-	●	●

1 7 11 11 7 29 13 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97129-593-5	01	1	9712-0206	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC)	8-97331-940-0	01	1	0207-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM)	8-97189-496-0	01	1	9712-0105	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4)	8-97189-496-0	01	1	0106-0111	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4)	8-97254-108-1	01	1	0106-0111	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JX1 ENG(RJM)	8-97254-108-1	01	1	0112-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97185-604-0	01	1	9712-0105	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4)	8-97304-216-2	01	1	0106-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4)	8-97262-128-2	01	1	0106-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) 06.606 (C) M10X20 W/LK WASHER	8-97033-053-1	03	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JX1 ENG(RJM) 09.171 (A) M8X80 FLANGE	0-28080-880-0	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 4JX1 ENG(RJM) 03.415 (B) M8X48 FLANGE	8-94458-473-1	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 09.198 (A) M10X100 FLANGE	0-28081-000-0	01	1	9712-	●	●
7	09.181 BOLT; OIL PUMP,P/S 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9712-	●	●
11	06.672 CLIP; FLEX HOSE ID=21	8-94242-034-0	02	1	9712-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 06.672 (A) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9712-	●	●
13	06.673 WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC) 04.634 (B) ID=12.2	9-09150-512-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	0107-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.330 (H) M10X60 FLANGE	0-28181-060-0	01	1	0107-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	0107-0108	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.545 (B) M8X40 FLANGE	0-28690-840-0	02	1	0109-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.415 (E) M8X35 FLANGE	0-28080-835-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 00.029 (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9712-9803	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 03.417 (C) M10X25 FLANGE	0-28081-025-0	02	1	9804-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) 04.104 (B) M10X60 W/LK WASHER	0-50041-060-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.780 (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JX1 ENG(RJM) 01.062 (I) M8X16 FLANGE	0-28080-816-0	01	1	9801-	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	9712-0106	●	●
29	09.171 BOLT; BRKT,POWER STRG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	9712-0106	●	●
30	06.672 BRACKET; FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97941-396-1	01	1	0107-	●	●
30	06.672 BRACKET; FLEX HOSE 4JX1 ENG(RJM)	8-97184-412-0	01	1	9801-9804	●	●
30	06.672 BRACKET; FLEX HOSE 4JX1 ENG(RJM)	8-97187-500-0	01	1	9805-	●	●
