4-31 — STEERING COLUMN AND SHAFT (#73306) — 140 parça

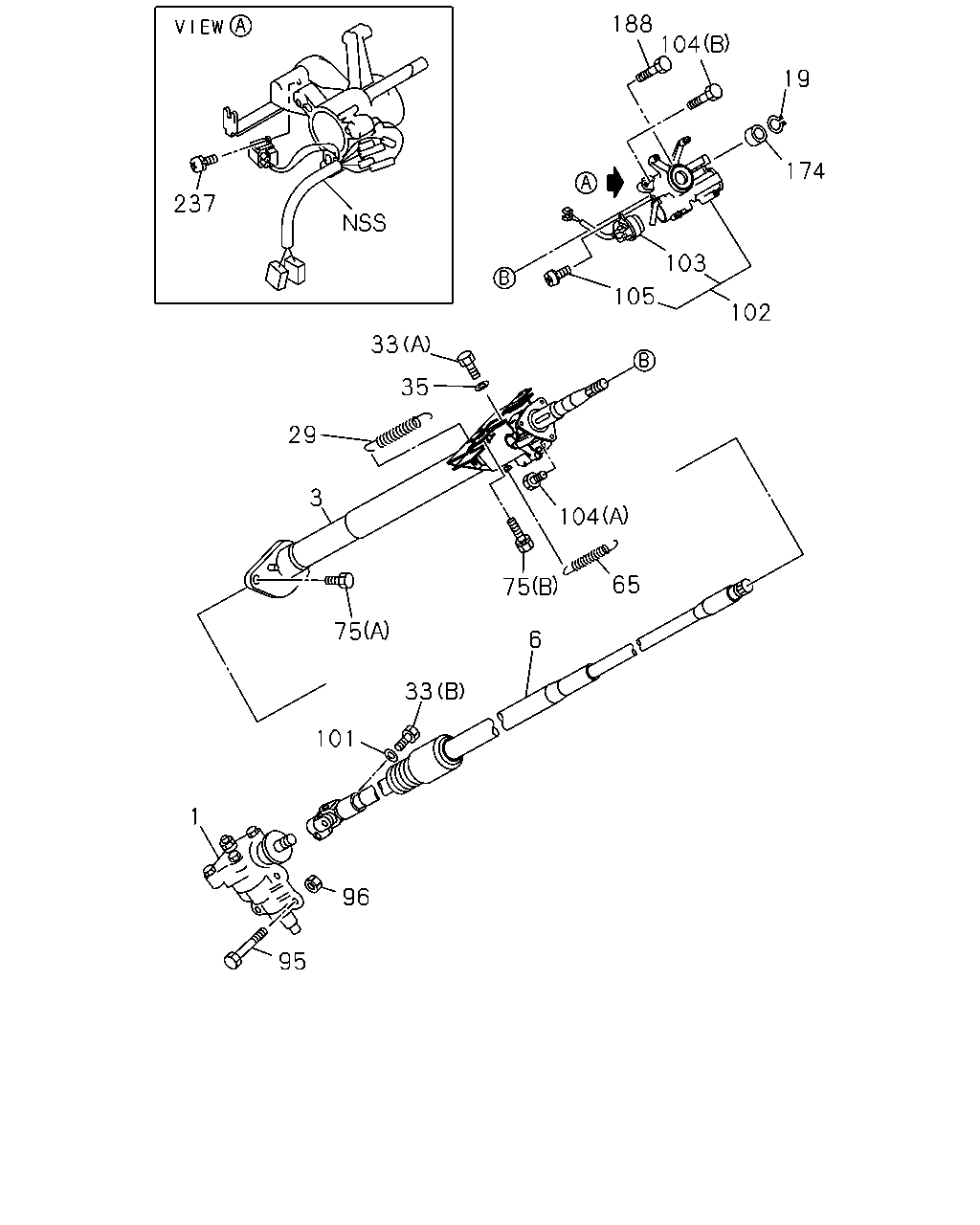

çizim 69019
188 104 19 174 237 103 105 102 33 35 29 3 104 65 75 75 6 33 101 1 96 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97109-987-6 01 1 9712- ● ●
3 06.524 SHAFT & COLUMN ASM; STRG
TILT STEERING<N33> 		8-97177-377-0 01 1 9712-9809 ● ●
3 06.524 SHAFT & COLUMN ASM; STRG
TILT STEERING<N33> 		8-97229-363-0 01 1 9810- ● ●
6 06.524 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97134-415-0 01 1 9712- ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 9712- ● ●
29 06.514 SPRING; COLUMN
TILT STEERING<N33> 		8-97069-501-1 01 1 9712- ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) M8X30 		8-94247-692-0 01 1 9712- ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9712- ● ●
35 06.525 WASHER; LK,STRG SHAFT
TILT STEERING<N33> 		8-94477-979-0 01 1 9712- ● ●
65 06.521 SPRING; STRG COLUMN
TILT STEERING<N33> 		8-97078-241-0 01 1 9712- ● ●
75 03.417 BOLT; STRG COLUMN
10.455 (A) M8X25 		8-94152-496-1 02 1 9712- ● ●
75 03.417 BOLT; STRG COLUMN
(B) M8X35 		8-97100-457-0 02 1 9712- ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9712- ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9712- ● ●
101 06.525 WASHER; LK,STRG SHAFT TO UNIT
00.002 ID=8.2 		9-09150-508-0 01 1 9712- ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-0 01 1 9909-9912 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-1 01 1 0001-0102 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-1 01 1 0001-0102 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-1 01 1 0103- ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-995-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-995-1 01 1 9909- ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-994-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97135-994-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97135-994-0 01 1 9909-0011 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-994-0 01 1 9909-0011 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-994-0 01 1 0012- ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97135-994-0 01 1 0012- ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 9712-9807 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9712-9807 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 9808-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9808-9908 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9808-9908 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9909-9912 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 9909-9912 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 0001-0011 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 0001-0011 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97135-992-0 01 1 0001-0011 ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 0012-0102 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97135-992-0 01 1 0012-0102 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97135-992-0 01 1 0012-0102 ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 0103- ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97135-992-0 01 1 0103- ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 0103- ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97123-779-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 9909-9912 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97123-779-0 01 1 9909-9912 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 9909-9912 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 0001-0102 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97123-779-0 01 1 0103- ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 0103- ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 0103- ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97123-780-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97123-780-0 01 1 9909- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
00.738 (A) M6X16 FLANGE 		0-28080-616-0 01 1 9712- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9712-0102 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 0103- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9712-0102 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0103- ● ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 9712- ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 9712- ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94474-206-0 01 1 9712-0102 ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4) 		8-94474-206-0 01 1 0103- ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9712-9908 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9909- ● ●

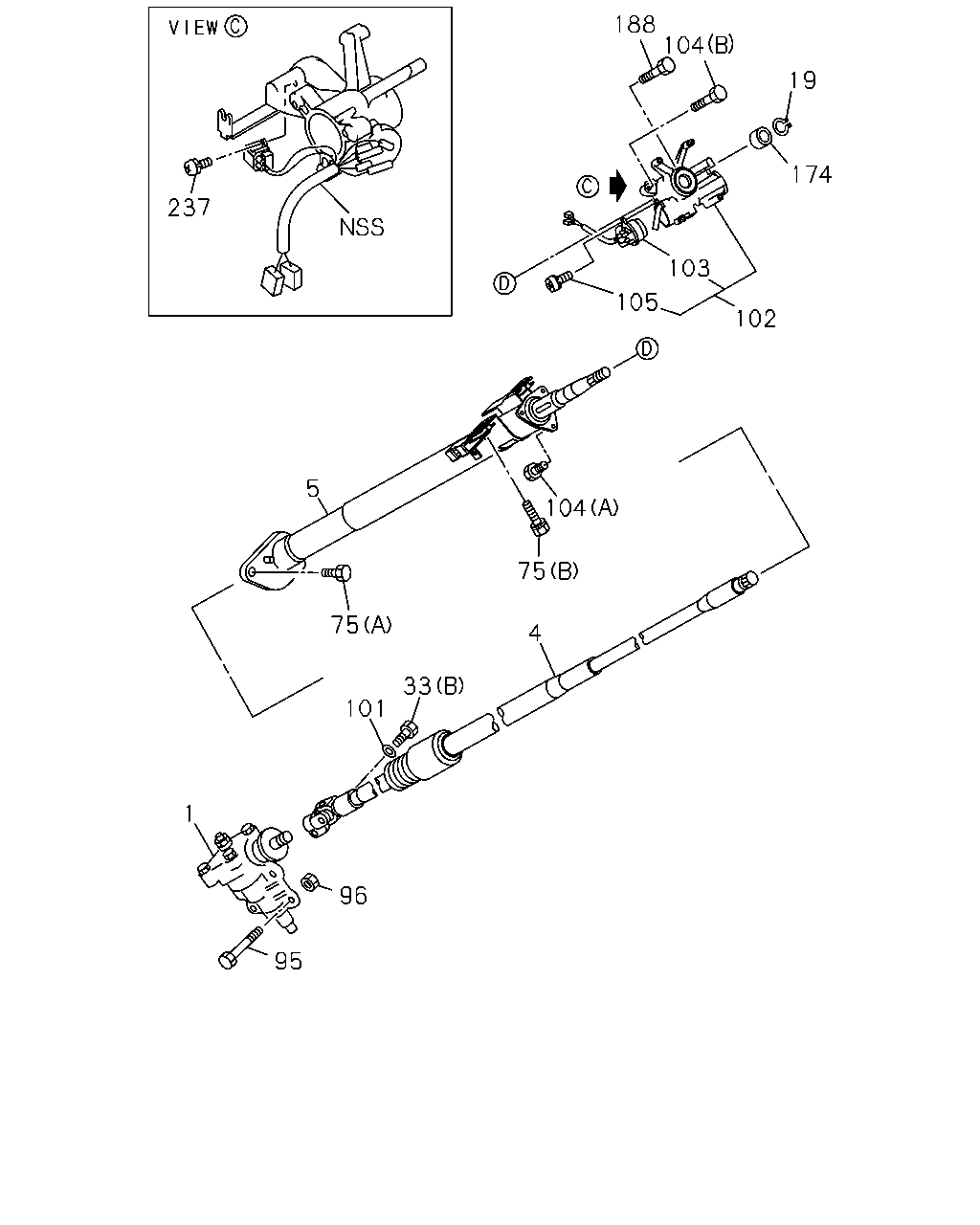

çizim 69119
188 104 19 174 237 103 105 102 5 104 75 75 4 33 101 1 96 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97109-987-6 01 1 9712- ● ●
4 06.524 SHAFT; STRG
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> 		8-97177-376-0 01 1 9712- ● ●
4 06.524 SHAFT; STRG
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> 		8-97112-179-0 01 1 9712- ● ●
5 06.518 COLUMN; STRG
AIR BAG DRIVER<AJ3> EXC. TILT STEERING<N33> 		8-97177-379-0 01 1 9712- ● ●
5 06.518 COLUMN; STRG
EXC. AIR BAG DRIVER<AJ3>,TILT STEERING<N33> 		8-97112-185-0 01 1 9712- ● ●
19 06.515 RING; SNAP,STRG SHAFT
06.525 ID=20.5 		9-09180-022-0 01 1 9712- ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
(B) M8X30 		8-94247-692-0 01 1 9712- ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> (A) 		8-94477-976-1 01 1 9712- ● ●
75 03.417 BOLT; STRG COLUMN
10.455 (A) M8X25 		8-94152-496-1 02 1 9712- ● ●
75 03.417 BOLT; STRG COLUMN
(B) M8X35 		8-97100-457-0 02 1 9712- ● ●
95 06.509 BOLT; STRG UNIT
M10X92 FLANGE 		8-94313-798-1 04 1 9712- ● ●
96 06.509 NUT; STRG UNIT
M10 FLANGE 		8-94313-797-0 04 1 9712- ● ●
101 06.525 WASHER; LK,STRG SHAFT TO UNIT
00.002 ID=8.2 		9-09150-508-0 01 1 9712- ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-0 01 1 9909-9912 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-1 01 1 0001-0102 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-1 01 1 0001-0102 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97135-996-1 01 1 0103- ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-995-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-995-1 01 1 9909- ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-994-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97135-994-0 01 1 9712-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97135-994-0 01 1 9909-0011 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-994-0 01 1 9909-0011 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97135-994-0 01 1 0012- ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) 		8-97135-994-0 01 1 0012- ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 9712-9807 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9712-9807 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 9808-9908 ● ●
102 06.500 LOCK ASM; STRG
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9808-9908 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9808-9908 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 9909-9912 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 9909-9912 ● ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 0001-0011 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 0001-0011 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97135-992-0 01 1 0001-0011 ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 0012-0102 ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97135-992-0 01 1 0012-0102 ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2) 		8-97135-992-0 01 1 0012-0102 ●
102 06.500 LOCK ASM; STRG
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97135-992-0 01 1 0103- ● ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97135-992-0 01 1 0103- ●
102 06.500 LOCK ASM; STRG
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97135-992-0 01 1 0103- ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97123-779-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 9909-9912 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97123-779-0 01 1 9909-9912 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 9909-9912 ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 0001-0102 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97123-779-0 01 1 0001-0102 ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97123-779-0 01 1 0103- ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97123-779-0 01 1 0103- ● ●
103 02.188 SWITCH; IGNITION
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97123-779-0 01 1 0103- ● ●
103 02.188 SWITCH; IGNITION
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97123-780-0 01 1 9712-9908 ● ●
103 02.188 SWITCH; IGNITION
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97123-780-0 01 1 9909- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
00.738 (A) M6X16 FLANGE 		0-28080-616-0 01 1 9712- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 9712-0102 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 01 1 0103- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 9712-0102 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
EXC. EUROPE EQUIPMENT(EK4) (B) M6X25 W/LK&PL WASHER 		8-97122-790-0 02 1 0103- ● ●
105 06.500 SCREW; IGN SW
M4X12 		9-03465-412-0 01 1 9712- ● ●
174 06.521 RUBBER; CUSHION,STRG COLUMN 8-97170-762-0 01 1 9712- ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94474-206-0 01 1 9712-0102 ● ●
188 06.500 BOLT; TORQUE,STEERING
EUROPE EQUIPMENT(EK4) 		8-94474-206-0 01 1 0103- ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9712-9908 ● ●
237 02.195 SCREW; DOOR WARNING SW
A/T AISIN(RMD),A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 11.950 M3X8 W/LK WASHER 		9-03910-308-0 01 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
