4-20 — REAR AXLE CASE AND SHAFT (#73303) — 53 parça

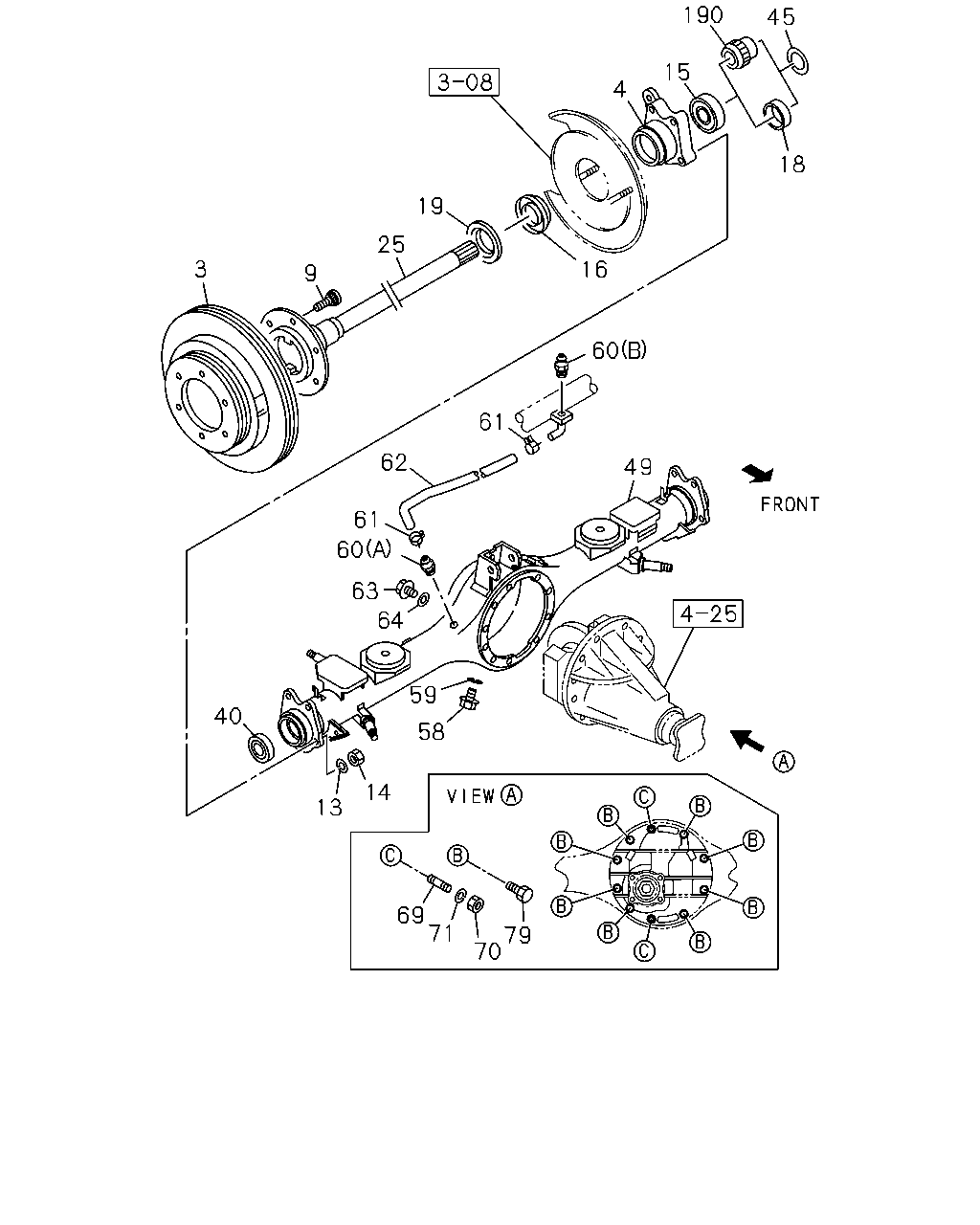

çizim 69122
190 45 15 4 18 19 25 3 16 9 60 61 62 49 61 60 63 64 59 40 58 14 13 69 71 79 70
BalonParca AdiParca NoAdetTipApplied Date A B
3 05.809 ROTOR; DISC BRK,RR 8-94375-425-1 02 1 9712- ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94373-255-4 01 1 9712- ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94373-254-4 01 1 9712- ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97020-792-3 01 1 9712- ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97020-791-3 01 1 9712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		9-42331-601-2 12 1 9712-9901 ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97213-870-0 12 1 9902- ● ●
13 05.816 WASHER; LK,BRG HOLDER TO CASE
04.634 ID=12.2 		9-09150-512-0 08 1 9712- ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 9712- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE 8-94429-847-2 02 1 9712- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 8-94441-817-1 02 1 9712- ● ●
18 05.822 RETAINER; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97042-641-0 02 1 9712- ● ●
19 05.815 COVER; DUST,OIL SEAL 8-94441-534-1 02 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) WIDE TREAD SUSPENSION<7FC> 		8-97165-569-2 01 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) WIDE TREAD SUSPENSION<7FC> 		8-97165-568-2 01 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97165-567-1 01 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97165-566-1 01 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6) WIDE TREAD SUSPENSION<7FC> 		8-97104-162-2 01 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6) WIDE TREAD SUSPENSION<7FC> 		8-97104-160-2 01 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) EXC. WIDE TREAD SUSPENSION<7FC> 		8-94373-253-4 01 1 9712- ● ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) EXC. WIDE TREAD SUSPENSION<7FC> 		8-94373-252-4 01 1 9712- ● ●
40 05.387 SEAL; OIL,REAR AXLE 8-94178-277-0 02 1 9712- ● ●
45 05.816 RING; RR AXLE BRG 8-94454-098-0 02 1 9712- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC> 		8-97172-762-2 01 1 9712-9712 ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) WIDE TREAD SUSPENSION<7FC> 		8-97172-762-3 01 1 9801- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97172-764-2 01 1 9712-9712 ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97172-764-3 01 1 9801- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) EXC. ANTI LOCK BRAKE SYSTEM(JE5),WIDE TREAD SUSPENSION<7FC> 		8-97172-763-1 01 1 9712-9712 ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) WIDE TREAD SUSPENSION<7FC> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97172-761-1 01 1 9712-9712 ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC> 		8-97172-766-0 01 1 9712-9712 ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) WIDE TREAD SUSPENSION<7FC> 		8-97172-766-1 01 1 9801- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97172-768-0 01 1 9712-9712 ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97172-768-1 01 1 9801- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) WIDE TREAD SUSPENSION<7FC> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97172-765-0 01 1 9712-9712 ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) EXC. ANTI LOCK BRAKE SYSTEM(JE5),WIDE TREAD SUSPENSION<7FC> 		8-97172-767-0 01 1 9712-9712 ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9712- ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9712- ● ●
60 05.387 BREATHER; RR AXLE CASE
(A) L=37 		8-94226-849-1 01 1 9712- ● ●
60 05.387 BREATHER; RR AXLE CASE
(B) L=30 		8-94416-611-1 01 1 9712- ● ●
61 05.387 CLIP; BREATHER HOSE,RR AXLE
03.120 ID=11 WHITE 		5-09707-005-1 02 1 9712-0001 ● ●
61 05.387 CLIP; BREATHER HOSE,RR AXLE
03.163 ID=11 		8-97173-219-0 02 1 0002- ● ●
62 05.387 HOSE; RUBBER,BREATHER,RR AXLE
L=400 SERVICED BY L=3000 		0-04650-300-0 01 1 9712-0001 ● ●
62 05.387 HOSE; RUBBER,BREATHER,RR AXLE
08.962 L=380 SERVICED BY L=3000 		0-04750-300-0 01 1 0002- ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9712- ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9712- ● ●
69 05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) M10X40.5 L=52.5 		8-97026-282-0 02 1 9712- ● ●
69 05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) 05.398 M10X31 L=43 		9-09630-011-1 02 1 9712- ● ●
70 05.387 NUT; CARRIER
00.002 M10 		9-09110-510-0 02 1 9712- ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
00.002 ID=10.2 		9-09150-610-0 02 1 9712- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) M10X40 W/LK WASHER 		0-50061-040-0 08 1 9712- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) M10X30 		0-50061-030-0 07 1 9712- ● ●
79 05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) M10X90 		0-50061-090-0 01 1 9712- ● ●
190 05.811 SENSOR; ROTOR
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97018-426-1 02 1 9712- ● ●
