Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#73300) — 456 parça

130 45 40 40 135 38 45 141 47 136 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	06.008 BOLT; AIR BREATHER,FRT AXLE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.587 (A) L=172	8-94232-620-0	01	1	9712-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) 02.559 (G)	8-94161-321-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 02.559 (F) ID=28 L=40	1-09700-995-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) 04.439 (B) ID=11X2 L=16	9-09535-025-0	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (B) ID=21 L=28	1-09700-673-1	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 02.559 (B) ID=11 L=28	9-09525-052-0	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97180-937-0	01	1	9712-9801	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97200-741-0	01	1	9802-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 09.242 (A) ID=26 L=26	9-09915-417-1	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 04.686 (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9712-	●	●
47	06.008 WASHER; CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.716 (A) ID=8.4 OD=18	9-09160-608-0	01	1	9712-	●	●
47	06.008 WASHER; CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.334 (B) ID=8.4 OD=26	9-09164-808-0	01	1	9712-	●	●
130	06.061 FILTER; OIL,FRT AXLE SHIFT ON THE FLY(7EX)	8-97101-779-0	01	1	9712-	●	●
135	06.008 NUT; BREATHER 6VE1 ENG(RJQ),6VD1 ENG(RLV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●
136	06.008 STUD; BREATHER 6VE1 ENG(RJQ),6VD1 ENG(RLV) M8X12,M8X30 L=50	8-97032-290-0	01	1	9712-	●	●

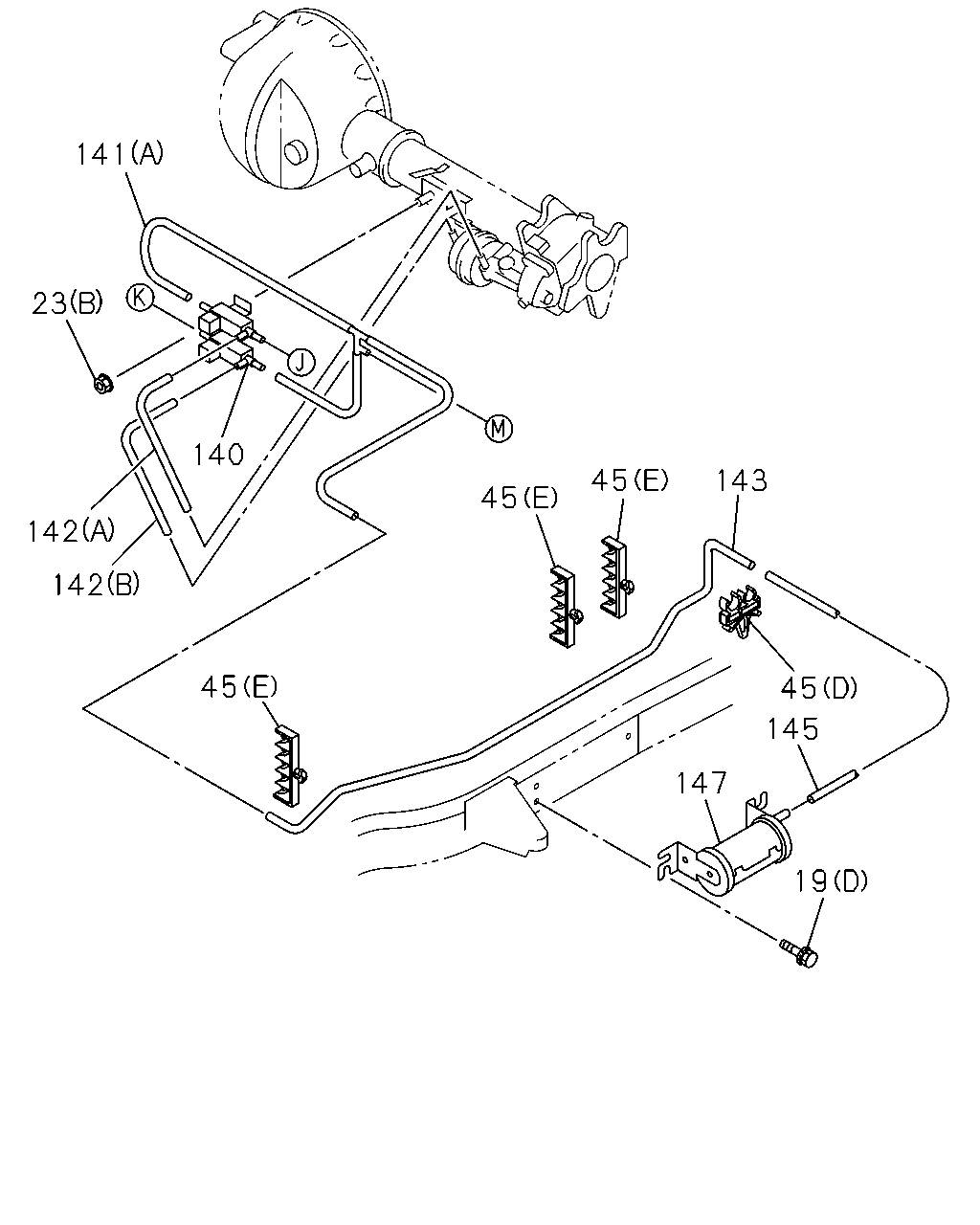

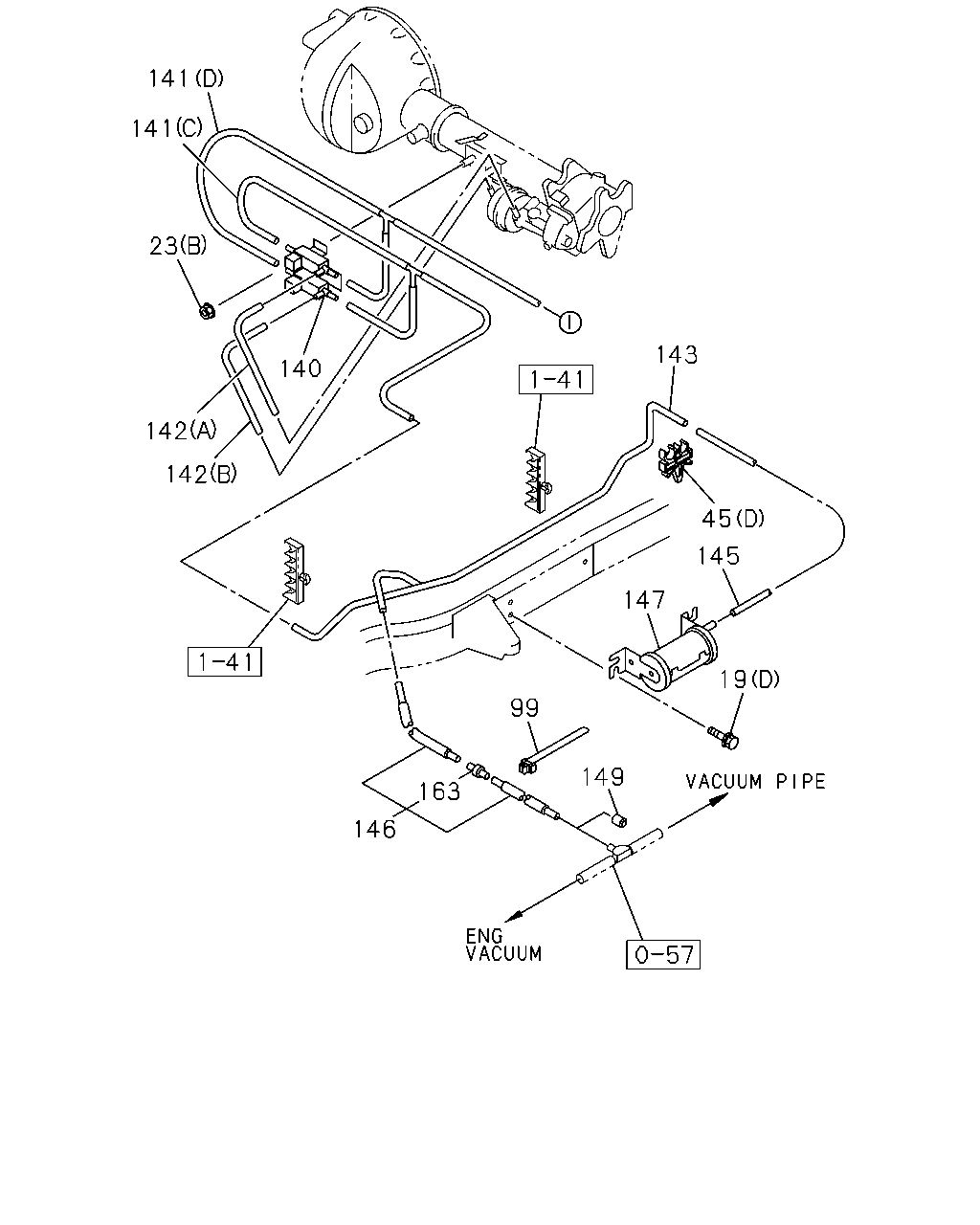

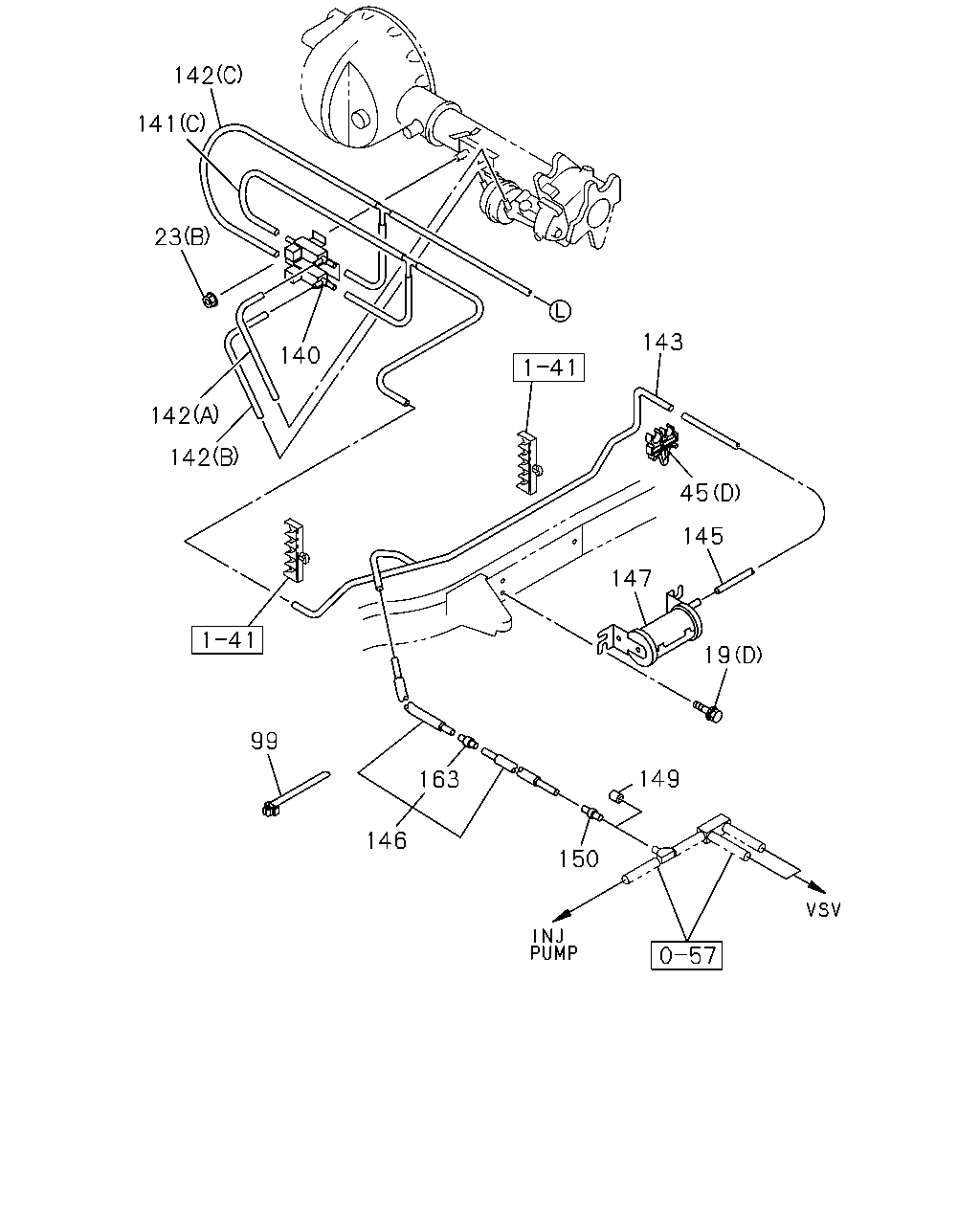

141	06.008 HOSE; VACUUM 4JG2 ENG(RJC),4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (D)	8-97189-599-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97178-056-5	01	1	9712-0107	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97321-118-0	01	1	0108-	●	●

17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 3 5 7 4 3 4 2 11 4 2 20 22 13 19 19 19 24 26 23 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

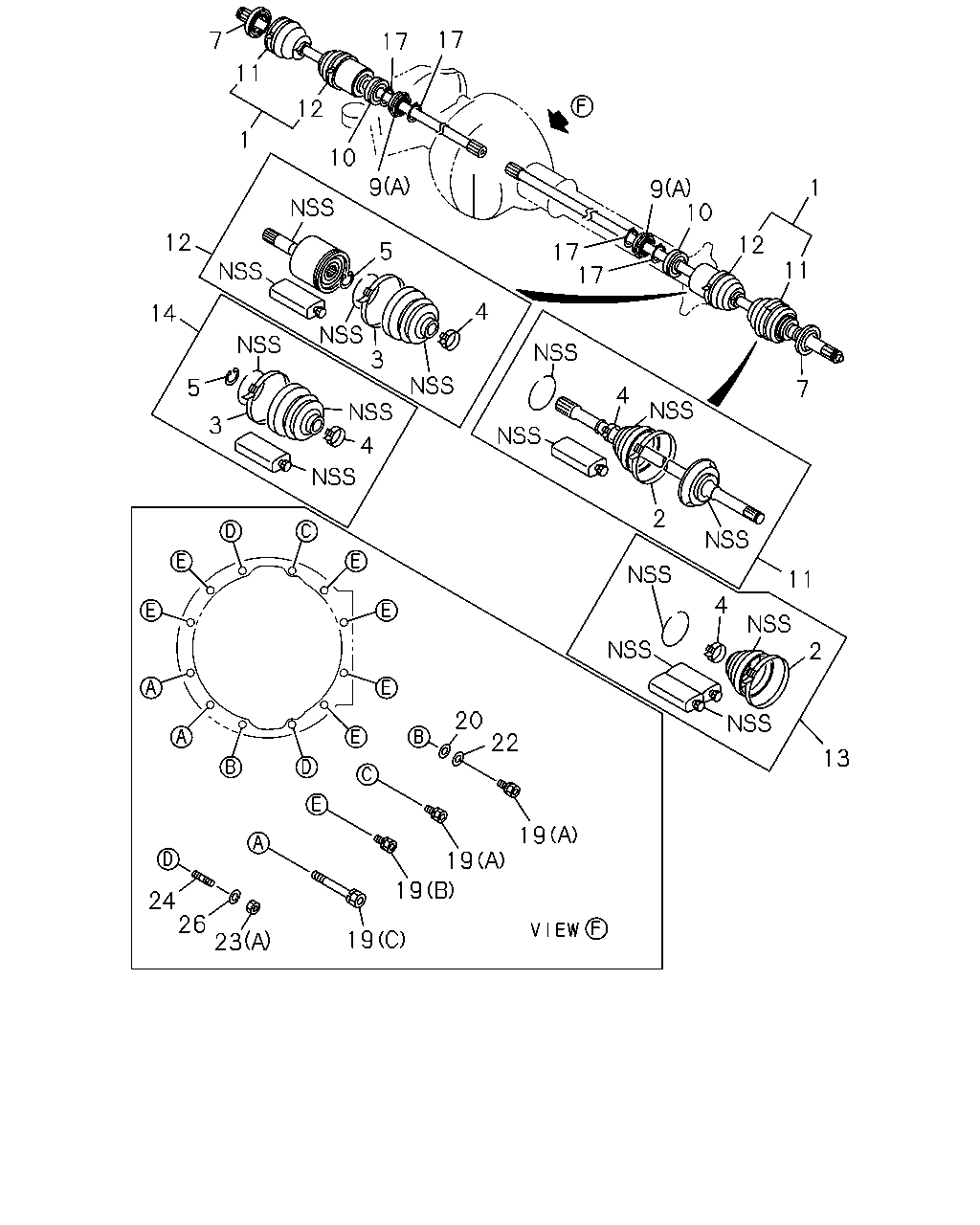

1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC>	8-97134-771-1	02	1	9712-0011	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. SHIFT ON THE FLY(7EX)	8-97134-771-1	01	1	0012-0203	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. SHIFT ON THE FLY(7EX)	8-97326-297-1	01	1	0204-	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) EXC. WIDE TREAD SUSPENSION<7FC>	8-97111-375-1	02	1	9712-9910	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) EXC. WIDE TREAD SUSPENSION<7FC>	8-97222-143-1	02	1	9911-	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-94374-782-2	01	1	9712-9910	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97222-144-1	01	1	9911-	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97111-375-1	01	1	9712-9910	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97222-143-1	01	1	9911-	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. SHIFT ON THE FLY(7EX)	8-97134-772-1	01	1	9712-0203	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. SHIFT ON THE FLY(7EX)	8-97326-298-1	01	1	0204-	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. SHIFT ON THE FLY(7EX)	8-97134-771-1	01	1	9712-0011	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC>	8-97134-771-1	02	1	0012-0203	●	●
1	06.055 SHAFT ASM; FRT DRIVE FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC>	8-97326-297-1	02	1	0204-	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97139-092-1	01	1	9712-0005	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC>	8-97139-092-1	01	1	0006-0212	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC>	8-97361-348-0	01	1	0301-	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97139-091-1	01	1	9712-0005	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC>	8-97139-091-1	01	1	0006-0212	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC>	8-97361-347-0	01	1	0301-	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97139-091-1	02	1	0006-0212	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97361-347-0	02	1	0301-	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),FRT AXLEURETHANE BOOTS<6HV>,WIDE TREAD SUSPENSIO N<7FC>	8-97139-091-0	02	1	9712-9812	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC>	8-97139-091-1	02	1	9901-0005	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC> EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97139-093-1	02	1	9712-0212	●	●
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC> EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97361-349-0	02	1	0301-	●	●
1	06.055 SHAFT ASM; FRT DRIVE WIDE TREAD SUSPENSION<7FC> EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97139-094-1	01	1	9712-0212	●	●
1	06.055 SHAFT ASM; FRT DRIVE WIDE TREAD SUSPENSION<7FC> EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97361-350-0	01	1	0301-	●	●
1	06.055 SHAFT ASM; FRT DRIVE WIDE TREAD SUSPENSION<7FC> EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97139-093-1	01	1	9712-0212	●	●
1	06.055 SHAFT ASM; FRT DRIVE WIDE TREAD SUSPENSION<7FC> EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97361-349-0	01	1	0301-	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV>	8-94313-085-0	02	1	9712-9910	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC>	8-94313-085-0	02	1	9911-0203	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC>	8-97222-151-0	02	1	9911-0203	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV>	8-97222-151-0	02	1	0204-	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9712-	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV>	8-94313-083-0	02	1	9712-9910	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC>	8-94313-083-0	02	1	9911-0203	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC>	8-97222-150-0	02	1	9911-0203	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV>	8-97222-150-0	02	1	0204-	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT EXC. FRT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9712-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV>	8-94310-658-0	04	1	9712-9910	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC>	8-94310-658-0	04	1	9911-0203	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC> INNER	8-97222-149-0	02	1	9911-0203	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> INNER	8-97222-149-0	02	1	0204-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC> OUTER	8-97222-152-0	02	1	9911-0203	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> OUTER	8-97222-152-0	02	1	0204-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT EXC. FRT AXLE URETHANE BOOTS<6HV> OUTER	8-94312-931-0	02	1	9712-	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT EXC. FRT AXLE URETHANE BOOTS<6HV> INNER	8-97138-938-0	02	1	9712-	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> ID=26.9	9-09180-029-0	02	1	9712-9910	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> ID=26.9	9-09180-029-0	02	1	9911-0203	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9712-9910	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC>	8-97131-402-0	02	1	9911-0203	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9911-0203	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT	8-97131-402-0	02	1	0204-	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	9712-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9712-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	9712-	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	9712-0311	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	0312-	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FINAL GEAR RATIO 41/9(HC6) FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. TORQUE ON DEMAND<7HA>	8-97136-889-0	02	1	9712-0011	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC>	8-97136-889-0	02	1	0012-0203	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC>	8-97326-299-1	02	1	0204-	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) EXC. WIDE TREAD SUSPENSION<7FC>	8-97063-622-0	02	1	9712-9910	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC>	8-97222-154-1	02	1	9911-	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97063-623-0	01	1	9712-9910	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97063-622-0	01	1	9712-9910	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA EXC. FRT AXLE URETHANE BOOTS<6HV>,WIDE TREAD SUSPENSION<7FC>	8-97131-395-1	02	1	9712-	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA WIDE TREAD SUSPENSION<7FC> EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97136-888-1	02	1	9712-	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) EXC. WIDE TREAD SUSPENSION<7FC>	8-94313-101-1	02	1	9712-9910	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) EXC. WIDE TREAD SUSPENSION<7FC>	8-97222-155-0	02	1	9911-0203	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX)	8-97222-155-1	02	1	0204-	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-94313-102-1	01	1	9712-9910	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. SHIFT ON THE FLY(7EX)	8-94313-102-1	01	1	9911-0203	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97222-156-0	01	1	9911-0203	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-97222-156-1	01	1	0204-	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-94313-101-1	01	1	9712-9910	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX),WIDE TREAD SUSPENSION<7FC>	8-97222-155-0	01	1	9911-0203	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX)	8-97222-155-1	01	1	0204-	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> SHIFT ON THE FLY(7EX)	8-97136-897-0	02	1	9712-0011	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) WIDE TREAD SUSPENSION<7FC>	8-97136-897-0	02	1	0012-0203	●	●
12	06.060 JOINT ASM FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC> EXC. SHIFT ON THE FLY(7EX)	8-97136-897-0	01	1	9712-0203	●	●
12	06.060 JOINT ASM EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97138-979-0	01	1	9712-9809	●	●
12	06.060 JOINT ASM EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97138-978-0	01	1	9712-9809	●	●
12	06.060 JOINT ASM EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97201-316-1	01	1	9810-	●	●
12	06.060 JOINT ASM EXC. FRT AXLE URETHANE BOOTS<6HV>,SHIFT ON THE FLY(7EX)	8-97201-315-1	01	1	9810-	●	●
12	06.060 JOINT ASM SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97138-978-0	02	1	9712-9809	●	●
12	06.060 JOINT ASM SHIFT ON THE FLY(7EX) EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97201-316-1	02	1	9810-	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV>	8-94313-106-0	02	1	9712-9910	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC>	8-94313-106-0	02	1	9911-0203	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC>	8-97222-157-0	02	1	9911-0203	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV>	8-97222-157-1	02	1	0204-	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97138-981-1	02	1	9712-	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV>	8-94313-081-0	02	1	9712-9910	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV> WIDE TREAD SUSPENSION<7FC>	8-94313-081-0	02	1	9911-0203	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV> EXC. WIDE TREAD SUSPENSION<7FC>	8-97222-158-0	02	1	9911-0203	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF FRT AXLE URETHANE BOOTS<6HV>	8-97222-158-1	02	1	0204-	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97138-980-0	02	1	9712-9809	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF EXC. FRT AXLE URETHANE BOOTS<6HV>	8-97201-314-1	02	1	9810-	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (B) M8X25 W/LK WASHER	8-97093-664-1	06	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (A) M8X30 W/LK WASHER	8-97093-665-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 06.056 (E) M12X22 FLANGE	0-28081-222-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 16.335 (F) M8X20 FLANGE	0-28280-820-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 03.671 (D) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9712-9903	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	9904-0105	●	●
19	06.156 BOLT; FRT AXLE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9712-	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	9712-	●	●
23	06.056 NUT; FRT AXLE 00.002 (A) M8	9-09110-508-0	02	1	9712-	●	●
23	06.056 NUT; FRT AXLE SHIFT ON THE FLY(7EX) 07.833 (B) M6 FLANGE	8-97063-399-0	02	1	9712-	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	9712-	●	●

27 34 35 36 35 36 18 28 19 37 44 35 35 30 34 49 48 50 62 144 79 95 62 69 9 138 37 132 44 137 48 84 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	9712-	●	●
9	06.056 BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY(7EX) (B)	8-97101-878-0	01	1	9712-	●	●

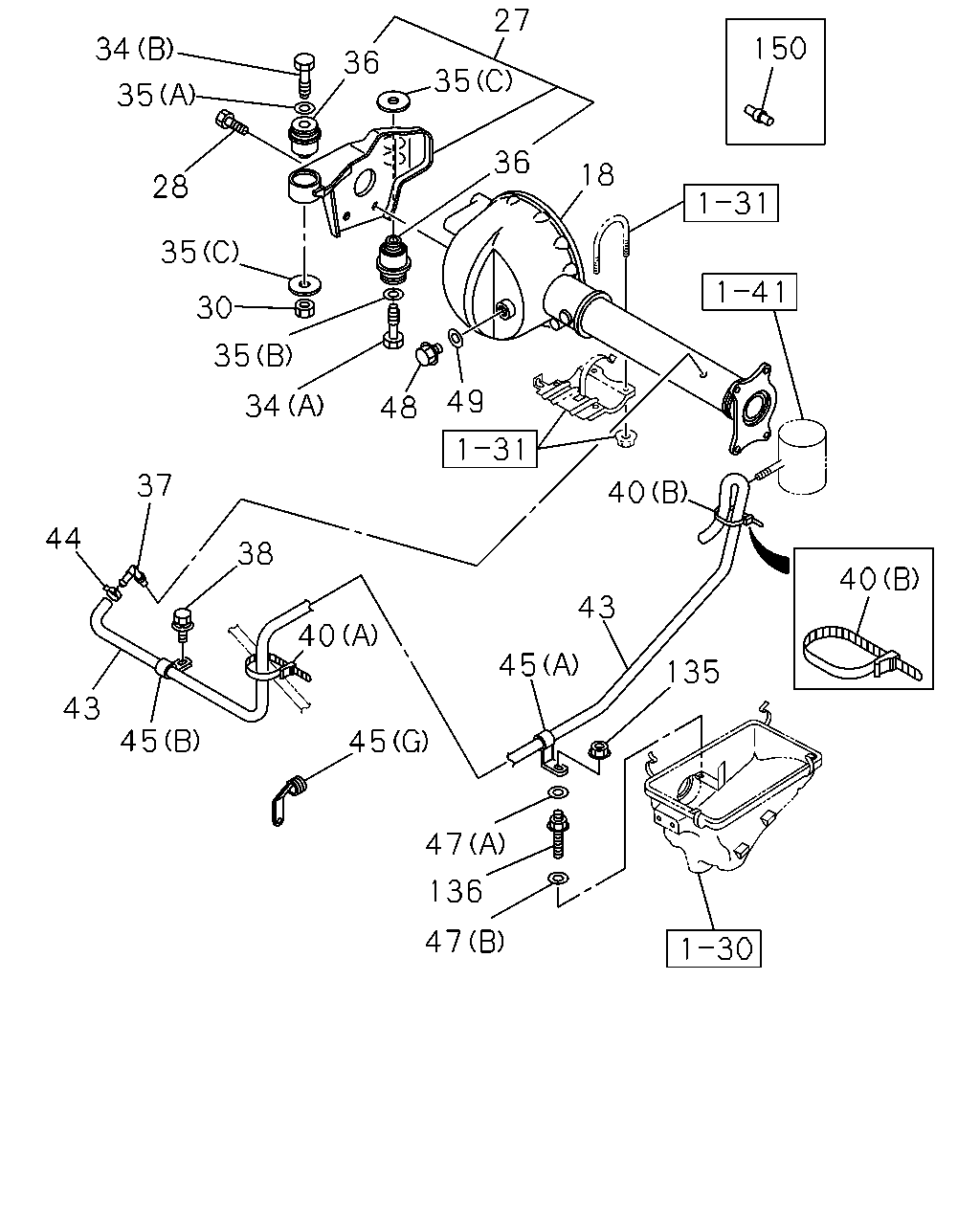

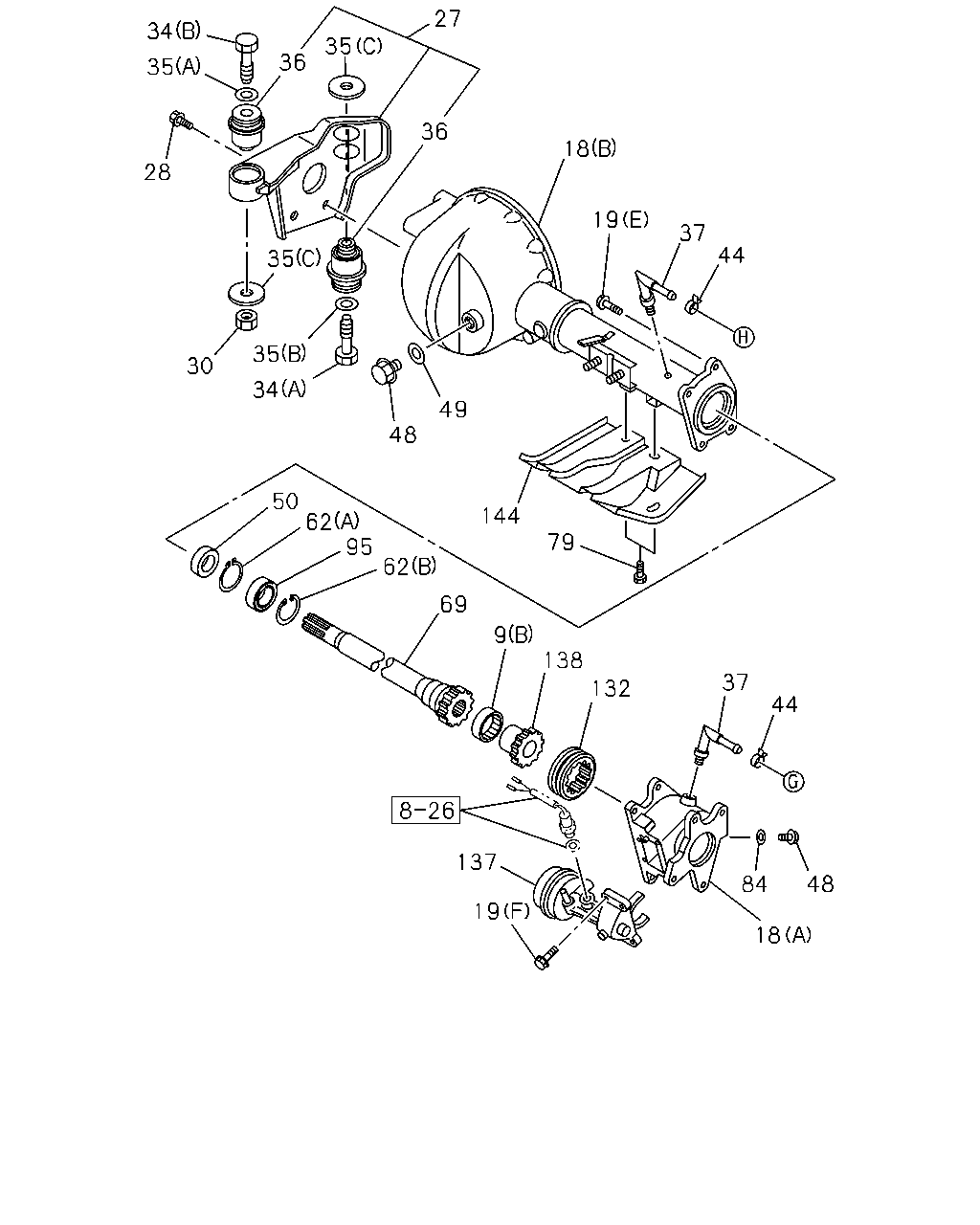

18	06.008 CASE; FRT AXLE SHIFT ON THE FLY(7EX) (A)	8-97081-658-3	01	1	9712-	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY(7EX) (B)	8-97101-757-3	01	1	9712-	●	●
18	06.008 CASE; FRT AXLE EXC. SHIFT ON THE FLY(7EX)	8-97018-230-0	01	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (B) M8X25 W/LK WASHER	8-97093-664-1	06	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (A) M8X30 W/LK WASHER	8-97093-665-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 06.056 (E) M12X22 FLANGE	0-28081-222-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 16.335 (F) M8X20 FLANGE	0-28280-820-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 03.671 (D) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9712-9903	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	9904-0105	●	●
19	06.156 BOLT; FRT AXLE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
27	06.056 BRACKET; AXLE CASE	8-97113-948-1	01	1	9712-	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND<7HA>	8-97113-948-1	01	1	9712-		●
27	06.056 BRACKET; AXLE CASE	8-94382-042-1	01	1	9712-	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND<7HA>	8-94382-042-1	01	1	9712-		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND<7HA>	8-97131-941-1	01	1	9712-		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND<7HA>	8-97114-277-1	01	1	9712-		●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9712-	●	●
30	06.008 NUT; FRT AXLE MTG 07.529 M14	9-99110-514-0	02	1	9712-	●	●
34	06.008 BOLT; FRT AXLE MTG (A) M14X84	8-94452-339-2	02	1	9712-	●	●
34	06.008 BOLT; FRT AXLE MTG (B) M14X75	9-91066-475-0	02	1	9712-9804	●	●
34	06.008 BOLT; FRT AXLE MTG 00.029 (B) M14X80	9-91066-480-0	02	1	9805-	●	●
35	06.008 WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9712-	●	●
35	06.008 WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9712-	●	●
35	06.008 WASHER; FRT AXLE MTG 08.929 (B) ID=15 OD=36	9-09164-714-0	02	1	9712-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	9712-	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9712-	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	9712-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) 03.163 ID=11	8-97173-219-0	01	1	9712-	●	●
44	06.008 CLIP; AIR BREATHER HOSE 03.163 ID=11	8-97173-219-0	01	1	9712-	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	02	1	9712-	●	●
48	05.400 PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	01	1	9712-	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9712-	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE SHIFT ON THE FLY(7EX)	8-97084-507-0	01	1	9712-	●	●
62	06.061 RING; SNAP,AXLE SHAFT SHIFT ON THE FLY(7EX) 08.934 (A) ID=37.0	9-09180-040-0	01	1	9712-	●	●
62	06.061 RING; SNAP,AXLE SHAFT SHIFT ON THE FLY(7EX) 01.105 (B) ID=57.9	9-09180-162-0	01	1	9712-	●	●
69	06.055 SHAFT; AXLE,FRT INNER SHIFT ON THE FLY(7EX)	8-97188-174-1	01	1	9712-	●	●
79	06.008 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX)	0-28481-016-0	02	1	9712-0105	●	●
79	06.008 BOLT; BRKT SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4)	0-28481-016-0	02	1	9712-0105	●	●
79	06.008 BOLT; BRKT SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4)	0-28481-016-0	02	1	0106-0212	●	●
79	06.008 BOLT; BRKT SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),EURO3 SPECIFICATION(NT3)	0-28481-016-0	02	1	0301-	●	●
84	06.326 GASKET; PLUG,OIL FILLER SHIFT ON THE FLY(7EX) 05.400 ID=20 OD=30	8-94462-734-0	01	1	9712-	●	●
95	06.008 BEARING; AXLE SHAFT,FRT SHIFT ON THE FLY(7EX)	8-97103-392-0	01	1	9712-	●	●
132	06.008 SLEEVE; RUBBER,HOSE SHIFT ON THE FLY(7EX)	8-97130-567-1	01	1	9712-	●	●
137	06.008 ACTUATOR; AXLE SHIFT ON THE FLY(7EX)	8-97101-856-4	01	1	9712-	●	●
138	06.008 GEAR; CLUTCH SHIFT ON THE FLY(7EX) Z=17	8-97134-857-1	01	1	9712-	●	●
144	06.008 PROTECTOR A/T THM(RMQ) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX)	8-97101-788-2	01	1	9712-0105	●	●
144	06.008 PROTECTOR SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4)	8-97101-788-2	01	1	9712-0105	●	●
144	06.008 PROTECTOR SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4)	8-97101-788-2	01	1	0106-0212	●	●
144	06.008 PROTECTOR SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),EURO3 SPECIFICATION(NT3)	8-97101-788-2	01	1	0301-	●	●

38 45 40 43 130 45 43 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	06.008 BOLT; AIR BREATHER,FRT AXLE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.587 (A) L=172	8-94232-620-0	01	1	9712-	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-281-1	01	1	9712-	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX) 08.962 L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9712-0211	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX) 08.962 L=1100 SERVICED BY L=3000	0-04750-300-0	01	1	0212-	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 08.962 L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9712-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) 02.559 (G)	8-94161-321-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 02.559 (F) ID=28 L=40	1-09700-995-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) 04.439 (B) ID=11X2 L=16	9-09535-025-0	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (B) ID=21 L=28	1-09700-673-1	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 02.559 (B) ID=11 L=28	9-09525-052-0	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97180-937-0	01	1	9712-9801	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97200-741-0	01	1	9802-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 09.242 (A) ID=26 L=26	9-09915-417-1	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 04.686 (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9712-	●	●
130	06.061 FILTER; OIL,FRT AXLE SHIFT ON THE FLY(7EX)	8-97101-779-0	01	1	9712-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9712-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9712-	●	●
142	06.008 HOSE; VSV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9712-	●	●

171 30 40 40 141 38 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	06.008 NUT; FRT AXLE MTG 07.529 M14	9-99110-514-0	02	1	9712-	●	●
38	06.008 BOLT; AIR BREATHER,FRT AXLE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.587 (A) L=172	8-94232-620-0	01	1	9712-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) 02.559 (G)	8-94161-321-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 02.559 (F) ID=28 L=40	1-09700-995-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) 04.439 (B) ID=11X2 L=16	9-09535-025-0	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (B) ID=21 L=28	1-09700-673-1	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 02.559 (B) ID=11 L=28	9-09525-052-0	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97180-937-0	01	1	9712-9801	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97200-741-0	01	1	9802-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 09.242 (A) ID=26 L=26	9-09915-417-1	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 04.686 (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JG2 ENG(RJC),4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (D)	8-97189-599-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97178-056-5	01	1	9712-0107	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97321-118-0	01	1	0108-	●	●
171	06.056 BRACKET; BREATHER HOSE 4JX1 ENG(RJM)	8-97189-528-0	01	1	9712-	●	●

141 23 140 45 143 45 142 142 45 45 145 147 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	06.156 BOLT; FRT AXLE (B) M8X25 W/LK WASHER	8-97093-664-1	06	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (A) M8X30 W/LK WASHER	8-97093-665-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 06.056 (E) M12X22 FLANGE	0-28081-222-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 16.335 (F) M8X20 FLANGE	0-28280-820-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 03.671 (D) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9712-9903	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	9904-0105	●	●
19	06.156 BOLT; FRT AXLE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
23	06.056 NUT; FRT AXLE 00.002 (A) M8	9-09110-508-0	02	1	9712-	●	●
23	06.056 NUT; FRT AXLE SHIFT ON THE FLY(7EX) 07.833 (B) M6 FLANGE	8-97063-399-0	02	1	9712-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) 02.559 (G)	8-94161-321-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 02.559 (F) ID=28 L=40	1-09700-995-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) 04.439 (B) ID=11X2 L=16	9-09535-025-0	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (B) ID=21 L=28	1-09700-673-1	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 02.559 (B) ID=11 L=28	9-09525-052-0	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97180-937-0	01	1	9712-9801	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97200-741-0	01	1	9802-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 09.242 (A) ID=26 L=26	9-09915-417-1	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 04.686 (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9712-	●	●
140	06.008 VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JG2 ENG(RJC),4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (D)	8-97189-599-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97178-056-5	01	1	9712-0107	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97321-118-0	01	1	0108-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9712-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9712-	●	●
142	06.008 HOSE; VSV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX)	8-97191-087-0	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9712-0105	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	0106-	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	0106-	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9712-9903	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	9904-0105	●	●
145	06.008 HOSE; VAC TANK 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	0106-	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	0106-	●	●
147	06.008 TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-3	01	1	9712-0105	●	●
147	06.008 TANK; VACUUM 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX)	8-97102-100-5	01	1	0106-	●	●
147	06.008 TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-5	01	1	0106-	●	●

27 150 34 36 35 35 36 18 28 35 30 35 49 34 48 37 40 44 38 40 43 40 45 135 43 45 45 47 136 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY(7EX) (A)	8-97081-658-3	01	1	9712-	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY(7EX) (B)	8-97101-757-3	01	1	9712-	●	●
18	06.008 CASE; FRT AXLE EXC. SHIFT ON THE FLY(7EX)	8-97018-230-0	01	1	9712-	●	●
27	06.056 BRACKET; AXLE CASE	8-97113-948-1	01	1	9712-	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND<7HA>	8-97113-948-1	01	1	9712-		●
27	06.056 BRACKET; AXLE CASE	8-94382-042-1	01	1	9712-	●
27	06.056 BRACKET; AXLE CASE EXC. TORQUE ON DEMAND<7HA>	8-94382-042-1	01	1	9712-		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND<7HA>	8-97131-941-1	01	1	9712-		●
27	06.056 BRACKET; AXLE CASE TORQUE ON DEMAND<7HA>	8-97114-277-1	01	1	9712-		●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9712-	●	●
30	06.008 NUT; FRT AXLE MTG 07.529 M14	9-99110-514-0	02	1	9712-	●	●
34	06.008 BOLT; FRT AXLE MTG (A) M14X84	8-94452-339-2	02	1	9712-	●	●
34	06.008 BOLT; FRT AXLE MTG (B) M14X75	9-91066-475-0	02	1	9712-9804	●	●
34	06.008 BOLT; FRT AXLE MTG 00.029 (B) M14X80	9-91066-480-0	02	1	9805-	●	●
35	06.008 WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9712-	●	●
35	06.008 WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9712-	●	●
35	06.008 WASHER; FRT AXLE MTG 08.929 (B) ID=15 OD=36	9-09164-714-0	02	1	9712-	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97018-240-0	04	1	9712-	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94226-943-0	01	1	9712-	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY(7EX)	8-94226-943-0	01	1	9712-	●	●
38	06.008 BOLT; AIR BREATHER,FRT AXLE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 (B) L=170	5-09707-054-0	01	1	9712-	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.587 (A) L=172	8-94232-620-0	01	1	9712-	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-281-1	01	1	9712-	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX) 08.962 L=1000 SERVICED BY L=3000	0-04750-300-0	01	1	9712-0211	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX) 08.962 L=1100 SERVICED BY L=3000	0-04750-300-0	01	1	0212-	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 08.962 L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9712-	●	●
44	06.008 CLIP; AIR BREATHER HOSE SHIFT ON THE FLY(7EX) 03.163 ID=11	8-97173-219-0	01	1	9712-	●	●
44	06.008 CLIP; AIR BREATHER HOSE 03.163 ID=11	8-97173-219-0	01	1	9712-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) 02.559 (G)	8-94161-321-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 02.559 (F) ID=28 L=40	1-09700-995-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) 04.439 (B) ID=11X2 L=16	9-09535-025-0	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (B) ID=21 L=28	1-09700-673-1	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 02.559 (B) ID=11 L=28	9-09525-052-0	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97180-937-0	01	1	9712-9801	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97200-741-0	01	1	9802-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 09.242 (A) ID=26 L=26	9-09915-417-1	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 04.686 (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9712-	●	●
47	06.008 WASHER; CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.716 (A) ID=8.4 OD=18	9-09160-608-0	01	1	9712-	●	●
47	06.008 WASHER; CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.334 (B) ID=8.4 OD=26	9-09164-808-0	01	1	9712-	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	02	1	9712-	●	●
48	05.400 PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY(7EX) 04.103 M20X10.5	9-09662-005-0	01	1	9712-	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9712-	●	●
135	06.008 NUT; BREATHER 6VE1 ENG(RJQ),6VD1 ENG(RLV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●
136	06.008 STUD; BREATHER 6VE1 ENG(RJQ),6VD1 ENG(RLV) M8X12,M8X30 L=50	8-97032-290-0	01	1	9712-	●	●
150	06.008 JOINT 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 03.680 2WAY	8-94313-805-0	01	1	9712-9906	●	●
150	06.008 JOINT 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 03.680 2WAY	8-94313-805-0	01	1	9907-	●
150	06.008 JOINT 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMEN T(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.680 2WAY	8-94313-805-0	01	1	9907-		●

141 141 23 143 140 142 142 45 145 147 19 99 149 163 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	06.156 BOLT; FRT AXLE (B) M8X25 W/LK WASHER	8-97093-664-1	06	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (A) M8X30 W/LK WASHER	8-97093-665-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 06.056 (E) M12X22 FLANGE	0-28081-222-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 16.335 (F) M8X20 FLANGE	0-28280-820-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 03.671 (D) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9712-9903	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	9904-0105	●	●
19	06.156 BOLT; FRT AXLE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
23	06.056 NUT; FRT AXLE 00.002 (A) M8	9-09110-508-0	02	1	9712-	●	●
23	06.056 NUT; FRT AXLE SHIFT ON THE FLY(7EX) 07.833 (B) M6 FLANGE	8-97063-399-0	02	1	9712-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) 02.559 (G)	8-94161-321-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 02.559 (F) ID=28 L=40	1-09700-995-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) 04.439 (B) ID=11X2 L=16	9-09535-025-0	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (B) ID=21 L=28	1-09700-673-1	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 02.559 (B) ID=11 L=28	9-09525-052-0	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97180-937-0	01	1	9712-9801	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97200-741-0	01	1	9802-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 09.242 (A) ID=26 L=26	9-09915-417-1	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 04.686 (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9712-	●	●
99	06.008 CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 03.430 L=200	8-94464-835-0	02	1	9712-	●	●
99	06.008 CLIP; RUBBER HOSE 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) 03.430 L=200	8-94464-835-0	01	1	9712-	●	●
140	06.008 VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JG2 ENG(RJC),4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (D)	8-97189-599-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97178-056-5	01	1	9712-0107	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97321-118-0	01	1	0108-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9712-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9712-	●	●
142	06.008 HOSE; VSV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX)	8-97191-087-0	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9712-0105	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	0106-	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	0106-	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9712-9903	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	9904-0105	●	●
145	06.008 HOSE; VAC TANK 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	0106-	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	0106-	●	●
146	06.008 HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97164-608-0	01	1	9712-	●	●
146	06.008 HOSE; CHECK VLV 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX)	8-97178-057-2	01	1	9712-	●	●
147	06.008 TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-3	01	1	9712-0105	●	●
147	06.008 TANK; VACUUM 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX)	8-97102-100-5	01	1	0106-	●	●
147	06.008 TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-5	01	1	0106-	●	●
149	06.056 CAP; RUBBER 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX) 01.780 ID=4	8-94217-809-0	01	1	9712-	●	●
163	06.008 VALVE; CHECK 4JG2 ENG(RJC),4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) 03.670	8-97024-129-2	01	1	9712-	●	●

142 141 23 143 140 142 142 45 145 147 19 99 149 163 146 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	06.156 BOLT; FRT AXLE (B) M8X25 W/LK WASHER	8-97093-664-1	06	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (A) M8X30 W/LK WASHER	8-97093-665-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 06.056 (E) M12X22 FLANGE	0-28081-222-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 16.335 (F) M8X20 FLANGE	0-28280-820-0	04	1	9712-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 03.671 (D) M8X25 W/LK&PL WASHER	8-94180-329-1	03	1	9712-9903	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	9904-0105	●	●
19	06.156 BOLT; FRT AXLE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY(7EX) 02.664 (D) M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
23	06.056 NUT; FRT AXLE 00.002 (A) M8	9-09110-508-0	02	1	9712-	●	●
23	06.056 NUT; FRT AXLE SHIFT ON THE FLY(7EX) 07.833 (B) M6 FLANGE	8-97063-399-0	02	1	9712-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP SHIFT ON THE FLY(7EX) 03.162 (D)	8-94466-385-0	01	1	0106-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) 02.559 (G)	8-94161-321-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 02.559 (F) ID=28 L=40	1-09700-995-1	01	1	9712-	●	●
45	06.008 CLIP 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX) 04.439 (B) ID=11X2 L=16	9-09535-025-0	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (B) ID=21 L=28	1-09700-673-1	01	1	9712-	●	●
45	06.008 CLIP 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 02.559 (B) ID=11 L=28	9-09525-052-0	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	9712-0105	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=8.9	8-94435-551-1	03	1	0106-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97180-937-0	01	1	9712-9801	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (C)	8-97200-741-0	01	1	9802-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 09.242 (A) ID=26 L=26	9-09915-417-1	01	1	9712-	●	●
45	06.008 CLIP 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) 04.686 (A) ID=11 H=20 L=20	5-09700-351-0	01	1	9712-	●	●
99	06.008 CLIP; RUBBER HOSE 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) 03.430 L=200	8-94464-835-0	02	1	9712-	●	●
99	06.008 CLIP; RUBBER HOSE 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) 03.430 L=200	8-94464-835-0	01	1	9712-	●	●
140	06.008 VALVE UNIT; AXLE SHIFT ON THE FLY(7EX)	8-97101-858-1	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JG2 ENG(RJC),4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (C)	8-97101-781-2	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) (D)	8-97189-599-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (A)	8-97131-140-0	01	1	9712-	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97178-056-5	01	1	9712-0107	●	●
141	06.008 HOSE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B)	8-97321-118-0	01	1	0108-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (A)	8-97101-810-0	01	1	9712-	●	●
142	06.008 HOSE; VSV SHIFT ON THE FLY(7EX) (B)	8-97101-811-2	01	1	9712-	●	●
142	06.008 HOSE; VSV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX) (C)	8-97126-040-1	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97133-855-0	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX)	8-97191-087-0	01	1	9712-	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	9712-0105	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	0106-	●	●
143	06.008 PIPE; VACUUM 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX)	8-97133-591-0	01	1	0106-	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9712-9903	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	9904-0105	●	●
145	06.008 HOSE; VAC TANK 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	0106-	●	●
145	06.008 HOSE; VAC TANK SHIFT ON THE FLY(7EX) 08.962 L=140 SERVICED BY L=3000	0-04740-300-0	01	1	0106-	●	●
146	06.008 HOSE; CHECK VLV 4JG2 ENG(RJC) SHIFT ON THE FLY(7EX)	8-97164-608-0	01	1	9712-	●	●
146	06.008 HOSE; CHECK VLV 4JX1 ENG(RJM) SHIFT ON THE FLY(7EX)	8-97178-057-2	01	1	9712-	●	●
147	06.008 TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-3	01	1	9712-0105	●	●
147	06.008 TANK; VACUUM 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX)	8-97102-100-5	01	1	0106-	●	●
147	06.008 TANK; VACUUM SHIFT ON THE FLY(7EX)	8-97102-100-5	01	1	0106-	●	●
149	06.056 CAP; RUBBER 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX) 01.780 ID=4	8-94217-809-0	01	1	9712-	●	●
150	06.008 JOINT 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 03.680 2WAY	8-94313-805-0	01	1	9712-9906	●	●
150	06.008 JOINT 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4) 03.680 2WAY	8-94313-805-0	01	1	9907-	●
150	06.008 JOINT 4JG2 ENG(RJC) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMEN T(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.680 2WAY	8-94313-805-0	01	1	9907-		●
163	06.008 VALVE; CHECK 4JG2 ENG(RJC),4JX1 ENG(RJM) SHIFT ON THE FLY(7EX) 03.670	8-97024-129-2	01	1	9712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
