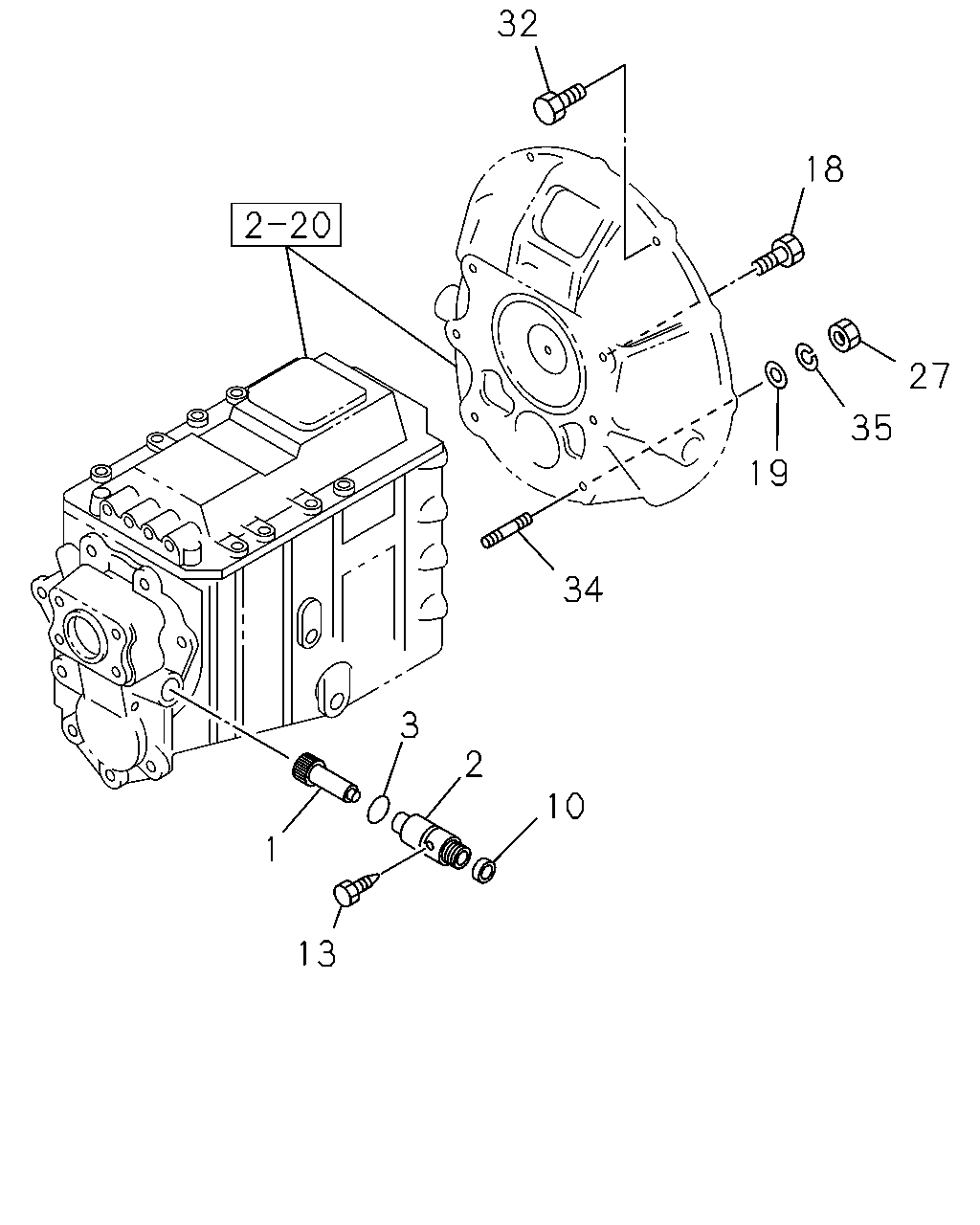

2-25 — SPEEDOMETER DRIVEN GEAR (#733) — 67 parça

32 18 27 35 19 34 3 2 10 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=14	1-33372-157-0	01	1	9204-	●
1	GEAR; DRIVEN,SPD Z=12	1-33372-160-0	01	1	9209-		●
1	GEAR; DRIVEN,SPD Z=18	1-33372-113-4	01	1	9505-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-87060-757-0	01	1	9204-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	9505-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	9204-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9505-			●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	9505-			●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	9505-			●
18	BOLT; CLU HSG TO TRANS	1-87061-537-0	02	1	9204-	●	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	9505-			●
19	WASHER; PL,CLU HSG TO TRANS (A)	1-87060-770-0	06	1	9204-	●	●
19	WASHER; PL,CLU HSG TO TRANS (B)	1-87061-525-0	02	1	9204-	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9505-			●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	9204-	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9505-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1TC ENG(28L) M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9405-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1TC ENG(28L) M10X32 W/LK WASHER	1-09029-001-1	01	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK WASHER	1-09029-001-1	01	1	9405-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9204-9404	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1 STD ENG(06L) M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9405-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK WASHER	1-09029-001-1	02	1	9204-9404	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1 STD ENG(06L) M10X32 W/LK WASHER	1-09029-001-1	02	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9505-			●
34	STUD; CLU HSG	1-87061-431-0	06	1	9204-	●	●
34	STUD; CLU HSG	9-04411-645-0	02	1	9505-			●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	9505-			●

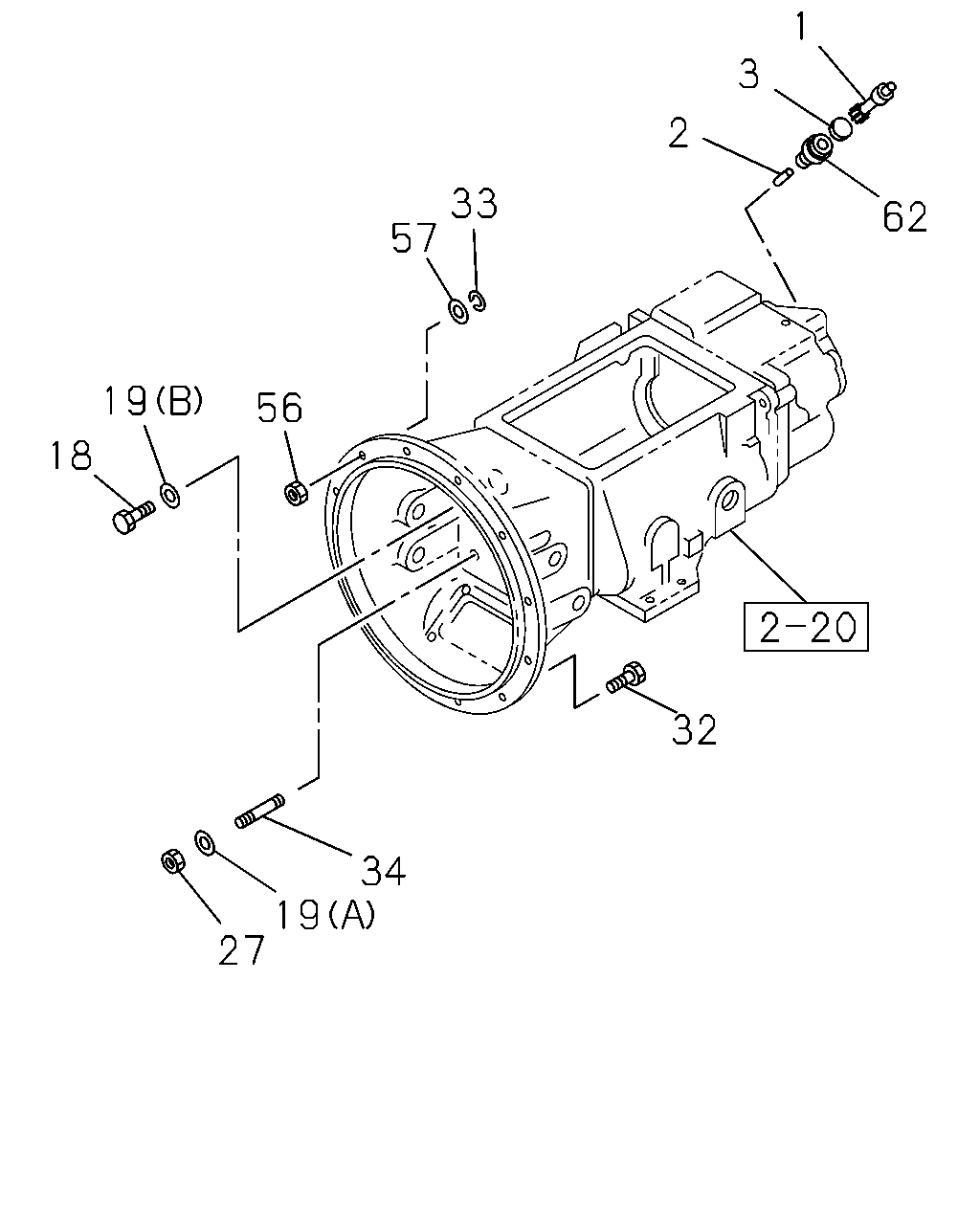

1 3 2 33 57 62 19 56 18 32 34 19 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=14	1-33372-157-0	01	1	9204-	●
1	GEAR; DRIVEN,SPD Z=12	1-33372-160-0	01	1	9209-		●
1	GEAR; DRIVEN,SPD Z=18	1-33372-113-4	01	1	9505-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-87060-757-0	01	1	9204-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	9505-			●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-87060-995-0	01	1	9204-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	9505-			●
18	BOLT; CLU HSG TO TRANS	1-87061-537-0	02	1	9204-	●	●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50151-640-0	06	1	9505-			●
19	WASHER; PL,CLU HSG TO TRANS (A)	1-87060-770-0	06	1	9204-	●	●
19	WASHER; PL,CLU HSG TO TRANS (B)	1-87061-525-0	02	1	9204-	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	9505-			●
27	NUT; CLU HSG TO TRANS	1-87061-220-0	06	1	9204-	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	9505-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1TC ENG(28L) M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9405-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1TC ENG(28L) M10X32 W/LK WASHER	1-09029-001-1	01	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK WASHER	1-09029-001-1	01	1	9405-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9204-9404	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1 STD ENG(06L) M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9405-			●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X32 W/LK WASHER	1-09029-001-1	02	1	9204-9404	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6SA1 STD ENG(06L) M10X32 W/LK WASHER	1-09029-001-1	02	1	9405-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X35 W/LK&PL WASHER	0-50151-035-0	02	1	9505-			●
33	WASHER; LK,CLU HSG 6SA1 STD ENG(06L) ID=10.2	9-09150-510-0	04	1	9204-	●
33	WASHER; LK,CLU HSG 6SA1TC ENG(28L) ID=10.2	9-09150-510-0	03	1	9204-9404	●
33	WASHER; LK,CLU HSG ID=10.2	9-09150-510-0	03	1	9204-9404		●
33	WASHER; LK,CLU HSG 6SA1TC ENG(28L) ID=10.2	9-09150-510-0	02	1	9405-	●
33	WASHER; LK,CLU HSG ID=10.2	9-09150-510-0	02	1	9405-		●
34	STUD; CLU HSG	1-87061-431-0	06	1	9204-	●	●
34	STUD; CLU HSG	9-04411-645-0	02	1	9505-			●
56	NUT; CLU HSG TO FLYWHEEL HSG 6SA1 STD ENG(06L) M10	9-09110-510-0	02	1	9204-	●
56	NUT; CLU HSG TO FLYWHEEL HSG 6SA1TC ENG(28L) M10	9-09110-510-0	01	1	9204-	●
56	NUT; CLU HSG TO FLYWHEEL HSG M10	9-09110-510-0	01	1	9204-		●
57	WASHER; PL,CLU HSG 6SA1 STD ENG(06L) ID=10.5 OD=18	9-09160-510-0	02	1	9405-	●
57	WASHER; PL,CLU HSG 6SA1TC ENG(28L) ID=10.5 OD=18	9-09160-510-0	01	1	9204-	●
57	WASHER; PL,CLU HSG ID=10.5 OD=18	9-09160-510-0	01	1	9204-		●
62	SLEEVE; DRIVEN GEAR	1-87061-234-0	01	1	9204-	●	●
