Isuzu WW
▶
SUV
▶
UBS
▶
50757 - UBS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

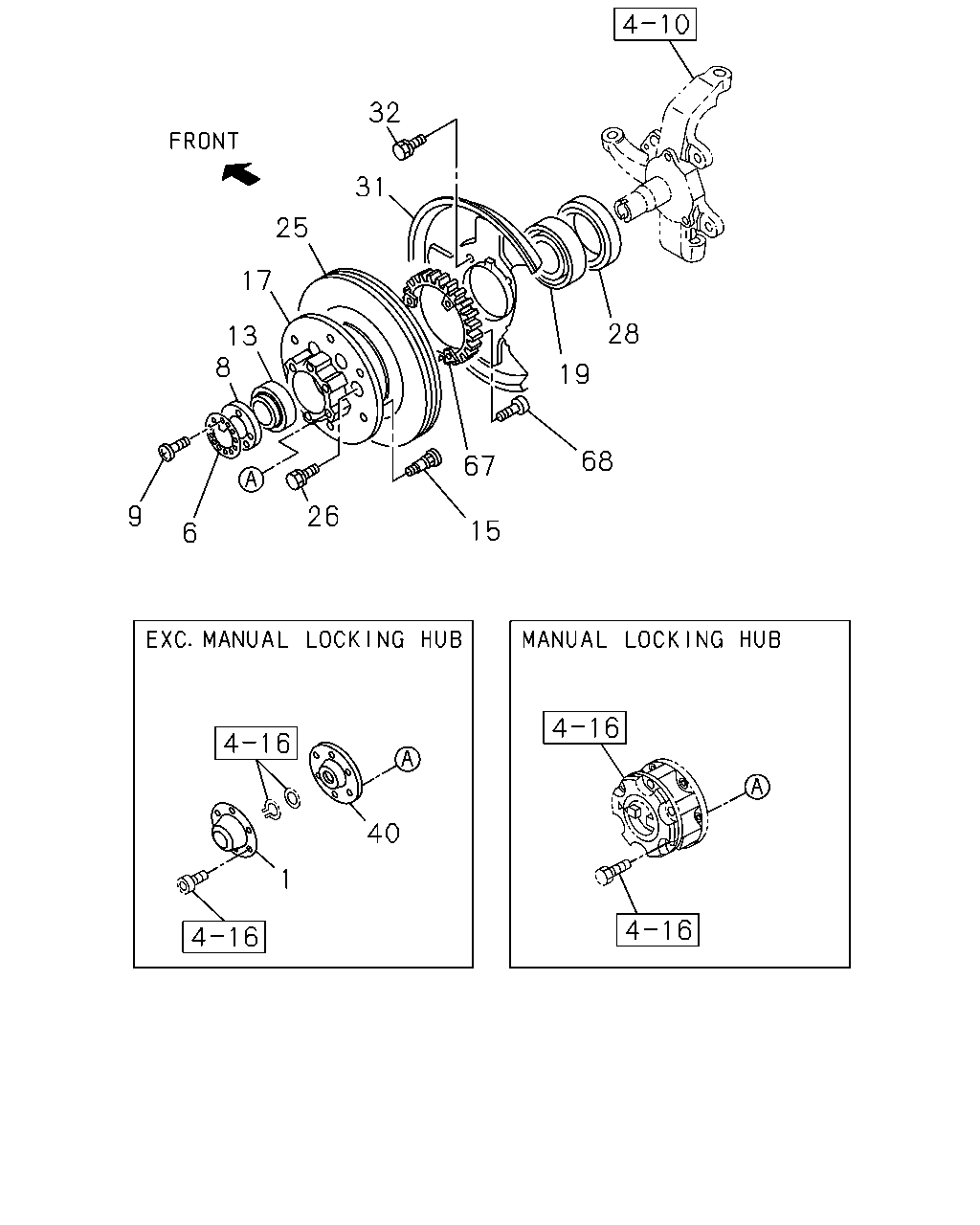

4-11 — FRONT HUB AND DRUM OR ROTOR
(#73299) — 19 parça
Tümü
A - UBS5VC
B - UBS5VF
32
31
25
17
28
13
8
19
68
67
26
9
15
6
40
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2)
8-94173-314-2
02
1
9712-
●
●
6
05.812 WASHER; LK,FRT HUB
T=1.8 OD=65
8-94442-398-0
02
1
9712-
●
●
8
05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8
8-94442-399-1
02
1
9712-
●
●
9
05.812 SCREW; ADJ,NUT
08.913 M4X8 CK-HEAD
9-93090-408-0
06
1
9712-
●
●
13
06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK
8-94227-041-0
02
1
9712-
●
●
15
05.812 PIN; WHEEL,FRT AXLE
8-94223-200-0
12
1
9712-9901
●
●
15
05.812 PIN; WHEEL,FRT AXLE
M12X37.5
8-97213-871-0
12
1
9902-
●
●
17
06.307 HUB; FRT AXLE
8-94381-084-2
02
1
9712-
●
●
19
06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK
8-94258-819-0
02
1
9712-
●
●
25
05.809 ROTOR; DISC BRK,FRT
ANTI LOCK BRAKE SYSTEM(JE5)
8-94375-416-4
02
1
9712-
●
●
25
05.809 ROTOR; DISC BRK,FRT
EXC. ANTI LOCK BRAKE SYSTEM(JE5)
8-94375-533-4
02
1
9712-
●
●
26
05.812 BOLT; BRK,DISC TO HUB
M12X31.5
8-94409-921-0
12
1
9712-
●
●
28
06.326 SEAL; OIL,FRT HUB
06.308
8-94407-711-0
02
1
9712-
●
●
31
04.665 COVER; DUST,FRT BRAKE
8-94375-418-0
01
1
9712-
●
●
31
04.665 COVER; DUST,FRT BRAKE
8-94375-417-0
01
1
9712-
●
●
32
04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-97025-916-0
06
1
9712-
●
●
40
06.308 FLANGE; FRT WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2)
8-94173-313-0
02
1
9712-
●
●
67
05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM(JE5)
8-97018-425-1
02
1
9712-
●
●
68
05.812 BOLT; SENSOR ROTOR
ANTI LOCK BRAKE SYSTEM(JE5) 08.900 M8X16
9-05820-816-0
06
1
9712-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
