Isuzu WW
▶
SUV
▶
UBS
▶
50757 - UBS-RHD
▶
3 - Brakes, Brake System
▶
3-60 - BRAKE PIPING; VACUUM
▶
3-60 — BRAKE PIPING; VACUUM
(#73296) — 23 parça
Tümü
A - UBS5VC
B - UBS5VF
◀

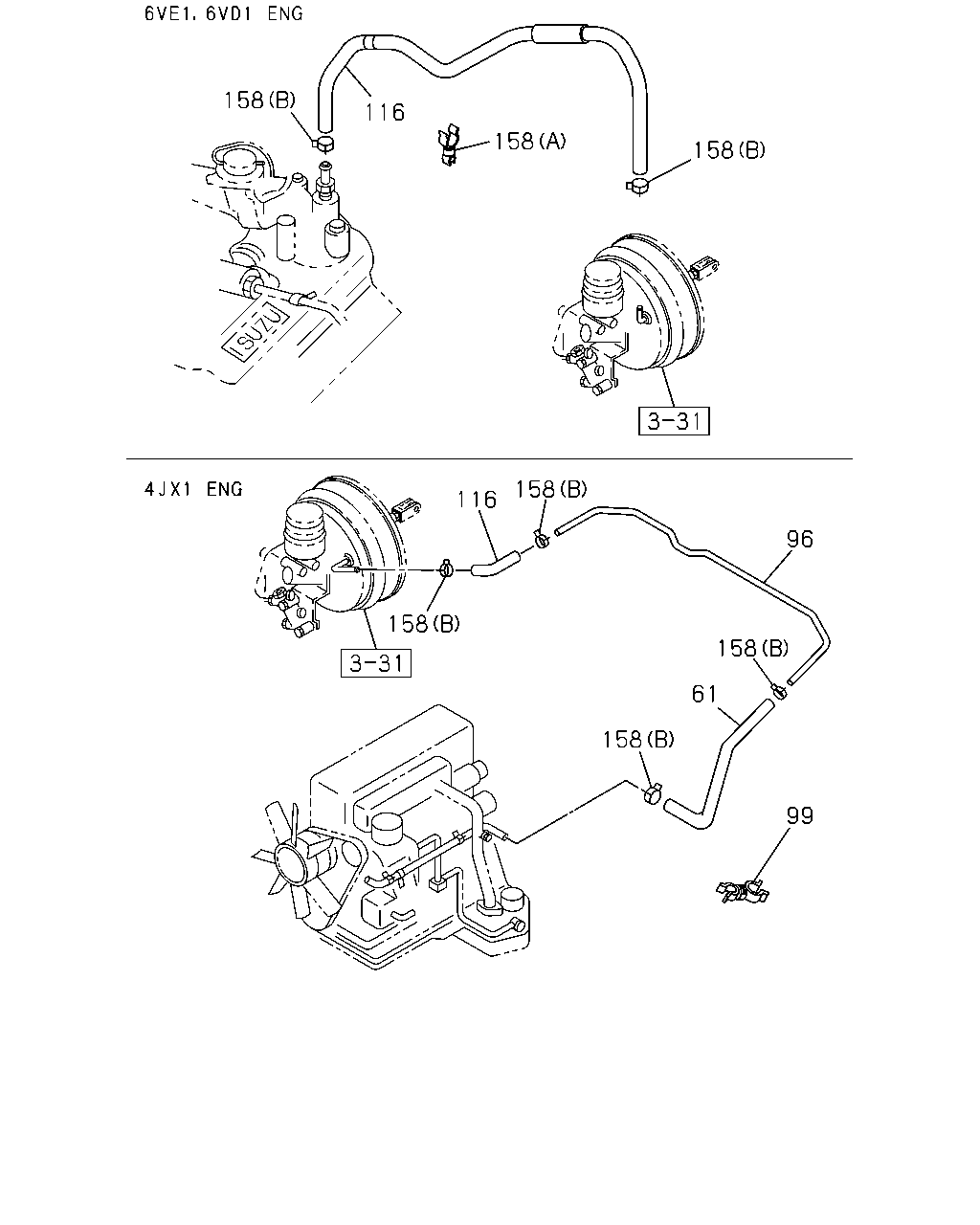

[360A] 4JX1,6VE1,6VD1 (12 parça)
[360A] 4JG2 (11 parça)
▶
158
116
158
158
158
116
96
158
158
61
158
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
61
04.931 HOSE; VAC,PIPE TO PUMP
4JX1 ENG(RJM) L=400 SERVICED BY L=3000
0-08358-300-0
01
1
9712-
●
●
96
04.930 PIPE; VAC,M/VAC TO VAC PUMP
4JX1 ENG(RJM)
8-97168-947-2
01
1
9712-
●
●
99
04.930 CLIP; VAC HOSE TO VAC HOSE
4JX1 ENG(RJM) 03.890 ID=20 & 16.5
8-94486-835-0
01
1
9712-
●
●
116
04.931 HOSE; VAC,M/VAC
4JG2 ENG(RJC)
8-97175-856-1
01
1
9712-9808
●
●
116
04.931 HOSE; VAC,M/VAC
4JG2 ENG(RJC)
8-97211-693-1
01
1
9809-
●
●
116
04.931 HOSE; VAC,M/VAC
4JX1 ENG(RJM) L=140 SERVICED BY L=3000
0-08358-300-0
01
1
9712-9801
●
●
116
04.931 HOSE; VAC,M/VAC
4JX1 ENG(RJM)
8-97205-786-1
01
1
9802-
●
●
116
04.931 HOSE; VAC,M/VAC
6VE1 ENG(RJQ),6VD1 ENG(RLV)
8-97169-071-3
01
1
9712-
●
●
158
04.681 CLIP; HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) (B) ID=16
8-97173-222-0
04
1
9712-
●
●
158
04.681 CLIP; HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.430 (A) ID=6 & 16.5
8-94165-402-0
01
1
9712-0105
●
●
158
04.681 CLIP; HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 03.430 (A) ID=6 & 16.5
8-94165-402-0
01
1
0106-
●
●
158
04.681 CLIP; HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) (B) ID=16
8-97173-222-0
02
1
9712-
●
●
158
116
158
158
199
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
116
04.931 HOSE; VAC,M/VAC
4JG2 ENG(RJC)
8-97175-856-1
01
1
9712-9808
●
●
116
04.931 HOSE; VAC,M/VAC
4JG2 ENG(RJC)
8-97211-693-1
01
1
9809-
●
●
116
04.931 HOSE; VAC,M/VAC
4JX1 ENG(RJM) L=140 SERVICED BY L=3000
0-08358-300-0
01
1
9712-9801
●
●
116
04.931 HOSE; VAC,M/VAC
4JX1 ENG(RJM)
8-97205-786-1
01
1
9802-
●
●
116
04.931 HOSE; VAC,M/VAC
6VE1 ENG(RJQ),6VD1 ENG(RLV)
8-97169-071-3
01
1
9712-
●
●
158
04.681 CLIP; HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) (B) ID=16
8-97173-222-0
04
1
9712-
●
●
158
04.681 CLIP; HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.430 (A) ID=6 & 16.5
8-94165-402-0
01
1
9712-0105
●
●
158
04.681 CLIP; HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) 03.430 (A) ID=6 & 16.5
8-94165-402-0
01
1
0106-
●
●
158
04.681 CLIP; HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) (B) ID=16
8-97173-222-0
02
1
9712-
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JG2 ENG(RJC) 04.931 L=230 SERVICED BY L=1000
0-08358-100-0
01
1
9712-0207
●
●
199
04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JG2 ENG(RJC) 04.931 L=230 SERVICED BY L=3000
0-08158-300-0
01
1
0208-
●
●
