3-58 — FIXING PARTS; OIL PIPING (#73295) — 195 parça

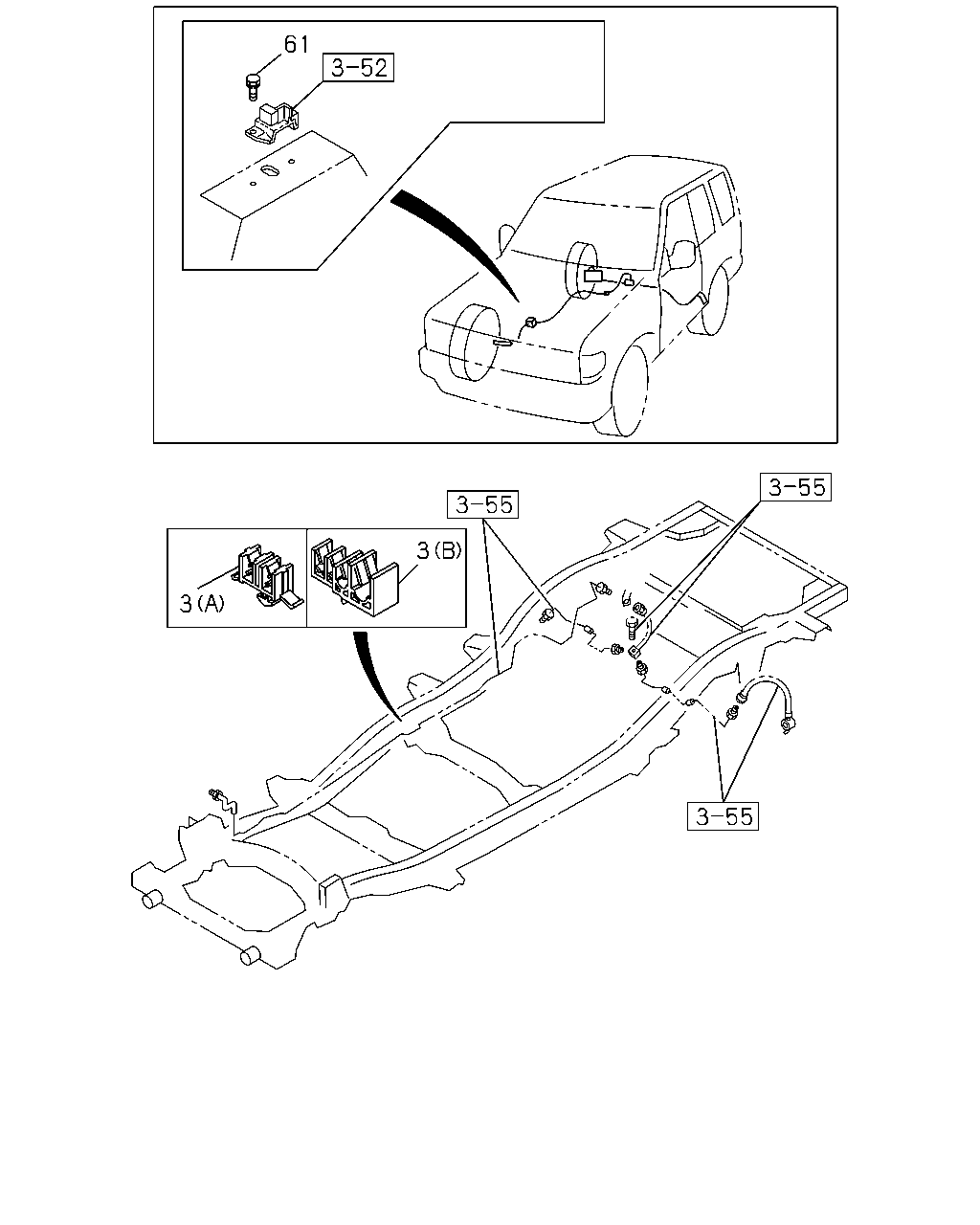

çizim 20858
61 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.685 CLIP; BRK PIPE
04.686 (A) 		8-94326-752-0 01 1 9712- ●
3 04.685 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.686 (A) 		8-94326-752-0 01 1 9712- ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 04.686 (A) 		8-94326-752-0 05 1 9712- ● ●
3 04.685 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (B) L=140 		5-09707-031-1 01 1 9712-9908 ● ●
3 04.685 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (B) L=140 		5-09707-031-1 01 1 9712-9908 ●
3 04.685 CLIP; BRK PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 03.162 (B) L=140 		5-09707-031-1 01 1 9712-9908 ●
3 04.685 CLIP; BRK PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) 04.686 (A) 		8-94326-752-0 02 1 9712- ●
61 04.686 BOLT; BRK PIPE
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9712-9807 ● ●
61 04.686 BOLT; BRK PIPE
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9808-9809 ● ●
61 04.686 BOLT; BRK PIPE
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9810- ● ●

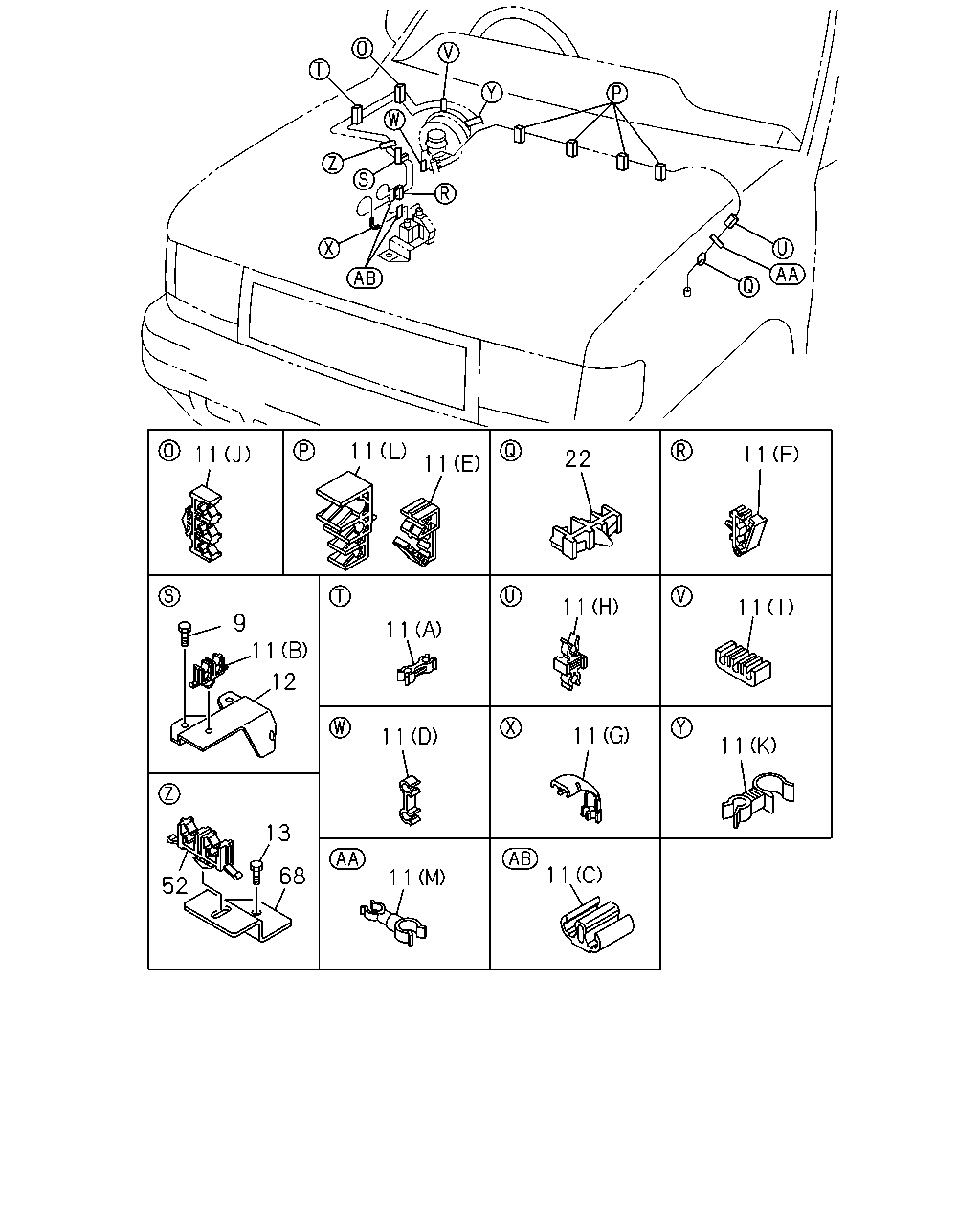

çizim 70141
11 11 11 22 11 11 11 9 11 11 12 11 11 11 13 11 68 11 52
BalonParca AdiParca NoAdetTipApplied Date A B
9 04.686 BOLT; BRKT
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
9 04.686 BOLT; BRKT
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
9 04.686 BOLT; BRKT
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9808-9903 ● ●
9 04.686 BOLT; BRKT
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9808-9903 ● ●
9 04.686 BOLT; BRKT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9904-9908 ● ●
9 04.686 BOLT; BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9904-9908 ● ●
9 04.686 BOLT; BRKT
ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9909- ● ●
9 04.686 BOLT; BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9909- ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712-9801 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802-9807 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802-9807 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9808-9903 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9808-9903 ● ●
11 04.686 CLIP; OIL PIPE
(F) 		8-97035-570-3 01 1 9712- ● ●
11 04.686 CLIP; OIL PIPE
(G) 		8-97069-554-1 01 1 9712- ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (J) 		8-94107-743-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (J) 		8-94107-743-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) (E) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) (E) 		8-97037-992-3 03 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) (E) 		8-97037-992-3 03 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (E) 		8-97037-992-3 03 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 0001- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (E) 		8-97037-992-3 03 1 0001- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (I) ID=4.76X3 		8-94122-333-0 01 1 9712-9812 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (I) ID=4.76X3 		8-94122-333-0 01 1 9712-9812 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9901-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9901-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 03 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 03 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (D) 		8-94338-104-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (D) 		8-94338-104-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97200-671-0 02 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 02 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 02 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 02 1 0001- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 05 1 9712-9802 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 05 1 9803- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9712-9809 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9712-9809 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9810-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9810-9908 ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9810-9908 ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 03.483 (M) ID=6 & 10 		8-94154-844-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.483 (M) ID=6 & 10 		8-94154-844-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (L) H=9.5 		8-94375-291-0 05 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (L) H=9.5 		8-94375-291-0 05 1 9909-0202 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (L) 		8-97102-873-0 05 1 0203- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (L) H=9.5 		8-94375-291-0 04 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (L) H=9.5 		8-94375-291-0 04 1 9909-0202 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (L) 		8-97102-873-0 04 1 0203- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.480 (K) ID=10.5 & 4.8 		8-97019-966-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 02.480 (K) ID=10.5 & 4.8 		8-97019-966-0 01 1 9909-9909 ● ●
12 04.686 BRACKET; OIL PIPE 8-97038-830-3 01 1 9712-9903 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712-9801 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802- ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802- ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 9712- ● ●
52 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 9904-9908 ● ●
52 04.686 CLIP; BRK PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 		8-94435-553-0 01 1 9904-9908 ● ●
52 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 9909- ● ●
52 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> 		8-94435-553-0 01 1 9909- ● ●
68 04.686 BRACKET; CLIP
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97213-534-0 01 1 9904-9908 ● ●
68 04.686 BRACKET; CLIP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97213-534-0 01 1 9904-9908 ● ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97213-534-0 01 1 9909- ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97213-534-0 01 1 9909- ● ●

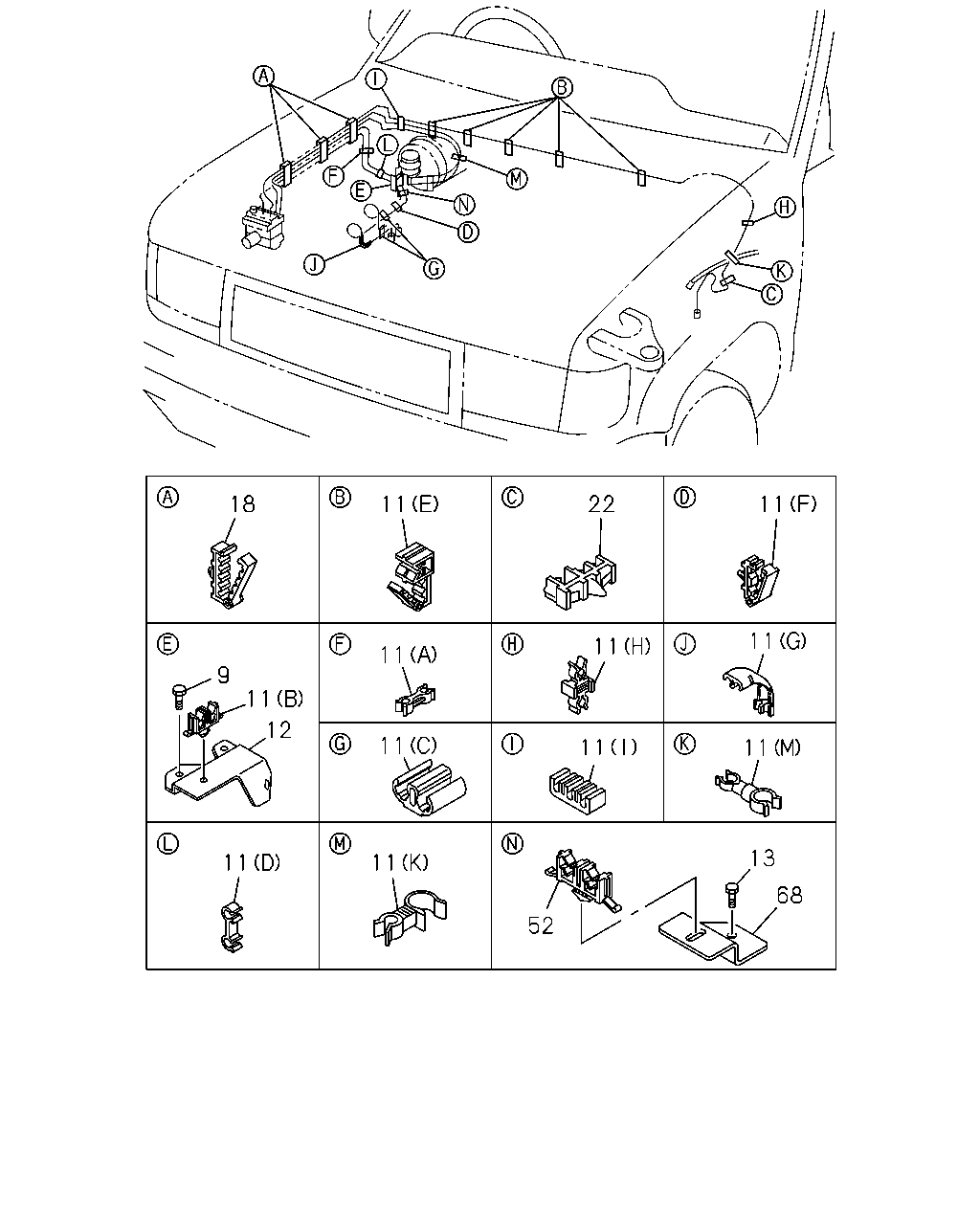

çizim 72269
18 11 22 11 11 11 11 9 11 12 11 11 11 13 11 11 68 52
BalonParca AdiParca NoAdetTipApplied Date A B
9 04.686 BOLT; BRKT
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
9 04.686 BOLT; BRKT
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
9 04.686 BOLT; BRKT
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9808-9903 ● ●
9 04.686 BOLT; BRKT
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9808-9903 ● ●
9 04.686 BOLT; BRKT
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9904-9908 ● ●
9 04.686 BOLT; BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9904-9908 ● ●
9 04.686 BOLT; BRKT
ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9909- ● ●
9 04.686 BOLT; BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9909- ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712-9801 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802-9807 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802-9807 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9808-9903 ● ●
9 04.686 BOLT; BRKT
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9808-9903 ● ●
11 04.686 CLIP; OIL PIPE
(F) 		8-97035-570-3 01 1 9712- ● ●
11 04.686 CLIP; OIL PIPE
(G) 		8-97069-554-1 01 1 9712- ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94435-553-0 01 1 9712-9903 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (J) 		8-94107-743-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (J) 		8-94107-743-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 04.868 (A) ID=4.6X2 		8-94241-454-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) (E) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97200-671-0 03 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) (E) 		8-97037-992-3 03 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC) (E) 		8-97037-992-3 03 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (E) 		8-97037-992-3 03 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 03 1 0001- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (E) 		8-97037-992-3 03 1 0001- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (I) ID=4.76X3 		8-94122-333-0 01 1 9712-9812 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 04.685 (I) ID=4.76X3 		8-94122-333-0 01 1 9712-9812 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9901-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9901-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (I) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 03 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 03 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (D) 		8-94338-104-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (D) 		8-94338-104-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9712-9908 ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909-9909 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.183 (H) ID=6 & 4.8 		8-94313-325-0 01 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97200-671-0 02 1 9712-9801 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 02 1 9802-9908 ● ●
11 04.686 CLIP; OIL PIPE
4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 02 1 9909-9912 ● ●
11 04.686 CLIP; OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 02 1 0001- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 05 1 9712-9802 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (E) 		8-97037-992-3 05 1 9803- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9712-9809 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9712-9809 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9810-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9810-9908 ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9810-9908 ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 03.162 (C) ID=6.35 & 6.35 		8-94474-113-0 02 1 9909- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 03.483 (M) ID=6 & 10 		8-94154-844-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.483 (M) ID=6 & 10 		8-94154-844-0 01 1 0106- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) (L) H=9.5 		8-94375-291-0 05 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (L) H=9.5 		8-94375-291-0 05 1 9909-0202 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> (L) 		8-97102-873-0 05 1 0203- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (L) H=9.5 		8-94375-291-0 04 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (L) H=9.5 		8-94375-291-0 04 1 9909-0202 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (L) 		8-97102-873-0 04 1 0203- ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 02.480 (K) ID=10.5 & 4.8 		8-97019-966-0 01 1 9712-9908 ● ●
11 04.686 CLIP; OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 02.480 (K) ID=10.5 & 4.8 		8-97019-966-0 01 1 9909-9909 ● ●
12 04.686 BRACKET; OIL PIPE 8-97038-830-3 01 1 9712-9903 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9712-9807 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9712-9801 ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802- ● ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802- ●
13 04.686 BOLT; BRKT,OIL PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9802- ●
18 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97062-177-1 03 1 9712- ● ●
22 04.686 CLIP; PIPE TO FRAME 8-94442-883-1 01 1 9712- ● ●
52 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 9904-9908 ● ●
52 04.686 CLIP; BRK PIPE
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 		8-94435-553-0 01 1 9904-9908 ● ●
52 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM(JE5) 		8-94435-553-0 01 1 9909- ● ●
52 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> 		8-94435-553-0 01 1 9909- ● ●
68 04.686 BRACKET; CLIP
EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97213-534-0 01 1 9904-9908 ● ●
68 04.686 BRACKET; CLIP
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-97213-534-0 01 1 9904-9908 ● ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97213-534-0 01 1 9909- ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97213-534-0 01 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
