Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#73294) — 85 parça

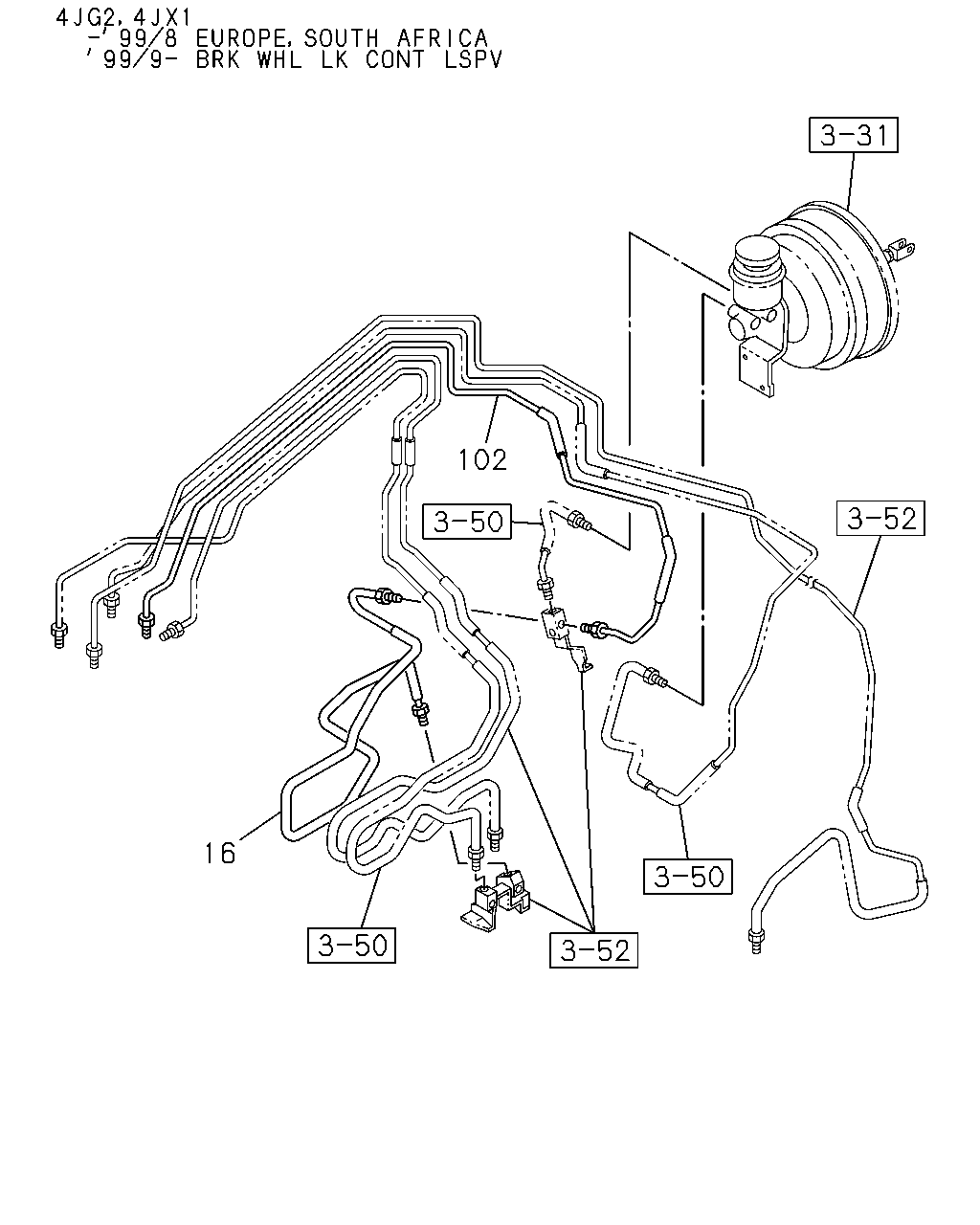

102 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	08.964 PIPE; OIL,VLV TO RR FLEX HOSE 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-562-1	01	1	9712-9908	●	●
16	08.964 PIPE; OIL,VLV TO RR FLEX HOSE 4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97181-562-1	01	1	9909-9912	●	●
16	08.964 PIPE; OIL,VLV TO RR FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97181-562-2	01	1	0001-	●	●
102	04.685 PIPE; ASM,3 WAY TO ABS 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-104-1	01	1	9712-9908	●	●
102	04.685 PIPE; ASM,3 WAY TO ABS 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97169-104-2	01	1	9909-	●	●
102	04.685 PIPE; ASM,3 WAY TO ABS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-103-1	01	1	9712-9908	●	●
102	04.685 PIPE; ASM,3 WAY TO ABS 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97169-103-2	01	1	9909-	●	●

102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	04.685 PIPE; ASM,3 WAY TO ABS 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-104-1	01	1	9712-9908	●	●
102	04.685 PIPE; ASM,3 WAY TO ABS 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97169-104-2	01	1	9909-	●	●
102	04.685 PIPE; ASM,3 WAY TO ABS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-103-1	01	1	9712-9908	●	●
102	04.685 PIPE; ASM,3 WAY TO ABS 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97169-103-2	01	1	9909-	●	●

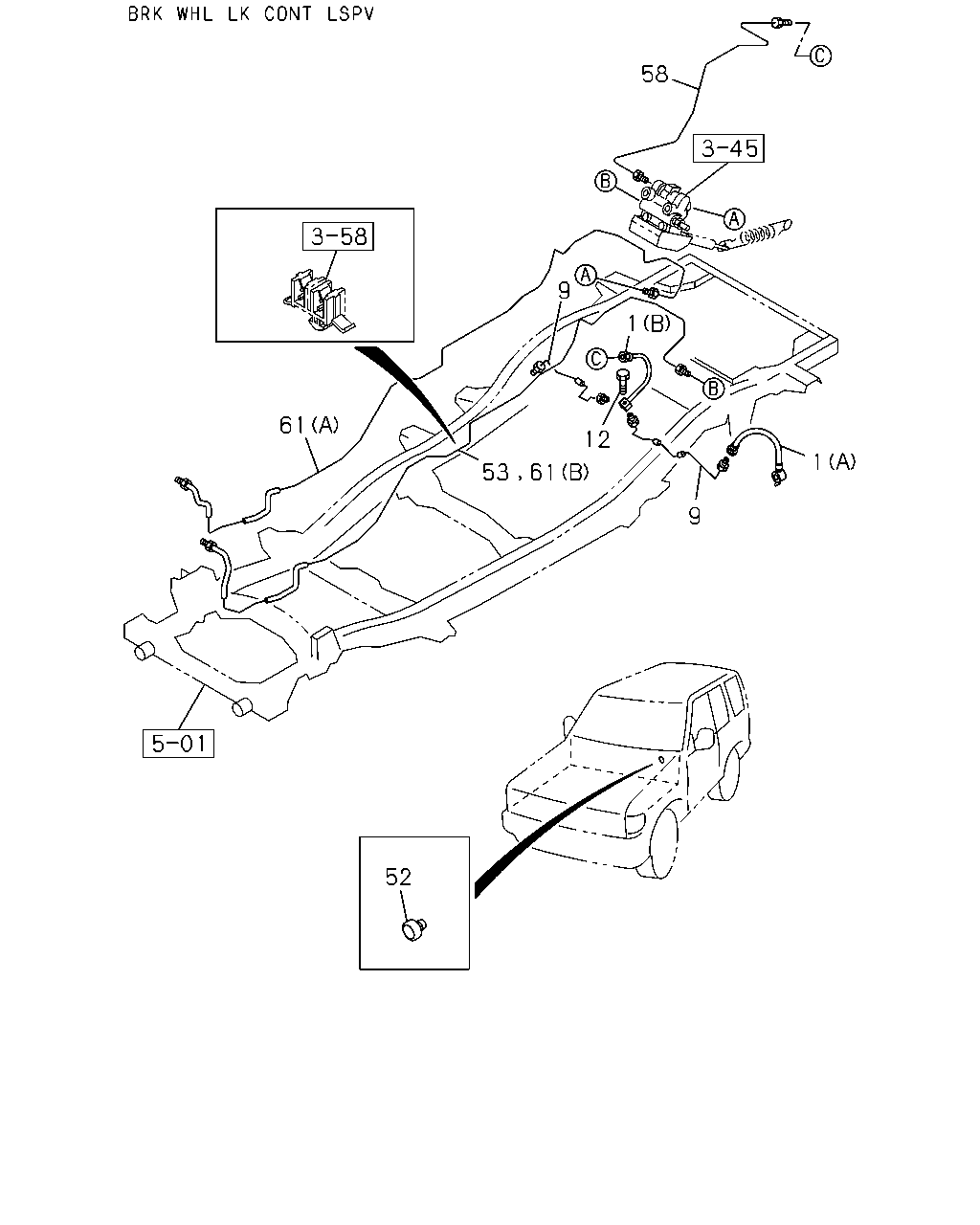

58 9 1 61 12 1 9 52 53 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK (B)	8-94385-432-2	01	1	9712-	●	●
1	04.680 HOSE; FLEX,RR BRK WIDE TREAD SUSPENSION<7FC> (A)	8-97102-841-0	02	1	9712-0206	●	●
1	04.680 HOSE; FLEX,RR BRK (A)	8-97102-841-1	02	1	0207-	●	●
1	04.680 HOSE; FLEX,RR BRK EXC. WIDE TREAD SUSPENSION<7FC> (A)	8-94382-793-2	02	1	9712-0206	●	●
9	04.685 PIPE; BRK,RR AXLE 4JG2 ENG(RJC),6VD1 ENG(RLV)	8-97041-709-3	01	1	9712-	●	●
9	04.685 PIPE; BRK,RR AXLE 4JG2 ENG(RJC),6VD1 ENG(RLV)	8-94374-974-4	01	1	9712-	●	●
9	04.685 PIPE; BRK,RR AXLE 4JX1 ENG(RJM),6VE1 ENG(RJQ)	8-97169-065-5	01	1	9712-	●	●
9	04.685 PIPE; BRK,RR AXLE 4JX1 ENG(RJM),6VE1 ENG(RJQ)	8-97165-701-3	01	1	9712-	●	●
12	04.685 BOLT; FLEX HOSE TO RR AXLE 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9712-	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	9712-9908	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	9712-9908	●	●
52	04.686 GROMMET; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 16.550 OD=12	9-09956-122-0	01	1	9712-9908	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	9909-9912	●	●
52	04.686 GROMMET; OIL PIPE 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 16.550 OD=12	9-09956-122-0	01	1	9909-9912	●	●
52	04.686 GROMMET; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 16.550 OD=12	9-09956-122-0	01	1	9909-9912	●	●
52	04.686 GROMMET; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●
52	04.686 GROMMET; OIL PIPE 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-110-0	01	1	9712-9908	●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-110-1	01	1	9909-	●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-112-1	01	1	9712-9908	●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-112-2	01	1	9909-	●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-111-0	01	1	9712-9908		●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-111-1	01	1	9909-		●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-114-1	01	1	9712-9908		●
53	04.685 PIPE ASM; BRK,LSV 3 WAY 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-114-2	01	1	9909-		●
58	04.686 PIPE; BRK,LSV TO RR AXLE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-157-1	01	1	9712-9908	●	●
58	04.686 PIPE; BRK,LSV TO RR AXLE BRK WHL LK CONT LSPV<6PH>	8-97169-157-2	01	1	9909-	●	●
61	04.685 PIPE ASM; BRK 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A)	8-97169-115-1	01	1	9712-9908	●
61	04.685 PIPE ASM; BRK 4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A)	8-97169-115-2	01	1	9909-	●
61	04.685 PIPE ASM; BRK 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97169-122-0	01	1	9712-9908	●
61	04.685 PIPE ASM; BRK 4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-97169-122-1	01	1	9909-	●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) (A)	8-97169-124-2	01	1	9712-9908	●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A)	8-97169-124-3	01	1	9909-	●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97169-120-1	01	1	9712-9908	●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-97169-120-2	01	1	9909-	●
61	04.685 PIPE ASM; BRK 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A)	8-97169-118-1	01	1	9712-9712		●
61	04.685 PIPE ASM; BRK 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A)	8-97169-118-1	01	1	9801-9908		●
61	04.685 PIPE ASM; BRK 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A)	8-97169-118-2	01	1	9909-		●
61	04.685 PIPE ASM; BRK 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97169-123-0	01	1	9712-9908		●
61	04.685 PIPE ASM; BRK 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-97169-123-1	01	1	9909-		●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97169-121-1	01	1	9712-9908		●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> (B)	8-97169-121-2	01	1	9909-		●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97169-125-2	01	1	9712-9908		●
61	04.685 PIPE ASM; BRK 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A)	8-97169-125-3	01	1	9909-		●

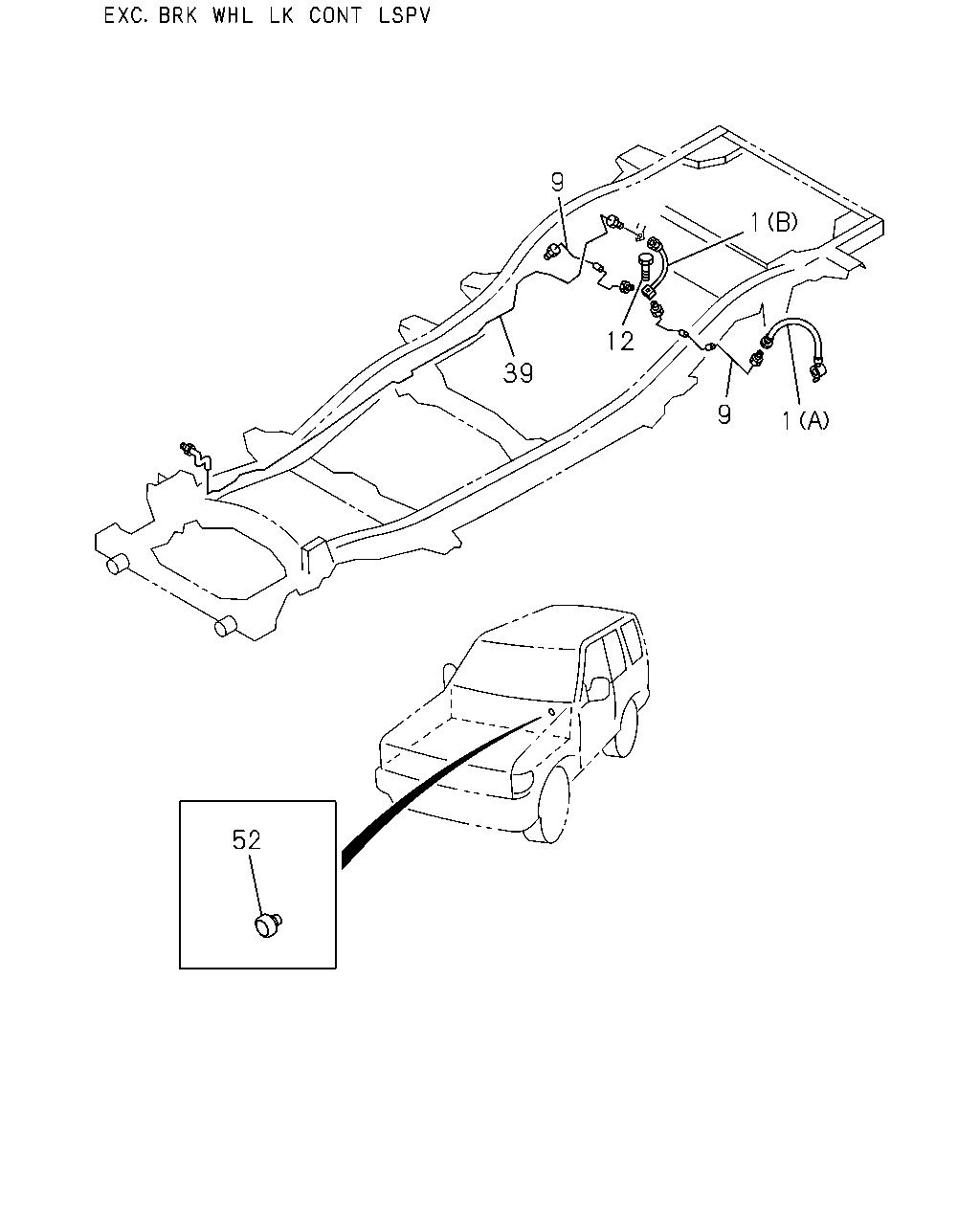

9 1 12 39 9 1 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK (B)	8-94385-432-2	01	1	9712-	●	●
1	04.680 HOSE; FLEX,RR BRK WIDE TREAD SUSPENSION<7FC> (A)	8-97102-841-0	02	1	9712-0206	●	●
1	04.680 HOSE; FLEX,RR BRK (A)	8-97102-841-1	02	1	0207-	●	●
1	04.680 HOSE; FLEX,RR BRK EXC. WIDE TREAD SUSPENSION<7FC> (A)	8-94382-793-2	02	1	9712-0206	●	●
9	04.685 PIPE; BRK,RR AXLE 4JG2 ENG(RJC),6VD1 ENG(RLV)	8-97041-709-3	01	1	9712-	●	●
9	04.685 PIPE; BRK,RR AXLE 4JG2 ENG(RJC),6VD1 ENG(RLV)	8-94374-974-4	01	1	9712-	●	●
9	04.685 PIPE; BRK,RR AXLE 4JX1 ENG(RJM),6VE1 ENG(RJQ)	8-97169-065-5	01	1	9712-	●	●
9	04.685 PIPE; BRK,RR AXLE 4JX1 ENG(RJM),6VE1 ENG(RJQ)	8-97165-701-3	01	1	9712-	●	●
12	04.685 BOLT; FLEX HOSE TO RR AXLE 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9712-	●	●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4)	8-97112-712-3	01	1	9712-9908	●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH>	8-97112-712-4	01	1	9909-	●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4)	8-97169-158-1	01	1	9712-9908	●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH>	8-97169-158-2	01	1	9909-	●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4)	8-97112-713-3	01	1	9712-9908		●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH>	8-97112-713-3	01	1	9909-0005		●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH>	8-97112-713-4	01	1	0006-		●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-159-2	01	1	9712-9908		●
39	04.685 PIPE; OIL,UNION TO RR FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH>	8-97169-159-3	01	1	9909-		●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	9712-9908	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	9712-9908	●	●
52	04.686 GROMMET; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 16.550 OD=12	9-09956-122-0	01	1	9712-9908	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	9909-9912	●	●
52	04.686 GROMMET; OIL PIPE 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 16.550 OD=12	9-09956-122-0	01	1	9909-9912	●	●
52	04.686 GROMMET; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 16.550 OD=12	9-09956-122-0	01	1	9909-9912	●	●
52	04.686 GROMMET; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC),4JX1 ENG(RJM) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●
52	04.686 GROMMET; OIL PIPE 4JG2 ENG(RJC) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●
52	04.686 GROMMET; OIL PIPE 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 16.550 OD=12	9-09956-122-0	01	1	0001-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
