Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#73293) — 138 parça

40 53 93 40 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-846-1	01	1	9712-9901	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97180-914-0	01	1	9902-9908	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97180-914-2	01	1	9909-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97169-173-1	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97181-553-3	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97184-322-2	01	1	9712-0105	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97263-892-1	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97183-826-3	01	1	9712-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9712-9801	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9802-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97180-910-0	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-2	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	02	1	0006-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-2	01	1	0106-	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-9908	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> 01.271 M8X40 FLANGE	0-28080-840-0	01	1	9909-9911	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9912-	●	●

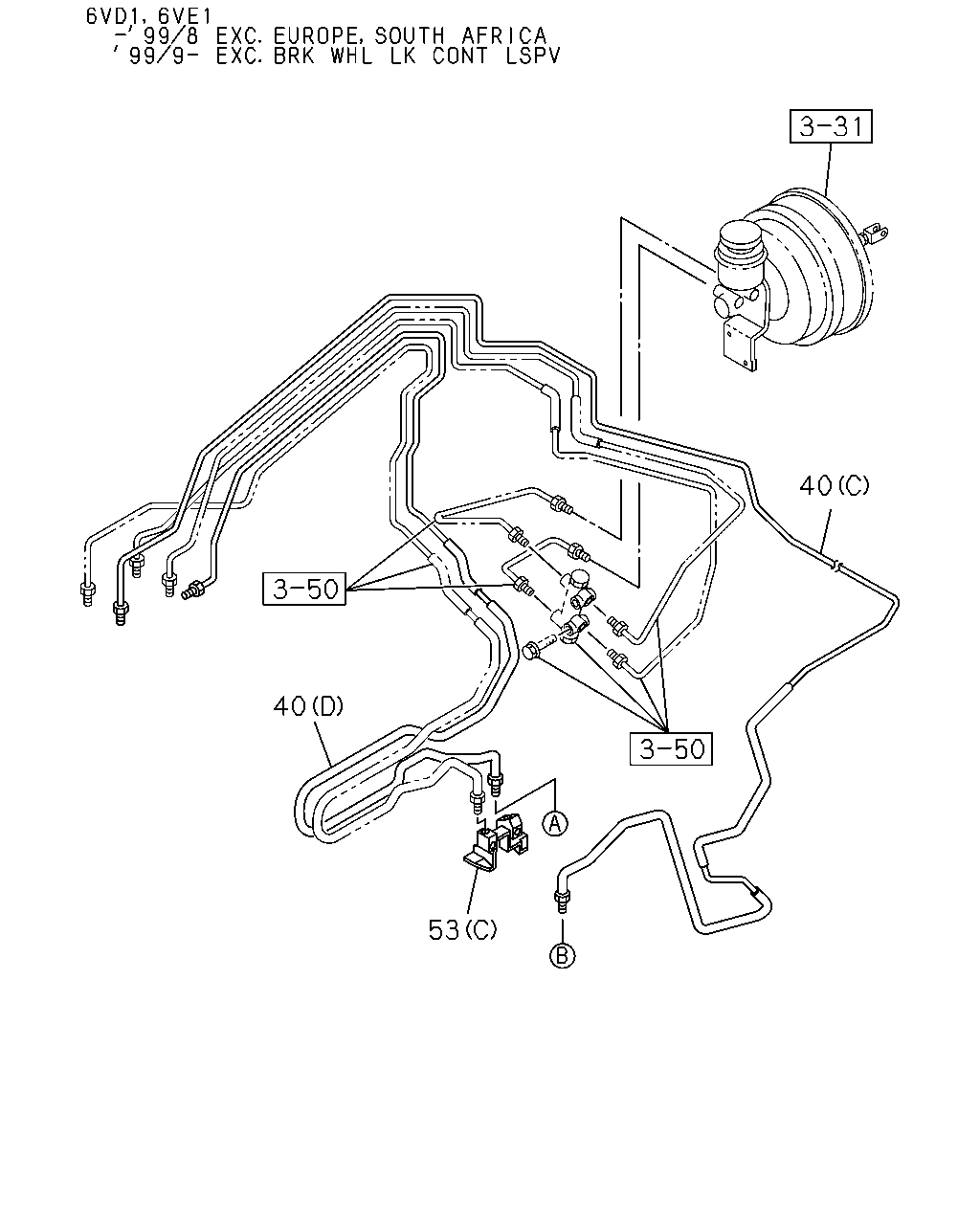

40 40 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97169-173-1	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97181-553-3	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97184-322-2	01	1	9712-0105	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97263-892-1	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97183-826-3	01	1	9712-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9712-9801	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9802-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97180-910-0	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-2	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	02	1	0006-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-2	01	1	0106-	●	●

10 10 53 10 10 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5)	8-97038-466-5	01	1	9712-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH>	8-97038-466-6	01	1	9909-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97181-560-3	01	1	9712-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH>	8-97181-560-4	01	1	9909-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97184-326-3	01	1	9712-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH>	8-97184-326-4	01	1	9909-0110	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH>	8-97326-134-0	01	1	0111-	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2)	8-97183-822-2	01	1	9712-9908	●	●
10	04.685 PIPE; OIL,VLV TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH>	8-97183-822-3	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9712-9801	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9802-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97180-910-0	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-2	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	02	1	0006-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-2	01	1	0106-	●	●

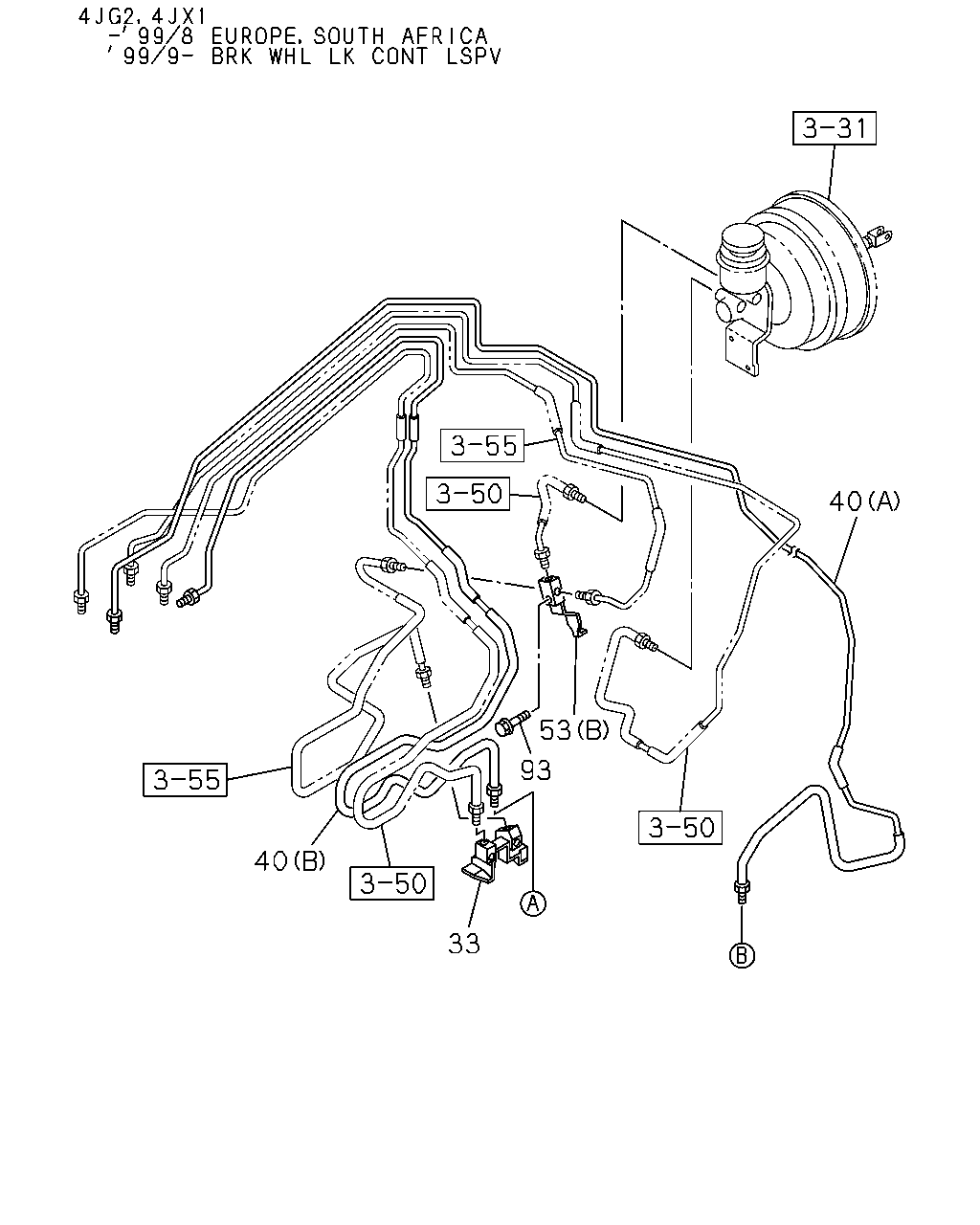

40 40 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97169-173-1	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97181-553-3	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97184-322-2	01	1	9712-0105	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97263-892-1	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97183-826-3	01	1	9712-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9712-9801	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9802-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97180-910-0	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-2	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	02	1	0006-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-2	01	1	0106-	●	●

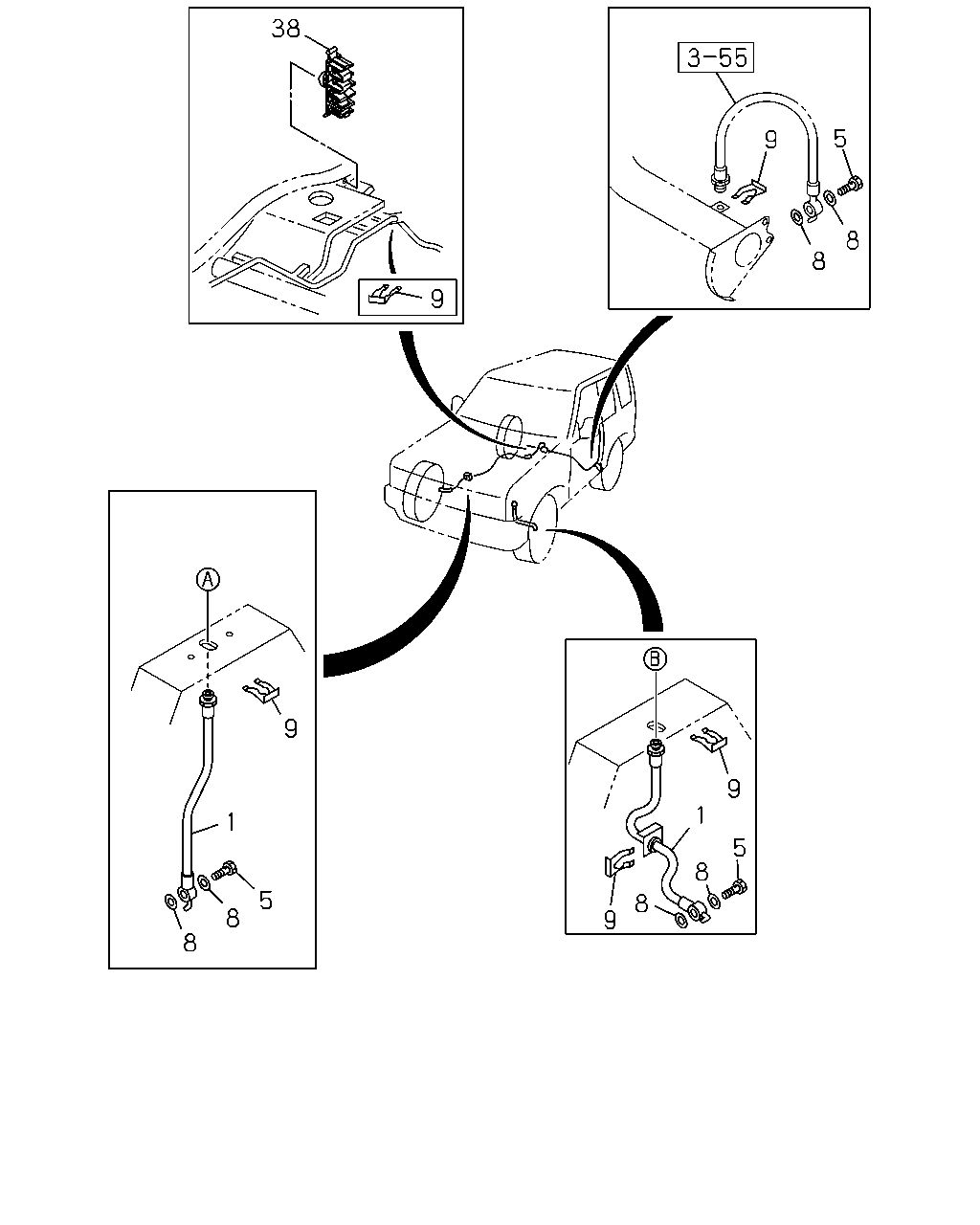

38 5 9 8 8 9 9 9 1 1 5 8 5 8 8 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,FRT BRK WIDE TREAD SUSPENSION<7FC>	8-97102-757-1	02	1	9712-	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. WIDE TREAD SUSPENSION<7FC>	8-94385-433-2	02	1	9712-	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	04	1	9712-	●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	08	1	9712-	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	07	1	9712-	●	●
38	04.686 CLIP 4JG2 ENG(RJC),4JX1 ENG(RJM) 03.162 L=8.9	8-94435-551-1	01	1	9712-		●

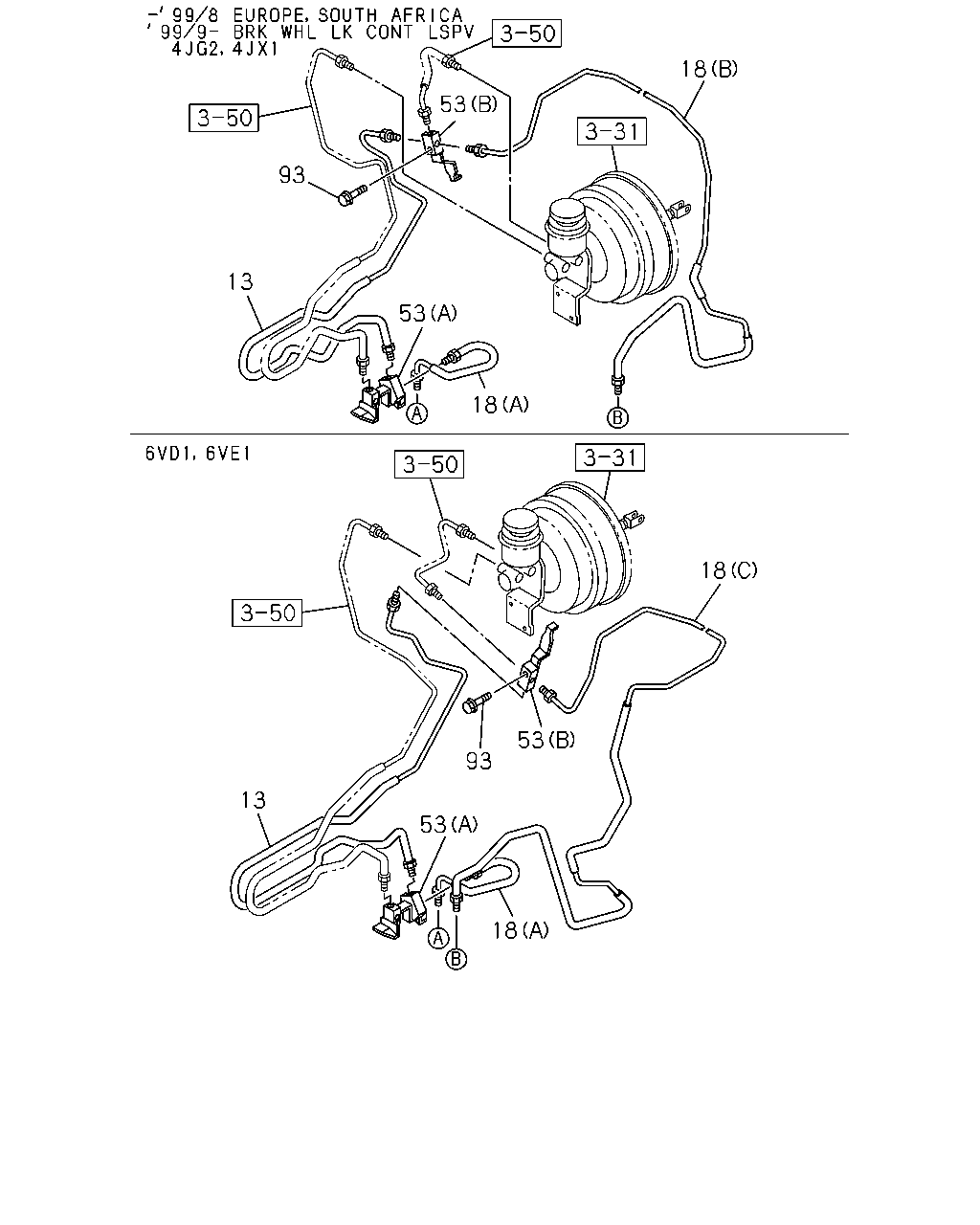

18 53 93 13 53 18 18 53 93 13 53 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-559-0	01	1	9712-9908	●	●
13	04.685 PIPE; OIL,UNION TO UNION 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97181-559-1	01	1	9909-	●	●
13	04.685 PIPE; OIL,UNION TO UNION 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-832-1	01	1	9712-9908	●	●
13	04.685 PIPE; OIL,UNION TO UNION 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-832-2	01	1	9909-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-808-2	01	1	9712-9809	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-808-2	01	1	9712-9809		●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-808-2	01	1	9810-9908	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-94374-808-3	01	1	9909-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97038-467-5	01	1	9712-9908	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97038-467-5	01	1	9909-9912	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97038-467-6	01	1	0001-	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97147-411-7	01	1	9712-9908	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97147-411-7	01	1	9909-0105	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97263-891-1	01	1	0106-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9712-9801	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9802-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97180-910-0	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-2	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	02	1	0006-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-2	01	1	0106-	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-9908	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> 01.271 M8X40 FLANGE	0-28080-840-0	01	1	9909-9911	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9912-	●	●

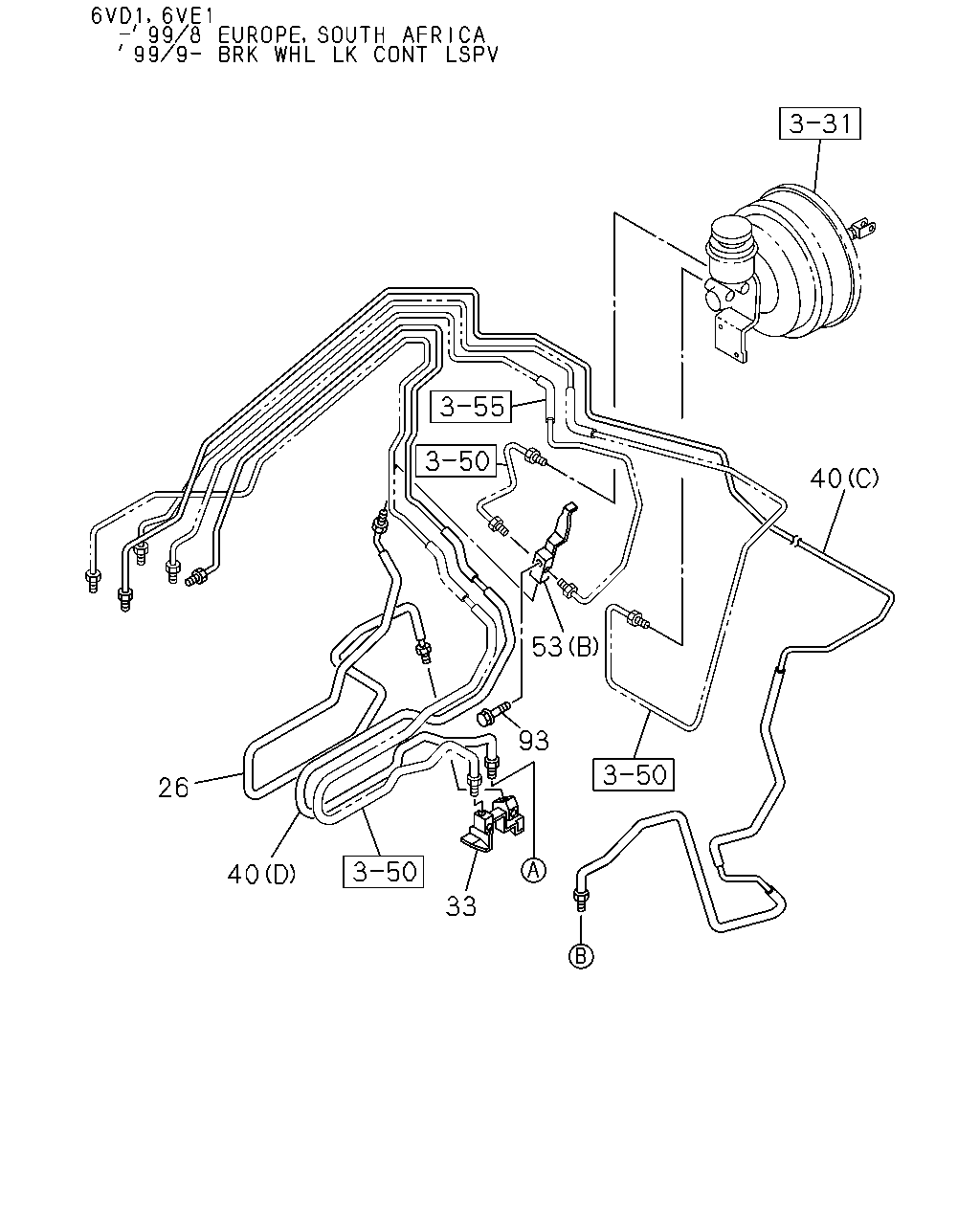

53 93 33 40 26 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	05.476 PIPE; BRK,JOINT TO 2 WAY 6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97183-819-0	01	1	9712-9908	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97183-819-1	01	1	9909-	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97110-846-1	01	1	9712-9901	●	●
33	04.686 UNION; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5)	8-97180-914-0	01	1	9902-9908	●	●
33	04.686 UNION; OIL PIPE ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH>	8-97180-914-2	01	1	9909-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97169-173-1	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97181-553-3	01	1	9712-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97184-322-2	01	1	9712-0105	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97263-892-1	01	1	0106-	●	●
40	04.685 PIPE; BRK,HYDRAULIC UNIT TO FRT 6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) (D)	8-97183-826-3	01	1	9712-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B)	8-97012-437-2	01	1	9712-9801	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97012-437-2	01	1	9802-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97180-910-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> (B)	8-97180-910-0	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97162-282-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A)	8-97180-915-2	01	1	9909-	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97115-928-0	01	1	9712-9901	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97180-911-0	01	1	9902-9908	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	01	1	9909-0005	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-0	02	1	0006-0105	●	●
53	04.686 CONNECTOR; OIL PIPE EXC. BRK WHL LK CONT LSPV<6PH> (C)	8-97180-911-2	01	1	0106-	●	●
93	04.686 BOLT; CONNECTOR EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9712-9908	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> 01.271 M8X40 FLANGE	0-28080-840-0	01	1	9909-9911	●	●
93	04.686 BOLT; CONNECTOR BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9912-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
