◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#73292) — 185 parça

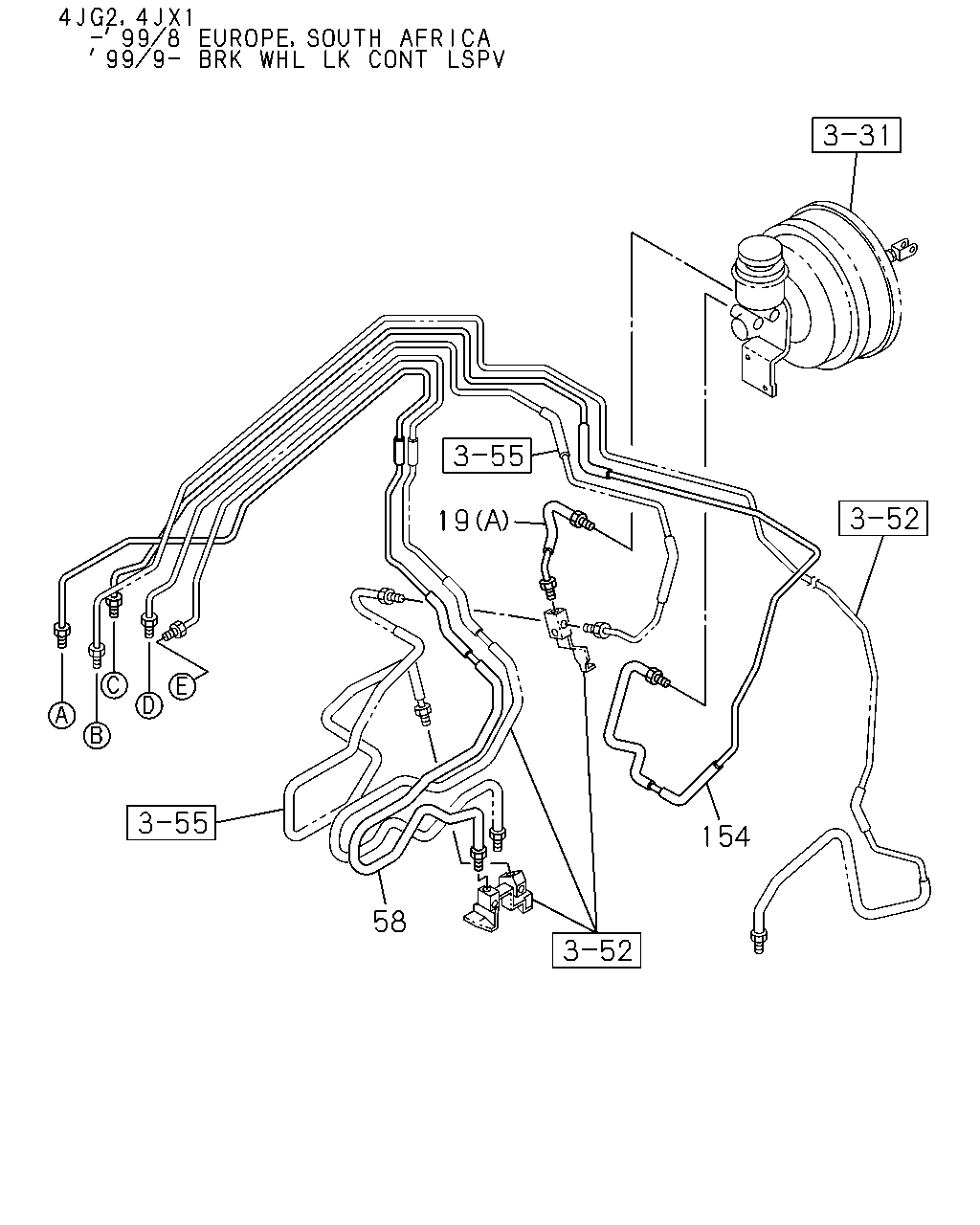

çizim 17008
19 154 58
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97172-531-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97172-531-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-0 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-1 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94374-817-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94374-817-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94374-818-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-94374-818-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97110-828-2 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97110-828-3 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97109-040-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97109-040-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97109-041-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97109-041-2 01 1 9909- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97181-555-3 01 1 9712- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97183-824-3 01 1 9712- ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-181-1 01 1 9712-9908 ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97169-181-2 01 1 9909- ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-180-2 01 1 9712-9908 ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97169-180-3 01 1 9909- ● ●

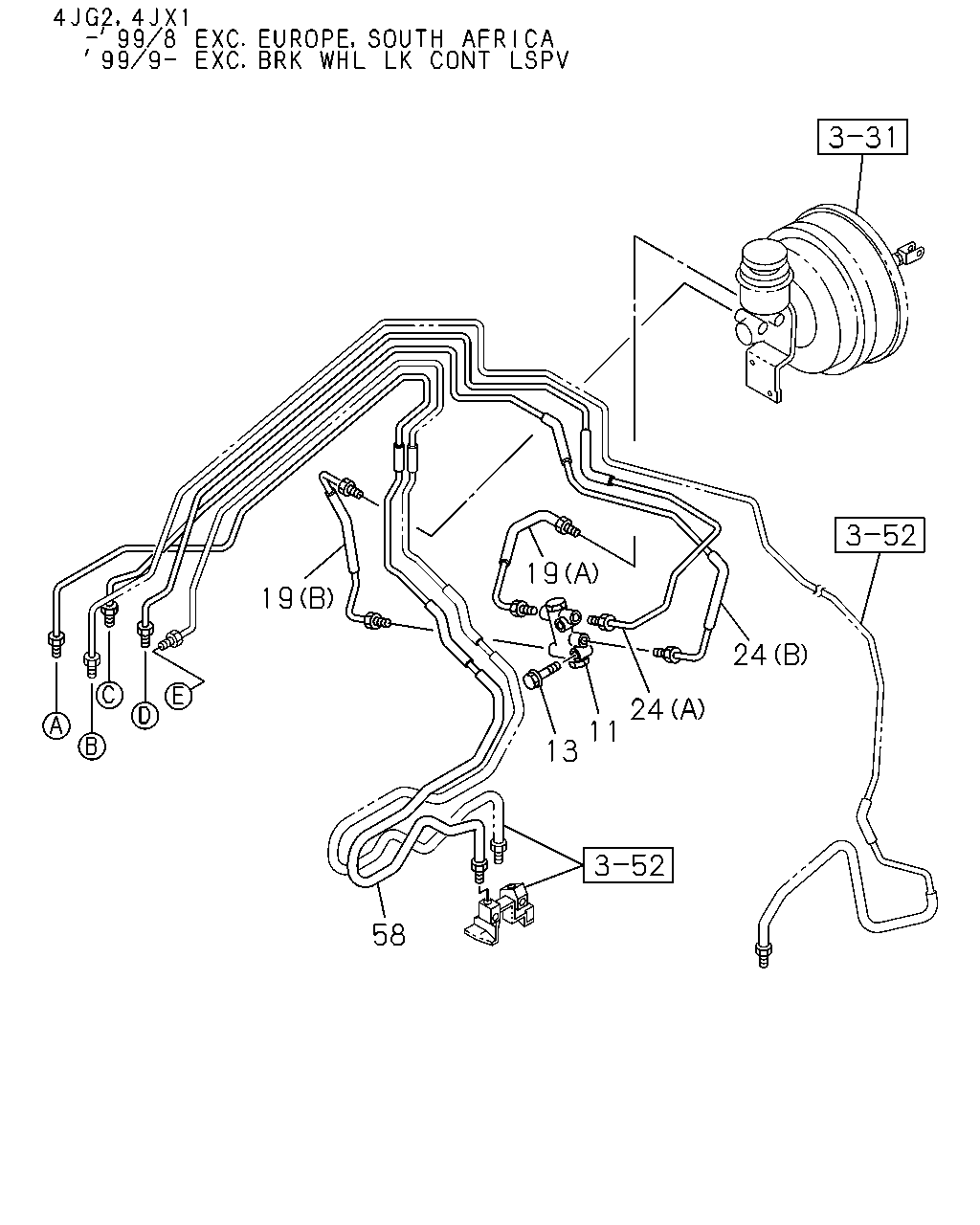

çizim 17978
19 19 24 24 11 13 58
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 VALVE; BRK CONT
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94376-321-0 01 1 9712-0005 ● ●
11 04.686 VALVE; BRK CONT
ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94376-321-0 01 1 0006- ● ●
11 04.686 VALVE; BRK CONT
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.690 		8-94137-648-3 01 1 9712-0005 ● ●
11 04.686 VALVE; BRK CONT
EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> 04.690 		8-94137-648-3 01 1 0006- ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER 		0-50040-840-0 02 1 9712-9904 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9905-0005 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0006- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97172-531-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97172-531-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-0 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-1 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94374-817-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94374-817-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94374-818-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-94374-818-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97110-828-2 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97110-828-3 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97109-040-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97109-040-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97109-041-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97109-041-2 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97169-163-1 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-163-2 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97169-170-1 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-170-2 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97169-160-2 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-160-3 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97169-167-1 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-167-2 01 1 9909- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97181-555-3 01 1 9712- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97183-824-3 01 1 9712- ● ●
çizim 68910
19 58 154
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97172-531-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97172-531-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-0 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-1 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94374-817-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94374-817-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94374-818-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-94374-818-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97110-828-2 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97110-828-3 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97109-040-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97109-040-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97109-041-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97109-041-2 01 1 9909- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97181-555-3 01 1 9712- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97183-824-3 01 1 9712- ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-181-1 01 1 9712-9908 ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97169-181-2 01 1 9909- ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97169-180-2 01 1 9712-9908 ● ●
154 04.685 PIPE ASM; M/CYL TO ABS
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) BRK WHL LK CONT LSPV<6PH> 		8-97169-180-3 01 1 9909- ● ●

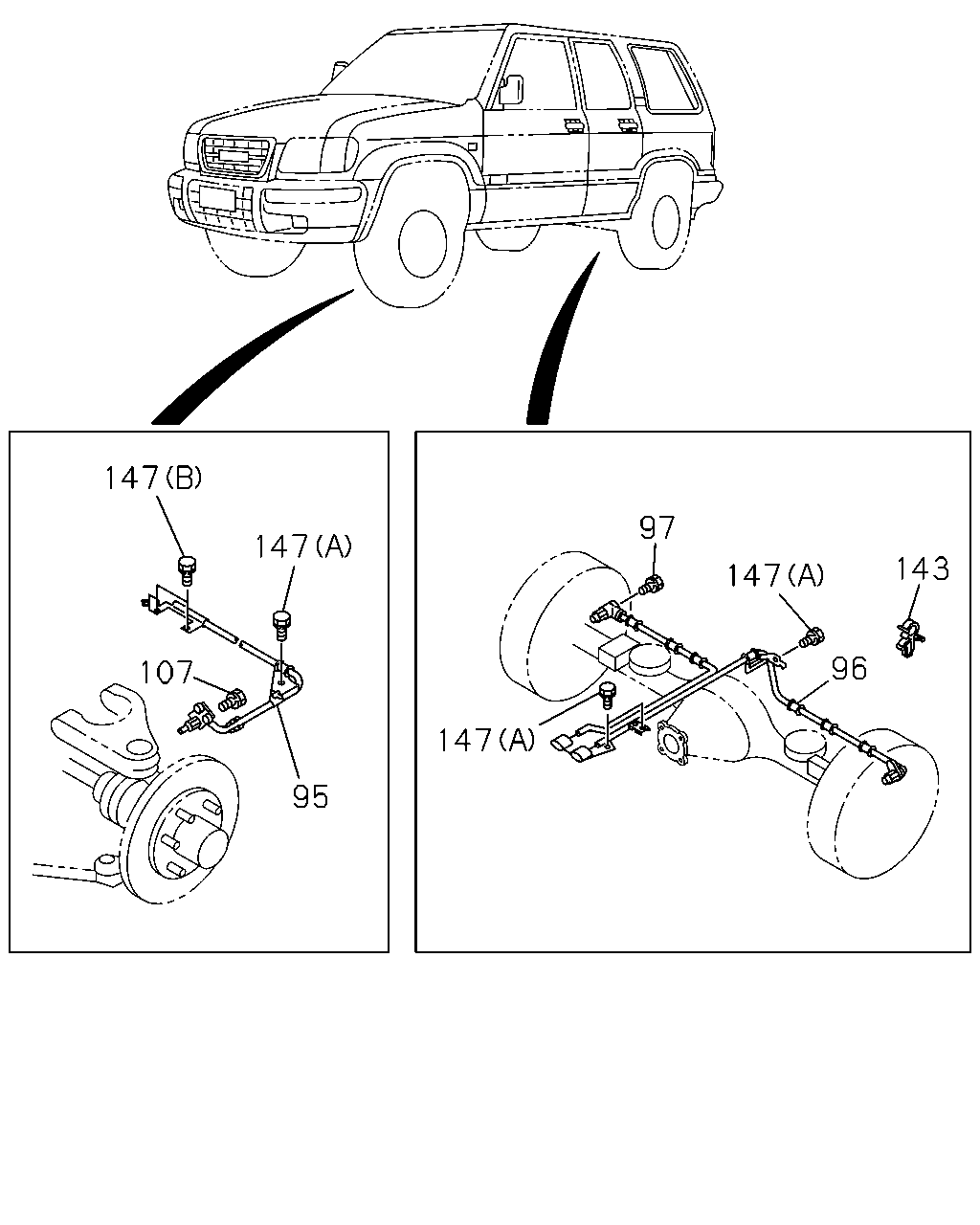

çizim 69016
147 97 147 143 147 96 107 147 95
BalonParca AdiParca NoAdetTipApplied Date A B
95 04.710 SENSOR; SPD,FRT WHEEL
ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC> 		8-97132-308-1 01 1 9712- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC> 		8-97132-307-1 01 1 9712- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97115-781-2 01 1 9712- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97115-780-2 01 1 9712- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
ANTI LOCK BRAKE SYSTEM(JE5) WIDE TREAD SUSPENSION<7FC> 		8-97110-076-2 01 1 9712-0112 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97110-076-3 01 1 0201- ● ●
96 04.710 SENSOR; SPD,RR WHEEL
ANTI LOCK BRAKE SYSTEM(JE5) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97110-577-2 01 1 9712-0112 ● ●
97 04.686 BOLT; SPD SENSOR TO AXLE
ANTI LOCK BRAKE SYSTEM(JE5) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9712-9810 ● ●
97 04.686 BOLT; SPD SENSOR TO AXLE
ANTI LOCK BRAKE SYSTEM(JE5) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9811- ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
ANTI LOCK BRAKE SYSTEM(JE5) 01.540 M6X14 HEX SOCKET 		9-05820-614-0 02 1 9712-0105 ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
ANTI LOCK BRAKE SYSTEM(JE5) M6X14 		0-58310-614-0 02 1 0106- ● ●
143 04.710 CLIP; SPEED SENSOR
ANTI LOCK BRAKE SYSTEM(JE5) 02.559 		8-97069-960-0 02 1 9712- ● ●
147 04.710 BOLT; SPEED SENSOR
ANTI LOCK BRAKE SYSTEM(JE5) 06.635 (B) M6X16 FLANGE 		0-28480-616-0 02 1 9712- ● ●
147 04.710 BOLT; SPEED SENSOR
ANTI LOCK BRAKE SYSTEM(JE5) 04.595 (A) M8X20 FLANGE 		0-28480-820-0 05 1 9712- ● ●

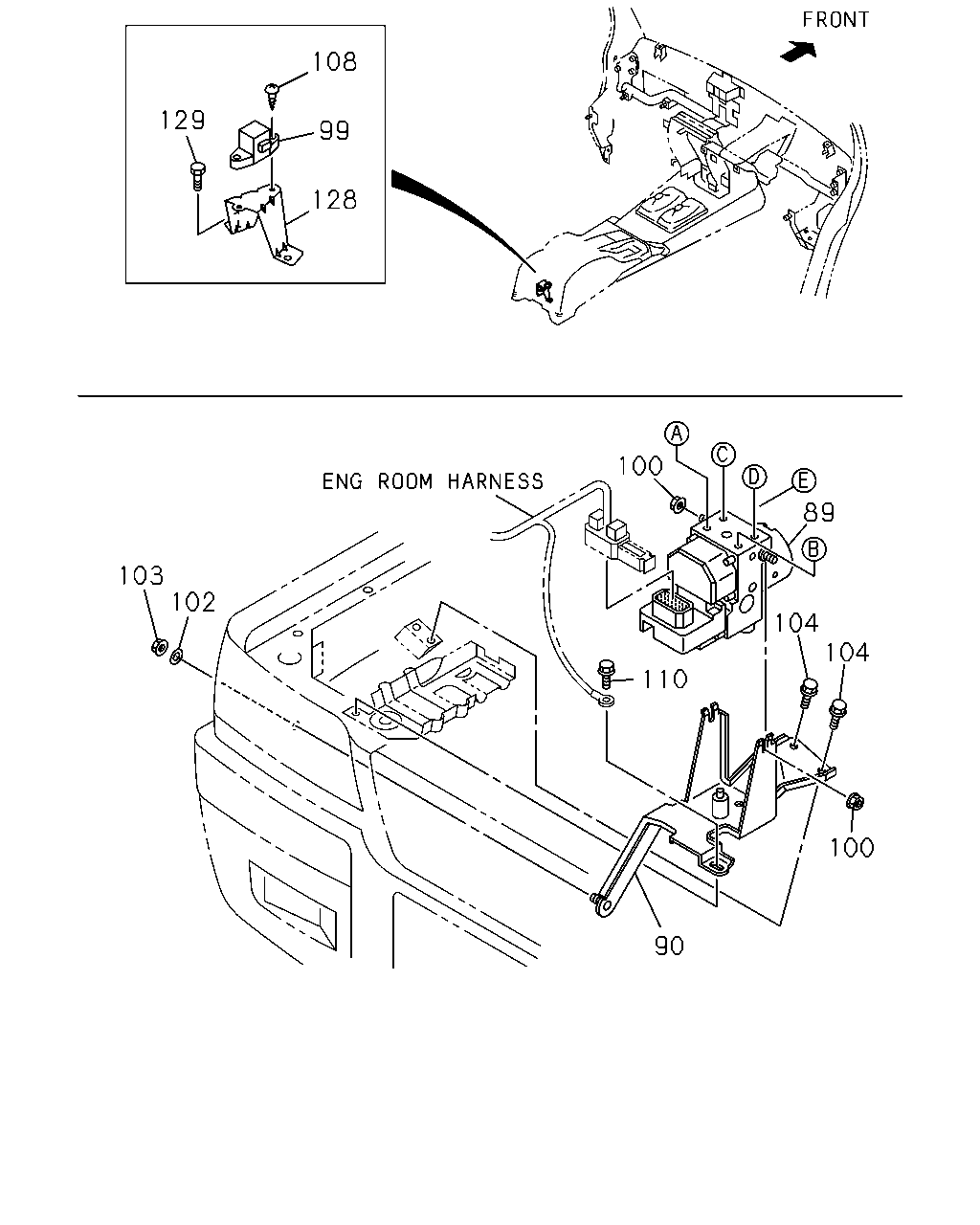

çizim 69659
108 129 99 128 100 89 103 102 104 104 110 100 90
BalonParca AdiParca NoAdetTipApplied Date A B
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97175-052-0 01 1 9712-0011 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) EXC. NEW ZEALAND EQUIPMENT(7AZ) 		8-97175-052-0 01 1 0012- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97173-025-0 01 1 9712-0006 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97173-025-0 01 1 0007-0011 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97173-025-0 01 1 0007-0011 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97173-025-0 01 1 0012- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) AUSTRALIA EQUIPMENT(RR3) NEW ZEALAND EQUIPMENT(7AZ) 		8-97173-025-0 01 1 0012- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
ANTI LOCK BRAKE SYSTEM(JE5) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97173-025-0 01 1 0012- ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97162-193-1 01 1 9712- ● ●
99 04.710 SENSOR; DECELERATION
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97164-324-0 01 1 9712- ● ●
100 04.730 NUT; HYDRAULIC UNIT
ANTI LOCK BRAKE SYSTEM(JE5) 07.633 M8 FLANGE 		0-91150-108-0 03 1 9712- ● ●
102 04.710 WASHER; PL,HYDRAULIC UNIT BRKT
ANTI LOCK BRAKE SYSTEM(JE5) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9712- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
ANTI LOCK BRAKE SYSTEM(JE5) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
104 04.730 BOLT; BRKT TO BODY
ANTI LOCK BRAKE SYSTEM(JE5) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712- ● ●
108 04.710 SCREW; DECELERATION SENSOR
ANTI LOCK BRAKE SYSTEM(JE5) 07.832 		9-03090-620-0 02 1 9712- ● ●
110 04.730 BOLT; HYDRAULIC UNIT
ANTI LOCK BRAKE SYSTEM(JE5) 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ● ●
128 04.710 BRACKET; DECELERATION SENSOR
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97087-094-1 01 1 9712- ● ●
129 04.710 BOLT; BRKT
ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ● ●

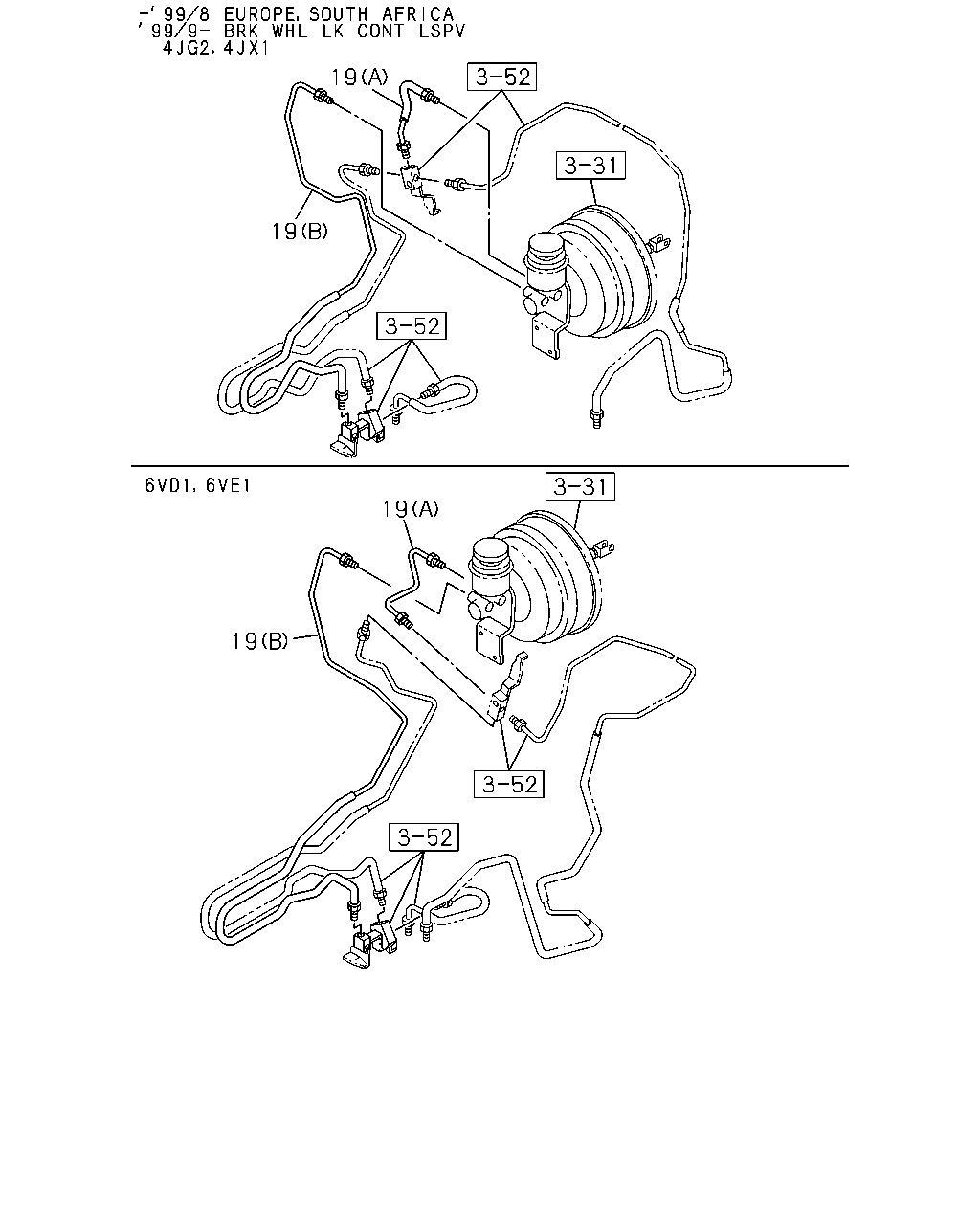

çizim 72385
19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97172-531-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97172-531-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-0 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-1 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94374-817-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94374-817-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94374-818-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-94374-818-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97110-828-2 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97110-828-3 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97109-040-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97109-040-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97109-041-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97109-041-2 01 1 9909- ● ●

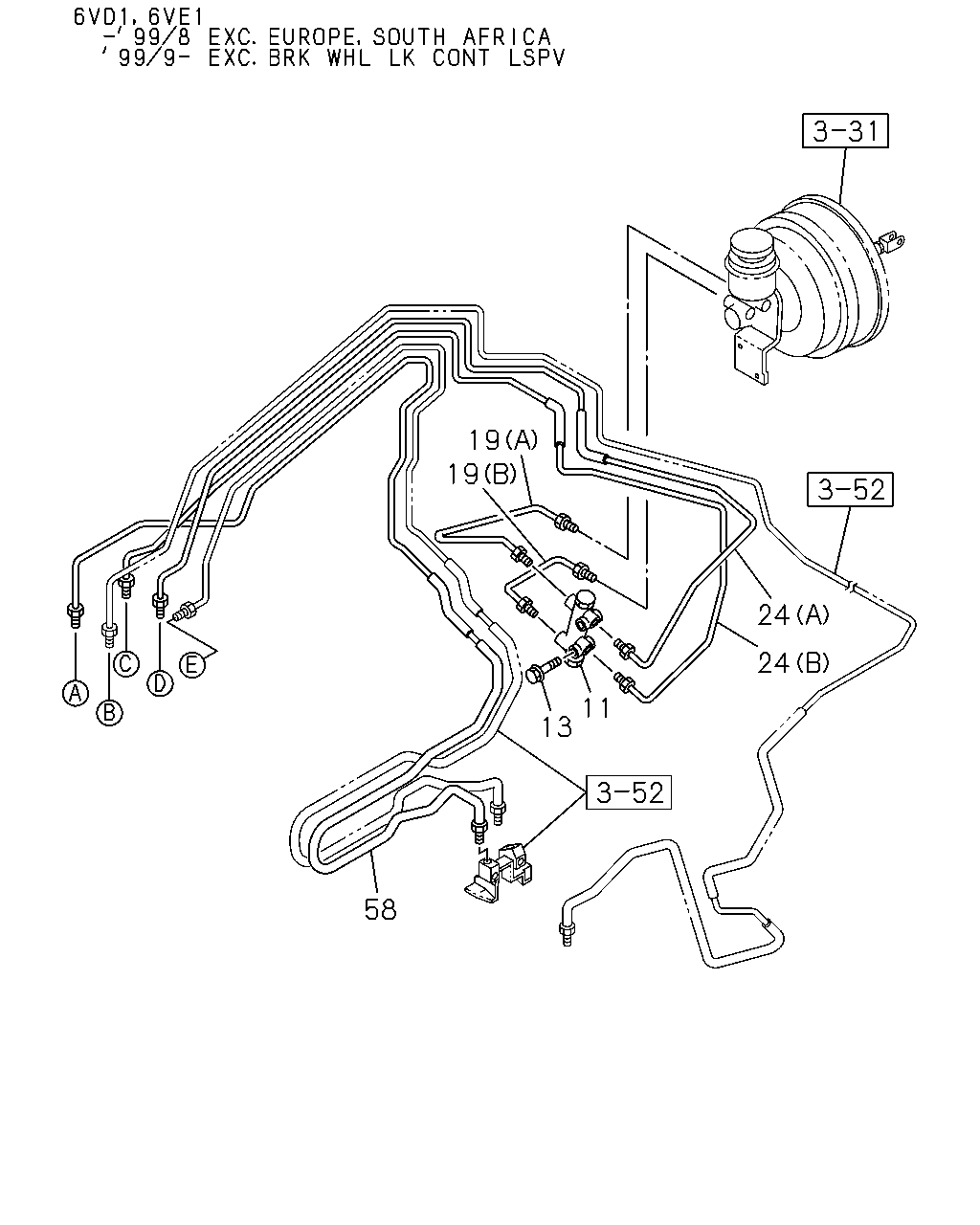

çizim 72459
19 19 24 24 11 13 58
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 VALVE; BRK CONT
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94376-321-0 01 1 9712-0005 ● ●
11 04.686 VALVE; BRK CONT
ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94376-321-0 01 1 0006- ● ●
11 04.686 VALVE; BRK CONT
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.690 		8-94137-648-3 01 1 9712-0005 ● ●
11 04.686 VALVE; BRK CONT
EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> 04.690 		8-94137-648-3 01 1 0006- ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER 		0-50040-840-0 02 1 9712-9904 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9905-0005 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0006- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97172-531-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97172-531-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-0 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-1 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94374-817-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94374-817-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94374-818-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-94374-818-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97110-828-2 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97110-828-3 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97109-040-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97109-040-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97109-041-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97109-041-2 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97169-163-1 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-163-2 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97169-170-1 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-170-2 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97169-160-2 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97169-160-3 01 1 9909- ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97169-167-1 01 1 9712-9908 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97169-167-2 01 1 9909- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
4JG2 ENG(RJC),4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97181-555-3 01 1 9712- ● ●
58 04.685 PIPE; BRK,UNION TO HYDRAULIC UNI
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97183-824-3 01 1 9712- ● ●

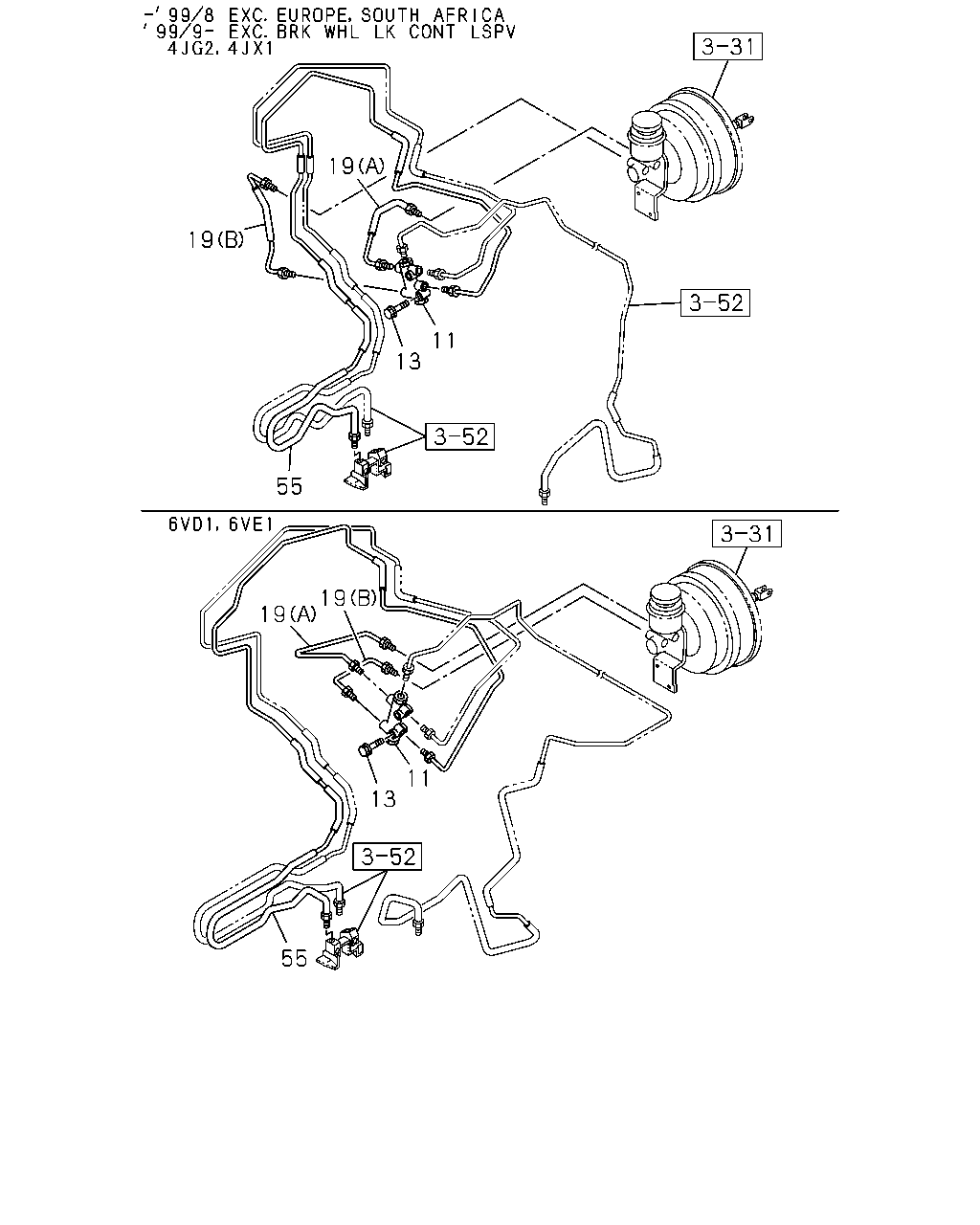

çizim 72492
19 19 11 13 55 19 19 11 13 55
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 VALVE; BRK CONT
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 		8-94376-321-0 01 1 9712-0005 ● ●
11 04.686 VALVE; BRK CONT
ANTI LOCK BRAKE SYSTEM(JE5) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94376-321-0 01 1 0006- ● ●
11 04.686 VALVE; BRK CONT
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 04.690 		8-94137-648-3 01 1 9712-0005 ● ●
11 04.686 VALVE; BRK CONT
EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> 04.690 		8-94137-648-3 01 1 0006- ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.706 M8X40 W/LK WASHER 		0-50040-840-0 02 1 9712-9904 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 9905-0005 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 03.704 M8X40 FLANGE 		0-28680-840-0 02 1 0006- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) ANTI LOCK BRAKE SYSTEM(JE5) (A) 		8-97172-531-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> (A) 		8-97172-531-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-0 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97181-556-1 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-94374-817-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-94374-817-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-94374-818-3 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-94374-818-4 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> EXC. ANTI LOCK BRAKE SYSTEM(JE5) (B) 		8-97183-830-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97110-828-2 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97110-828-3 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (A) 		8-97109-040-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (A) 		8-97109-040-2 01 1 9909- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) (B) 		8-97109-041-1 01 1 9712-9908 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97109-041-2 01 1 9909- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 		8-97181-558-3 01 1 9712-9908 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> 		8-97181-558-4 01 1 9909- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),SOUTH AFRICA EQUIPMENT(SW2) 		8-97183-828-2 01 1 9712-9908 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5),BRK WHL LK CONT LSPV<6PH> 		8-97183-828-3 01 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
