◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#73287) — 106 parça

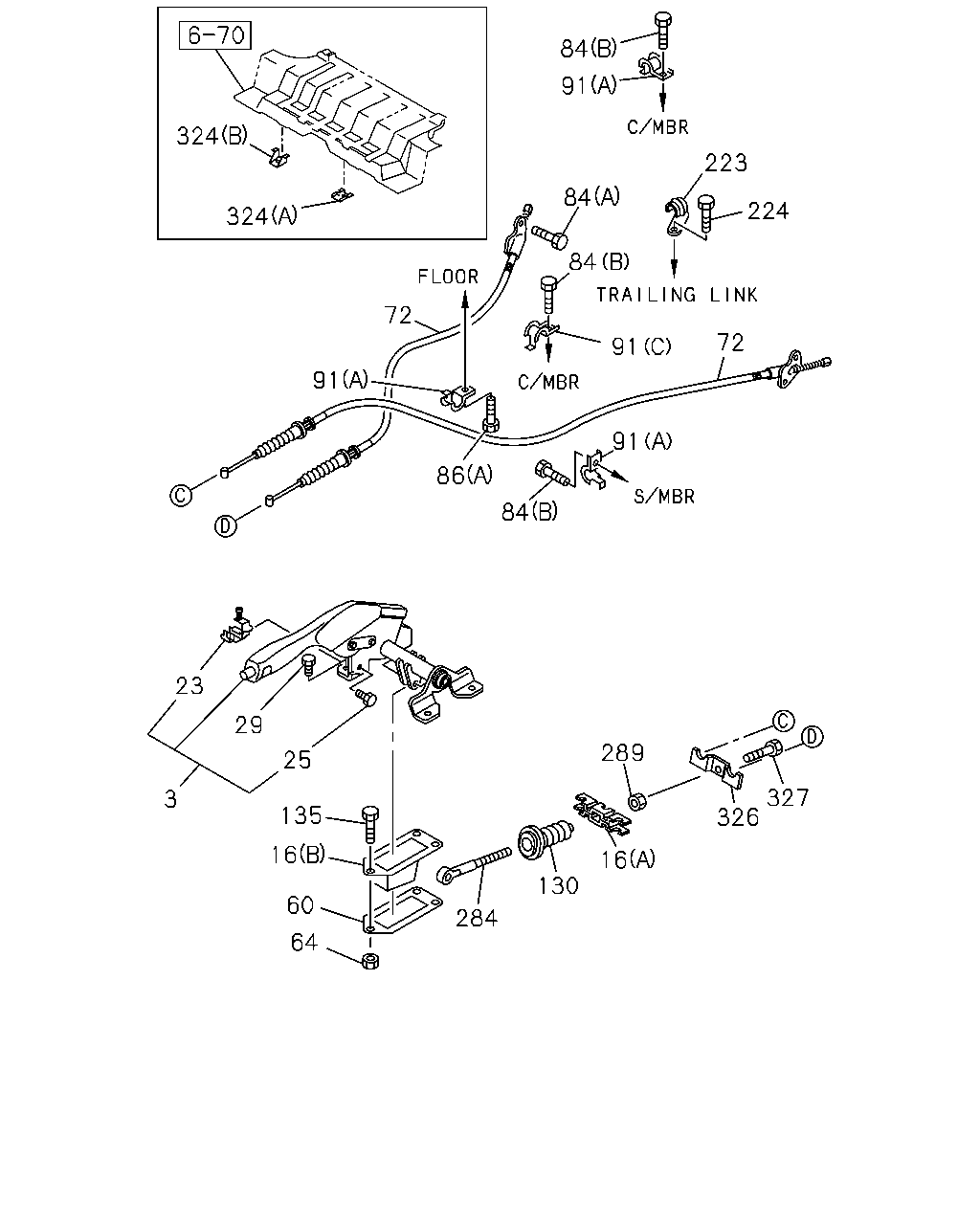

çizim 67285
84 91 324 223 84 224 324 84 72 72 91 91 91 86 84 23 29 289 25 327 326 3 135 16 16 130 60 284 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.591 LEVER; PARKING BRK
GRADE LS/LTD(RBD),GRADE RS(RBF) EUROPE EQUIPMENT(EK4) EXC. VAUXHALL EQUIPMENT<EK3> 		8-97187-695-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
LEATHER GRIP PACKAGE<7GZ> 		8-97187-695-0 01 1 9909- ● ● ● ●
3 04.591 LEVER; PARKING BRK
GRADE S/SE(RBA) 		8-97187-694-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
GRADE LS/LTD(RBD),GRADE RS(RBF) VAUXHALL EQUIPMENT<EK3> EUROPE EQUIPMENT(EK4) 		8-97187-694-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
GRADE LS/LTD(RBD),GRADE RS(RBF) EXC. EUROPE EQUIPMENT(EK4) 		8-97187-694-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
EXC. LEATHER GRIP PACKAGE<7GZ> 		8-97187-694-0 01 1 9909- ● ● ● ●
16 04.591 BRACKET; PARKING BRK
(B) 		8-97046-793-2 01 1 9712-9809 ● ● ● ●
16 04.591 BRACKET; PARKING BRK
(B) 		8-97177-857-0 01 1 9810- ● ● ● ●
16 04.591 BRACKET; PARKING BRK
(A) 		8-97142-956-2 01 1 9712- ● ● ● ●
23 04.589 SWITCH; PARKING BRK 8-97083-258-0 01 1 9712- ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-97103-556-0 01 1 9712- ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9712- ● ● ● ●
60 04.595 GASKET; PARKING BRK 8-97046-789-1 01 1 9712- ● ● ● ●
64 04.595 NUT; PARKING BRK
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) WIDE TREAD SUSPENSION<7FC> 		8-97133-242-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) WIDE TREAD SUSPENSION<7FC> 		8-97133-241-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-240-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-263-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97131-204-0 01 1 9712-9904 ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97227-099-1 01 1 9905- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97131-203-0 01 1 9712-9904 ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97227-098-0 01 1 9905- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-237-1 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-236-0 01 1 9712- ● ● ● ●
84 04.790 BOLT; CABLE
08.900 (B) M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9712-9810 ● ● ● ●
84 04.790 BOLT; CABLE
01.428 (A) M6X12 FLANGE 		0-28080-612-0 06 1 9811- ● ● ● ●
84 04.790 BOLT; CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9712-9810 ● ● ● ●
84 04.790 BOLT; CABLE
2 DOOR SHORT(UB***C) 02.559 (B) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9712-9810 ● ● ● ●
84 04.790 BOLT; CABLE
2 DOOR SHORT(UB***C) 00.738 (B) M6X16 FLANGE 		0-28080-616-0 01 1 9811-0204 ● ● ● ●
84 04.790 BOLT; CABLE
2 DOOR SHORT(UB***C) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 0205- ● ● ● ●
86 04.785 BOLT
2 DOOR SHORT(UB***C) 08.900 (A) M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9712-9810 ● ● ● ●
86 04.785 BOLT
2 DOOR SHORT(UB***C) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9811- ● ● ● ●
86 04.785 BOLT
4 DOOR LONG(UB***F) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ● ● ●
86 04.785 BOLT
4 DOOR LONG(UB***F) 08.900 (A) M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9712-9810 ● ● ● ●
86 04.785 BOLT
4 DOOR LONG(UB***F) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9811- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
(A) ID=14 		9-09916-883-0 01 1 9712- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
(A) ID=14 		9-09916-883-0 02 1 9712- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
2 DOOR SHORT(UB***C) (C) 		8-97133-304-0 01 1 9712- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4 DOOR LONG(UB***F) (D) 		8-97021-566-0 01 1 9712-0108 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4 DOOR LONG(UB***F) (B) 		8-97146-506-0 01 1 9712- ● ● ● ●
130 04.591 COVER; DUST,PARK BRK LEVER 8-97142-954-0 01 1 9712- ● ● ● ●
135 04.591 BOLT; PARKING BRK BRKT
08.143 M6X16 W/PL WASHER 		8-94204-636-0 03 1 9712- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE 8-94387-628-1 01 1 9712- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE 8-94387-627-1 01 1 9712- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9712-9810 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811- ● ● ● ●
284 04.595 ROD; HAND BRK 8-97142-955-1 01 1 9712- ● ● ● ●
289 04.594 NUT; PARKING BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
324 04.785 BRACKET
2 DOOR SHORT(UB***C) 16.545 (A) 		8-97801-525-0 01 1 9712- ● ● ● ●
324 04.785 BRACKET
2 DOOR SHORT(UB***C) 16.545 (B) 		8-97803-500-0 01 1 9712- ● ● ● ●
324 04.785 BRACKET
4 DOOR LONG(UB***F) 16.545 (A) 		8-97801-525-0 02 1 9712- ● ● ● ●
326 04.785 RETAINER; PARK CABLE 8-97024-708-0 01 1 9712- ● ● ● ●
327 04.785 BOLT; RETAINER
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●

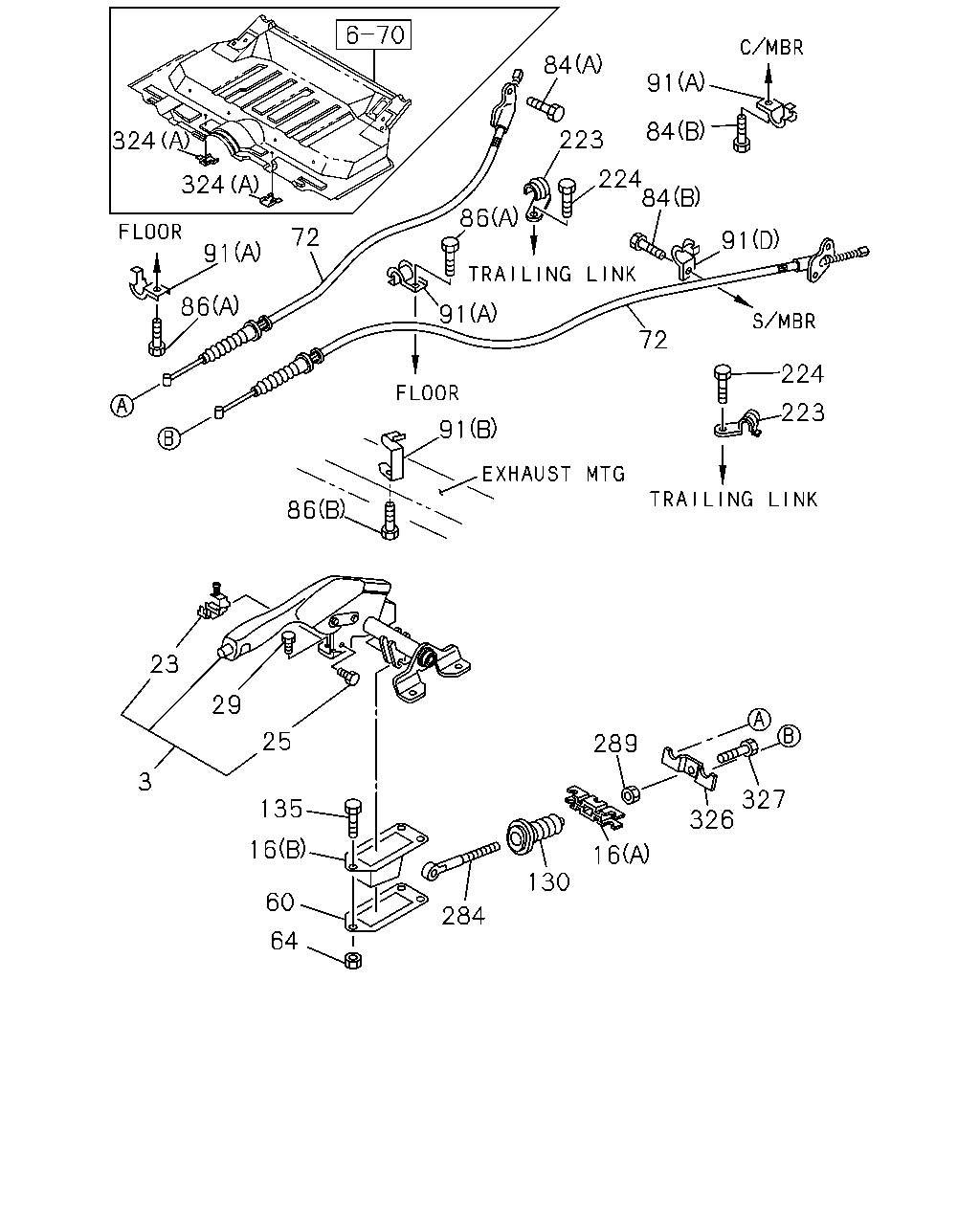

çizim 68958
84 91 84 223 324 224 84 324 86 72 91 91 86 91 72 224 223 91 86 23 29 25 289 3 327 326 135 16 16 130 60 284 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.591 LEVER; PARKING BRK
GRADE LS/LTD(RBD),GRADE RS(RBF) EUROPE EQUIPMENT(EK4) EXC. VAUXHALL EQUIPMENT<EK3> 		8-97187-695-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
LEATHER GRIP PACKAGE<7GZ> 		8-97187-695-0 01 1 9909- ● ● ● ●
3 04.591 LEVER; PARKING BRK
GRADE S/SE(RBA) 		8-97187-694-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
GRADE LS/LTD(RBD),GRADE RS(RBF) VAUXHALL EQUIPMENT<EK3> EUROPE EQUIPMENT(EK4) 		8-97187-694-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
GRADE LS/LTD(RBD),GRADE RS(RBF) EXC. EUROPE EQUIPMENT(EK4) 		8-97187-694-0 01 1 9712-9908 ● ● ● ●
3 04.591 LEVER; PARKING BRK
EXC. LEATHER GRIP PACKAGE<7GZ> 		8-97187-694-0 01 1 9909- ● ● ● ●
16 04.591 BRACKET; PARKING BRK
(B) 		8-97046-793-2 01 1 9712-9809 ● ● ● ●
16 04.591 BRACKET; PARKING BRK
(B) 		8-97177-857-0 01 1 9810- ● ● ● ●
16 04.591 BRACKET; PARKING BRK
(A) 		8-97142-956-2 01 1 9712- ● ● ● ●
23 04.589 SWITCH; PARKING BRK 8-97083-258-0 01 1 9712- ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-97103-556-0 01 1 9712- ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9712- ● ● ● ●
60 04.595 GASKET; PARKING BRK 8-97046-789-1 01 1 9712- ● ● ● ●
64 04.595 NUT; PARKING BRK
02.559 M8 		9-09110-408-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) WIDE TREAD SUSPENSION<7FC> 		8-97133-242-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) WIDE TREAD SUSPENSION<7FC> 		8-97133-241-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-240-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
2 DOOR SHORT(UB***C) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-263-0 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97131-204-0 01 1 9712-9904 ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97227-099-1 01 1 9905- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97131-203-0 01 1 9712-9904 ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) WIDE TREAD SUSPENSION<7FC> 		8-97227-098-0 01 1 9905- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-237-1 01 1 9712- ● ● ● ●
72 04.779 CABLE; PARKING BRK
4 DOOR LONG(UB***F) EXC. WIDE TREAD SUSPENSION<7FC> 		8-97133-236-0 01 1 9712- ● ● ● ●
84 04.790 BOLT; CABLE
08.900 (B) M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9712-9810 ● ● ● ●
84 04.790 BOLT; CABLE
01.428 (A) M6X12 FLANGE 		0-28080-612-0 06 1 9811- ● ● ● ●
84 04.790 BOLT; CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9712-9810 ● ● ● ●
84 04.790 BOLT; CABLE
2 DOOR SHORT(UB***C) 02.559 (B) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9712-9810 ● ● ● ●
84 04.790 BOLT; CABLE
2 DOOR SHORT(UB***C) 00.738 (B) M6X16 FLANGE 		0-28080-616-0 01 1 9811-0204 ● ● ● ●
84 04.790 BOLT; CABLE
2 DOOR SHORT(UB***C) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 0205- ● ● ● ●
86 04.785 BOLT
2 DOOR SHORT(UB***C) 08.900 (A) M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9712-9810 ● ● ● ●
86 04.785 BOLT
2 DOOR SHORT(UB***C) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9811- ● ● ● ●
86 04.785 BOLT
4 DOOR LONG(UB***F) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ● ● ●
86 04.785 BOLT
4 DOOR LONG(UB***F) 08.900 (A) M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9712-9810 ● ● ● ●
86 04.785 BOLT
4 DOOR LONG(UB***F) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9811- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
(A) ID=14 		9-09916-883-0 01 1 9712- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
(A) ID=14 		9-09916-883-0 02 1 9712- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
2 DOOR SHORT(UB***C) (C) 		8-97133-304-0 01 1 9712- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4 DOOR LONG(UB***F) (D) 		8-97021-566-0 01 1 9712-0108 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4 DOOR LONG(UB***F) (B) 		8-97146-506-0 01 1 9712- ● ● ● ●
130 04.591 COVER; DUST,PARK BRK LEVER 8-97142-954-0 01 1 9712- ● ● ● ●
135 04.591 BOLT; PARKING BRK BRKT
08.143 M6X16 W/PL WASHER 		8-94204-636-0 03 1 9712- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE 8-94387-628-1 01 1 9712- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE 8-94387-627-1 01 1 9712- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9712-9810 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811- ● ● ● ●
284 04.595 ROD; HAND BRK 8-97142-955-1 01 1 9712- ● ● ● ●
289 04.594 NUT; PARKING BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ●
324 04.785 BRACKET
2 DOOR SHORT(UB***C) 16.545 (A) 		8-97801-525-0 01 1 9712- ● ● ● ●
324 04.785 BRACKET
2 DOOR SHORT(UB***C) 16.545 (B) 		8-97803-500-0 01 1 9712- ● ● ● ●
324 04.785 BRACKET
4 DOOR LONG(UB***F) 16.545 (A) 		8-97801-525-0 02 1 9712- ● ● ● ●
326 04.785 RETAINER; PARK CABLE 8-97024-708-0 01 1 9712- ● ● ● ●
327 04.785 BOLT; RETAINER
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
