Isuzu WW
▶
SUV
▶
UBS
▶
50757 - UBS-RHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

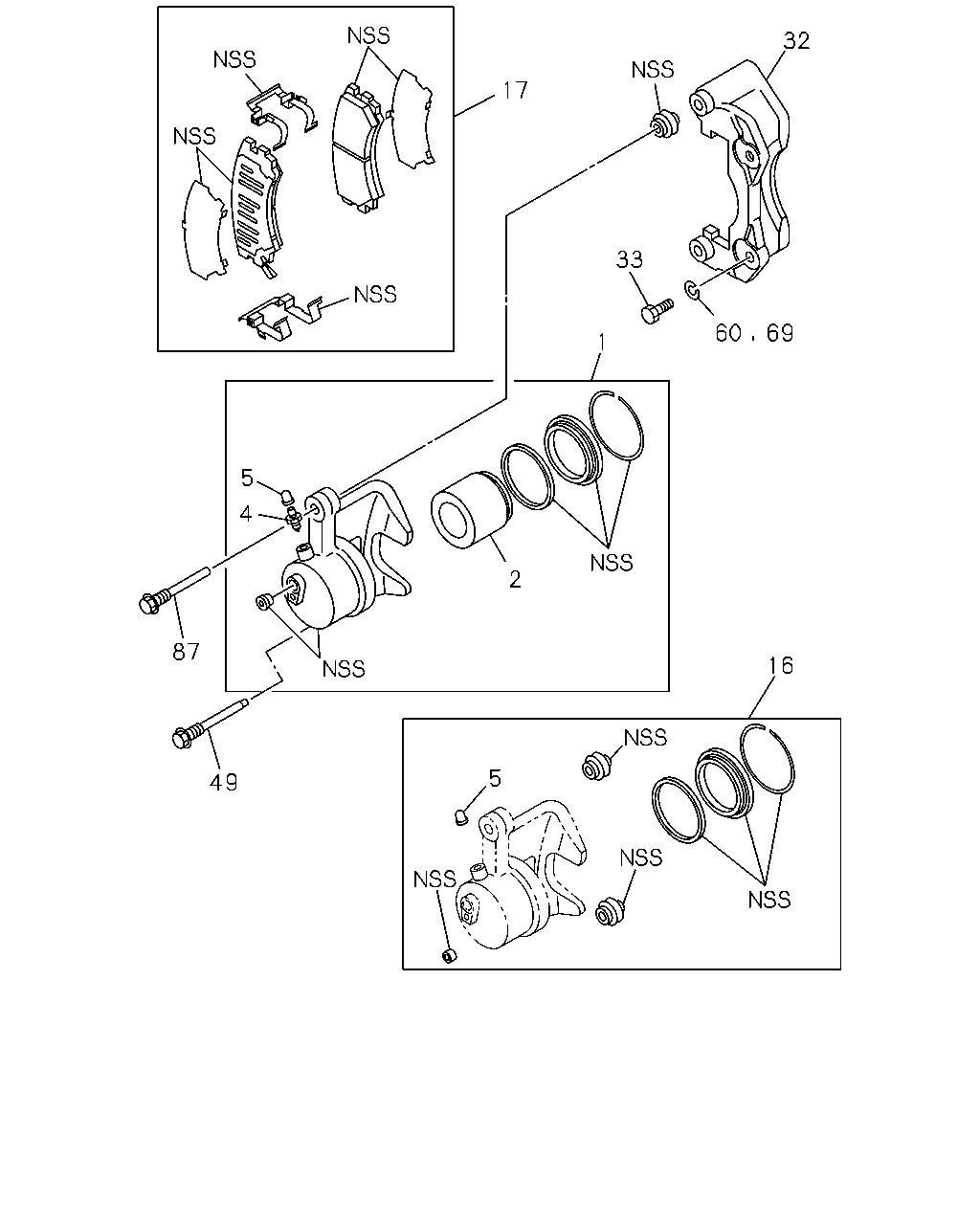

3-02 — FRONT DISC BRAKE CALIPER
(#73283) — 15 parça
Tümü
A - UBS5VC
B - UBS5VF
32
17
33
60
69
1
5
4
2
87
16
5
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.665 CALIPER; FRT DISC BRK
8-97144-477-0
01
1
9712-
●
●
1
04.665 CALIPER; FRT DISC BRK
8-97144-476-0
01
1
9712-
●
●
2
04.668 PISTON; CALIPER,DISC BRK,FRT
8-94438-689-0
02
1
9712-
●
●
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665
8-97113-867-0
02
1
9712-
●
●
5
04.666 CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
02
1
9712-
●
●
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
8-97134-716-0
01
1
9712-
●
●
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
BRAKE PAD HEAVY DUTY(J55)
8-97180-525-1
01
1
9712-
●
●
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. BRAKE PAD HEAVY DUTY(J55)
8-97035-257-1
01
1
9712-
●
●
32
04.665 SUPPORT; FRT DISC BRK
8-97035-250-1
02
1
9712-
●
●
33
04.665 BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97126-347-0
04
1
9712-0203
●
●
33
04.665 BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97327-422-0
04
1
0204-
●
●
49
04.665 PIN; SLIDE,CALIPER
8-97035-254-0
02
1
9712-
●
●
60
04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
05.422 ID=14.2
9-09150-814-0
02
1
9712-
●
●
69
04.665 WASHER; LK,FRT DISC BRK
05.422 ID=14.2
9-09150-814-0
02
1
9712-
●
●
87
04.665 PIN; LOCK
8-97035-255-0
02
1
9712-
●
●
