2-66 — MANUAL TRANSFER GEAR; OUTPUT (#73281) — 108 parça

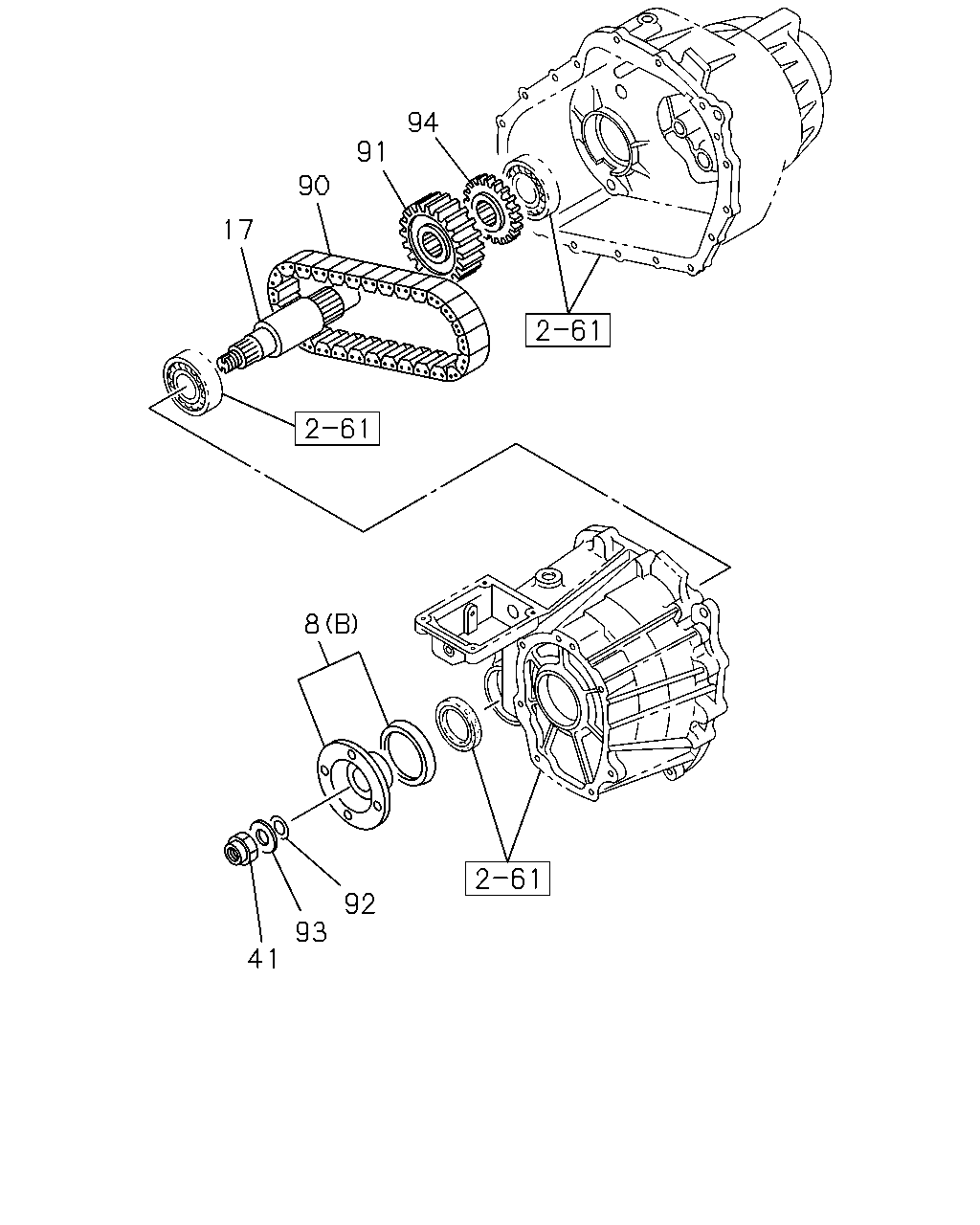

94 91 90 17 8 92 93 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	04.535 FLANGE; OUTPUT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (C)	8-97127-043-1	01	1	9712-9902	●
8	04.535 FLANGE; OUTPUT M/T AR-5 5 SPEED(RNK) (C)	8-97127-043-1	01	1	9712-9902		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9712-9902		●
8	04.535 FLANGE; OUTPUT (C)	8-97127-043-1	01	1	9903-0004	●
8	04.535 FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9903-0004		●
8	04.535 FLANGE; OUTPUT (C)	8-97251-138-2	01	1	0005-	●
8	04.535 FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97251-138-2	01	1	0005-		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9712-9905		●
8	04.535 FLANGE; OUTPUT 4JX1 ENG(RJM) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9906-		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9712-9908		●
8	04.535 FLANGE; OUTPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9909-		●
8	04.535 FLANGE; OUTPUT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97212-954-0	01	1	9906-		●
17	04.555 SHAFT; OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-242-0	01	1	9712-9908		●
17	04.555 SHAFT; OUTPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-242-0	01	1	9909-		●
41	04.533 NUT; FLANGE LK,OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-252-0	02	1	9712-9908		●
41	04.533 NUT; FLANGE LK,OUTPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-252-0	02	1	9909-		●
90	04.535 CHAIN; DRIVE A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-237-0	01	1	9712-9908		●
90	04.535 CHAIN; DRIVE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-237-0	01	1	9909-		●
91	04.535 SPROCKET; LWR DRIVE A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-240-0	01	1	9712-9908		●
91	04.535 SPROCKET; LWR DRIVE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-240-0	01	1	9909-		●
92	04.515 SEAL; FLANGE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-247-0	02	1	9712-		●
93	04.533 WASHER; FLANGE A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-250-0	02	1	9712-9908		●
93	04.533 WASHER; FLANGE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-250-0	02	1	9909-		●
94	04.510 WHEEL; TONE A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-254-0	01	1	9712-9908		●
94	04.510 WHEEL; TONE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-254-0	01	1	9909-		●

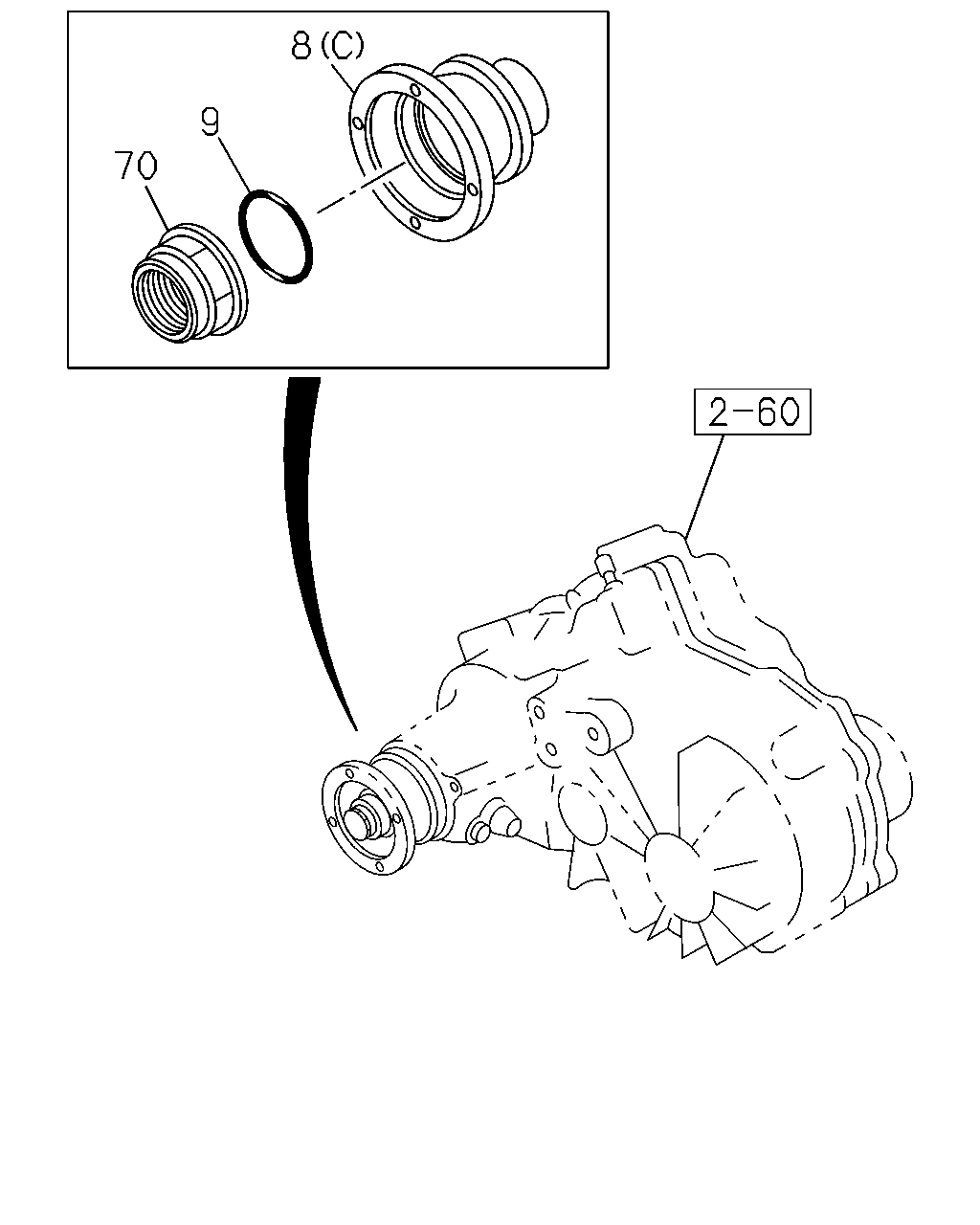

8 9 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	04.535 FLANGE; OUTPUT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (C)	8-97127-043-1	01	1	9712-9902	●
8	04.535 FLANGE; OUTPUT M/T AR-5 5 SPEED(RNK) (C)	8-97127-043-1	01	1	9712-9902		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9712-9902		●
8	04.535 FLANGE; OUTPUT (C)	8-97127-043-1	01	1	9903-0004	●
8	04.535 FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9903-0004		●
8	04.535 FLANGE; OUTPUT (C)	8-97251-138-2	01	1	0005-	●
8	04.535 FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97251-138-2	01	1	0005-		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9712-9905		●
8	04.535 FLANGE; OUTPUT 4JX1 ENG(RJM) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9906-		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9712-9908		●
8	04.535 FLANGE; OUTPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9909-		●
8	04.535 FLANGE; OUTPUT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97212-954-0	01	1	9906-		●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	9-09561-326-0	01	1	9712-9804	●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). M/T AR-5 5 SPEED(RNK)	9-09561-326-0	01	1	9712-9804		●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	9-09561-326-0	01	1	9712-9804		●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09561-326-0	01	1	9805-9912	●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA>	9-09561-326-0	01	1	9805-9912		●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09561-326-0	01	1	0001-0008	●	●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09561-326-0	01	1	0009-	●
9	04.164 GASKET; SHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. TORQUE ON DEMAND<7HA>	9-09561-326-0	01	1	0009-		●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) M24	8-94385-985-1	01	1	9712-9804	●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER M/T AR-5 5 SPEED(RNK) M24	8-94385-985-1	01	1	9712-9804		●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> M24	8-94385-985-1	01	1	9712-9804		●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER M24	8-94385-985-1	01	1	9805-9912	●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> M24	8-94385-985-1	01	1	9805-9912		●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER M24	8-94385-985-1	01	1	0001-0008	●	●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER M24	8-94385-985-1	01	1	0009-	●
70	04.164 NUT; RR OUTPUT SHAFT,TRANSFER EXC. TORQUE ON DEMAND<7HA> M24	8-94385-985-1	01	1	0009-		●

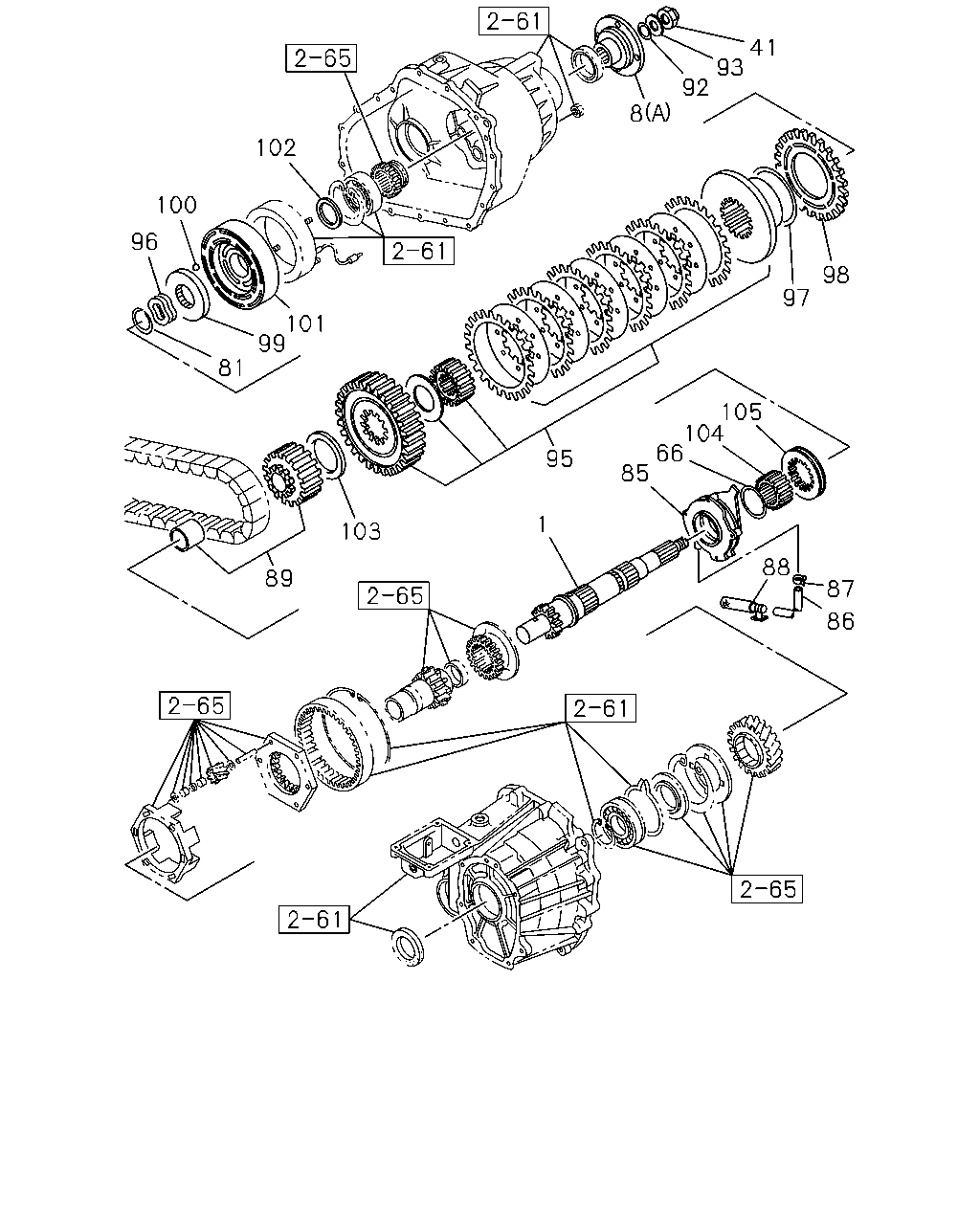

41 93 92 8 102 100 96 98 97 101 99 81 105 104 66 85 95 1 103 88 89 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.555 SHAFT; GEAR,OUTPUT,RR A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-178-0	01	1	9712-9908		●
1	04.555 SHAFT; GEAR,OUTPUT,RR A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-178-0	01	1	9909-		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (C)	8-97127-043-1	01	1	9712-9902	●
8	04.535 FLANGE; OUTPUT M/T AR-5 5 SPEED(RNK) (C)	8-97127-043-1	01	1	9712-9902		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9712-9902		●
8	04.535 FLANGE; OUTPUT (C)	8-97127-043-1	01	1	9903-0004	●
8	04.535 FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97127-043-1	01	1	9903-0004		●
8	04.535 FLANGE; OUTPUT (C)	8-97251-138-2	01	1	0005-	●
8	04.535 FLANGE; OUTPUT EXC. TORQUE ON DEMAND<7HA> (C)	8-97251-138-2	01	1	0005-		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9712-9905		●
8	04.535 FLANGE; OUTPUT 4JX1 ENG(RJM) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> (B)	8-97129-245-0	01	1	9906-		●
8	04.535 FLANGE; OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9712-9908		●
8	04.535 FLANGE; OUTPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA> (A)	8-97181-318-0	01	1	9909-		●
8	04.535 FLANGE; OUTPUT 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) TORQUE ON DEMAND<7HA> (B)	8-97212-954-0	01	1	9906-		●
41	04.533 NUT; FLANGE LK,OUTPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-252-0	02	1	9712-9908		●
41	04.533 NUT; FLANGE LK,OUTPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-252-0	02	1	9909-		●
66	04.533 WASHER; THRUST,DIST PIECE,TRANSF A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-233-0	01	1	9712-9908		●
66	04.533 WASHER; THRUST,DIST PIECE,TRANSF A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-233-0	01	1	9909-		●
81	04.545 RING; SNAP A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-259-0	01	1	9712-9908		●
81	04.545 RING; SNAP A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-259-0	01	1	9909-		●
85	04.512 PUMP; OIL,TRANSFER A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-179-0	01	1	9712-9908		●
85	04.512 PUMP; OIL,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-179-0	01	1	9909-		●
86	04.512 HOSE; OIL PUMP A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-220-0	01	1	9712-9908		●
86	04.512 HOSE; OIL PUMP A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-220-0	01	1	9909-		●
87	04.512 CLAMP; HOSE A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-230-0	01	1	9712-9908		●
87	04.512 CLAMP; HOSE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-230-0	01	1	9909-		●
88	04.512 FILTER; OIL PUMP A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-232-0	01	1	9712-9908		●
88	04.512 FILTER; OIL PUMP A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-232-0	01	1	9909-		●
89	04.535 SPROCKET; DRIVE A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-236-0	01	1	9712-9908		●
89	04.535 SPROCKET; DRIVE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-236-0	01	1	9909-		●
92	04.515 SEAL; FLANGE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-247-0	02	1	9712-		●
93	04.533 WASHER; FLANGE A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-250-0	02	1	9712-9908		●
93	04.533 WASHER; FLANGE A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-250-0	02	1	9909-		●
95	04.537 CLUTCH ASM; TRANSFER A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97181-588-0	01	1	9712-9908		●
95	04.537 CLUTCH ASM; TRANSFER A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97181-588-0	01	1	9909-		●
96	04.537 SPRING; WAVE,CLUTCH A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-258-0	01	1	9712-9908		●
96	04.537 SPRING; WAVE,CLUTCH A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-258-0	01	1	9909-		●
97	04.537 WASHER; CLUTCH A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-260-0	01	1	9712-9908		●
97	04.537 WASHER; CLUTCH A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-260-0	01	1	9909-		●
98	04.537 ARMATURE; CLUTCH A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-261-0	01	1	9712-9908		●
98	04.537 ARMATURE; CLUTCH A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-261-0	01	1	9909-		●
99	04.537 CAM; APPLY A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-262-0	01	1	9712-9908		●
99	04.537 CAM; APPLY A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-262-0	01	1	9909-		●
100	04.537 BALL; CAM A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-263-0	03	1	9712-9908		●
100	04.537 BALL; CAM A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-263-0	03	1	9909-		●
101	04.537 HOUSING; COIL,TRANSFER A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-264-0	01	1	9712-9908		●
101	04.537 HOUSING; COIL,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-264-0	01	1	9909-		●
102	04.537 WASHER; THRUST,CLUTCH A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-265-0	01	1	9712-9908		●
102	04.537 WASHER; THRUST,CLUTCH A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-265-0	01	1	9909-		●
103	04.537 SPACER; CLUTCH A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-286-0	01	1	9712-9908		●
103	04.537 SPACER; CLUTCH A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-286-0	01	1	9909-		●
104	04.535 HUB; LOCKUP A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-287-0	01	1	9712-9908		●
104	04.535 HUB; LOCKUP A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-287-0	01	1	9909-		●
105	04.535 SLEEVE; LOCKUP A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-288-0	01	1	9712-9908		●
105	04.535 SLEEVE; LOCKUP A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-288-0	01	1	9909-		●
