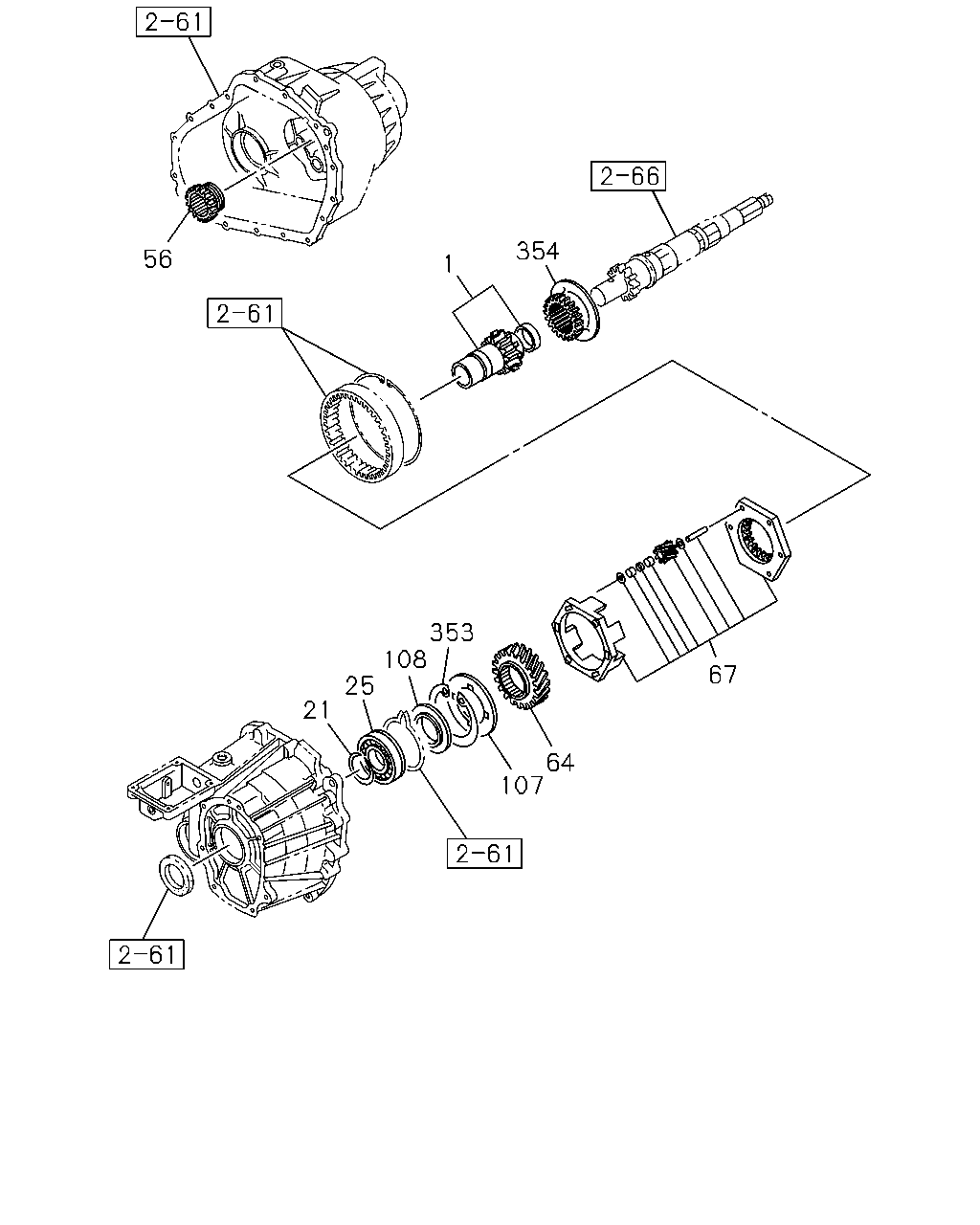

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#73280) — 68 parça

354 56 1 353 108 67 25 21 64 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.162 SHAFT; GEAR,INPUT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9712-9908	●
1	04.162 SHAFT; GEAR,INPUT M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9712-9908		●
1	04.162 SHAFT; GEAR,INPUT A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94381-284-2	01	1	9712-9908		●
1	04.162 SHAFT; GEAR,INPUT A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9909-	●
1	04.162 SHAFT; GEAR,INPUT M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9909-		●
1	04.162 SHAFT; GEAR,INPUT A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94381-284-2	01	1	9909-		●
1	04.162 SHAFT; GEAR,INPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-043-0	01	1	9712-9908		●
1	04.162 SHAFT; GEAR,INPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-043-0	01	1	9909-		●
21	04.162 RING; SNAP,PILOT BRG A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9712-9908	●
21	04.162 RING; SNAP,PILOT BRG M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9712-9908		●
21	04.162 RING; SNAP,PILOT BRG A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94368-832-0	01	1	9712-9908		●
21	04.162 RING; SNAP,PILOT BRG A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9909-	●
21	04.162 RING; SNAP,PILOT BRG M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9909-		●
21	04.162 RING; SNAP,PILOT BRG A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94368-832-0	01	1	9909-		●
21	04.162 RING; SNAP,PILOT BRG A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-047-0	01	1	9712-9908		●
21	04.162 RING; SNAP,PILOT BRG A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-047-0	01	1	9909-		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9712-9908	●
25	04.164 BEARING; BALL,INPUT SHAFT M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9712-9908		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 04.520 NSK	8-94422-052-0	01	1	9712-9908		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9909-	●
25	04.164 BEARING; BALL,INPUT SHAFT M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9909-		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 04.520 NSK	8-94422-052-0	01	1	9909-		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-001-0	01	1	9712-9908		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-001-0	01	1	9909-		●
56	04.343 GEAR; SPD DRIVE,TRANSFER A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-270-0	01	1	9712-9908		●
56	04.343 GEAR; SPD DRIVE,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-270-0	01	1	9909-		●
64	04.532 GEAR; SUN,TRANSFER A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-044-0	01	1	9712-9908		●
64	04.532 GEAR; SUN,TRANSFER A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-044-0	01	1	9909-		●
67	04.532 CARRIER; TRANSFER A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-048-0	01	1	9712-9908		●
67	04.532 CARRIER; TRANSFER A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-048-0	01	1	9909-		●
107	04.533 PLATE; THRUST,SUN GEAR A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-045-0	01	1	9712-9908		●
107	04.533 PLATE; THRUST,SUN GEAR A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-045-0	01	1	9909-		●
108	04.535 HUB; INPUT SHAFT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-046-0	01	1	9712-9908		●
108	04.535 HUB; INPUT SHAFT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-046-0	01	1	9909-		●
353	04.545 RING; SNAP,CARRIER A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-049-0	01	1	9712-9908		●
353	04.545 RING; SNAP,CARRIER A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-049-0	01	1	9909-		●
354	04.535 HUB; REDUCTION A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-050-0	01	1	9712-9908		●
354	04.535 HUB; REDUCTION A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-050-0	01	1	9909-		●

21 25 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.162 SHAFT; GEAR,INPUT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9712-9908	●
1	04.162 SHAFT; GEAR,INPUT M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9712-9908		●
1	04.162 SHAFT; GEAR,INPUT A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94381-284-2	01	1	9712-9908		●
1	04.162 SHAFT; GEAR,INPUT A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9909-	●
1	04.162 SHAFT; GEAR,INPUT M/T AR-5 5 SPEED(RNK)	8-94381-284-2	01	1	9909-		●
1	04.162 SHAFT; GEAR,INPUT A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94381-284-2	01	1	9909-		●
1	04.162 SHAFT; GEAR,INPUT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-043-0	01	1	9712-9908		●
1	04.162 SHAFT; GEAR,INPUT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-043-0	01	1	9909-		●
7	04.163 SPACER; INPUT SHAFT BRG A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94368-834-3	01	1	9712-9908	●
7	04.163 SPACER; INPUT SHAFT BRG M/T AR-5 5 SPEED(RNK)	8-94368-834-3	01	1	9712-9908		●
7	04.163 SPACER; INPUT SHAFT BRG A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94368-834-3	01	1	9712-9908		●
7	04.163 SPACER; INPUT SHAFT BRG A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94368-834-3	01	1	9909-	●
7	04.163 SPACER; INPUT SHAFT BRG M/T AR-5 5 SPEED(RNK)	8-94368-834-3	01	1	9909-		●
7	04.163 SPACER; INPUT SHAFT BRG A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94368-834-3	01	1	9909-		●
21	04.162 RING; SNAP,PILOT BRG A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9712-9908	●
21	04.162 RING; SNAP,PILOT BRG M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9712-9908		●
21	04.162 RING; SNAP,PILOT BRG A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94368-832-0	01	1	9712-9908		●
21	04.162 RING; SNAP,PILOT BRG A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9909-	●
21	04.162 RING; SNAP,PILOT BRG M/T AR-5 5 SPEED(RNK)	8-94368-832-0	01	1	9909-		●
21	04.162 RING; SNAP,PILOT BRG A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA>	8-94368-832-0	01	1	9909-		●
21	04.162 RING; SNAP,PILOT BRG A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-047-0	01	1	9712-9908		●
21	04.162 RING; SNAP,PILOT BRG A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-047-0	01	1	9909-		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9712-9908	●
25	04.164 BEARING; BALL,INPUT SHAFT M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9712-9908		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 04.520 NSK	8-94422-052-0	01	1	9712-9908		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9909-	●
25	04.164 BEARING; BALL,INPUT SHAFT M/T AR-5 5 SPEED(RNK) 04.520 NSK	8-94422-052-0	01	1	9909-		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T AISIN(RMD),A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 04.520 NSK	8-94422-052-0	01	1	9909-		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-001-0	01	1	9712-9908		●
25	04.164 BEARING; BALL,INPUT SHAFT A/T AISIN(RMD),A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97129-001-0	01	1	9909-		●
