Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#7328) — 211 parça

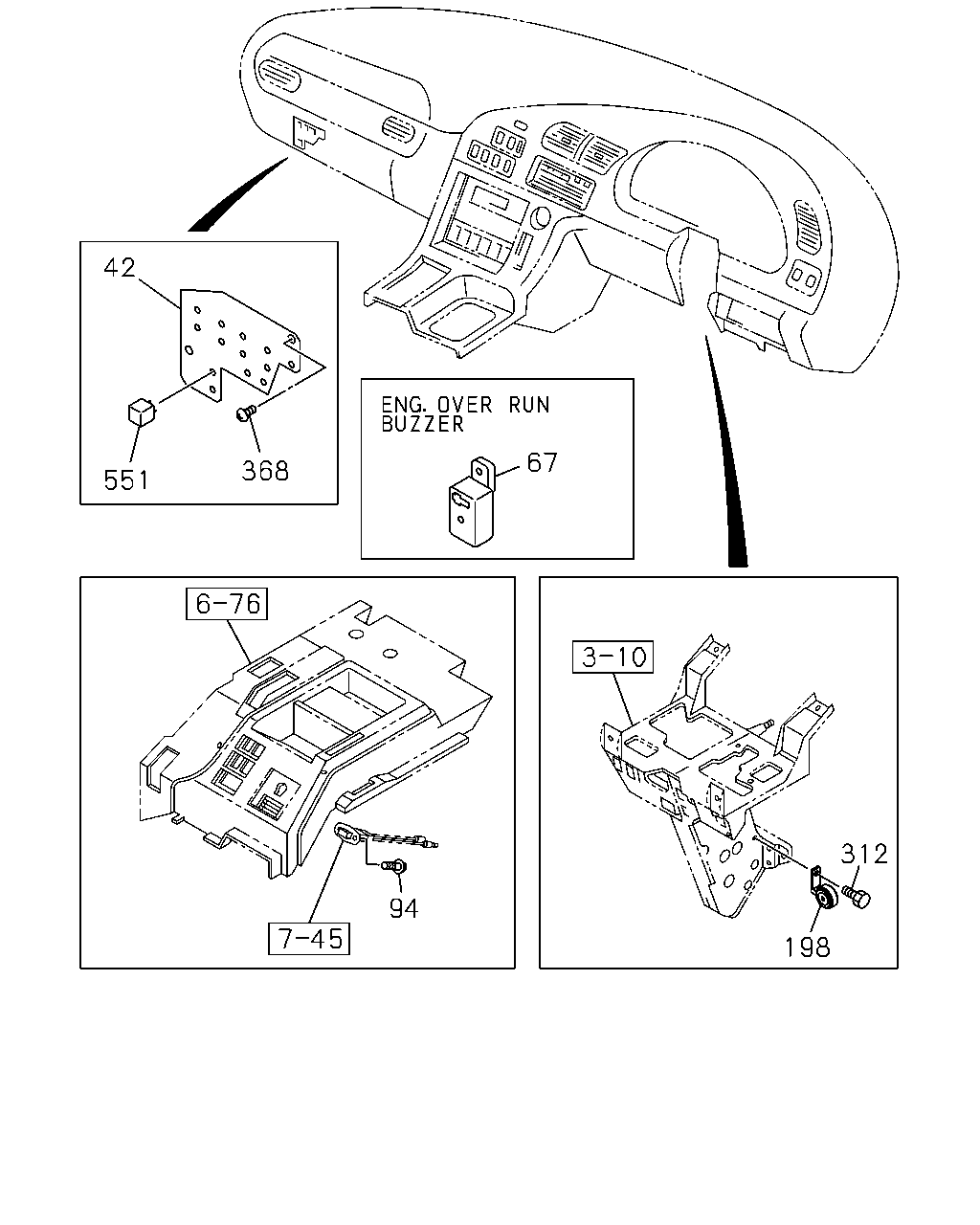

42 67 368 551 312 94 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	BRACKET; RELAY WARNING BUZZER-SPEED<RF8>	1-82699-952-0	01	1	0001-0103
42	BRACKET; RELAY WARNING BUZZER-SPEED<RF8>	1-82698-351-0	01	1	0104-
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9906-0101
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0102-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9906-
198	BUZZER WARNING BUZZER-SPEED<RF8>	1-83460-032-0	01	1	0001-
312	BOLT; BUZZER WARNING BUZZER-SPEED<RF8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0001-
368	SCREW; RELAY FIX WARNING BUZZER-SPEED<RF8> M5X14	8-94279-325-0	03	1	0001-
551	RELAY; TRANSMISSION WARNING BUZZER-SPEED<RF8> 24V 12.5A JIDECO	8-97062-815-1	02	1	0001-

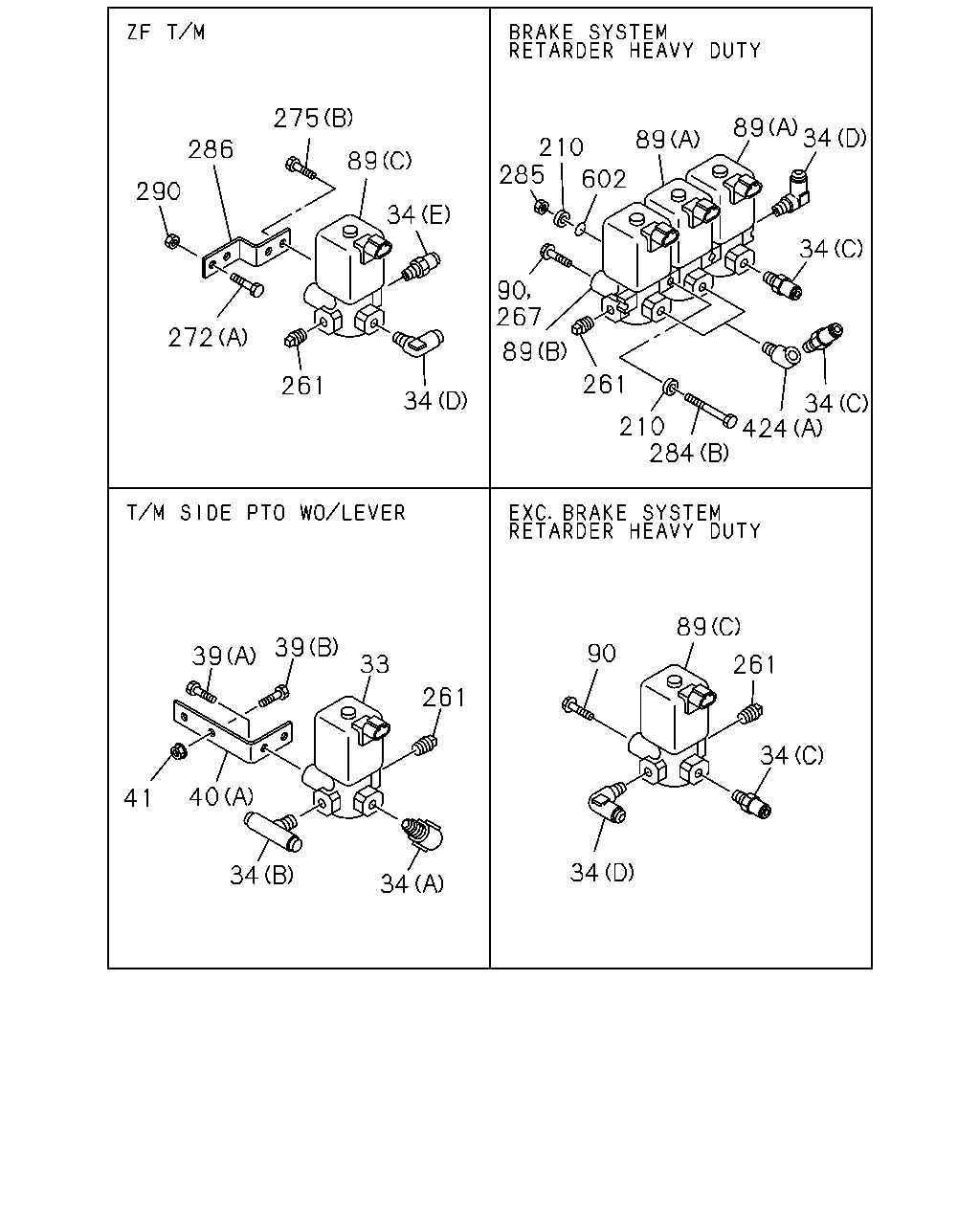

275 89 34 89 210 285 286 89 602 290 34 34 90 267 272 89 261 261 34 34 424 210 284 89 39 90 39 33 261 261 34 40 41 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82563-871-2	02	1	9906-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9906-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9906-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9906-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9906-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9906-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9906-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	9906-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	9906-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	9906-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-871-2	01	1	9906-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	9906-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	9906-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	9906-
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82569-266-0	02	1	9906-9910
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9906-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	9906-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9906-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X35 FLANGE	0-28680-835-0	02	1	9906-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9906-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	9906-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0104-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	9906-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) M6X50 FLANGE	0-28080-650-0	01	1	9906-9910
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X20 FLANGE	0-28680-820-0	02	1	9906-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	9906-
285	NUT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) M6 FLANGE	0-91150-106-0	01	1	9906-9910
286	BRACKET ZF M/T<X9E>	1-82569-278-0	01	1	9906-
290	NUT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9906-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) R1/4 & RC1/4	1-09664-211-0	02	1	9906-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9906-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9906-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (D) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9908-0005
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-09561-117-0	02	1	9906-9910
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	9911-
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	9-09561-117-0	01	1	9906-9910

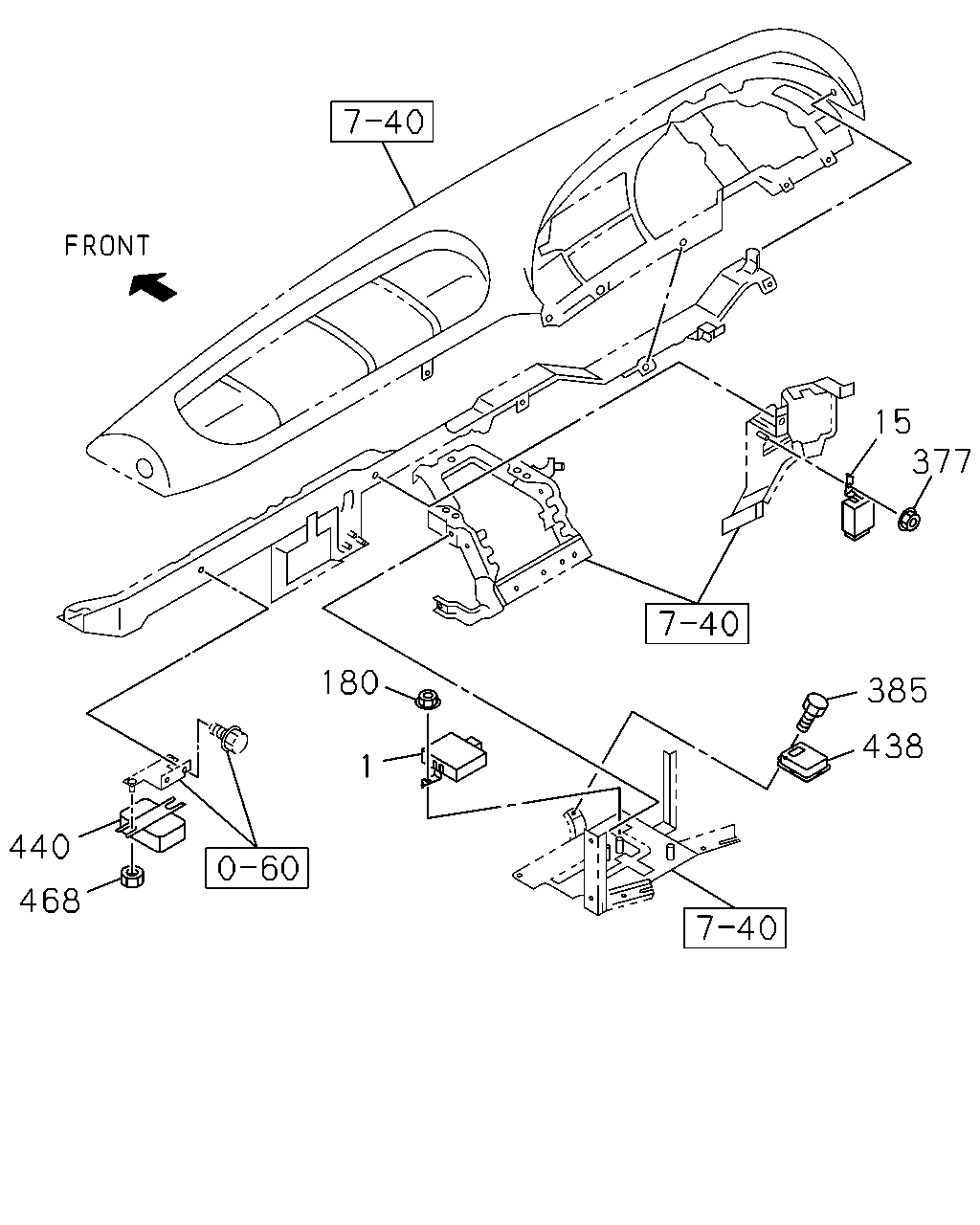

15 377 180 385 438 1 440 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-0	01	1	9906-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9906-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9906-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9906-
385	BOLT; CONT UNIT WARNING BUZZER-SPEED<RF8> M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0001-
438	UNIT; SPD CONTROL WARNING BUZZER-SPEED<RF8>	1-82550-323-0	01	1	0001-
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA)	1-81510-699-0	01	1	9906-
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	02	1	9906-

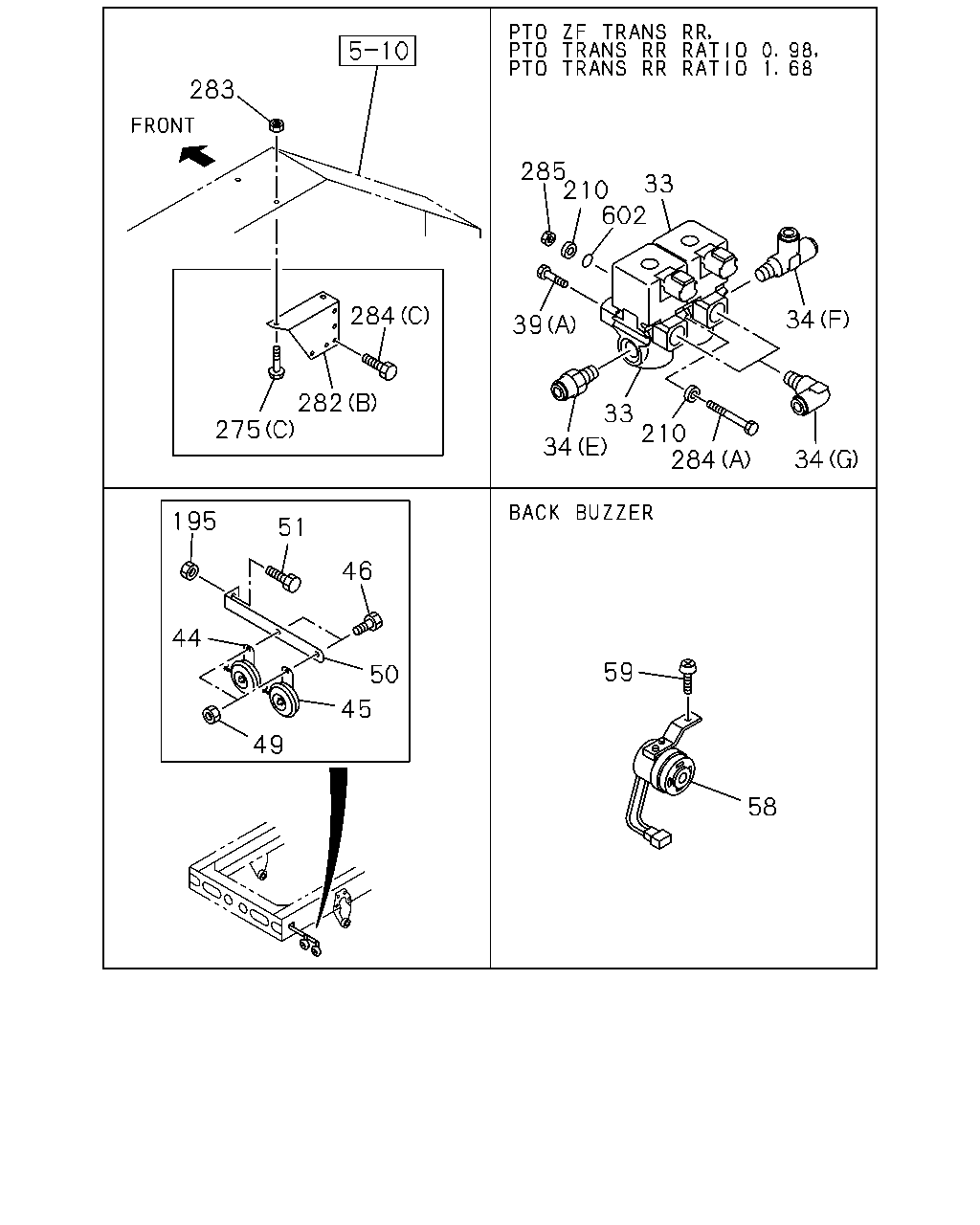

283 285 210 602 33 284 34 39 282 275 33 210 284 34 34 195 51 46 44 59 50 45 49 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82563-871-2	02	1	9906-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9906-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9906-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9906-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9906-
44	HORN; HIGH NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-061-1	01	1	9906-
45	HORN; LOW NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-062-1	01	1	9906-
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28680-825-0	02	1	9906-
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	9906-
50	BRACKET; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-53458-901-0	01	1	9906-
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28680-830-0	03	1	9906-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9906-
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-0	01	1	9906-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO	1-83460-074-1	01	1	9908-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9906-
195	NUT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	03	1	9906-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	9906-
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82569-266-0	02	1	9906-9910
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9906-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	9906-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0104-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9906-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (B)	1-82569-277-2	01	1	9906-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) M8 FLANGE	0-91150-108-0	01	1	9906-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) M10 FLANGE	0-91150-210-0	01	1	0104-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	9906-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) M6X50 FLANGE	0-28080-650-0	01	1	9906-9910
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X20 FLANGE	0-28680-820-0	02	1	9906-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	9906-
285	NUT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) M6 FLANGE	0-91150-106-0	01	1	9906-9910
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-09561-117-0	02	1	9906-9910
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	9911-
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	9-09561-117-0	01	1	9906-9910

507 272 714 386 174 34 261 34 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9906-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9906-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9906-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9906-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9906-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO	1-83460-088-0	01	1	9906-9907
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> METRO	1-83460-088-1	01	1	9908-
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=620 SERVICED BY L=800	1-83129-031-1	01	1	9906-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9906-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9906-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9906-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X35 FLANGE	0-28680-835-0	02	1	9906-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	9906-
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-0103
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-0103
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	9906-

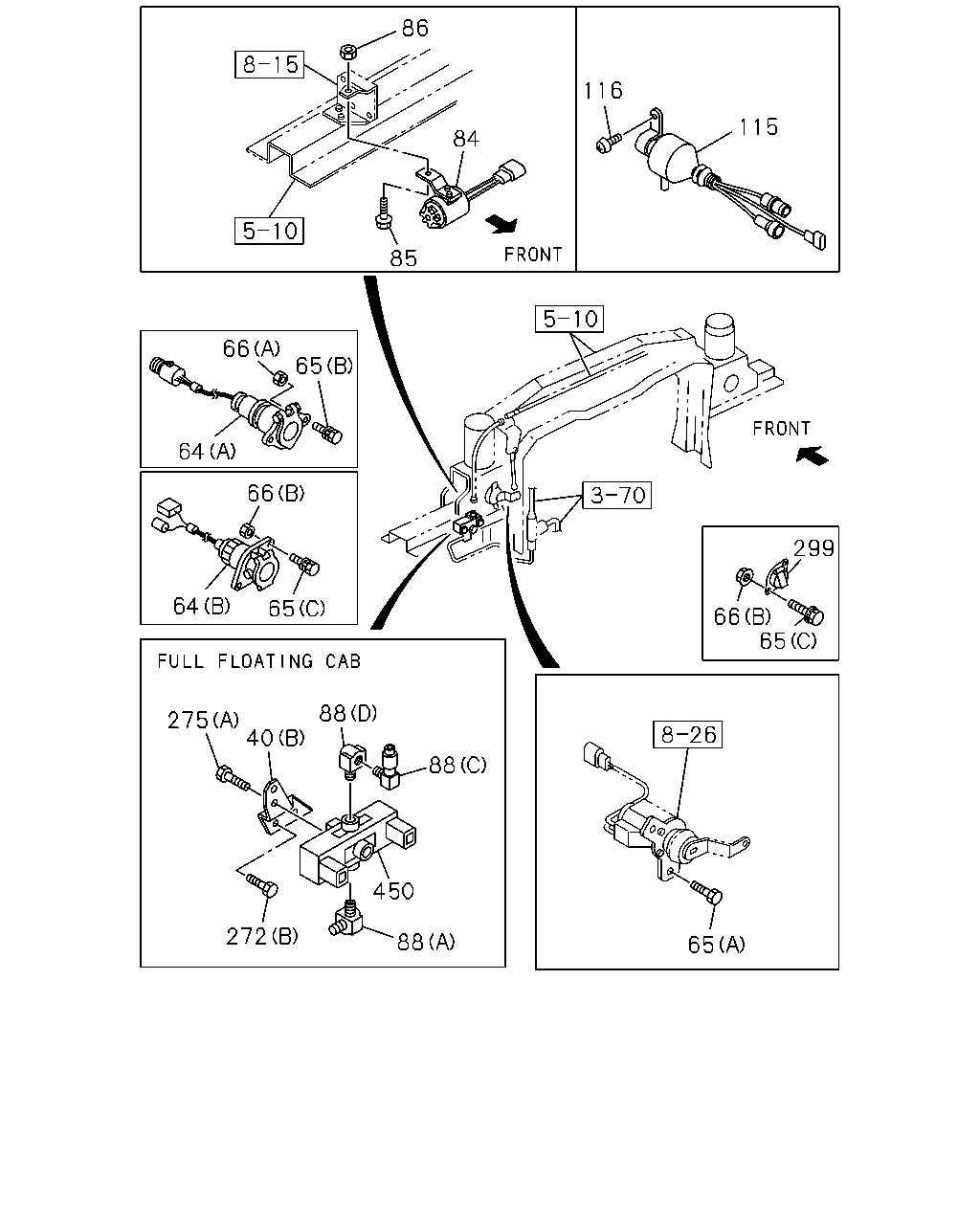

86 116 115 84 85 66 65 64 66 299 64 65 66 65 88 275 40 88 450 272 88 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9906-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9906-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	9906-
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	9906-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	1-82699-449-2	01	1	9906-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	9906-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9906-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	9906-
66	NUT; SOCKET FIX (A) M8 FLANGE	0-91150-108-0	02	1	9906-
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	03	1	9906-
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9906-
84	BUZZER; POWER CAB TILT METRO	1-83460-096-1	01	1	9906-9907
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO	1-83460-096-2	01	1	9908-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9906-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9906-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9906-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9906-9907
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9906-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9906-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X35 FLANGE	0-28680-835-0	02	1	9906-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9906-
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	9906-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE	0-28680-830-0	01	1	0104-
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-1	01	1	9906-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9906-

88 81 88 88 77 505 88 88 424 88 282 78 79 79 77 505 456 78 40 381 424 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9906-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9906-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	9906-
77	HORN ASM	1-83430-041-1	01	1	9906-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9906-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9906-0103
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9906-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9906-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9906-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L) (B)	1-82569-277-2	01	1	9906-
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	9906-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) R1/4 & RC1/4	1-09664-211-0	02	1	9906-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9906-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9906-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (D) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9908-0005
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9906-
505	JOINT; AIR HORN	1-83439-006-0	01	1	9906-

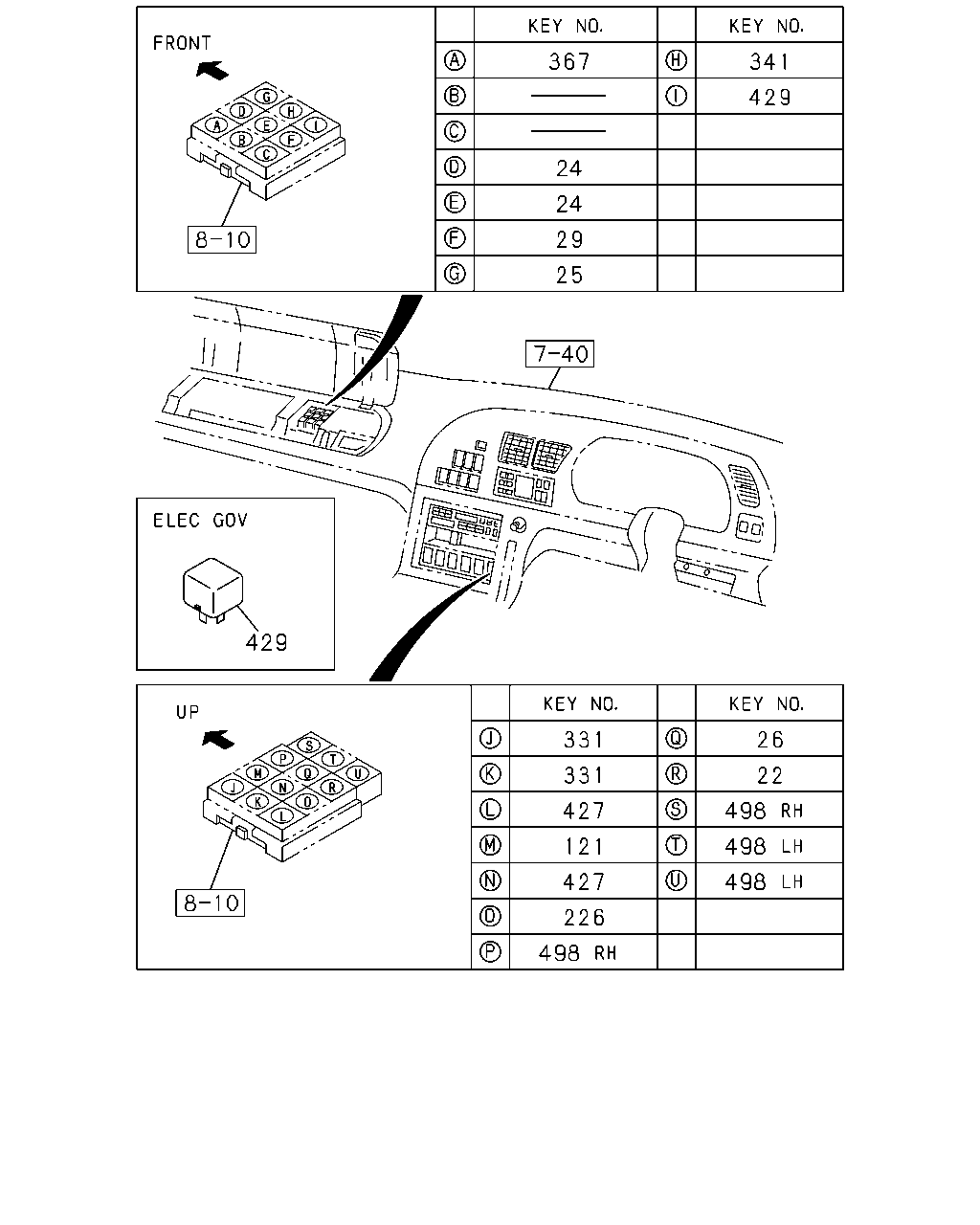

367 341 29 24 24 29 25 429 331 26 331 22 427 498 121 498 427 498 226 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	9906-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	9906-
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
367	RELAY; NEUTRAL 24V 12.5A JIDECO	8-97062-815-1	02	1	9906-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A JIDECO	8-97062-815-1	02	1	9906-
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	9906-
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A JIDECO	8-97062-815-1	04	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
