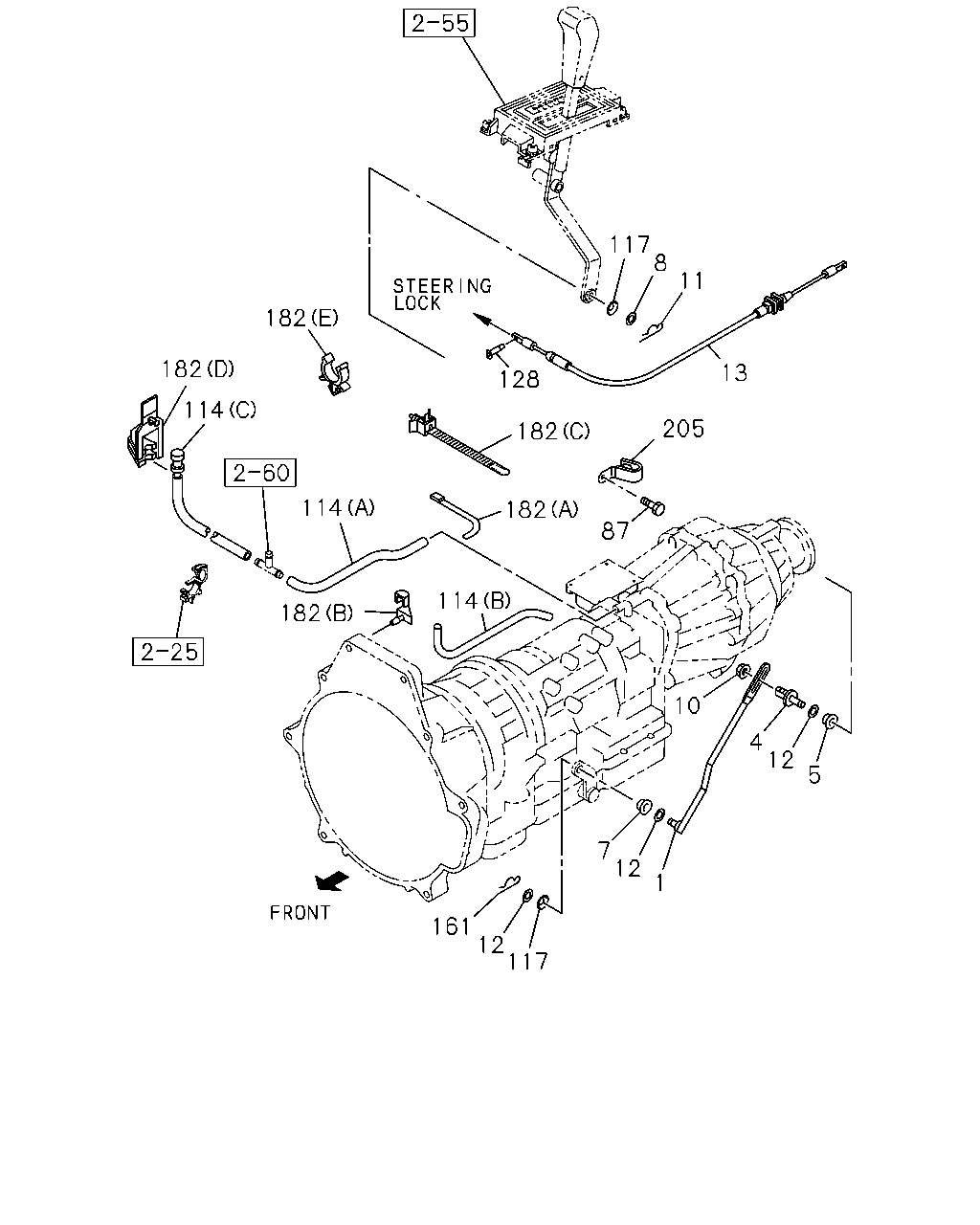

1 |
04.035 ROD; LINK,SELECT CONT
|
8-97124-684-2 |
01 |
1 |
9712- |
● |
|
| |
1 |
04.035 ROD; LINK,SELECT CONT
|
8-97124-685-2 |
01 |
1 |
9712- |
|
● |
| |
4 |
04.037 BOSS; SELECT LEVER
|
8-97124-639-0 |
01 |
1 |
9712- |
● |
● |
| |
5 |
04.037 BUSHING; LINK ROD TO SELECT LEVE
|
8-97038-937-0 |
01 |
1 |
9712- |
● |
● |
| |
7 |
04.037 BUSHING; JOINT,A/T CONT
|
8-97038-937-0 |
01 |
1 |
9712- |
● |
● |
| |
8 |
04.047 WASHER; PL,A/T CONT
06.760
ID=8.4 OD=22
|
9-09160-708-0 |
01 |
1 |
9712- |
● |
● |
| |
10 |
04.037 NUT; CLIP
08.917
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
9712- |
● |
● |
| |
11 |
04.047 PIN; SNAP,A/T CONT
04.004
L=27.7
|
8-94210-407-0 |
01 |
1 |
9712- |
● |
● |
| |
12 |
04.012 WASHER; PL,SELECT CONT
06.760
ID=8.4 OD=22
|
9-09160-708-0 |
03 |
1 |
9712- |
● |
● |
| |
13 |
04.047 CABLE; SAFETY LK
AIR BAG DRIVER<AJ3>
EUROPE EQUIPMENT(EK4)
|
8-97133-423-1 |
01 |
1 |
9712-9908 |
|
● |
| |
13 |
04.047 CABLE; SAFETY LK
AIR BAG DRIVER<AJ3>
EUROPE EQUIPMENT(EK4)
|
8-97133-423-1 |
01 |
1 |
9909-0005 |
● |
● |
| |
13 |
04.047 CABLE; SAFETY LK
2 DOOR SHORT(UB***C)
AIR BAG DRIVER<AJ3>
EUROPE EQUIPMENT(EK4)
|
8-97133-423-1 |
01 |
1 |
0006-0102 |
● |
● |
| |
13 |
04.047 CABLE; SAFETY LK
4 DOOR LONG(UB***F)
AIR BAG DRIVER<AJ3>
EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
|
8-97133-423-1 |
01 |
1 |
0006-0102 |
● |
● |
| |
13 |
04.047 CABLE; SAFETY LK
AIR BAG DRIVER<AJ3>
EUROPE EQUIPMENT(EK4)
|
8-97133-423-1 |
01 |
1 |
0103- |
● |
● |
| |
13 |
04.047 CABLE; SAFETY LK
EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
EXC. AIR BAG DRIVER<AJ3>
|
8-97141-778-0 |
01 |
1 |
9712-9908 |
|
● |
| |
13 |
04.047 CABLE; SAFETY LK
2 DOOR SHORT(UB***C)
EUROPE EQUIPMENT(EK4)
EXC. AIR BAG DRIVER<AJ3>
|
8-97141-778-0 |
01 |
1 |
9909-0102 |
● |
● |
| |
13 |
04.047 CABLE; SAFETY LK
4 DOOR LONG(UB***F)
EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
EXC. AIR BAG DRIVER<AJ3>
|
8-97141-778-0 |
01 |
1 |
9909-0102 |
● |
● |
| |
13 |
04.047 CABLE; SAFETY LK
EUROPE EQUIPMENT(EK4)
EXC. AIR BAG DRIVER<AJ3>
|
8-97141-778-0 |
01 |
1 |
0103- |
● |
● |
| |
87 |
04.047 BOLT; CLIP
4 DOOR LONG(UB***F)
4JX1 ENG(RJM)
TORQUE ON DEMAND<7HA>
04.640
M10X12 FLANGE
|
0-28081-012-0 |
01 |
1 |
9909- |
● |
|
| |
114 |
08.962 HOSE; BREATHER
4JX1 ENG(RJM)
(C)
|
8-97232-014-1 |
01 |
1 |
9909- |
● |
|
| |
114 |
08.962 HOSE; BREATHER
6VE1 ENG(RJQ),6VD1 ENG(RLV)
EXC. TORQUE ON DEMAND<7HA>
04.104
(B)
L=640
SERVICED BY L=3000
|
0-02857-300-0 |
01 |
1 |
9712- |
|
● |
| |
114 |
08.962 HOSE; BREATHER
4 DOOR LONG(UB***F)
6VE1 ENG(RJQ),6VD1 ENG(RLV)
TORQUE ON DEMAND<7HA>
04.104
(A)
L=500
SERVICED BY L=3000
|
0-02857-300-0 |
01 |
1 |
9712- |
|
● |
| |
117 |
04.012 WASHER; CURVED,SELECT CONT
04.037
ID=8.5 T=0.3
|
5-09509-001-0 |
02 |
1 |
9712- |
● |
● |
| |
128 |
04.047 PIN; SNAP,STRG LK TO CABLE
EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
|
8-94170-423-0 |
01 |
1 |
9712-9908 |
|
● |
| |
128 |
04.047 PIN; SNAP,STRG LK TO CABLE
2 DOOR SHORT(UB***C)
EUROPE EQUIPMENT(EK4)
|
8-94170-423-0 |
01 |
1 |
9909-0102 |
● |
● |
| |
128 |
04.047 PIN; SNAP,STRG LK TO CABLE
4 DOOR LONG(UB***F)
EUROPE EQUIPMENT(EK4),SOUTH AFRICA
EQUIPMENT(SW2)
|
8-94170-423-0 |
01 |
1 |
9909-0102 |
● |
● |
| |
128 |
04.047 PIN; SNAP,STRG LK TO CABLE
EUROPE EQUIPMENT(EK4)
|
8-94170-423-0 |
01 |
1 |
0103- |
● |
● |
| |
161 |
04.047 PIN; SNAP,LINK ROD TO SELECT LEV
04.004
L=27.7
|
8-94210-407-0 |
01 |
1 |
9712- |
● |
● |
| |
182 |
04.104 CLIP; BREATHER HOSE
04.342
(E)
ID=14-12
|
8-94379-592-0 |
02 |
1 |
9801-9908 |
● |
|
| |
182 |
04.104 CLIP; BREATHER HOSE
4JX1 ENG(RJM)
(D)
|
8-97228-324-0 |
01 |
1 |
9909- |
● |
|
| |
182 |
04.104 CLIP; BREATHER HOSE
EXC. EUROPE EQUIPMENT(EK4)
02.559
(C)
L=135
|
8-94473-399-0 |
01 |
1 |
9909-0010 |
● |
● |
| |
182 |
04.104 CLIP; BREATHER HOSE
4JX1 ENG(RJM)
EXC. EUROPE EQUIPMENT(EK4)
02.559
(C)
L=135
|
8-94473-399-0 |
01 |
1 |
0011-0212 |
● |
|
| |
182 |
04.104 CLIP; BREATHER HOSE
4JX1 ENG(RJM)
02.559
(C)
L=135
|
8-94473-399-0 |
01 |
1 |
0301- |
● |
|
| |
182 |
04.104 CLIP; BREATHER HOSE
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
9712-9908 |
|
● |
| |
182 |
04.104 CLIP; BREATHER HOSE
4JX1 ENG(RJM)
EUROPE EQUIPMENT(EK4)
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
9909-0212 |
● |
|
| |
182 |
04.104 CLIP; BREATHER HOSE
(B)
|
8-97164-817-1 |
01 |
1 |
9712- |
|
● |
| |
205 |
04.047 CLIP; HARNESS
4 DOOR LONG(UB***F)
4JX1 ENG(RJM)
TORQUE ON DEMAND<7HA>
02.559
ID=22
|
8-97022-767-0 |
01 |
1 |
9909- |
● |
|
