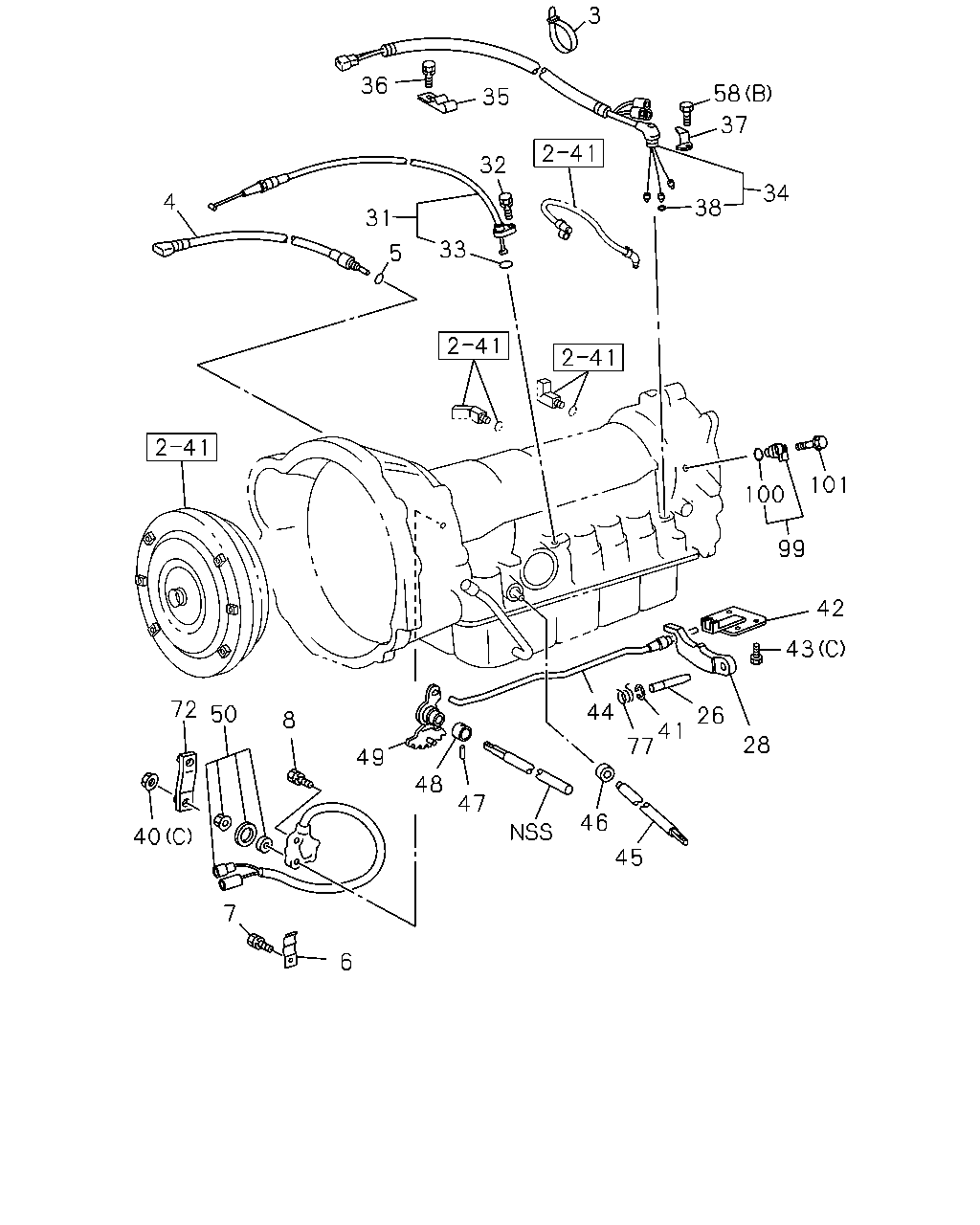

2-49 — AUTO TRANS INHIBITOR SWITCH (#73272) — 170 parça

3 36 58 35 37 32 34 4 38 31 33 5 101 100 99 42 43 44 72 50 26 8 41 77 28 49 48 47 46 40 45 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.054 CLIP; INHIBITOR SW,A/T 4JG2 ENG(RJC)	8-94473-565-0	05	1	9801-0105	●
3	04.054 CLIP; INHIBITOR SW,A/T 4JG2 ENG(RJC)	8-94473-565-0	06	1	0106-	●
4	04.054 SENSOR; THERMO,A/T OIL 4JG2 ENG(RJC)	8-97025-852-0	01	1	9801-0105	●
4	04.054 SENSOR; THERMO,A/T OIL 4JG2 ENG(RJC)	8-97313-508-0	01	1	0106-	●
4	04.054 SENSOR; THERMO,A/T OIL 4JX1 ENG(RJM)	8-97126-810-0	01	1	9909-	●
5	04.054 GASKET; OIL THERMO SENSOR,A/T 4JG2 ENG(RJC)	8-94479-726-0	01	1	9801-	●
6	04.054 CLAMP; WIRING HARNESS,A/T 4JG2 ENG(RJC)	8-97069-460-0	01	1	9801-	●
7	04.054 BOLT; CLAMP,WIRING HARNESS 4JG2 ENG(RJC) 04.050 M6X10	8-94252-680-0	01	1	9801-	●
8	04.054 BOLT; NEUTRAL START SW,A/T 4JG2 ENG(RJC)	8-97103-929-0	01	1	9801-0105	●
8	04.054 BOLT; NEUTRAL START SW,A/T 4JX1 ENG(RJM) M8X30	8-97130-929-0	01	1	9909-0105	●
8	04.054 BOLT; NEUTRAL START SW,A/T M8X30	8-97130-929-0	01	1	0106-	●
26	04.294 SHAFT; PARKING PAWL,A/T 4JG2 ENG(RJC)	8-94479-975-0	01	1	9801-9908	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	9909-	●
28	04.294 PAWL; PARKING,A/T 4JG2 ENG(RJC)	8-97143-087-0	01	1	9801-9908	●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	9909-	●
31	04.050 CABLE; THROTTLE,A/T 4JG2 ENG(RJC)	8-97069-459-0	01	1	9801-	●
32	04.050 BOLT; THROTTLE CABLE 4JG2 ENG(RJC) M6X16	8-94479-712-0	01	1	9801-9908	●
32	04.050 BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	9909-	●
33	04.050 GASKET; THROTTLE CABLE 4JG2 ENG(RJC)	8-94364-922-0	01	1	9801-9908	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	9909-	●
34	04.265 SOLENOID ASM; A/T 4JG2 ENG(RJC)	8-97213-024-0	01	1	9801-0105	●
34	04.265 SOLENOID ASM; A/T 4JG2 ENG(RJC)	8-97313-497-0	01	1	0106-	●
34	04.265 SOLENOID ASM; A/T 4JX1 ENG(RJM)	8-97232-108-0	01	1	9909-	●
35	04.050 CLAMP; THROTTLE CABLE 4JG2 ENG(RJC)	8-97025-850-0	01	1	9801-	●
35	04.050 CLAMP; THROTTLE CABLE 4JX1 ENG(RJM) 04.054	8-97069-460-0	01	1	9909-	●
36	04.050 BOLT; CLAMP,THROTTLE CABLE 4JG2 ENG(RJC) M6X10	8-94252-680-0	01	1	9801-9908	●
36	04.050 BOLT; CLAMP,THROTTLE CABLE M6X10	8-94252-680-0	01	1	9909-	●
37	04.275 CLAMP; SOLENOID,A/T 4JG2 ENG(RJC)	8-97069-462-0	01	1	9801-	●
37	04.275 CLAMP; SOLENOID,A/T 4JX1 ENG(RJM)	8-97213-023-0	01	1	9909-	●
38	04.265 GASKET; SOLENOID INNER 4JG2 ENG(RJC)	8-94479-719-0	01	1	0106-	●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9801-9908	●
40	04.037 NUT; LEVER TO SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9909-0005	●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0006-	●
40	04.037 NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9712-		●
40	04.037 NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9712-		●
41	04.290 RETAINER; SPR,SHAFT 4JG2 ENG(RJC)	5-34488-002-0	01	1	9801-9908	●
41	04.290 RETAINER; SPR,SHAFT	5-34488-002-0	01	1	9909-	●
42	04.290 BRACKET; PARKING LOCK 4JG2 ENG(RJC)	8-97126-815-0	01	1	9801-9908	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	9909-	●
43	04.290 BOLT; BRKT 4JG2 ENG(RJC) (C) M6X14	8-94479-978-0	03	1	9801-9908	●
43	04.290 BOLT; BRKT (C) M6X14	8-94479-978-0	03	1	9909-	●
43	04.290 BOLT; BRKT (B)	8-11041-238-0	01	1	9712-		●
43	04.290 BOLT; BRKT (A)	8-96017-499-0	01	1	9712-		●
44	04.290 ROD ASM; PARKING PAWL 4JG2 ENG(RJC)	8-97126-814-0	01	1	9801-9908	●
44	04.290 ROD ASM; PARKING PAWL	8-97126-814-0	01	1	9909-	●
45	04.275 SHAFT; VALVE LEVER 4JX1 ENG(RJM)	8-97025-848-0	01	1	9909-0105	●
45	04.275 SHAFT; VALVE LEVER	8-97025-848-0	01	1	0106-	●
46	04.282 SEAL; OIL 4JX1 ENG(RJM) 04.027 OD=22	8-94479-740-0	02	1	9909-0105	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0106-	●
47	04.275 PIN; ROLL SHAFT 4JG2 ENG(RJC) 04.052 D=4	8-94257-081-0	01	1	9801-9908	●
47	04.275 PIN; ROLL SHAFT 04.052 D=4	8-94257-081-0	01	1	9909-	●
48	04.008 COVER; SLEEVE 4JG2 ENG(RJC)	8-94479-761-0	01	1	9801-9908	●
48	04.008 COVER; SLEEVE	8-94479-761-0	01	1	9909-	●
49	04.279 LEVER ASM; CAM 4JG2 ENG(RJC)	8-94479-760-0	01	1	9801-9908	●
49	04.279 LEVER ASM; CAM	8-94479-760-0	01	1	9909-	●
50	04.054 SWITCH; NEUTRAL,A/T 4JG2 ENG(RJC)	8-97104-405-0	01	1	9801-0105	●
50	04.054 SWITCH; NEUTRAL,A/T 4JG2 ENG(RJC)	8-97313-490-0	01	1	0106-	●
50	04.054 SWITCH; NEUTRAL,A/T 4JX1 ENG(RJM)	8-97207-138-0	01	1	9909-	●
58	04.260 BOLT; SOLENOID TO A/T 4JG2 ENG(RJC) 04.050 (B) M6X16	8-94479-712-0	01	1	9801-9908	●
58	04.260 BOLT; SOLENOID TO A/T 04.050 (B) M6X16	8-94479-712-0	01	1	9909-	●
58	04.260 BOLT; SOLENOID TO A/T 4JX1 ENG(RJM) 04.054 (A)	8-94364-906-0	01	1	9909-	●
72	04.035 LEVER; SELECT CONT	8-97019-749-1	01	1	9801-9908	●
72	04.035 LEVER; SELECT CONT 4JG2 ENG(RJC)	8-97019-749-1	01	1	9909-	●
72	04.035 LEVER; SELECT CONT 4JX1 ENG(RJM)	8-97228-890-0	01	1	9909-	●
72	04.035 LEVER; SELECT CONT	8-97013-518-1	01	1	9712-		●
77	04.295 SPRING; TORSION,PARKING BRK LK,A 4JG2 ENG(RJC)	8-94479-976-0	01	1	9801-9908	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94479-976-0	01	1	9909-	●
99	04.329 SENSOR; SPD 4JG2 ENG(RJC)	8-97027-383-0	01	1	9801-	●
99	04.329 SENSOR; SPD 4JX1 ENG(RJM)	8-97027-383-0	02	1	9909-	●
100	04.239 GASKET; SPD SENSOR 4JG2 ENG(RJC)	8-97027-197-0	01	1	9801-	●
100	04.239 GASKET; SPD SENSOR 4JX1 ENG(RJM)	8-97027-197-0	02	1	9909-	●
101	04.329 BOLT; SPD SENSOR 4JG2 ENG(RJC) 04.260	8-94244-568-0	01	1	9801-0105	●
101	04.329 BOLT; SPD SENSOR 4JG2 ENG(RJC) 04.050 M6X16	8-94479-712-0	01	1	0106-	●
101	04.329 BOLT; SPD SENSOR 4JX1 ENG(RJM) 04.050 M6X16	8-94479-712-0	02	1	9909-	●

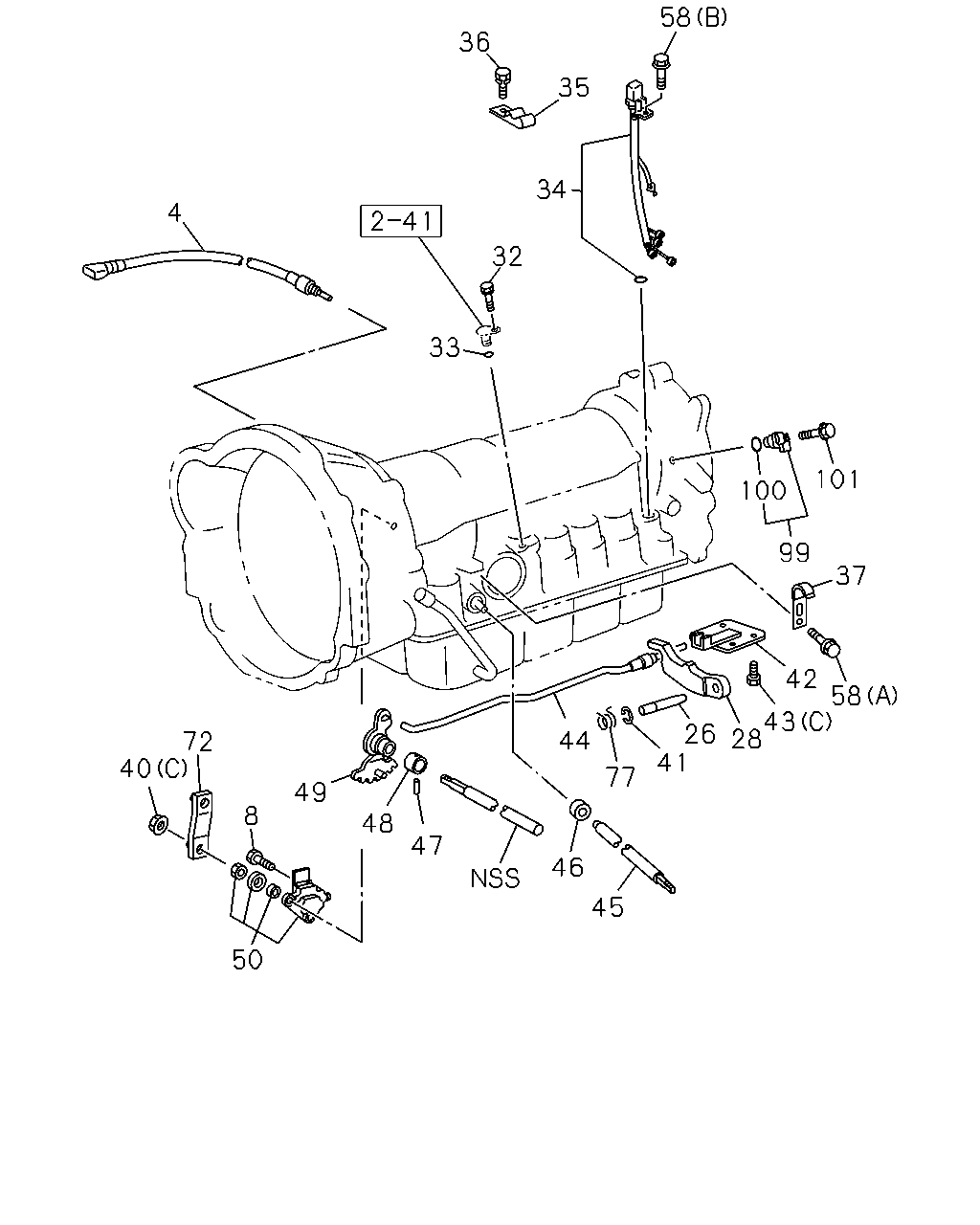

58 36 35 34 4 32 33 101 100 99 37 42 58 43 28 44 26 41 72 40 77 49 8 48 47 46 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.054 SENSOR; THERMO,A/T OIL 4JG2 ENG(RJC)	8-97025-852-0	01	1	9801-0105	●
4	04.054 SENSOR; THERMO,A/T OIL 4JG2 ENG(RJC)	8-97313-508-0	01	1	0106-	●
4	04.054 SENSOR; THERMO,A/T OIL 4JX1 ENG(RJM)	8-97126-810-0	01	1	9909-	●
8	04.054 BOLT; NEUTRAL START SW,A/T 4JG2 ENG(RJC)	8-97103-929-0	01	1	9801-0105	●
8	04.054 BOLT; NEUTRAL START SW,A/T 4JX1 ENG(RJM) M8X30	8-97130-929-0	01	1	9909-0105	●
8	04.054 BOLT; NEUTRAL START SW,A/T M8X30	8-97130-929-0	01	1	0106-	●
26	04.294 SHAFT; PARKING PAWL,A/T 4JG2 ENG(RJC)	8-94479-975-0	01	1	9801-9908	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	9909-	●
28	04.294 PAWL; PARKING,A/T 4JG2 ENG(RJC)	8-97143-087-0	01	1	9801-9908	●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	9909-	●
32	04.050 BOLT; THROTTLE CABLE 4JG2 ENG(RJC) M6X16	8-94479-712-0	01	1	9801-9908	●
32	04.050 BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	9909-	●
33	04.050 GASKET; THROTTLE CABLE 4JG2 ENG(RJC)	8-94364-922-0	01	1	9801-9908	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	9909-	●
34	04.265 SOLENOID ASM; A/T 4JG2 ENG(RJC)	8-97213-024-0	01	1	9801-0105	●
34	04.265 SOLENOID ASM; A/T 4JG2 ENG(RJC)	8-97313-497-0	01	1	0106-	●
34	04.265 SOLENOID ASM; A/T 4JX1 ENG(RJM)	8-97232-108-0	01	1	9909-	●
35	04.050 CLAMP; THROTTLE CABLE 4JG2 ENG(RJC)	8-97025-850-0	01	1	9801-	●
35	04.050 CLAMP; THROTTLE CABLE 4JX1 ENG(RJM) 04.054	8-97069-460-0	01	1	9909-	●
36	04.050 BOLT; CLAMP,THROTTLE CABLE 4JG2 ENG(RJC) M6X10	8-94252-680-0	01	1	9801-9908	●
36	04.050 BOLT; CLAMP,THROTTLE CABLE M6X10	8-94252-680-0	01	1	9909-	●
37	04.275 CLAMP; SOLENOID,A/T 4JG2 ENG(RJC)	8-97069-462-0	01	1	9801-	●
37	04.275 CLAMP; SOLENOID,A/T 4JX1 ENG(RJM)	8-97213-023-0	01	1	9909-	●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9801-9908	●
40	04.037 NUT; LEVER TO SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9909-0005	●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0006-	●
40	04.037 NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9712-		●
40	04.037 NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9712-		●
41	04.290 RETAINER; SPR,SHAFT 4JG2 ENG(RJC)	5-34488-002-0	01	1	9801-9908	●
41	04.290 RETAINER; SPR,SHAFT	5-34488-002-0	01	1	9909-	●
42	04.290 BRACKET; PARKING LOCK 4JG2 ENG(RJC)	8-97126-815-0	01	1	9801-9908	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	9909-	●
43	04.290 BOLT; BRKT 4JG2 ENG(RJC) (C) M6X14	8-94479-978-0	03	1	9801-9908	●
43	04.290 BOLT; BRKT (C) M6X14	8-94479-978-0	03	1	9909-	●
43	04.290 BOLT; BRKT (B)	8-11041-238-0	01	1	9712-		●
43	04.290 BOLT; BRKT (A)	8-96017-499-0	01	1	9712-		●
44	04.290 ROD ASM; PARKING PAWL 4JG2 ENG(RJC)	8-97126-814-0	01	1	9801-9908	●
44	04.290 ROD ASM; PARKING PAWL	8-97126-814-0	01	1	9909-	●
45	04.275 SHAFT; VALVE LEVER 4JX1 ENG(RJM)	8-97025-848-0	01	1	9909-0105	●
45	04.275 SHAFT; VALVE LEVER	8-97025-848-0	01	1	0106-	●
46	04.282 SEAL; OIL 4JX1 ENG(RJM) 04.027 OD=22	8-94479-740-0	02	1	9909-0105	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0106-	●
47	04.275 PIN; ROLL SHAFT 4JG2 ENG(RJC) 04.052 D=4	8-94257-081-0	01	1	9801-9908	●
47	04.275 PIN; ROLL SHAFT 04.052 D=4	8-94257-081-0	01	1	9909-	●
48	04.008 COVER; SLEEVE 4JG2 ENG(RJC)	8-94479-761-0	01	1	9801-9908	●
48	04.008 COVER; SLEEVE	8-94479-761-0	01	1	9909-	●
49	04.279 LEVER ASM; CAM 4JG2 ENG(RJC)	8-94479-760-0	01	1	9801-9908	●
49	04.279 LEVER ASM; CAM	8-94479-760-0	01	1	9909-	●
50	04.054 SWITCH; NEUTRAL,A/T 4JG2 ENG(RJC)	8-97104-405-0	01	1	9801-0105	●
50	04.054 SWITCH; NEUTRAL,A/T 4JG2 ENG(RJC)	8-97313-490-0	01	1	0106-	●
50	04.054 SWITCH; NEUTRAL,A/T 4JX1 ENG(RJM)	8-97207-138-0	01	1	9909-	●
58	04.260 BOLT; SOLENOID TO A/T 4JG2 ENG(RJC) 04.050 (B) M6X16	8-94479-712-0	01	1	9801-9908	●
58	04.260 BOLT; SOLENOID TO A/T 04.050 (B) M6X16	8-94479-712-0	01	1	9909-	●
58	04.260 BOLT; SOLENOID TO A/T 4JX1 ENG(RJM) 04.054 (A)	8-94364-906-0	01	1	9909-	●
72	04.035 LEVER; SELECT CONT	8-97019-749-1	01	1	9801-9908	●
72	04.035 LEVER; SELECT CONT 4JG2 ENG(RJC)	8-97019-749-1	01	1	9909-	●
72	04.035 LEVER; SELECT CONT 4JX1 ENG(RJM)	8-97228-890-0	01	1	9909-	●
72	04.035 LEVER; SELECT CONT	8-97013-518-1	01	1	9712-		●
77	04.295 SPRING; TORSION,PARKING BRK LK,A 4JG2 ENG(RJC)	8-94479-976-0	01	1	9801-9908	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94479-976-0	01	1	9909-	●
99	04.329 SENSOR; SPD 4JG2 ENG(RJC)	8-97027-383-0	01	1	9801-	●
99	04.329 SENSOR; SPD 4JX1 ENG(RJM)	8-97027-383-0	02	1	9909-	●
100	04.239 GASKET; SPD SENSOR 4JG2 ENG(RJC)	8-97027-197-0	01	1	9801-	●
100	04.239 GASKET; SPD SENSOR 4JX1 ENG(RJM)	8-97027-197-0	02	1	9909-	●
101	04.329 BOLT; SPD SENSOR 4JG2 ENG(RJC) 04.260	8-94244-568-0	01	1	9801-0105	●
101	04.329 BOLT; SPD SENSOR 4JG2 ENG(RJC) 04.050 M6X16	8-94479-712-0	01	1	0106-	●
101	04.329 BOLT; SPD SENSOR 4JX1 ENG(RJM) 04.050 M6X16	8-94479-712-0	02	1	9909-	●

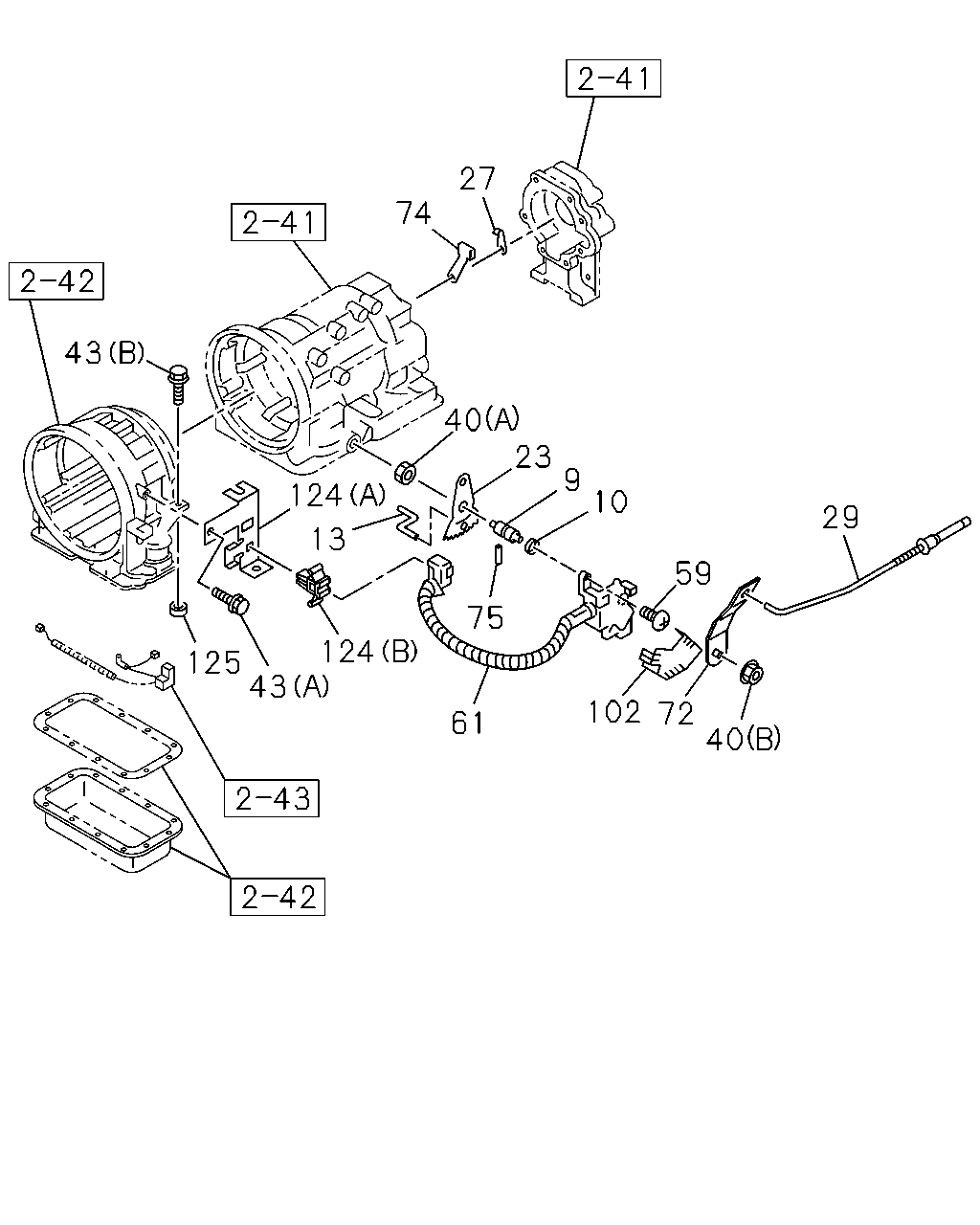

27 74 124 43 40 23 9 10 29 13 59 75 124 125 43 102 72 40 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	04.275 SHAFT; MANUAL,A/T	8-96014-268-0	01	1	9712-		●
10	04.265 GASKET; MANUAL SHIFT,A/T	8-08644-709-0	01	1	9712-		●
13	04.294 LEVER; SELECT,MANUAL SHAFT,A/T	8-05258-243-0	01	1	9712-		●
23	04.290 LEVER; PARKING ROD,A/T	8-96017-378-0	01	1	9712-		●
27	04.295 SPRING; PAWL RETURN,A/T	8-05258-076-0	01	1	9712-		●
29	04.290 ROD ASM; CONT,A/T	8-96017-286-0	01	1	9712-		●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9801-9908	●
40	04.037 NUT; LEVER TO SHAFT 4JG2 ENG(RJC),4JX1 ENG(RJM) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9909-0005	●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0006-	●
40	04.037 NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9712-		●
40	04.037 NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9712-		●
43	04.290 BOLT; BRKT 4JG2 ENG(RJC) (C) M6X14	8-94479-978-0	03	1	9801-9908	●
43	04.290 BOLT; BRKT (C) M6X14	8-94479-978-0	03	1	9909-	●
43	04.290 BOLT; BRKT (B)	8-11041-238-0	01	1	9712-		●
43	04.290 BOLT; BRKT (A)	8-96017-499-0	01	1	9712-		●
59	04.265 SCREW; SW,A/T	8-96014-453-0	02	1	9712-0003		●
59	04.265 SCREW; SW,A/T 6VD1 ENG(RLV)	8-96014-453-0	02	1	0004-		●
59	04.265 SCREW; SW,A/T 6VE1 ENG(RJQ)	8-96024-064-0	02	1	0004-		●
61	04.265 SWITCH ASM; POSITION	8-96017-511-0	01	1	9712-		●
72	04.035 LEVER; SELECT CONT	8-97019-749-1	01	1	9801-9908	●
72	04.035 LEVER; SELECT CONT 4JG2 ENG(RJC)	8-97019-749-1	01	1	9909-	●
72	04.035 LEVER; SELECT CONT 4JX1 ENG(RJM)	8-97228-890-0	01	1	9909-	●
72	04.035 LEVER; SELECT CONT	8-97013-518-1	01	1	9712-		●
74	04.294 PAWL; PARKING BRK LK,A/T	8-96016-620-0	01	1	9712-		●
75	04.290 PIN; PARKING BRK LK,A/T	8-05259-654-0	01	1	9712-		●
102	04.265 SHIELD; MODE SWITCH,A/T	8-96014-454-0	01	1	9712-		●
124	04.057 BRACKET; MODE SWITCH (B)	8-90414-915-0	01	1	9712-		●
124	04.057 BRACKET; MODE SWITCH (A)	8-96018-450-0	01	1	9712-		●
125	04.057 NUT; BRKT	8-96017-663-0	01	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
