Sayfa 2-48 - Isuzu EPC

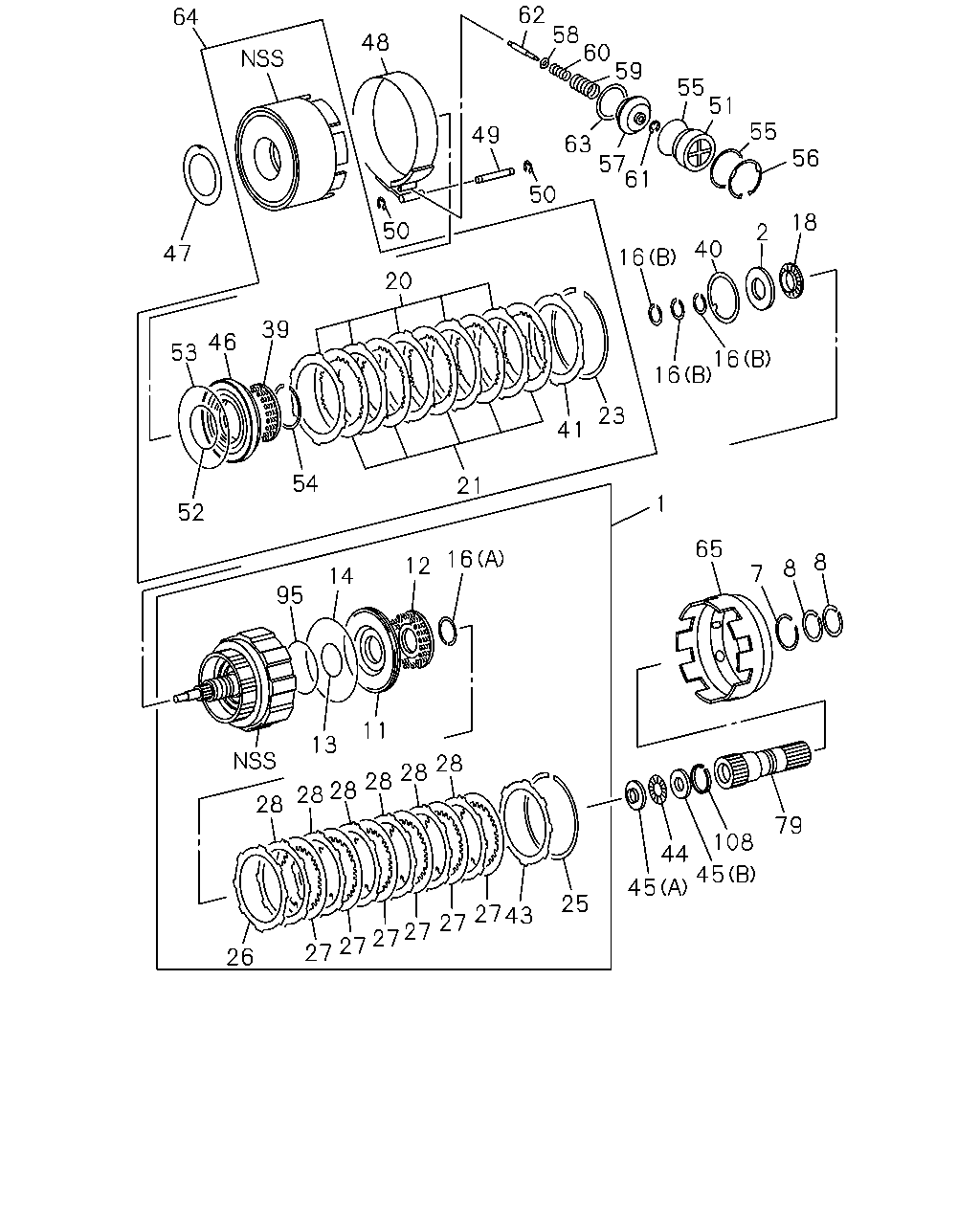

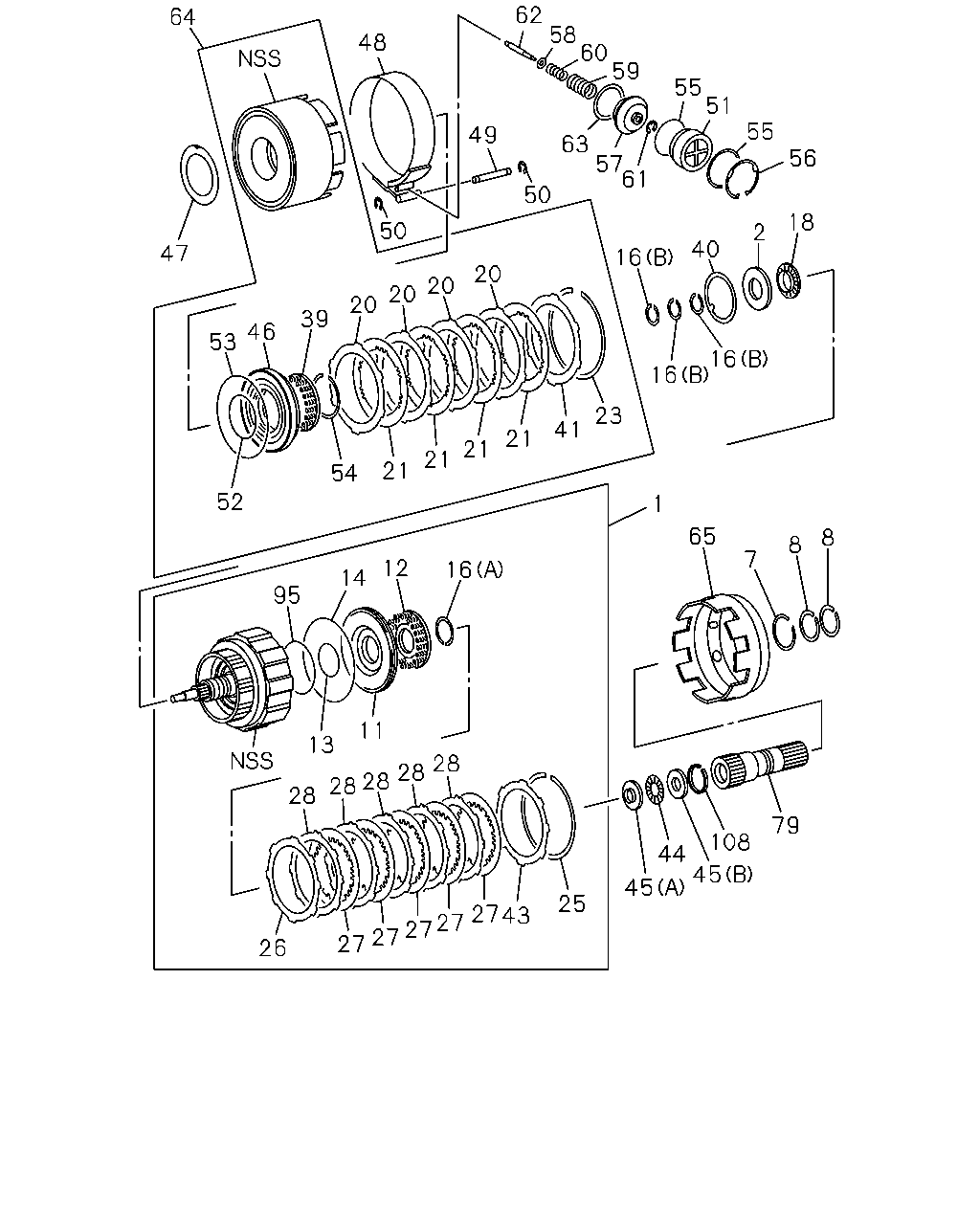

2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#73271) — 329 parça

62 58 60 59 64 48 55 51 55 49 63 57 61 56 50 18 50 2 40 47 16 20 39 46 53 16 16 23 41 54 21 1 52 65 16 8 12 8 7 14 95 11 13 28 28 28 28 28 28 79 108 44 45 45 25 27 27 27 27 27 26 27 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JG2 ENG(RJC)	8-97184-340-0	01	1	9801-	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JX1 ENG(RJM)	8-97232-038-0	01	1	9909-	●
2	04.164 RACE; THRUST BRG,A/T 4JG2 ENG(RJC) 04.472	8-94479-763-0	01	1	9801-9908	●
2	04.164 RACE; THRUST BRG,A/T 04.472	8-94479-763-0	01	1	9909-	●
7	04.159 RING; RET,PLANETARY GEAR,A/T 4JG2 ENG(RJC)	8-94479-844-0	01	1	9801-9908	●
7	04.159 RING; RET,PLANETARY GEAR,A/T	8-94479-844-0	01	1	9909-	●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 4JG2 ENG(RJC)	8-94166-003-0	02	1	9801-9908	●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T	8-94166-003-0	02	1	9909-	●
11	04.166 PISTON ASM; CLU,A/T 4JG2 ENG(RJC)	8-97025-836-0	01	1	9801-	●
11	04.166 PISTON ASM; CLU,A/T 4JX1 ENG(RJM)	8-97232-055-0	01	1	9909-	●
12	04.164 SPRING; CLU RETURN,A/T 4JG2 ENG(RJC)	8-94479-770-0	01	1	9801-9908	●
12	04.164 SPRING; CLU RETURN,A/T	8-94479-770-0	01	1	9909-	●
13	04.166 GASKET; INNER,CLU,A/T 4JG2 ENG(RJC)	8-94364-919-0	01	1	9801-9908	●
13	04.166 GASKET; INNER,CLU,A/T	8-94364-919-0	01	1	9909-	●
14	04.166 GASKET; OUTER,CLU,A/T 4JG2 ENG(RJC)	8-94364-920-0	01	1	9801-9908	●
14	04.166 GASKET; OUTER,CLU,A/T	8-94364-920-0	01	1	9909-	●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC) (A)	8-94479-769-0	01	1	9801-9908	●
16	04.166 RING; SNAP,CLU,A/T (A)	8-94479-769-0	01	1	9909-	●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC) (B)	8-94479-775-0	03	1	9801-9908	●
16	04.166 RING; SNAP,CLU,A/T (B)	8-94479-775-0	03	1	9909-	●
18	04.164 BEARING; THRUST,CLU,A/T 4JG2 ENG(RJC)	8-94479-764-0	01	1	9801-9908	●
18	04.164 BEARING; THRUST,CLU,A/T	8-94479-764-0	01	1	9909-	●
20	04.163 DISC; CLU,A/T 4JG2 ENG(RJC)	8-94479-785-0	04	1	9801-9807	●
20	04.163 DISC; CLU,A/T 4JG2 ENG(RJC)	8-97214-543-0	04	1	9808-	●
20	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-057-0	01	1	9909-	●
21	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97143-084-0	04	1	9801-0105	●
21	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97214-544-0	04	1	0106-	●
21	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM)	8-97214-544-0	01	1	9909-	●
23	04.164 RING; RET,CLU,A/T 4JG2 ENG(RJC)	8-94479-795-0	01	1	9801-9807	●
23	04.164 RING; RET,CLU,A/T 4JG2 ENG(RJC)	8-97214-553-0	01	1	9808-9908	●
23	04.164 RING; RET,CLU,A/T	8-97214-553-0	01	1	9909-	●
25	04.164 RING; RET,BACKING PLATE,A/T 4JG2 ENG(RJC)	8-94250-342-0	01	1	9801-9908	●
25	04.164 RING; RET,BACKING PLATE,A/T	8-94250-342-0	01	1	9909-	●
26	04.163 PLATE; CLU,BACKING,A/T 4JG2 ENG(RJC)	8-94479-772-0	01	1	9801-9908	●
26	04.163 PLATE; CLU,BACKING,A/T	8-94479-772-0	01	1	9909-	●
27	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97143-083-0	05	1	9801-	●
27	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM) T=1.7	8-97232-041-0	06	1	9909-	●
28	04.163 DISC; CLU,A/T 4JG2 ENG(RJC) OPT	8-97184-342-0	05	1	9801-	●
28	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-058-0	06	1	9909-	●
39	04.164 SPRING; DIRECT CLU RETURN 4JG2 ENG(RJC)	8-97019-543-0	01	1	9801-9908	●
39	04.164 SPRING; DIRECT CLU RETURN	8-97019-543-0	01	1	9909-	●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH 4JG2 ENG(RJC)	8-94479-796-0	01	1	9801-9908	●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH	8-94479-796-0	01	1	9909-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.6	8-94479-787-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.0	8-97214-545-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.0	8-97214-545-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.0	8-97214-545-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-94479-788-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.1	8-97214-546-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.1	8-97214-546-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.1	8-97214-546-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-94479-789-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.2	8-97214-547-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.2	8-97214-547-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.2	8-97214-547-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-94479-790-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-97214-548-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.3	8-97214-548-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.3	8-97214-548-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.2	8-94479-791-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-97214-549-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.4	8-97214-549-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.4	8-97214-549-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.1	8-94479-792-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-97214-550-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.5	8-97214-550-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.5	8-97214-550-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.0	8-94479-793-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.9	8-97214-551-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.9	8-97214-551-0	01	1	9909-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.7	8-94479-794-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=4.0	8-97214-552-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=4.0	8-97214-552-0	01	1	9909-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-97288-908-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-97288-909-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-97288-910-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.6	8-97288-911-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.7	8-97288-912-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.8	8-97288-913-0	01	1	0106-	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=4.0	8-97025-839-0	01	1	9801-0105	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=3.2	8-97025-840-0	01	1	9801-0105	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=3.0	8-97025-841-0	01	1	9801-9908	●
43	04.164 FLANGE; FWD CLU T=3.0	8-97025-841-0	01	1	9909-	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=3.6	8-97025-842-0	01	1	9801-0105	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=4.2	8-97025-843-0	01	1	9801-9908	●
43	04.164 FLANGE; FWD CLU T=4.2	8-97025-843-0	01	1	9909-	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=4.4	8-97025-844-0	01	1	9801-9908	●
43	04.164 FLANGE; FWD CLU T=4.4	8-97025-844-0	01	1	9909-	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=3.8	8-97025-845-0	01	1	9801-0105	●
43	04.164 FLANGE; FWD CLU 4JG2 ENG(RJC) T=3.4	8-97025-846-0	01	1	9801-0105	●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.6	8-97232-043-0	01	1	9909-0105	●
43	04.164 FLANGE; FWD CLU T=3.6	8-97232-043-0	01	1	0106-	●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.8	8-97232-044-0	01	1	9909-0105	●
43	04.164 FLANGE; FWD CLU T=3.8	8-97232-044-0	01	1	0106-	●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=4.0	8-97232-045-0	01	1	9909-0105	●
43	04.164 FLANGE; FWD CLU T=4.0	8-97232-045-0	01	1	0106-	●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.2	8-97232-046-0	01	1	9909-0105	●
43	04.164 FLANGE; FWD CLU T=3.2	8-97232-046-0	01	1	0106-	●
43	04.164 FLANGE; FWD CLU 4JX1 ENG(RJM) T=3.4	8-97232-047-0	01	1	9909-0105	●
43	04.164 FLANGE; FWD CLU T=3.4	8-97232-047-0	01	1	0106-	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR 4JG2 ENG(RJC)	8-94479-778-0	01	1	9801-9908	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR	8-94479-778-0	01	1	9909-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC) (A)	8-94479-776-0	01	1	9801-9908	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT (A)	8-94479-776-0	01	1	9909-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC) 04.180 (B)	8-94479-777-0	01	1	9801-9908	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 04.180 (B)	8-94479-777-0	01	1	9909-	●
46	04.166 PISTON; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-94364-921-0	01	1	9801-9908	●
46	04.166 PISTON; DIRECT CLU,A/T	8-94364-921-0	01	1	9909-	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM 4JG2 ENG(RJC)	8-94479-779-0	01	1	9801-9908	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM	8-94479-779-0	01	1	9909-	●
48	04.251 BAND; 2ND COAST BRK 4JG2 ENG(RJC)	8-97143-086-0	01	1	9801-9908	●
48	04.251 BAND; 2ND COAST BRK	8-97143-086-0	01	1	9909-	●
49	04.169 PIN; 2ND COAST BRK BAND 4JG2 ENG(RJC)	8-94479-825-0	01	1	9801-9908	●
49	04.169 PIN; 2ND COAST BRK BAND	8-94479-825-0	01	1	9909-	●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 4JG2 ENG(RJC) 04.166	8-94479-818-0	02	1	9801-9908	●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 04.166	8-94479-818-0	02	1	9909-	●
51	04.166 COVER; 2ND COAST BRK,A/T 4JG2 ENG(RJC)	8-94479-822-0	01	1	9801-9908	●
51	04.166 COVER; 2ND COAST BRK,A/T	8-94479-822-0	01	1	9909-	●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 4JG2 ENG(RJC) 04.460	8-97184-321-0	01	1	9801-9908	●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 04.460	8-97184-321-0	01	1	9909-	●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 4JG2 ENG(RJC) 04.166	8-94364-920-0	01	1	9801-9908	●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 04.166	8-94364-920-0	01	1	9909-	●
54	04.166 RING; SNAP,PISTON RETURN SPRING 4JG2 ENG(RJC)	8-94479-783-0	01	1	9801-9908	●
54	04.166 RING; SNAP,PISTON RETURN SPRING	8-94479-783-0	01	1	9909-	●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T 4JG2 ENG(RJC)	8-94479-824-0	02	1	9801-9908	●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T	8-94479-824-0	02	1	9909-	●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A 4JG2 ENG(RJC)	8-97069-458-0	01	1	9801-9908	●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A	8-97069-458-0	01	1	9909-	●
57	04.166 PISTON; 2ND COAST BRK,A/T 4JG2 ENG(RJC)	8-97143-132-0	01	1	9801-9908	●
57	04.166 PISTON; 2ND COAST BRK,A/T	8-97143-132-0	01	1	9909-	●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T 4JG2 ENG(RJC)	8-94479-817-0	01	1	9801-9908	●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T	8-94479-817-0	01	1	9909-	●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST 4JG2 ENG(RJC)	8-94479-812-0	01	1	9801-9908	●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST	8-94479-812-0	01	1	9909-	●
60	04.164 SPRING; INNER,2ND COAST BRK PIST 4JG2 ENG(RJC)	8-94479-815-0	01	1	9801-9908	●
60	04.164 SPRING; INNER,2ND COAST BRK PIST	8-94479-815-0	01	1	9909-	●
61	04.166 RING; SNAP,2ND COAST BRK 4JG2 ENG(RJC)	8-94479-818-0	01	1	9801-9908	●
61	04.166 RING; SNAP,2ND COAST BRK	8-94479-818-0	01	1	9909-	●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC) L=71.4	8-94479-816-0	01	1	9801-9908	●
62	04.164 ROD; 2ND COAST BRK PISTON L=71.4	8-94479-816-0	01	1	9909-	●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC) L=72.9	8-94479-820-0	01	1	9801-9908	●
62	04.164 ROD; 2ND COAST BRK PISTON L=72.9	8-94479-820-0	01	1	9909-	●
63	04.164 RING; SEAL,2ND COAST BRK PISTON 4JG2 ENG(RJC)	8-94479-813-0	01	1	9801-9908	●
63	04.164 RING; SEAL,2ND COAST BRK PISTON	8-94479-813-0	01	1	9909-	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97184-343-0	01	1	9801-9807	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97218-998-0	01	1	9808-9809	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97218-988-0	01	1	9810-9908	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97218-988-0	01	1	0006-0105	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97214-542-0	01	1	0106-	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-97232-039-0	01	1	9909-	●
65	04.169 DRUM; SUN GEAR INPUT 4JG2 ENG(RJC)	8-97024-255-0	01	1	9801-9908	●
65	04.169 DRUM; SUN GEAR INPUT	8-97024-255-0	01	1	9909-	●
79	04.262 GEAR ASM; INPUT SUN 4JG2 ENG(RJC) 04.159	8-94479-846-0	01	1	9801-9908	●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94479-846-0	01	1	9909-	●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-		●
95	04.166 GASKET; CLU HUB 4JG2 ENG(RJC)	8-97122-978-0	01	1	9801-9908	●
95	04.166 GASKET; CLU HUB	8-97122-978-0	01	1	9909-	●
108	04.159 RING; SNAP,SUN GEAR 4JG2 ENG(RJC)	8-94479-845-0	01	1	9801-9908	●
108	04.159 RING; SNAP,SUN GEAR	8-94479-845-0	01	1	9909-	●

62 58 60 59 64 48 55 51 55 49 63 57 61 56 50 18 50 2 40 47 16 20 20 20 20 39 46 53 16 16 23 41 21 21 21 21 54 52 1 65 8 8 7 12 16 14 95 11 13 28 28 28 28 28 79 108 44 45 45 25 27 27 27 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JG2 ENG(RJC)	8-97184-340-0	01	1	9801-	●
1	04.164 HUB ASM; CLU,INPUT SHAFT,A/T 4JX1 ENG(RJM)	8-97232-038-0	01	1	9909-	●
2	04.164 RACE; THRUST BRG,A/T 4JG2 ENG(RJC) 04.472	8-94479-763-0	01	1	9801-9908	●
2	04.164 RACE; THRUST BRG,A/T 04.472	8-94479-763-0	01	1	9909-	●
7	04.159 RING; RET,PLANETARY GEAR,A/T 4JG2 ENG(RJC)	8-94479-844-0	01	1	9801-9908	●
7	04.159 RING; RET,PLANETARY GEAR,A/T	8-94479-844-0	01	1	9909-	●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T 4JG2 ENG(RJC)	8-94166-003-0	02	1	9801-9908	●
8	04.169 RING; SEAL,PLANETARY GEAR,A/T	8-94166-003-0	02	1	9909-	●
11	04.166 PISTON ASM; CLU,A/T 4JG2 ENG(RJC)	8-97025-836-0	01	1	9801-	●
11	04.166 PISTON ASM; CLU,A/T 4JX1 ENG(RJM)	8-97232-055-0	01	1	9909-	●
12	04.164 SPRING; CLU RETURN,A/T 4JG2 ENG(RJC)	8-94479-770-0	01	1	9801-9908	●
12	04.164 SPRING; CLU RETURN,A/T	8-94479-770-0	01	1	9909-	●
13	04.166 GASKET; INNER,CLU,A/T 4JG2 ENG(RJC)	8-94364-919-0	01	1	9801-9908	●
13	04.166 GASKET; INNER,CLU,A/T	8-94364-919-0	01	1	9909-	●
14	04.166 GASKET; OUTER,CLU,A/T 4JG2 ENG(RJC)	8-94364-920-0	01	1	9801-9908	●
14	04.166 GASKET; OUTER,CLU,A/T	8-94364-920-0	01	1	9909-	●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC) (A)	8-94479-769-0	01	1	9801-9908	●
16	04.166 RING; SNAP,CLU,A/T (A)	8-94479-769-0	01	1	9909-	●
16	04.166 RING; SNAP,CLU,A/T 4JG2 ENG(RJC) (B)	8-94479-775-0	03	1	9801-9908	●
16	04.166 RING; SNAP,CLU,A/T (B)	8-94479-775-0	03	1	9909-	●
18	04.164 BEARING; THRUST,CLU,A/T 4JG2 ENG(RJC)	8-94479-764-0	01	1	9801-9908	●
18	04.164 BEARING; THRUST,CLU,A/T	8-94479-764-0	01	1	9909-	●
20	04.163 DISC; CLU,A/T 4JG2 ENG(RJC)	8-94479-785-0	04	1	9801-9807	●
20	04.163 DISC; CLU,A/T 4JG2 ENG(RJC)	8-97214-543-0	04	1	9808-	●
20	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-057-0	01	1	9909-	●
21	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97143-084-0	04	1	9801-0105	●
21	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97214-544-0	04	1	0106-	●
21	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM)	8-97214-544-0	01	1	9909-	●
23	04.164 RING; RET,CLU,A/T 4JG2 ENG(RJC)	8-94479-795-0	01	1	9801-9807	●
23	04.164 RING; RET,CLU,A/T 4JG2 ENG(RJC)	8-97214-553-0	01	1	9808-9908	●
23	04.164 RING; RET,CLU,A/T	8-97214-553-0	01	1	9909-	●
25	04.164 RING; RET,BACKING PLATE,A/T 4JG2 ENG(RJC)	8-94250-342-0	01	1	9801-9908	●
25	04.164 RING; RET,BACKING PLATE,A/T	8-94250-342-0	01	1	9909-	●
26	04.163 PLATE; CLU,BACKING,A/T 4JG2 ENG(RJC)	8-94479-772-0	01	1	9801-9908	●
26	04.163 PLATE; CLU,BACKING,A/T	8-94479-772-0	01	1	9909-	●
27	04.163 DISC ASM; CLU & FACING,A/T 4JG2 ENG(RJC)	8-97143-083-0	05	1	9801-	●
27	04.163 DISC ASM; CLU & FACING,A/T 4JX1 ENG(RJM) T=1.7	8-97232-041-0	06	1	9909-	●
28	04.163 DISC; CLU,A/T 4JG2 ENG(RJC) OPT	8-97184-342-0	05	1	9801-	●
28	04.163 DISC; CLU,A/T 4JX1 ENG(RJM)	8-97232-058-0	06	1	9909-	●
39	04.164 SPRING; DIRECT CLU RETURN 4JG2 ENG(RJC)	8-97019-543-0	01	1	9801-9908	●
39	04.164 SPRING; DIRECT CLU RETURN	8-97019-543-0	01	1	9909-	●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH 4JG2 ENG(RJC)	8-94479-796-0	01	1	9801-9908	●
40	04.164 WASHER; THRUST,CLU DRUM,INPUT SH	8-94479-796-0	01	1	9909-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.6	8-94479-787-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.0	8-97214-545-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.0	8-97214-545-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.0	8-97214-545-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-94479-788-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.1	8-97214-546-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.1	8-97214-546-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.1	8-97214-546-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-94479-789-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.2	8-97214-547-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.2	8-97214-547-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.2	8-97214-547-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-94479-790-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-97214-548-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.3	8-97214-548-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.3	8-97214-548-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.2	8-94479-791-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-97214-549-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.4	8-97214-549-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.4	8-97214-549-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.1	8-94479-792-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-97214-550-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.5	8-97214-550-0	01	1	9909-0105	●
41	04.164 FLANGE; DIRECT CLU 4JX1 ENG(RJM) T=3.5	8-97214-550-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.0	8-94479-793-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.9	8-97214-551-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=3.9	8-97214-551-0	01	1	9909-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.7	8-94479-794-0	01	1	9801-9807	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=4.0	8-97214-552-0	01	1	9808-9908	●
41	04.164 FLANGE; DIRECT CLU T=4.0	8-97214-552-0	01	1	9909-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.3	8-97288-908-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.4	8-97288-909-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.5	8-97288-910-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.6	8-97288-911-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.7	8-97288-912-0	01	1	0106-	●
41	04.164 FLANGE; DIRECT CLU 4JG2 ENG(RJC) T=3.8	8-97288-913-0	01	1	0106-	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR 4JG2 ENG(RJC)	8-94479-778-0	01	1	9801-9908	●
44	04.164 BEARING; THRUST,INPUT SHAFT RR	8-94479-778-0	01	1	9909-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC) (A)	8-94479-776-0	01	1	9801-9908	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT (A)	8-94479-776-0	01	1	9909-	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 4JG2 ENG(RJC) 04.180 (B)	8-94479-777-0	01	1	9801-9908	●
45	04.164 RACE; THRUST BRG,INPUT SHAFT 04.180 (B)	8-94479-777-0	01	1	9909-	●
46	04.166 PISTON; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-94364-921-0	01	1	9801-9908	●
46	04.166 PISTON; DIRECT CLU,A/T	8-94364-921-0	01	1	9909-	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM 4JG2 ENG(RJC)	8-94479-779-0	01	1	9801-9908	●
47	04.164 WASHER; THRUST,DIRECT CLU DRUM	8-94479-779-0	01	1	9909-	●
48	04.251 BAND; 2ND COAST BRK 4JG2 ENG(RJC)	8-97143-086-0	01	1	9801-9908	●
48	04.251 BAND; 2ND COAST BRK	8-97143-086-0	01	1	9909-	●
49	04.169 PIN; 2ND COAST BRK BAND 4JG2 ENG(RJC)	8-94479-825-0	01	1	9801-9908	●
49	04.169 PIN; 2ND COAST BRK BAND	8-94479-825-0	01	1	9909-	●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 4JG2 ENG(RJC) 04.166	8-94479-818-0	02	1	9801-9908	●
50	04.169 RING; SNAP,2ND COAST BRK BAND,A/ 04.166	8-94479-818-0	02	1	9909-	●
51	04.166 COVER; 2ND COAST BRK,A/T 4JG2 ENG(RJC)	8-94479-822-0	01	1	9801-9908	●
51	04.166 COVER; 2ND COAST BRK,A/T	8-94479-822-0	01	1	9909-	●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 4JG2 ENG(RJC) 04.460	8-97184-321-0	01	1	9801-9908	●
52	04.167 GASKET; PISTON INNER,DIRECT CLU, 04.460	8-97184-321-0	01	1	9909-	●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 4JG2 ENG(RJC) 04.166	8-94364-920-0	01	1	9801-9908	●
53	04.167 GASKET; PISTON OUTER,DIRECT CLU, 04.166	8-94364-920-0	01	1	9909-	●
54	04.166 RING; SNAP,PISTON RETURN SPRING 4JG2 ENG(RJC)	8-94479-783-0	01	1	9801-9908	●
54	04.166 RING; SNAP,PISTON RETURN SPRING	8-94479-783-0	01	1	9909-	●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T 4JG2 ENG(RJC)	8-94479-824-0	02	1	9801-9908	●
55	04.167 GASKET; COVER,2ND COAST BRK,A/T	8-94479-824-0	02	1	9909-	●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A 4JG2 ENG(RJC)	8-97069-458-0	01	1	9801-9908	●
56	04.166 RING; SNAP,2ND COAST BRK COVER,A	8-97069-458-0	01	1	9909-	●
57	04.166 PISTON; 2ND COAST BRK,A/T 4JG2 ENG(RJC)	8-97143-132-0	01	1	9801-9908	●
57	04.166 PISTON; 2ND COAST BRK,A/T	8-97143-132-0	01	1	9909-	●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T 4JG2 ENG(RJC)	8-94479-817-0	01	1	9801-9908	●
58	04.164 WASHER; 2ND COAST BRK PISTON,A/T	8-94479-817-0	01	1	9909-	●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST 4JG2 ENG(RJC)	8-94479-812-0	01	1	9801-9908	●
59	04.164 SPRING; OUTER,2ND COAST BRK PIST	8-94479-812-0	01	1	9909-	●
60	04.164 SPRING; INNER,2ND COAST BRK PIST 4JG2 ENG(RJC)	8-94479-815-0	01	1	9801-9908	●
60	04.164 SPRING; INNER,2ND COAST BRK PIST	8-94479-815-0	01	1	9909-	●
61	04.166 RING; SNAP,2ND COAST BRK 4JG2 ENG(RJC)	8-94479-818-0	01	1	9801-9908	●
61	04.166 RING; SNAP,2ND COAST BRK	8-94479-818-0	01	1	9909-	●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC) L=71.4	8-94479-816-0	01	1	9801-9908	●
62	04.164 ROD; 2ND COAST BRK PISTON L=71.4	8-94479-816-0	01	1	9909-	●
62	04.164 ROD; 2ND COAST BRK PISTON 4JG2 ENG(RJC) L=72.9	8-94479-820-0	01	1	9801-9908	●
62	04.164 ROD; 2ND COAST BRK PISTON L=72.9	8-94479-820-0	01	1	9909-	●
63	04.164 RING; SEAL,2ND COAST BRK PISTON 4JG2 ENG(RJC)	8-94479-813-0	01	1	9801-9908	●
63	04.164 RING; SEAL,2ND COAST BRK PISTON	8-94479-813-0	01	1	9909-	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97184-343-0	01	1	9801-9807	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97218-998-0	01	1	9808-9809	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97218-988-0	01	1	9810-9908	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97218-988-0	01	1	0006-0105	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JG2 ENG(RJC)	8-97214-542-0	01	1	0106-	●
64	04.169 DRUM ASM; DIRECT CLU,A/T 4JX1 ENG(RJM)	8-97232-039-0	01	1	9909-	●
65	04.169 DRUM; SUN GEAR INPUT 4JG2 ENG(RJC)	8-97024-255-0	01	1	9801-9908	●
65	04.169 DRUM; SUN GEAR INPUT	8-97024-255-0	01	1	9909-	●
79	04.262 GEAR ASM; INPUT SUN 4JG2 ENG(RJC) 04.159	8-94479-846-0	01	1	9801-9908	●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94479-846-0	01	1	9909-	●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-		●
95	04.166 GASKET; CLU HUB 4JG2 ENG(RJC)	8-97122-978-0	01	1	9801-9908	●
95	04.166 GASKET; CLU HUB	8-97122-978-0	01	1	9909-	●
108	04.159 RING; SNAP,SUN GEAR 4JG2 ENG(RJC)	8-94479-845-0	01	1	9801-9908	●
108	04.159 RING; SNAP,SUN GEAR	8-94479-845-0	01	1	9909-	●

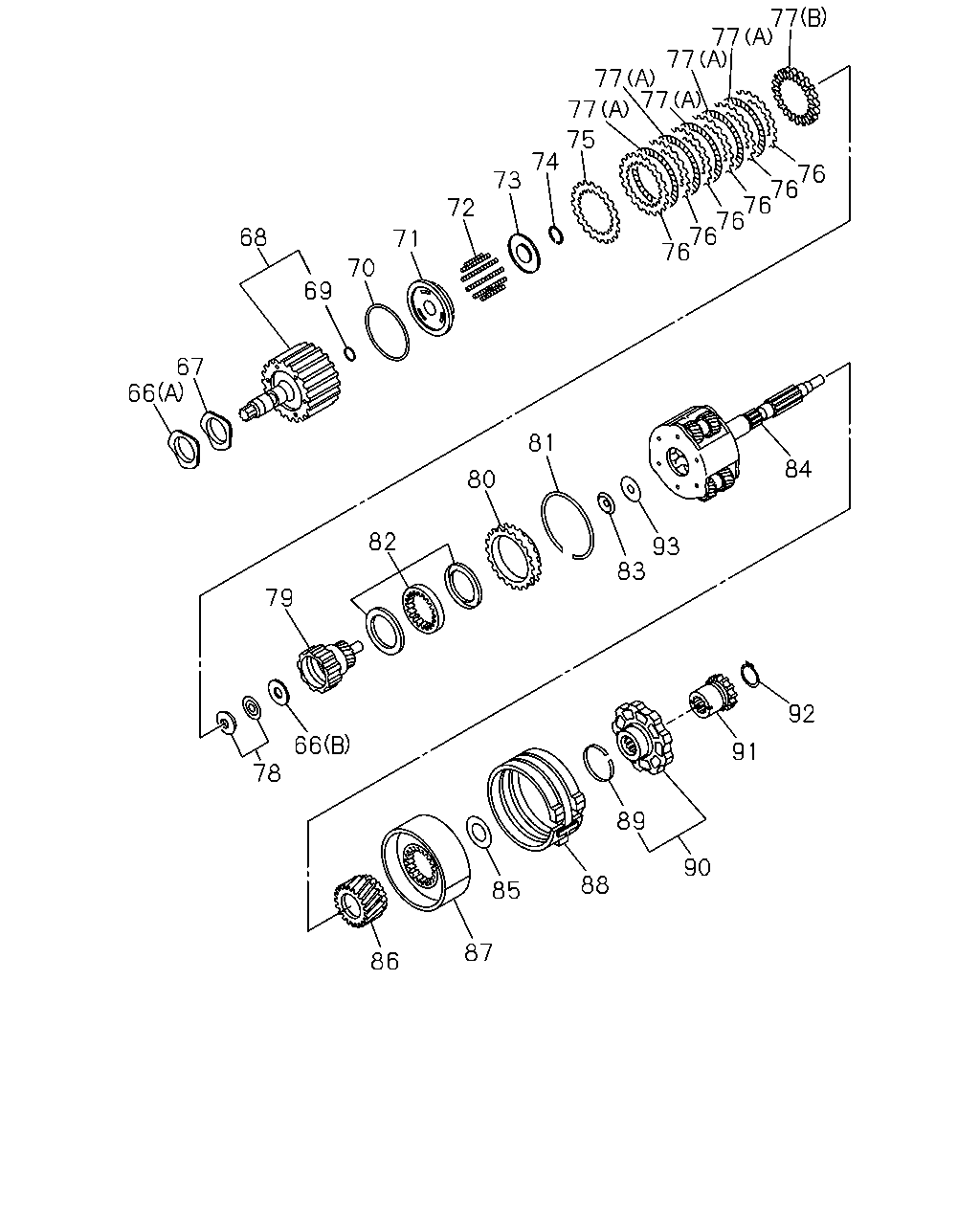

77 77 77 77 77 77 75 74 76 76 76 76 76 76 73 72 68 71 70 69 67 66 81 84 80 82 93 83 79 92 66 91 78 89 90 88 85 87 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.169 WASHER; THRUST,3RD CLU (A)	8-96013-403-0	01	1	9712-		●
66	04.169 WASHER; THRUST,3RD CLU 04.158 (B)	8-96015-459-0	01	1	9712-		●
67	04.169 WASHER; THRUST,CLU HUB	8-05258-945-0	01	1	9712-		●
68	04.169 DRUM; 3RD CLU	8-96041-095-0	01	1	9712-		●
69	04.262 SEAL; 3RD CLU PISTON INNER	8-96018-543-0	01	1	9712-		●
70	04.262 SEAL; 3RD CLU PISTON OUTER	8-96014-296-0	01	1	9712-		●
71	04.262 PISTON; 3RD CLU 04.116	8-96016-223-0	01	1	9712-		●
72	04.262 SPRING; PISTON CLU	8-08958-719-0	12	1	9712-		●
73	04.262 SEAT; SPR,3RD CLU	8-05258-039-0	01	1	9712-		●
74	04.262 RING; RET	8-05258-094-0	01	1	9712-		●
75	04.262 PLATE; SPR,CLU	8-96017-603-0	01	1	9712-		●
76	04.262 PLATE; 3RD CLU	8-05258-955-0	06	1	9712-		●
77	04.262 PLATE ASM; 3RD CLU (B)	8-96017-370-0	01	1	9712-		●
77	04.262 PLATE ASM; 3RD CLU (A)	8-96017-371-0	05	1	9712-		●
78	04.262 WASHER & THRUST BEARING KIT	8-96040-078-0	01	1	9712-		●
79	04.262 GEAR ASM; INPUT SUN 4JG2 ENG(RJC) 04.159	8-94479-846-0	01	1	9801-9908	●
79	04.262 GEAR ASM; INPUT SUN 04.159	8-94479-846-0	01	1	9909-	●
79	04.262 GEAR ASM; INPUT SUN	8-96016-253-0	01	1	9712-		●
80	04.262 RACE; SPRAG	8-96017-373-0	01	1	9712-		●
81	04.262 RING; RET,SPRAG	8-08958-684-0	01	1	9712-		●
82	04.256 SPRAG KIT	8-96017-149-0	01	1	9712-		●
83	04.256 BEARING; OUTPUT SHAFT	8-96014-602-0	01	1	9712-		●
84	04.256 CARRIER ASM; PLANETARY	8-96017-348-0	01	1	9712-		●
85	04.256 THRUST BEARING & WASHER KIT	8-96016-084-0	01	1	9712-		●
86	04.256 GEAR; REACTION SUN	8-96015-037-0	01	1	9712-		●
87	04.256 DRUM; REACTION SUN	8-96018-009-0	01	1	9712-		●
88	04.256 BAND; BRAKE	8-96014-805-0	01	1	9712-		●
89	04.256 SEAL; RING,PARKING LOCK	8-05258-837-0	01	1	9712-		●
90	04.256 WHEEL; PARKING LOCK	8-96016-669-0	01	1	9712-		●
91	04.256 WHEEL; SPD	8-96015-053-0	01	1	9712-		●
92	04.256 RING; RET	8-96015-123-0	01	1	9712-		●
93	04.008 WASHER; OUTPUT SHAFT 04.262	8-96014-607-0	01	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
