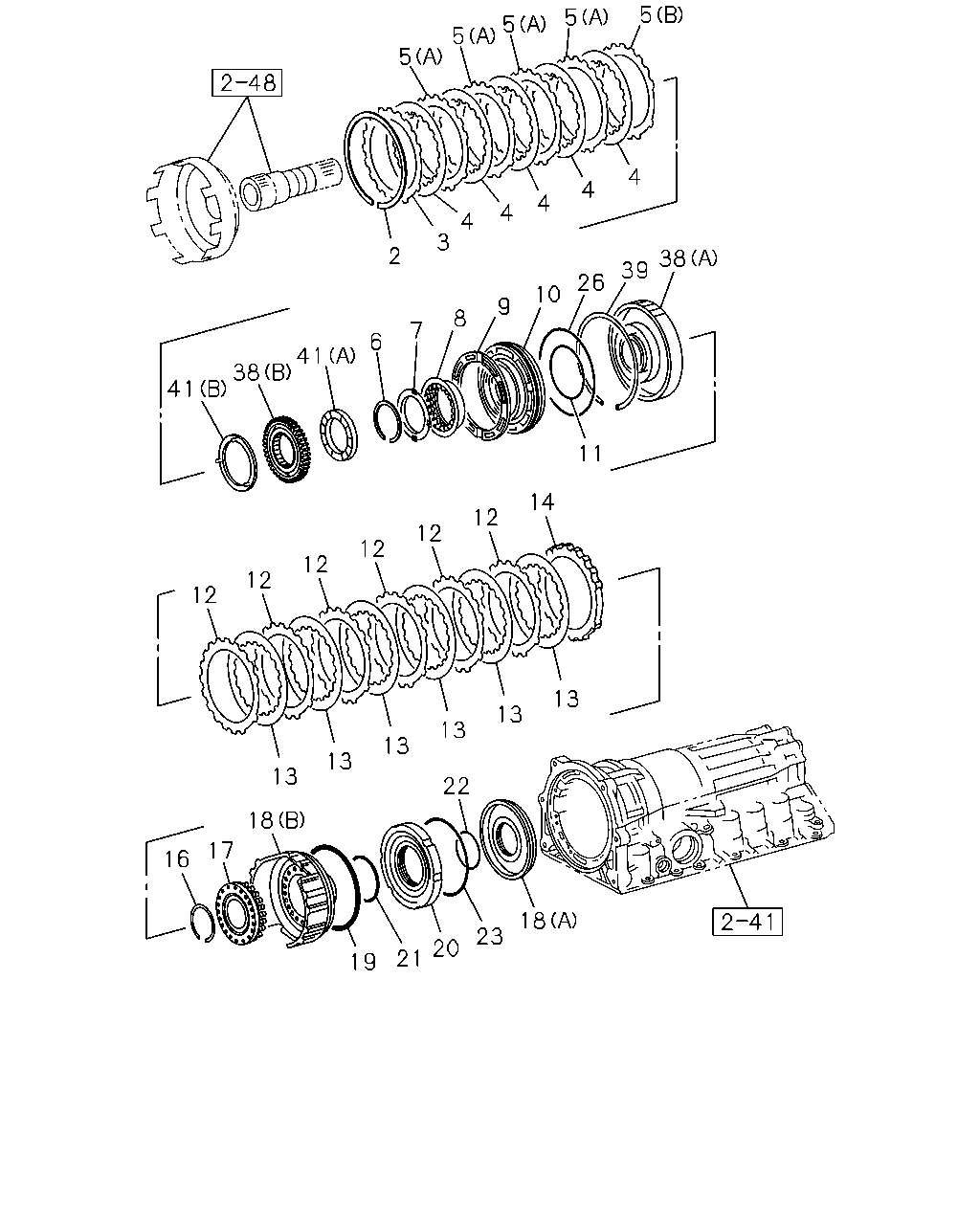

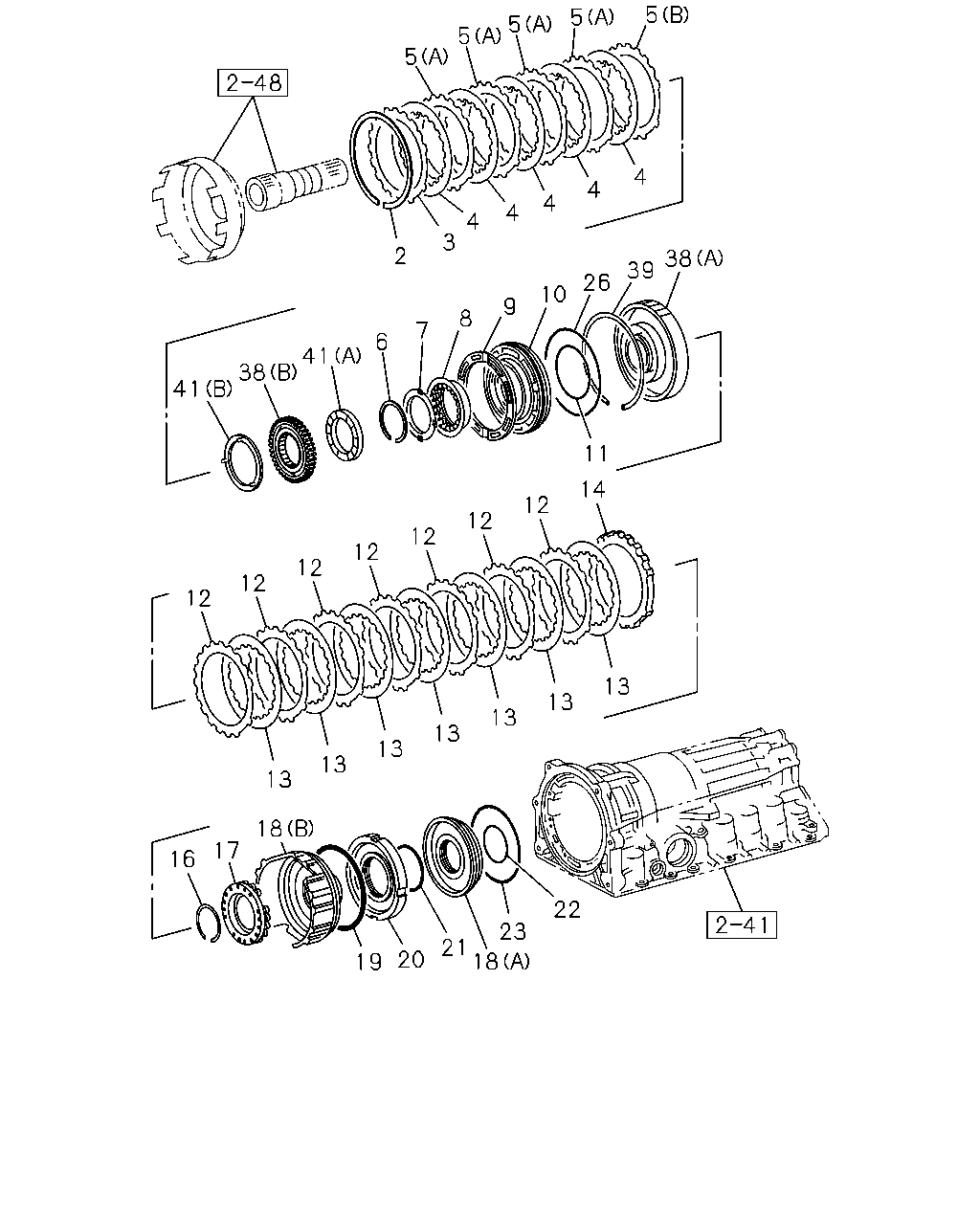

2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#73269) — 148 parça

5 5 5 5 5 4 4 4 4 4 3 2 38 39 26 10 9 8 7 6 41 38 41 11 14 12 12 12 12 12 12 12 13 13 13 13 13 13 13 18 17 16 22 23 21 20 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.166 RING; RET,FRT BRK,2ND BRK,A/T 4JG2 ENG(RJC) 04.164	8-94479-795-0	01	1	9801-9908
2	04.166 RING; RET,FRT BRK,2ND BRK,A/T 04.164	8-94479-795-0	01	1	9909-
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T 4JG2 ENG(RJC)	8-94479-806-0	01	1	9801-9908
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T	8-94479-806-0	01	1	9909-
4	04.163 DISC ASM; CLU & FACING,2ND BRK,A 4JG2 ENG(RJC)	8-97143-081-0	05	1	9801-9908
4	04.163 DISC ASM; CLU & FACING,2ND BRK,A	8-97143-081-0	05	1	9909-
5	04.163 DISC; CLU,2ND BRK,A/T 4JG2 ENG(RJC) (A)	8-94479-807-0	04	1	9801-9908
5	04.163 DISC; CLU,2ND BRK,A/T (A)	8-94479-807-0	04	1	9909-
5	04.163 DISC; CLU,2ND BRK,A/T 4JG2 ENG(RJC) (B)	8-97025-835-0	01	1	9801-9908
5	04.163 DISC; CLU,2ND BRK,A/T (B)	8-97025-835-0	01	1	9909-
6	04.166 RING; SNAP,FRT BRK,A/T 4JG2 ENG(RJC)	8-94479-804-0	01	1	9801-9908
6	04.166 RING; SNAP,FRT BRK,A/T	8-94479-804-0	01	1	9909-
7	04.163 RETAINER; BRK,RETURN SPR,FRT BRK 4JG2 ENG(RJC)	8-94479-803-0	01	1	9801-9908
7	04.163 RETAINER; BRK,RETURN SPR,FRT BRK	8-94479-803-0	01	1	9909-
8	04.166 SPRING; RETURN,FRT BRK,A/T 4JG2 ENG(RJC)	8-94479-805-0	01	1	9801-9908
8	04.166 SPRING; RETURN,FRT BRK,A/T	8-94479-805-0	01	1	9909-
9	04.166 SLEEVE; 2ND BRK PISTON 4JG2 ENG(RJC)	8-97025-834-0	01	1	9801-9908
9	04.166 SLEEVE; 2ND BRK PISTON	8-97025-834-0	01	1	9909-
10	04.166 PISTON; BRK,FRT,2ND BRK,A/T 4JG2 ENG(RJC)	8-94479-799-0	01	1	9801-9908
10	04.166 PISTON; BRK,FRT,2ND BRK,A/T	8-94479-799-0	01	1	9909-
11	04.166 GASKET; BRK PISTON,FRT,INNER,A/T 4JG2 ENG(RJC) ID=85	8-94479-800-0	01	1	9801-9908
11	04.166 GASKET; BRK PISTON,FRT,INNER,A/T ID=85	8-94479-800-0	01	1	9909-
12	04.166 PLATE; CLU,LOW & REV BRK,A/T 4JG2 ENG(RJC)	8-94479-832-0	06	1	9801-
12	04.166 PLATE; CLU,LOW & REV BRK,A/T 4JX1 ENG(RJM)	8-94479-832-0	07	1	9909-
13	04.163 DISC; CLU,LOW & REV BRK 4JG2 ENG(RJC)	8-97143-080-0	06	1	9801-0105
13	04.163 DISC; CLU,LOW & REV BRK 4JG2 ENG(RJC)	8-97232-040-0	06	1	0106-
13	04.163 DISC; CLU,LOW & REV BRK 4JX1 ENG(RJM)	8-97232-040-0	07	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=5.0	8-97019-534-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=5.0	8-97019-534-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.8	8-97019-535-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.8	8-97019-535-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.6	8-97019-536-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.6	8-97019-536-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.4	8-97019-537-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.4	8-97019-537-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.2	8-97019-538-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.2	8-97019-538-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.0	8-97019-539-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.0	8-97019-539-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=5.2	8-97184-319-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=5.2	8-97184-319-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=5.4	8-97184-320-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=5.4	8-97184-320-0	01	1	9909-
16	04.163 RETAINER; RETURN SPR,RR BRK,A/T 4JG2 ENG(RJC) 04.472	5-34268-006-0	01	1	9801-9908
16	04.163 RETAINER; RETURN SPR,RR BRK,A/T 04.472	5-34268-006-0	01	1	9909-
17	04.166 SPRING; RETURN,RR BRK,A/T 4JG2 ENG(RJC)	8-97027-216-0	01	1	9801-0105
17	04.166 SPRING; RETURN,RR BRK,A/T 4JX1 ENG(RJM)	8-97214-554-0	01	1	9909-0105
17	04.166 SPRING; RETURN,RR BRK,A/T	8-97214-554-0	01	1	0106-
18	04.166 PISTON; LOW & REV BRK,A/T 4JG2 ENG(RJC) (A)	8-94479-826-0	01	1	9801-9908
18	04.166 PISTON; LOW & REV BRK,A/T (A)	8-94479-826-0	01	1	9909-
18	04.166 PISTON; LOW & REV BRK,A/T 4JG2 ENG(RJC) (B)	8-97069-454-0	01	1	9801-
18	04.166 PISTON; LOW & REV BRK,A/T 4JX1 ENG(RJM) (B)	8-97232-056-0	01	1	9909-
19	04.166 GASKET; LOW & REV BRK PISTON 4JG2 ENG(RJC)	5-34218-004-0	01	1	9801-9908
19	04.166 GASKET; LOW & REV BRK PISTON	5-34218-004-0	01	1	9909-
20	04.166 SLEEVE; BRK REACTION,A/T 4JG2 ENG(RJC)	8-94479-827-0	01	1	9801-9908
20	04.166 SLEEVE; BRK REACTION,A/T	8-94479-827-0	01	1	9909-
21	04.166 RING; BRK REACTION SLEEVE,INNER 4JG2 ENG(RJC)	8-97184-352-0	01	1	9801-9908
21	04.166 RING; BRK REACTION SLEEVE,INNER	8-97184-352-0	01	1	9909-
22	04.166 GASKET; BRK PISTON,RR,INNER,A/T 4JG2 ENG(RJC)	8-97184-348-0	01	1	9801-9908
22	04.166 GASKET; BRK PISTON,RR,INNER,A/T	8-97184-348-0	01	1	9909-
23	04.166 GASKET; BRK PISTON,RR,OUTER,A/T 4JG2 ENG(RJC)	8-97184-353-0	01	1	9801-9908
23	04.166 GASKET; BRK PISTON,RR,OUTER,A/T	8-97184-353-0	01	1	9909-
26	04.166 GASKET; BRK PISTON,FRT,OUTER,A/T 4JG2 ENG(RJC) ID=124	8-94479-801-0	01	1	9801-9908
26	04.166 GASKET; BRK PISTON,FRT,OUTER,A/T ID=124	8-94479-801-0	01	1	9909-
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JG2 ENG(RJC) (A)	8-94479-798-0	01	1	9801-9908
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T (A)	8-94479-798-0	01	1	9909-
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JG2 ENG(RJC) (B)	8-97143-134-0	01	1	9801-9908
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T (B)	8-97143-134-0	01	1	9909-
39	04.164 RING; RET,SUN GEAR TO CLU 4JG2 ENG(RJC) 04.166	8-94479-797-0	01	1	9801-9908
39	04.164 RING; RET,SUN GEAR TO CLU 04.166	8-94479-797-0	01	1	9909-
41	04.162 WASHER; THRUST 4JG2 ENG(RJC) 04.164 (A)	8-94479-809-0	01	1	9801-9908
41	04.162 WASHER; THRUST 04.164 (A)	8-94479-809-0	01	1	9909-
41	04.162 WASHER; THRUST 4JG2 ENG(RJC) 04.164 (B)	8-94479-811-0	01	1	9801-9908
41	04.162 WASHER; THRUST 04.164 (B)	8-94479-811-0	01	1	9909-

5 5 5 5 5 4 4 4 4 4 3 2 38 39 26 10 9 8 7 6 41 38 41 11 14 12 12 12 12 12 12 13 13 13 13 13 13 22 18 17 16 18 23 20 21 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.166 RING; RET,FRT BRK,2ND BRK,A/T 4JG2 ENG(RJC) 04.164	8-94479-795-0	01	1	9801-9908
2	04.166 RING; RET,FRT BRK,2ND BRK,A/T 04.164	8-94479-795-0	01	1	9909-
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T 4JG2 ENG(RJC)	8-94479-806-0	01	1	9801-9908
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T	8-94479-806-0	01	1	9909-
4	04.163 DISC ASM; CLU & FACING,2ND BRK,A 4JG2 ENG(RJC)	8-97143-081-0	05	1	9801-9908
4	04.163 DISC ASM; CLU & FACING,2ND BRK,A	8-97143-081-0	05	1	9909-
5	04.163 DISC; CLU,2ND BRK,A/T 4JG2 ENG(RJC) (A)	8-94479-807-0	04	1	9801-9908
5	04.163 DISC; CLU,2ND BRK,A/T (A)	8-94479-807-0	04	1	9909-
5	04.163 DISC; CLU,2ND BRK,A/T 4JG2 ENG(RJC) (B)	8-97025-835-0	01	1	9801-9908
5	04.163 DISC; CLU,2ND BRK,A/T (B)	8-97025-835-0	01	1	9909-
6	04.166 RING; SNAP,FRT BRK,A/T 4JG2 ENG(RJC)	8-94479-804-0	01	1	9801-9908
6	04.166 RING; SNAP,FRT BRK,A/T	8-94479-804-0	01	1	9909-
7	04.163 RETAINER; BRK,RETURN SPR,FRT BRK 4JG2 ENG(RJC)	8-94479-803-0	01	1	9801-9908
7	04.163 RETAINER; BRK,RETURN SPR,FRT BRK	8-94479-803-0	01	1	9909-
8	04.166 SPRING; RETURN,FRT BRK,A/T 4JG2 ENG(RJC)	8-94479-805-0	01	1	9801-9908
8	04.166 SPRING; RETURN,FRT BRK,A/T	8-94479-805-0	01	1	9909-
9	04.166 SLEEVE; 2ND BRK PISTON 4JG2 ENG(RJC)	8-97025-834-0	01	1	9801-9908
9	04.166 SLEEVE; 2ND BRK PISTON	8-97025-834-0	01	1	9909-
10	04.166 PISTON; BRK,FRT,2ND BRK,A/T 4JG2 ENG(RJC)	8-94479-799-0	01	1	9801-9908
10	04.166 PISTON; BRK,FRT,2ND BRK,A/T	8-94479-799-0	01	1	9909-
11	04.166 GASKET; BRK PISTON,FRT,INNER,A/T 4JG2 ENG(RJC) ID=85	8-94479-800-0	01	1	9801-9908
11	04.166 GASKET; BRK PISTON,FRT,INNER,A/T ID=85	8-94479-800-0	01	1	9909-
12	04.166 PLATE; CLU,LOW & REV BRK,A/T 4JG2 ENG(RJC)	8-94479-832-0	06	1	9801-
12	04.166 PLATE; CLU,LOW & REV BRK,A/T 4JX1 ENG(RJM)	8-94479-832-0	07	1	9909-
13	04.163 DISC; CLU,LOW & REV BRK 4JG2 ENG(RJC)	8-97143-080-0	06	1	9801-0105
13	04.163 DISC; CLU,LOW & REV BRK 4JG2 ENG(RJC)	8-97232-040-0	06	1	0106-
13	04.163 DISC; CLU,LOW & REV BRK 4JX1 ENG(RJM)	8-97232-040-0	07	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=5.0	8-97019-534-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=5.0	8-97019-534-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.8	8-97019-535-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.8	8-97019-535-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.6	8-97019-536-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.6	8-97019-536-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.4	8-97019-537-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.4	8-97019-537-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.2	8-97019-538-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.2	8-97019-538-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=4.0	8-97019-539-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=4.0	8-97019-539-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=5.2	8-97184-319-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=5.2	8-97184-319-0	01	1	9909-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JG2 ENG(RJC) T=5.4	8-97184-320-0	01	1	9801-9908
14	04.166 FLANGE; BRK,LOW & REV BRAKE T=5.4	8-97184-320-0	01	1	9909-
16	04.163 RETAINER; RETURN SPR,RR BRK,A/T 4JG2 ENG(RJC) 04.472	5-34268-006-0	01	1	9801-9908
16	04.163 RETAINER; RETURN SPR,RR BRK,A/T 04.472	5-34268-006-0	01	1	9909-
17	04.166 SPRING; RETURN,RR BRK,A/T 4JG2 ENG(RJC)	8-97027-216-0	01	1	9801-0105
17	04.166 SPRING; RETURN,RR BRK,A/T 4JX1 ENG(RJM)	8-97214-554-0	01	1	9909-0105
17	04.166 SPRING; RETURN,RR BRK,A/T	8-97214-554-0	01	1	0106-
18	04.166 PISTON; LOW & REV BRK,A/T 4JG2 ENG(RJC) (A)	8-94479-826-0	01	1	9801-9908
18	04.166 PISTON; LOW & REV BRK,A/T (A)	8-94479-826-0	01	1	9909-
18	04.166 PISTON; LOW & REV BRK,A/T 4JG2 ENG(RJC) (B)	8-97069-454-0	01	1	9801-
18	04.166 PISTON; LOW & REV BRK,A/T 4JX1 ENG(RJM) (B)	8-97232-056-0	01	1	9909-
19	04.166 GASKET; LOW & REV BRK PISTON 4JG2 ENG(RJC)	5-34218-004-0	01	1	9801-9908
19	04.166 GASKET; LOW & REV BRK PISTON	5-34218-004-0	01	1	9909-
20	04.166 SLEEVE; BRK REACTION,A/T 4JG2 ENG(RJC)	8-94479-827-0	01	1	9801-9908
20	04.166 SLEEVE; BRK REACTION,A/T	8-94479-827-0	01	1	9909-
21	04.166 RING; BRK REACTION SLEEVE,INNER 4JG2 ENG(RJC)	8-97184-352-0	01	1	9801-9908
21	04.166 RING; BRK REACTION SLEEVE,INNER	8-97184-352-0	01	1	9909-
22	04.166 GASKET; BRK PISTON,RR,INNER,A/T 4JG2 ENG(RJC)	8-97184-348-0	01	1	9801-9908
22	04.166 GASKET; BRK PISTON,RR,INNER,A/T	8-97184-348-0	01	1	9909-
23	04.166 GASKET; BRK PISTON,RR,OUTER,A/T 4JG2 ENG(RJC)	8-97184-353-0	01	1	9801-9908
23	04.166 GASKET; BRK PISTON,RR,OUTER,A/T	8-97184-353-0	01	1	9909-
26	04.166 GASKET; BRK PISTON,FRT,OUTER,A/T 4JG2 ENG(RJC) ID=124	8-94479-801-0	01	1	9801-9908
26	04.166 GASKET; BRK PISTON,FRT,OUTER,A/T ID=124	8-94479-801-0	01	1	9909-
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JG2 ENG(RJC) (A)	8-94479-798-0	01	1	9801-9908
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T (A)	8-94479-798-0	01	1	9909-
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JG2 ENG(RJC) (B)	8-97143-134-0	01	1	9801-9908
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T (B)	8-97143-134-0	01	1	9909-
39	04.164 RING; RET,SUN GEAR TO CLU 4JG2 ENG(RJC) 04.166	8-94479-797-0	01	1	9801-9908
39	04.164 RING; RET,SUN GEAR TO CLU 04.166	8-94479-797-0	01	1	9909-
41	04.162 WASHER; THRUST 4JG2 ENG(RJC) 04.164 (A)	8-94479-809-0	01	1	9801-9908
41	04.162 WASHER; THRUST 04.164 (A)	8-94479-809-0	01	1	9909-
41	04.162 WASHER; THRUST 4JG2 ENG(RJC) 04.164 (B)	8-94479-811-0	01	1	9801-9908
41	04.162 WASHER; THRUST 04.164 (B)	8-94479-811-0	01	1	9909-
